As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda B Series |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

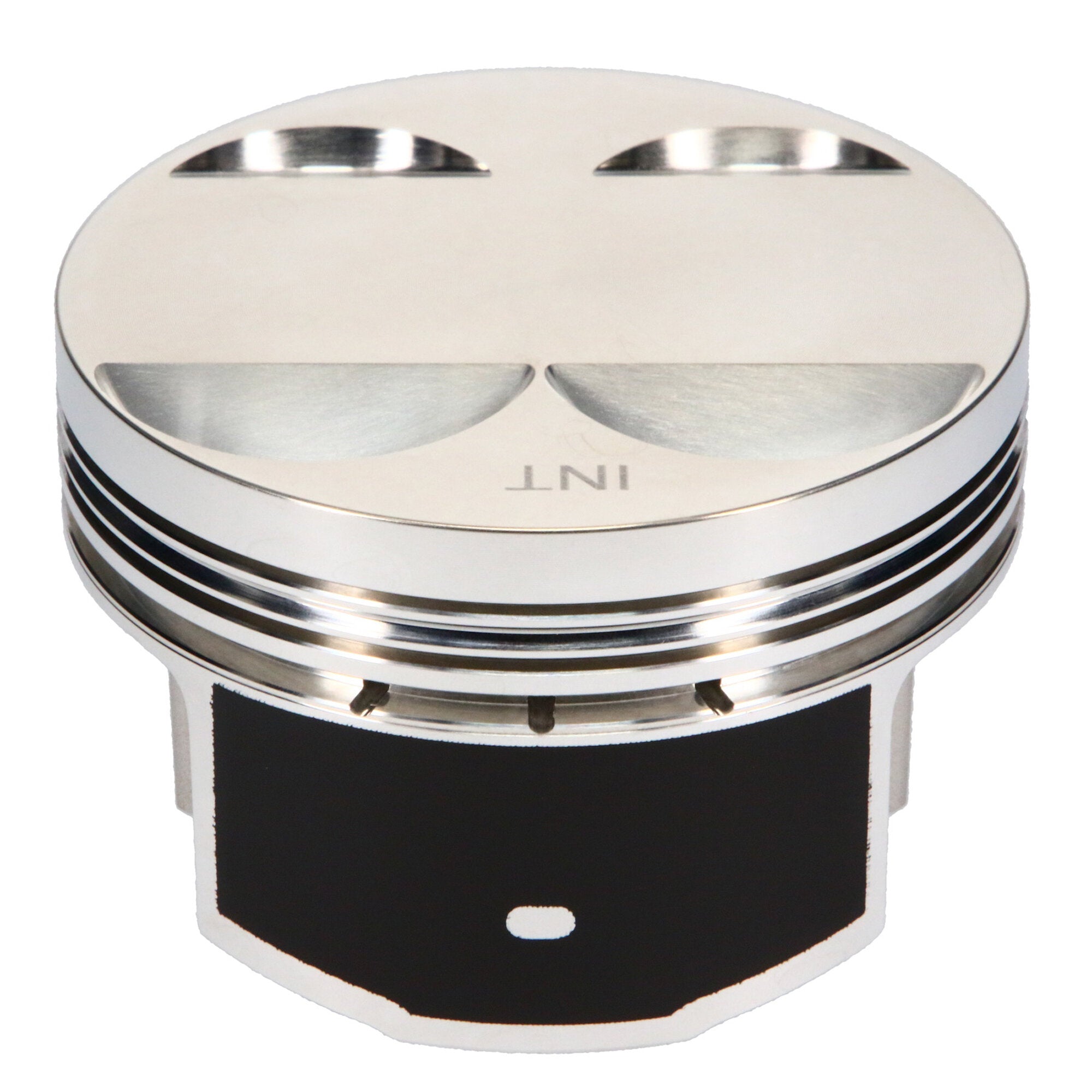

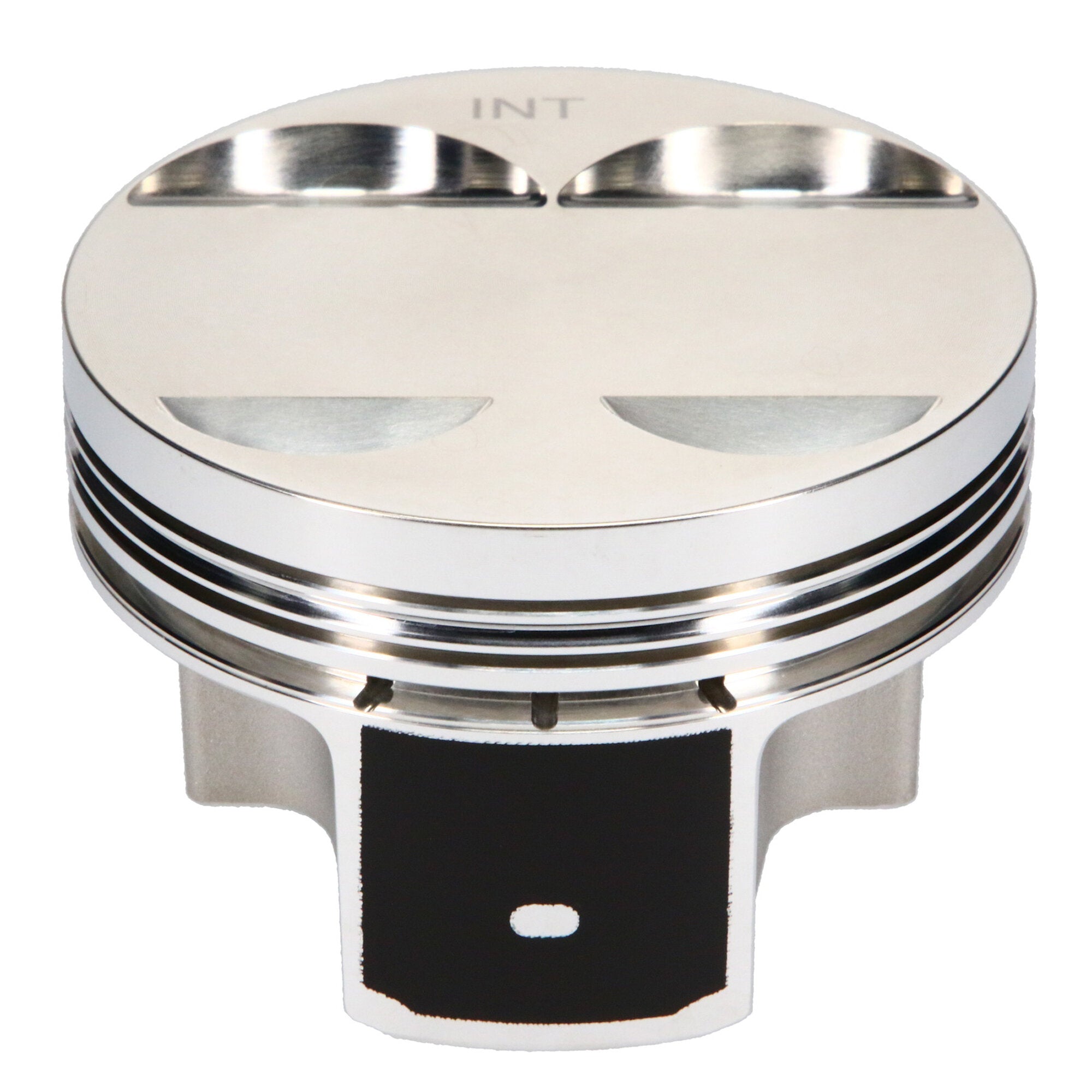

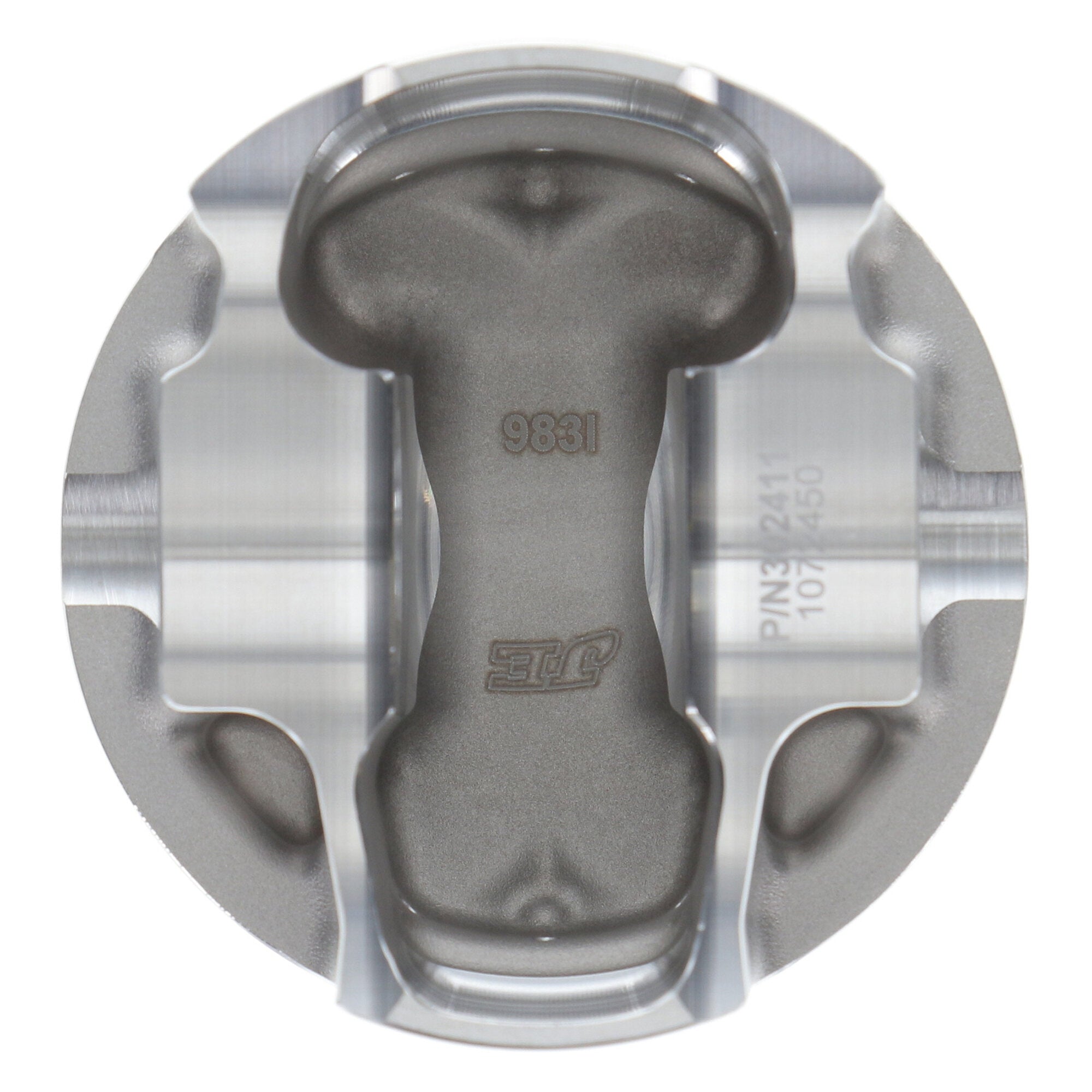

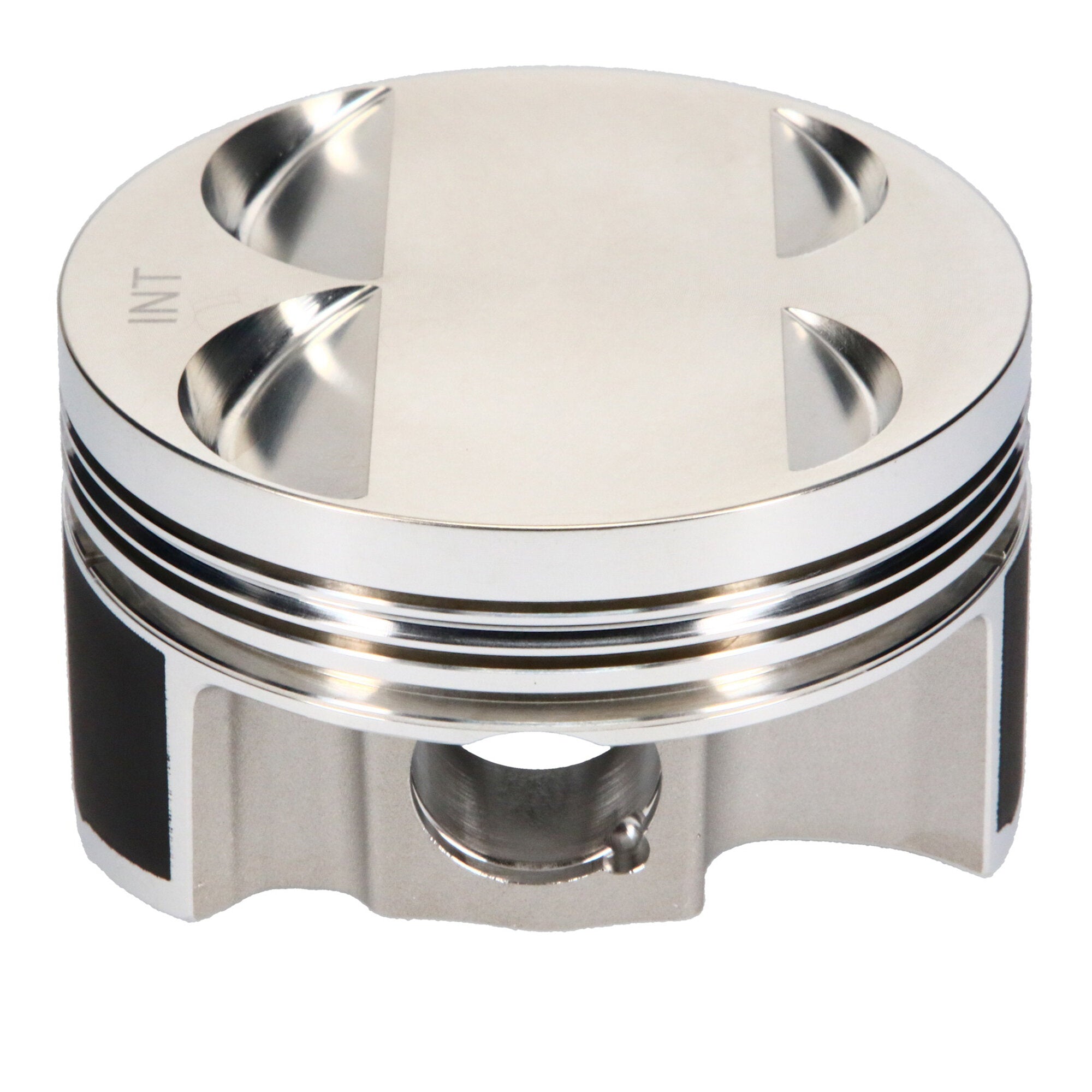

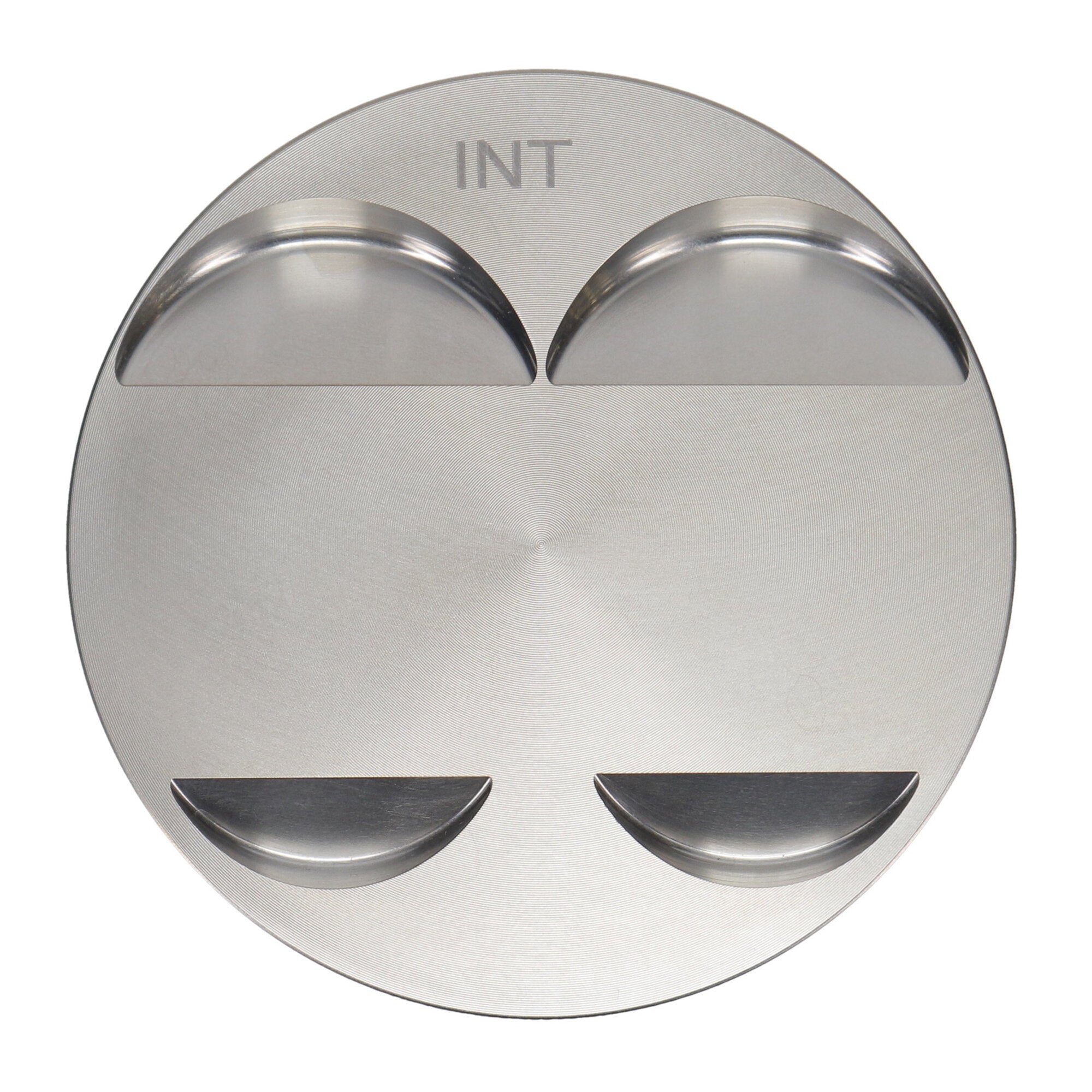

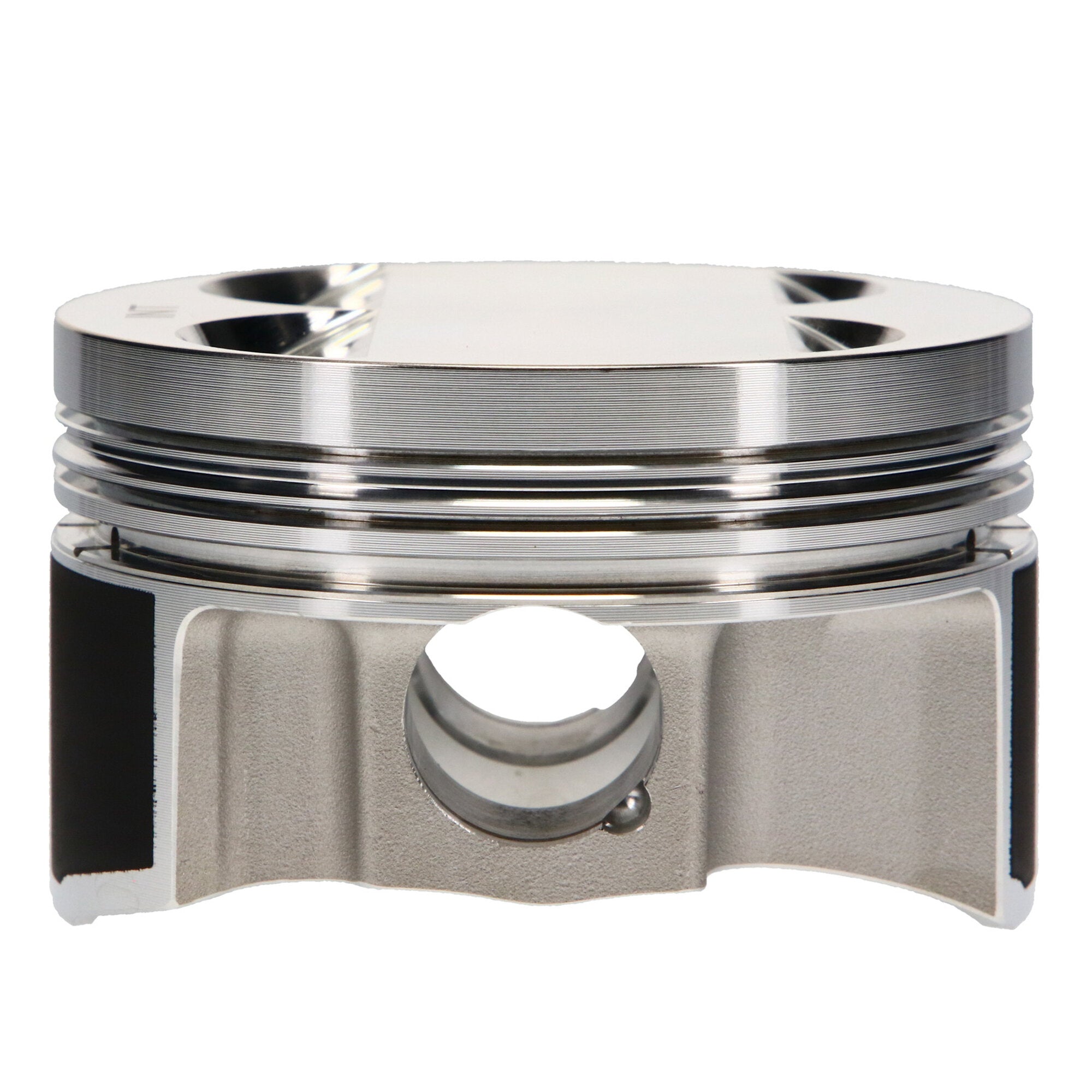

Piston Set, 2618, Flat Top, 3.268 Bore, 1.181 CD, 0.827 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Honda, B Series, 3.268 in. Bore, 10.00:1, Flat Top, 4 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda B Series, 83.00 Bore, Flat, Set of 4 |
| Piston Volume |
-2.70 |
| Piston Material |
2618 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Industry |
Automotive |
| Cylinder Head |
B18C |
| Prop 65 Yes/No |
Yes |
| Ring Set Included |
Yes |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Honda B Series Piston Kit - 83.00 mm Bore - 1.181 in. CH, -2.70 CC |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
827-063-MW |
| Piston Pin Length |
2.250 |
| Add-On |
JG1001-3268 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Series |
JE Pistons |
| Engine |
B SERIES |
| Add-On |
827-2250-15-51C |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Honda |
| Engine Type |
ICE |
| Piston Quantity |
4 |
| Piston Pin Outside Diameter |
0.827 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.111 |
| Product Market |
Sport Compact |
| Title |
JE Pistons - Honda, B Series, 83.00 mm Bore, Piston Kit |
| Make |
HONDA |
| Compression Height |
1.181 |
| Bore Diameter |
83.00 |
| Top Compression Ring Thickness |
0.0400 |
| Ringset Included |
Yes |
| Piston Head Type |
Flat |
| Forging Type |
FSR |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
B Series |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
