As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Audi 2.5L TFSI 20V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

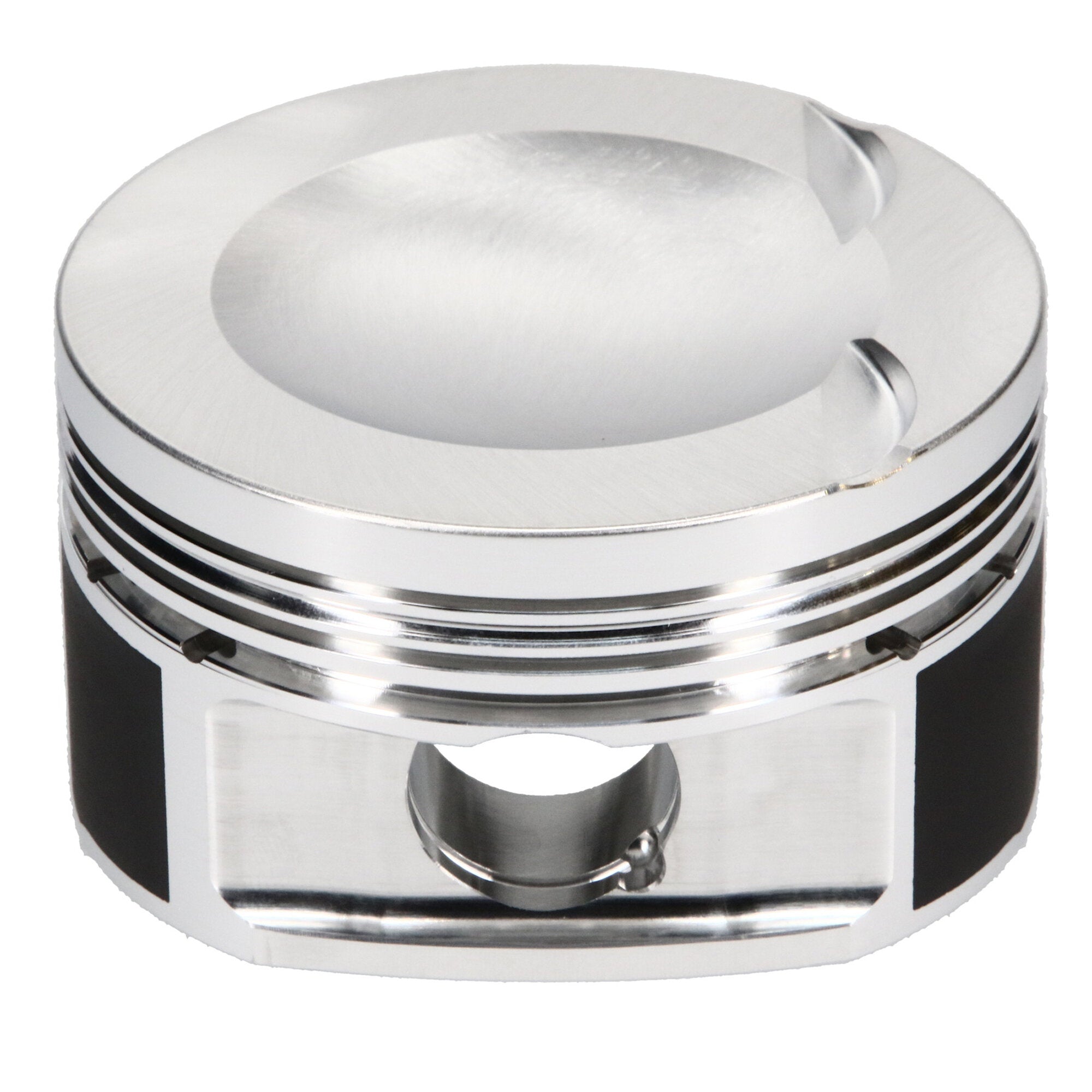

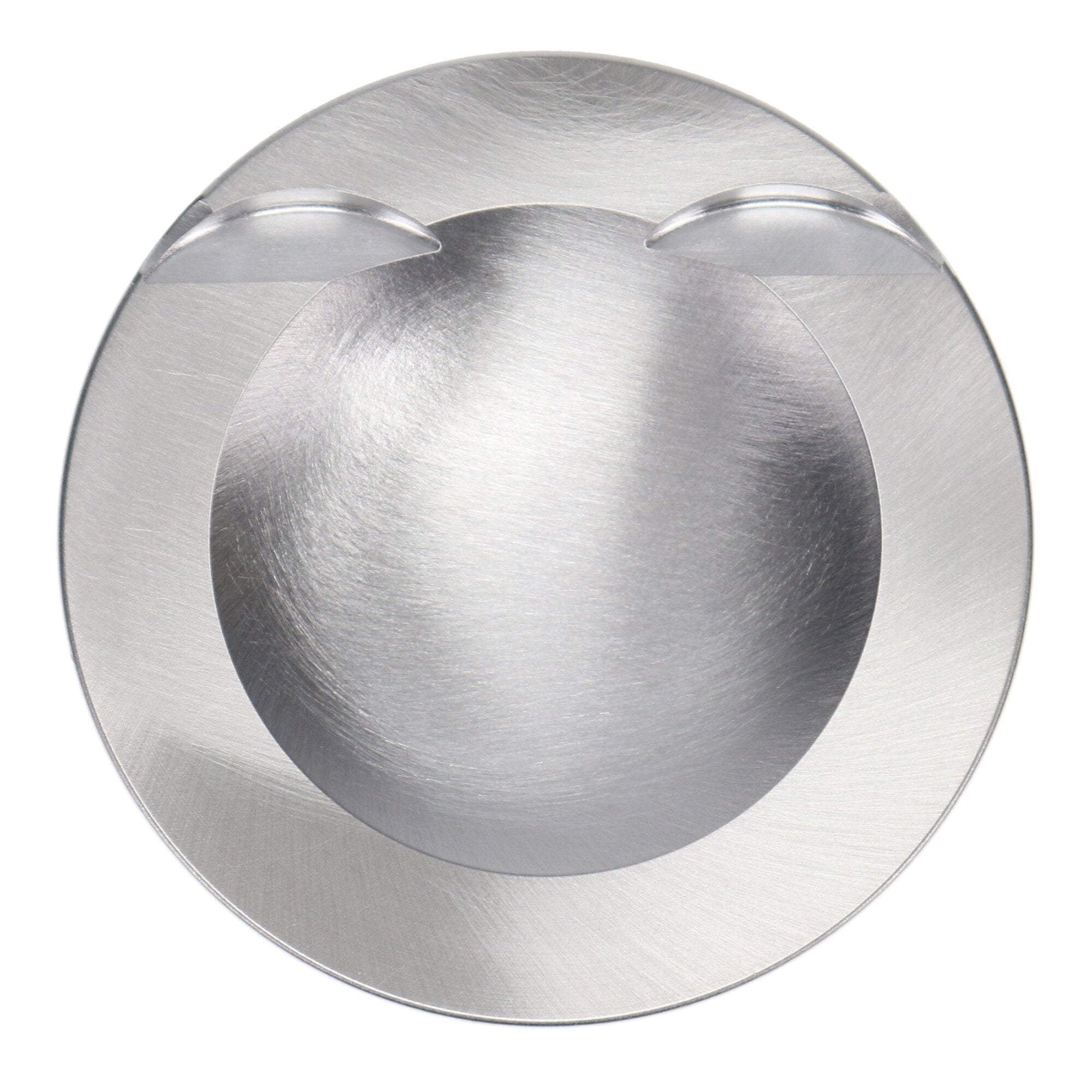

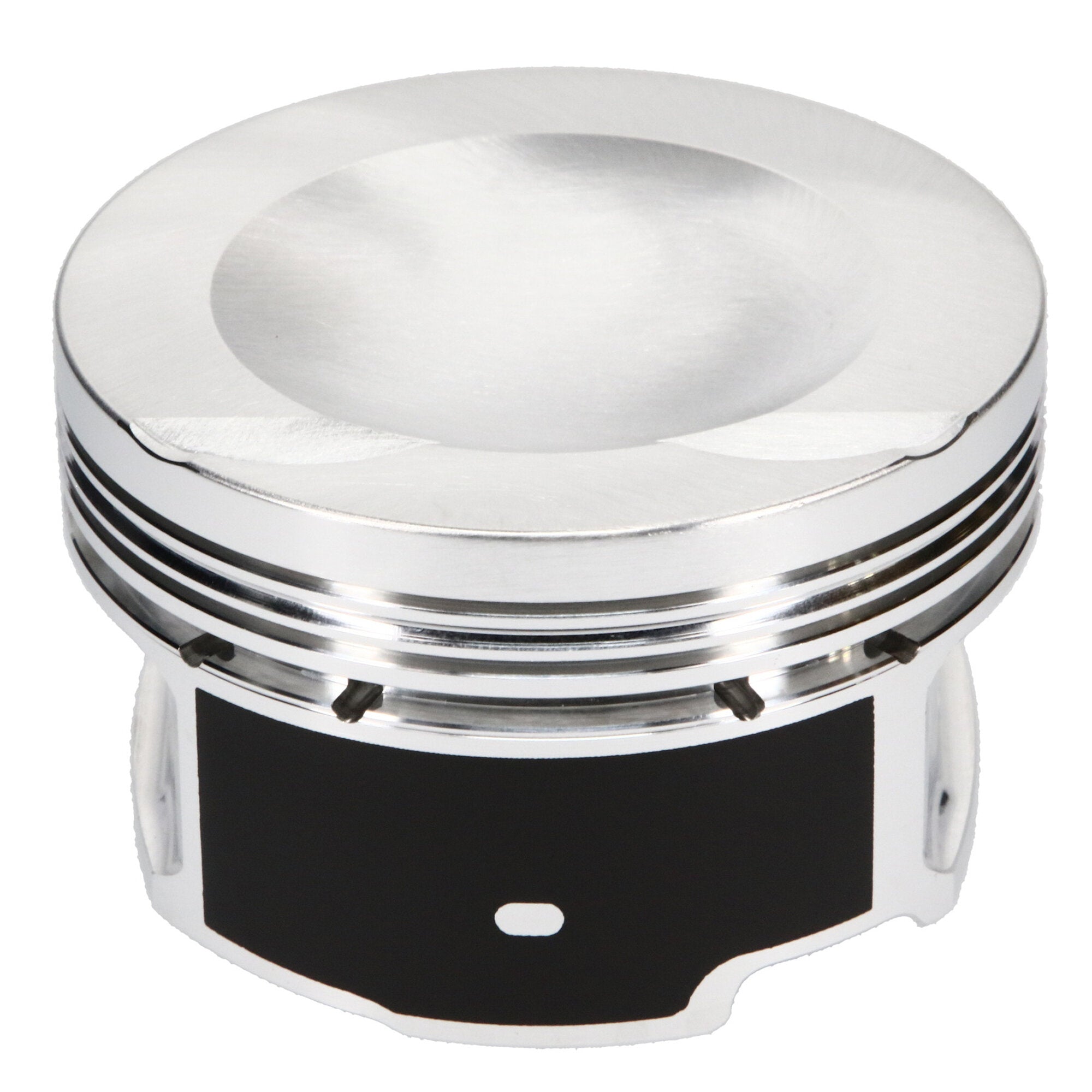

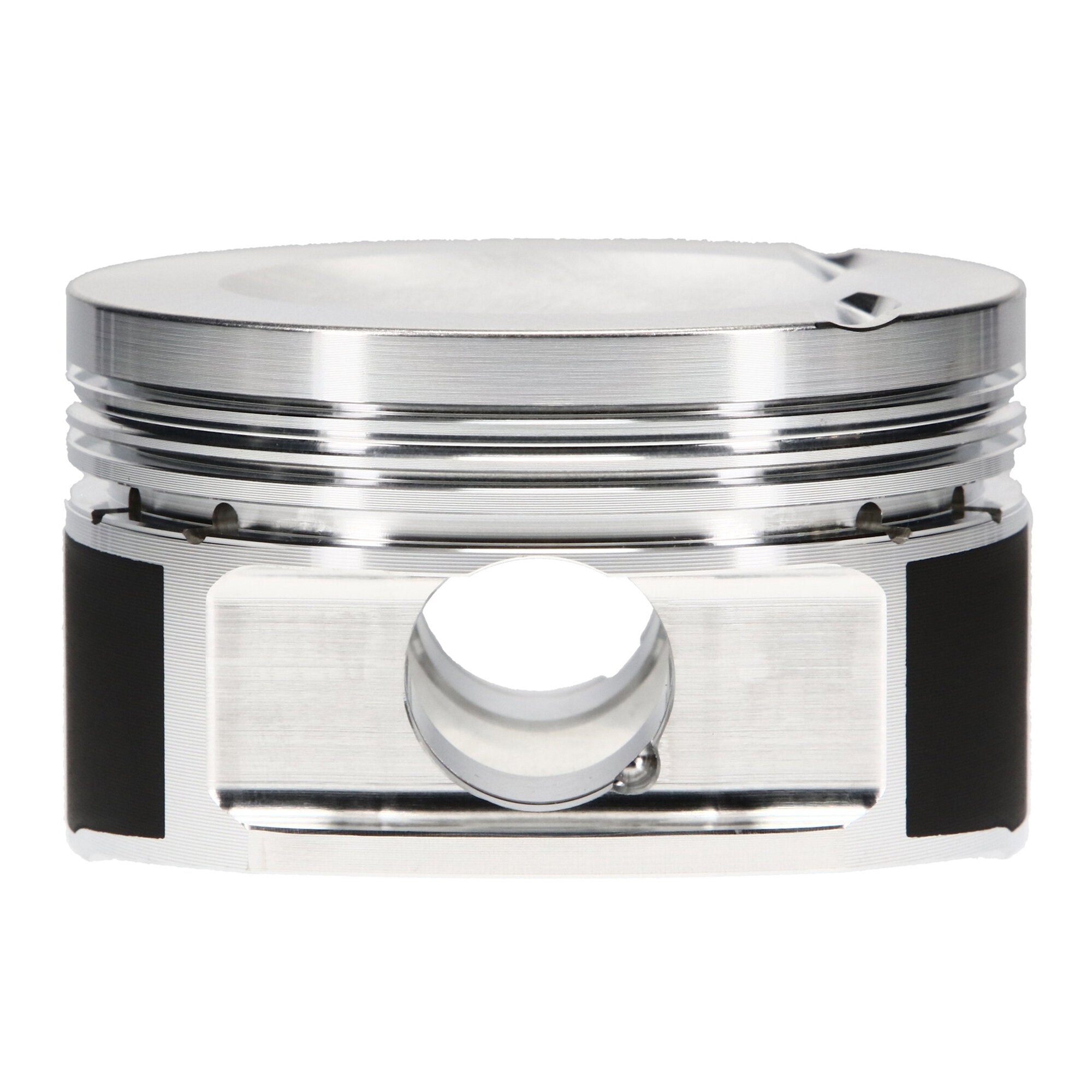

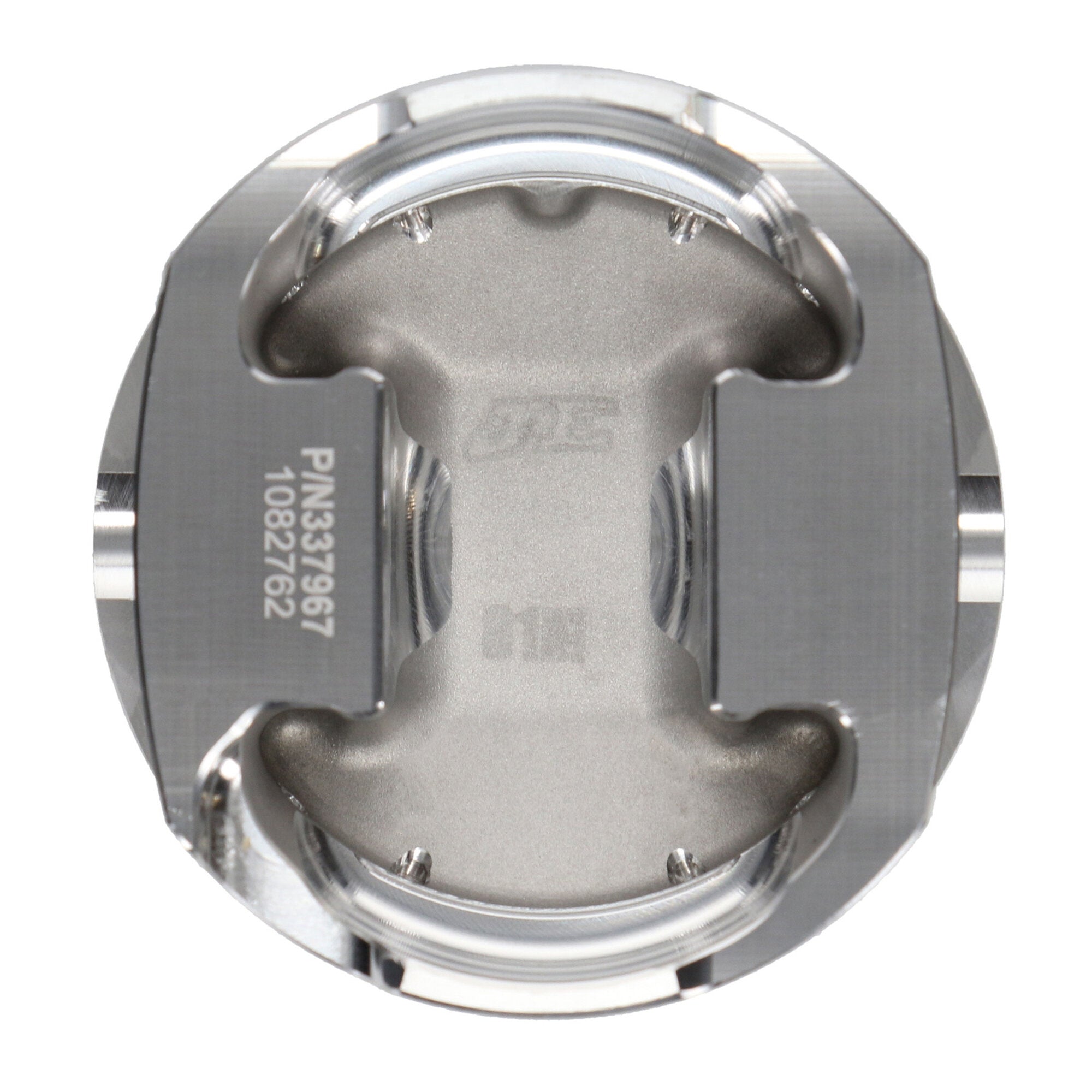

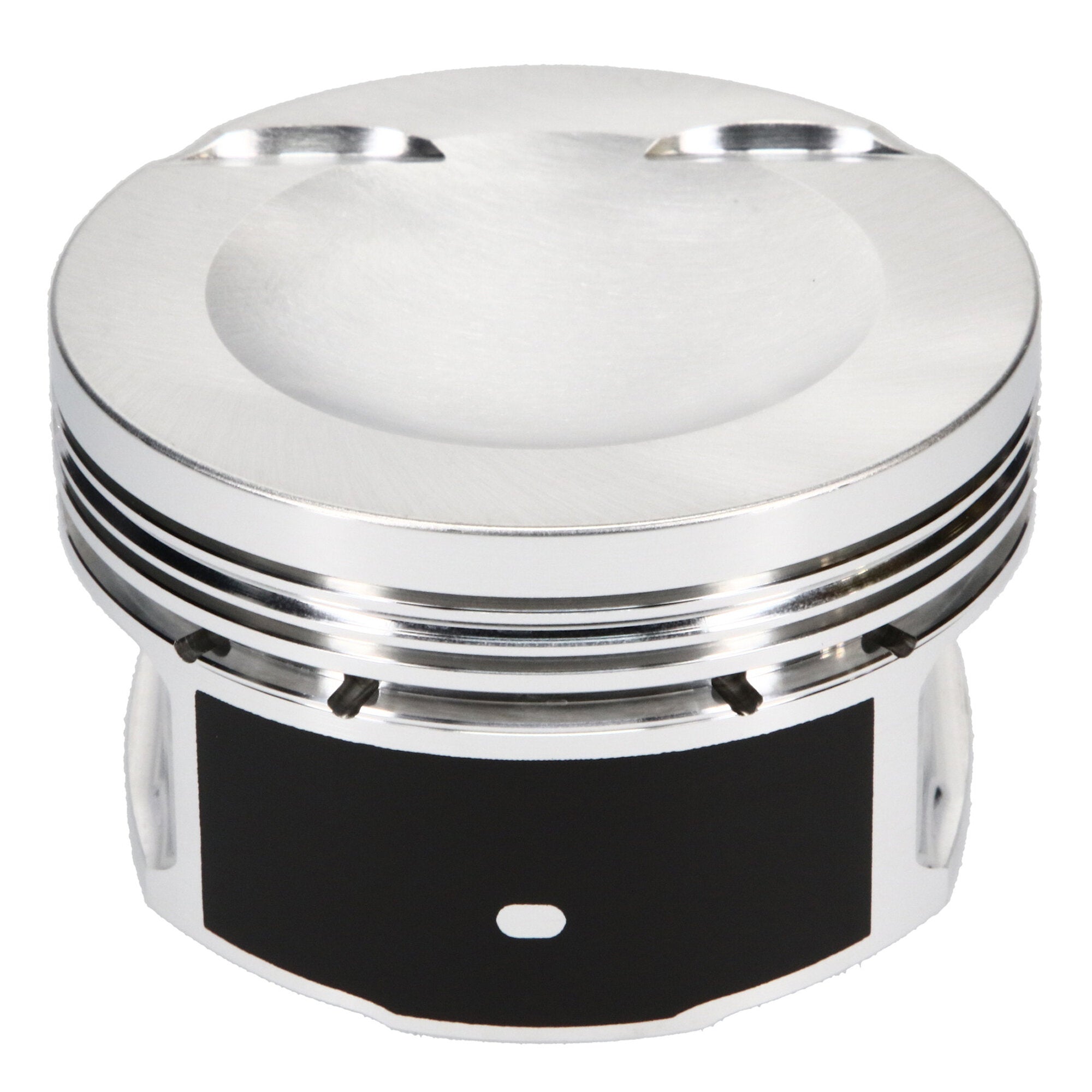

Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.165 CD, 0.866 Pin, Set of 5. |
| Description_EXT |
JE, Audi, TT RS 5 CYL, 3.268 in. Bore, 9.50:1, Inverted Dome/Dish, 5 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Audi 2.5L TFSI 20V, 83.00 Bore, Dish, Set of 5 |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3268 |
| Add-On |
866-063-MW |
| Add-On |
866-2250-15-51C |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
JE Pistons Audi TT RS 5 Cyl Piston Kit - 83.00 mm Bore - 1.165 in. CH, -8.10 CC |
| Piston Material |
2618 |
| Engine |
TT RS 5 CYL |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Audi |
| Forging Type |
Round |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Cylinder Head |
R5 TFSI 20V |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dish |
| Wrist Pin Outer Diameter |
0.866 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Volume |
-8.10 |
| Product Market |
European |
| Piston Quantity |
5 |
| Piston Pin Outside Diameter |
0.866 |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Audi, TT RS 5 Cyl, 83.00 mm Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Compression Height |
1.165 |
| Make |
AUDI |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Bore Diameter |
83.00 |
| Engine - Web |
TT RS 5 Cyl |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
