As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 2.3L Ecoboost |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

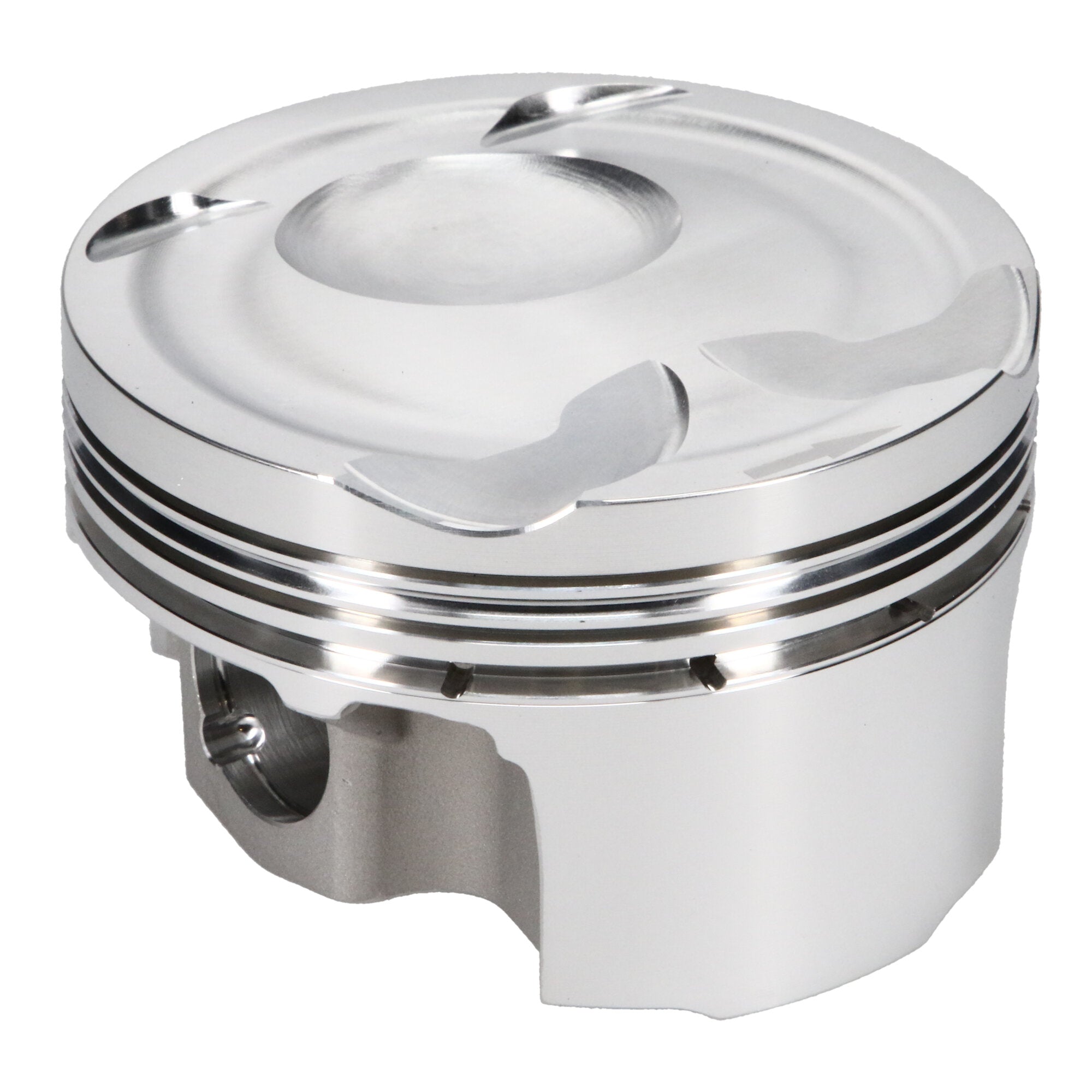

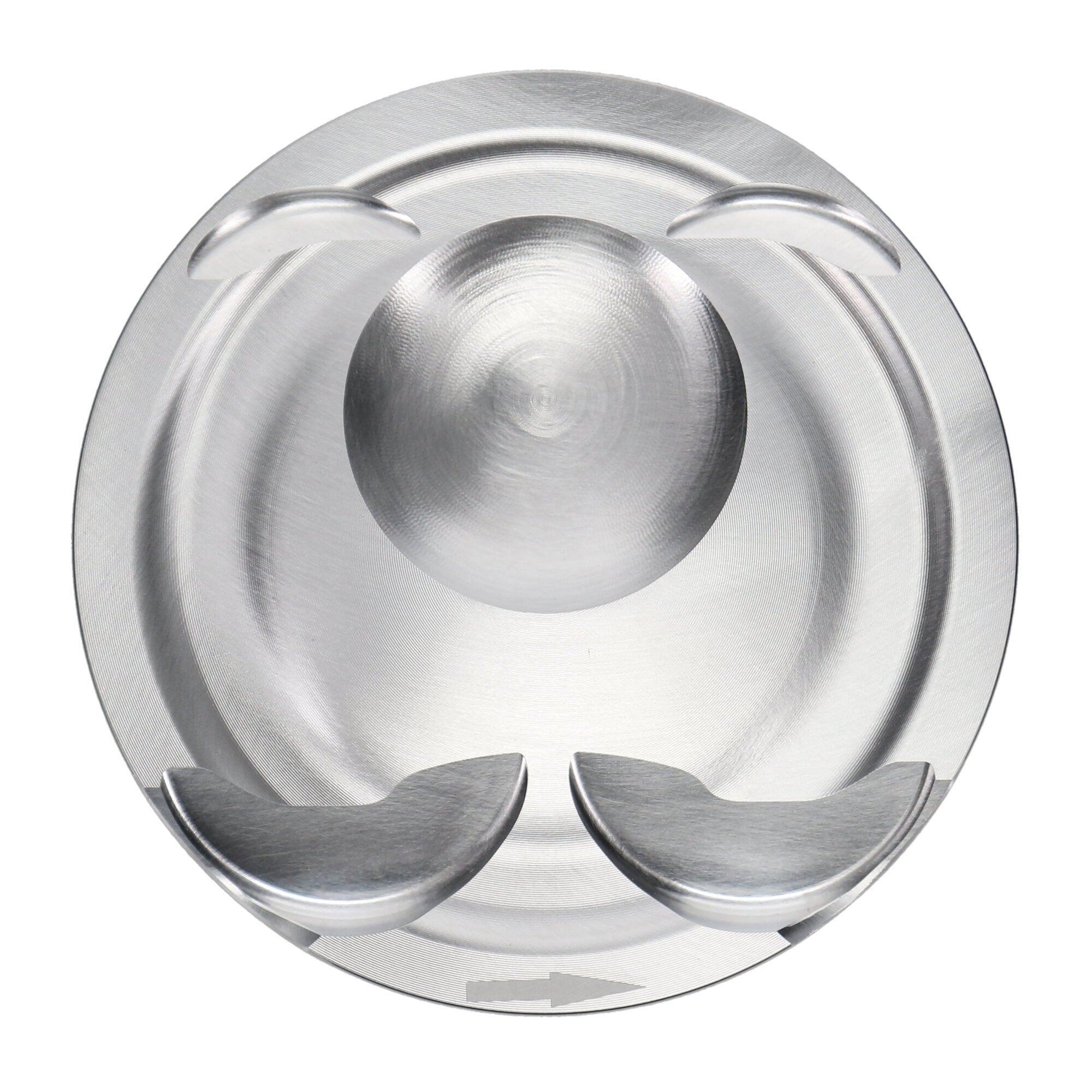

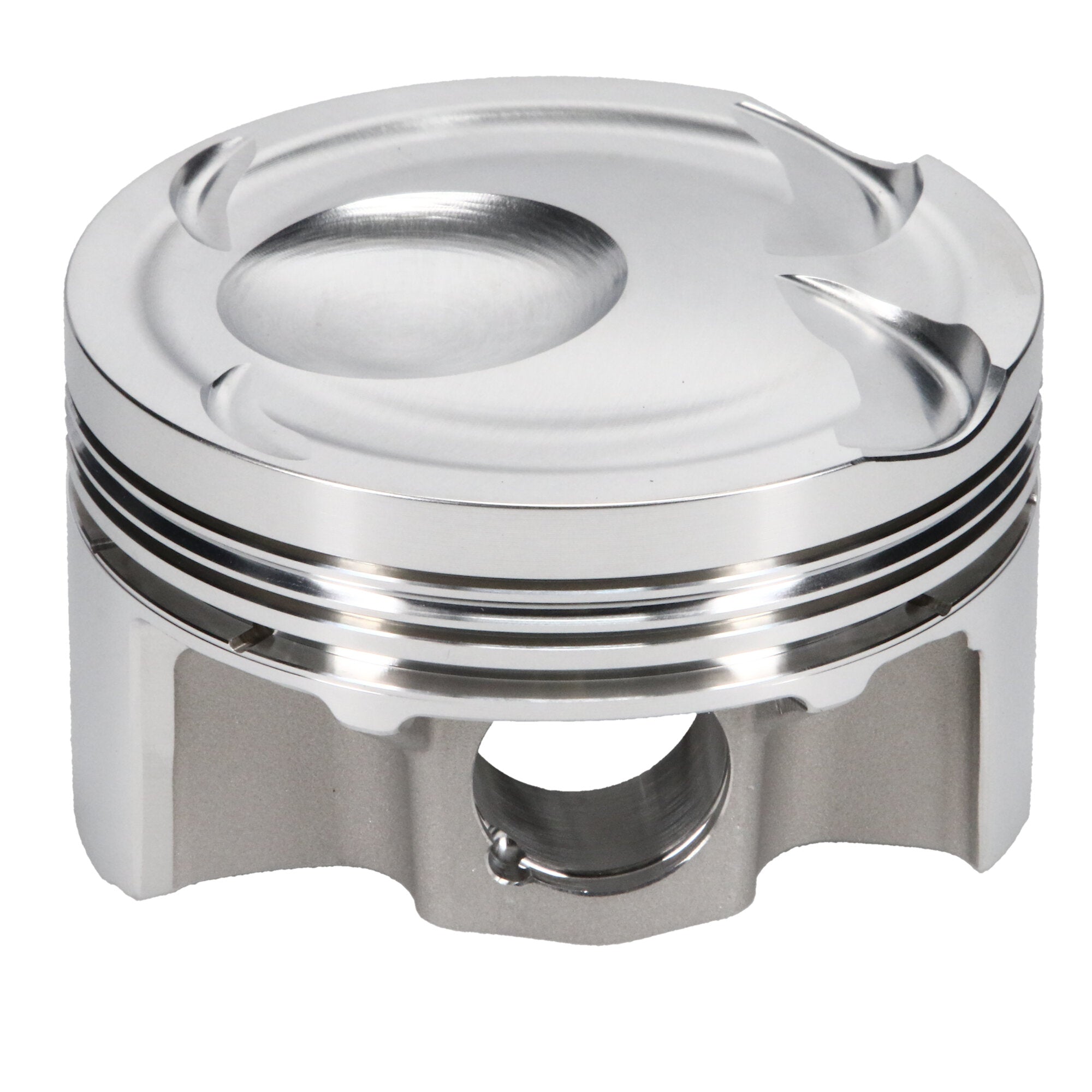

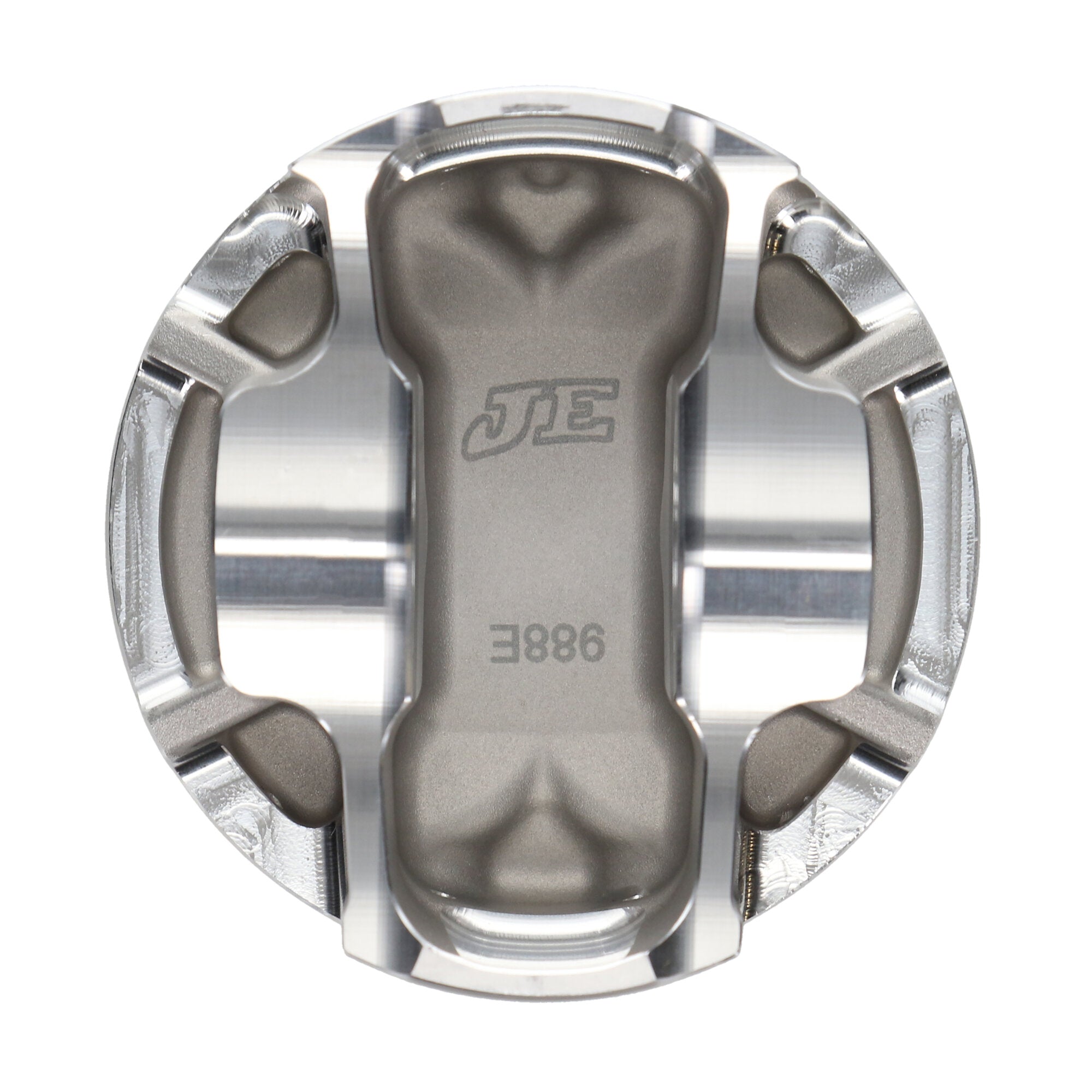

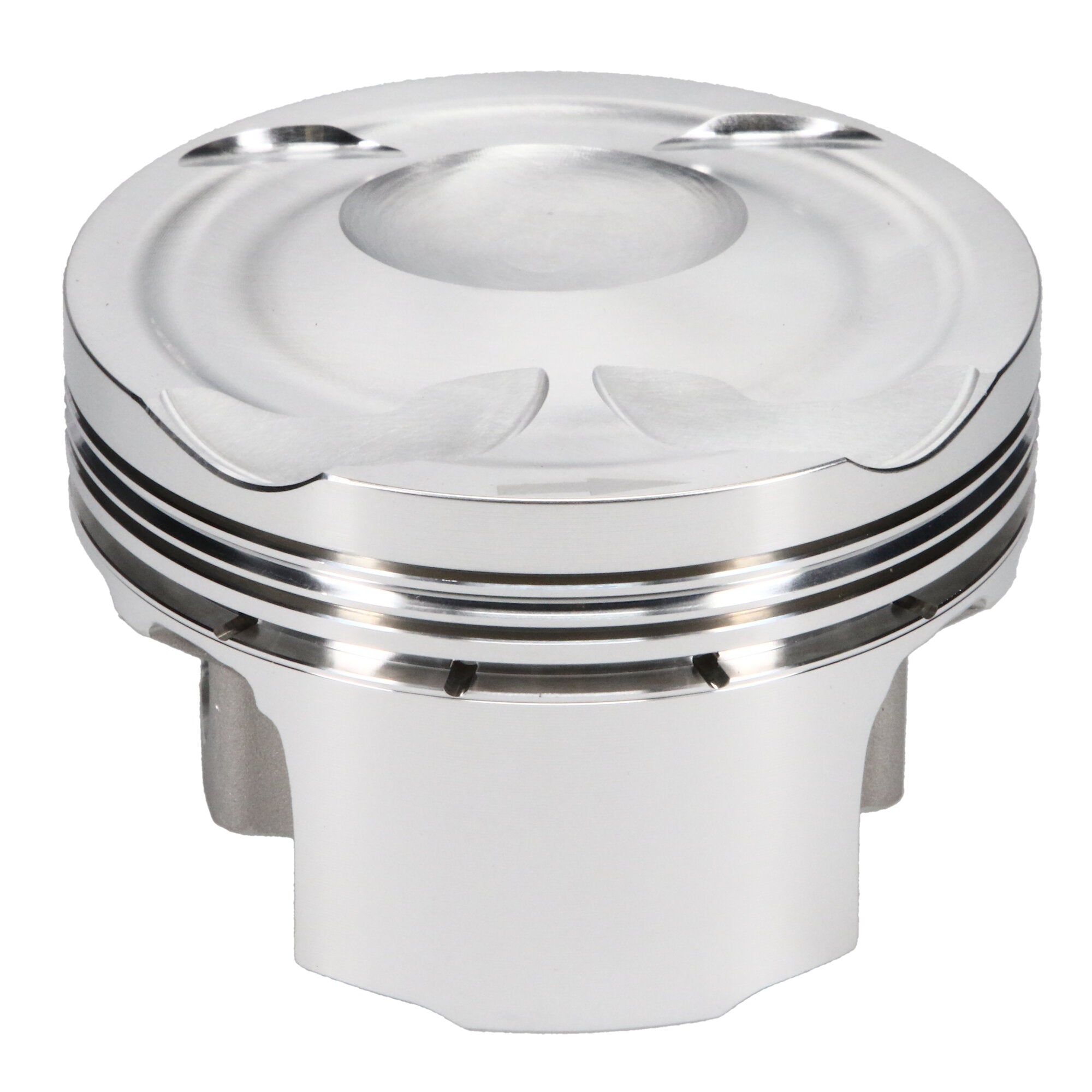

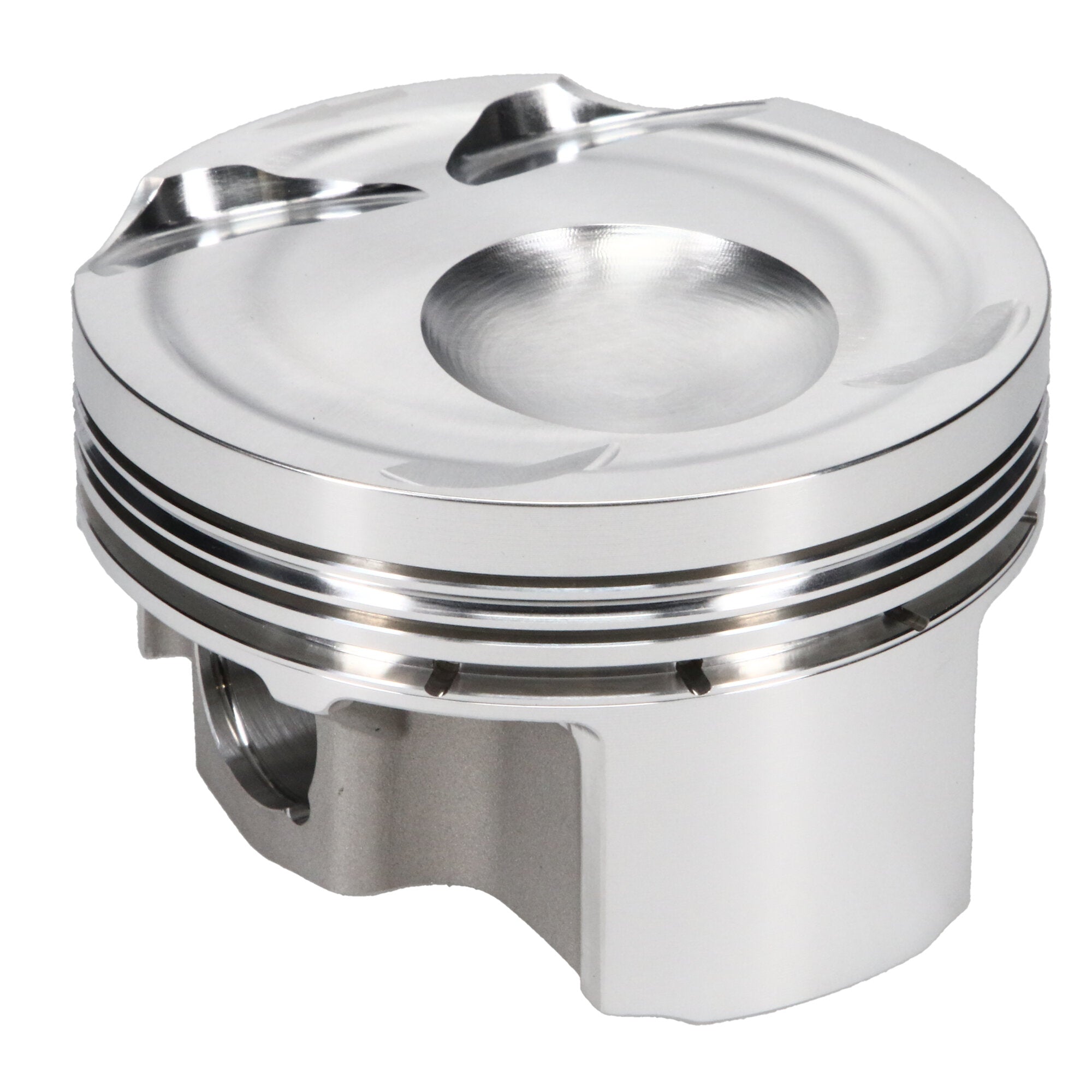

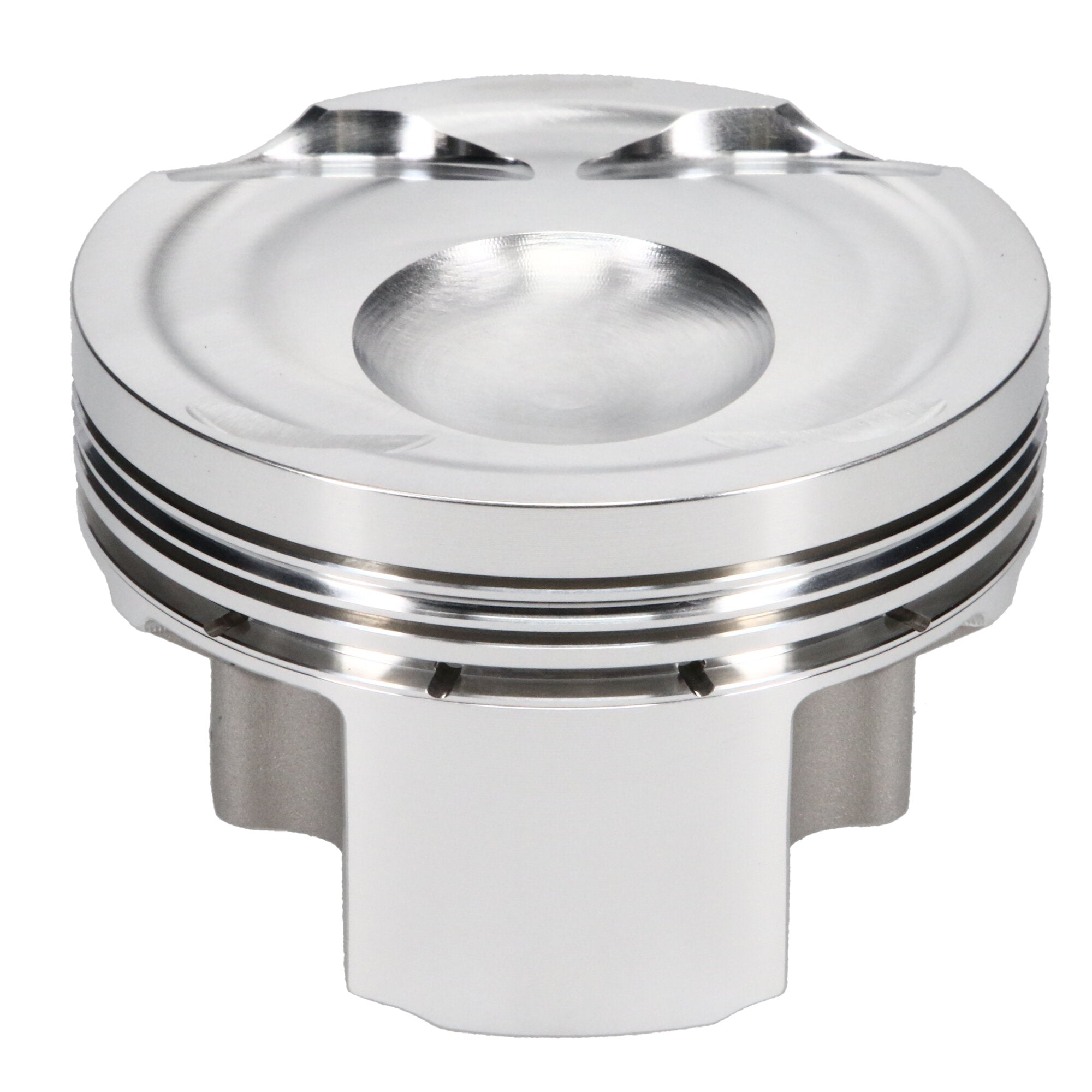

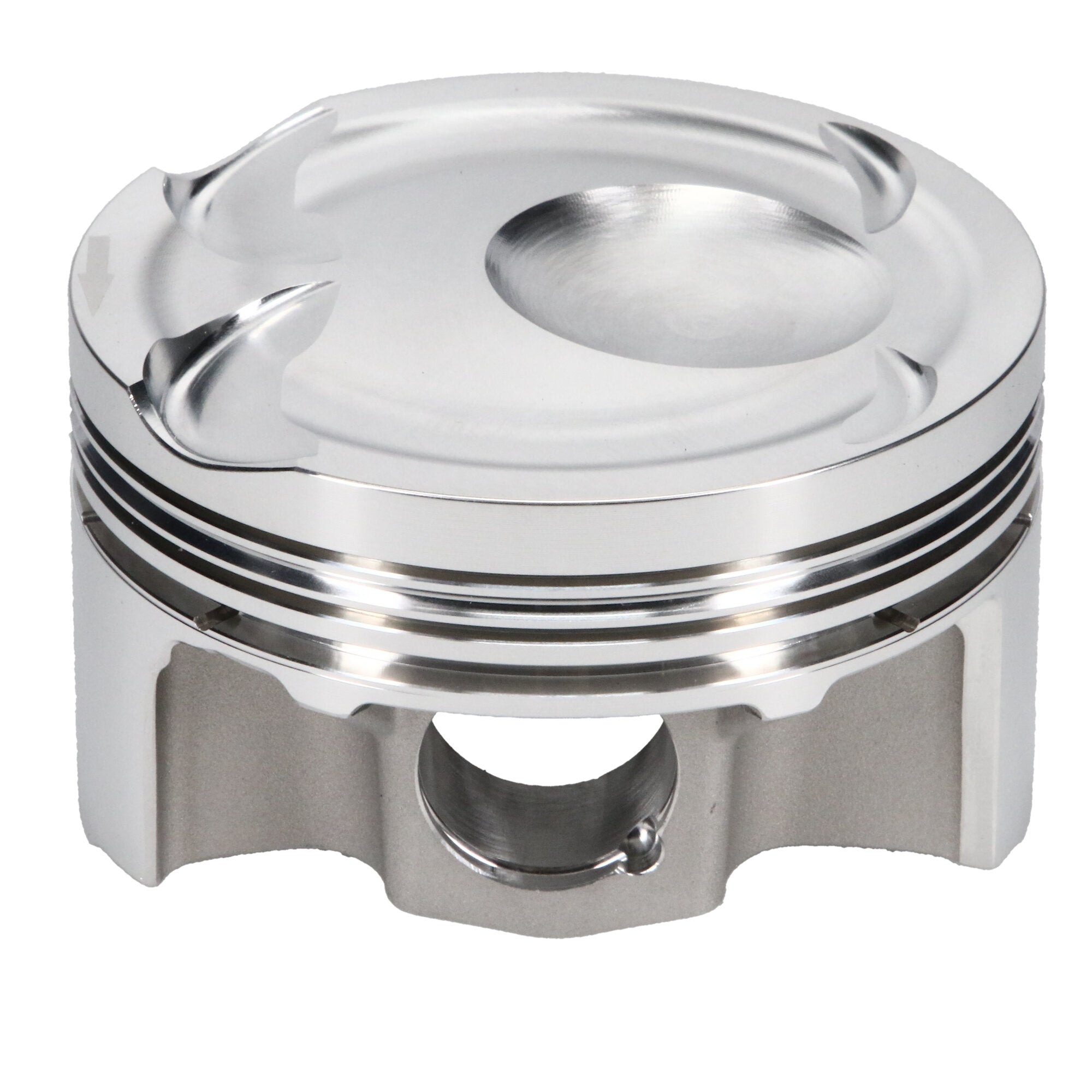

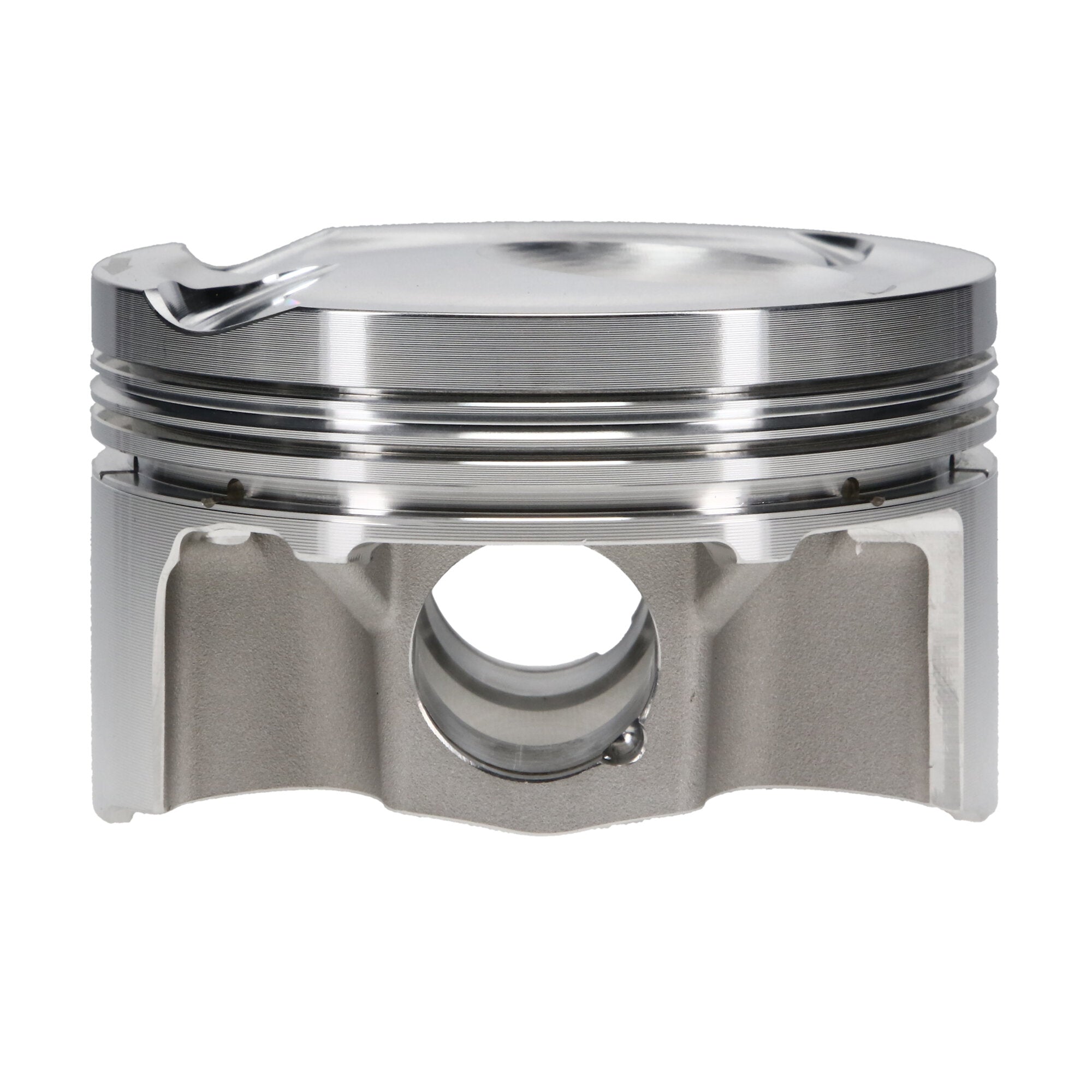

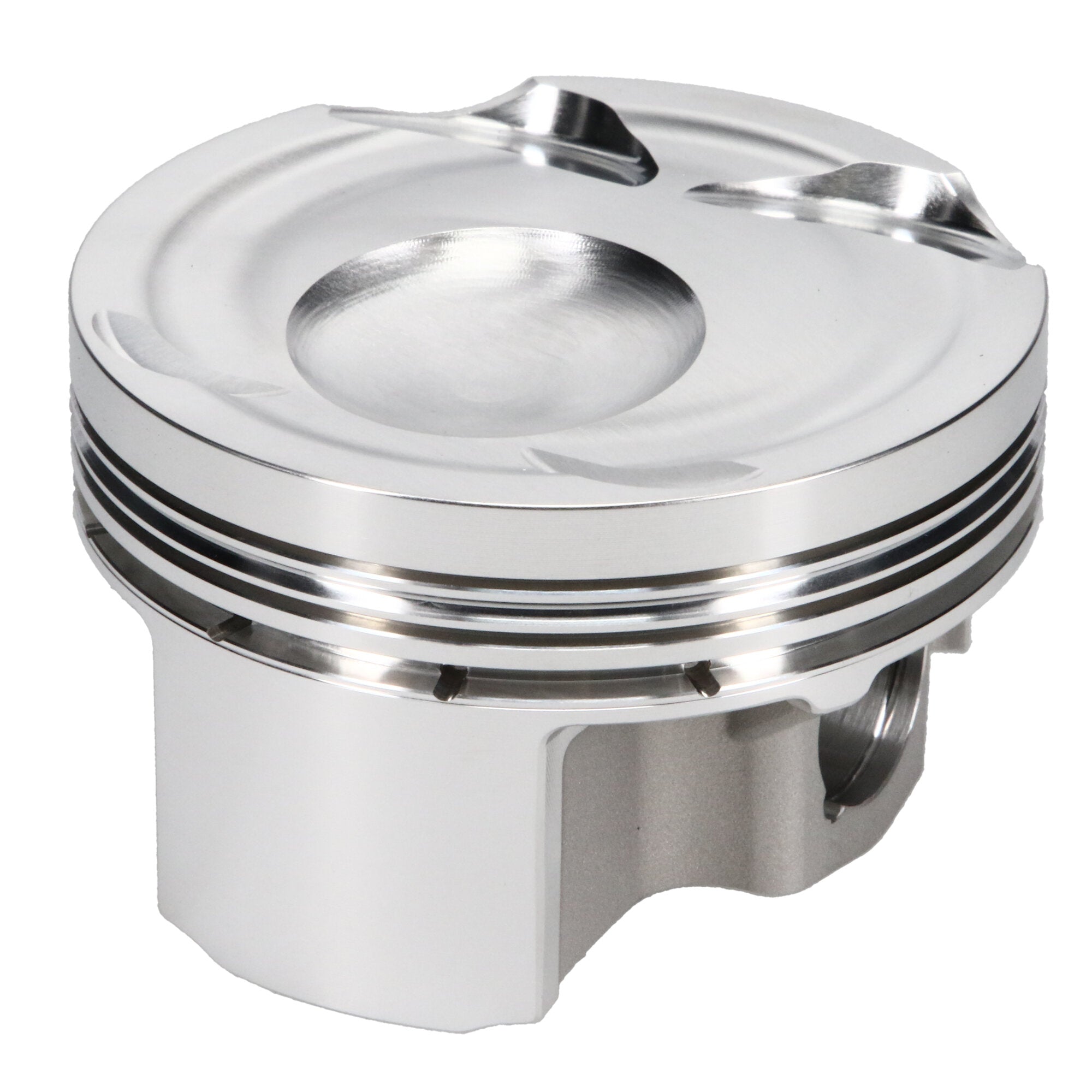

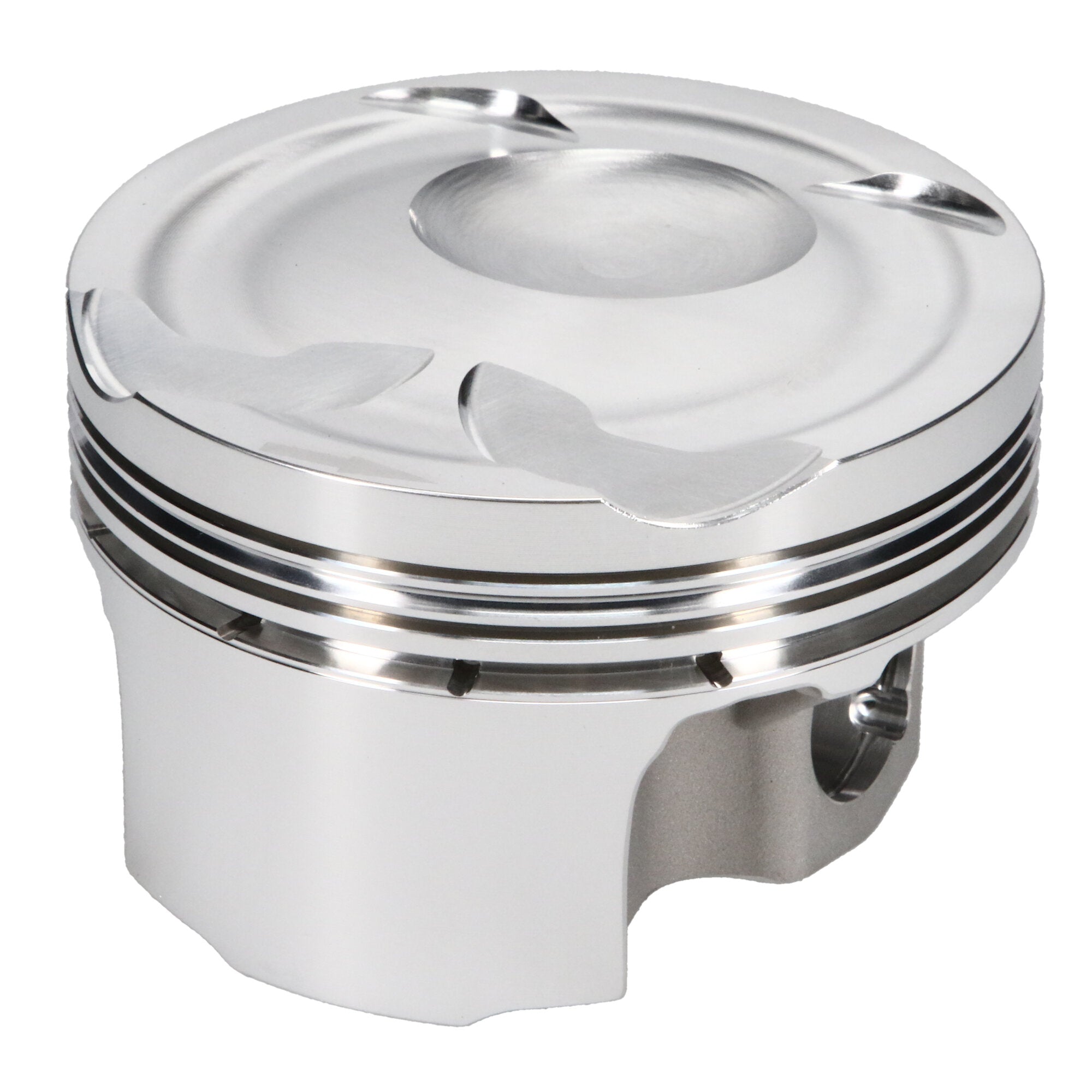

JE, Ford, 2.3L EcoBoost, 3.465 in. Bore, 9.50:1, Dome, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.465 Bore, 1.299 CD, 0.886 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 2.3L Ecoboost, 88.00 Bore, Dome, Set of 4 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
2.3 ECOBOOST |
| Piston Head Type |
Dome |
| Title - Web |
JE Pistons Ford 2.3L EcoBoost Piston Kit - 88.00 mm Bore - 1.299 in. CH, -7.60 CC |
| Industry |
Automotive |
| Piston Pin Length |
2.250 |
| Add-On |
JG1001-3465 |
| Add-On |
886-2250-18-51C |
| Add-On |
866-063-MW |
| Make - Web |
Ford |
| Second Compression Ring Thickness |
0.0480 |
| Engine |
2.3L ECOBOOST |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.299 |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Quantity |
4 |
| Bore Diameter |
88.00 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Material |
5115 |
| Piston Material |
2618 |
| Piston Volume |
-7.60 |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Piston Pin Outside Diameter |
0.886 |
| Product Type |
Engine Piston Kit |
| Product Market |
Sport Compact |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.180 |
| Make |
FORD |
| Oil Ring Thickness |
0.111 |
| Title |
JE Pistons - Ford, 2.3L EcoBoost, 88.00 mm Bore, Piston Kit |
| Piston Average Weight |
360 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.886 |
| Engine - Web |
2.3L EcoBoost |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
