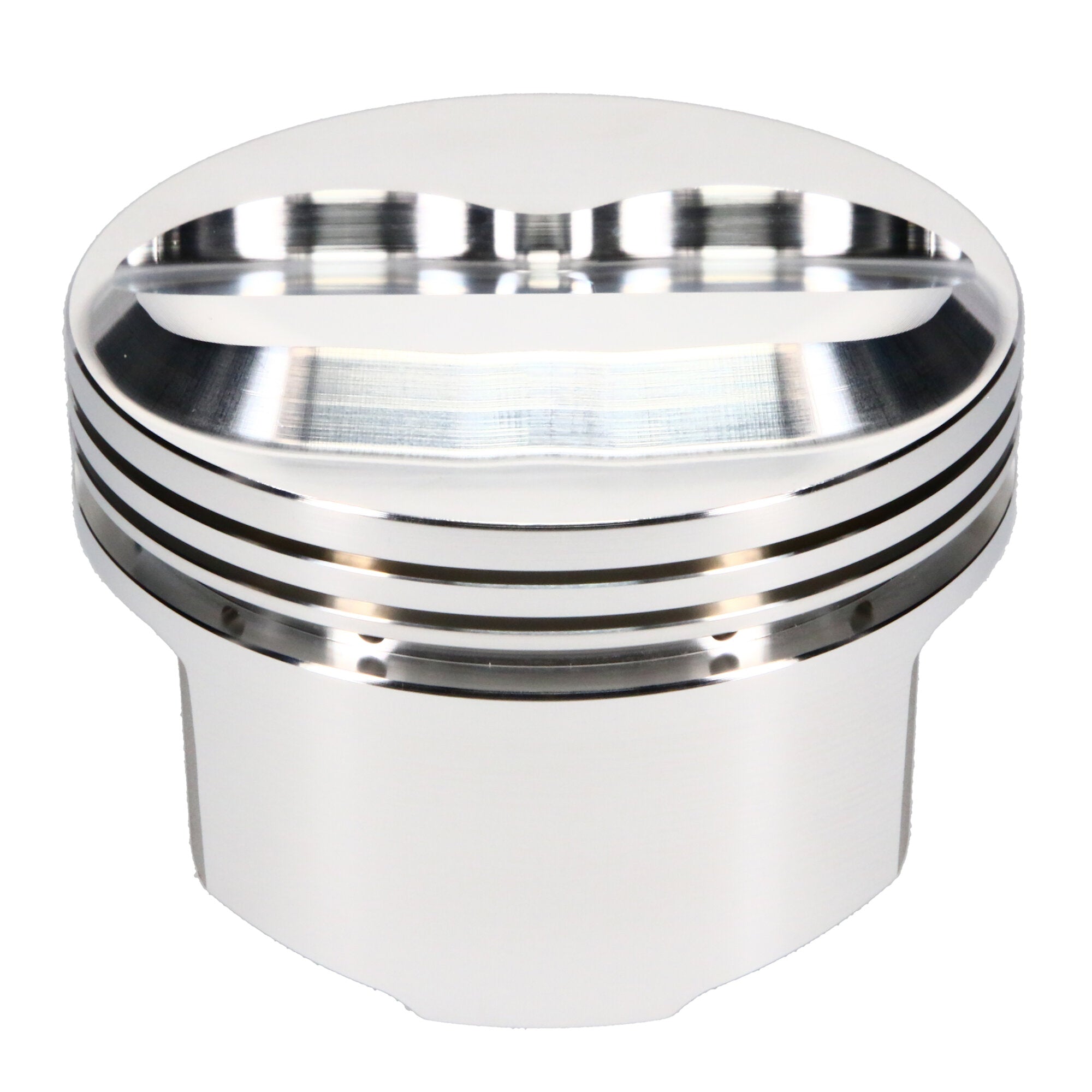

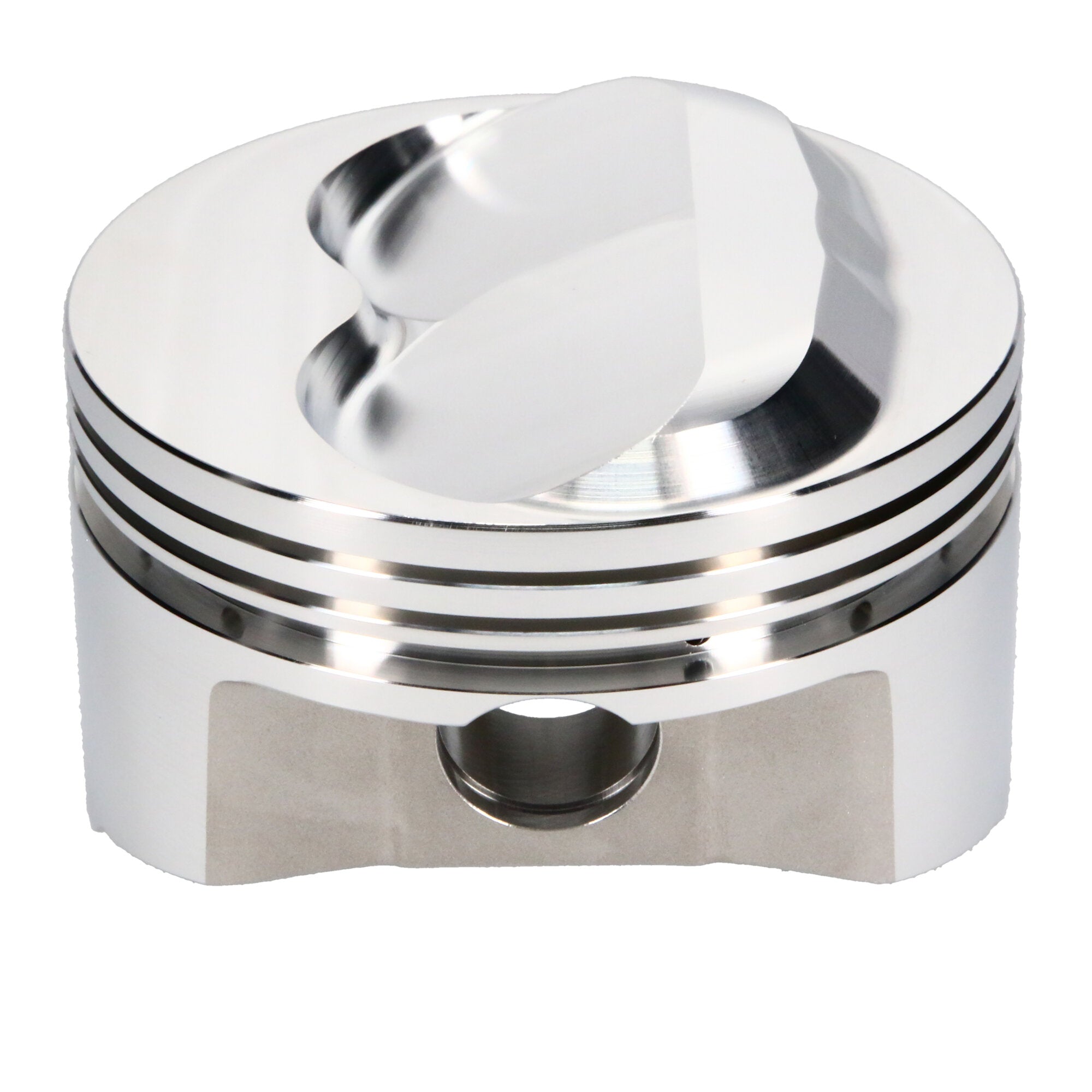

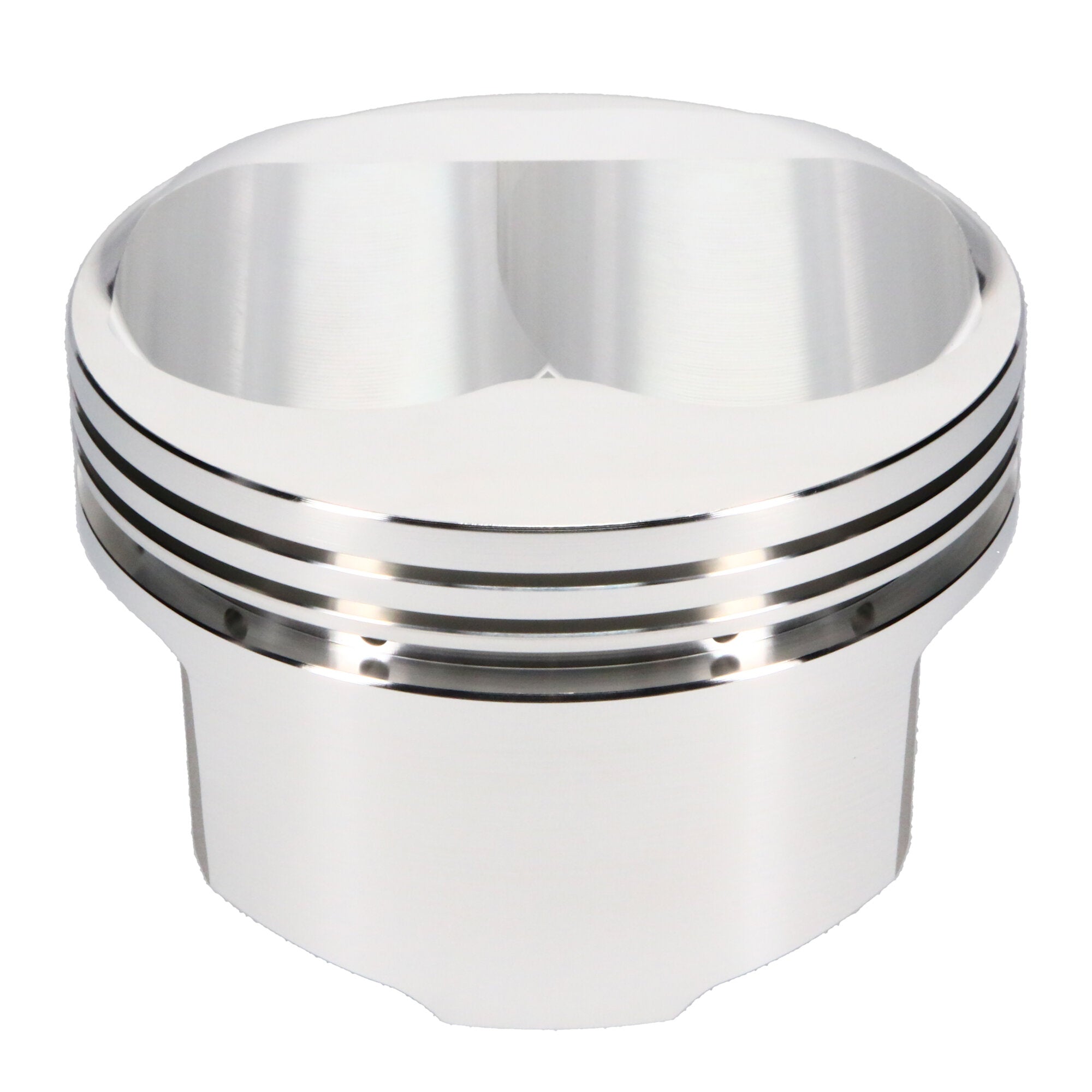

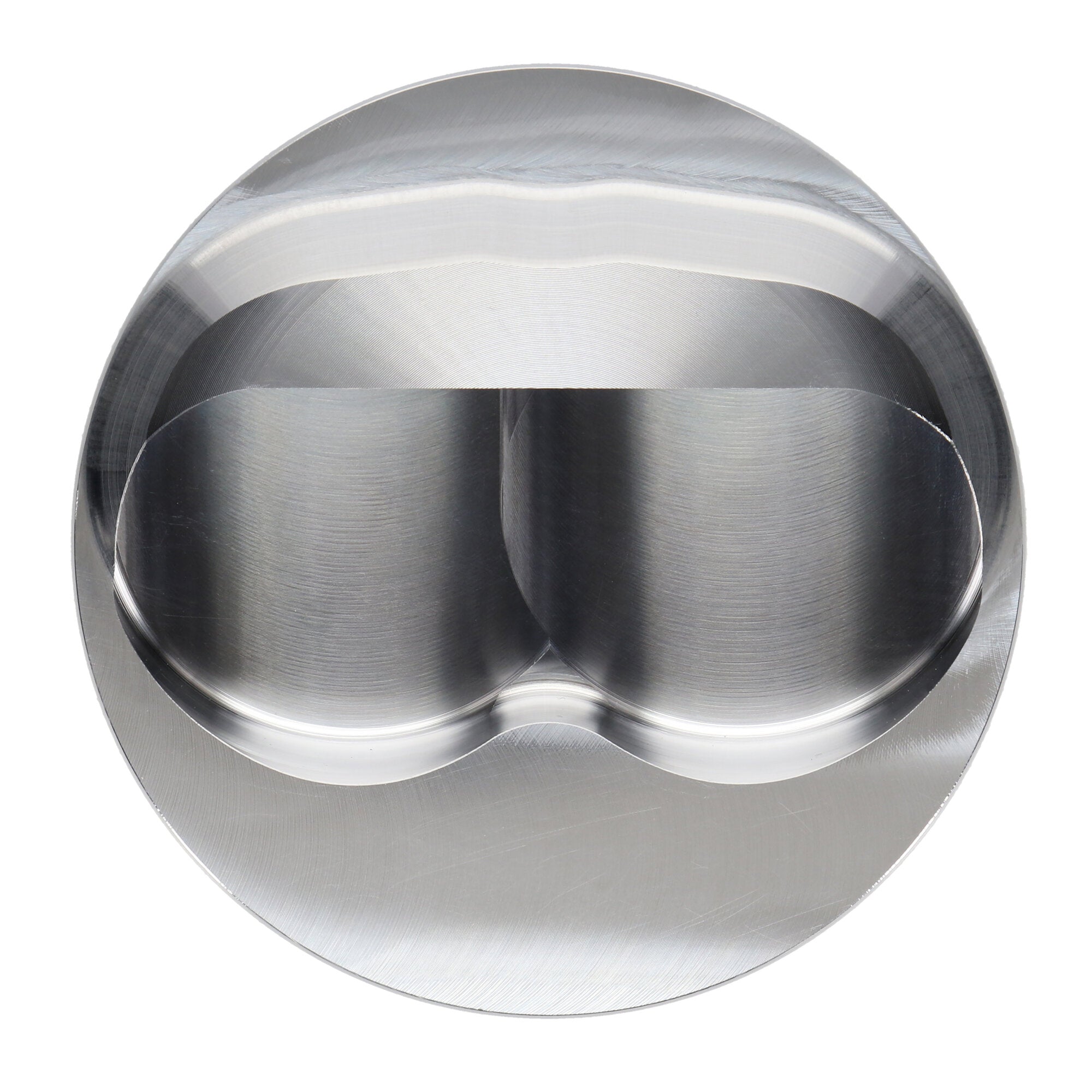

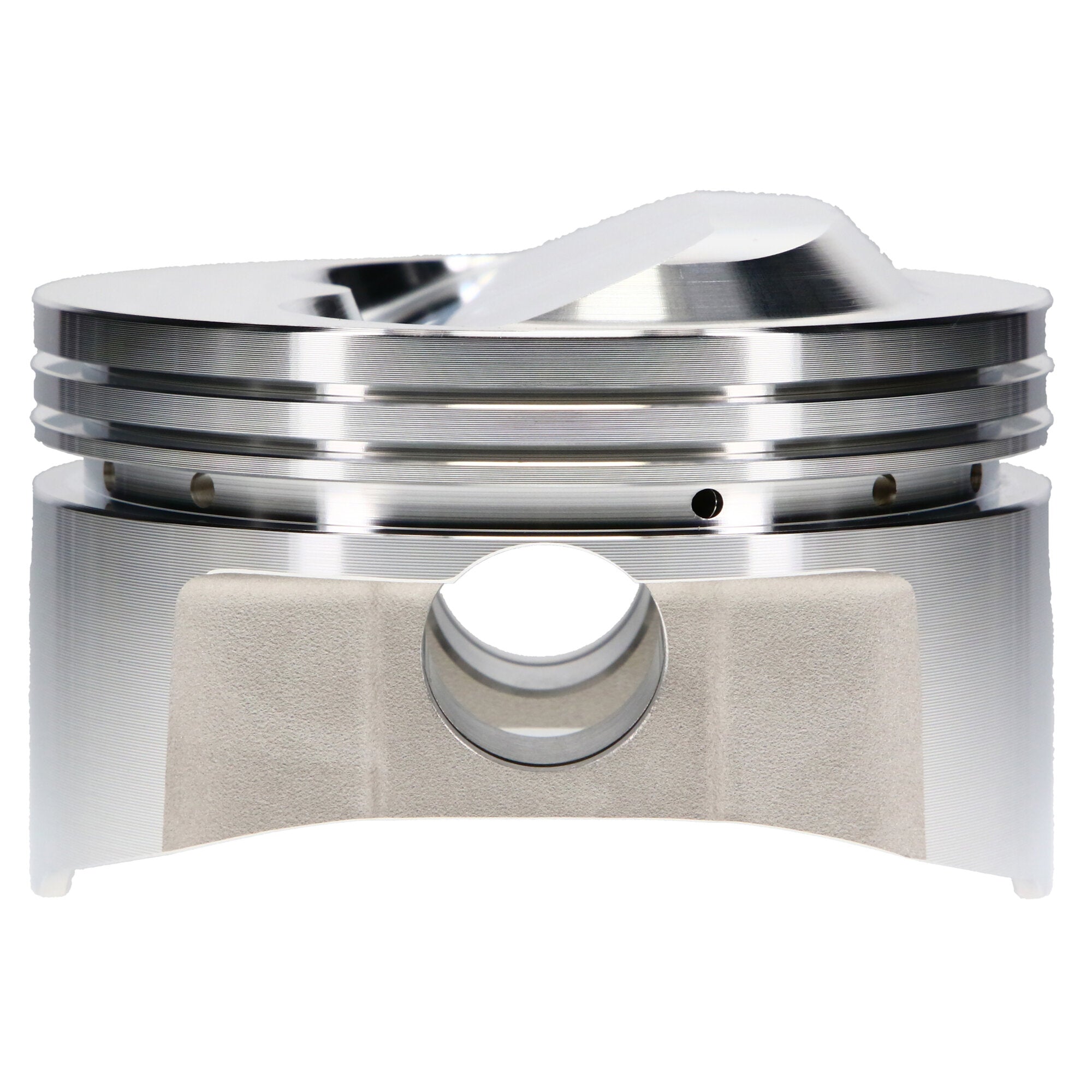

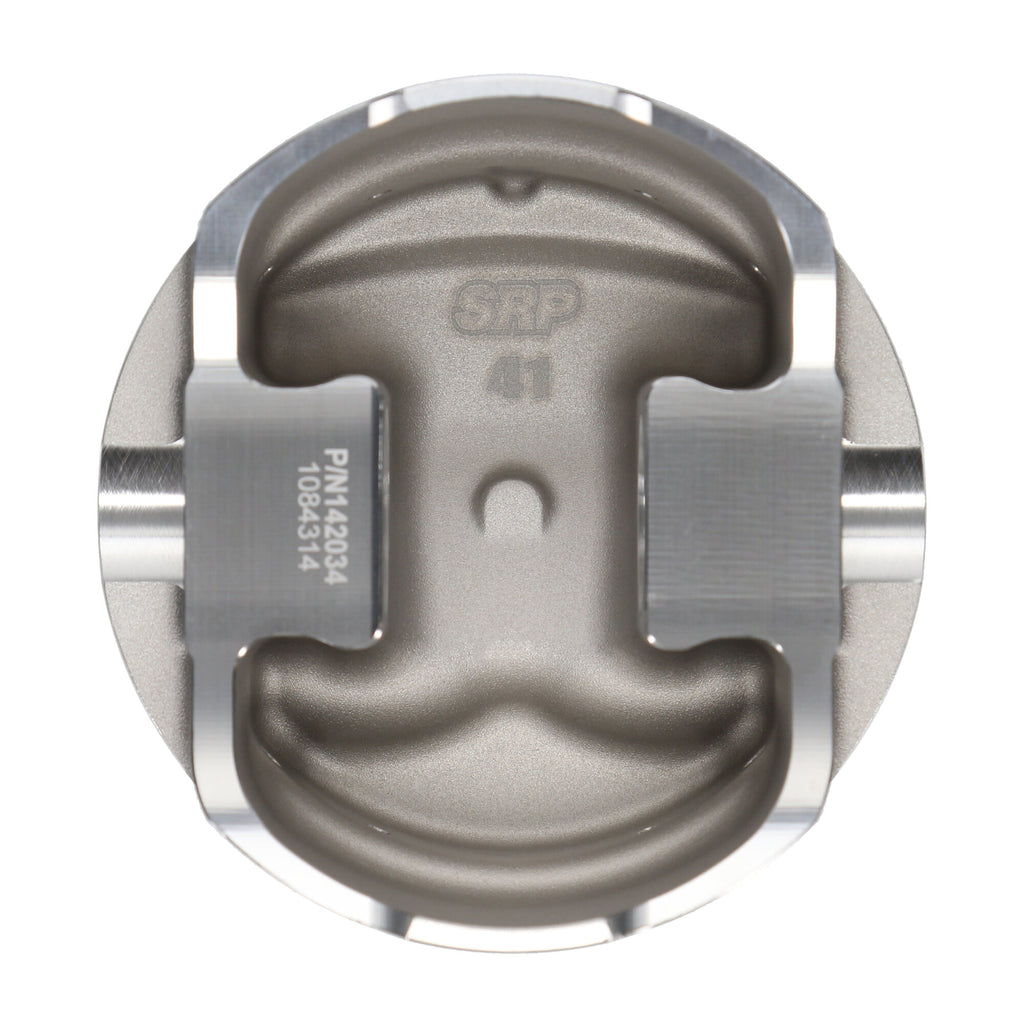

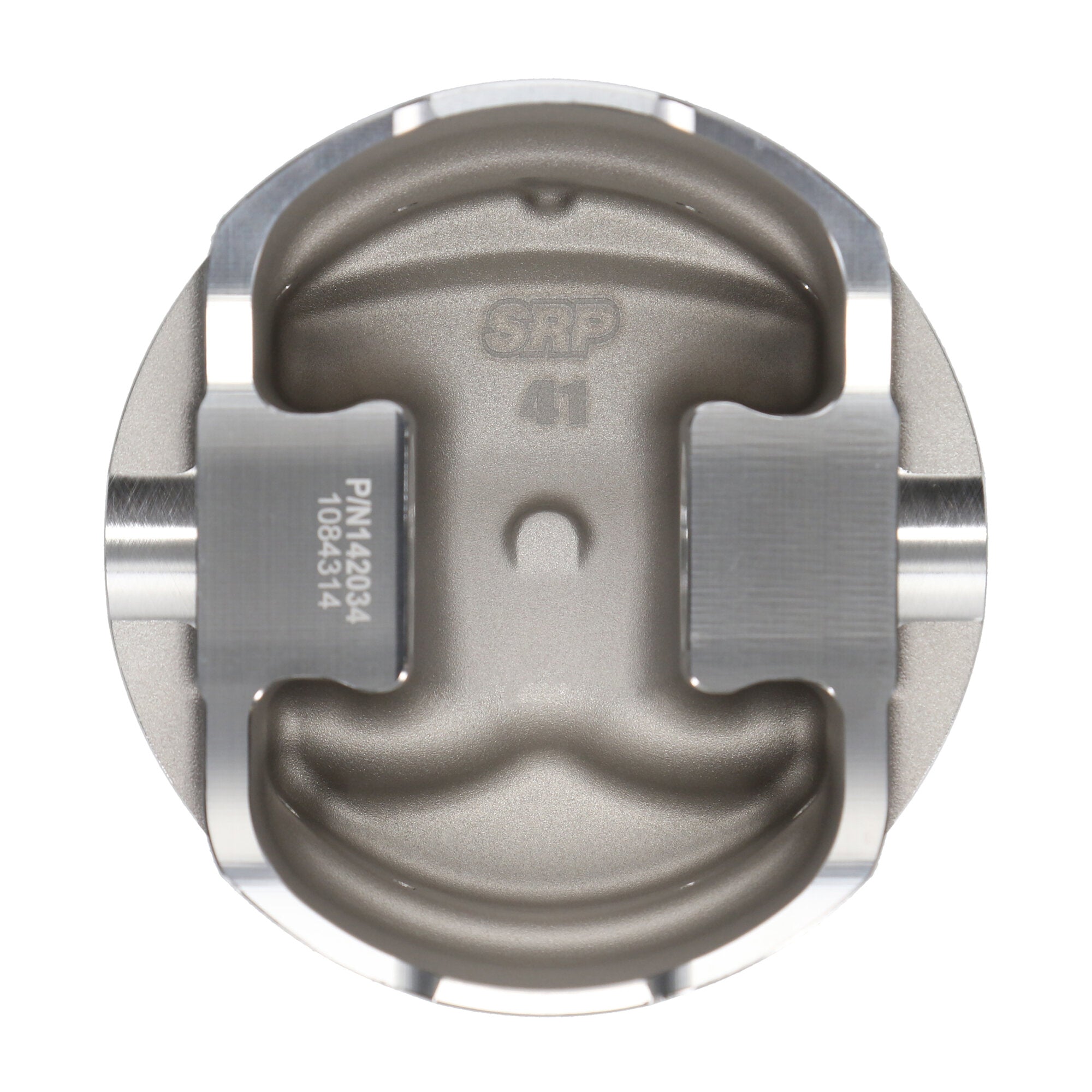

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.130 Bore, 1.425 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.130 in. Bore, 1.425 CD, Dome, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 400, 4.130 Bore, Dome, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Make |
CHEVROLET |
| Piston Head Type |
Dome |
| Product Market |
Domestic |
| Piston Series |
SRP |
| Piston Pin Outside Diameter |
0.927 |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Title |
SRP - Chevrolet, Small Block, 4.130 in. Bore, Piston Kit |
| Piston Pin Length |
2.750 |
| Compression Height |
1.425 |
| Top Compression Ring Thickness |
0.0640 |
| Engine Type |
ICE |
| Engine |
Small Block |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Engine - Web |
Small Block |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0640 |
| Product Type |
Engine Piston Kit |
| Add-On |
927-042-CS |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Add-On |
S100S8-4125-5 |
| Piston Volume |
4.00 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Average Weight |
488 |
| Bore Diameter |
4.130 |
| Add-On |
927-2750-15-51S |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.130 in. Bore - 1.425 in. CH, 4.00 CC |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Chevrolet |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
