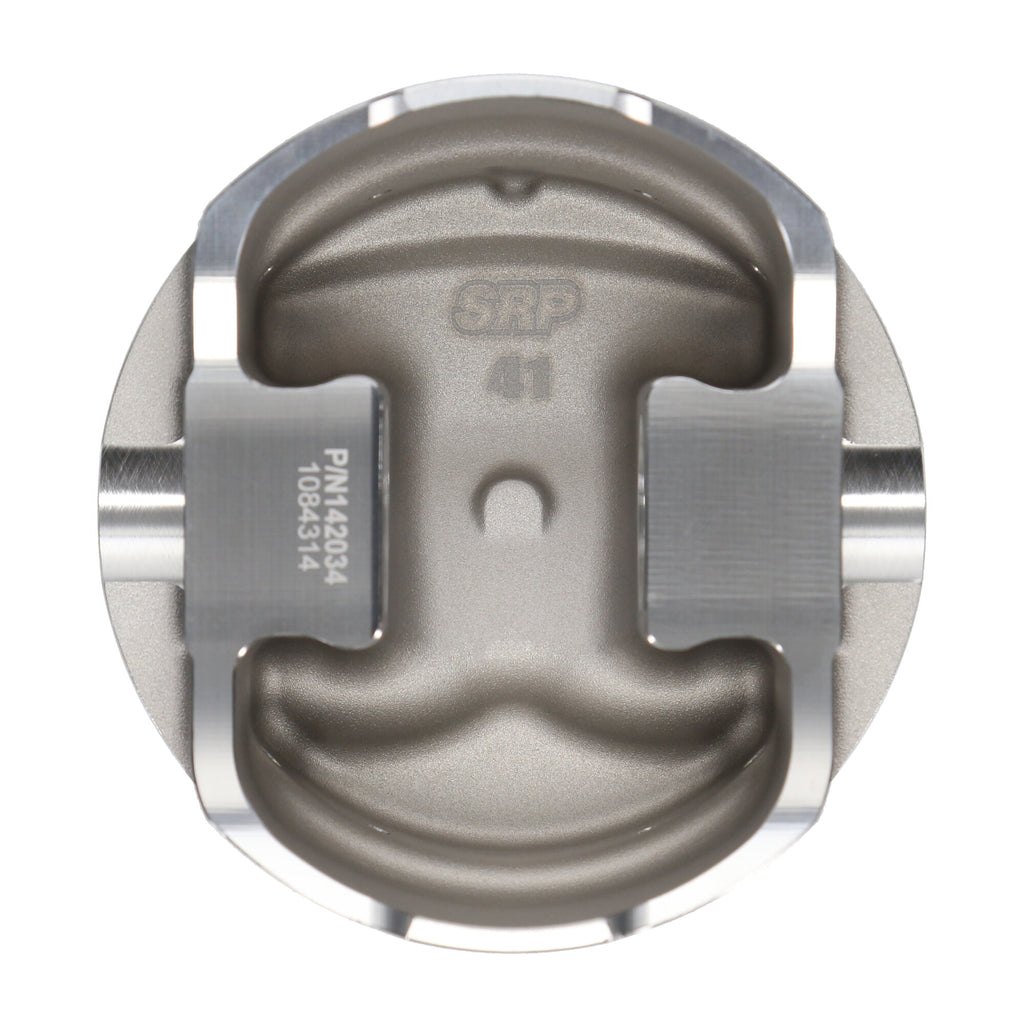

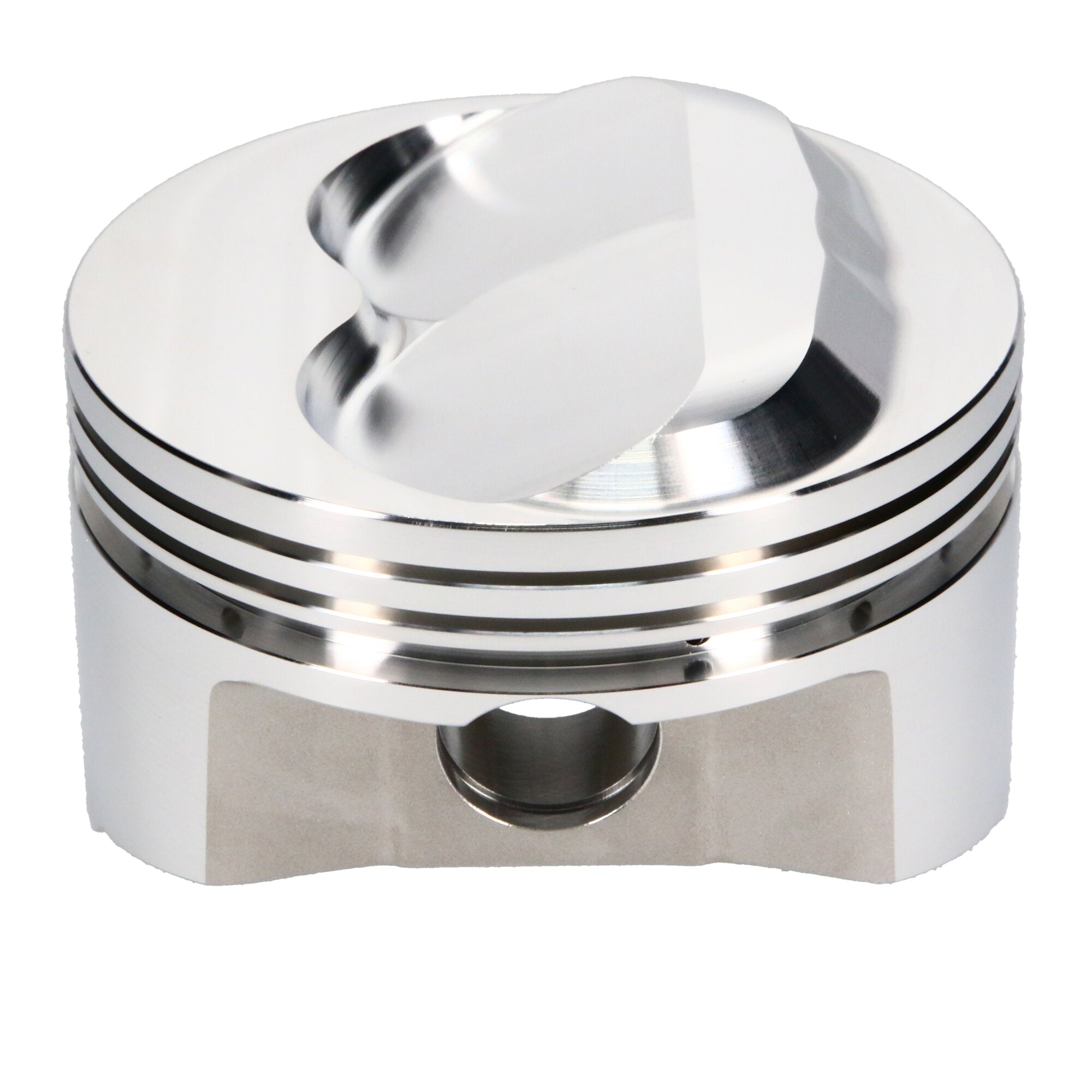

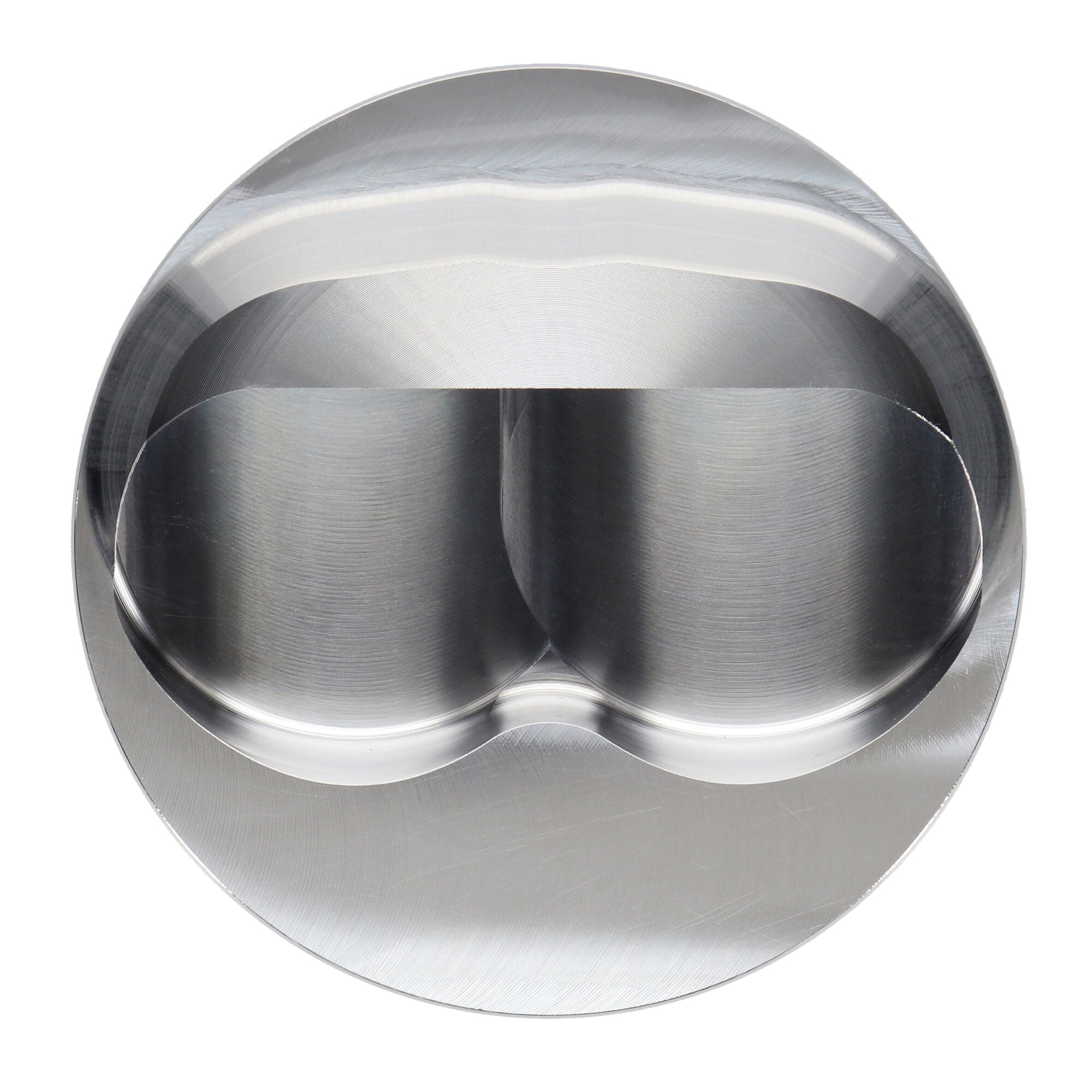

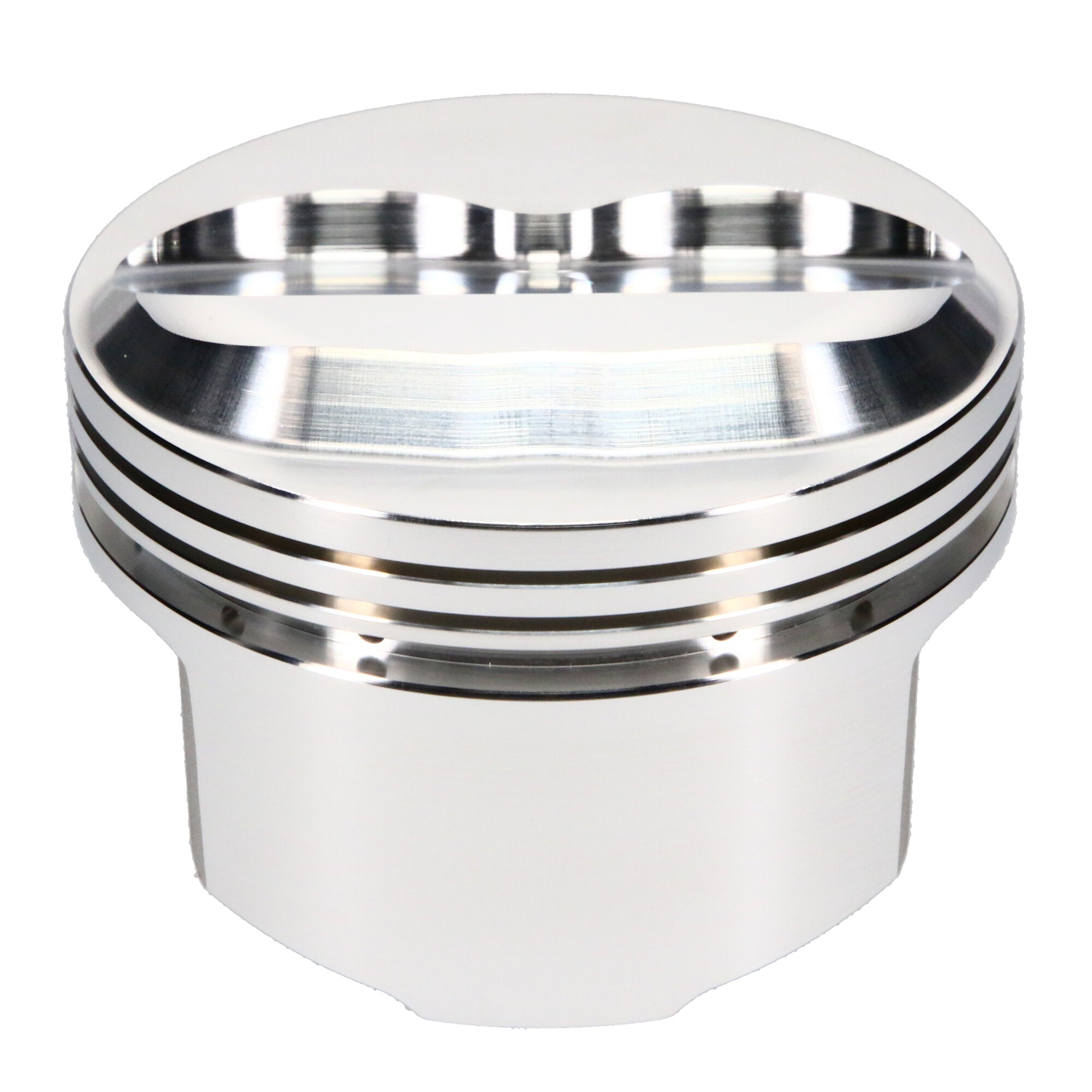

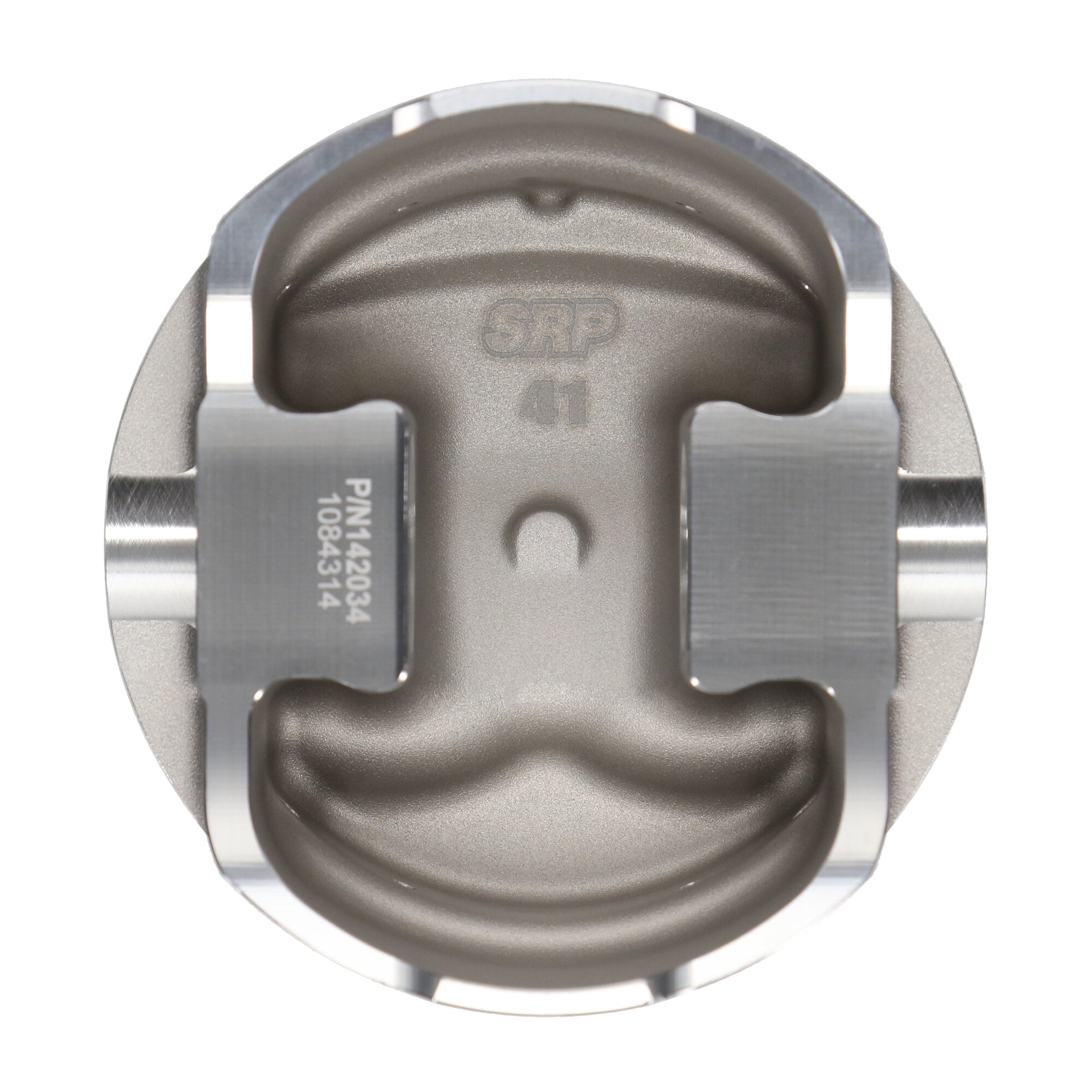

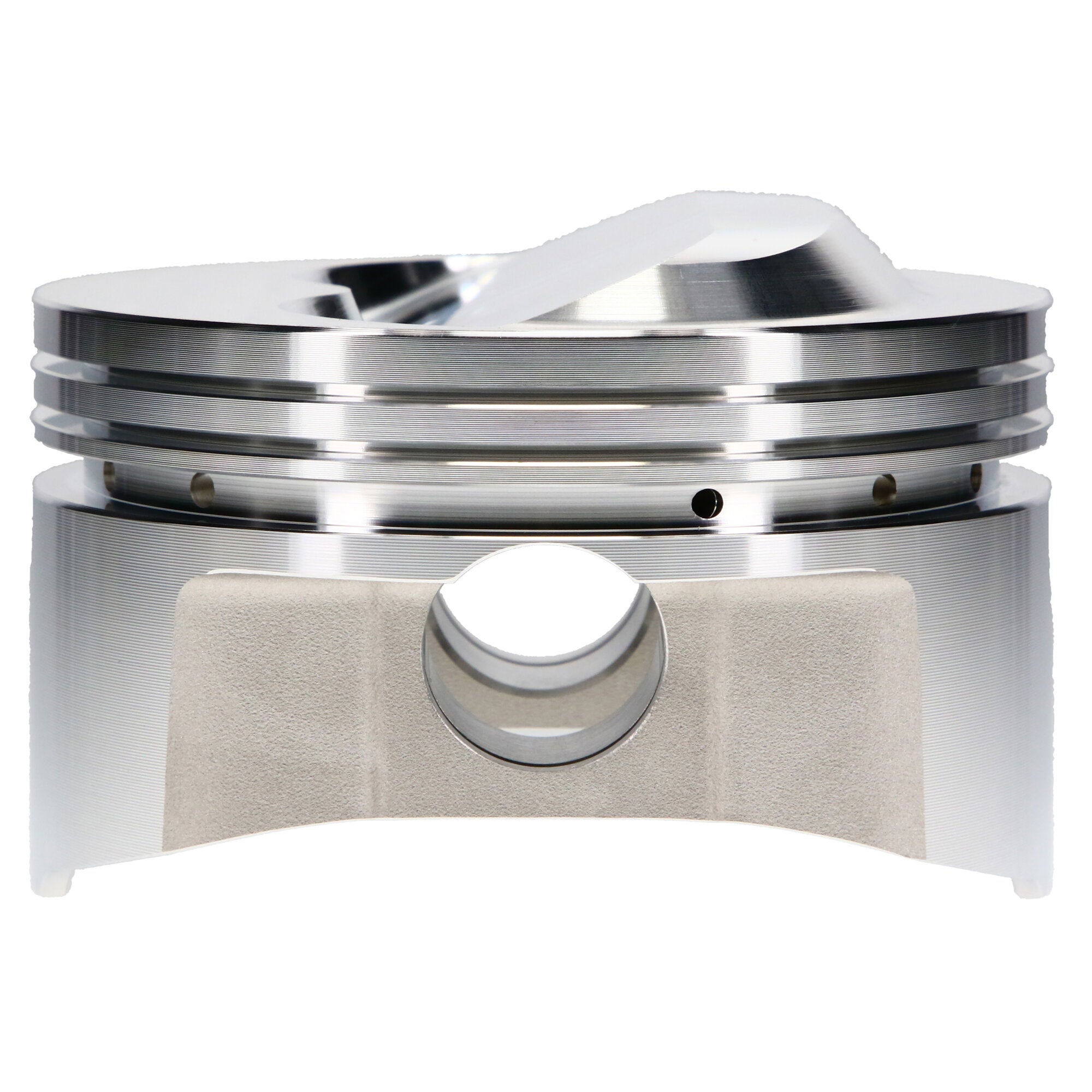

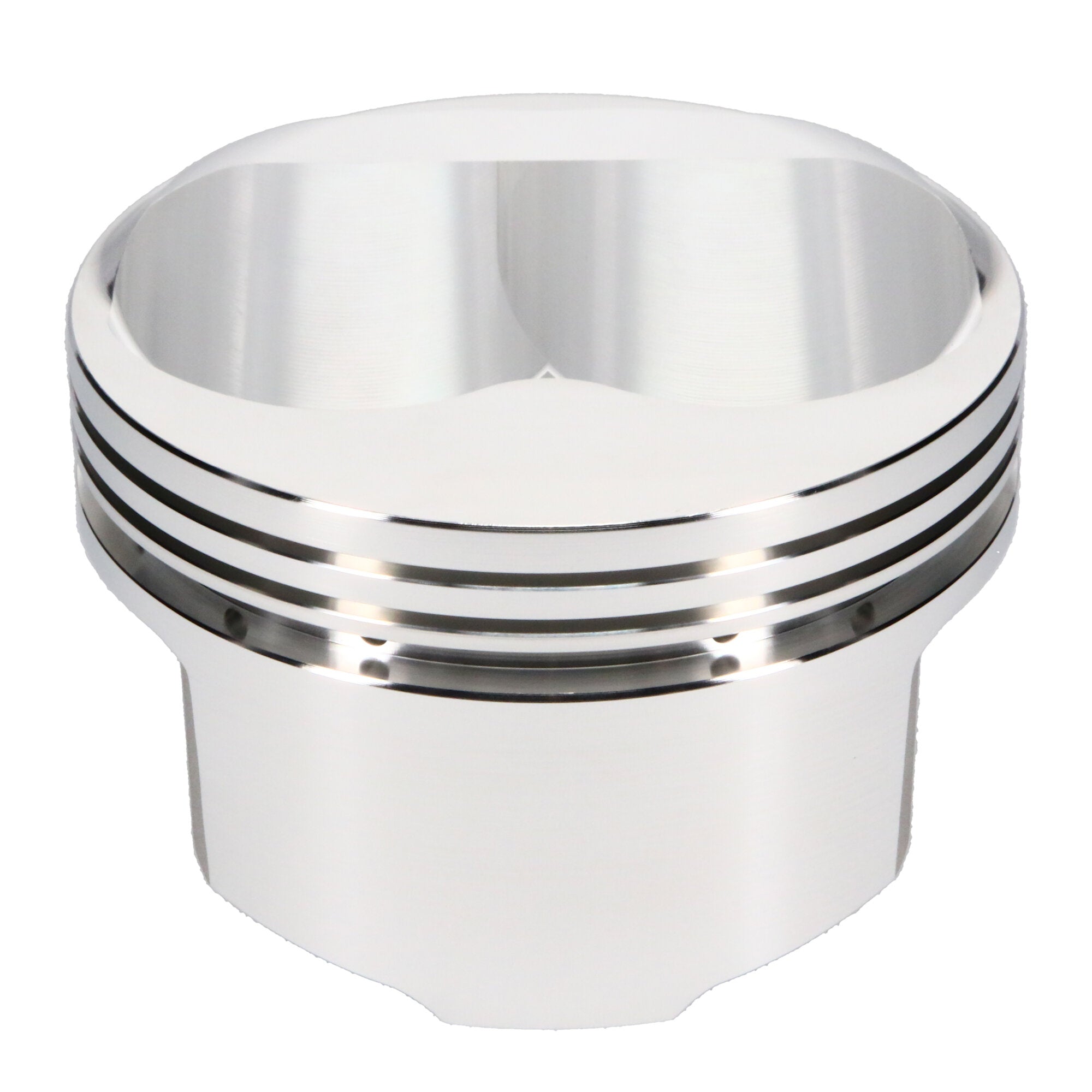

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.010 Bore, 1.260 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Small Block Chevrolet, 4.010 in. Bore, 1.260 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.010 Bore, Dome, Set of 8 |
| Wrist Pin Length |
2.750 |
| Piston Material |
2618 |
| Top Compression Ring Thickness |
0.0640 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Volume |
11.00 |
| Industry |
Automotive |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Average Weight |
450 |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
927-2750-15-51S |
| Bore Diameter |
4.010 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Product Type |
Engine Piston Kit |
| Add-On |
927-042-CS |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J100F8-4010-0 |
| Piston Pin Length |
2.750 |
| Title - Web |
SRP Chevrolet Small Block Piston Kit - 4.010 in. Bore - 1.260 in. CH, 11.00 CC |
| Engine Type |
ICE |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.927 |
| Oil Ring Thickness |
0.188 |
| Piston Series |
SRP |
| Forging Type |
FSR |
| Compression Height |
1.260 |
| Piston Head Type |
Dome |
| Product Market |
Domestic |
| Title |
SRP - Chevrolet, Small Block, 4.010 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Engine |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
