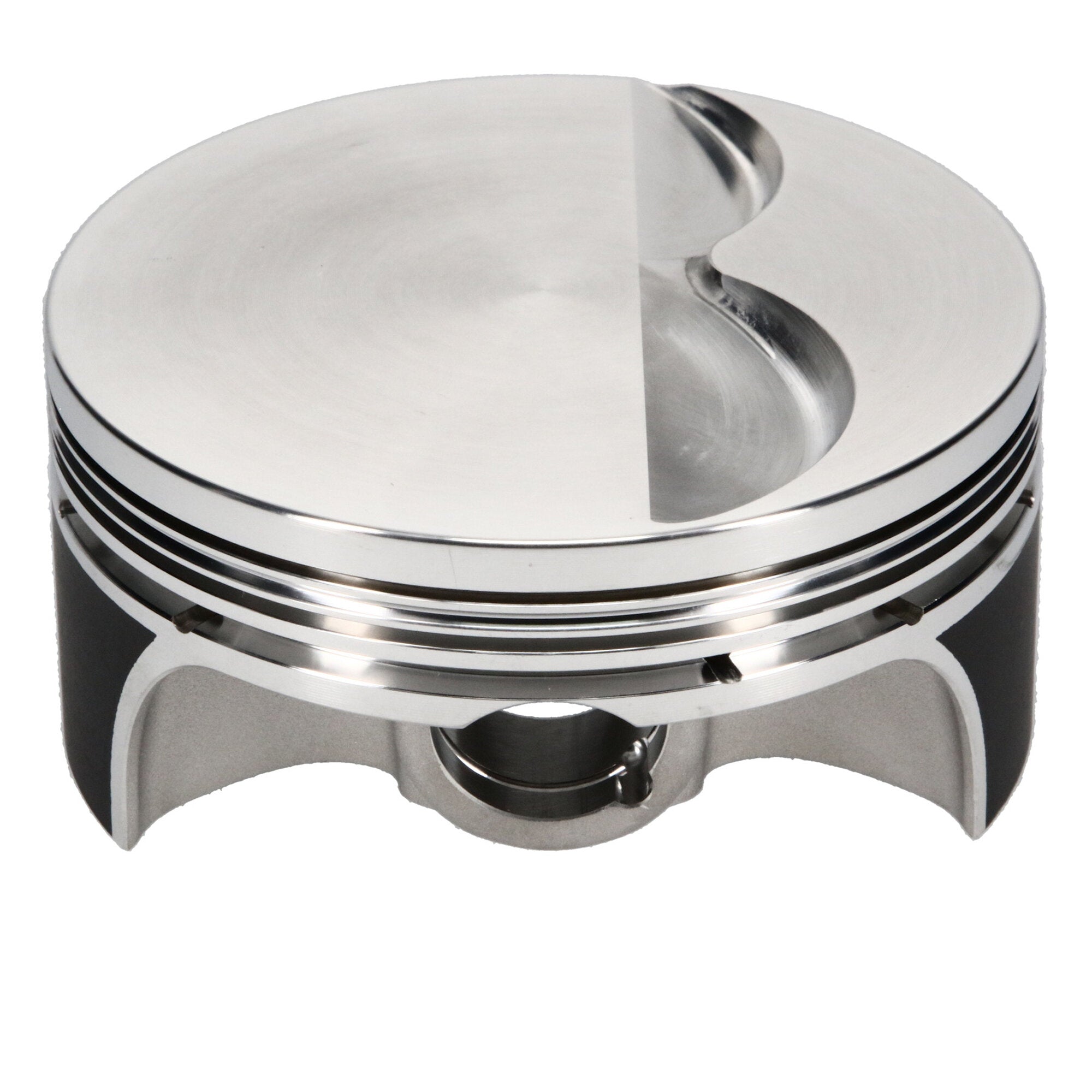

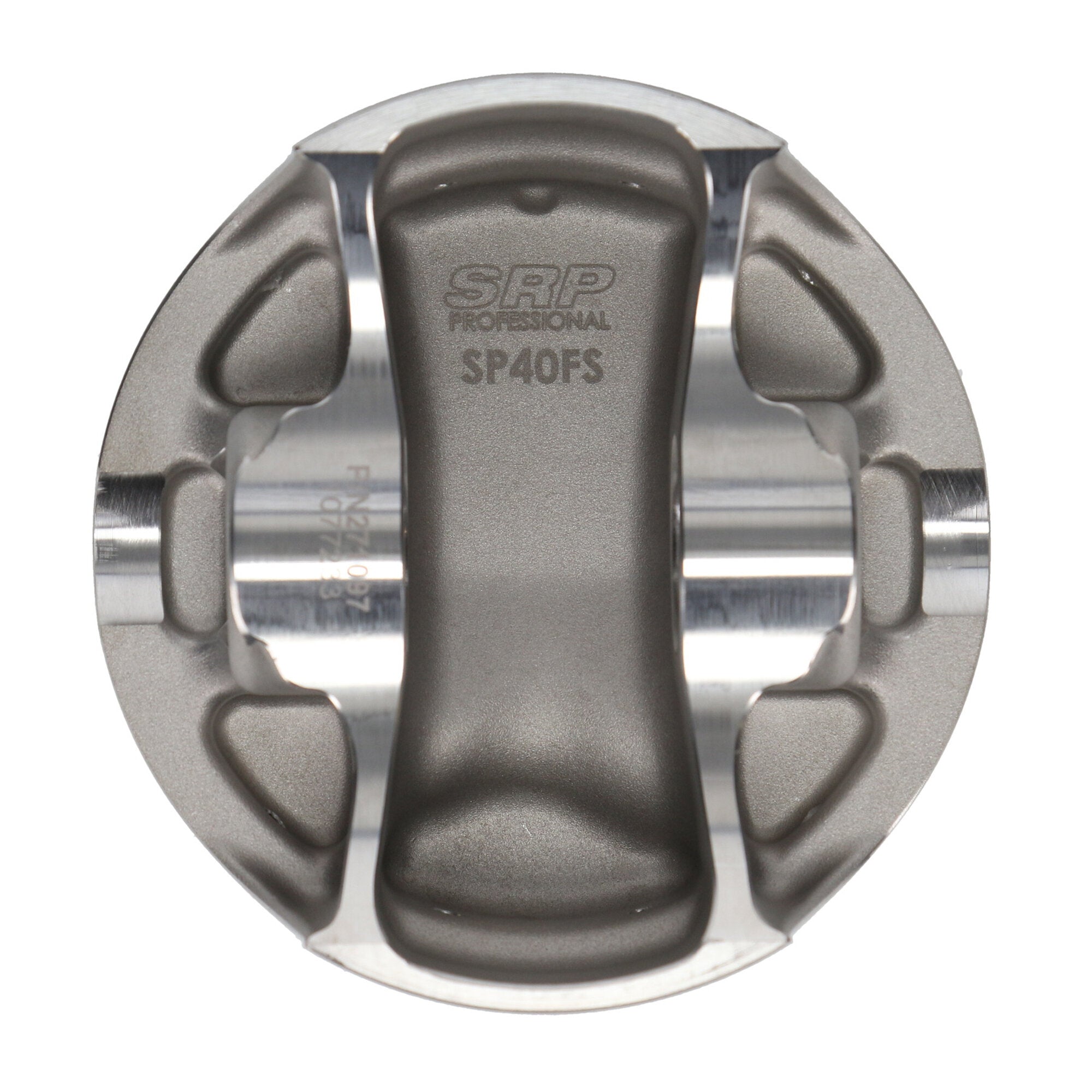

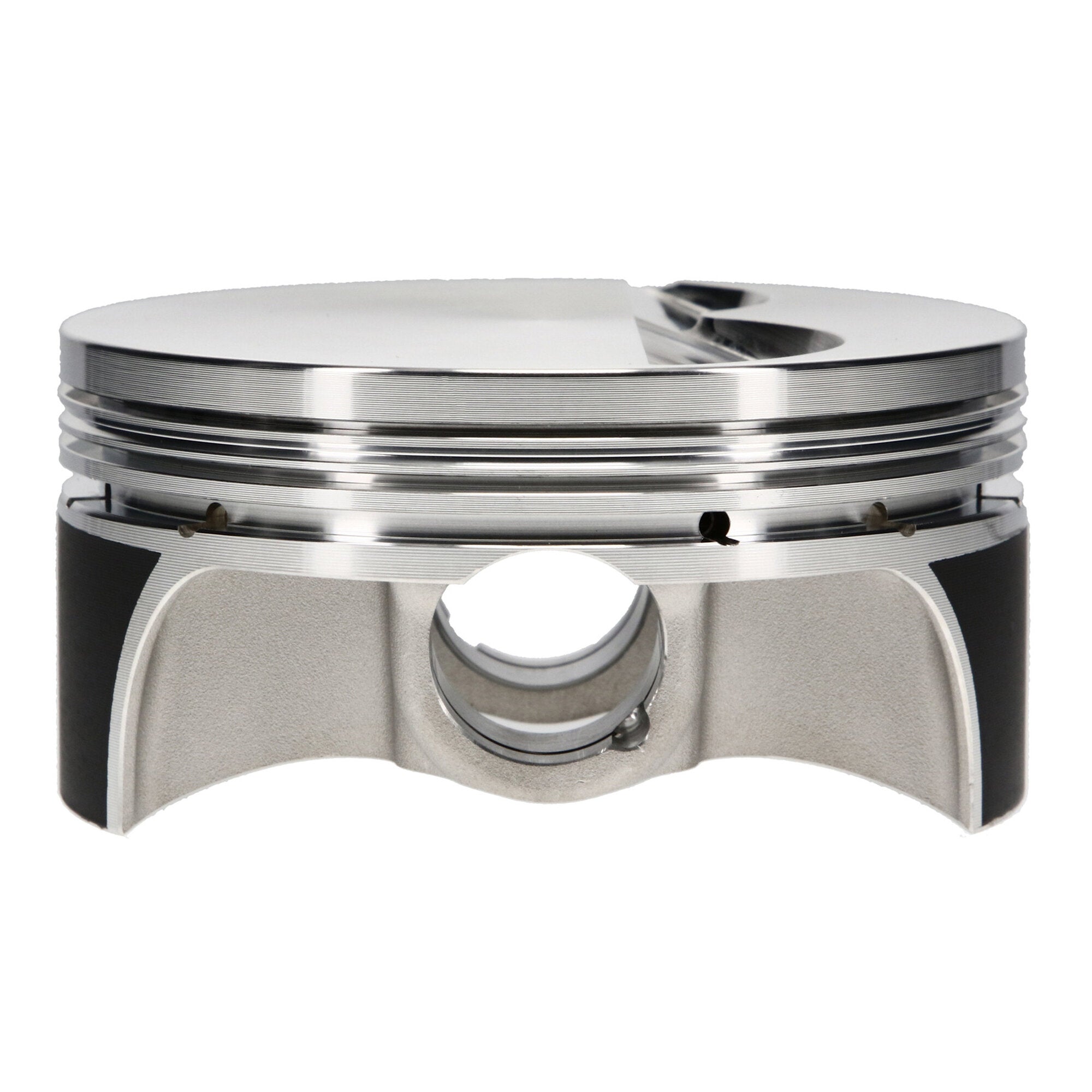

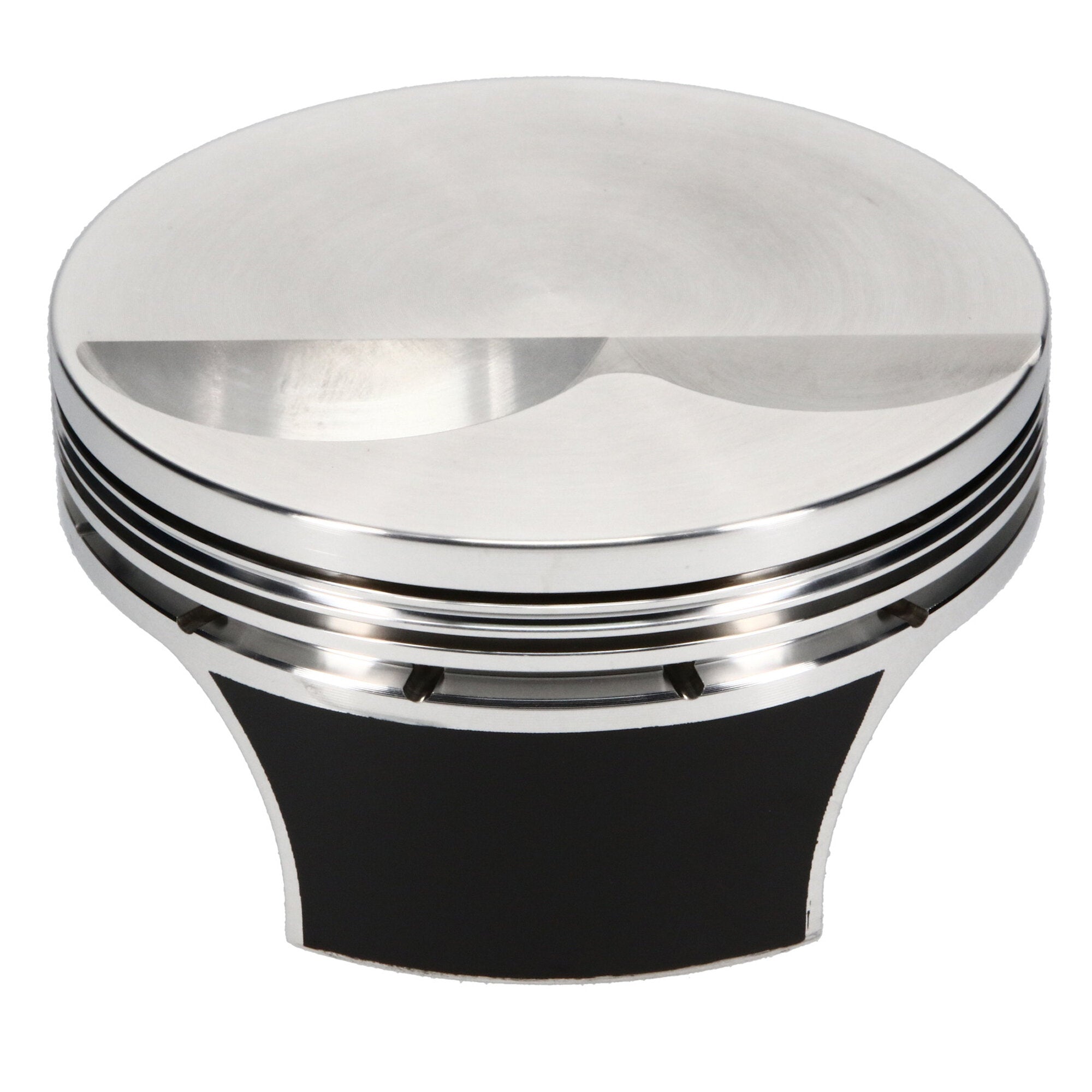

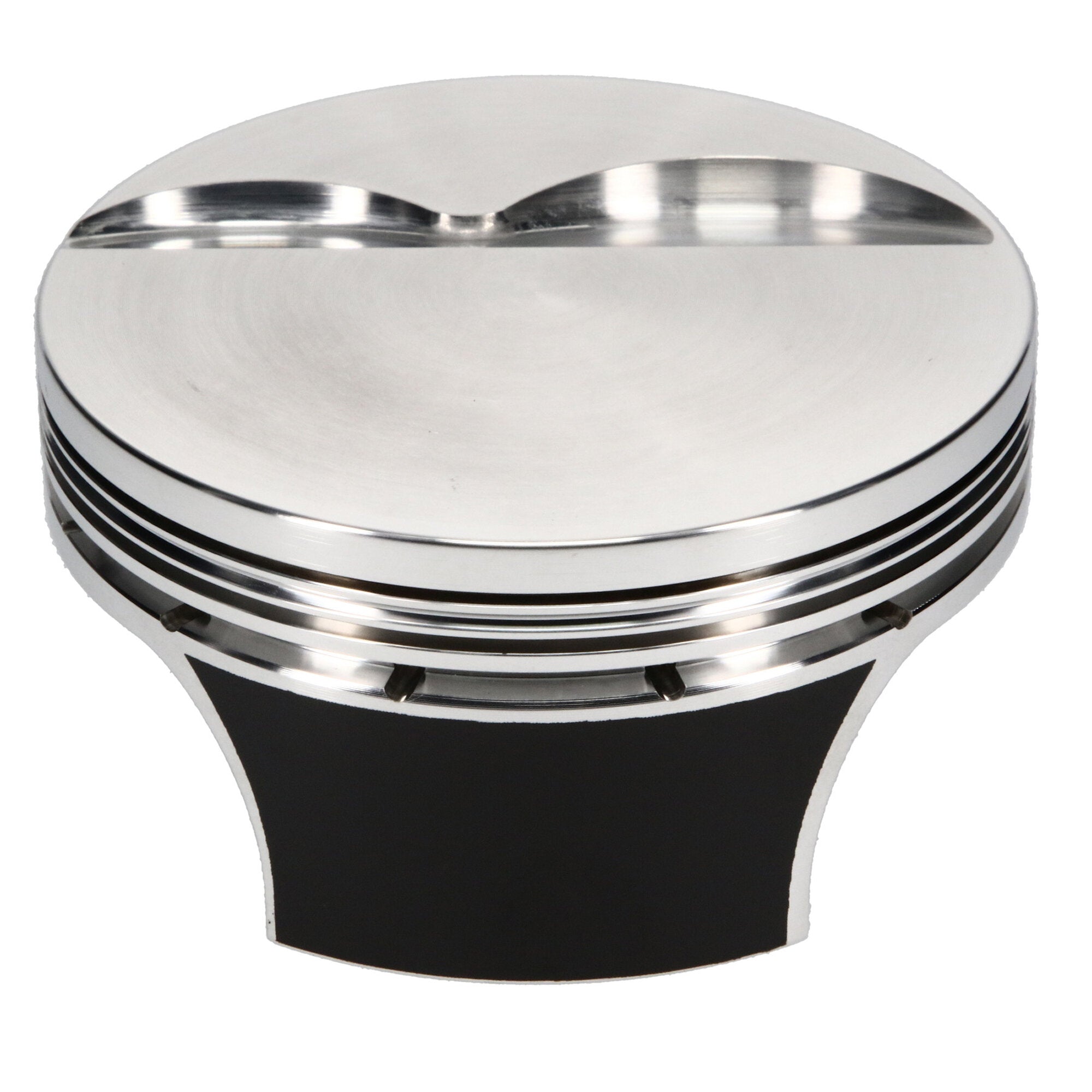

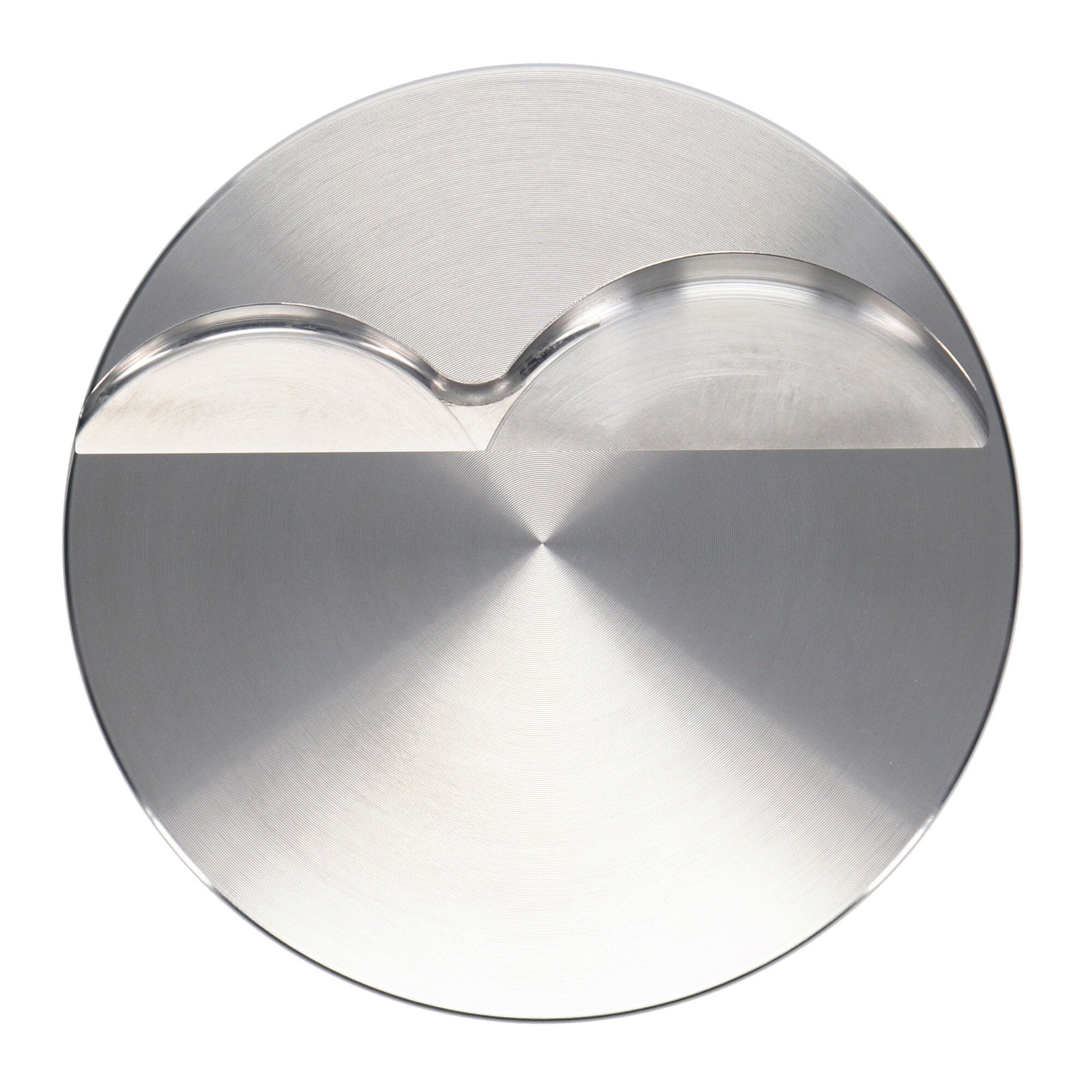

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP Pro 4032, Ford, Small Block Ford, 4.005 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.005 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_INV |
SRP Pro, Piston Set |
| Description_TLE |
Ford 302, 4.005 Bore, Flat, Set of 8 |
| Piston Pin Outside Diameter |
0.927 |
| Forging Type |
FSR |
| Make |
FORD |
| Engine Type |
ICE |
| Piston Head Type |
Flat |
| Piston Series |
SRP Pro 4032 |
| Ringset Included |
Yes |
| Oil Ring Thickness |
0.149 |
| Title |
SRP Pro 4032 - Ford, Small Block, 4.005 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Engine |
Small Block |
| Piston Pin Material |
5115 |
| Compression Height |
1.100 |
| Bore Diameter |
4.005 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Piston Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Piston Material |
4032 |
| Prop 65 Yes/No |
Yes |
| Piston Average Weight |
386 |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0480 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Title - Web |
SRP Pro 4032 Ford Small Block Piston Kit - 4.005 in. Bore - 1.100 in. CH, -5.00 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
JG3101-4000-7 |
| Piston Volume |
-5.00 |
| Add-On |
927-2250-15-51C |
| Add-On |
927-073-MW |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
