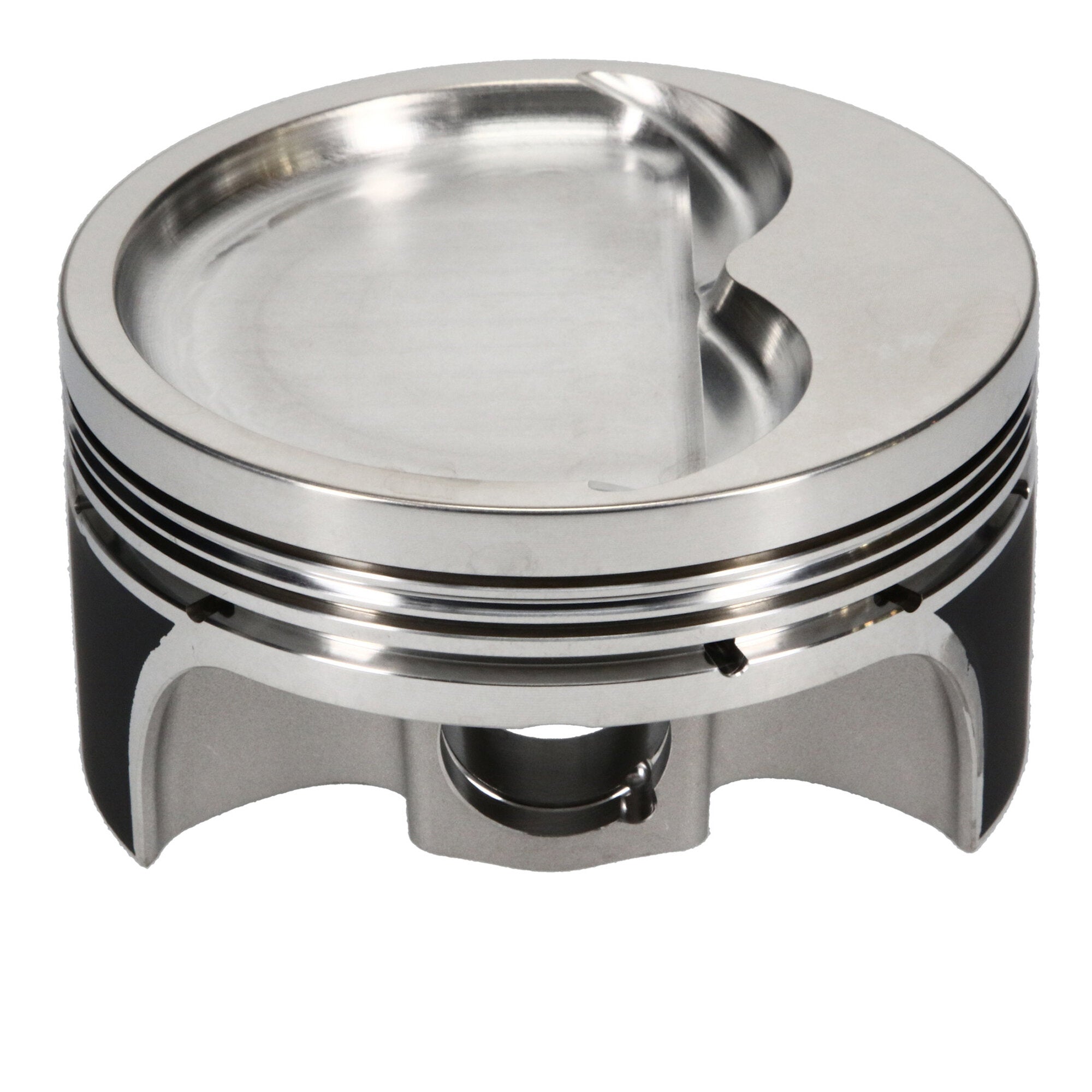

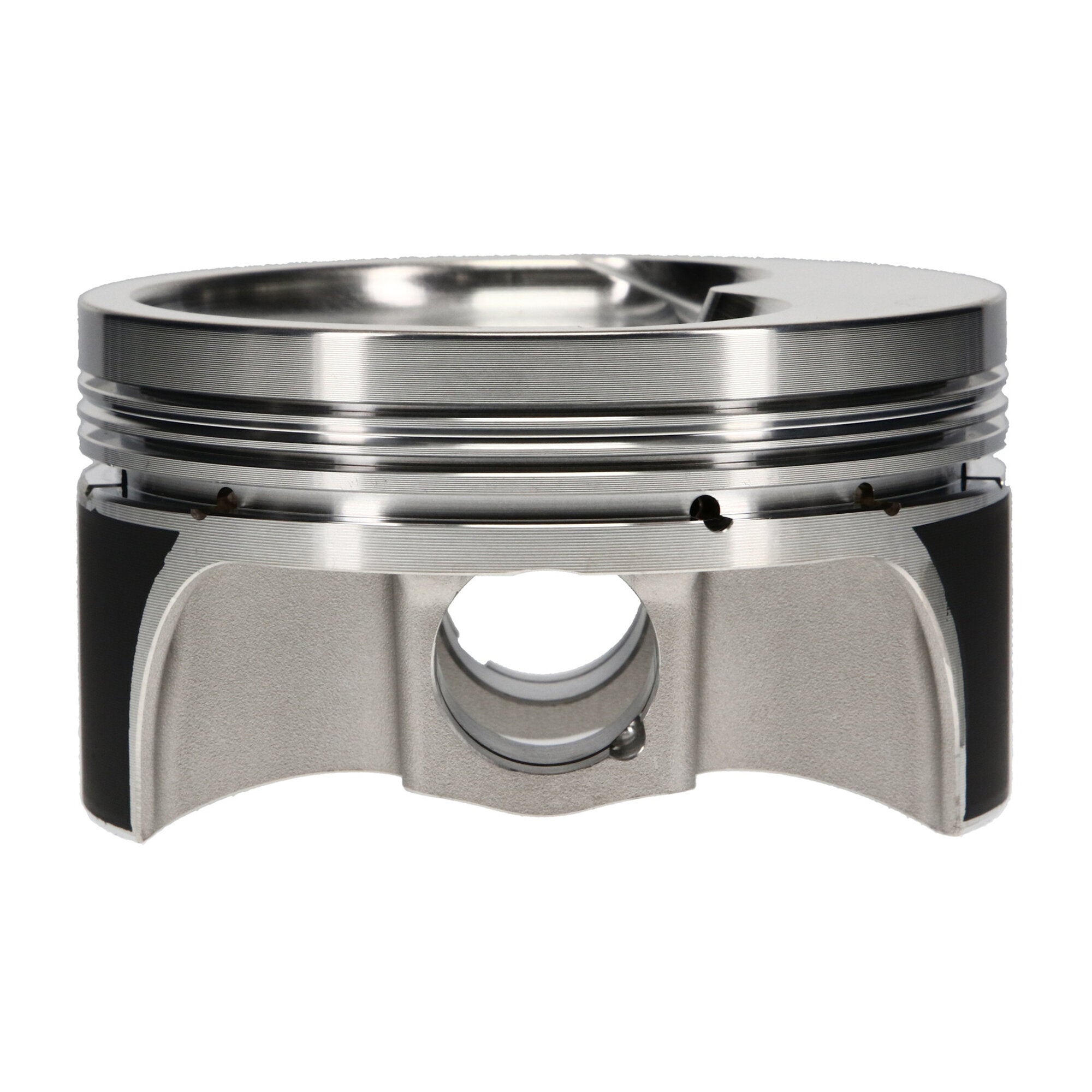

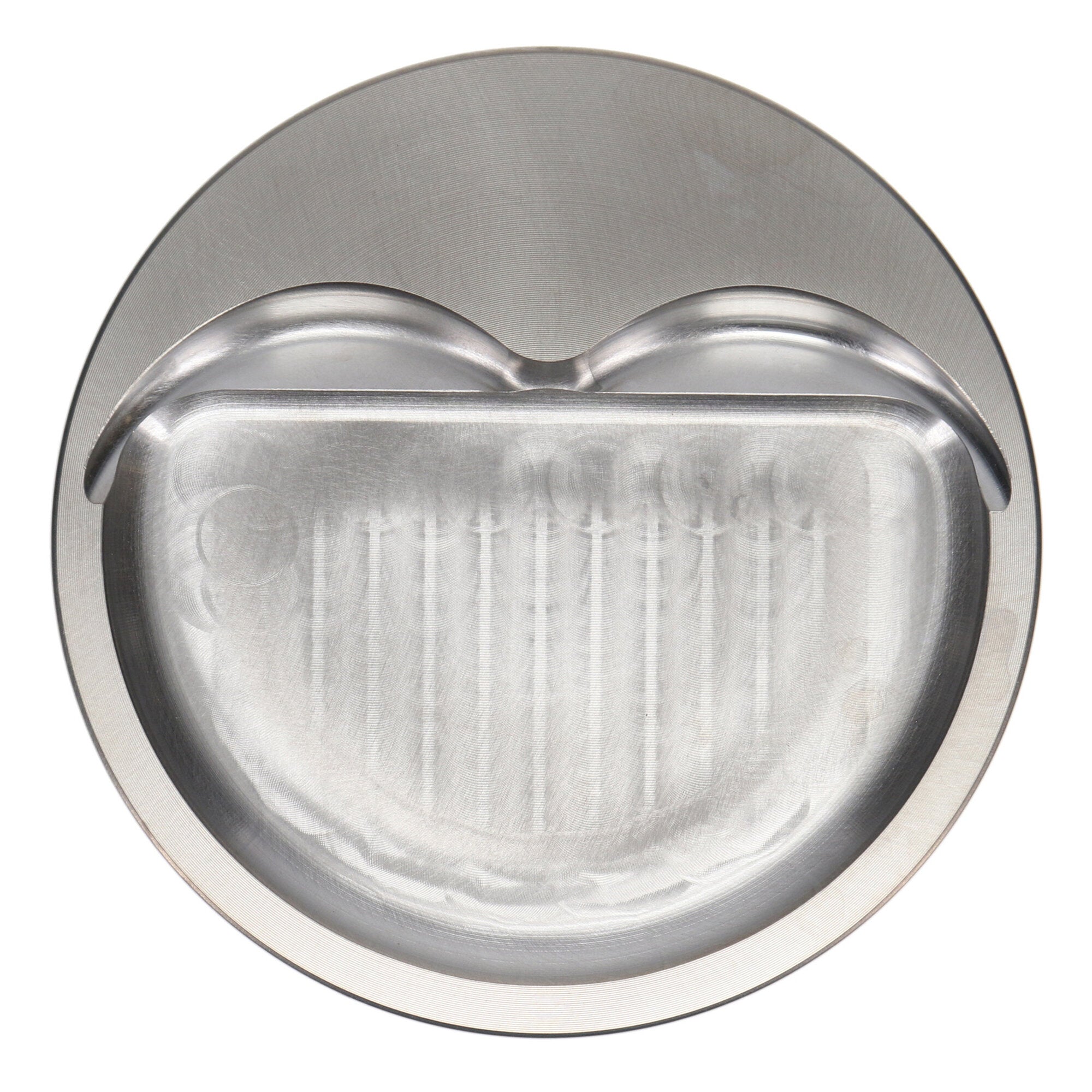

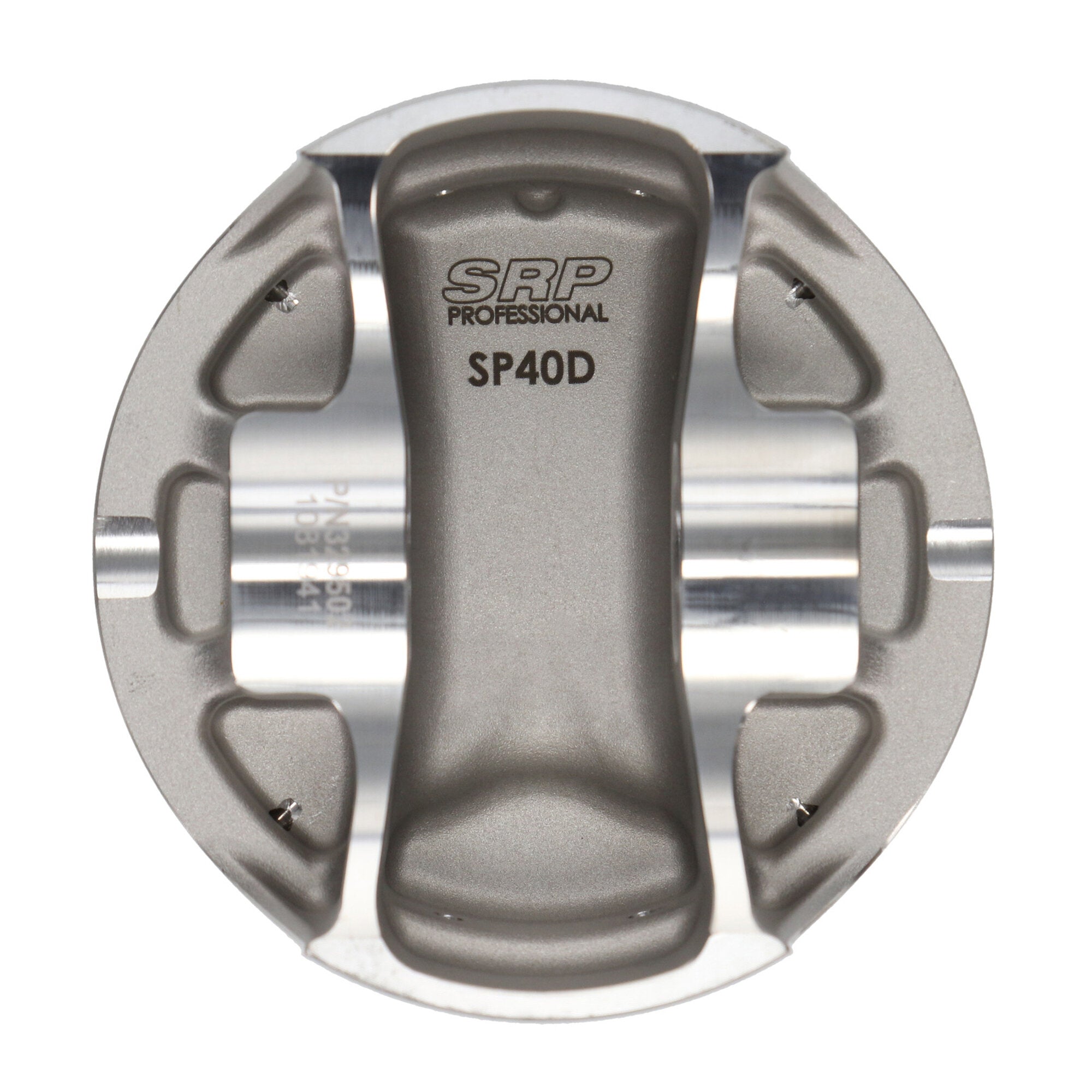

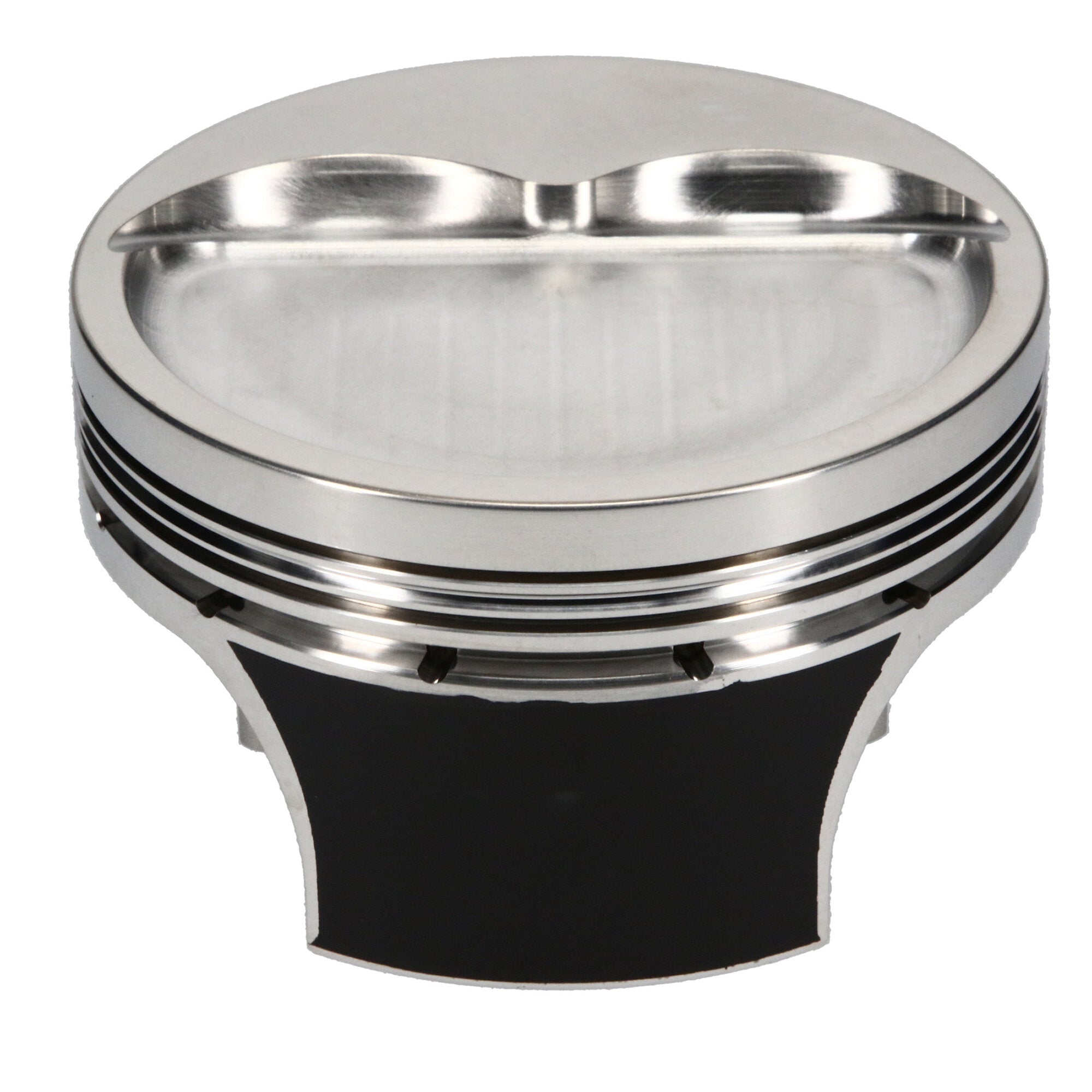

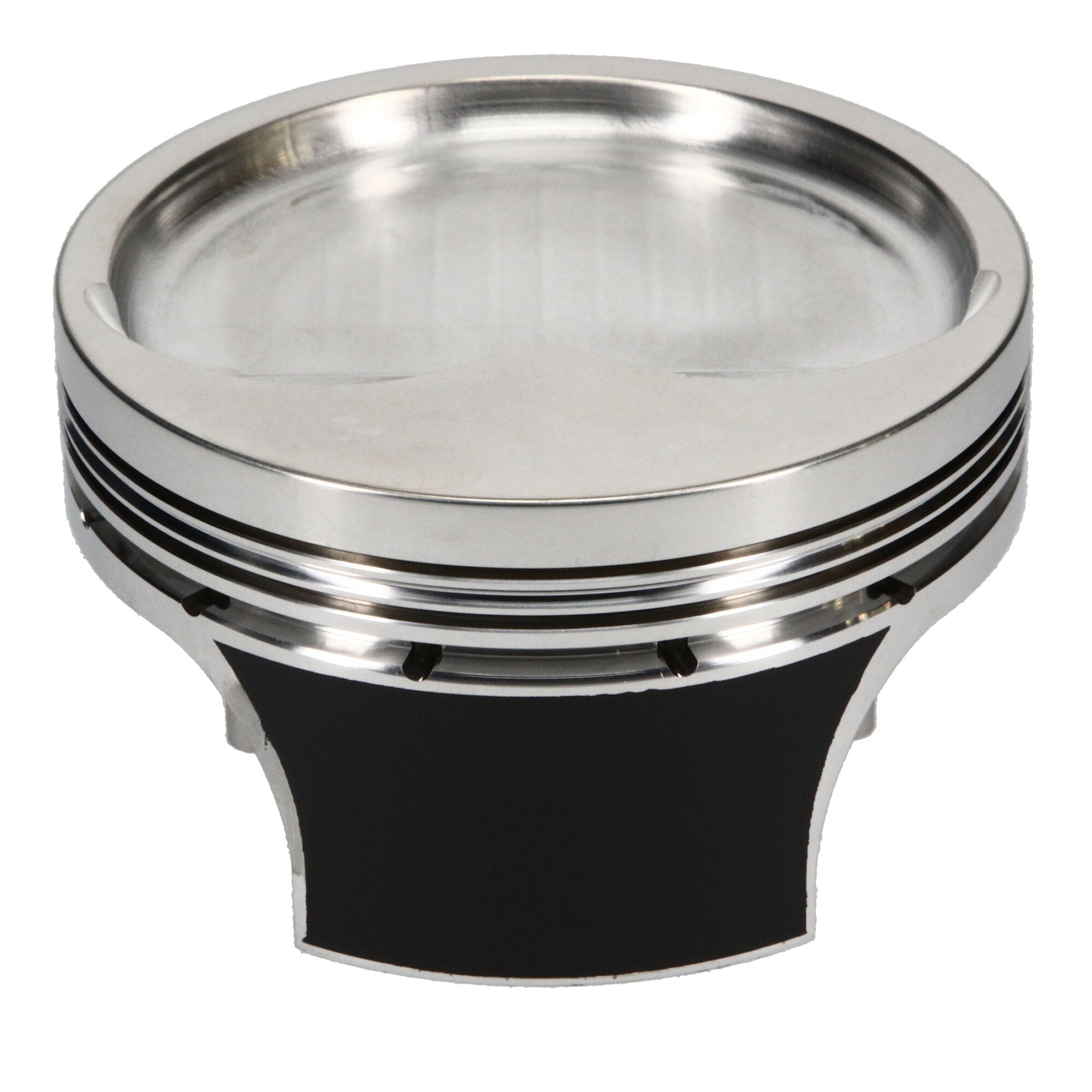

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.135 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.125 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Dish, Set of 8 |
| Piston Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Add-On |
927-073-MW |
| Add-On |
JG31F1-4135-2 |
| Add-On |
927-2250-15-51C |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Piston Volume |
-16.00 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Piston Series |
SRP Pro 4032 |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.135 in. Bore - 1.125 in. CH, -16.00 CC |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Prop 65 Yes/No |
Yes |
| Engine |
Small Block |
| Piston Pin Material |
5115 |
| Compression Height |
1.125 |
| Make |
CHEVROLET |
| Oil Ring Thickness |
0.149 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Material |
4032 |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Bore Diameter |
4.135 |
| Top Compression Ring Thickness |
0.0480 |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.135 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Second Compression Ring Thickness |
0.0600 |
| Piston Head Type |
Dish |
| Forging Type |
FSR |
| Product Market |
Domestic |
| Piston Average Weight |
387 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
