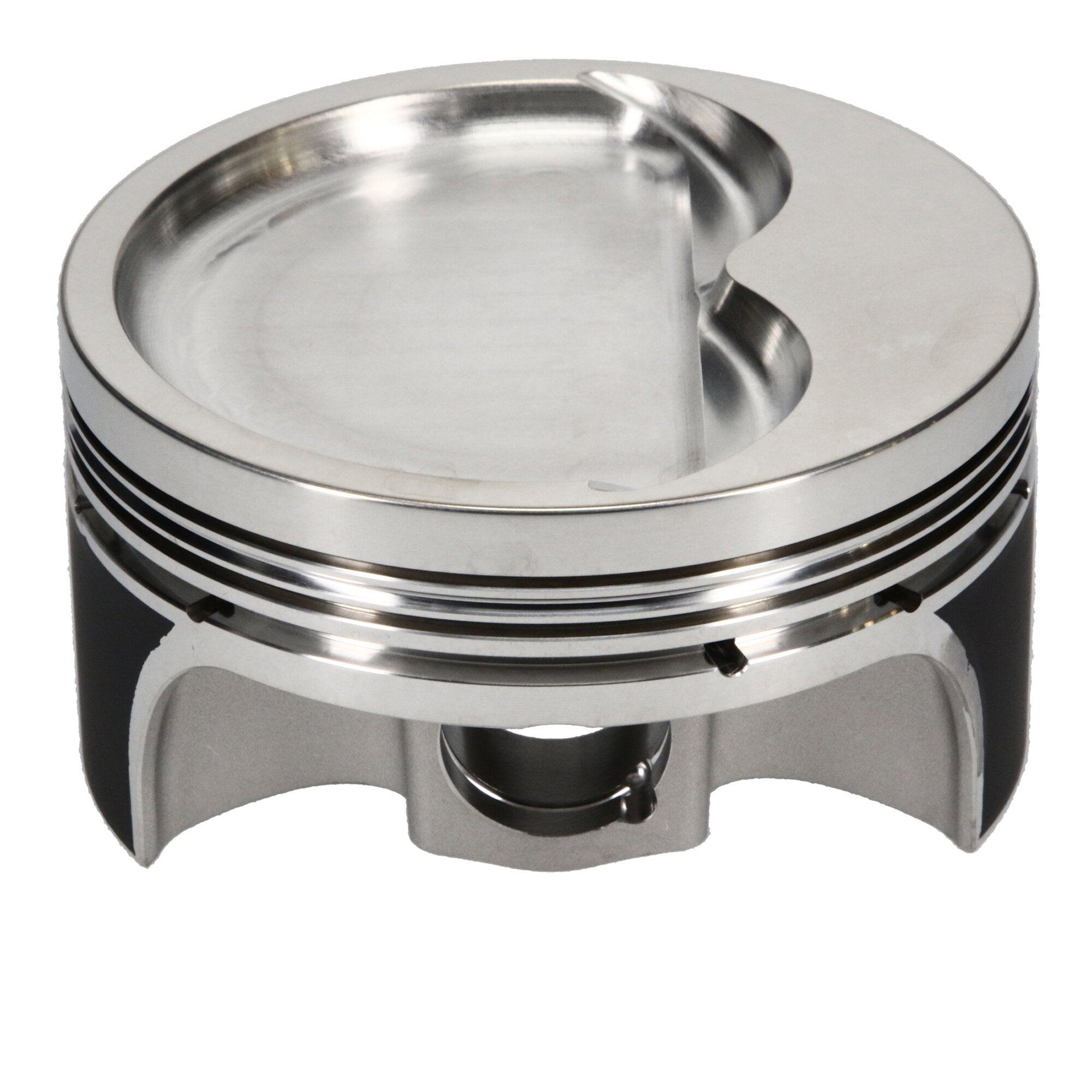

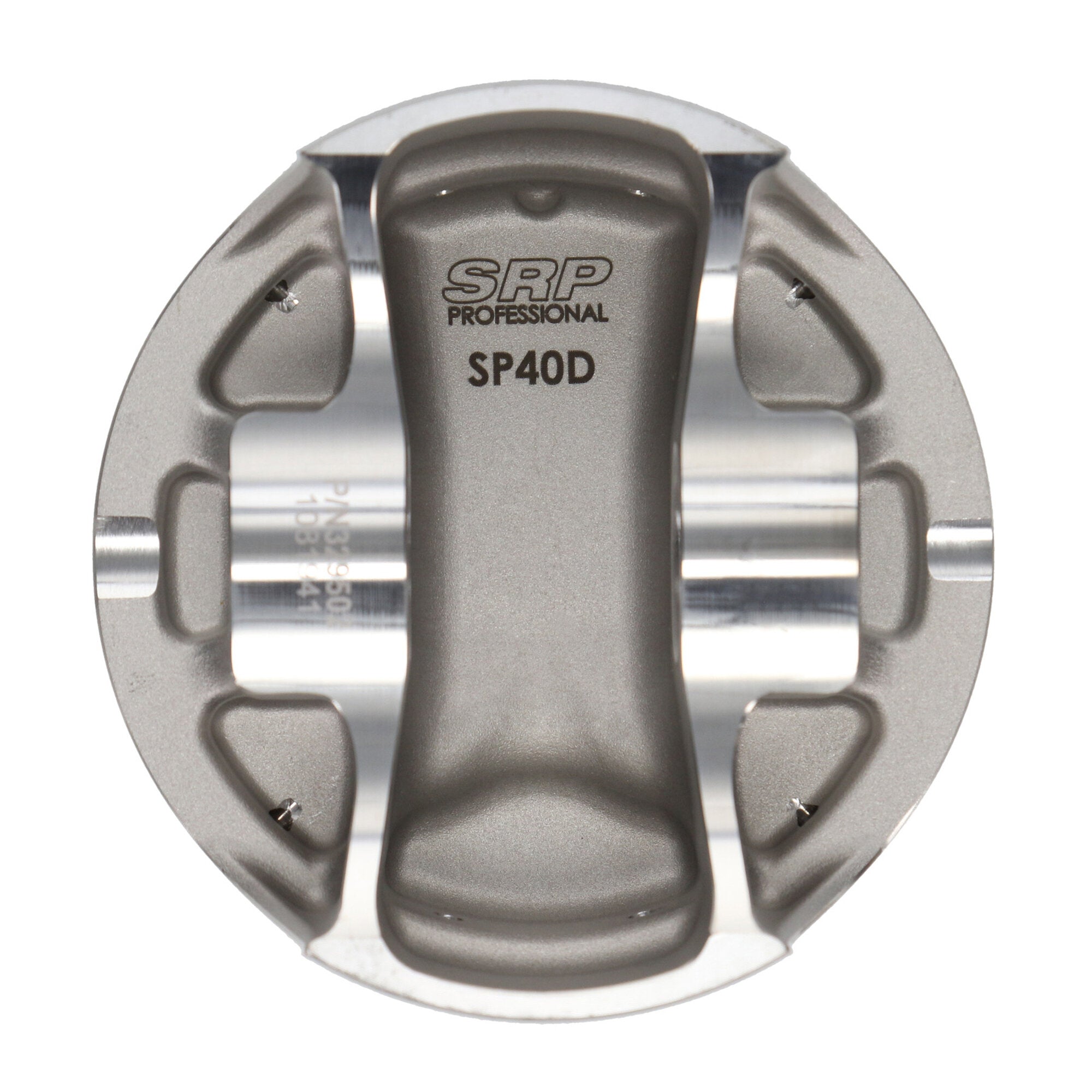

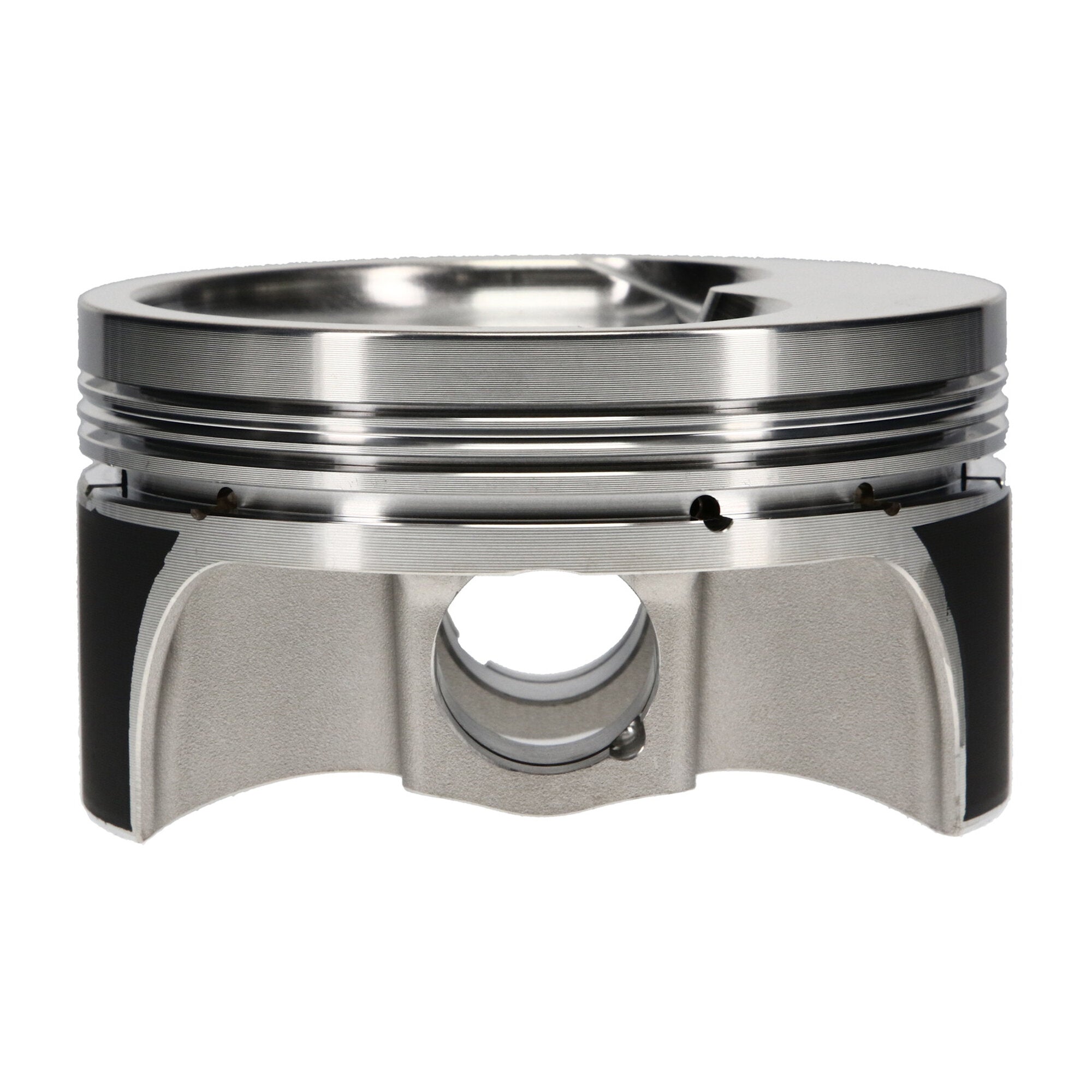

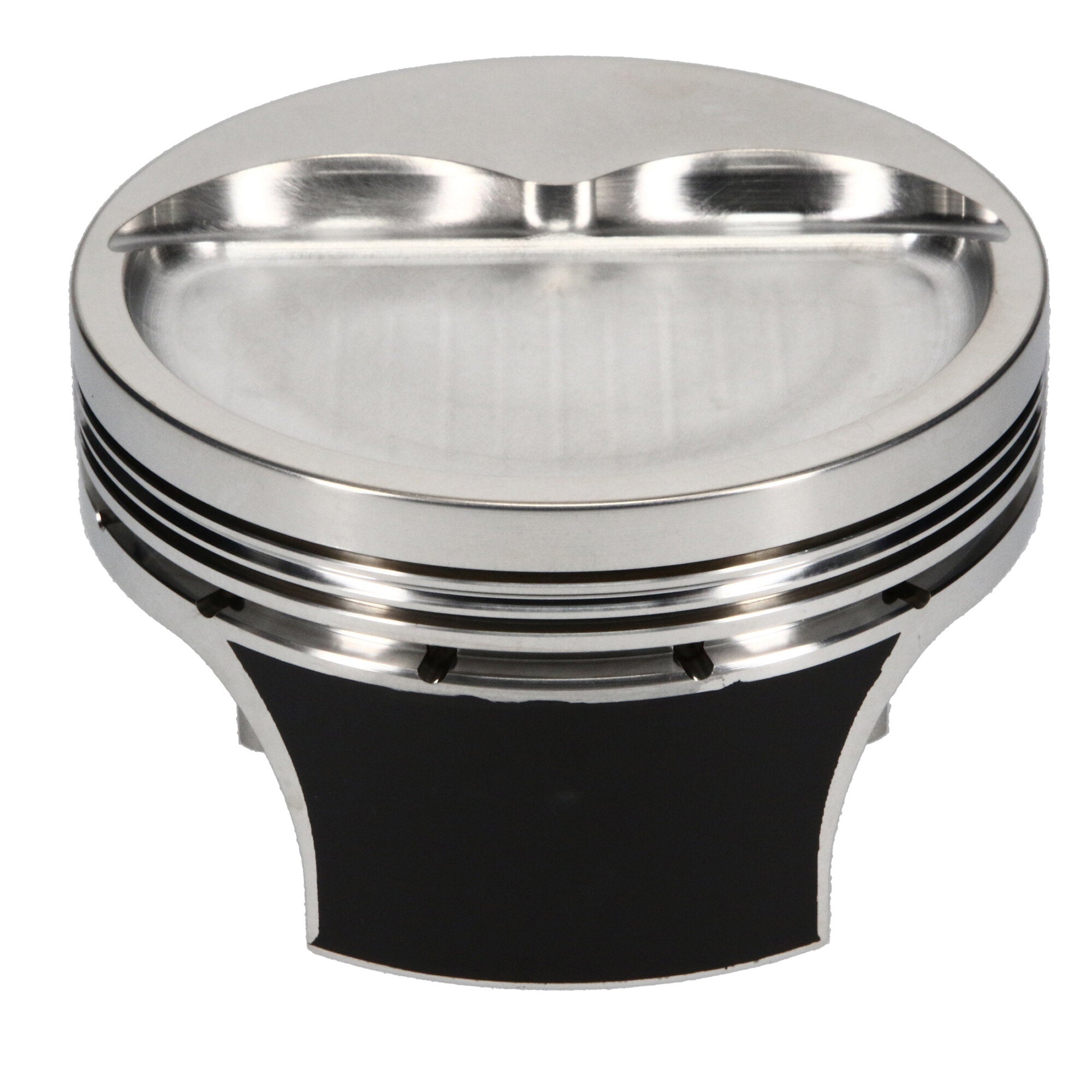

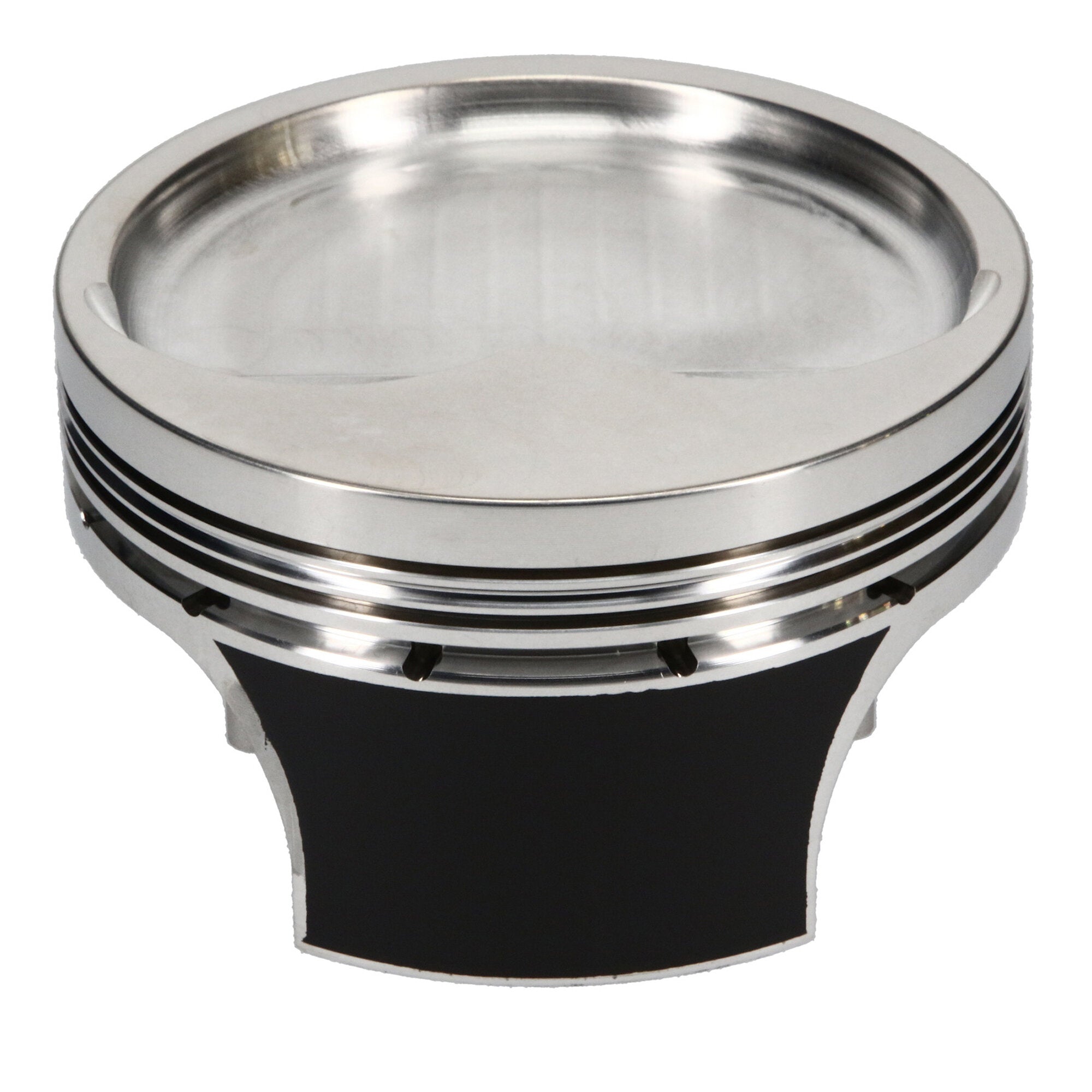

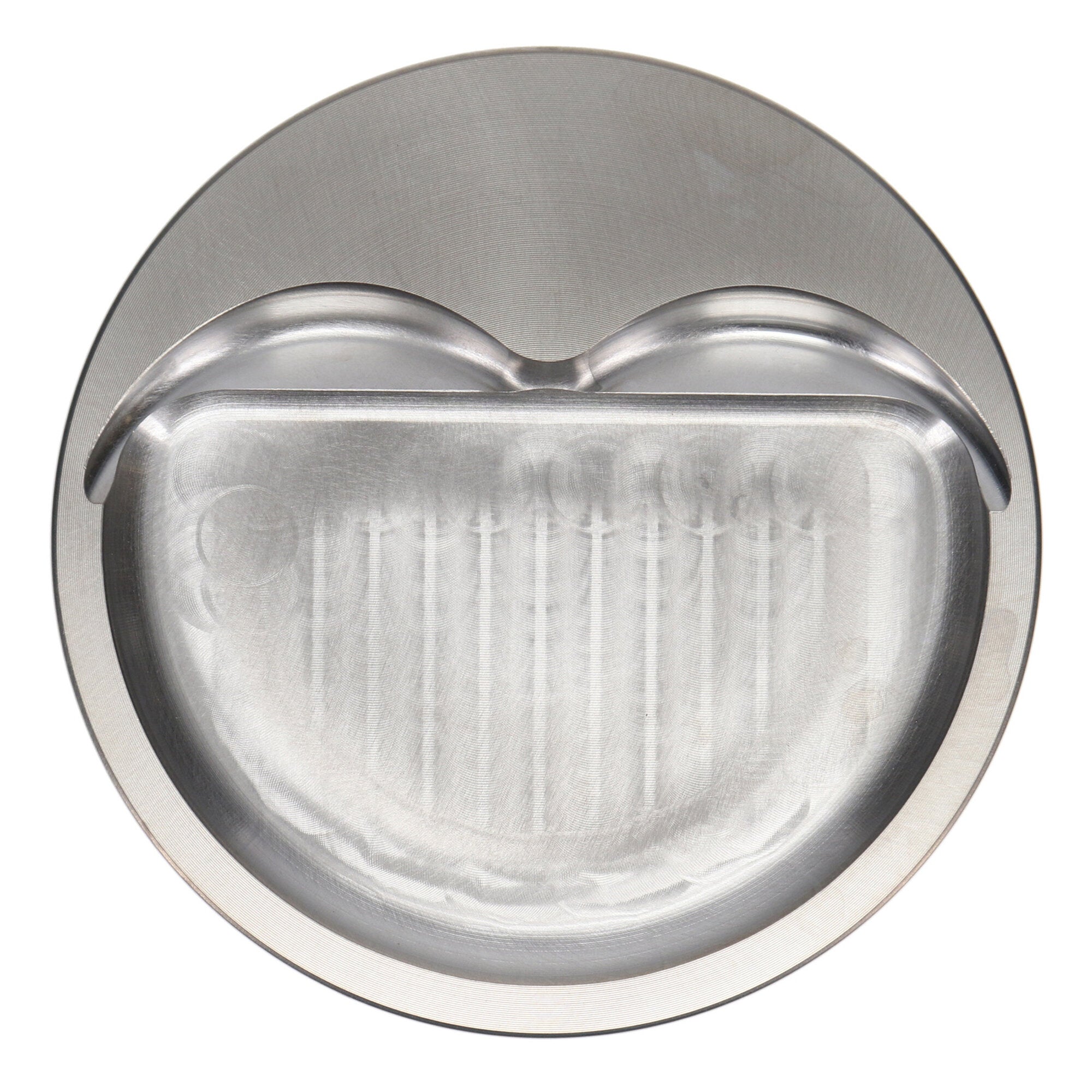

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.020 Bore, 1.425 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
SRP Pro 4032, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.425 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP Pro, Piston Set |
| Description_TLE |
Chevrolet 350, 4.020 Bore, Dish, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Product Market |
Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Piston Material |
4032 |
| Top Compression Ring Thickness |
0.0480 |
| Piston Volume |
-31.00 |
| Bore Diameter |
4.020 |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.020 in. Bore - 1.425 in. CH, -31.00 CC |
| Add-On |
JG3101-4020-2 |
| Add-On |
927-073-MW |
| Add-On |
927-2250-15-51C |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Piston Average Weight |
447 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Length |
2.250 |
| Oil Ring Thickness |
0.119 |
| Second Compression Ring Thickness |
0.0600 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Engine |
Small Block |
| Piston Head Type |
Dish |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Forging Type |
FSR |
| Piston Series |
SRP Pro 4032 |
| Compression Height |
1.425 |
| Make |
CHEVROLET |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
