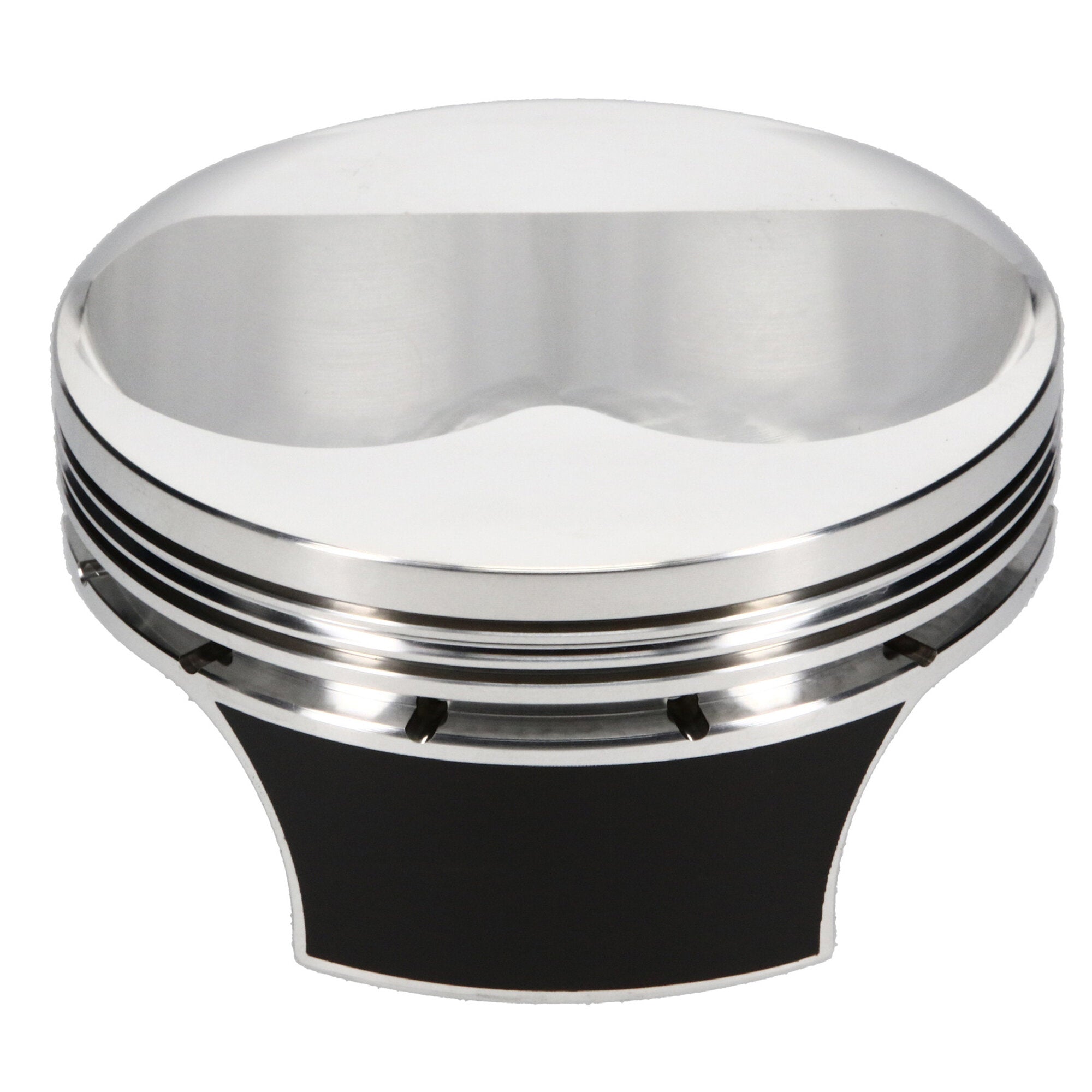

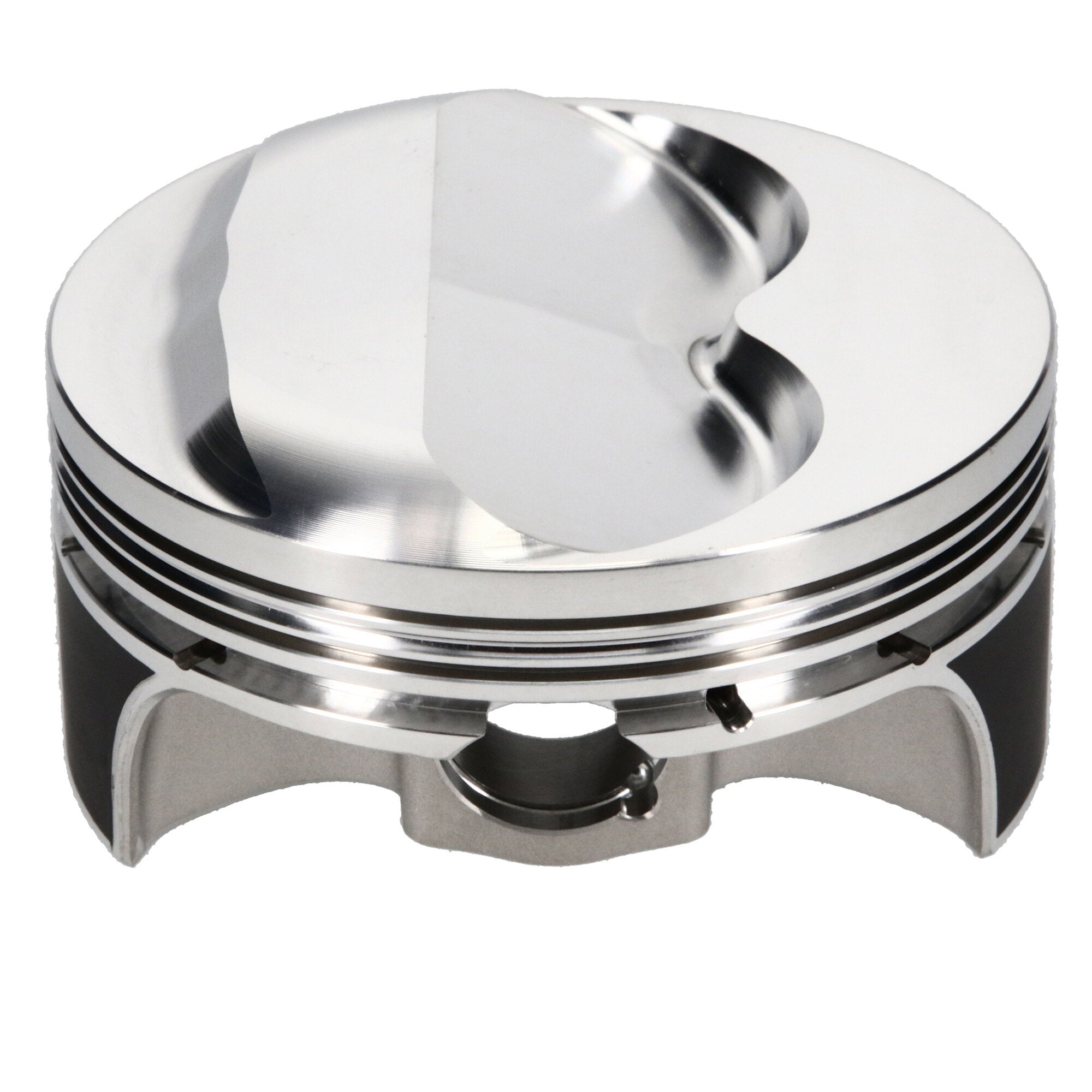

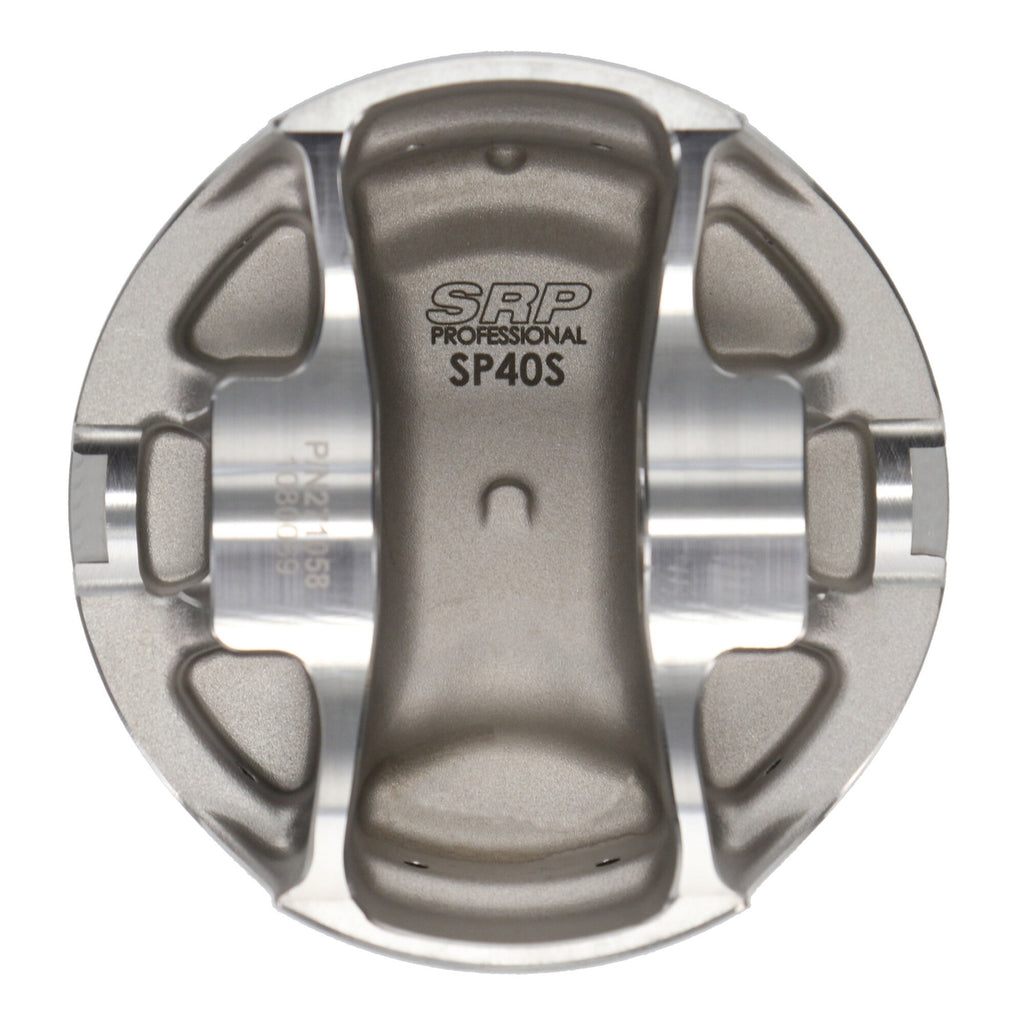

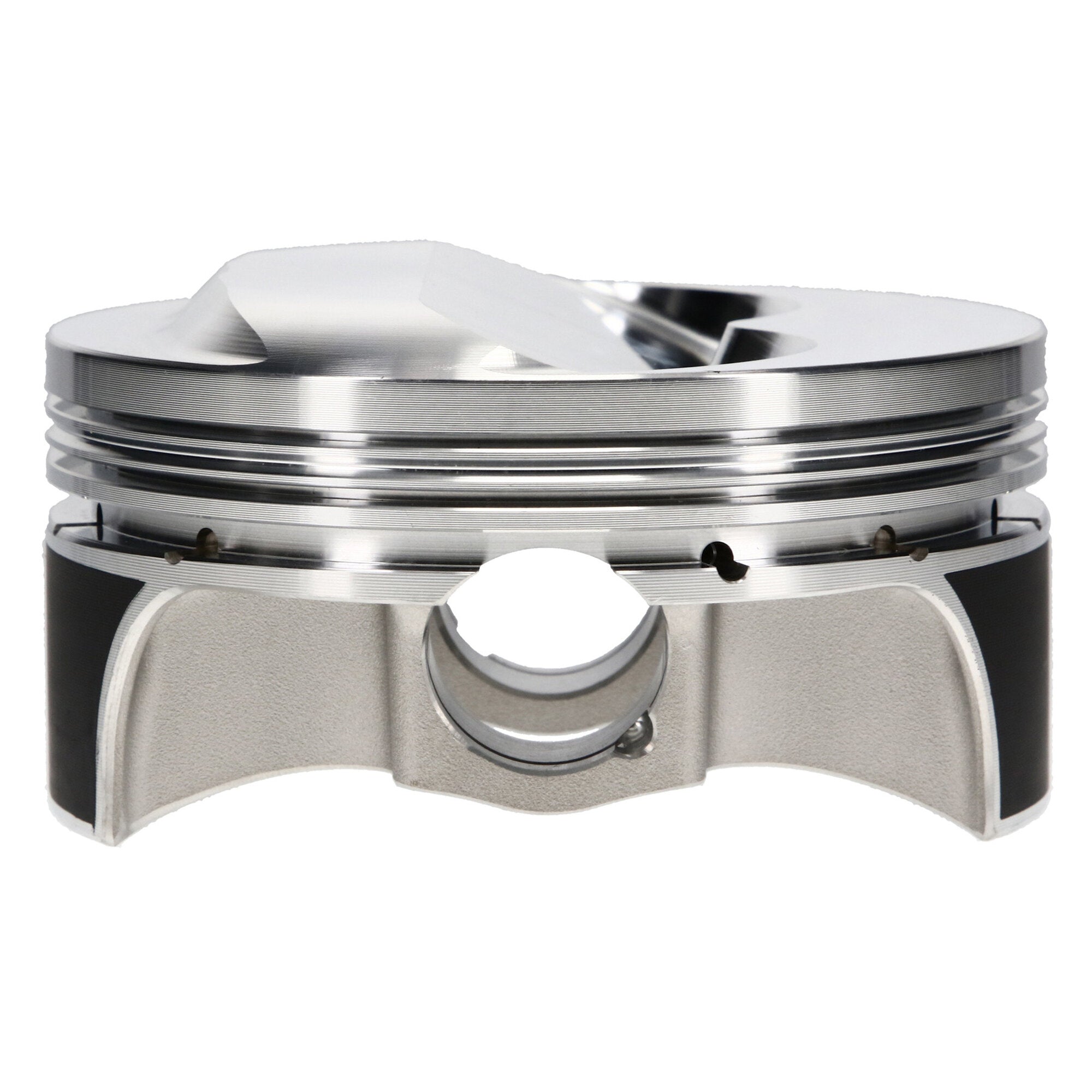

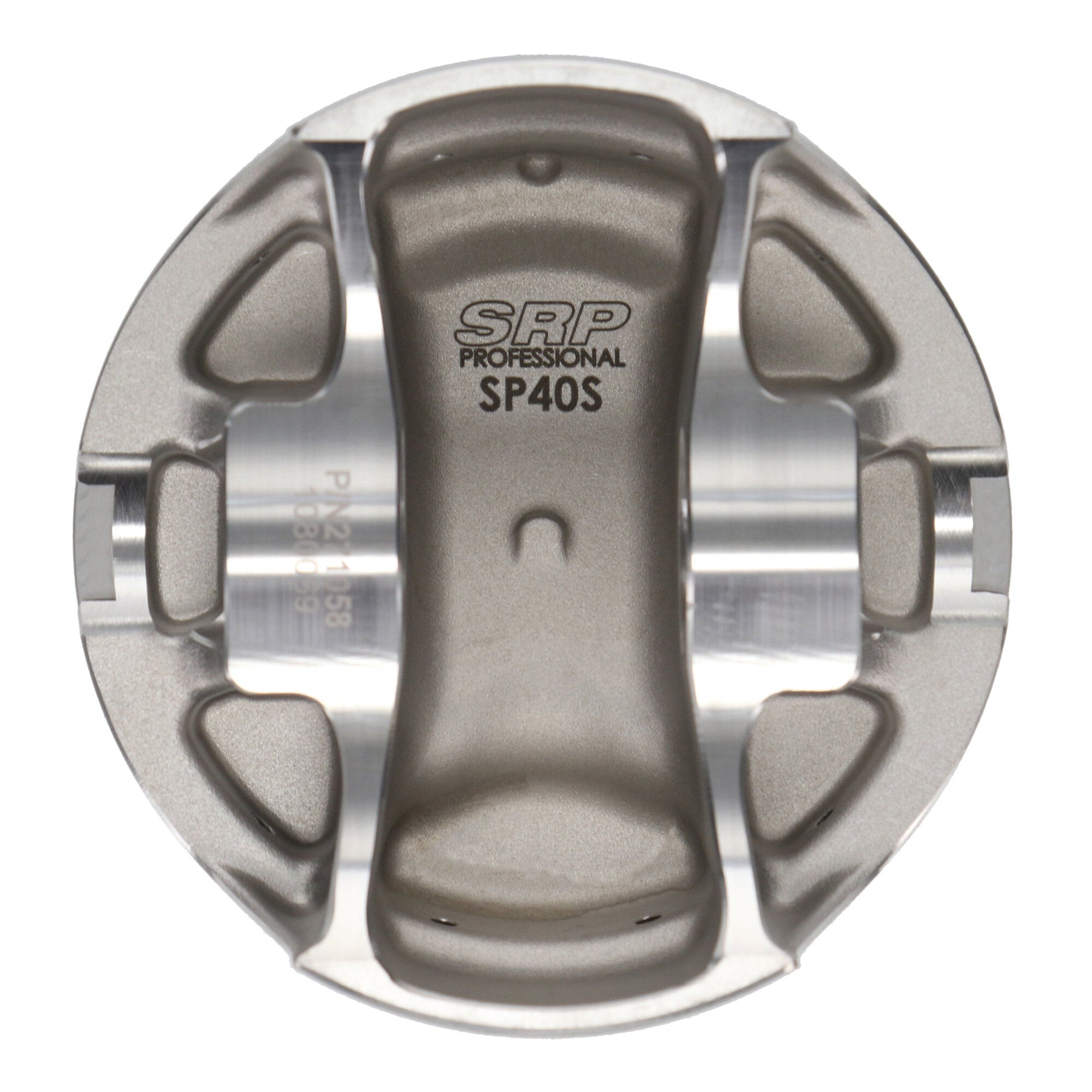

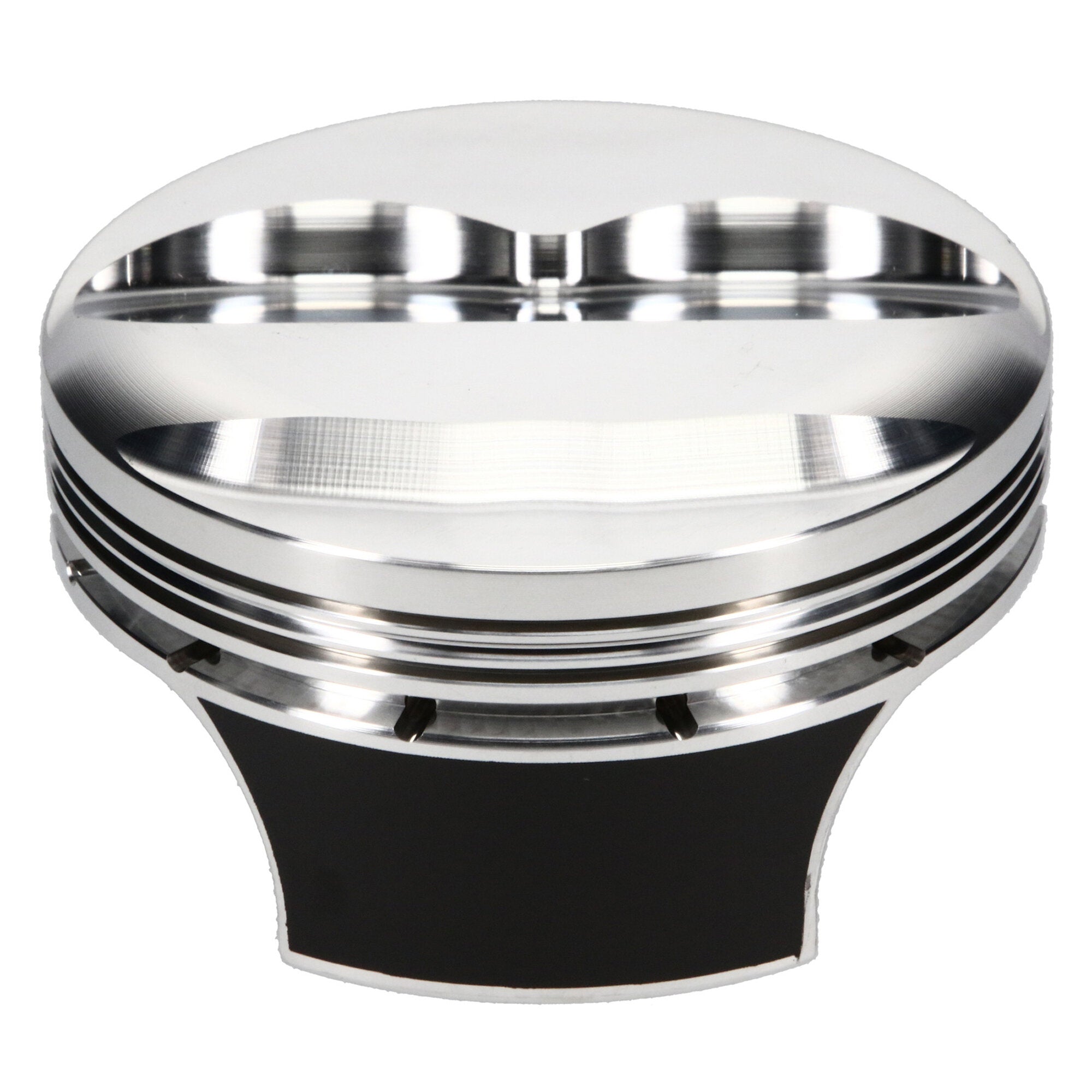

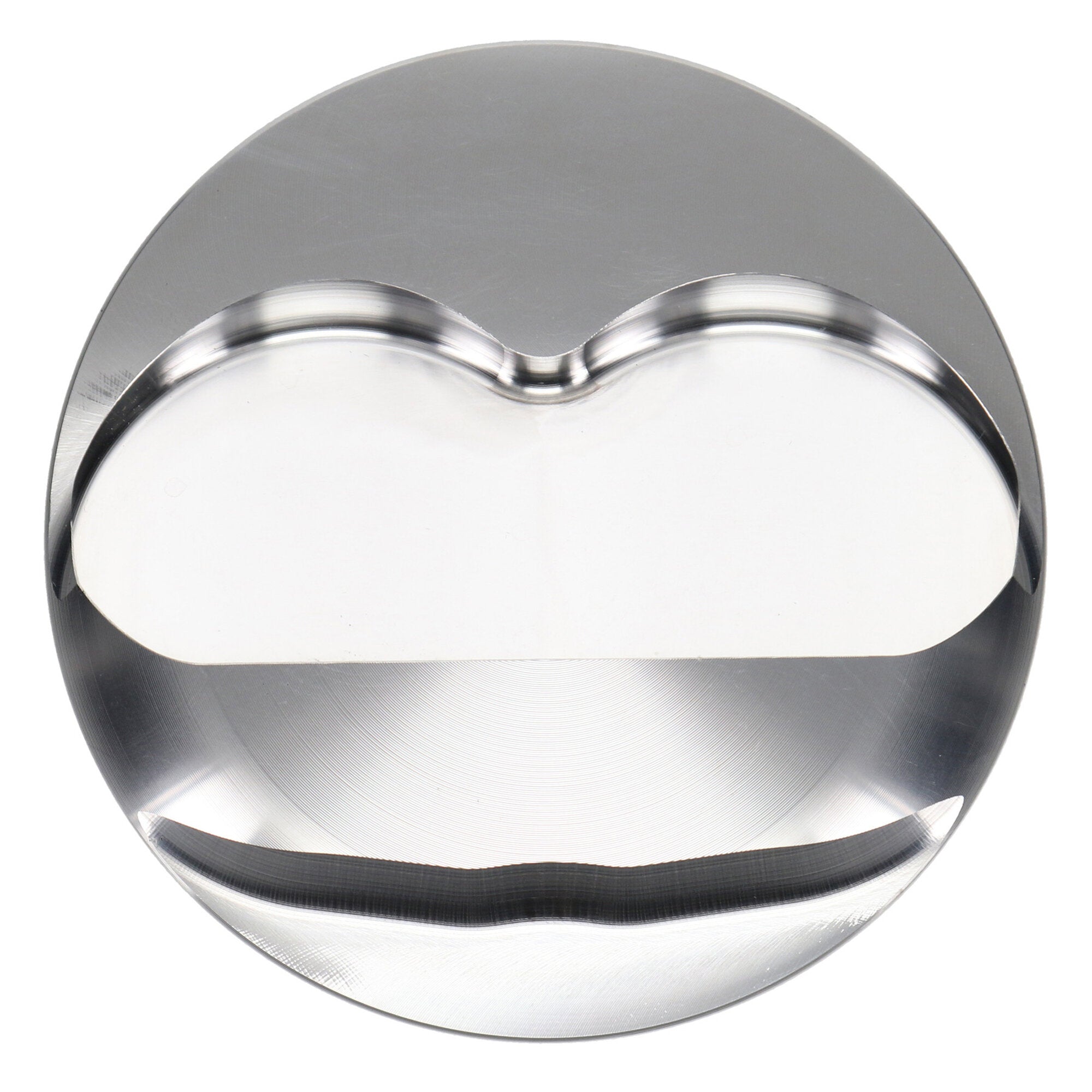

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Dome, 4.020 Bore, 1.260 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.260 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 350, 4.020 Bore, Dome, Set of 8 |
| Ringset Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Material |
5115 |
| Engine |
Small Block |
| Oil Ring Thickness |
0.119 |
| Make |
CHEVROLET |
| Piston Series |
SRP Pro 4032 |
| Wrist Pin Wall Thickness |
0.150 |
| Top Compression Ring Thickness |
0.0480 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Piston Pin Length |
2.250 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dome |
| Forging Type |
FSR |
| Piston Volume |
11.00 |
| Engine Type |
ICE |
| Bore Diameter |
4.020 |
| Product Market |
Domestic |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
4032 |
| Add-On |
JG3101-4020-2 |
| Industry |
Automotive |
| Piston Average Weight |
440 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Compression Height |
1.260 |
| Add-On |
927-2250-15-51C |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Second Compression Ring Thickness |
0.0600 |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Add-On |
927-073-MW |
| Prop 65 Yes/No |
Yes |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.020 in. Bore - 1.260 in. CH, 11.00 CC |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
