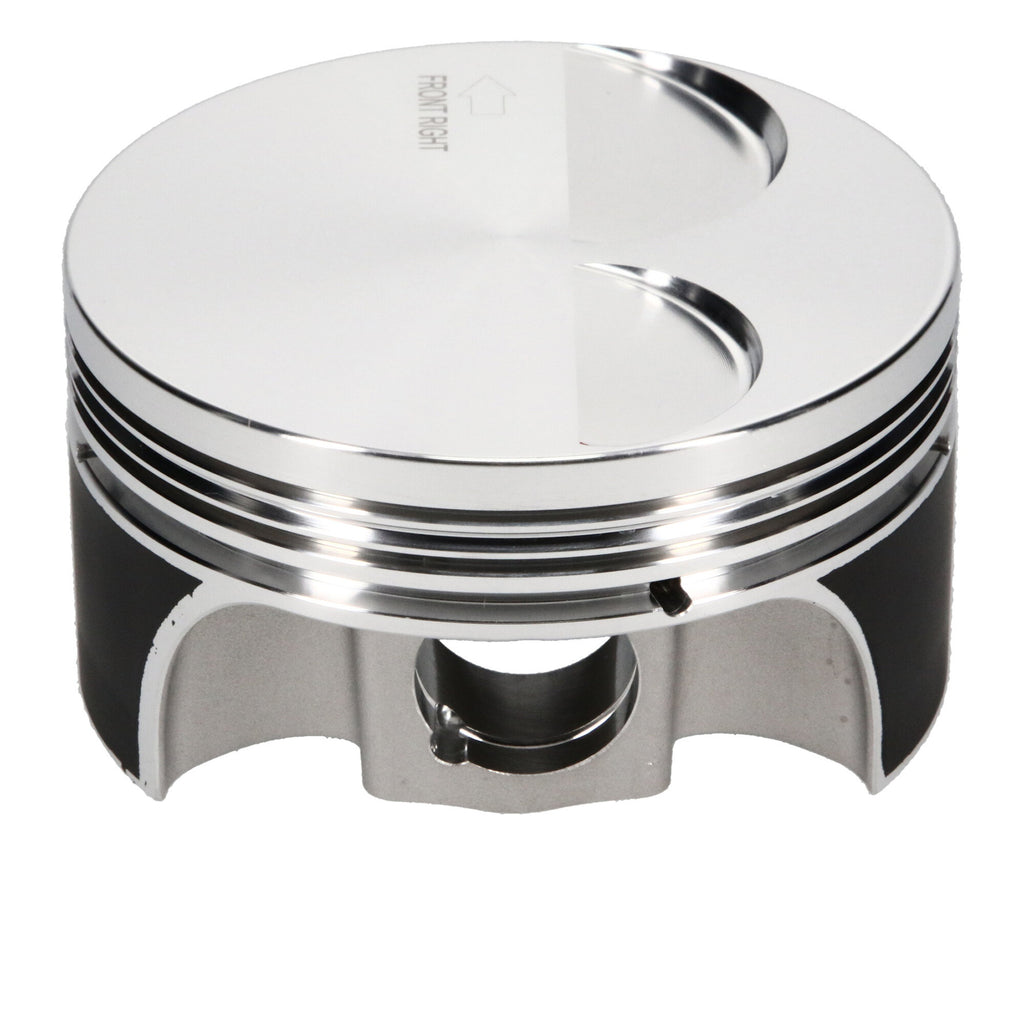

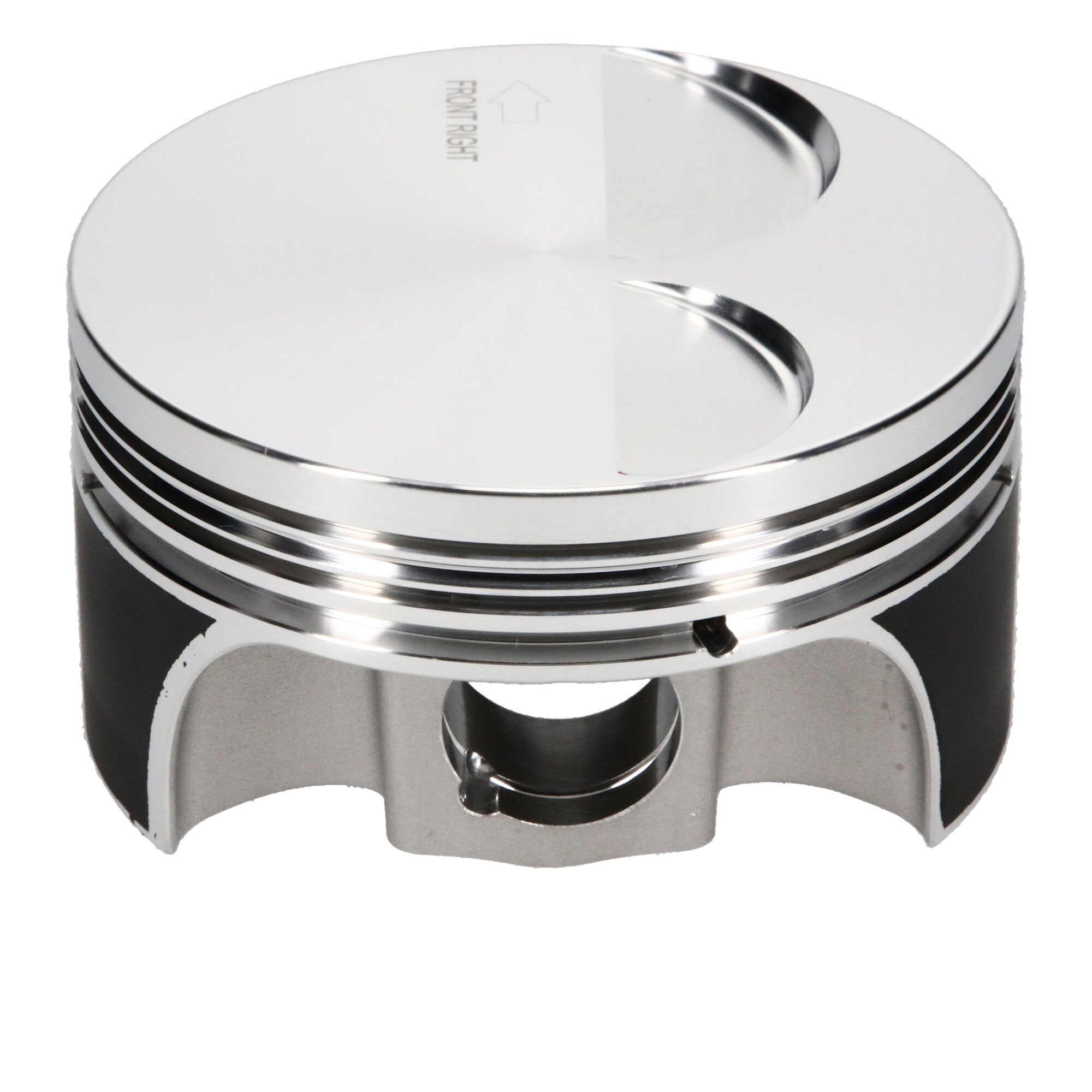

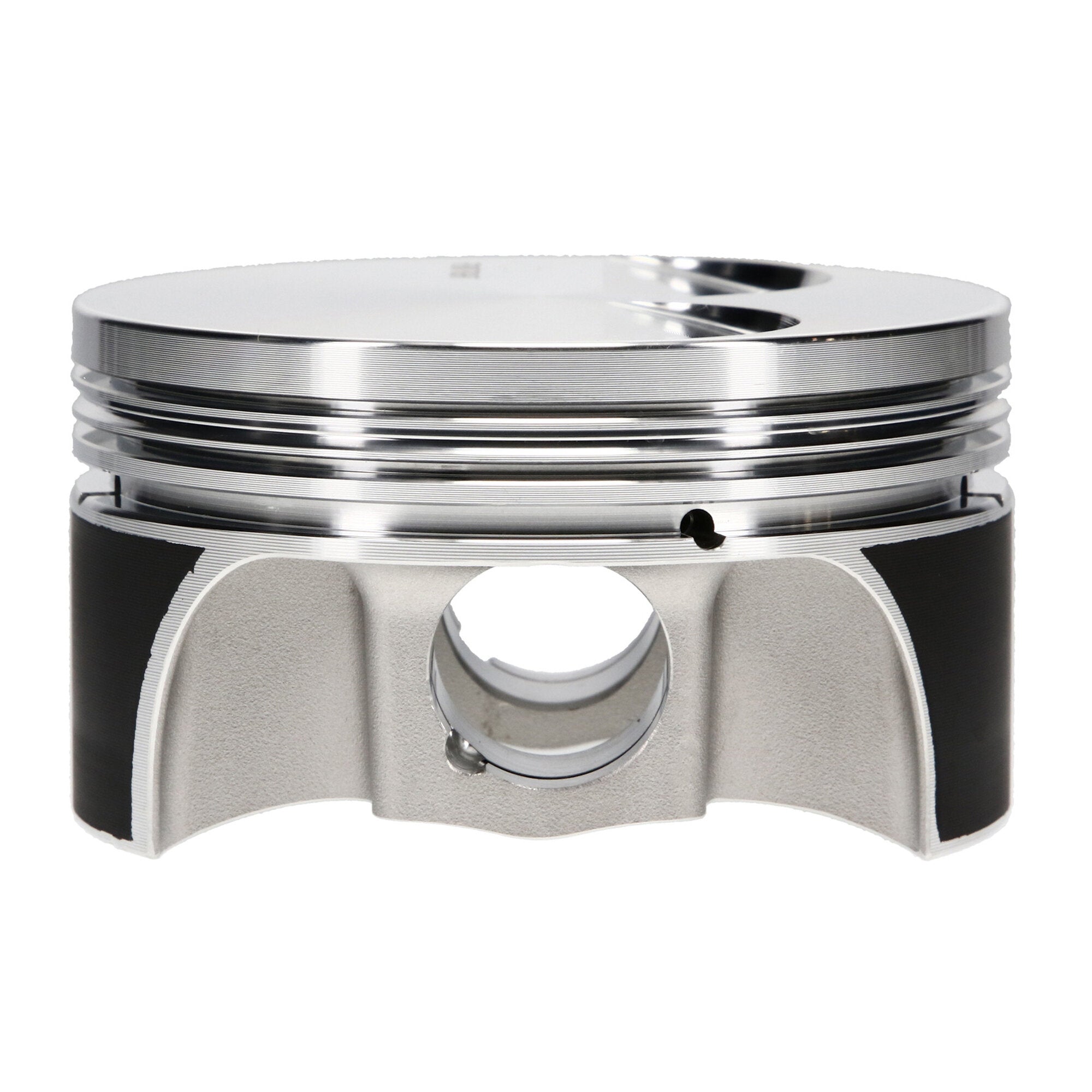

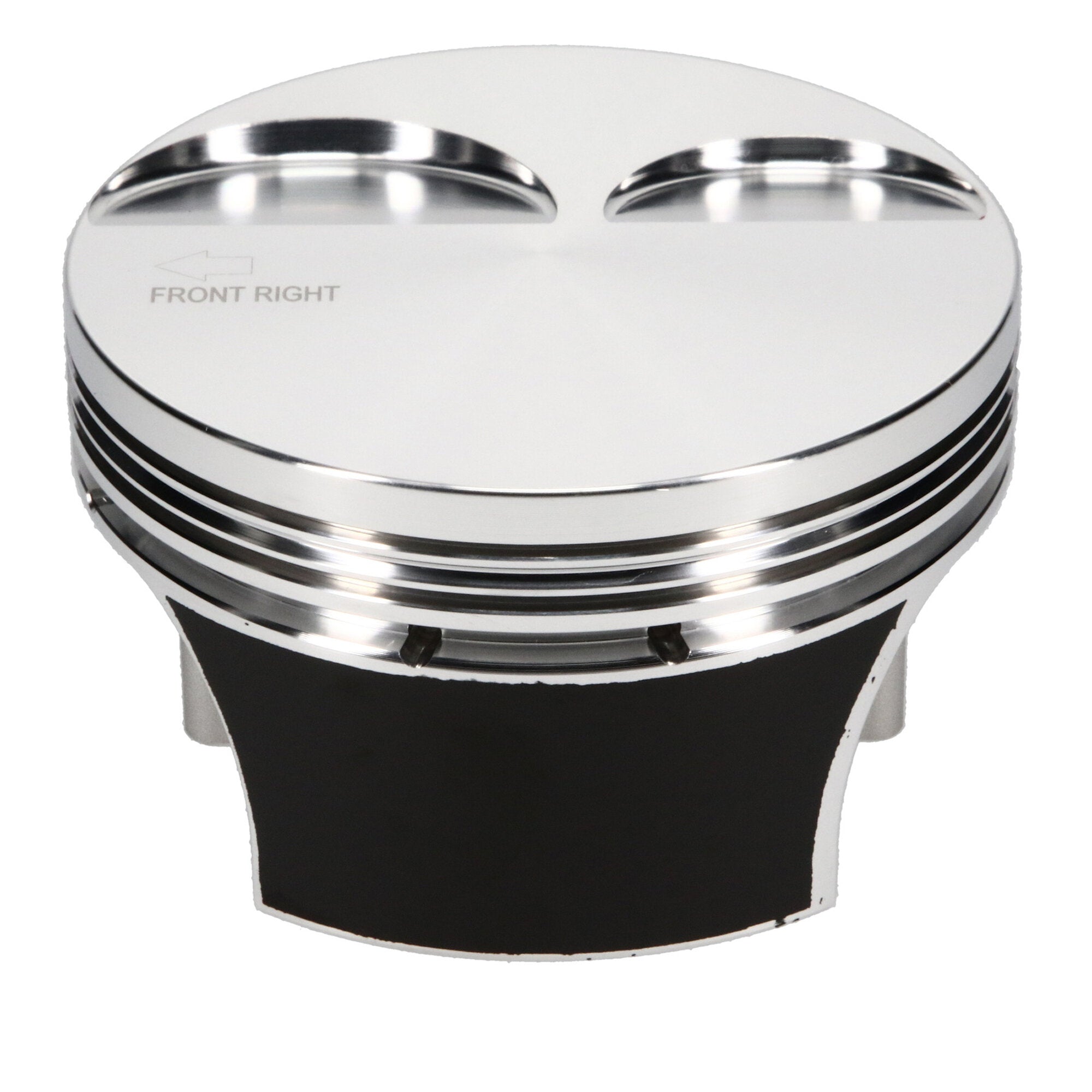

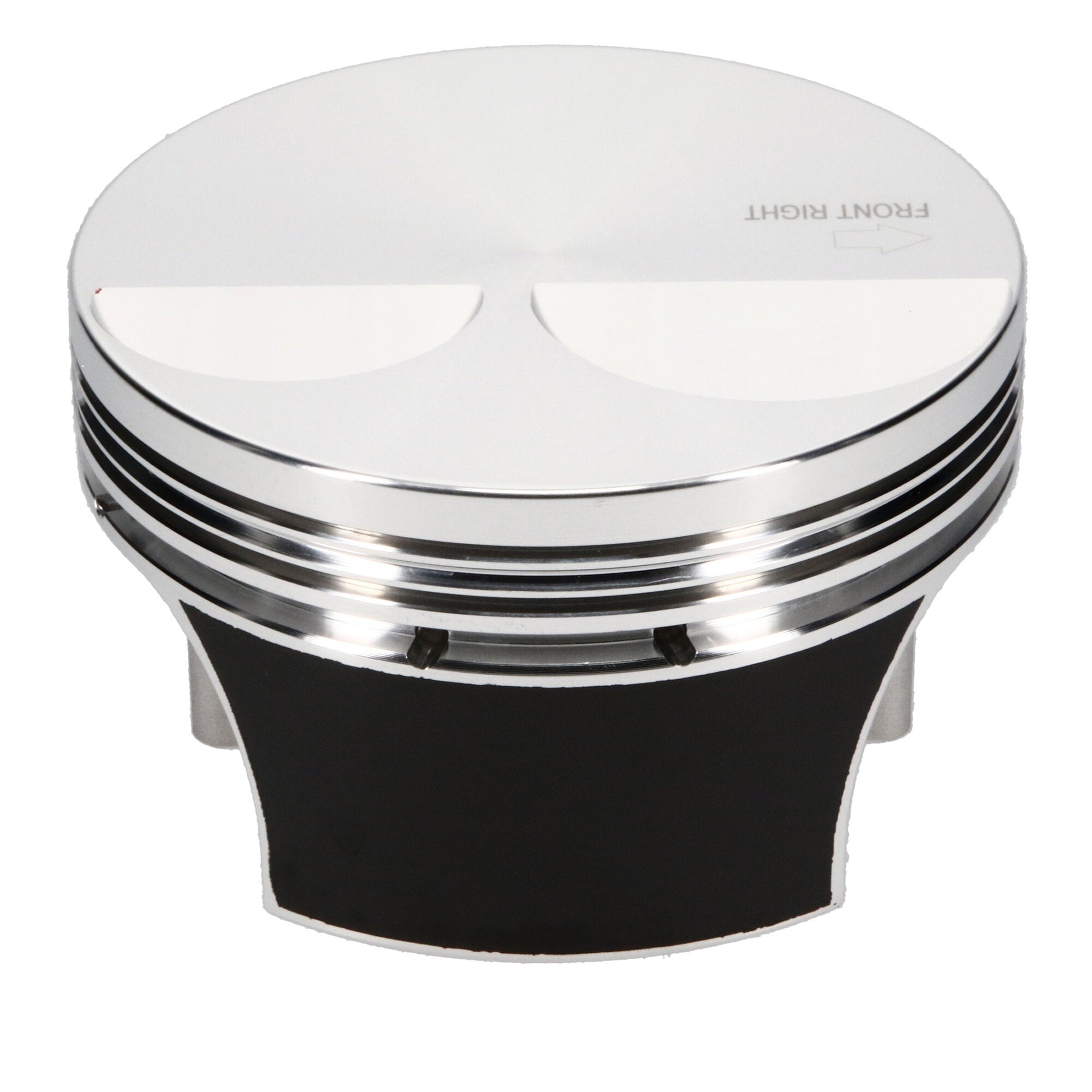

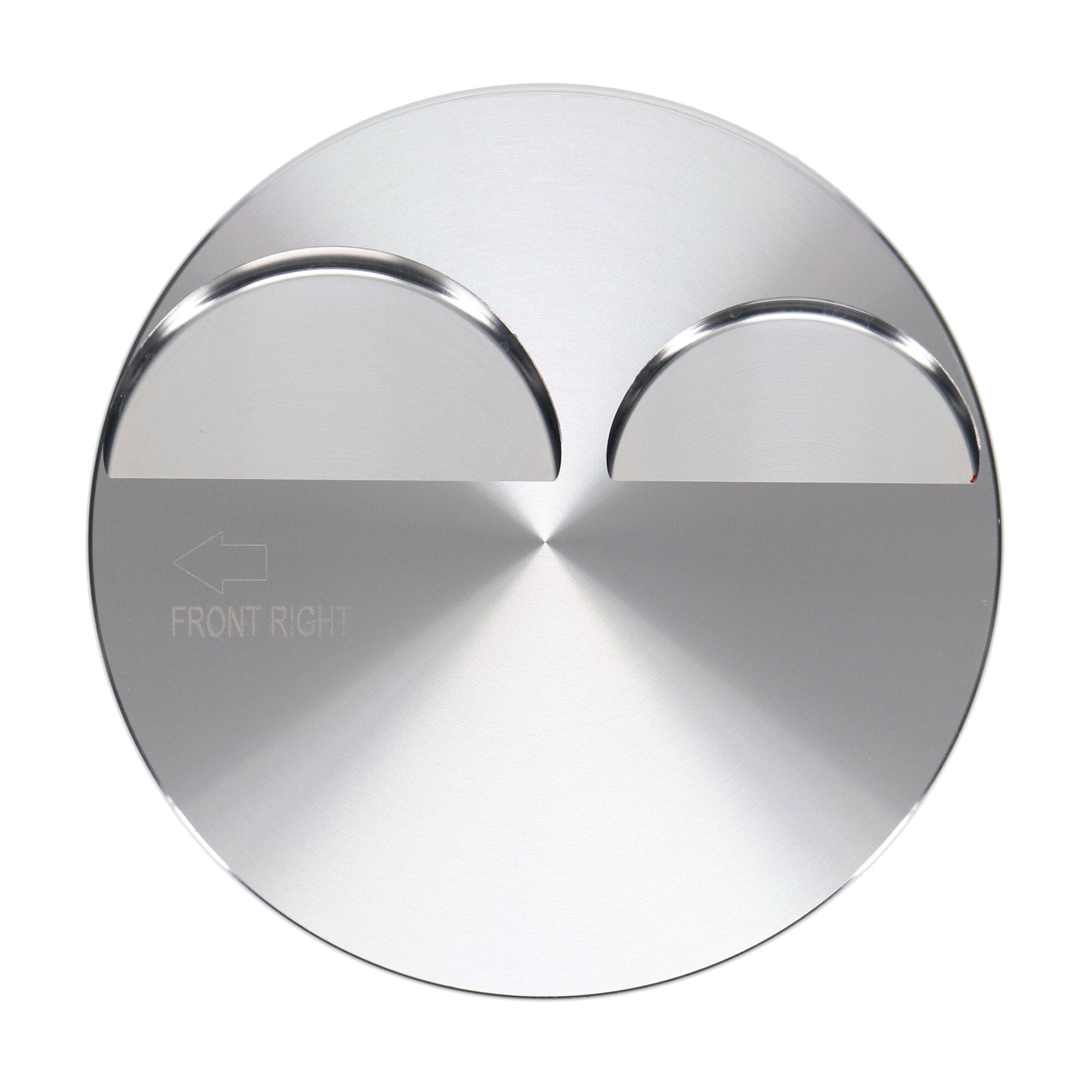

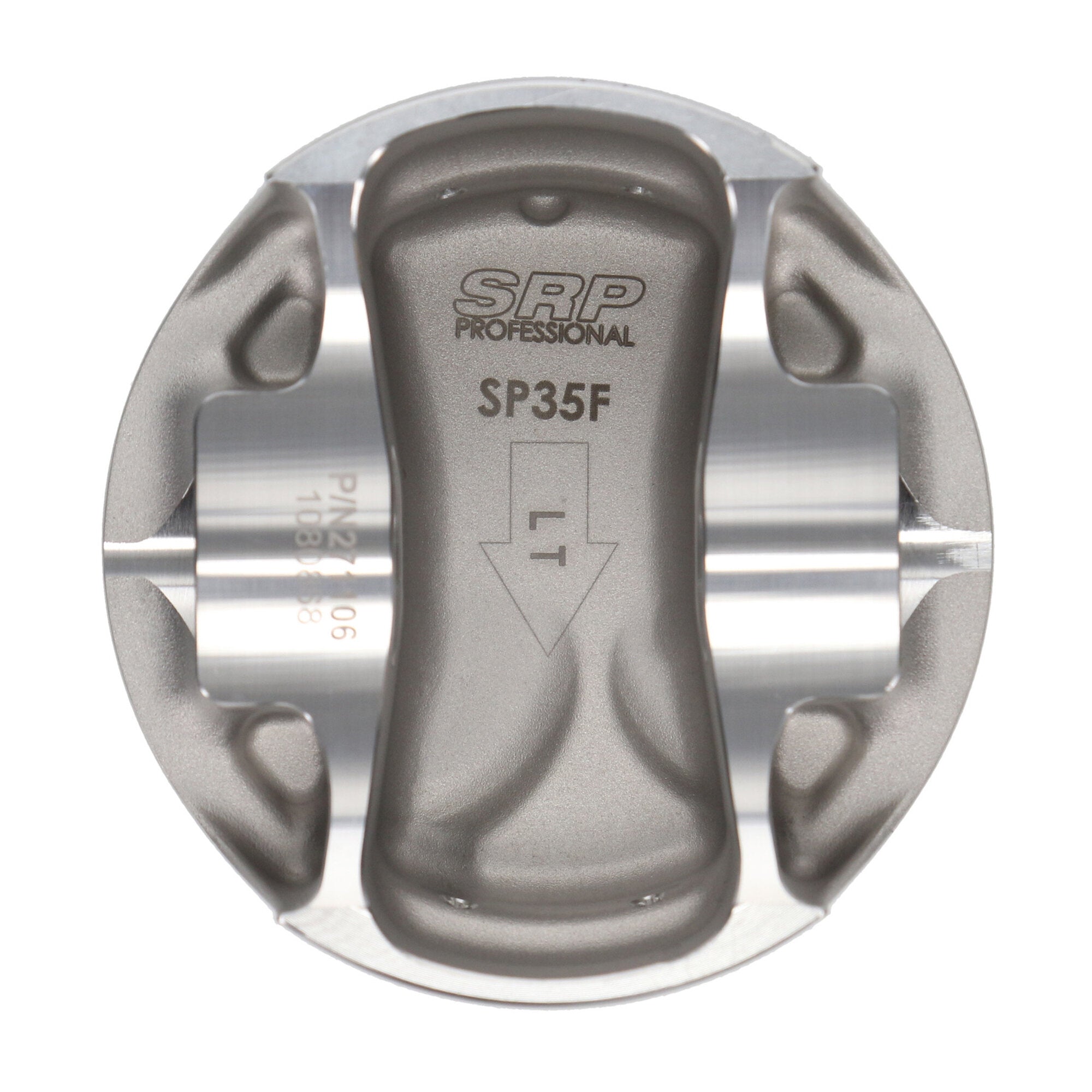

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford 4.6L Modular 2V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 3.552 Bore, 1.220 CD, 0.866 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
SRP Pro 4032, Ford, Modular Ford, 3.552 in. Bore, 1.220 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP Pro, Piston Set |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Ford 4.6L Modular, 3.552 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Make |
FORD |
| Piston Head Type |
Flat |
| Piston Pin Material |
5115 |
| Title |
SRP Pro 4032 - Ford, Modular, 3.552 in. Bore, Piston Kit |
| Piston Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Ringset Included |
Yes |
| Piston Average Weight |
336 |
| Engine |
Modular |
| Piston Pin Wall Thickness |
0.150 |
| Industry |
Automotive |
| Product Market |
Domestic |
| Compression Height |
1.220 |
| Oil Ring Thickness |
0.119 |
| Forging Type |
FSR |
| Piston Series |
SRP Pro 4032 |
| Engine Type |
ICE |
| Engine - Web |
Modular |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
866-063-MW |
| Piston Material |
4032 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
MODULAR 4.6 2V |
| Piston Volume |
-3.00 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
JG3208-3551-0 |
| Title - Web |
SRP Pro 4032 Ford Modular Piston Kit - 3.552 in. Bore - 1.220 in. CH, -3.00 CC |
| Add-On |
866-2250-15-51C |
| Second Compression Ring Thickness |
0.0600 |
| Bore Diameter |
3.552 |
| Top Compression Ring Thickness |
0.0480 |
| Piston Pin Outside Diameter |
0.866 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.250 |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
12.0000 |
