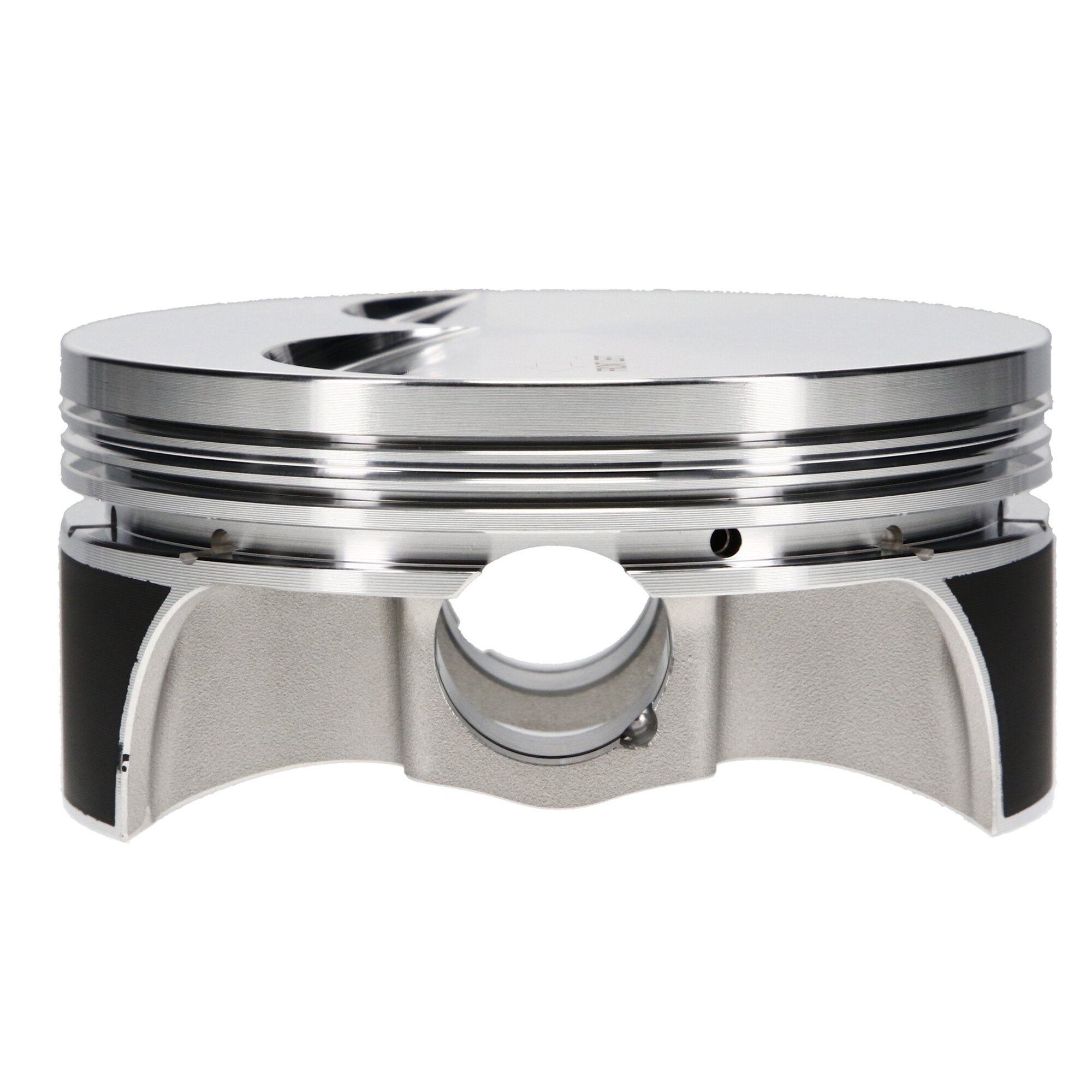

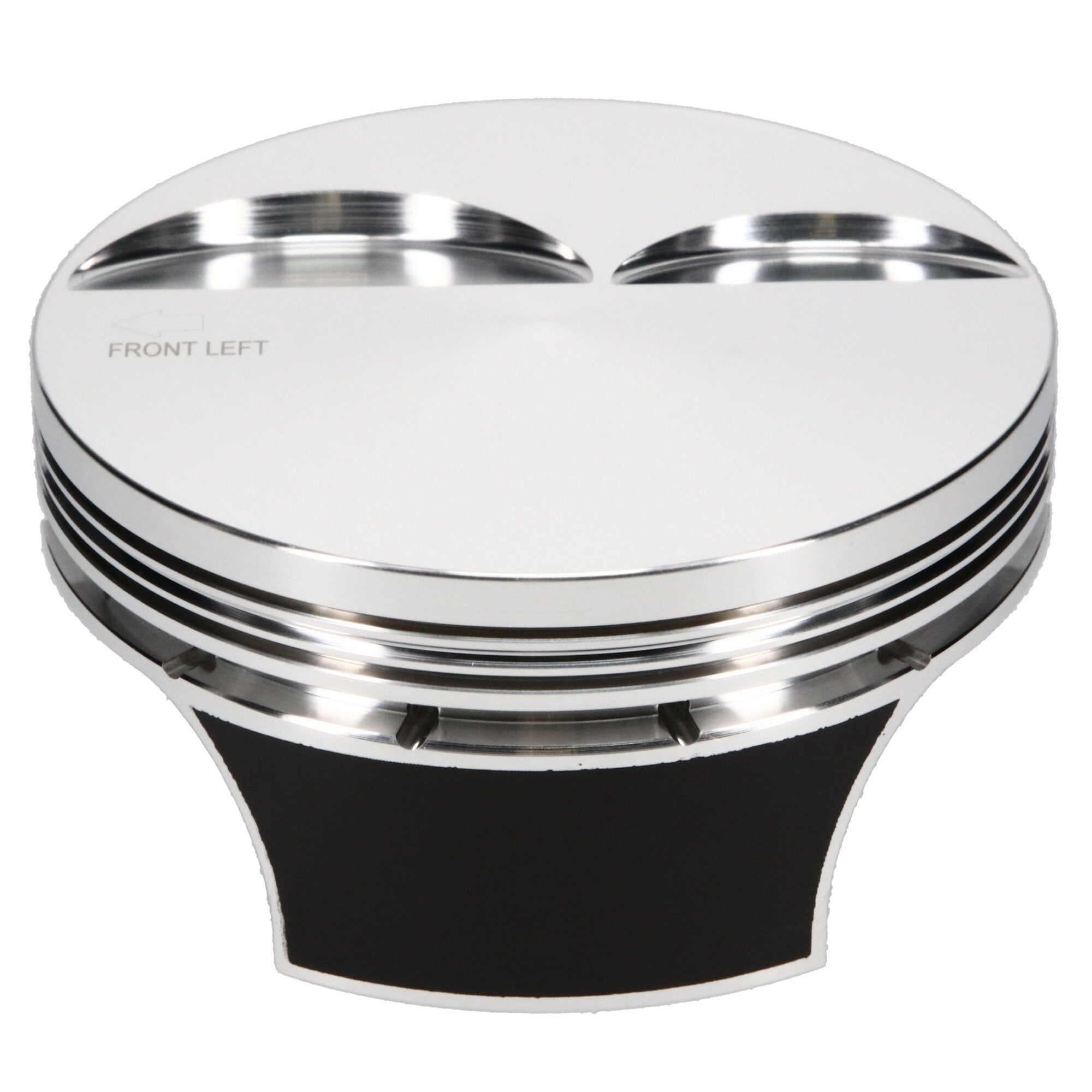

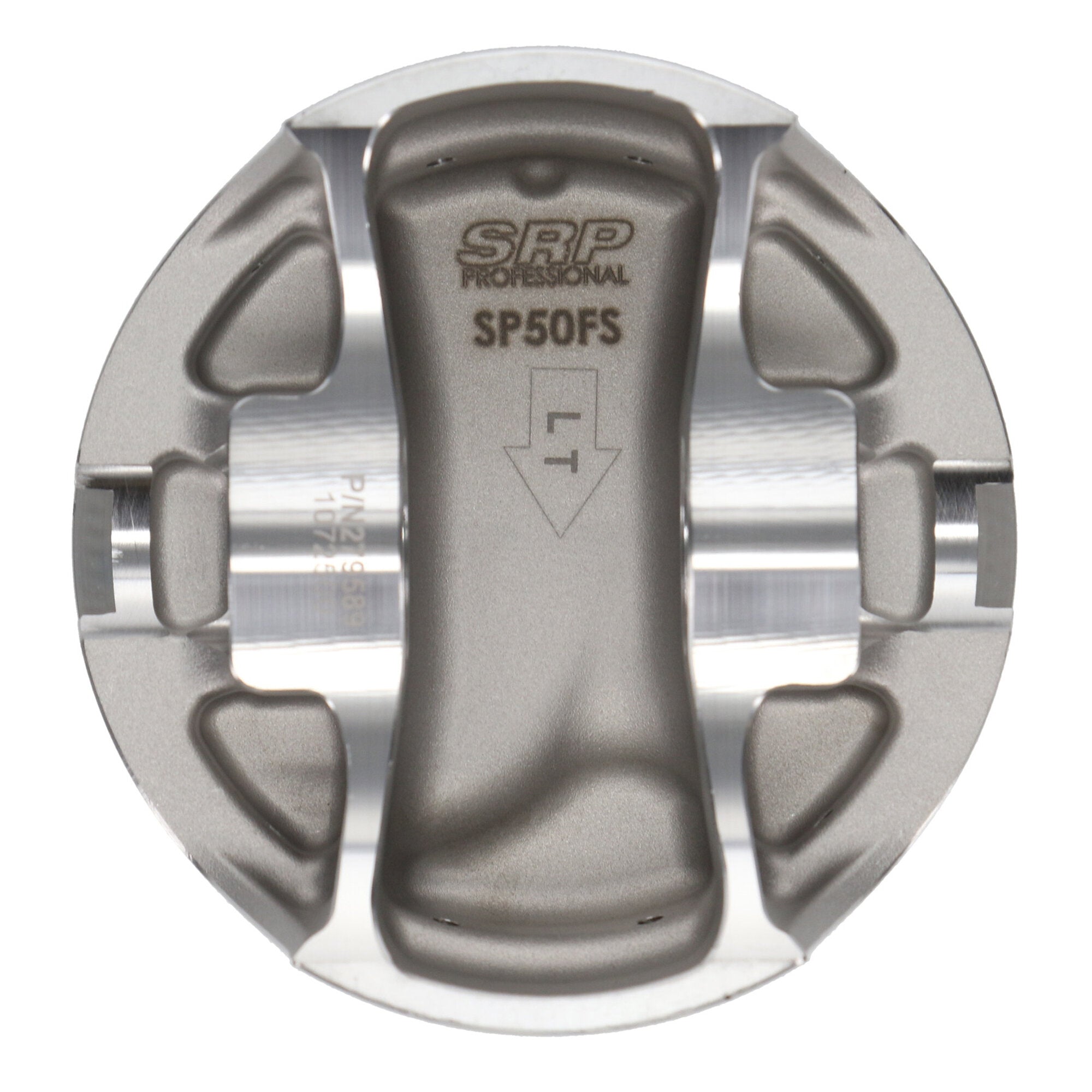

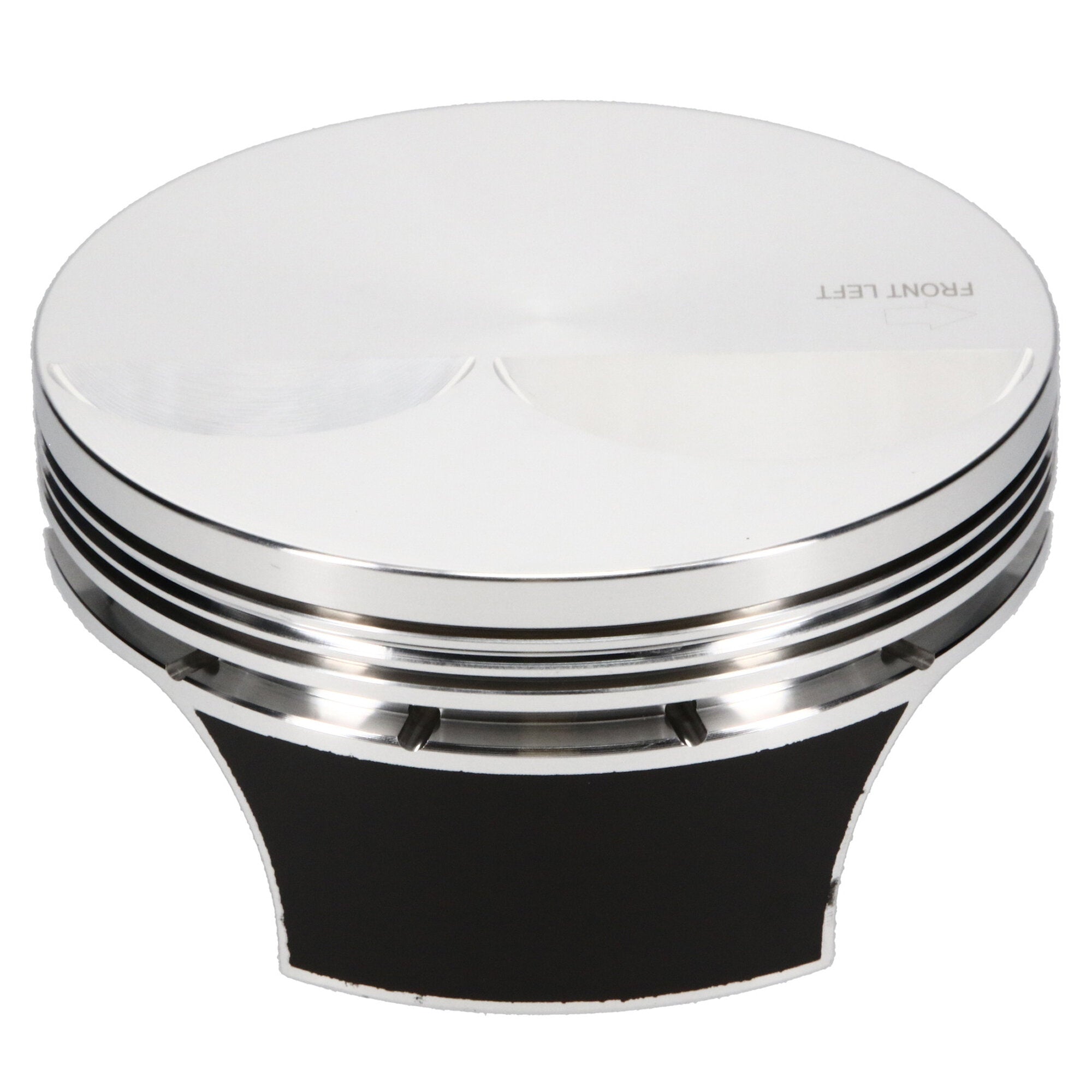

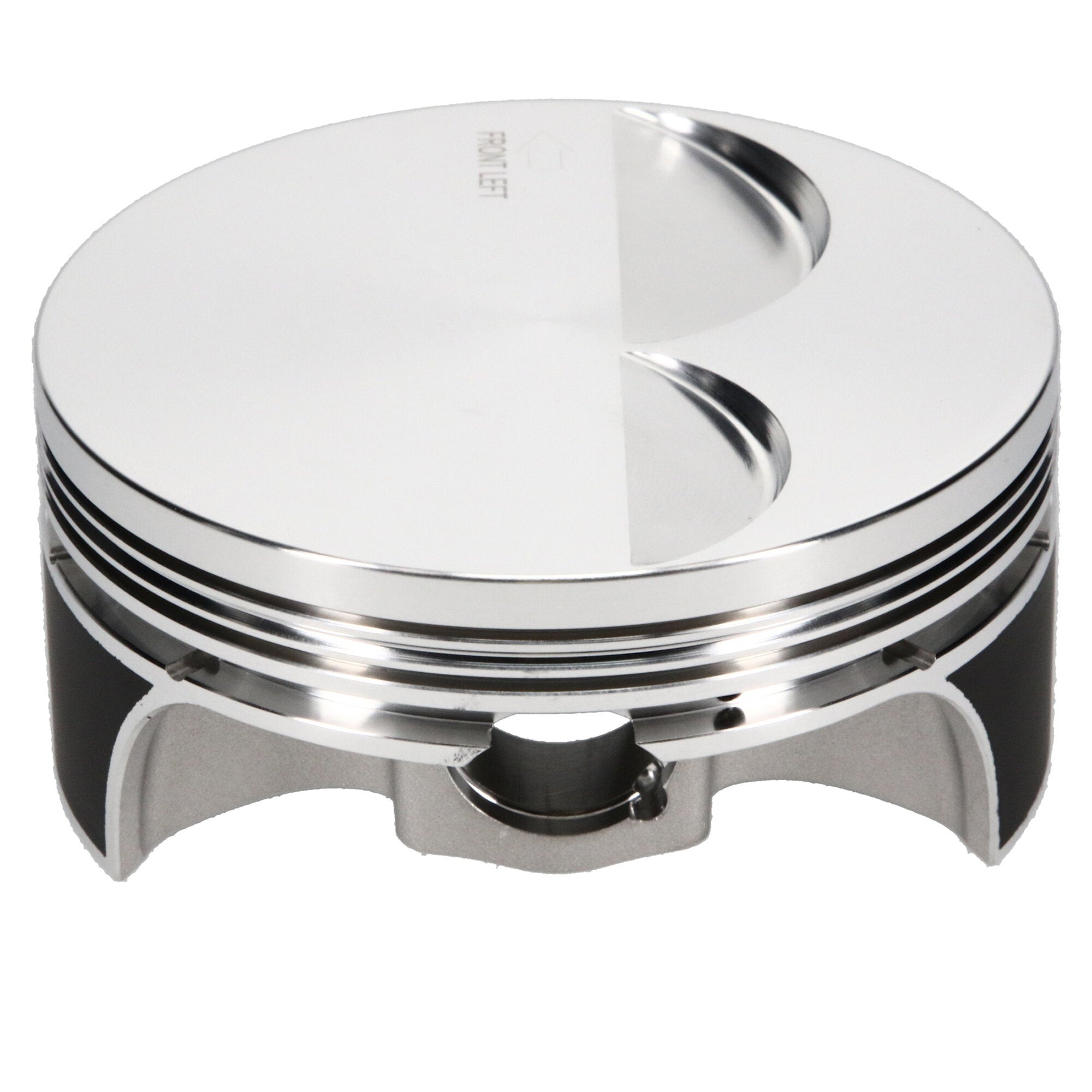

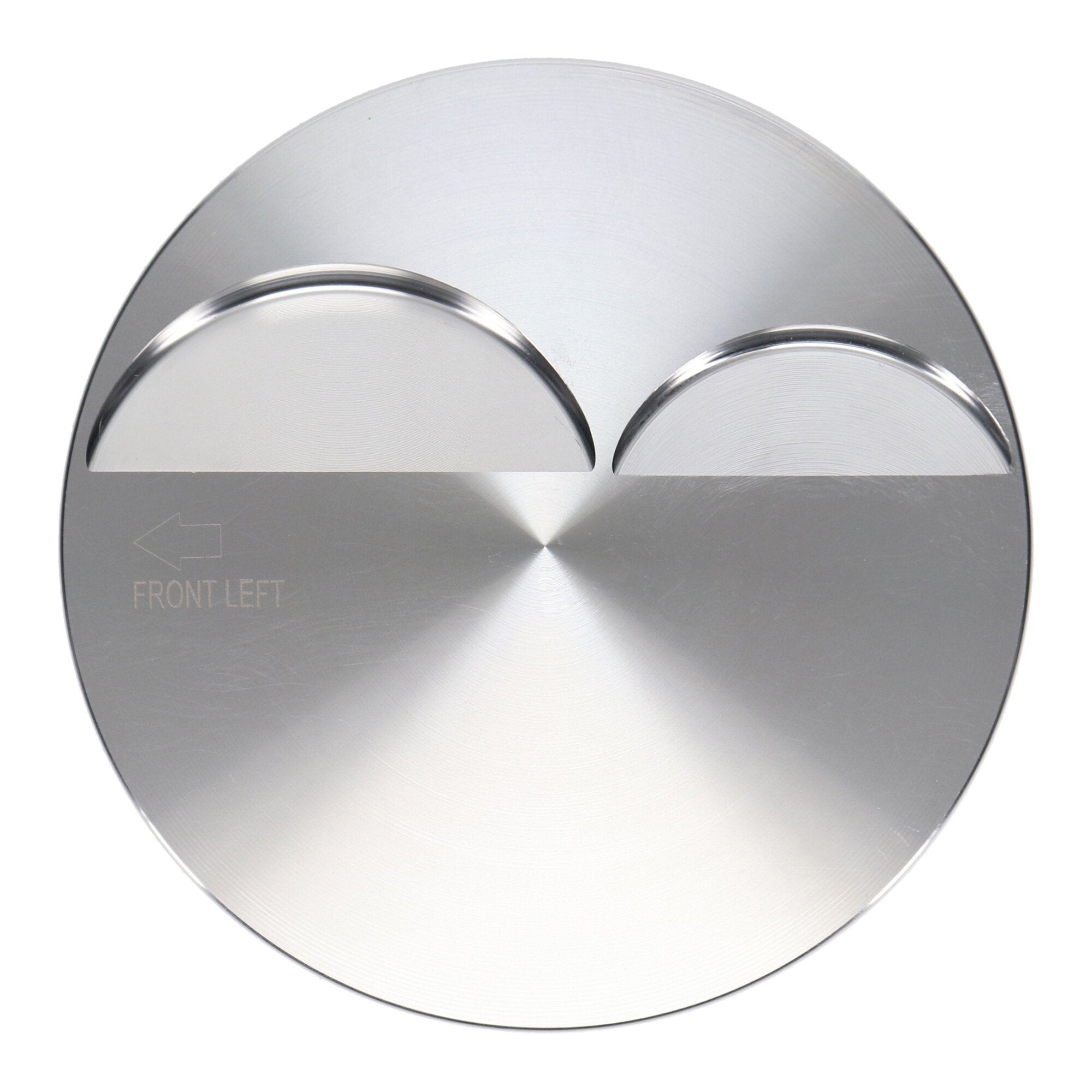

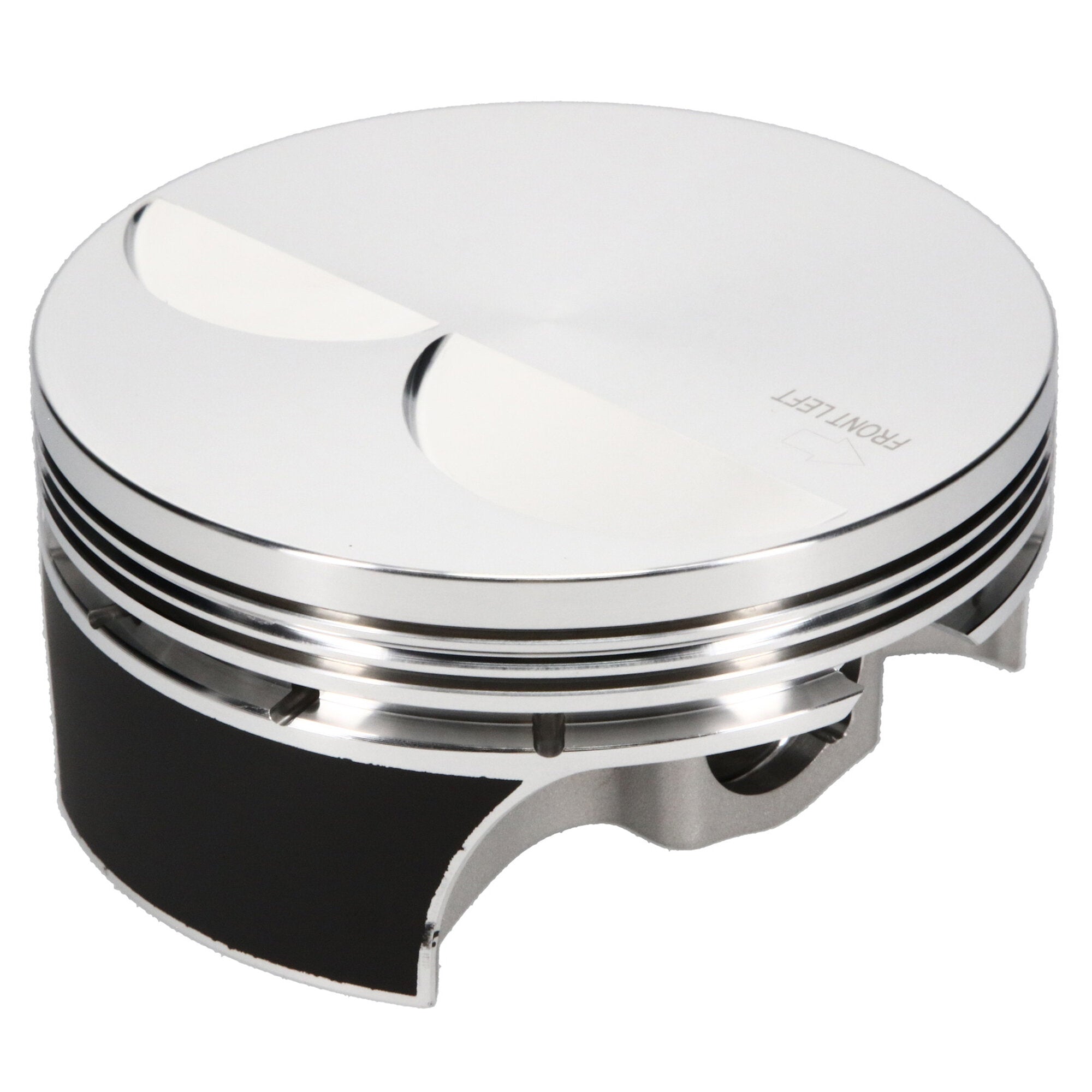

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS2 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.010 Bore, 1.340 CD, 0.945 Pin, Set of 8. |
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.340 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet LS2, 4.010 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Piston Average Weight |
425 |
| Title |
SRP Pro 4032 - Chevrolet, LS Gen III/IV, 4.010 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.945 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Wrist Pin Outer Diameter |
0.945 |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.330 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
LS Gen III/IV |
| Cylinder Head |
LSX/L92 12 DEG |
| Top Compression Ring Thickness |
0.0480 |
| Make |
CHEVROLET |
| Add-On |
JG3101-4010-4 |
| Piston Pin Length |
2.250 |
| Piston Volume |
-5.00 |
| Product Market |
Domestic |
| Bore Diameter |
4.010 |
| Add-On |
945-2250-15-51C |
| Add-On |
945-073-MW |
| Piston Pin Material |
5115 |
| Piston Material |
4032 |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Oil Ring Thickness |
0.119 |
| Piston Series |
SRP Pro 4032 |
| Piston Head Type |
Flat |
| Engine Type |
ICE |
| Title - Web |
SRP Pro 4032 Chevrolet LS Gen III/IV Piston Kit - 4.010 in. Bore - 1.330 in. CH, -5.00 CC |
| Forging Type |
FSR |
| Second Compression Ring Thickness |
0.0600 |
| Ringset Included |
Yes |
| Engine |
LS Gen III/IV |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
