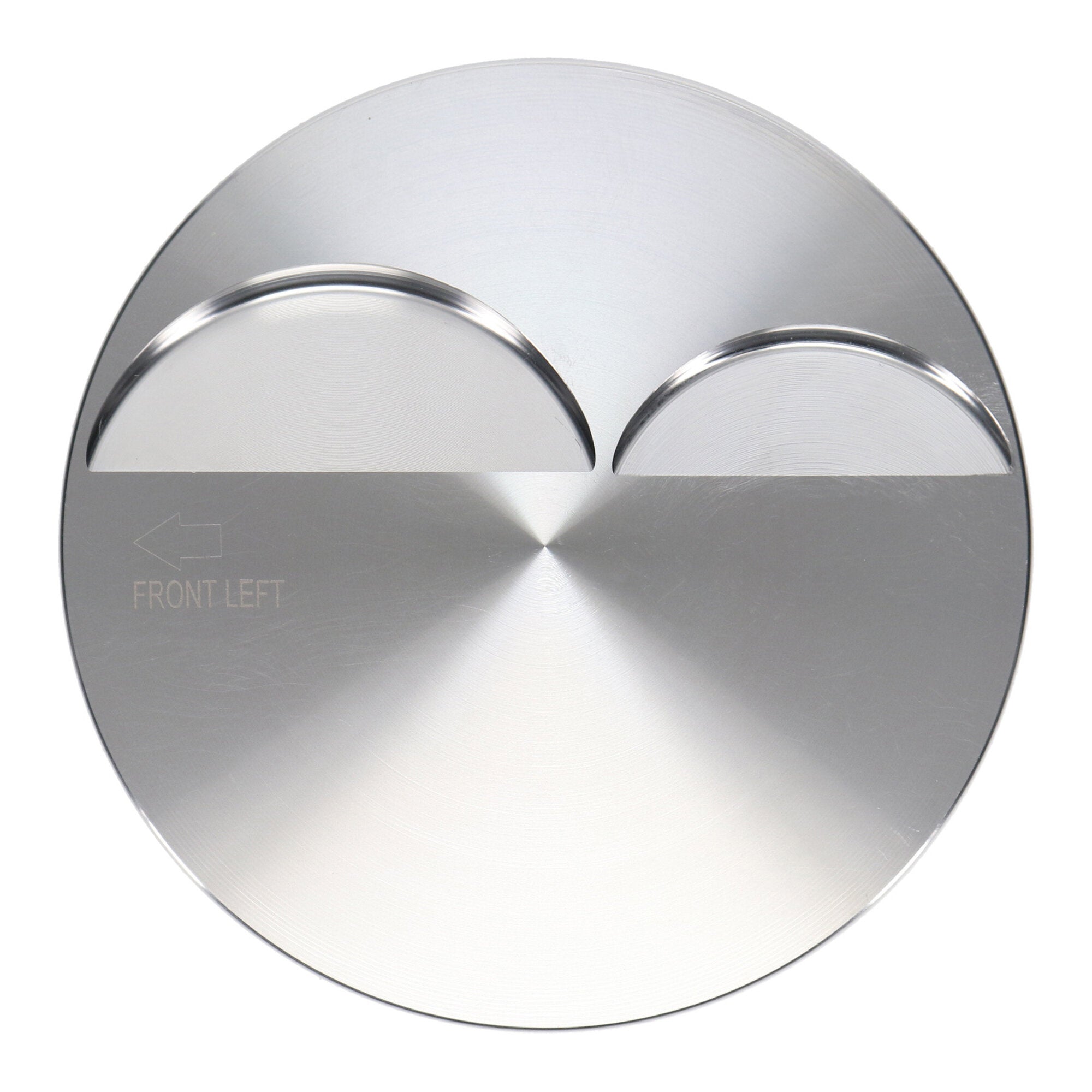

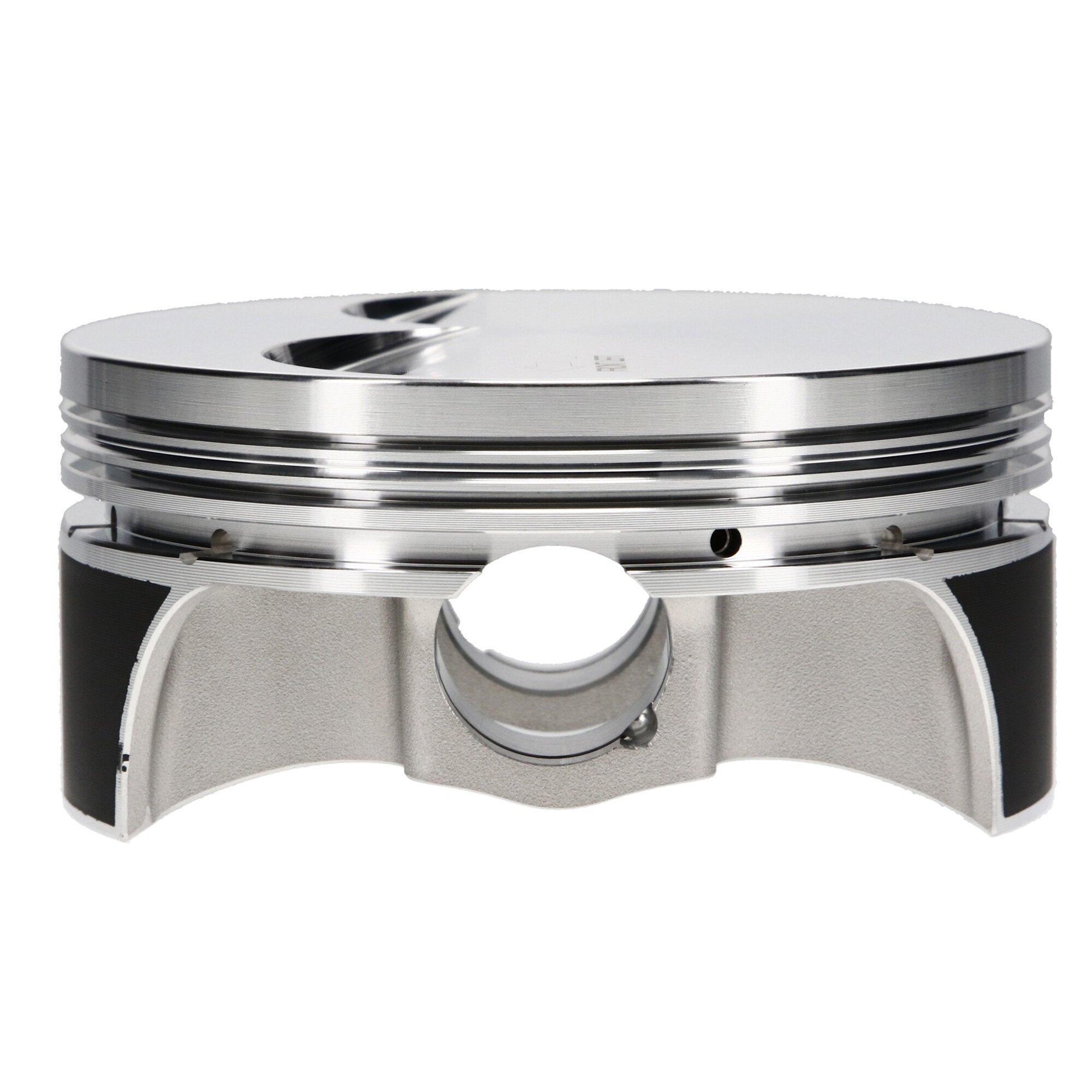

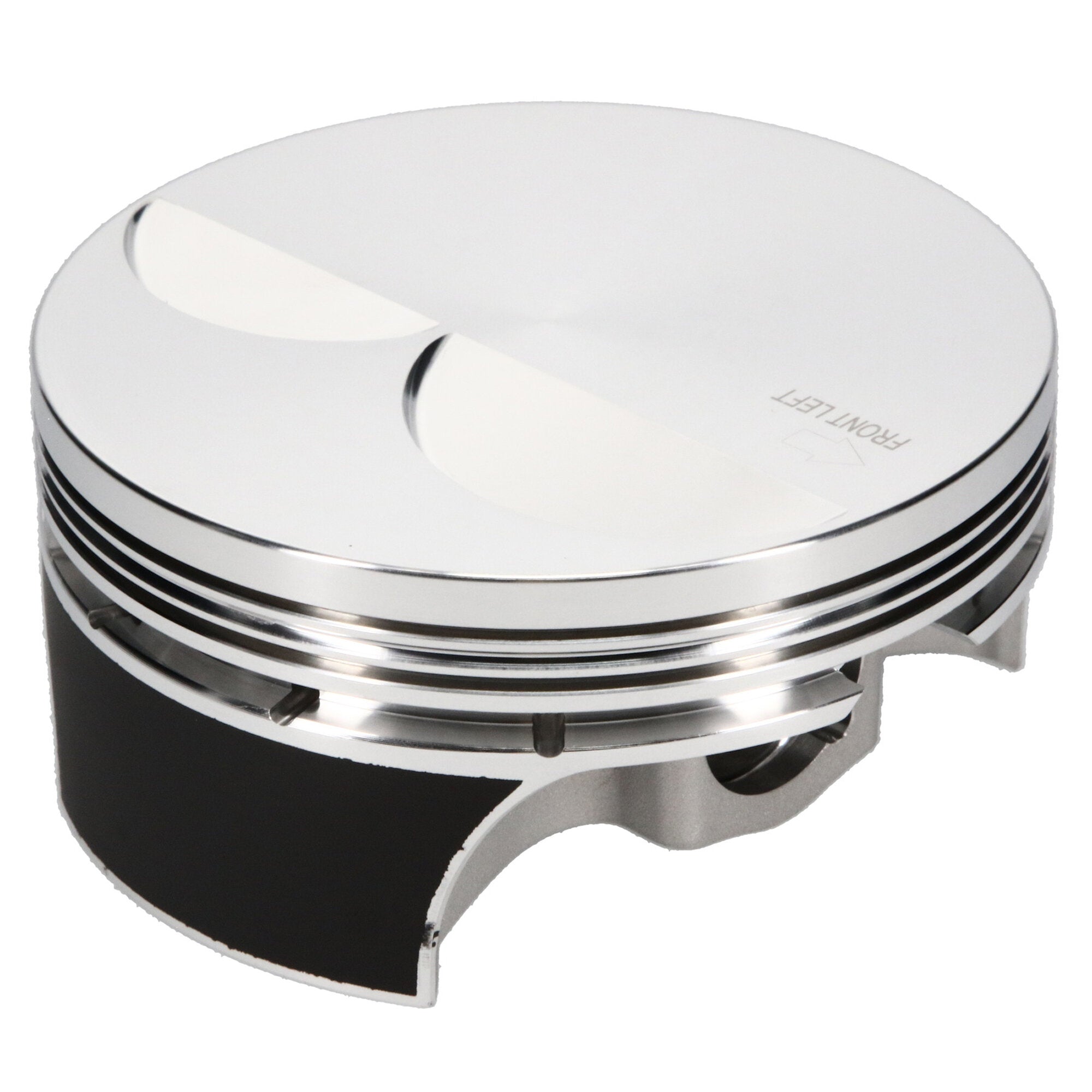

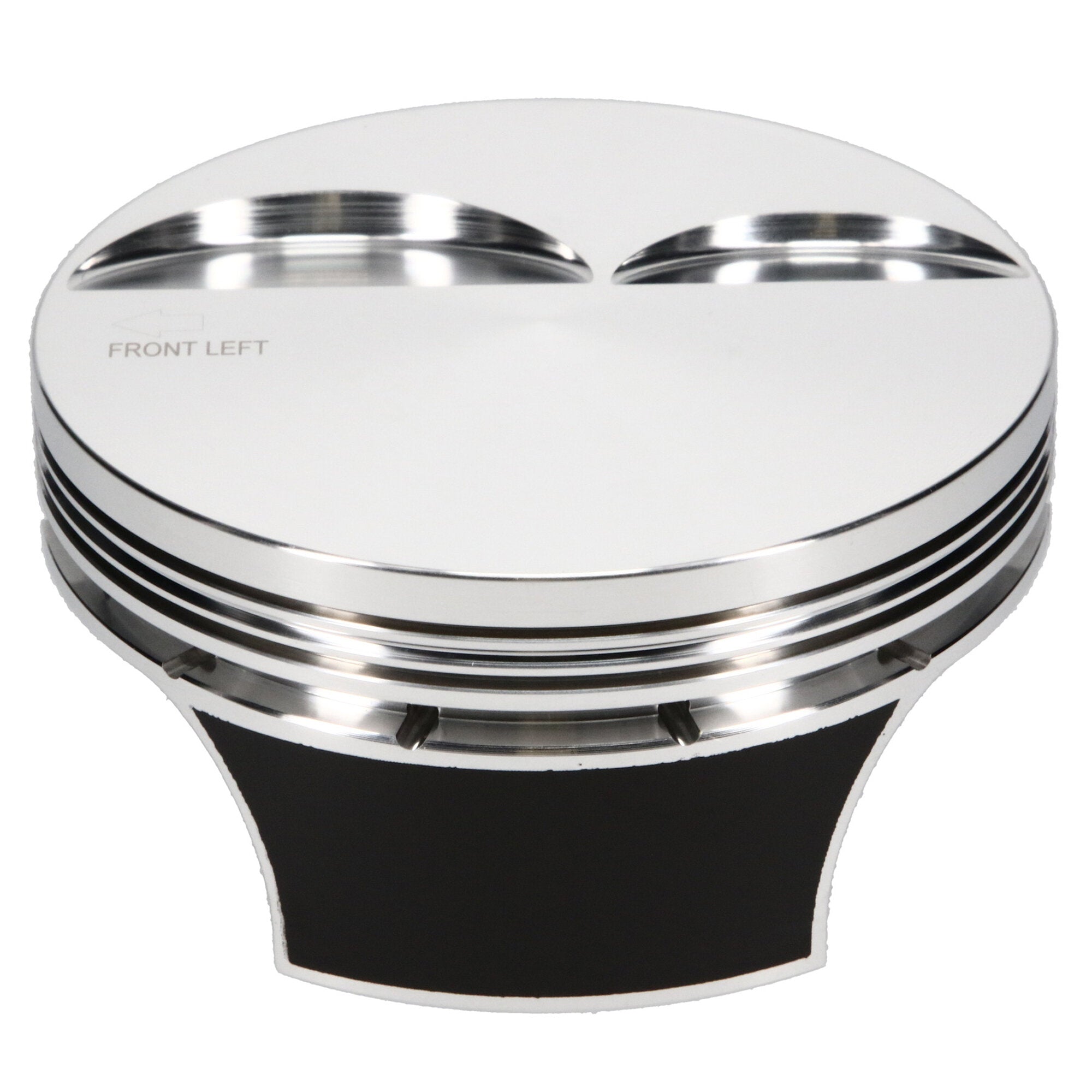

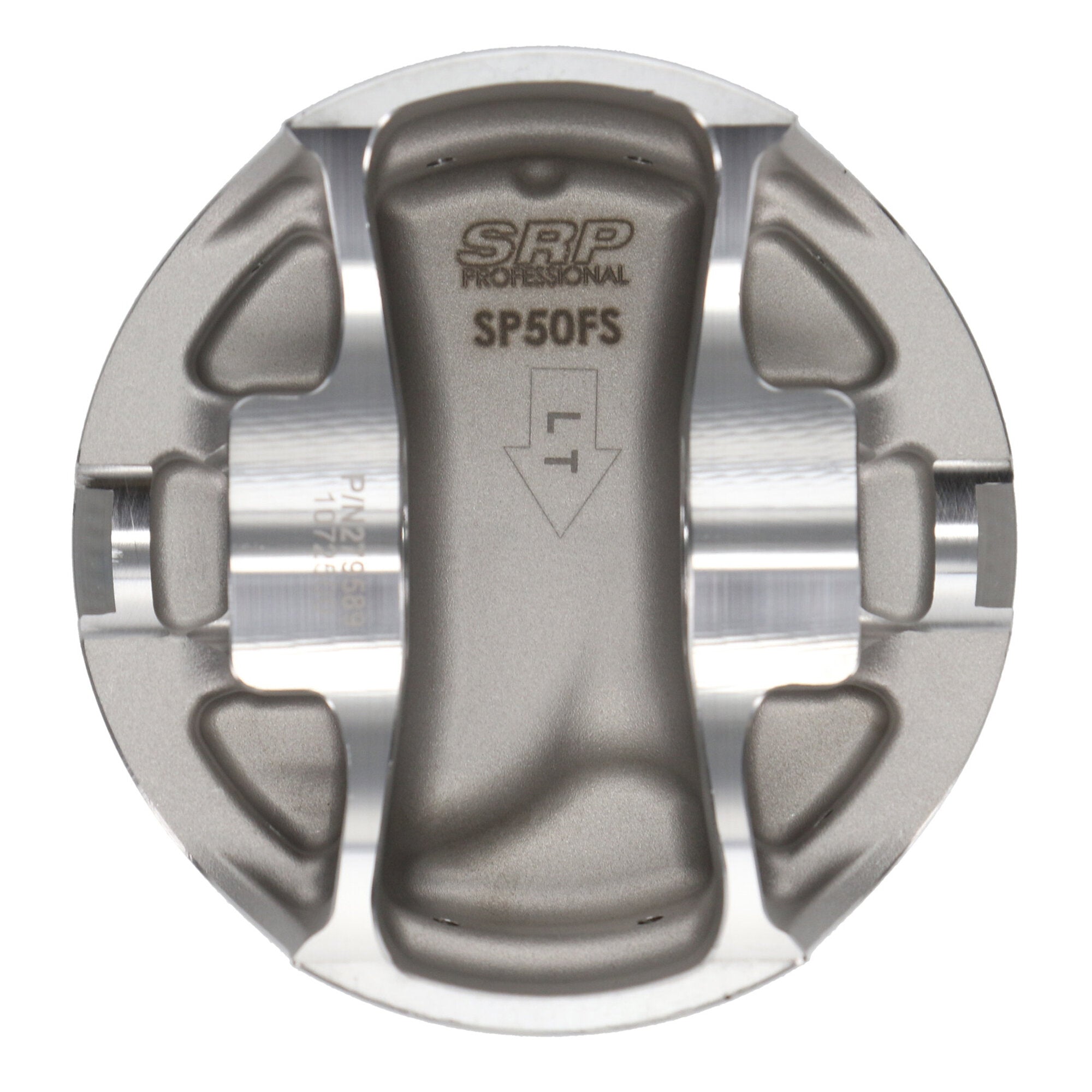

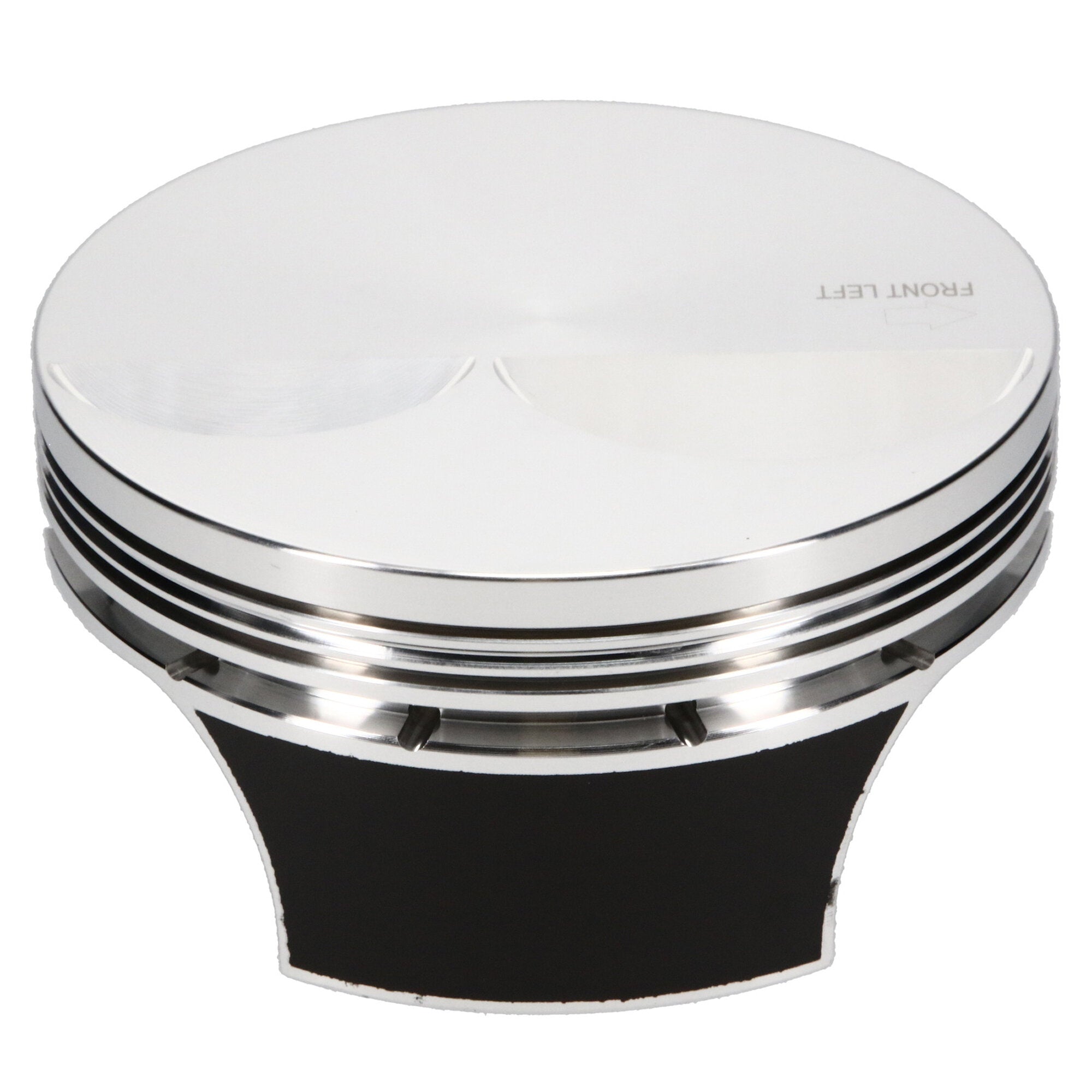

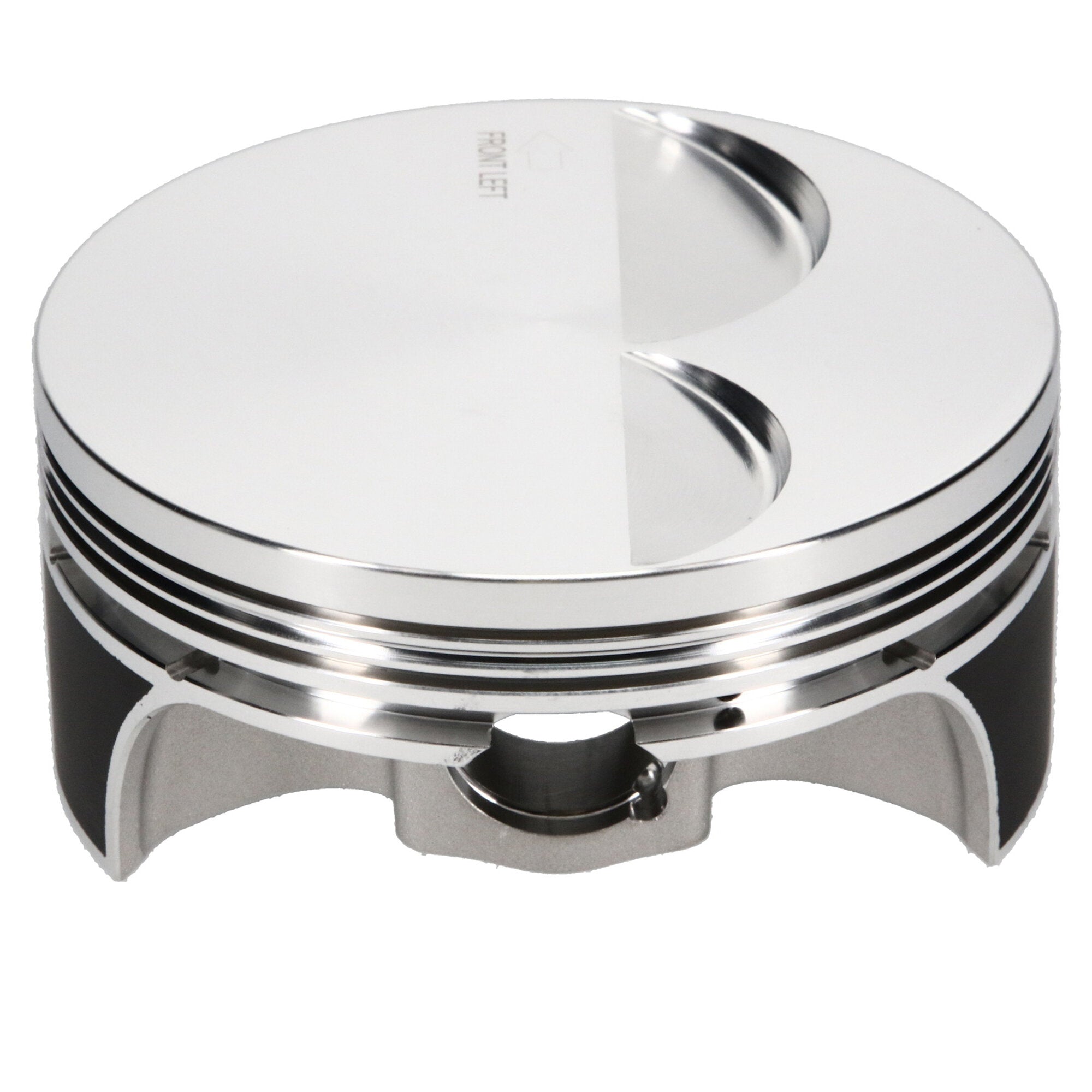

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS2 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.010 Bore, 1.115 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.115 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet LS2, 4.010 Bore, Flat, Set of 8 |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
LSX/L92 12 DEG |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Piston Head Type |
Flat |
| Add-On |
JG3101-4010-4 |
| Add-On |
927-073-MW |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-2250-15-51C |
| Title - Web |
SRP Pro 4032 Chevrolet LS Gen III/IV Piston Kit - 4.010 in. Bore - 1.110 in. CH, -5.00 CC |
| Make - Web |
Chevrolet |
| Piston Material |
4032 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Average Weight |
390 |
| Oil Ring Thickness |
0.149 |
| Piston Pin Outside Diameter |
0.927 |
| Title |
SRP Pro 4032 - Chevrolet, LS Gen III/IV, 4.010 in. Bore, Piston Kit |
| Piston Series |
SRP Pro 4032 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-5.00 |
| Engine |
LS Gen III/IV |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Top Compression Ring Thickness |
0.0480 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Length |
2.250 |
| Compression Height |
1.110 |
| Engine Type |
ICE |
| Bore Diameter |
4.010 |
| Make |
CHEVROLET |
| Forging Type |
FSR |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
LS Gen III/IV |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
