As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T TSI 08-14 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

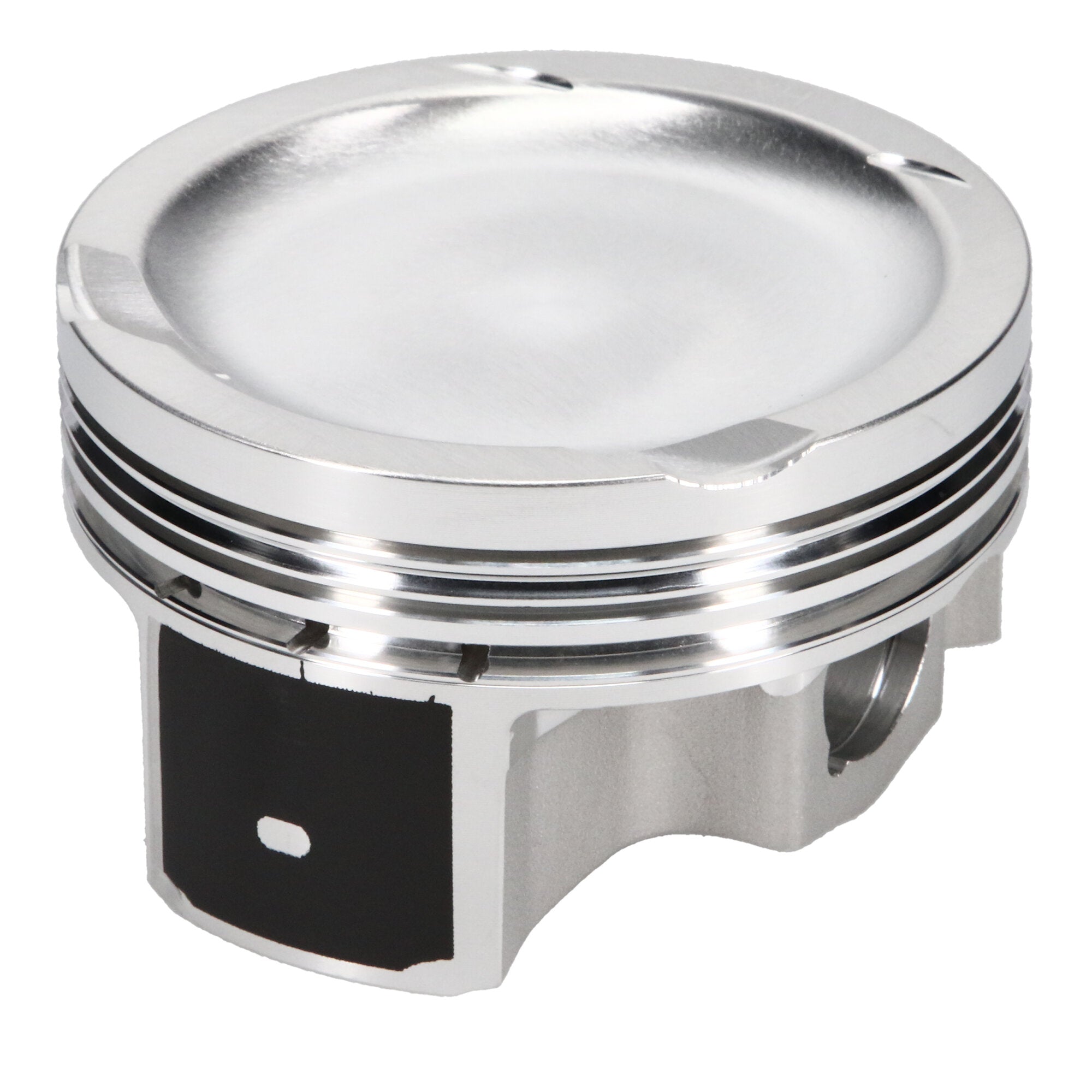

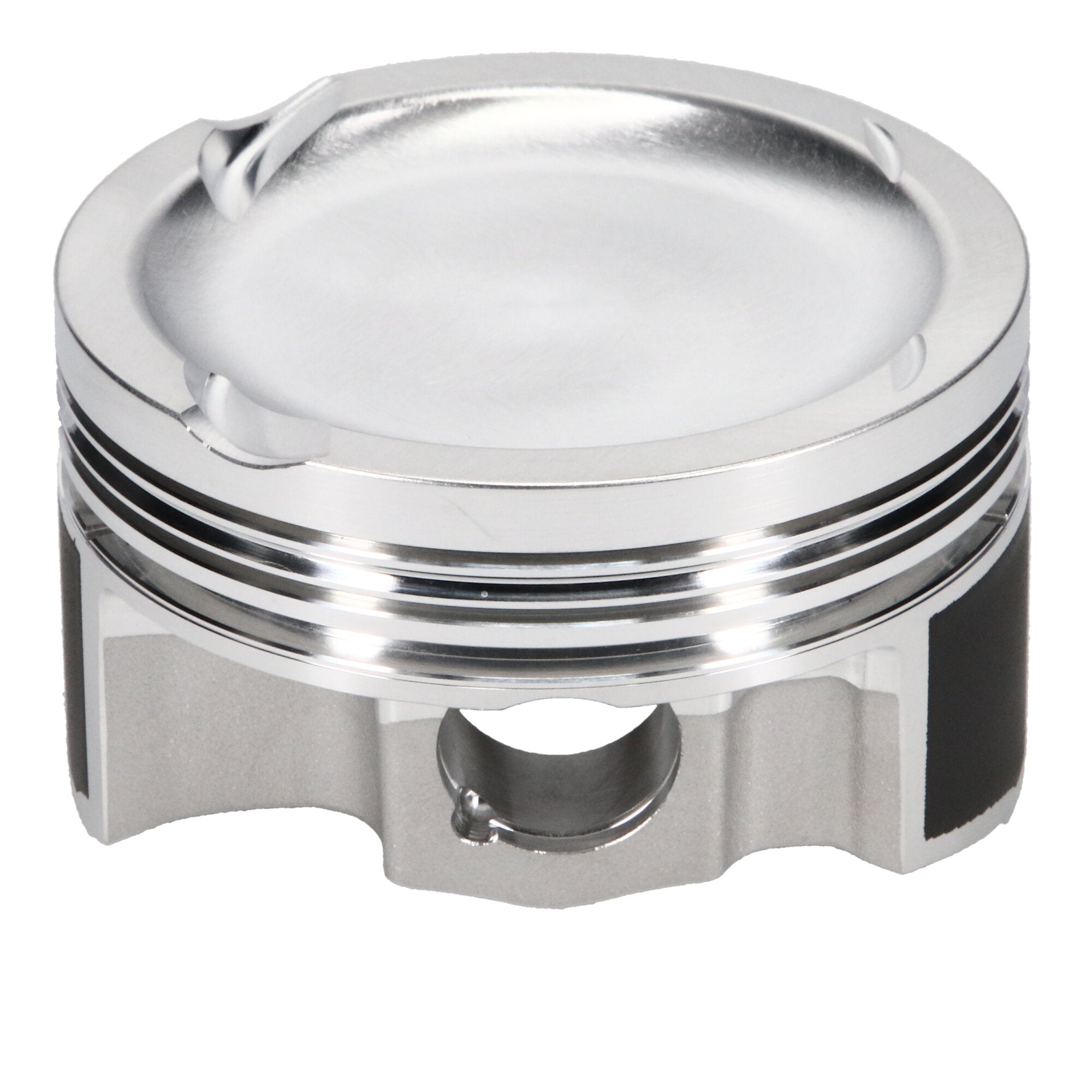

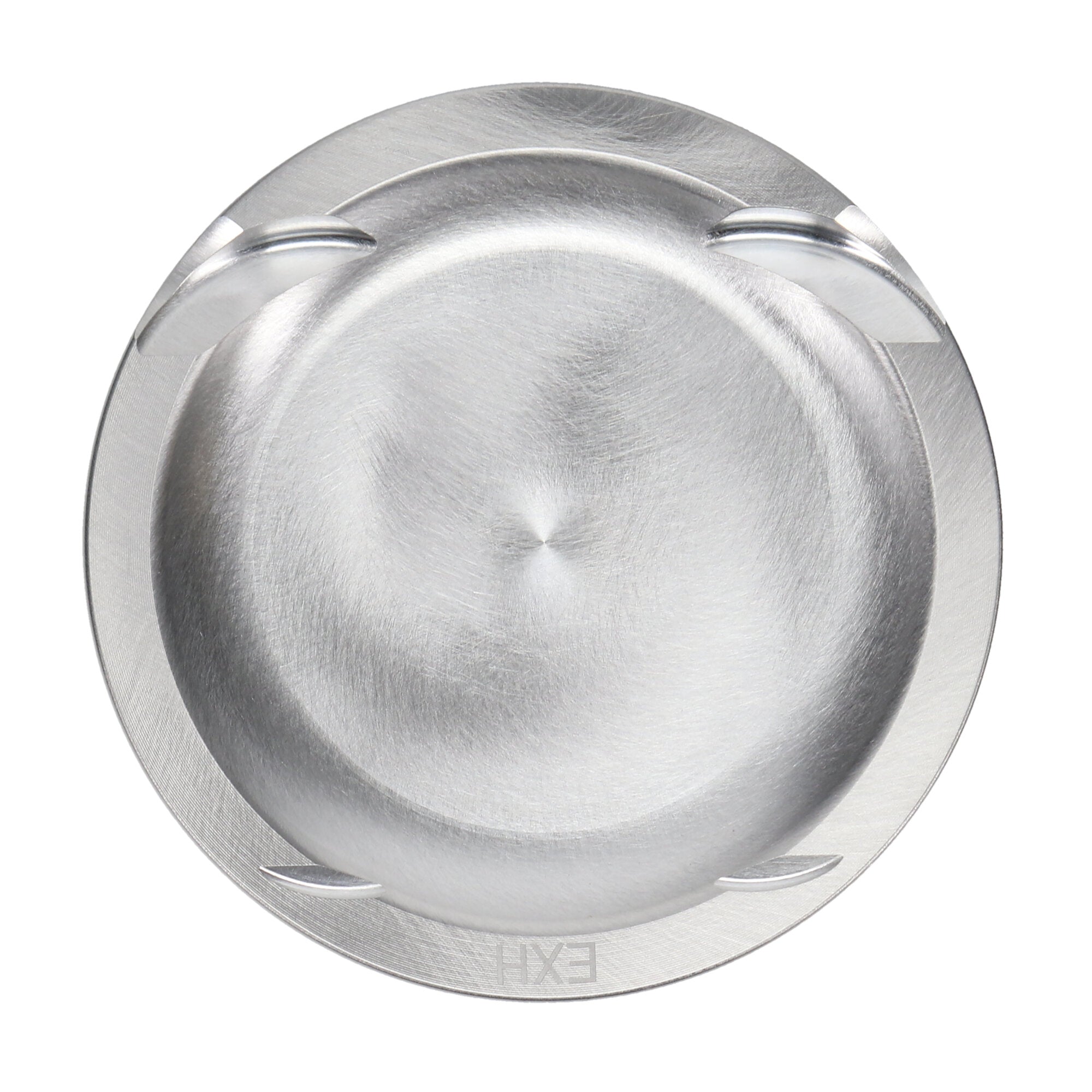

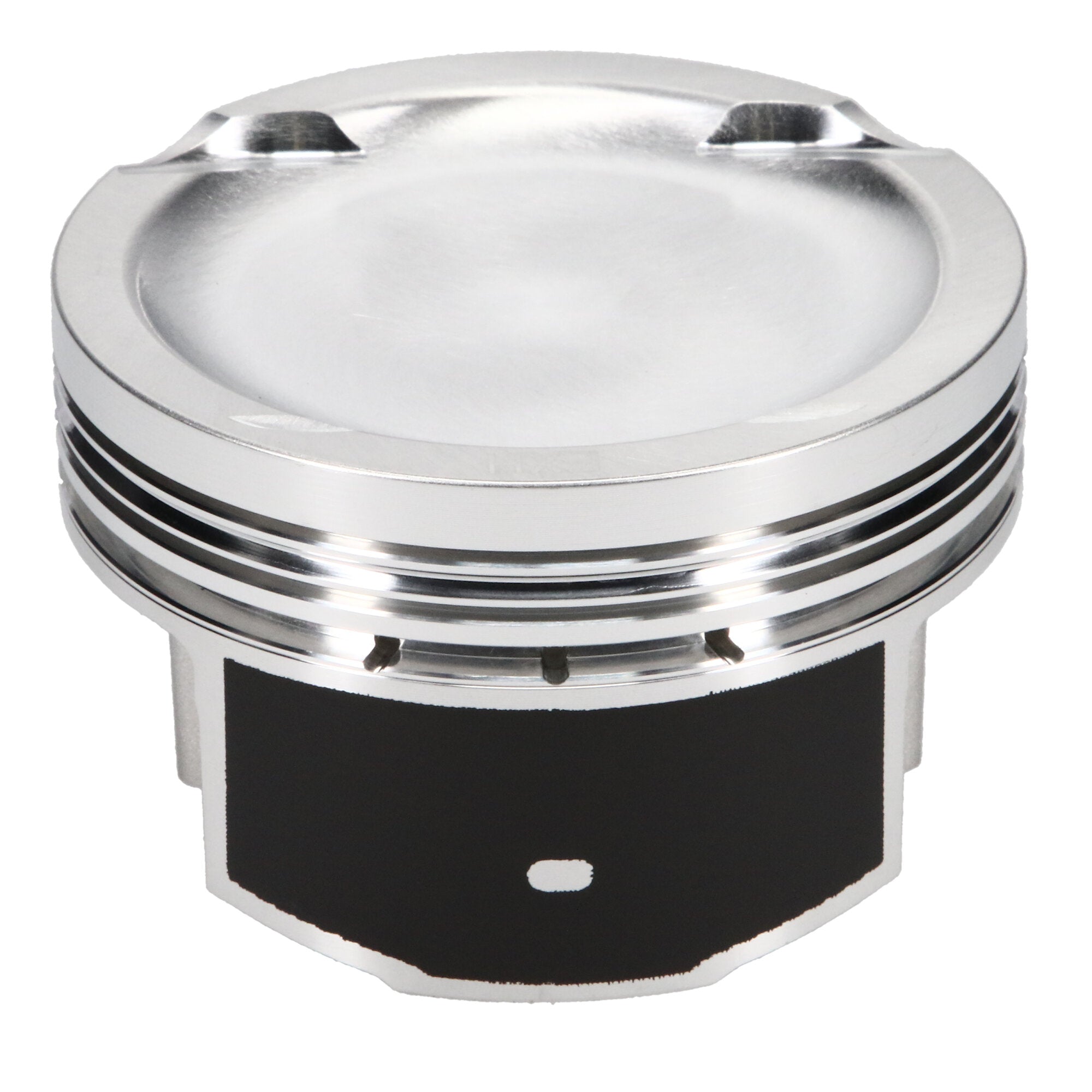

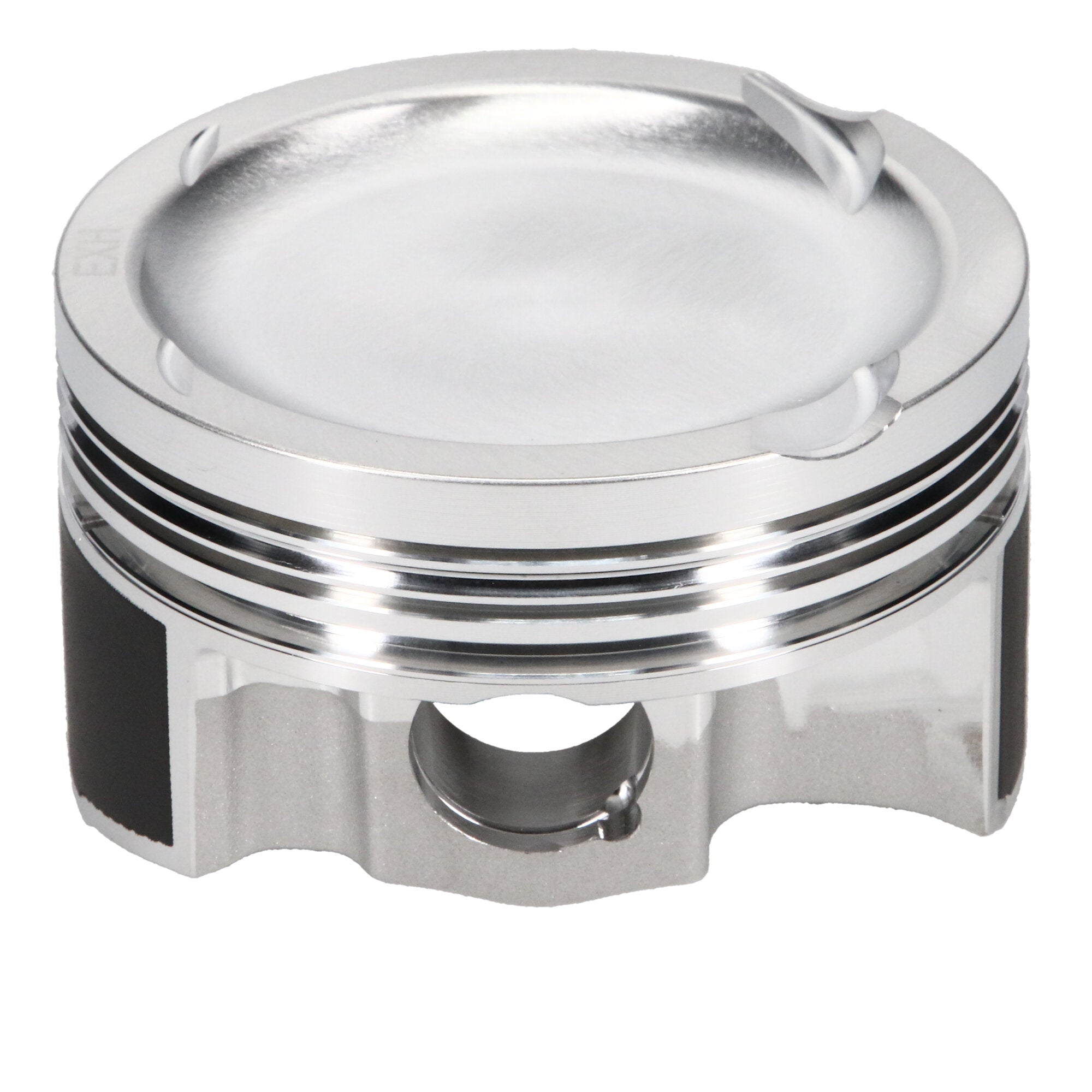

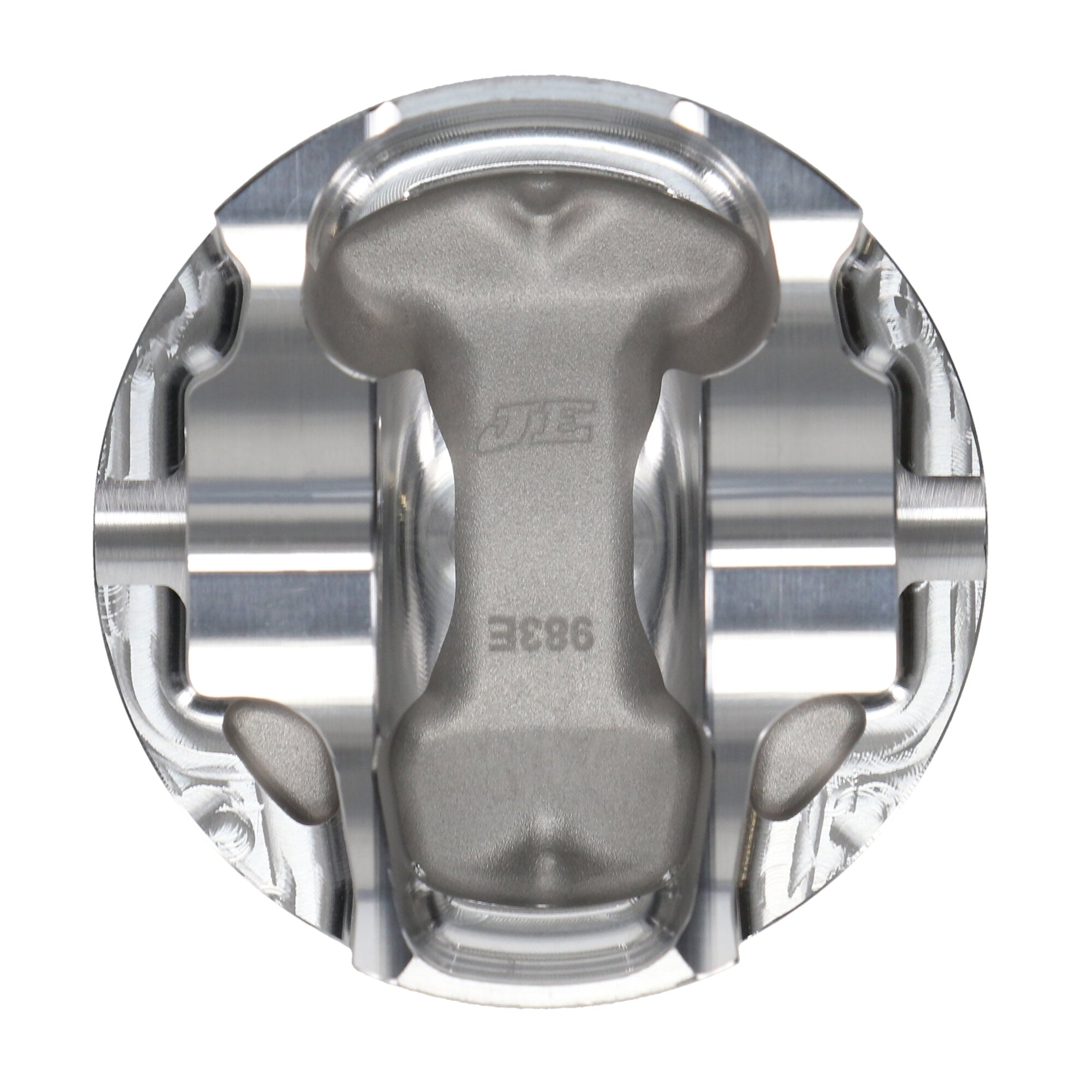

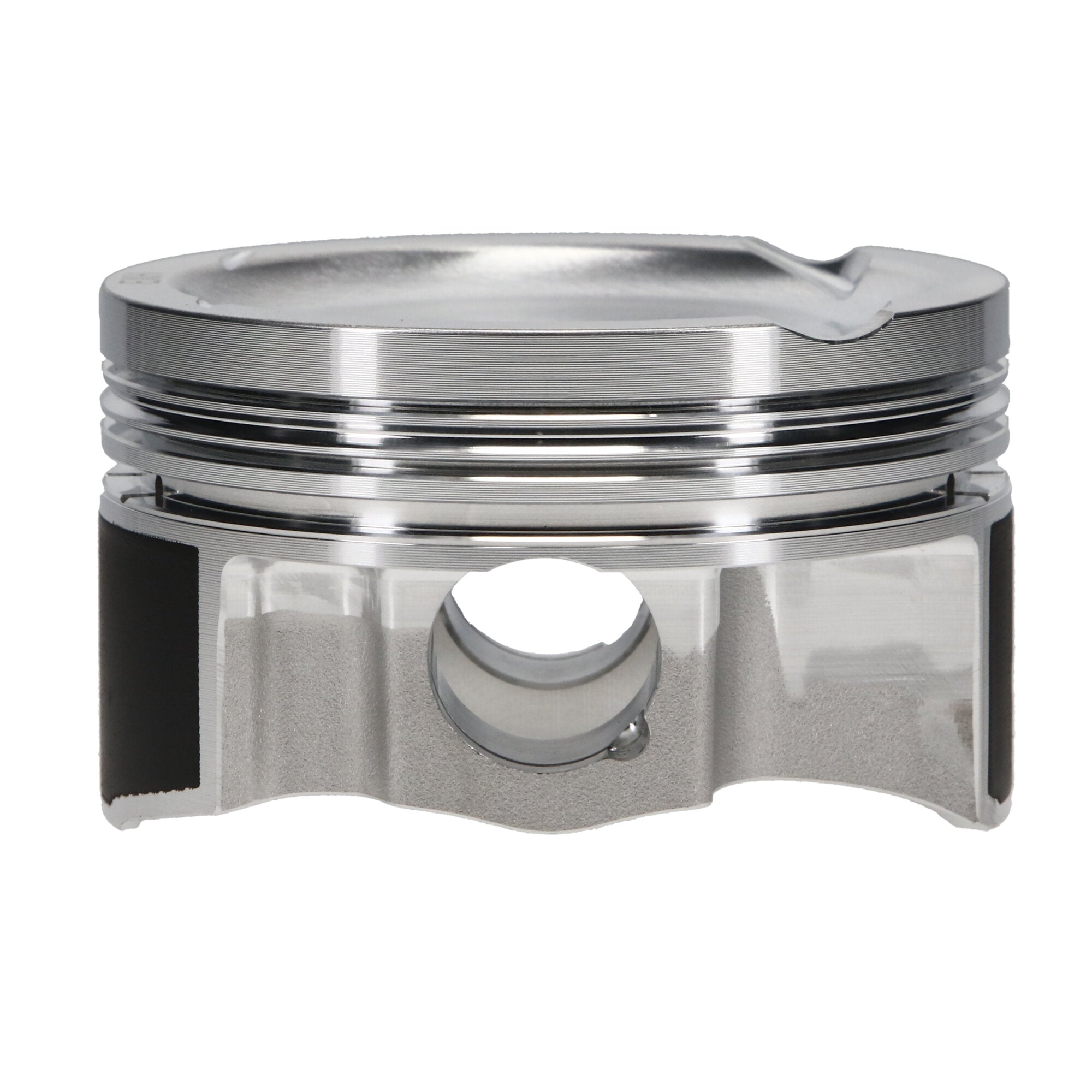

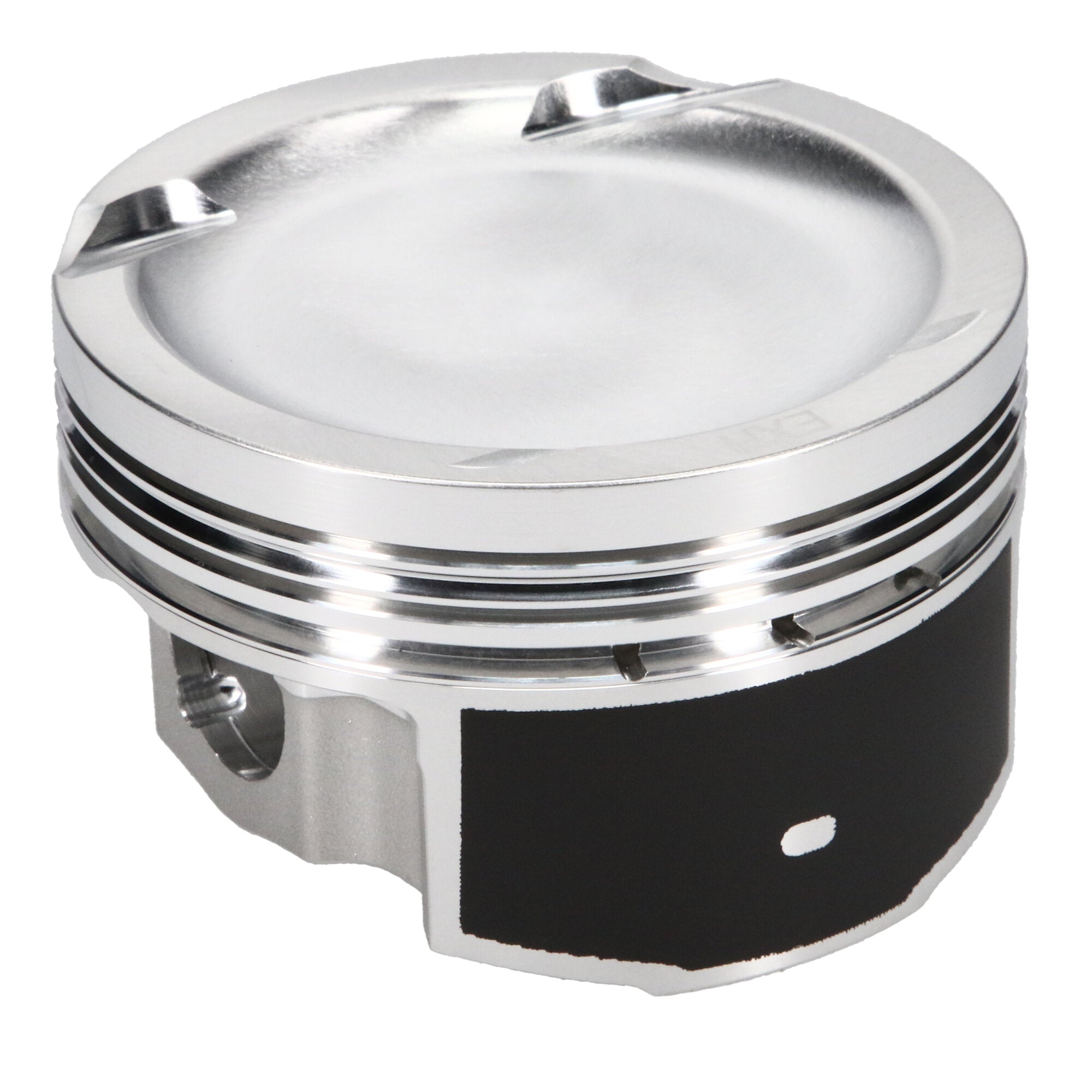

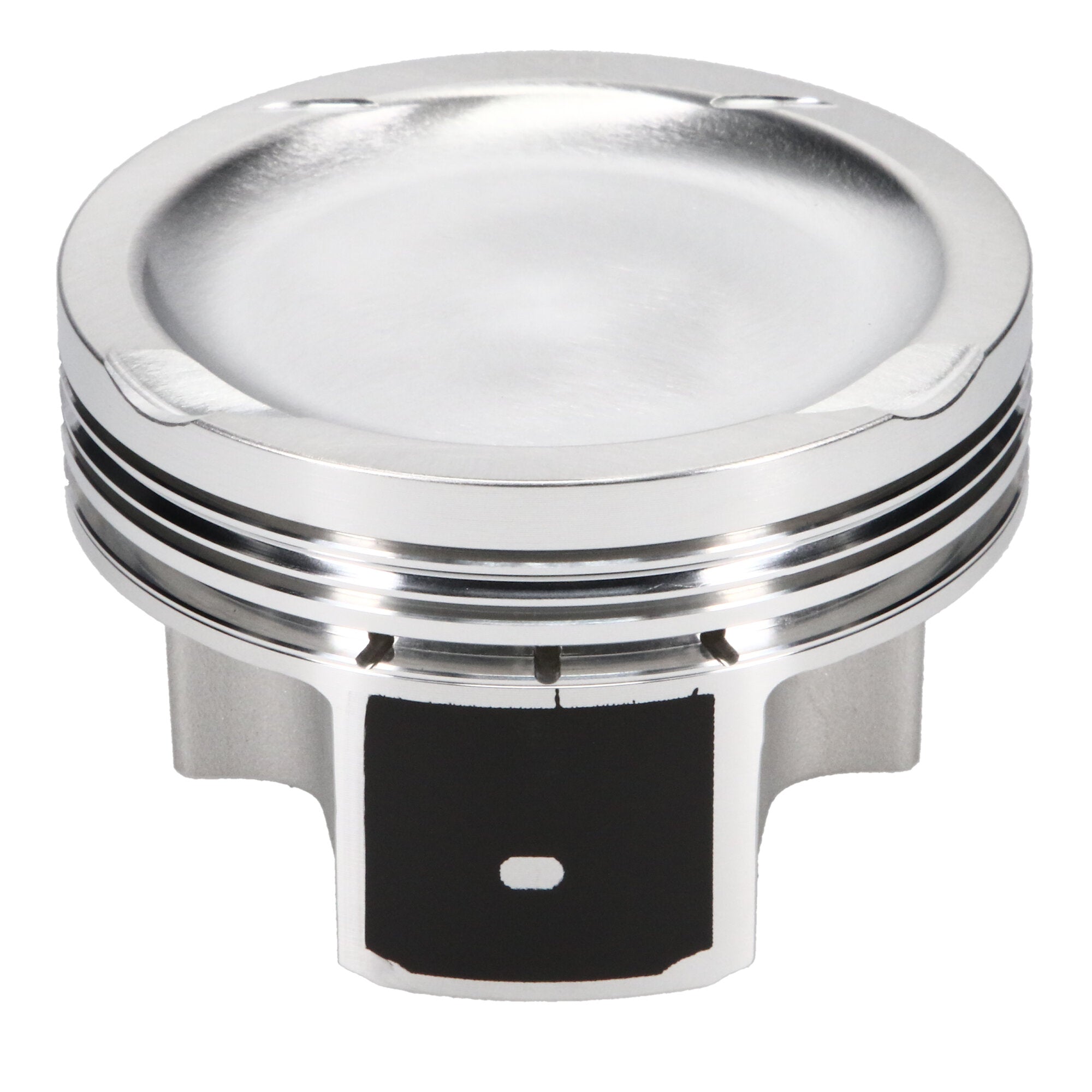

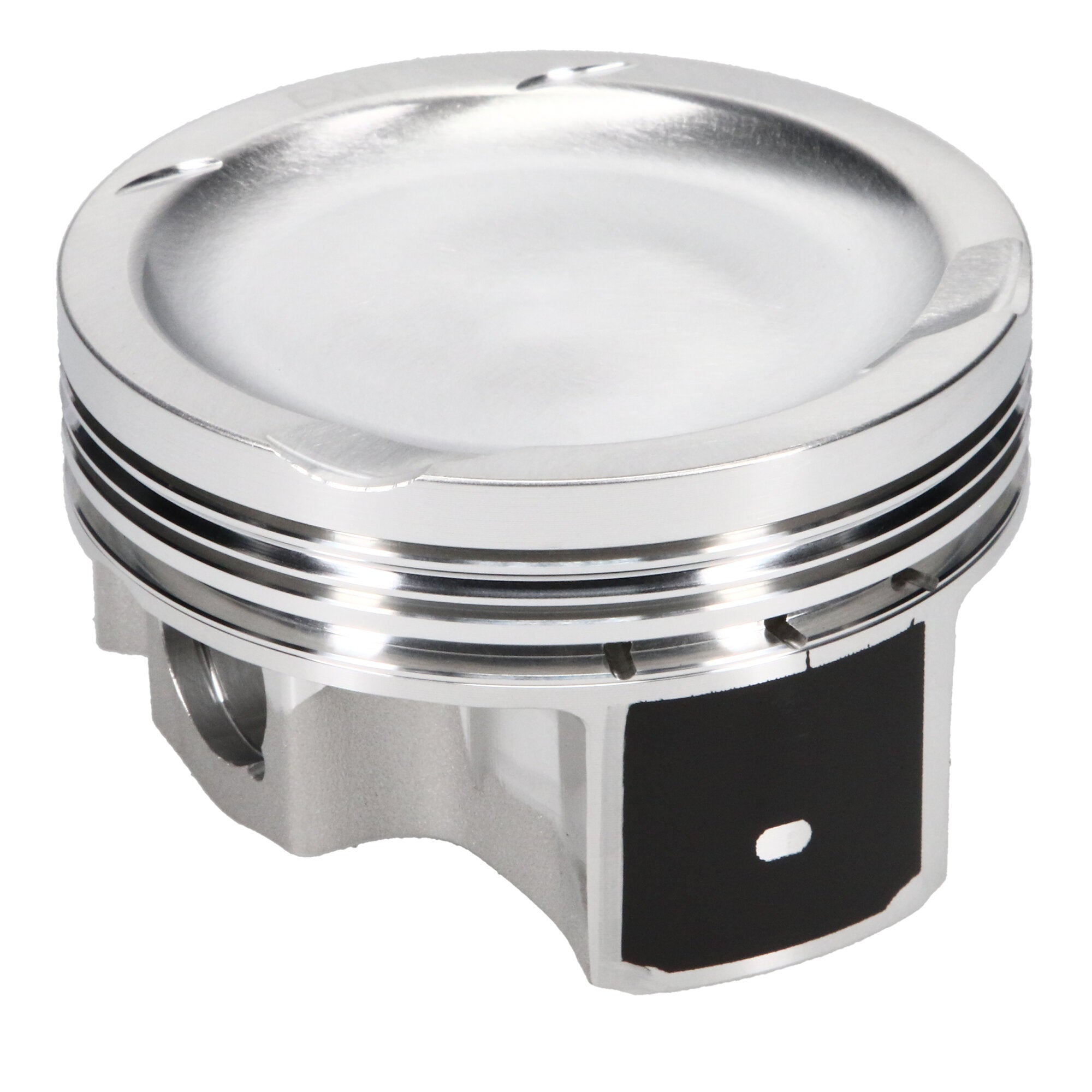

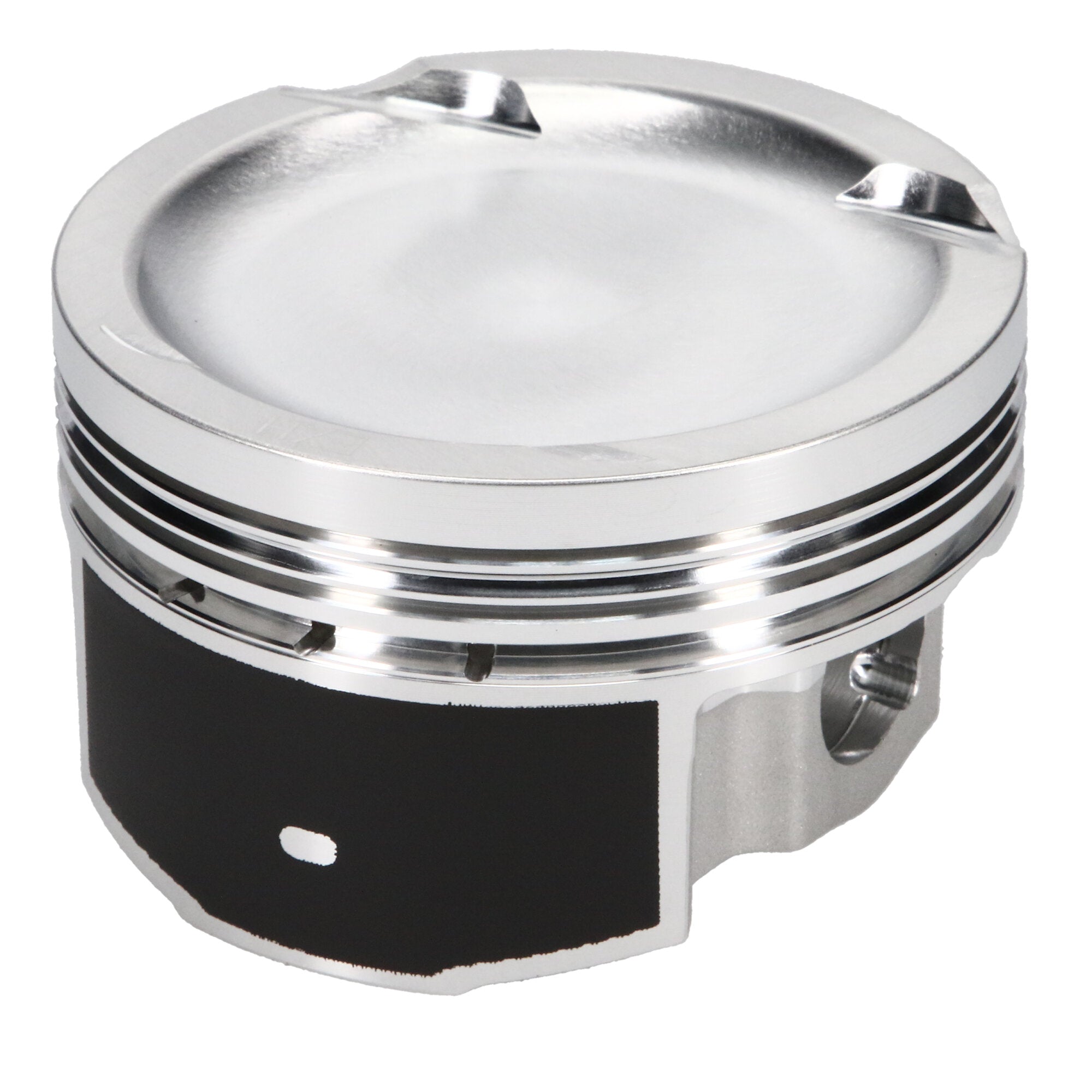

Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.165 CD, 0.827 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, VW, 2.0T TSI - 08-14 - 21mm Pin, 3.287 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 83.50 Bore, Dish, Set of 4 |
| Piston Material |
2618 |
| Add-On |
827-2250-15-51C |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
2.0 TSI |
| Piston Volume |
-8.40 |
| Add-On |
JG1001-3287 |
| Second Compression Ring Thickness |
0.0480 |
| Industry |
Automotive |
| Add-On |
827-063-MW |
| Make - Web |
Volkswagen |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Engine Detail |
2.0T TSI 04-08 21 mm Pin |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Piston Pin Material |
5115 |
| Piston Average Weight |
320 |
| Title - Web |
JE Pistons Volkswagen 2.0T TSI Piston Kit - 83.50 mm Bore - 1.165 in. CH, -8.40 CC |
| Compression Height |
1.165 |
| Engine |
2.0T TSI 04-08 21 mm Pin |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Market |
European |
| Oil Ring Thickness |
0.111 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Series |
JE Pistons |
| Bore Diameter |
83.50 |
| Wrist Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dish |
| Piston Quantity |
4 |
| Engine Type |
ICE |
| Make |
VOLKSWAGEN |
| Piston Pin Outside Diameter |
0.827 |
| Title |
JE Pistons - Volkswagen, 2.0T TSI, 83.50 mm Bore, Piston Kit |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.827 |
| Ring Set Included |
Yes |
| Engine - Web |
2.0T TSI |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
