As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T TSI 08-14 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

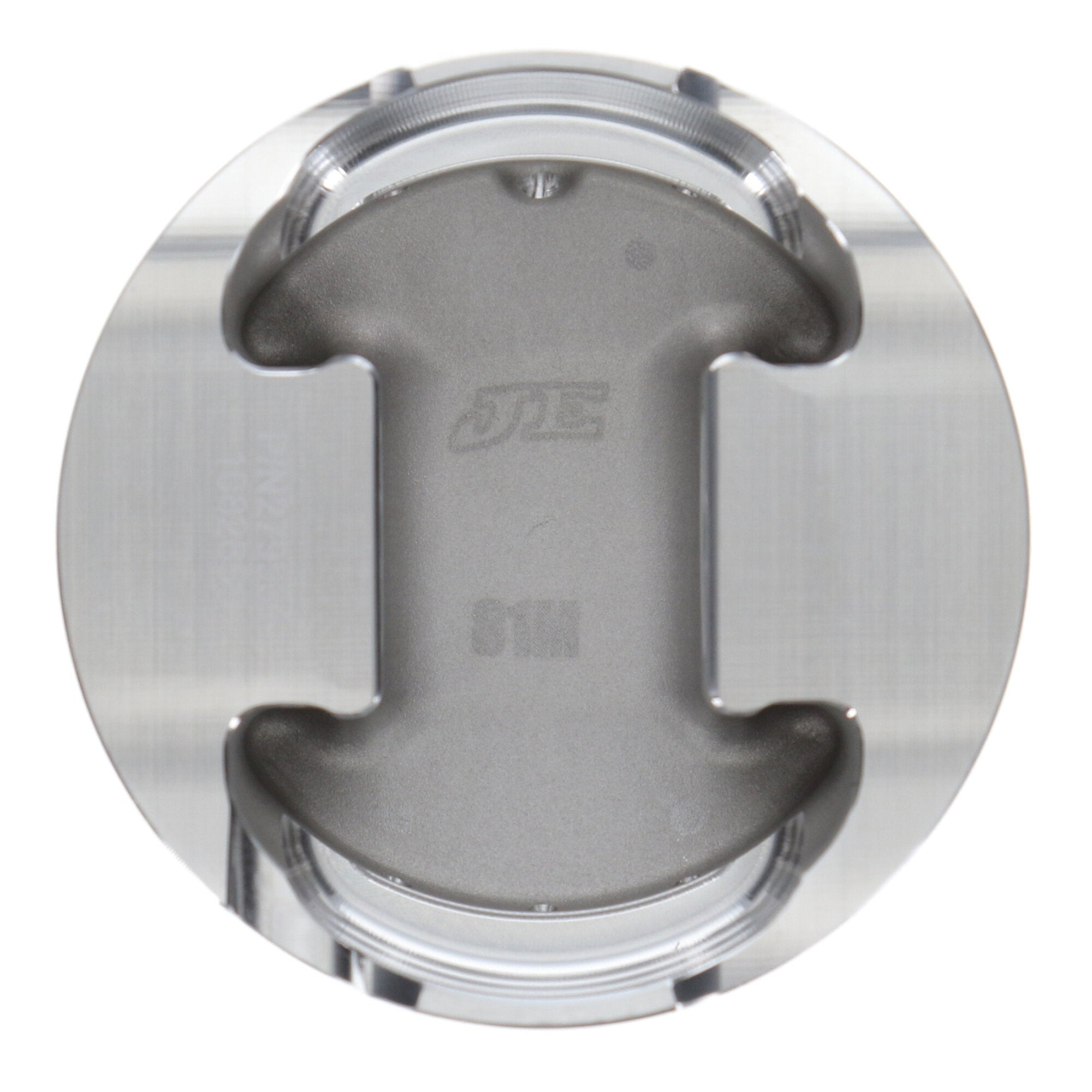

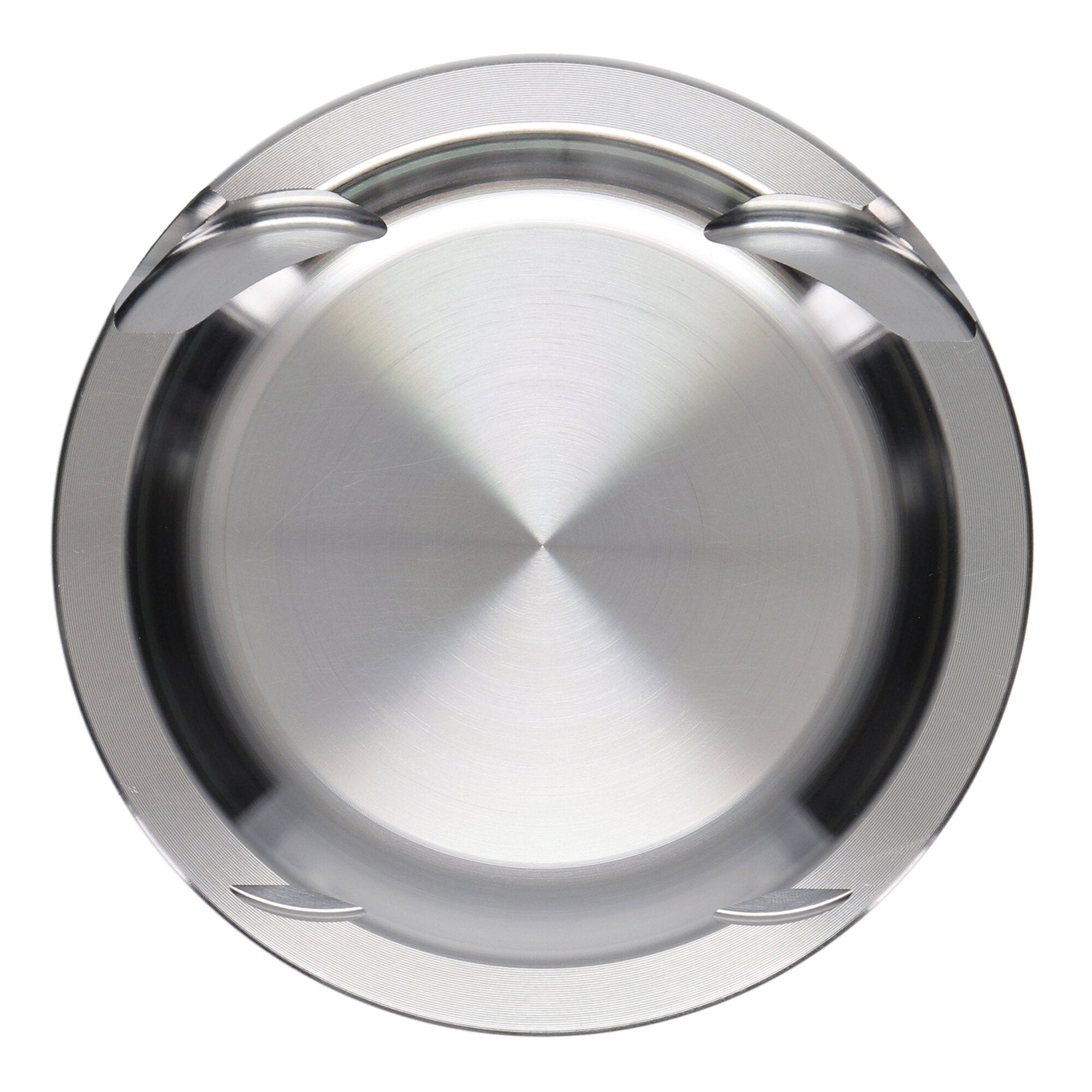

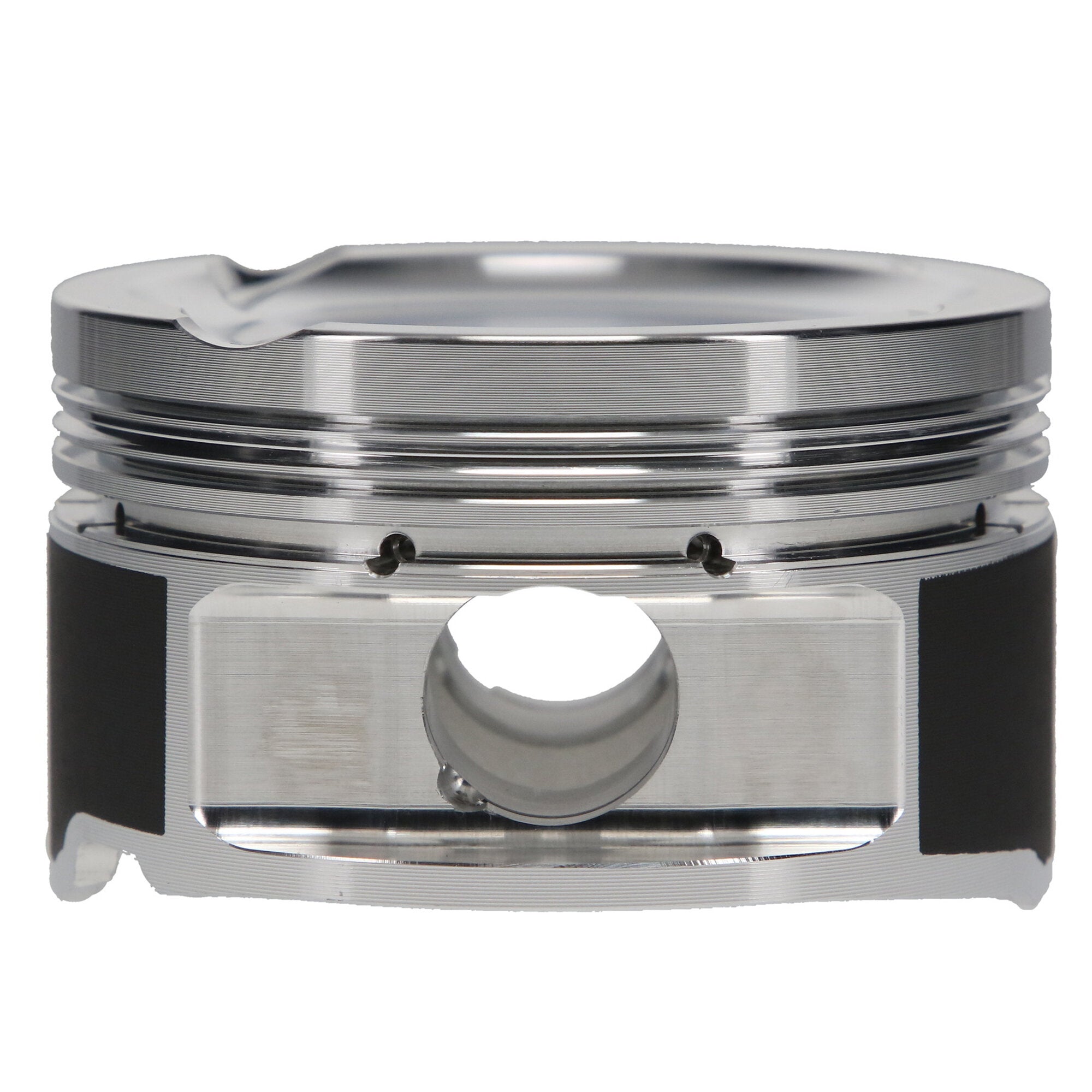

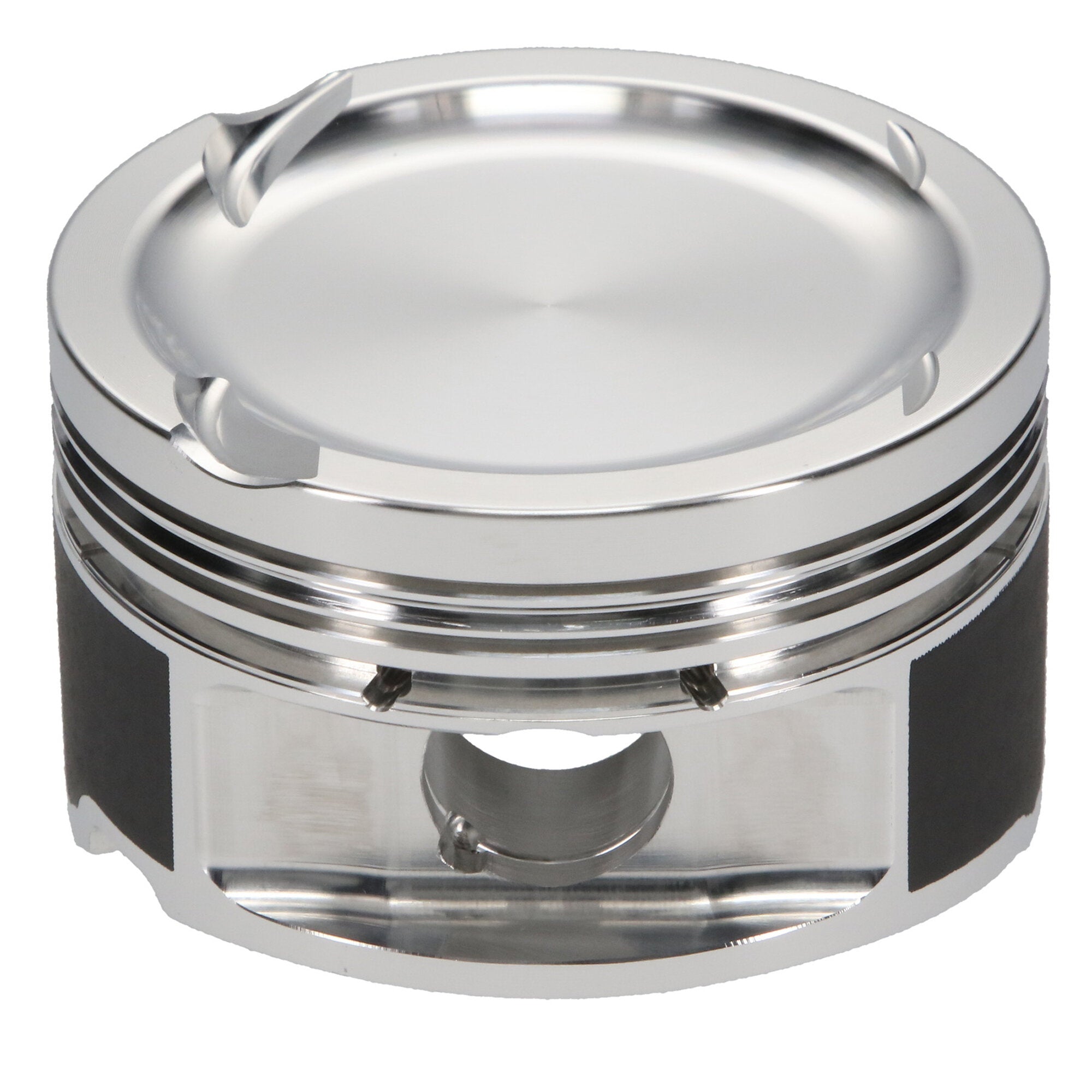

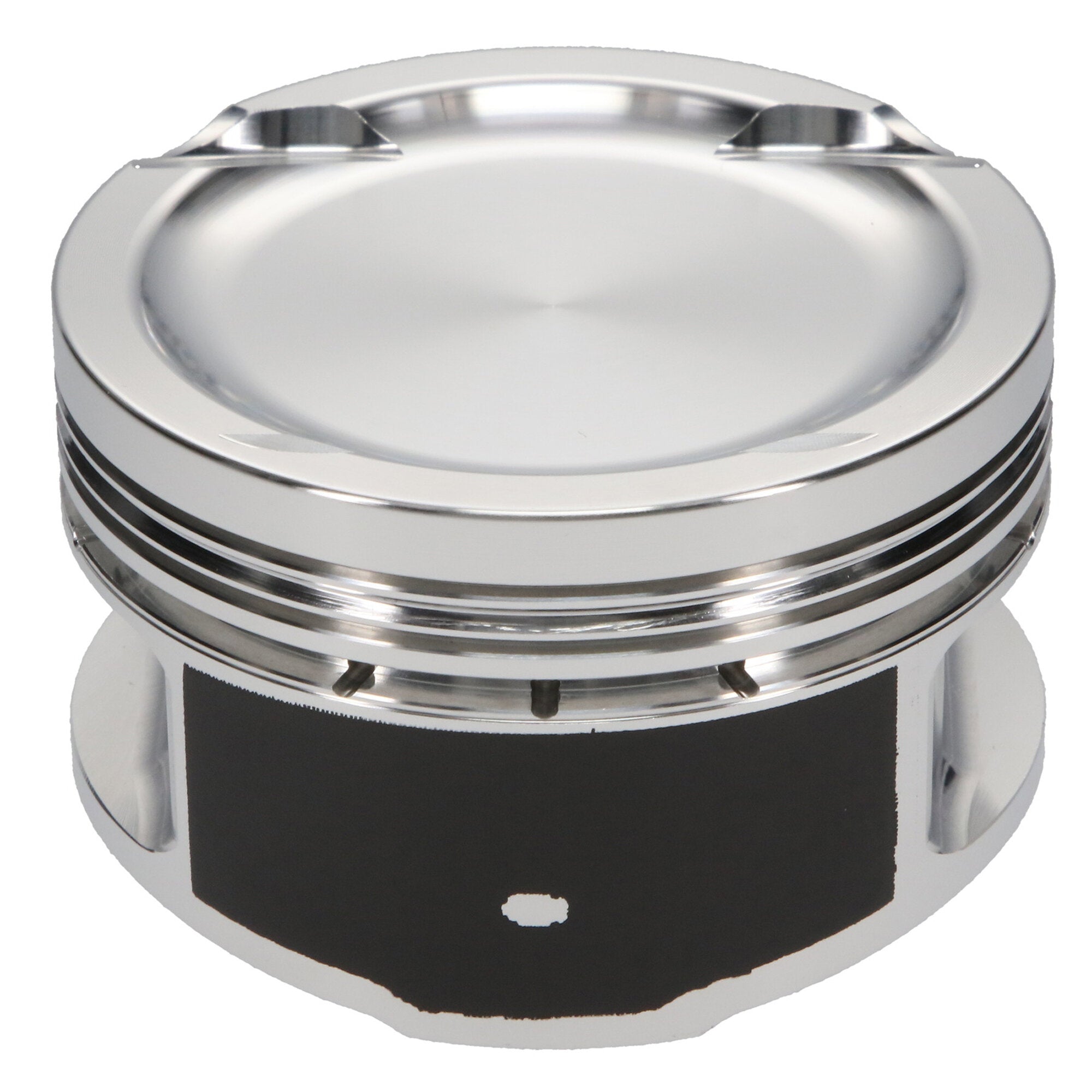

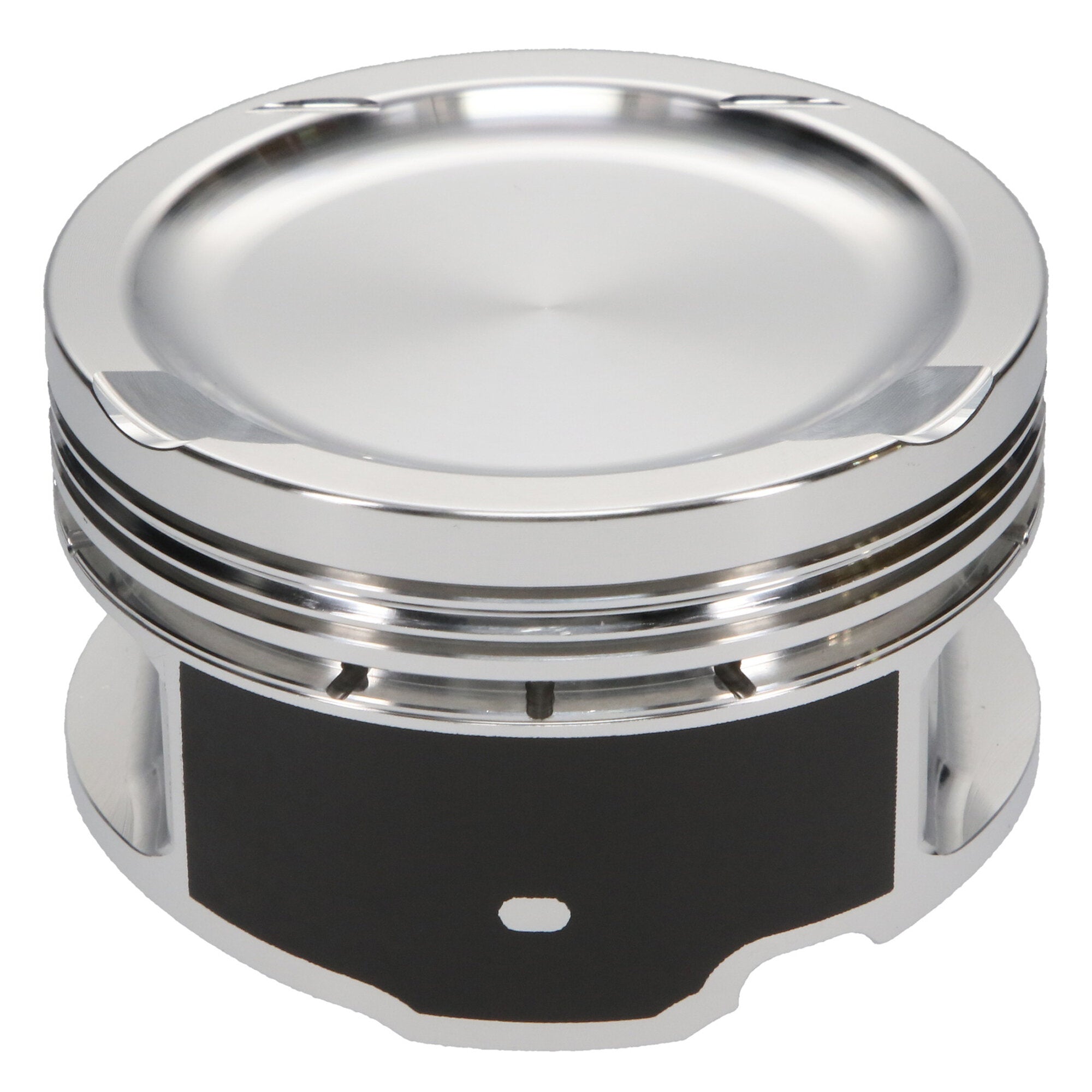

Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.827 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_EXT |
JE, VW, 2.0T TSI - 08-14 - 21mm Pin, 3.248 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 82.50 Bore, Dish, Set of 4 |
| Cylinder Head |
2.0 TSI |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Add-On |
JG1001-3250 |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Volkswagen 2.0T TSI Piston Kit - 82.50 mm Bore - 1.165 in. CH, -7.10 CC |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Volume |
-7.10 |
| Add-On |
827-063-MW |
| Add-On |
827-2250-15-51C |
| Industry |
Automotive |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Make - Web |
Volkswagen |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Quantity |
4 |
| Engine |
2.0T TSI 04-08 21 mm Pin |
| Second Compression Ring Thickness |
0.0480 |
| Piston Head Type |
Dish |
| Product Type |
Engine Piston Kit |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Engine - Web |
2.0T TSI |
| Engine Detail |
2.0T TSI 04-08 21 mm Pin |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title |
JE Pistons - Volkswagen, 2.0T TSI, 82.50 mm Bore, Piston Kit |
| Piston Average Weight |
320 |
| Piston Pin Outside Diameter |
0.827 |
| Bore Diameter |
82.50 |
| Piston Pin Material |
5115 |
| Compression Height |
1.165 |
| Make |
VOLKSWAGEN |
| Product Market |
European |
| Oil Ring Thickness |
0.111 |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
