As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan TB48DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

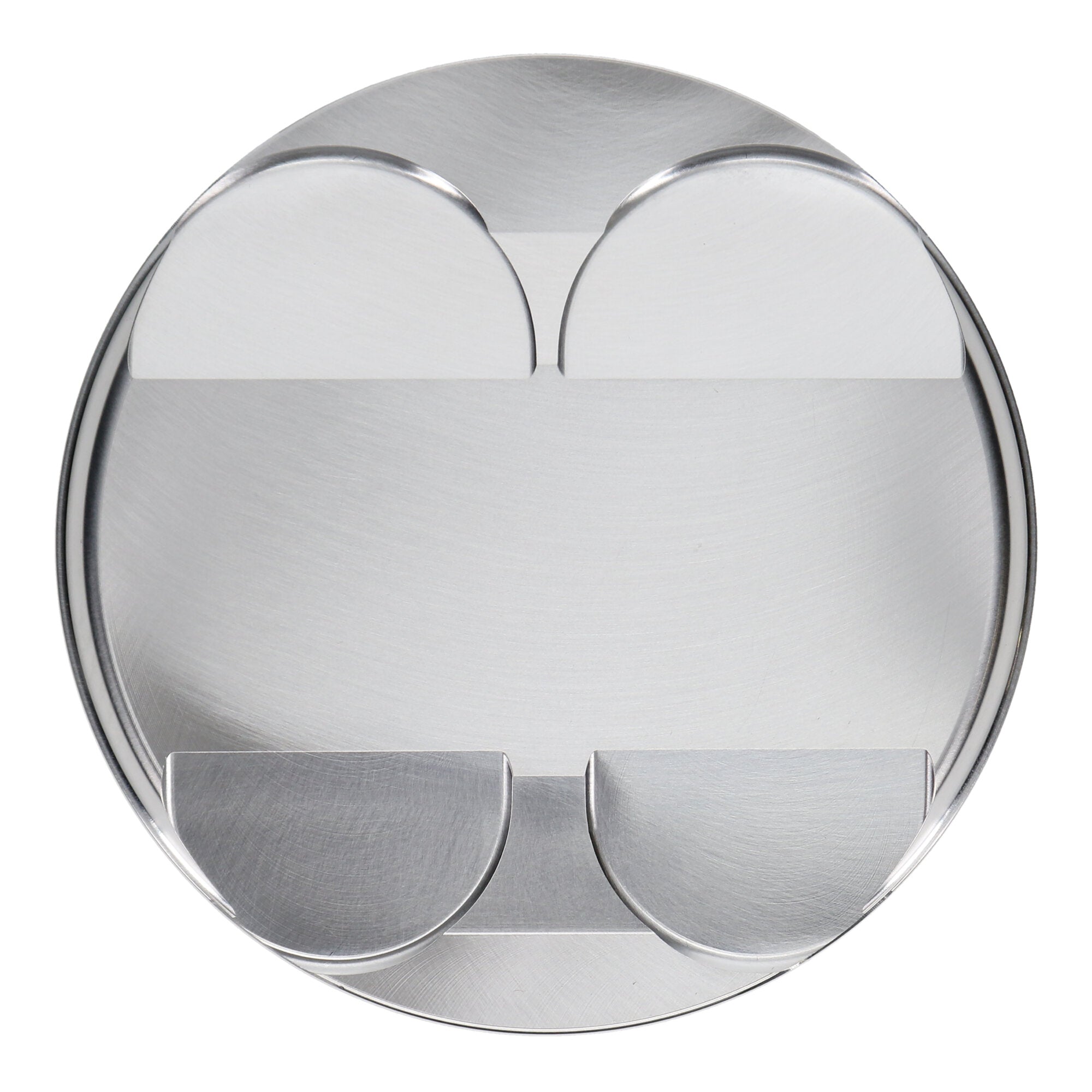

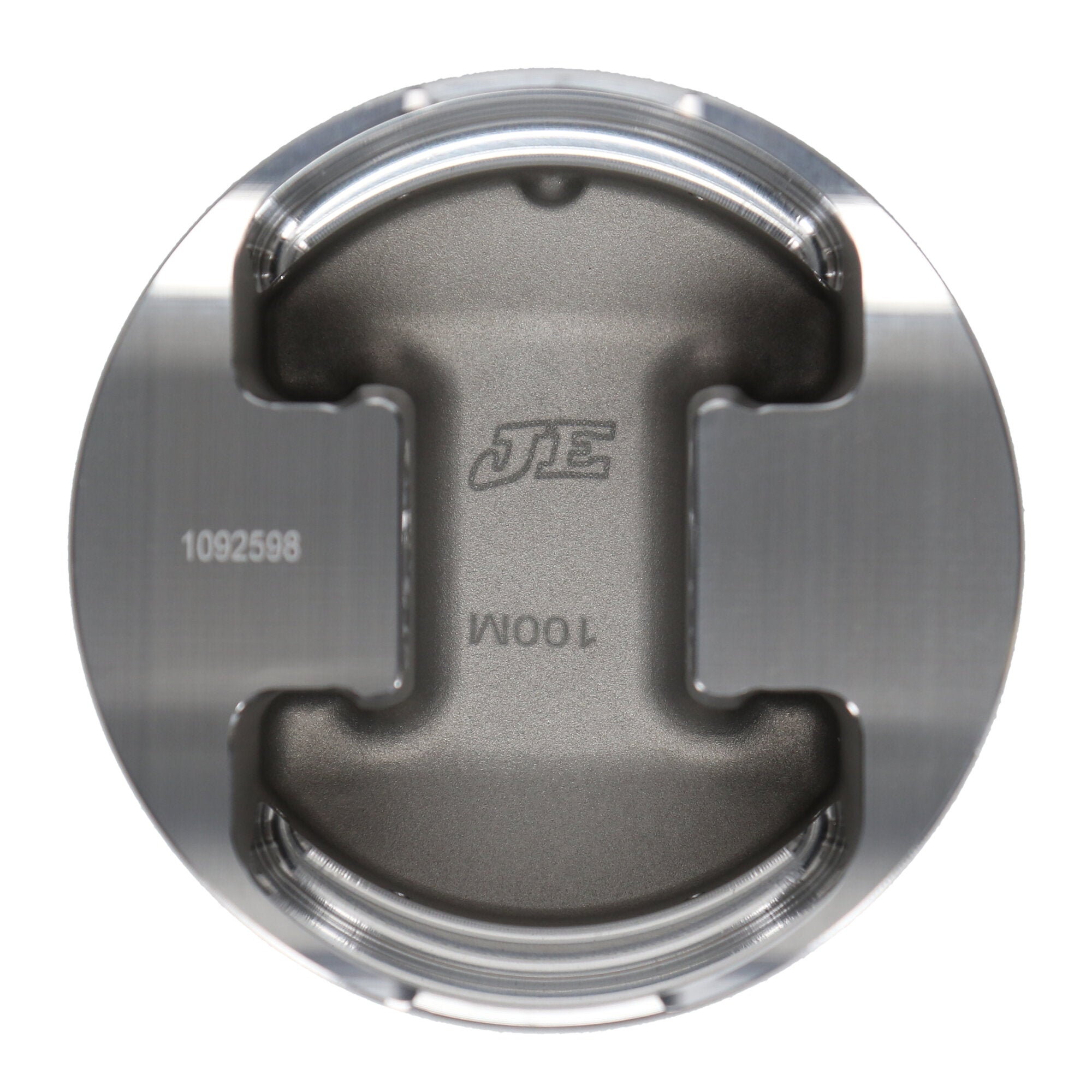

Piston Set, 2618, Dome, 3.957 Bore, 1.465 CD, 0.905 Pin, Set of 6. |
| Description_EXT |
JE, Nissan, TB48DE, 3.957 in. Bore, 11.50:1, Dome, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan TB48DE, 100.50 Bore, Dome, Set of 6 |
| Description_SHO |
Piston Kit |
| Cylinder Head |
TB48DE |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Nissan TB48DE Piston Kit - 100.50 mm Bore - 1.465 in. CH, 23.80 CC |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
905-2500-15-51C |
| Add-On |
JG1001-3957 |
| Add-On |
905-073-MW |
| Industry |
Automotive |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Piston Pin Length |
2.500 |
| Make |
NISSAN |
| Ringset Included |
Yes |
| Engine |
TB48DE |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Compression Height |
1.465 |
| Piston Average Weight |
477 |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Nissan, TB48DE, 100.50 mm Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Piston Quantity |
6 |
| Piston Pin Outside Diameter |
0.905 |
| Piston Volume |
23.80 |
| Forging Type |
Round |
| Product Market |
Sport Compact |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Bore Diameter |
100.50 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.500 |
| Engine - Web |
TB48DE |
| Wrist Pin Outer Diameter |
0.905 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
10.0000 |
