As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan TB48DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

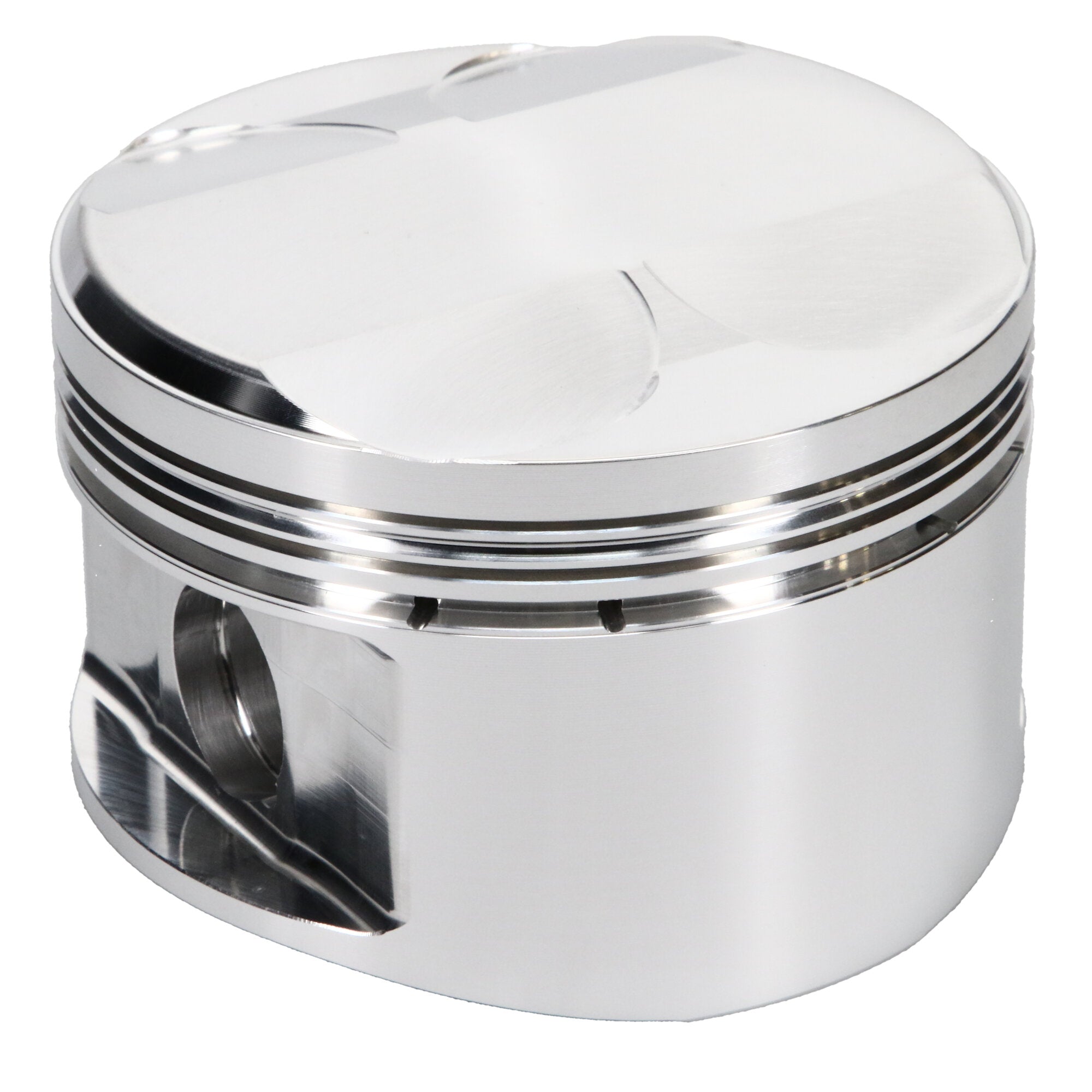

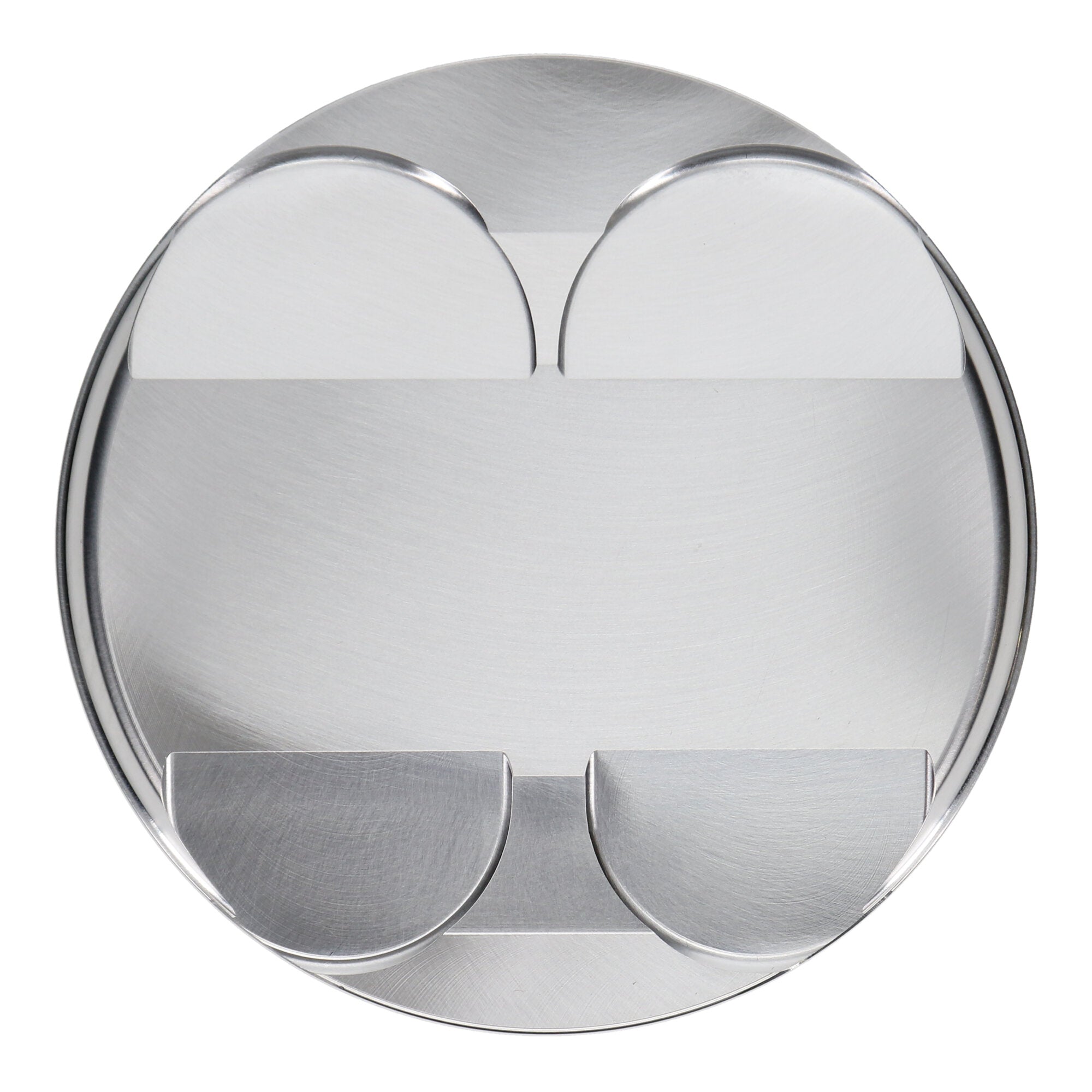

Piston Set, 2618, Inv Dome/Dish, 3.917 Bore, 1.465 CD, 0.905 Pin, Set of 6. |
| Description_EXT |
JE, Nissan, TB48DE, 3.917 in. Bore, 8.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan TB48DE, 99.50 Bore, Dish, Set of 6 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
Sport Compact |
| Bore Diameter |
99.50 |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Nissan, TB48DE, 99.50 mm Bore, Piston Kit |
| Forging Type |
Round |
| Piston Pin Wall Thickness |
0.150 |
| Piston Average Weight |
452 |
| Make |
NISSAN |
| Wrist Pin Outer Diameter |
0.905 |
| Wrist Pin Wall Thickness |
0.150 |
| Industry |
Automotive |
| Add-On |
JG1001-3917 |
| Add-On |
905-073-MW |
| Add-On |
905-2500-15-51C |
| Piston Head Type |
Dish |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Nissan TB48DE Piston Kit - 99.50 mm Bore - 1.465 in. CH, -7.00 CC |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Compression Height |
1.465 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.905 |
| Piston Quantity |
6 |
| Cylinder Head |
TB48DE |
| Piston Volume |
-7.00 |
| Wrist Pin Length |
2.500 |
| Engine - Web |
TB48DE |
| Ring Set Included |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
Yes |
| Piston Pin Length |
2.500 |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Engine |
TB48DE |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
10.0000 |
