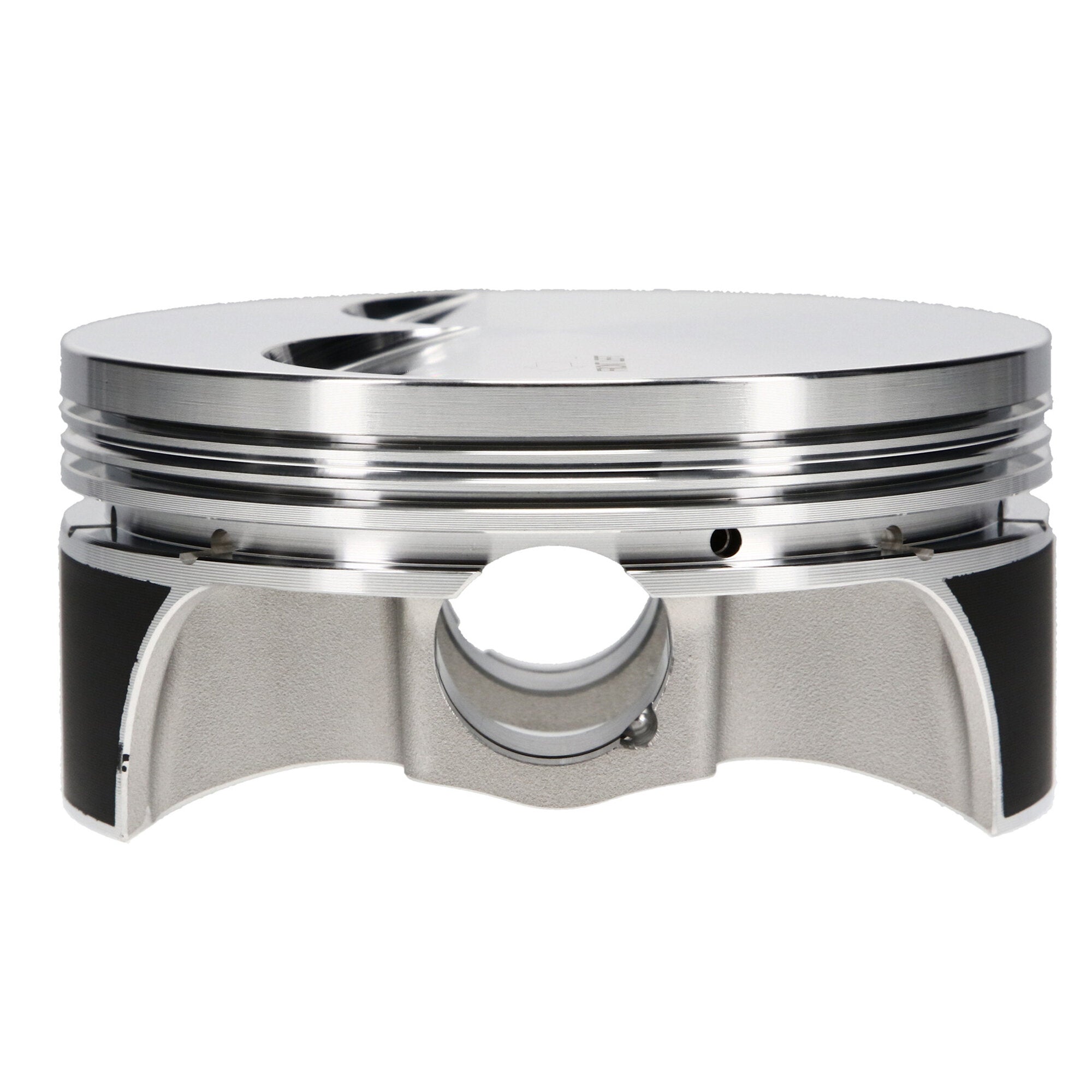

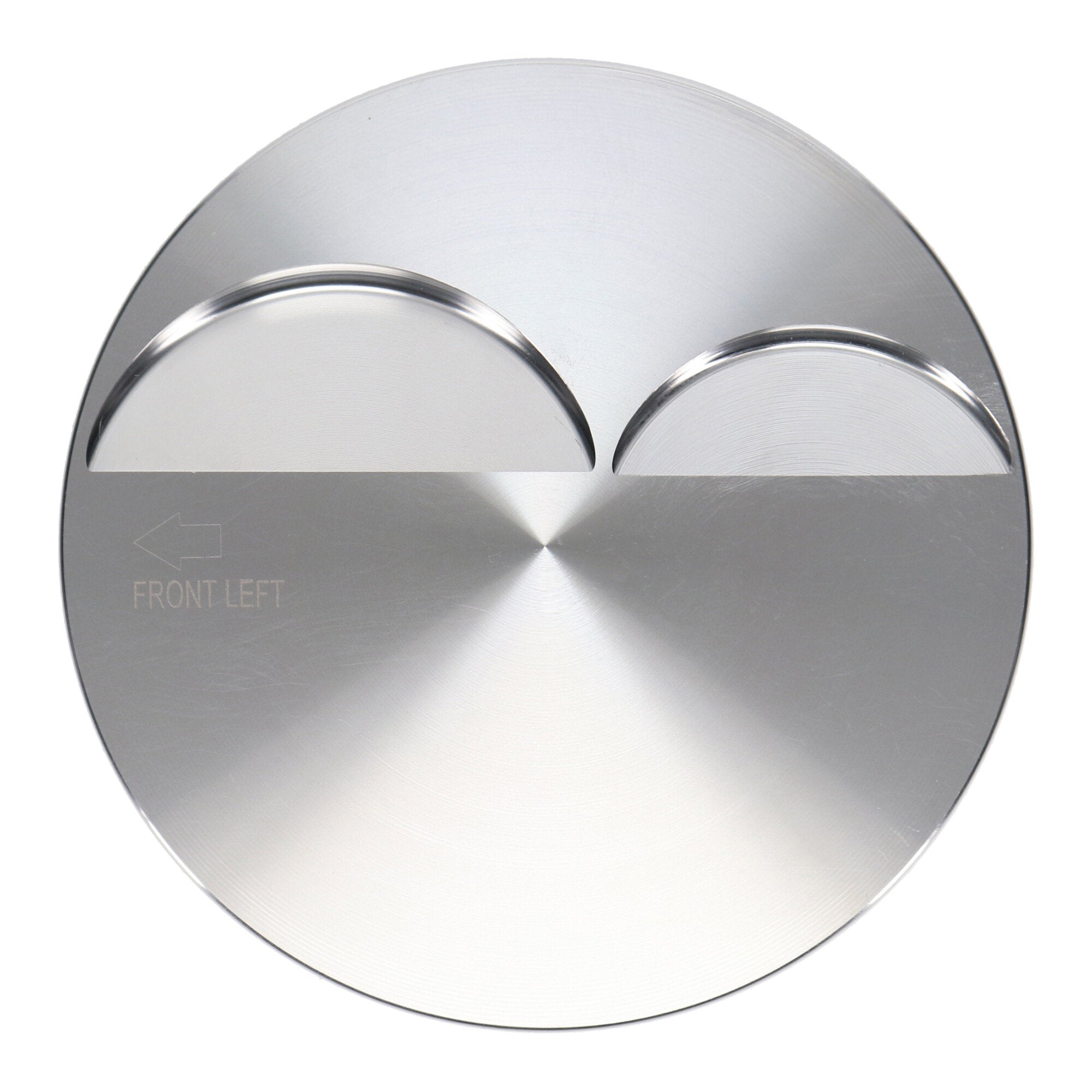

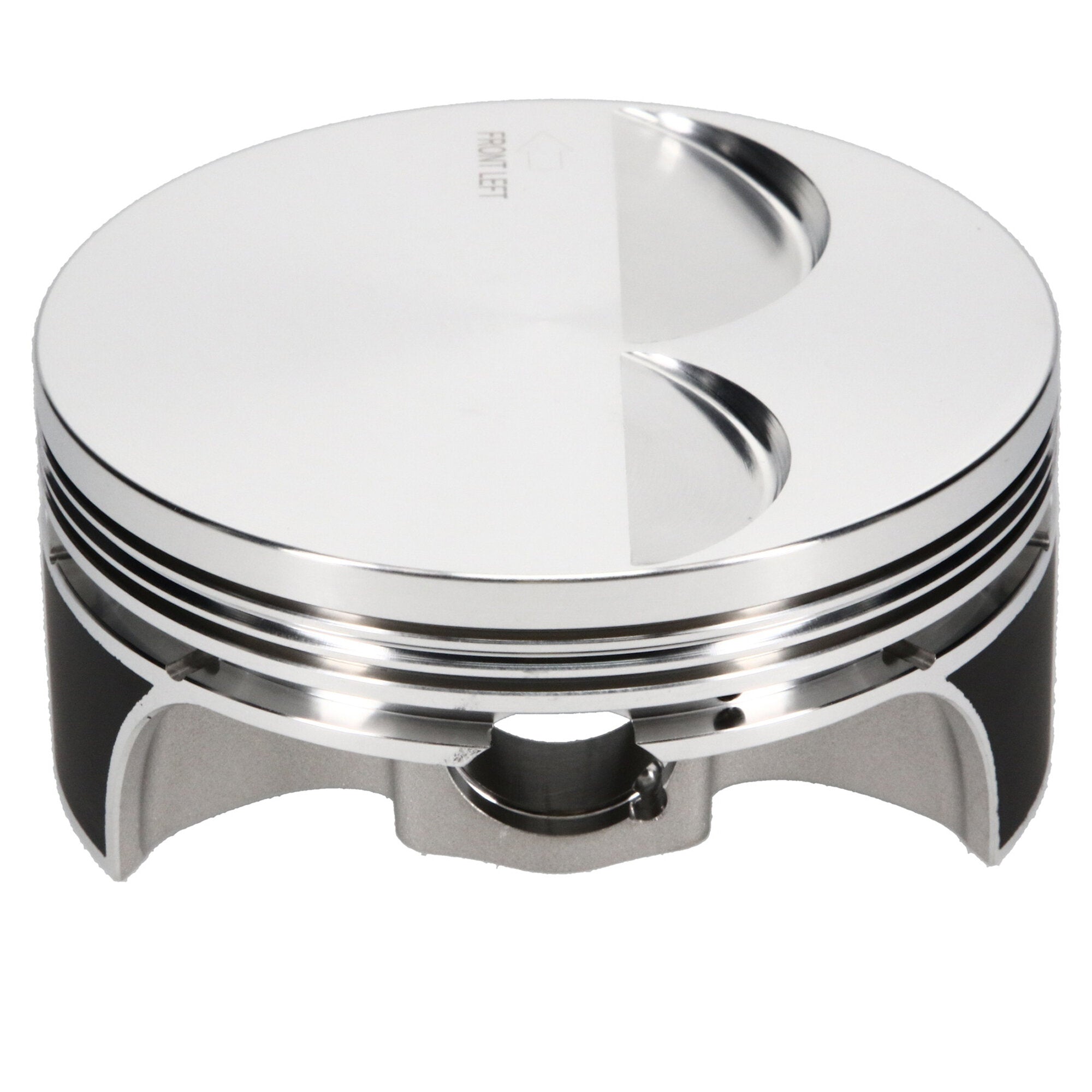

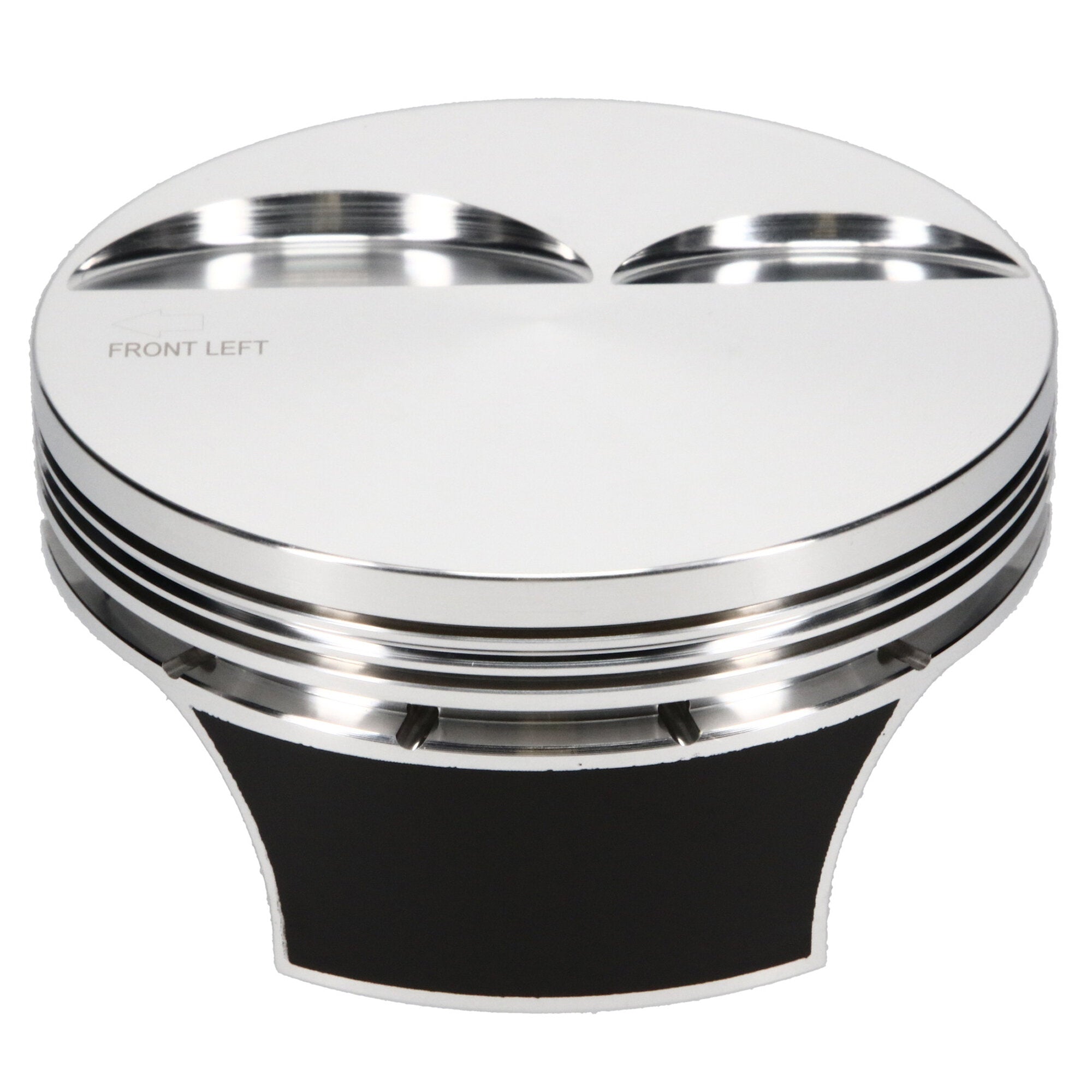

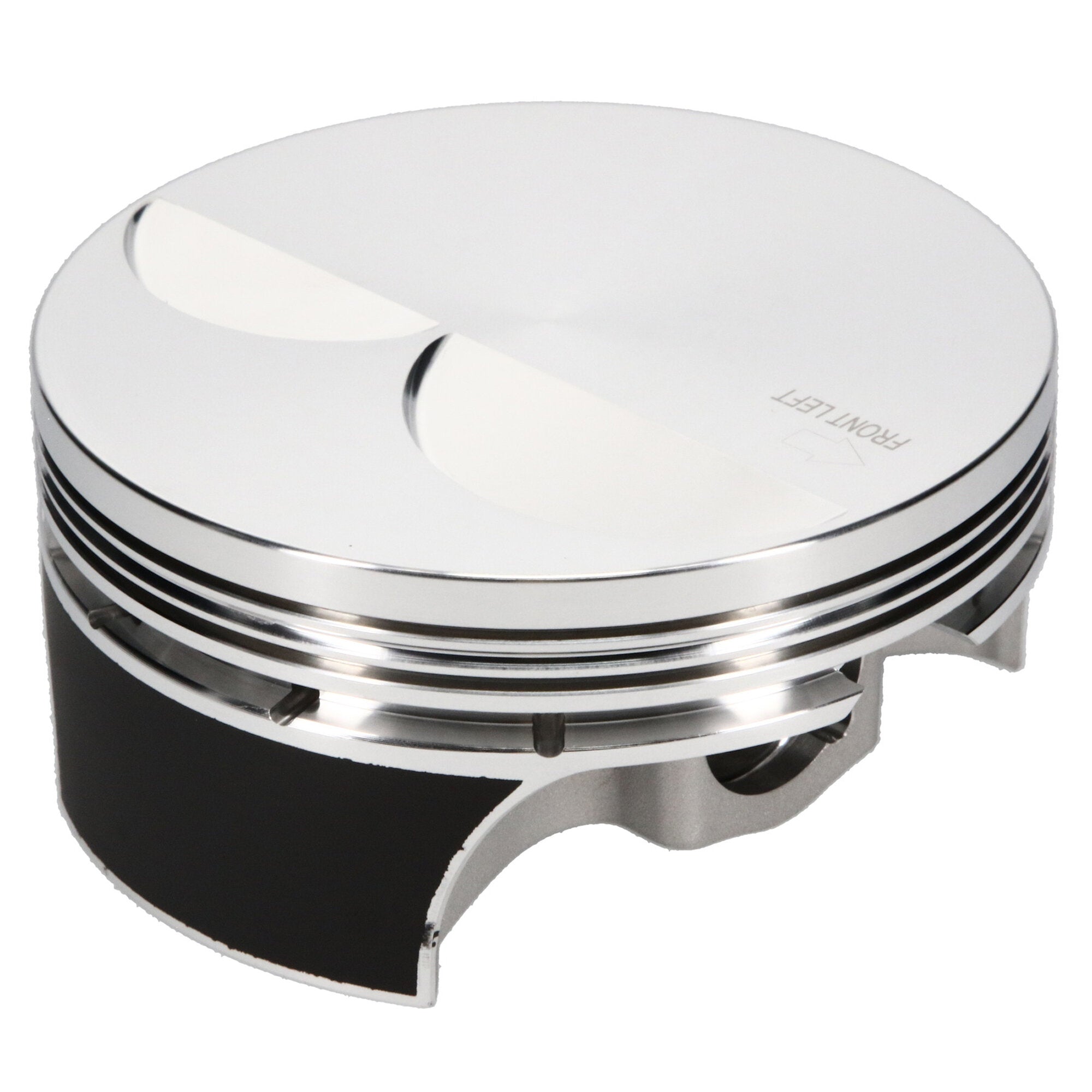

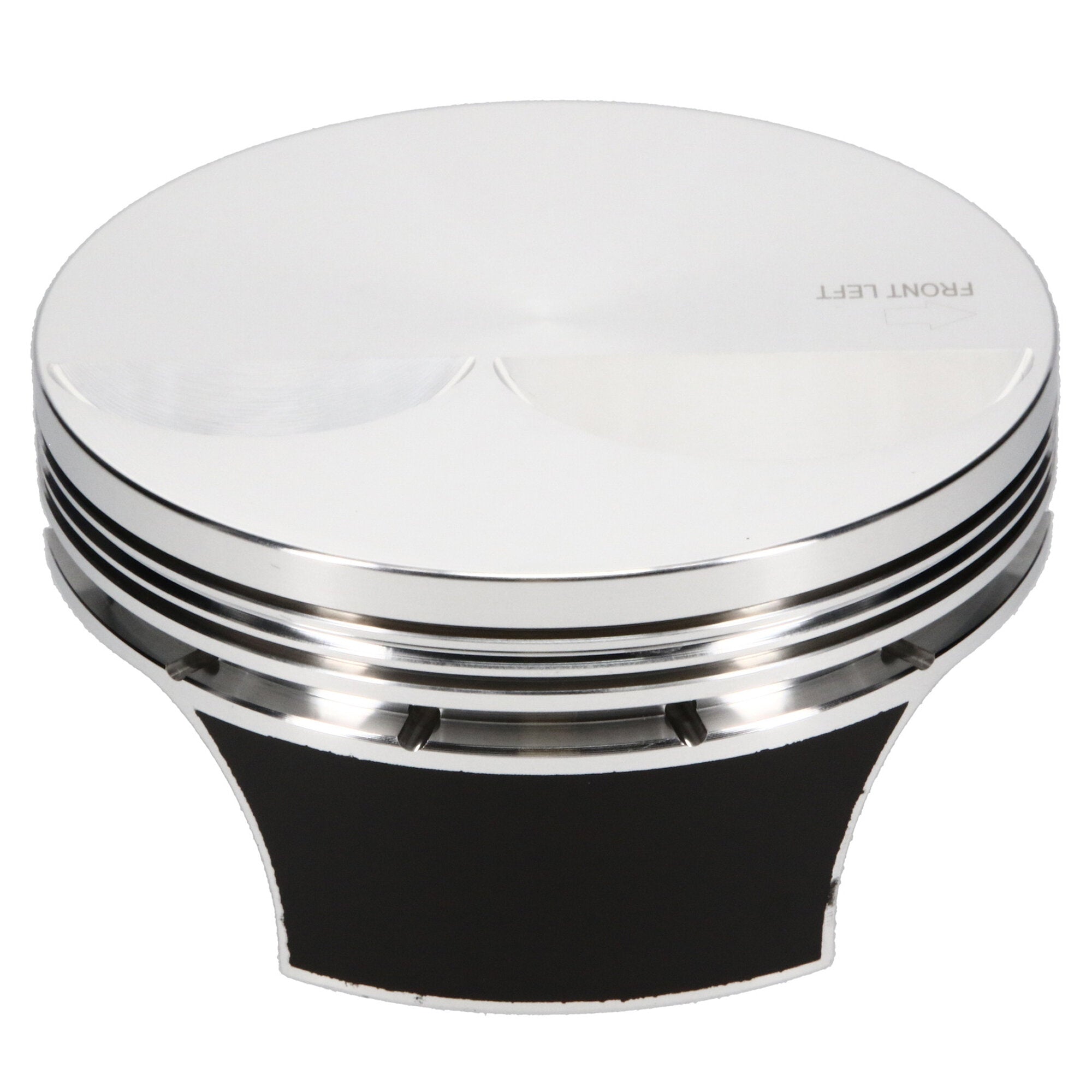

JE Pistons 326279 Piston Set, 4032, Flat Top, 4.085 Bore, 1.115 CD, 0.927 Pin, Set of 8.
2
sold in last
8
hours
$1,585.80
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
JE Pistons
ds_BHXG_326279
Engine Piston Kit
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
Description_ASM | Chevrolet LS3 |
Description_DEF | Engine Piston Kit |
Description_DES | Piston Set, 4032, Flat Top, 4.085 Bore, 1.115 CD, 0.927 Pin, Set of 8. |
Description_INV | SRP Pro, Piston Set |
Description_EXT | SRP Pro 4032, Chevrolet, LS Gen III/IV, 4.085 in. Bore, 1.115 CD, Flat Top, 8 Cyl. Piston Kit |
Description_FAB |
|
Description_MKT | SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
Description_SHO | Piston Kit |
Description_TLE | Chevrolet LS3, 4.085 Bore, Flat, Set of 8 |
Wrist Pin Outer Diameter | 0.927 |
Title | SRP Pro 4032 - Chevrolet, LS Gen III/IV, 4.085 in. Bore, Piston Kit |
Piston Pin Wall Thickness | 0.150 |
Cylinder Head | LSX/L92 12 DEG |
Piston Material | 4032 |
Industry | Automotive |
Oil Ring Thickness | 0.149 |
Piston Pin Material | 5115 |
Product Market | Domestic |
Compression Height | 1.110 |
Bore Diameter | 4.085 |
Top Compression Ring Thickness | 0.0480 |
Piston Average Weight | 413 |
Wrist Pin Wall Thickness | 0.150 |
Ring Set Included | Yes |
Engine - Web | LS Gen III/IV |
Prop 65 (C, R or CR) | CR |
Product Type | Engine Piston Kit |
Piston Volume | -5.00 |
Piston Pin Outside Diameter | 0.927 |
Add-On | J75001-4080-5 |
Category Hierarchy | Auto>SRP Pistons>SRP Pro>Piston Kits |
Add-On | 927-2250-15-51C |
Out of Stock Message | Call for Availability |
Add-On | 927-073-MW |
Make | CHEVROLET |
Make - Web | Chevrolet |
Wrist Pin Length | 2.250 |
Prop 65 - Short Label | Prop 65 Warning Label.JPG |
Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
Piston Pin Length | 2.250 |
Engine Type | ICE |
Forging Type | FSR |
Engine | LS Gen III/IV |
Ringset Included | Yes |
Piston Series | SRP Pro 4032 |
Piston Head Type | Flat |
Second Compression Ring Thickness | 0.0600 |
Prop 65 Yes/No | Yes |
Title - Web | SRP Pro 4032 Chevrolet LS Gen III/IV Piston Kit - 4.085 in. Bore - 1.110 in. CH, -5.00 CC |
Length | 6.0000 |
Width | 12.0000 |
Height | 26.0000 |
Weight | 14.0000 |
