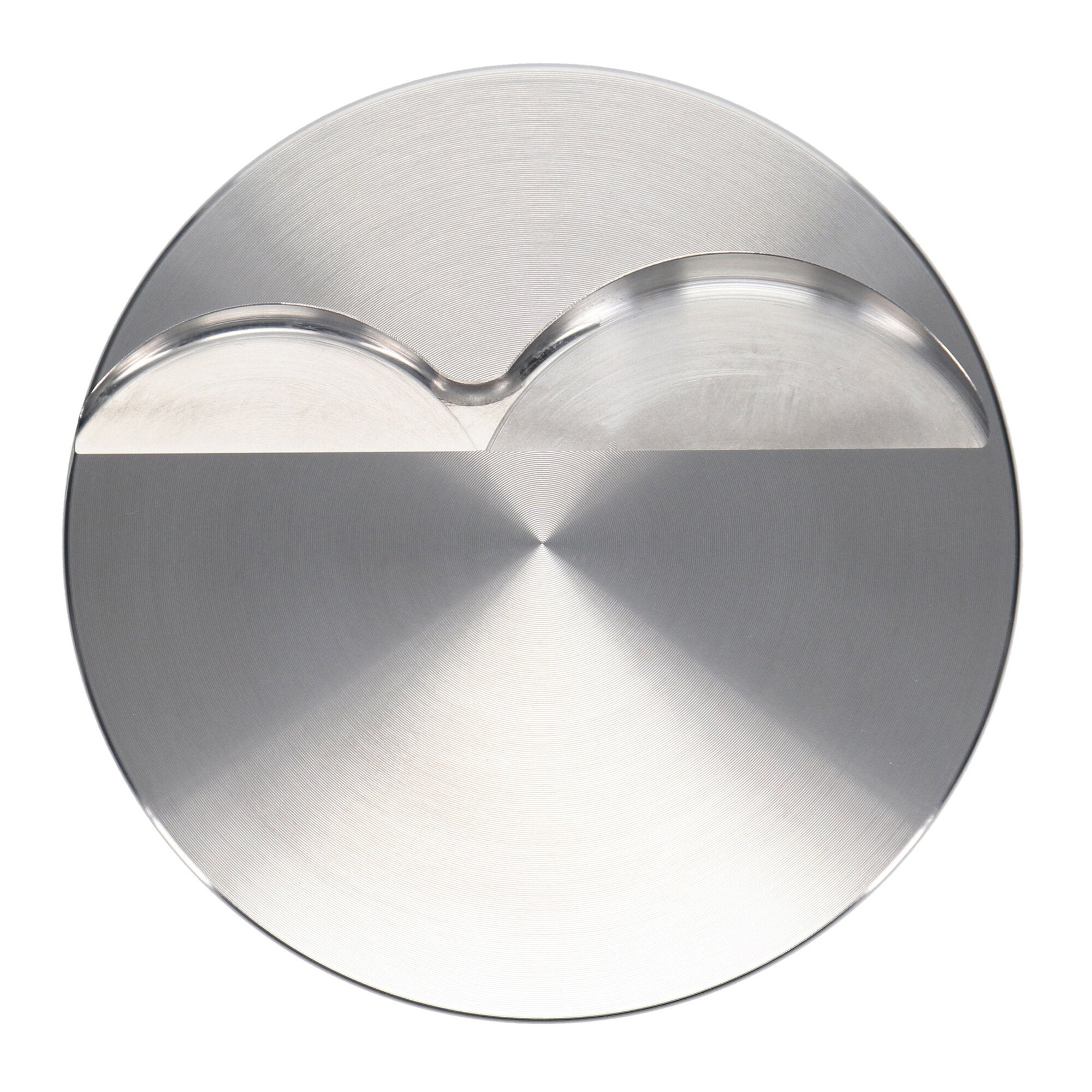

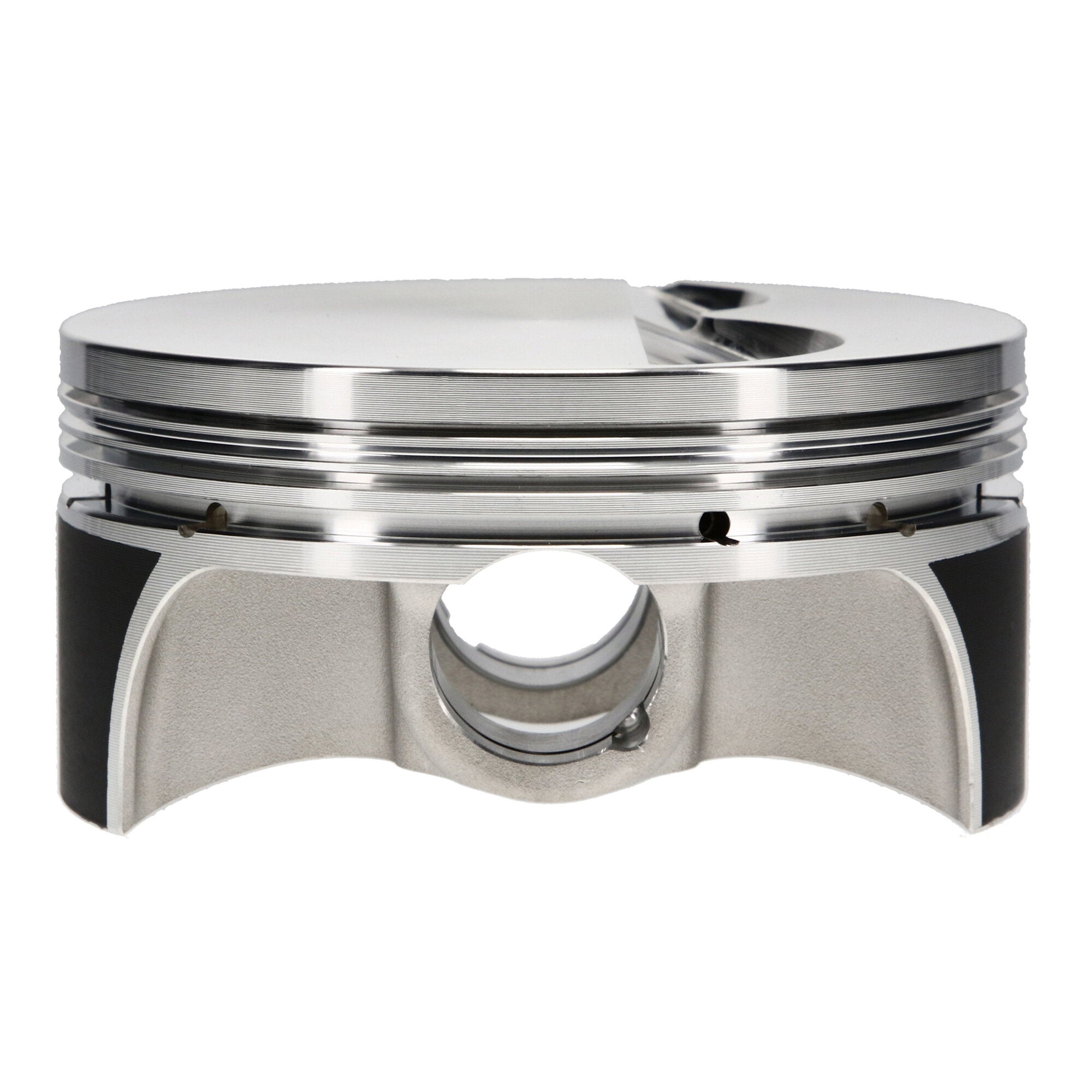

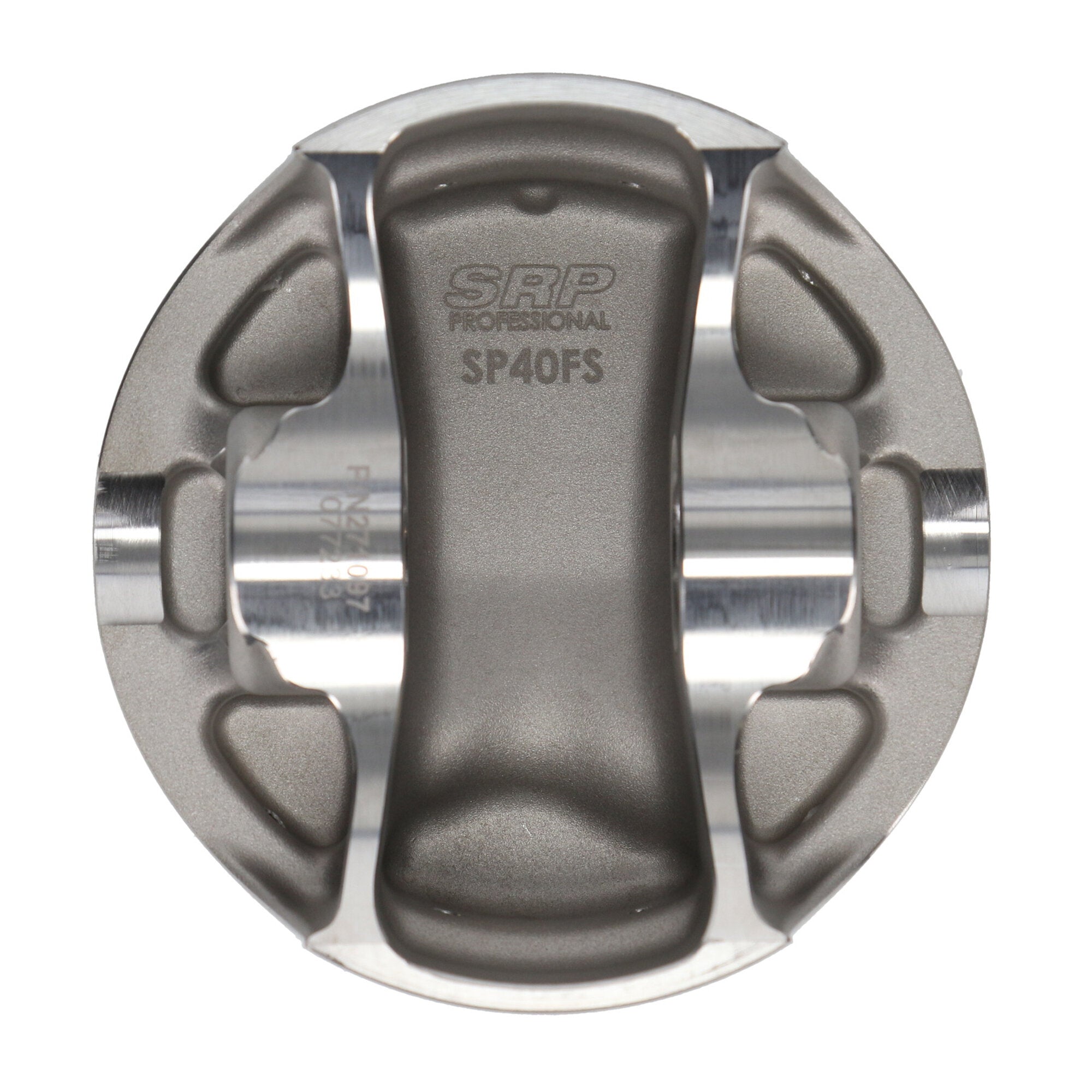

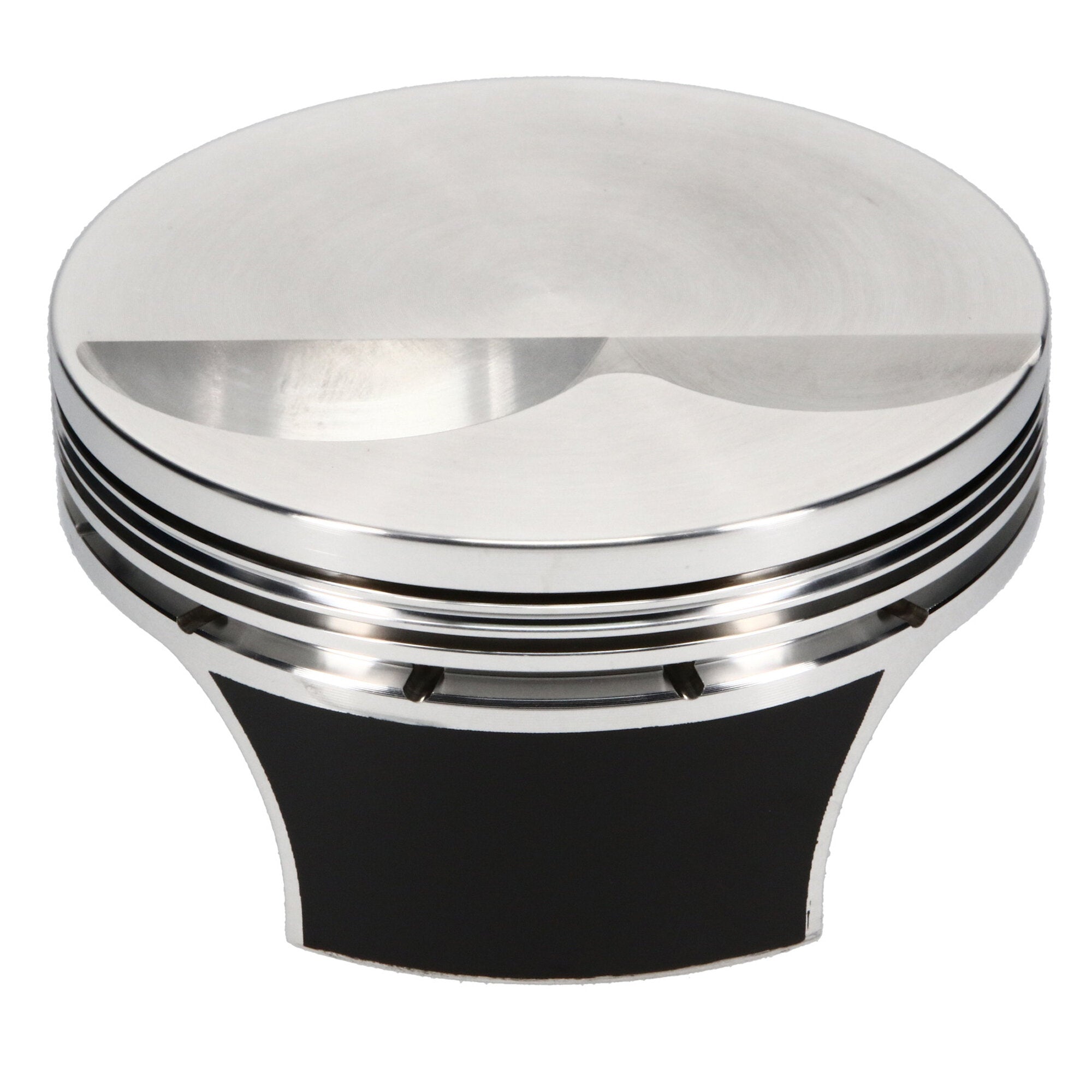

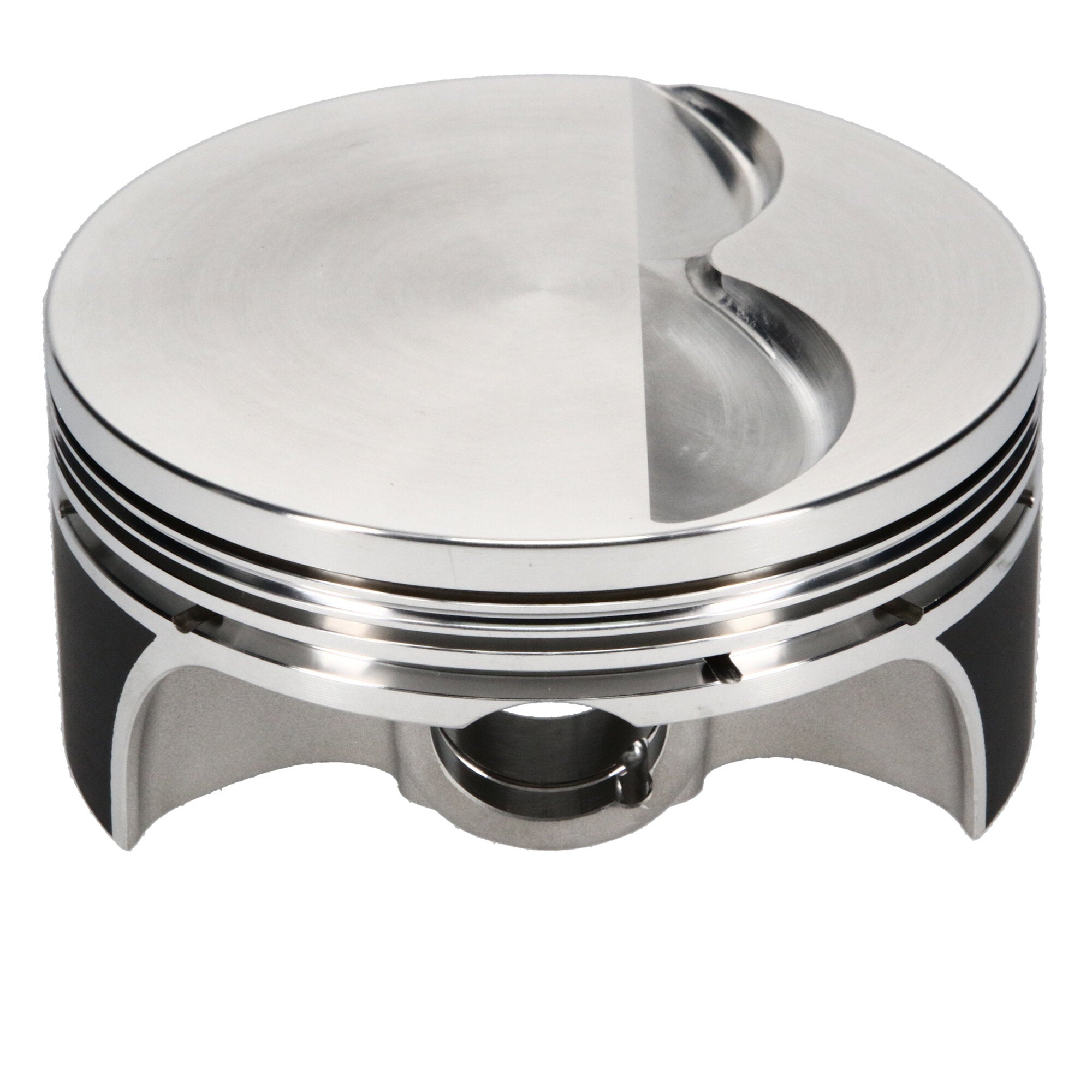

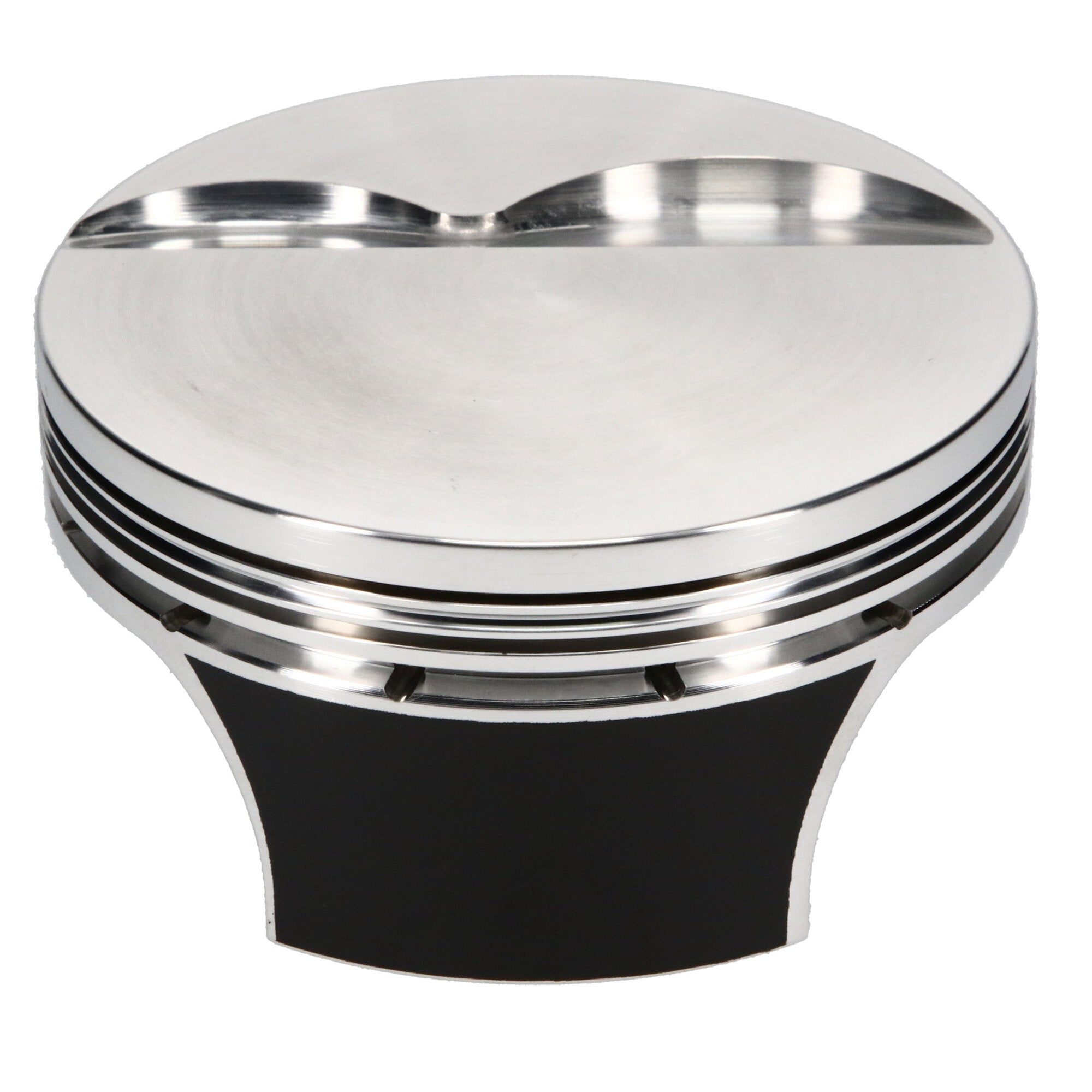

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.040 Bore, 1.165 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP Pro, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
SRP Pro 4032, Ford, Small Block Ford, 4.040 in. Bore, 1.165 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302, 4.040 Bore, Flat, Set of 8 |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Piston Pin Material |
5115 |
| Piston Pin Length |
2.250 |
| Piston Head Type |
Flat |
| Engine |
Small Block |
| Piston Series |
SRP Pro 4032 |
| Ringset Included |
Yes |
| Oil Ring Thickness |
0.119 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
5.00 |
| Forging Type |
FSR |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0480 |
| Make |
FORD |
| Piston Average Weight |
409 |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.165 |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Add-On |
927-2250-15-51C |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Outside Diameter |
0.927 |
| Industry |
Automotive |
| Title |
SRP Pro 4032 - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Piston Material |
4032 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Add-On |
927-073-MW |
| Add-On |
JG31F1-4040-2 |
| Title - Web |
SRP Pro 4032 Ford Small Block Piston Kit - 4.040 in. Bore - 1.165 in. CH, 5.00 CC |
| Bore Diameter |
4.040 |
| Ring Set Included |
Yes |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
