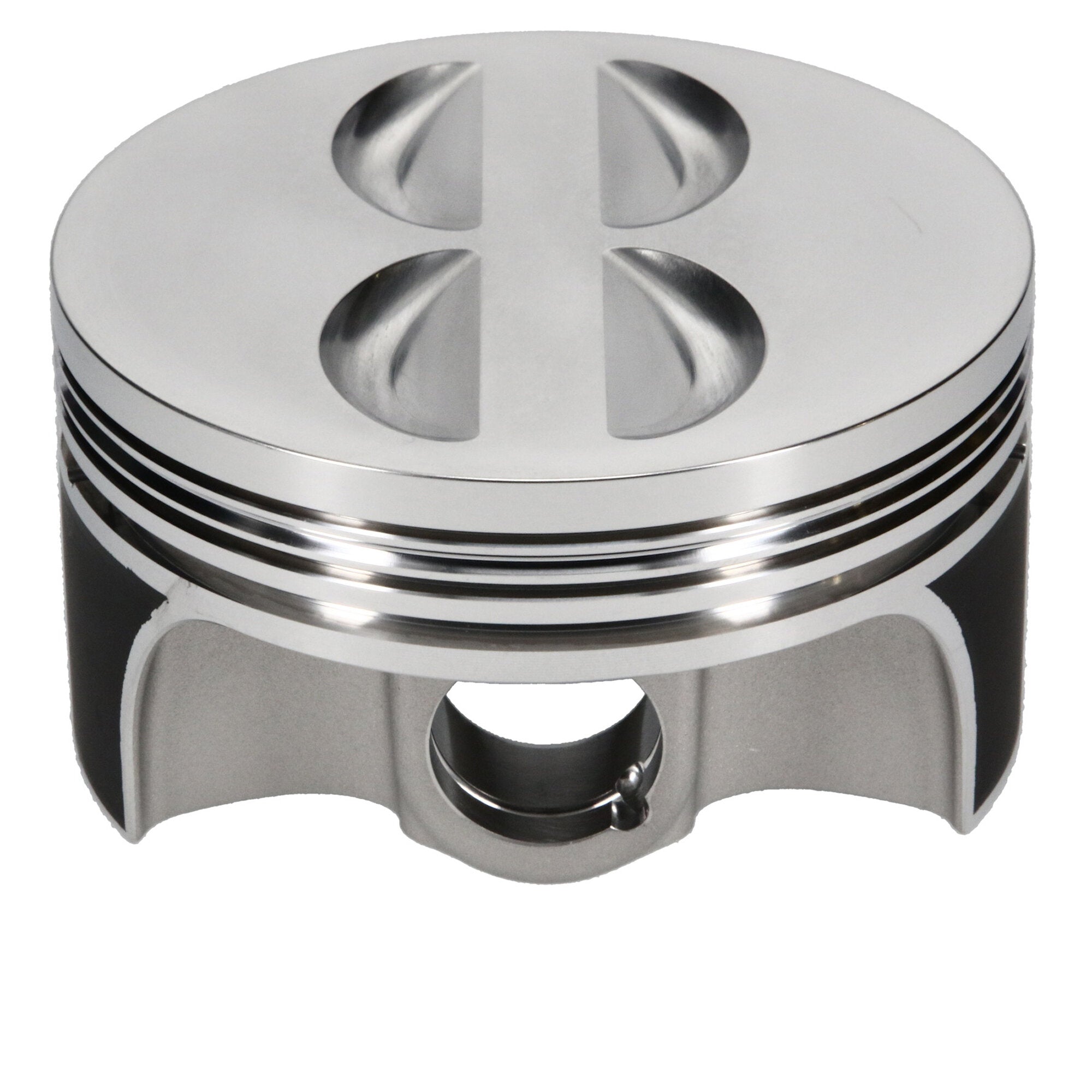

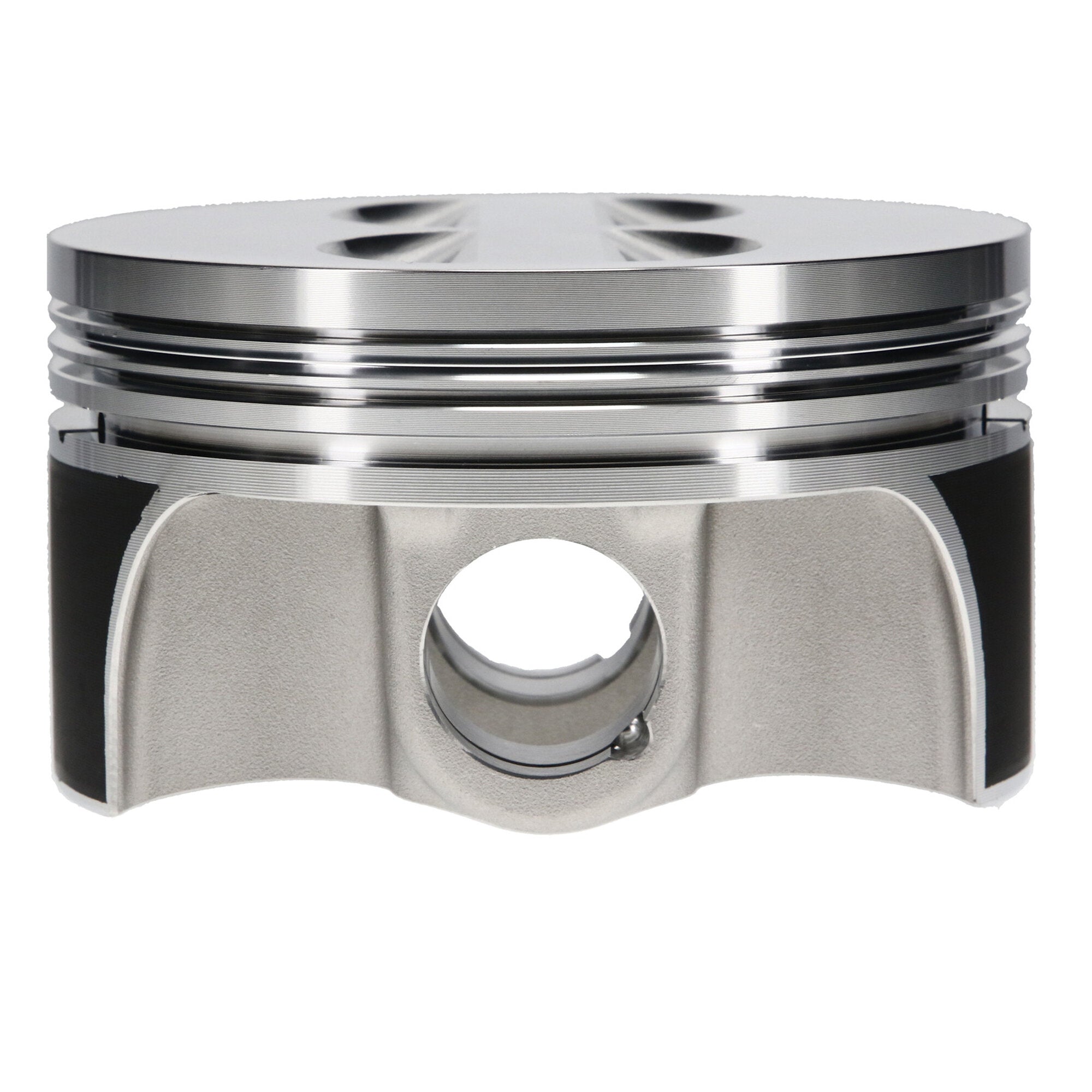

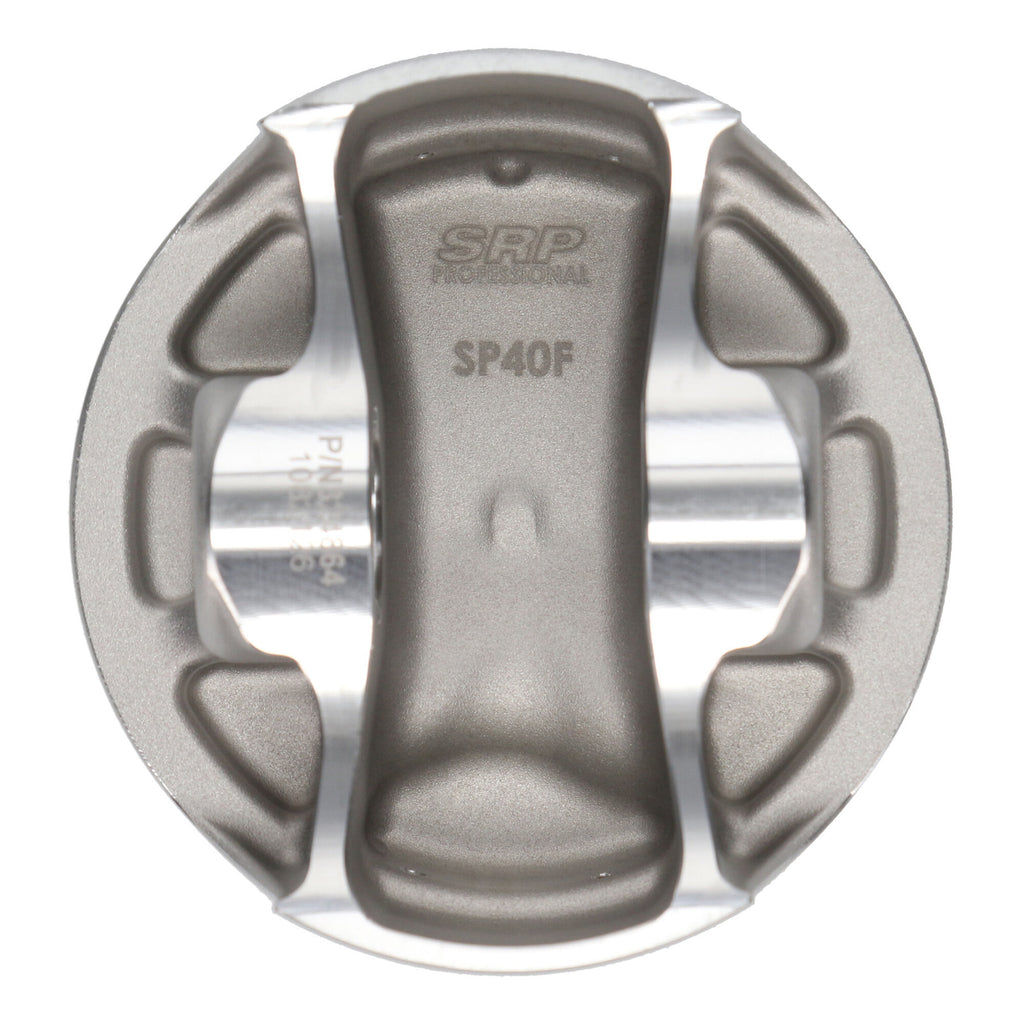

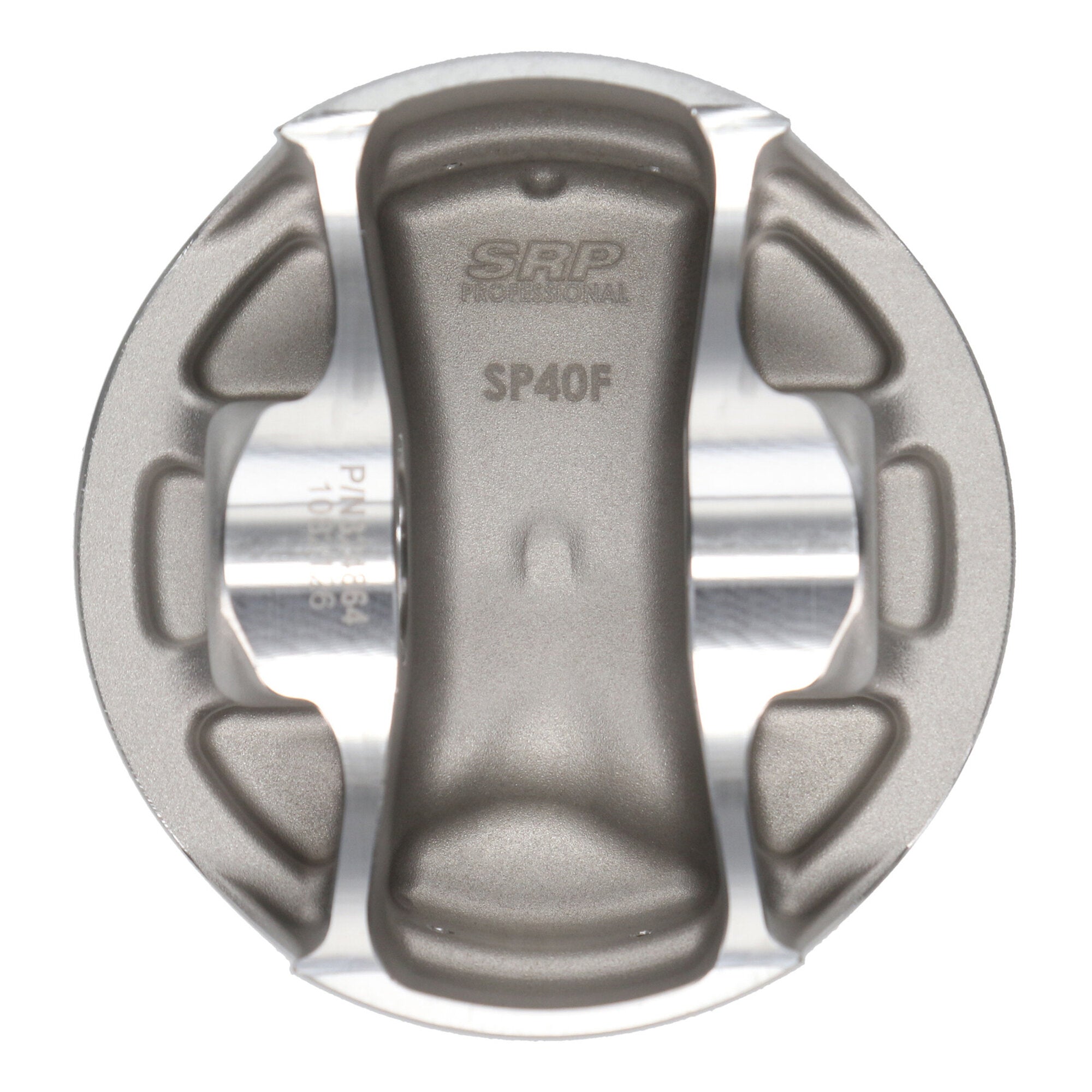

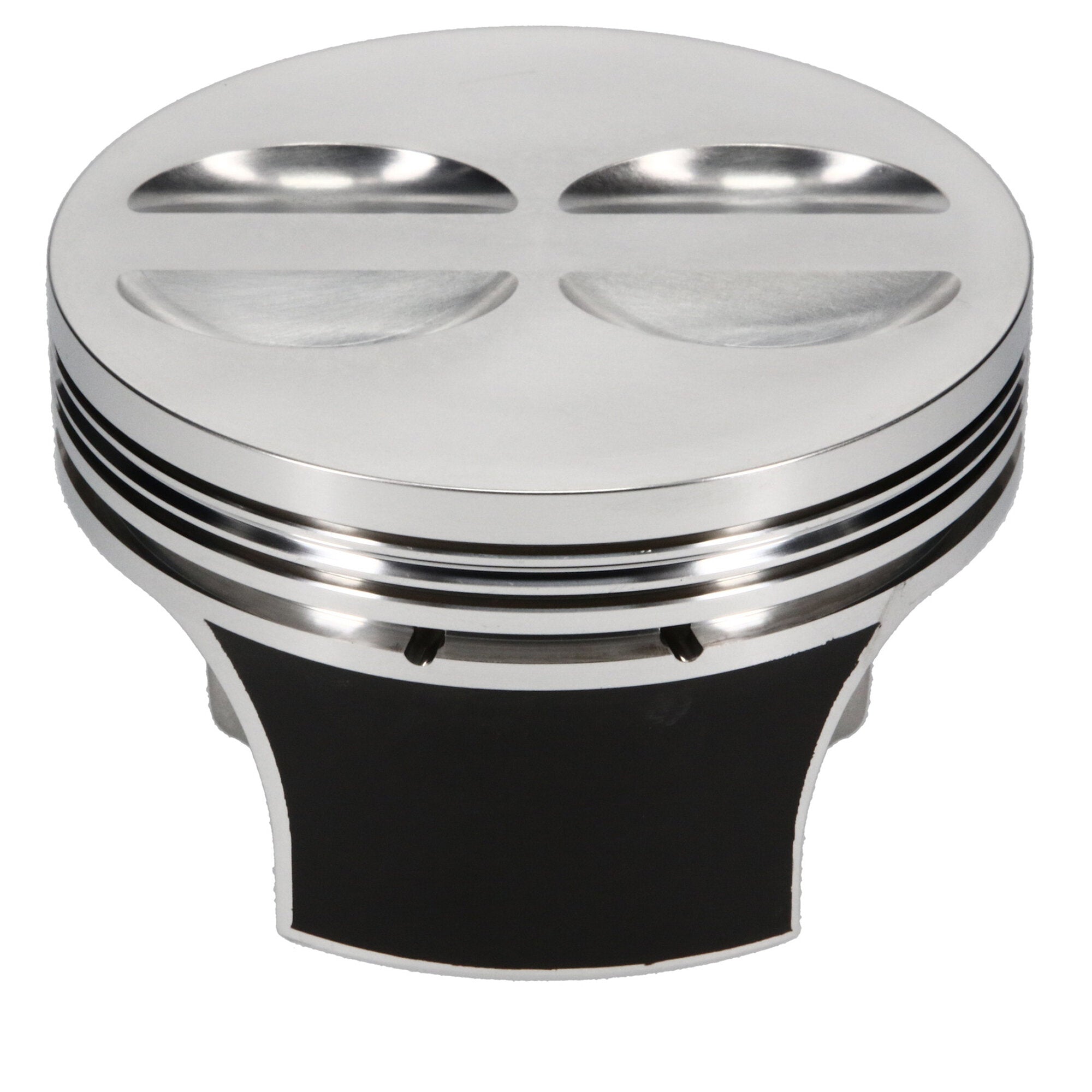

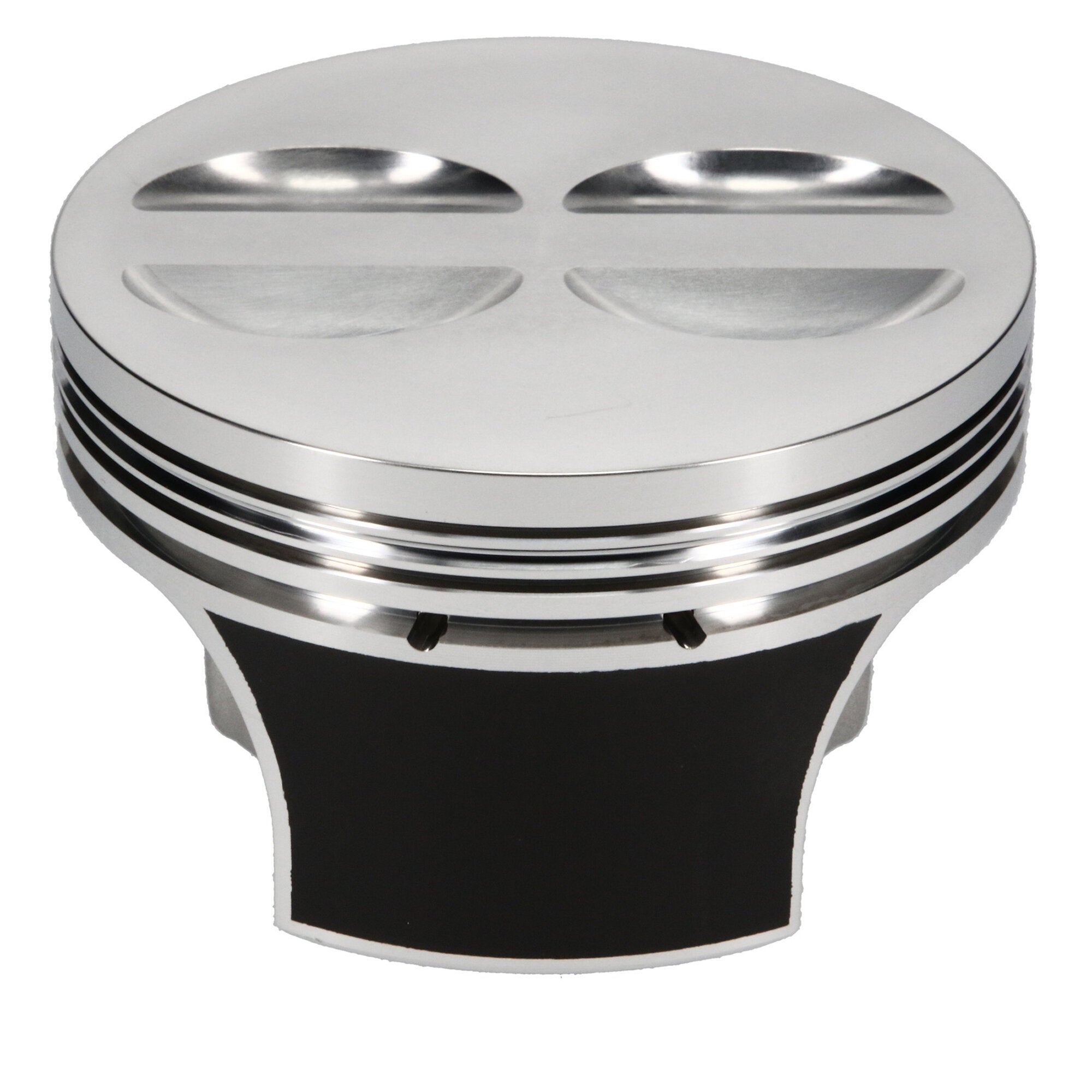

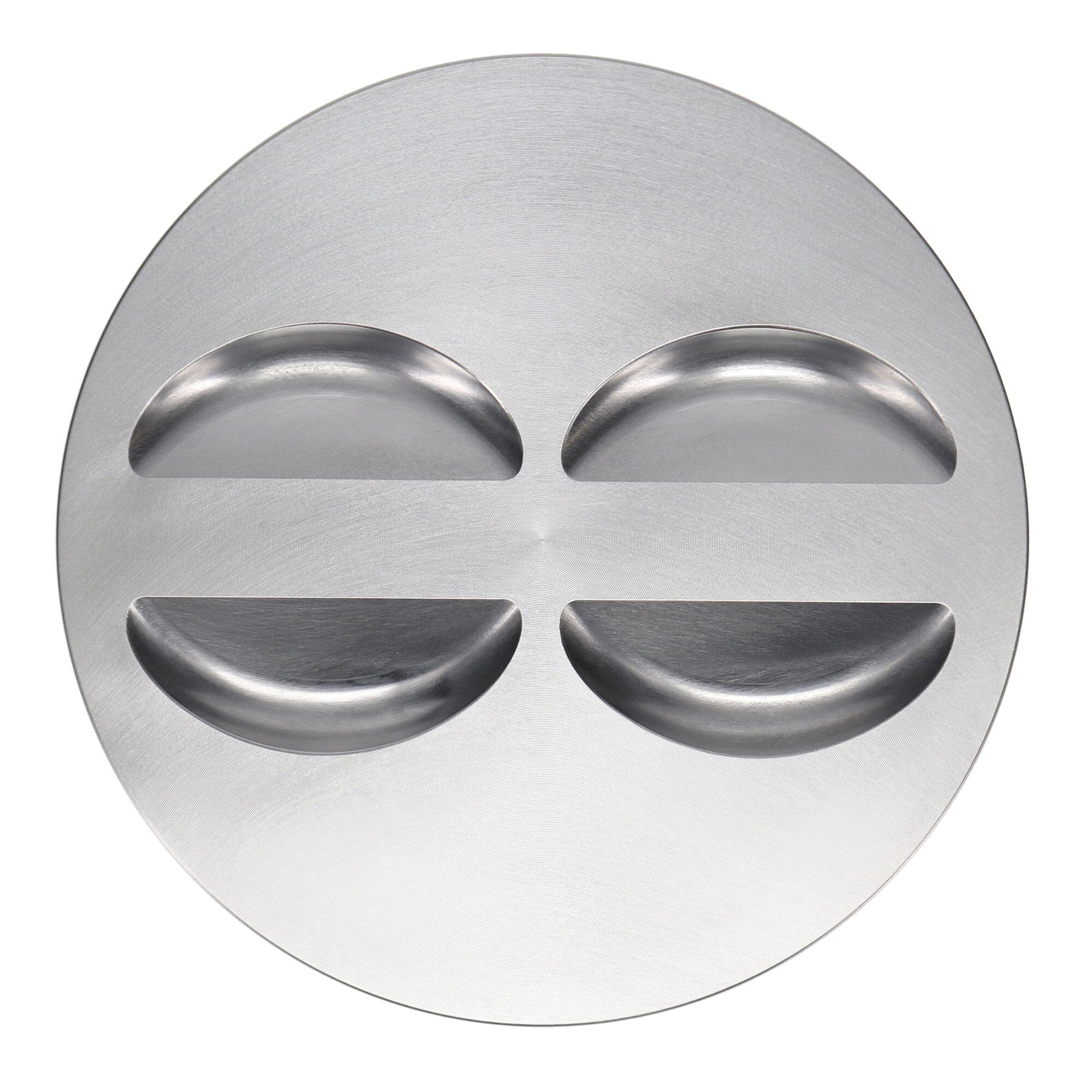

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.005 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
SRP Pro, Chevrolet, Small Block Chevrolet, 4.005 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP Pro, Piston Set |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
SRP Pro 4032 - Chevrolet, Small Block, 4.005 in. Bore, Piston Kit |
| Description_SHO |
Piston Kit |
| Oil Ring Thickness |
0.119 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Head Type |
Flat |
| Engine |
Small Block |
| Forging Type |
FSR |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.005 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Ringset Included |
Yes |
| Compression Height |
1.560 |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-4.50 |
| Prop 65 (C, R or CR) |
CR |
| Piston Average Weight |
484 |
| Product Market |
Domestic |
| Piston Series |
SRP Pro |
| Bore Diameter |
4.005 |
| Piston Pin Material |
5115 |
| Make |
CHEVROLET |
| Piston Material |
4032 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Piston Pin Outside Diameter |
0.927 |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.005 in. Bore - 1.560 in. CH, -4.50 CC |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
Yes |
| Engine - Web |
Small Block |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Add-On |
927-2250-15-51C |
| Industry |
Automotive |
| Add-On |
JG3108-4000-7 |
| Top Compression Ring Thickness |
0.0480 |
| Add-On |
927-073-MW |
| Second Compression Ring Thickness |
0.0600 |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
