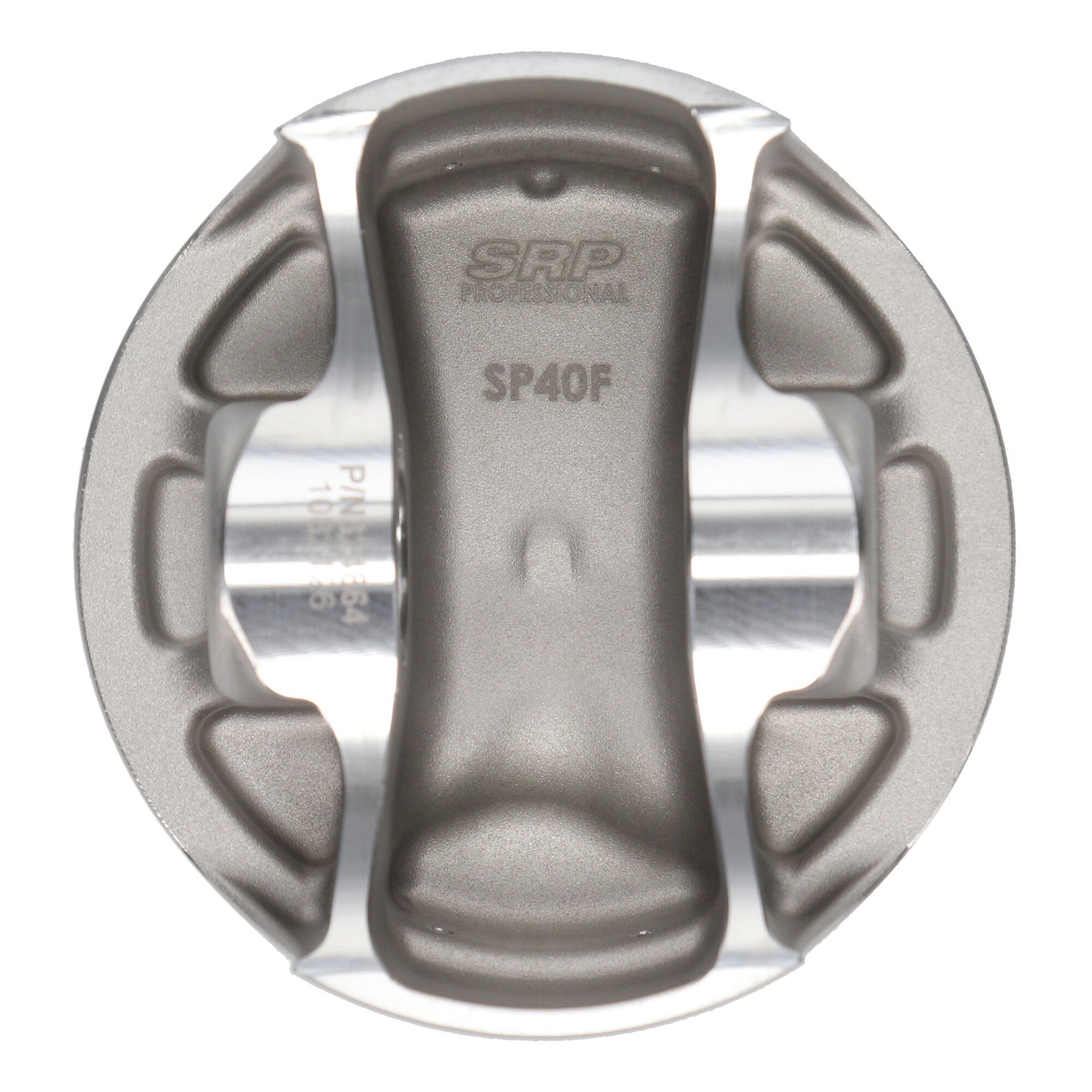

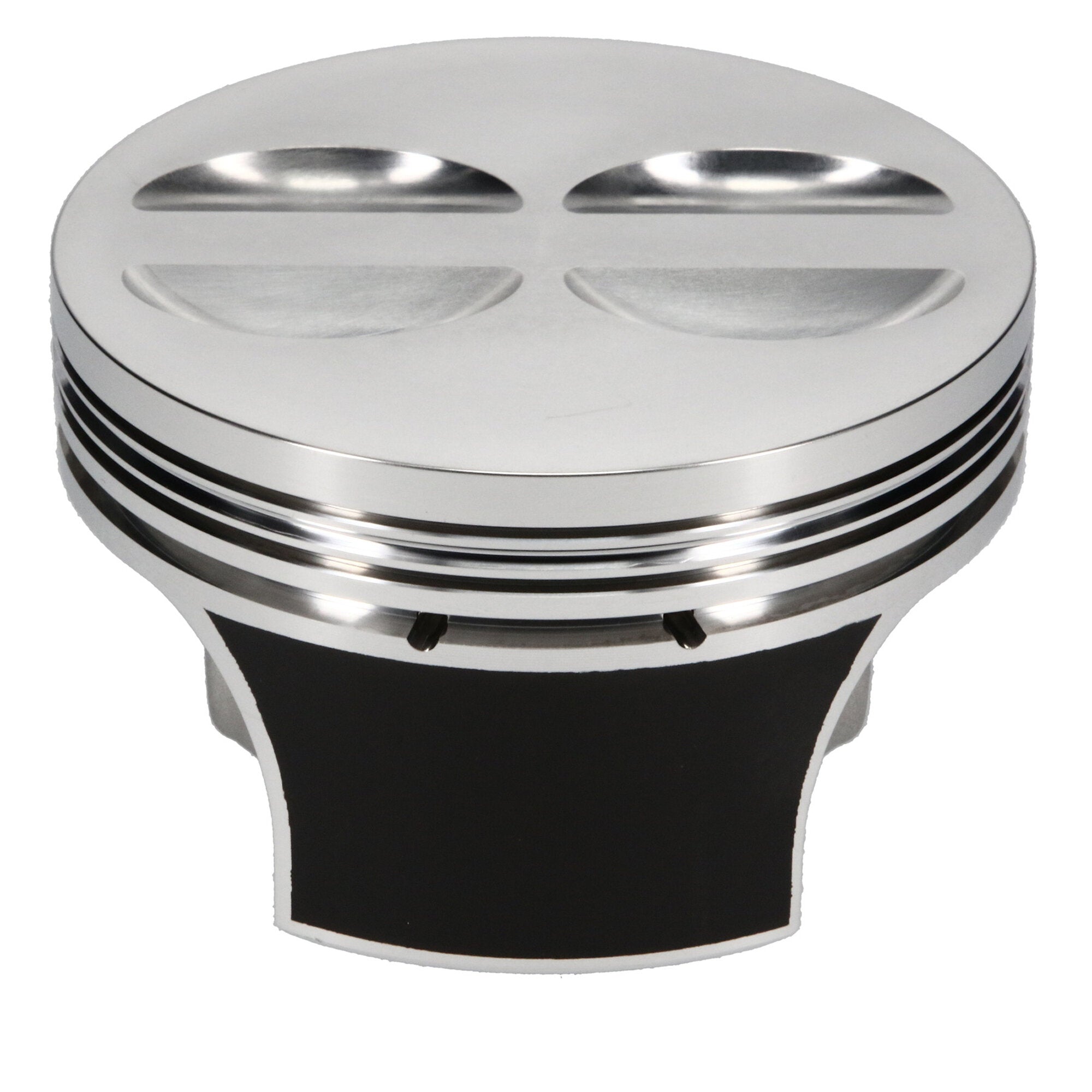

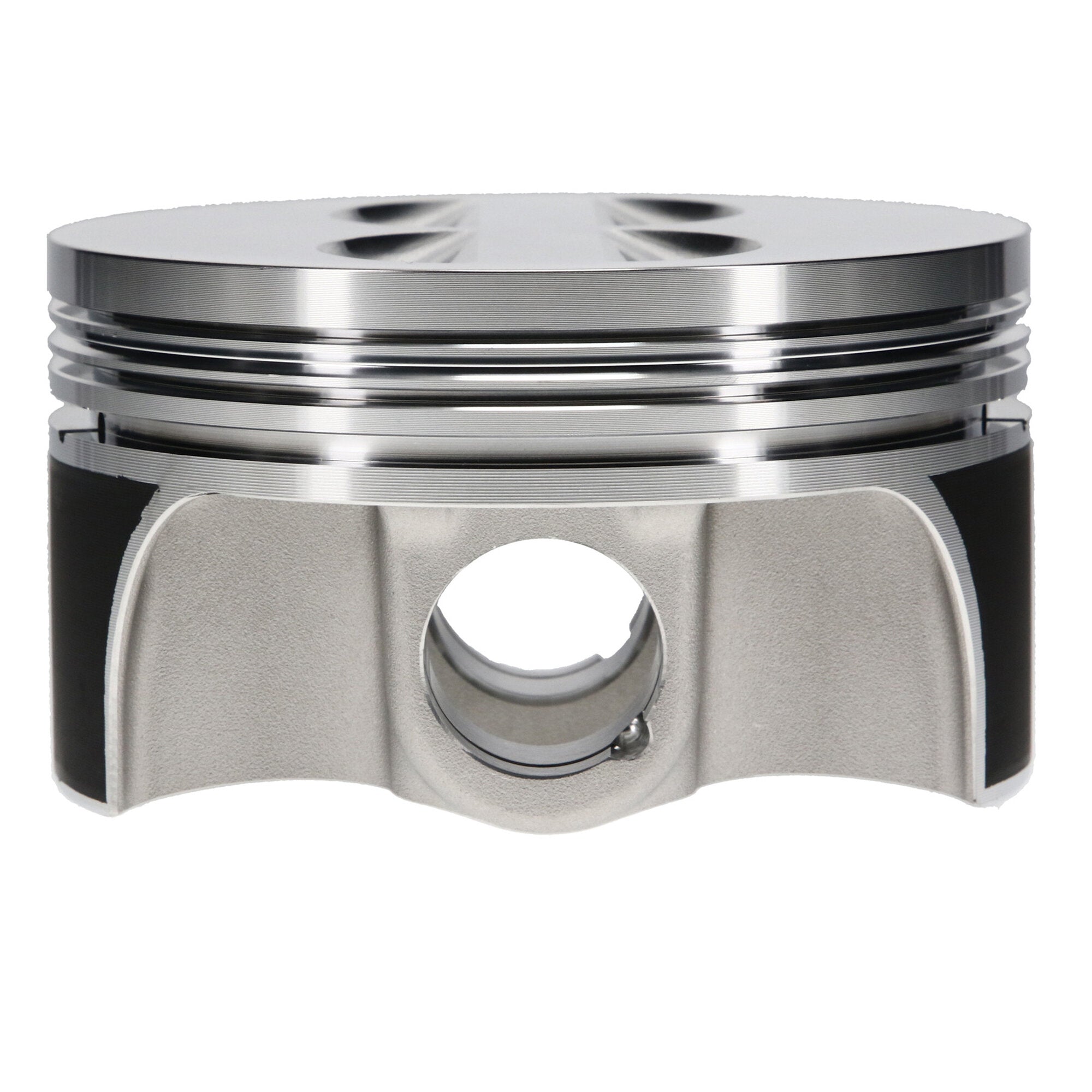

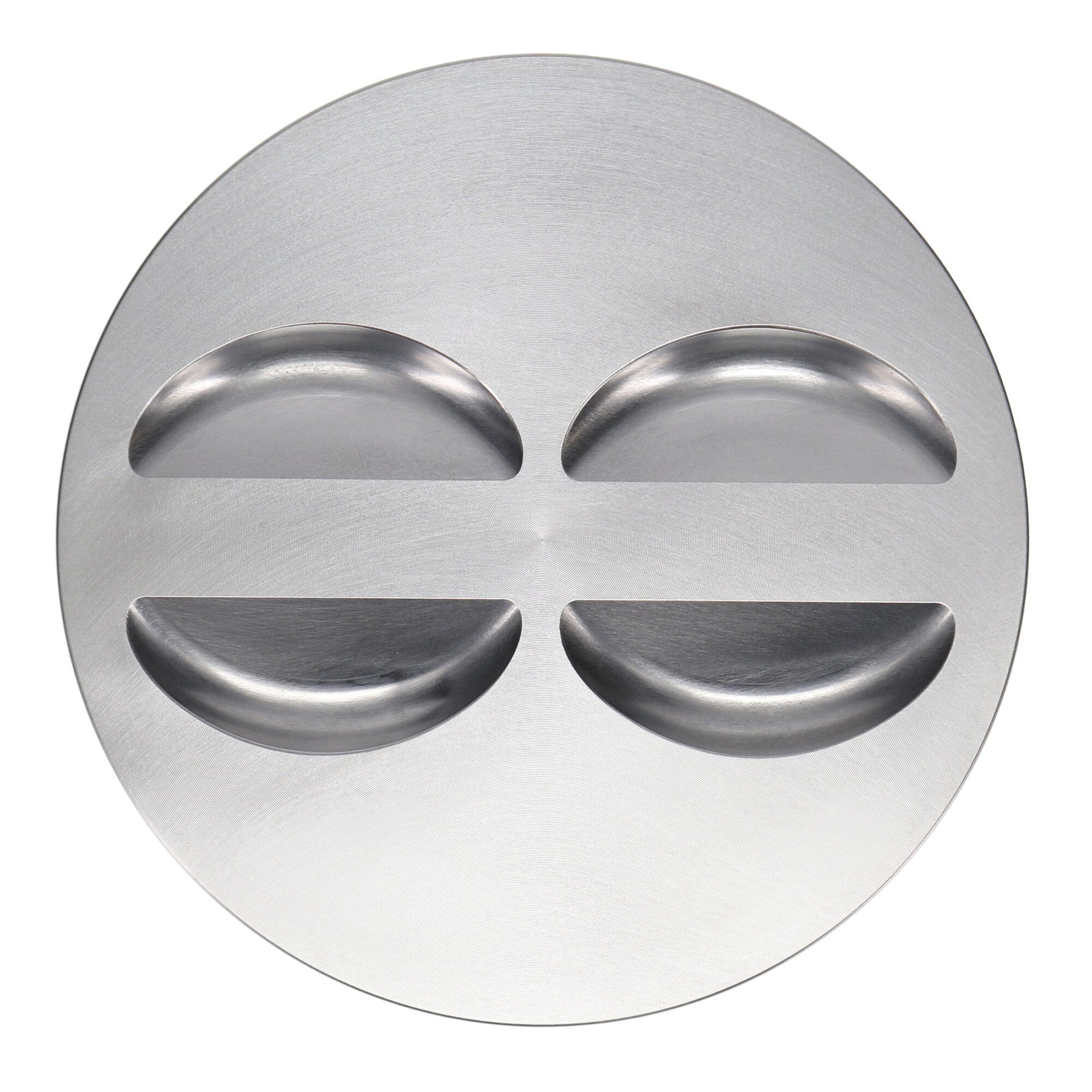

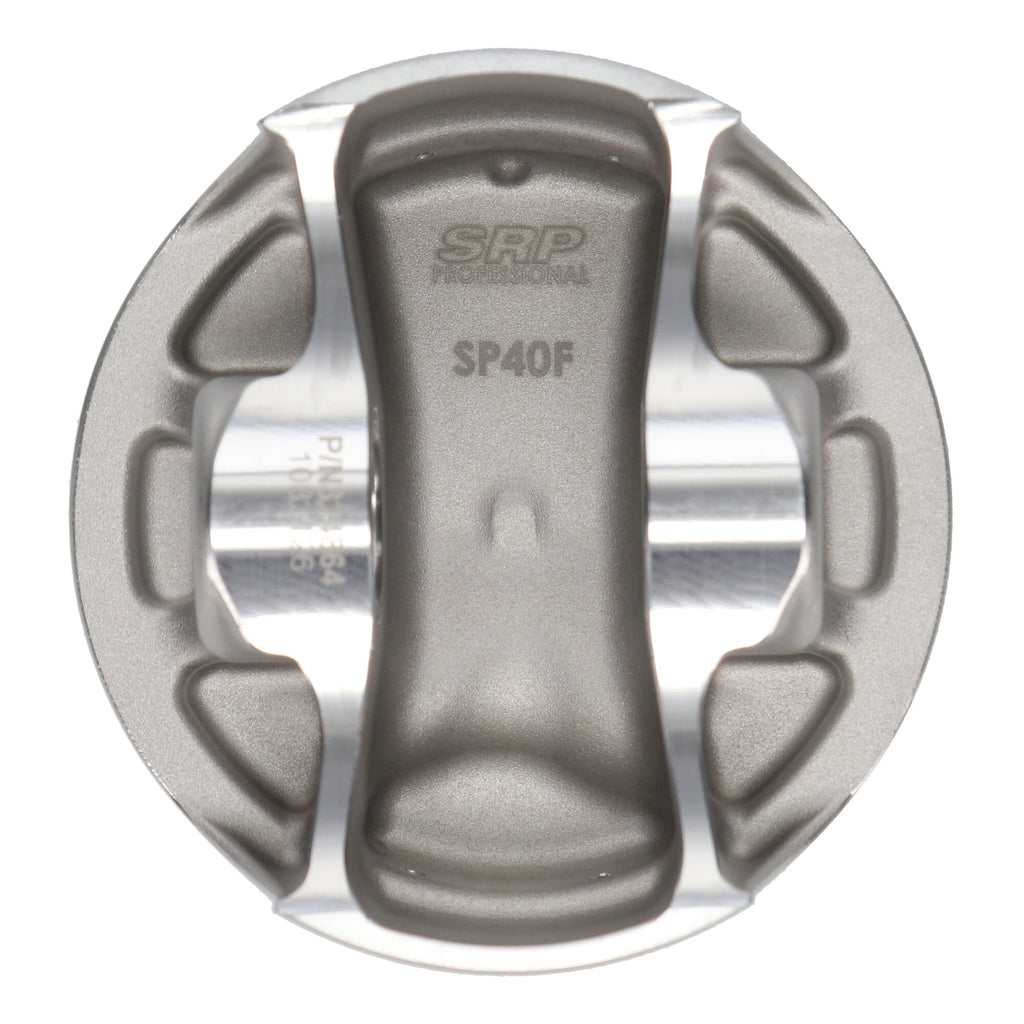

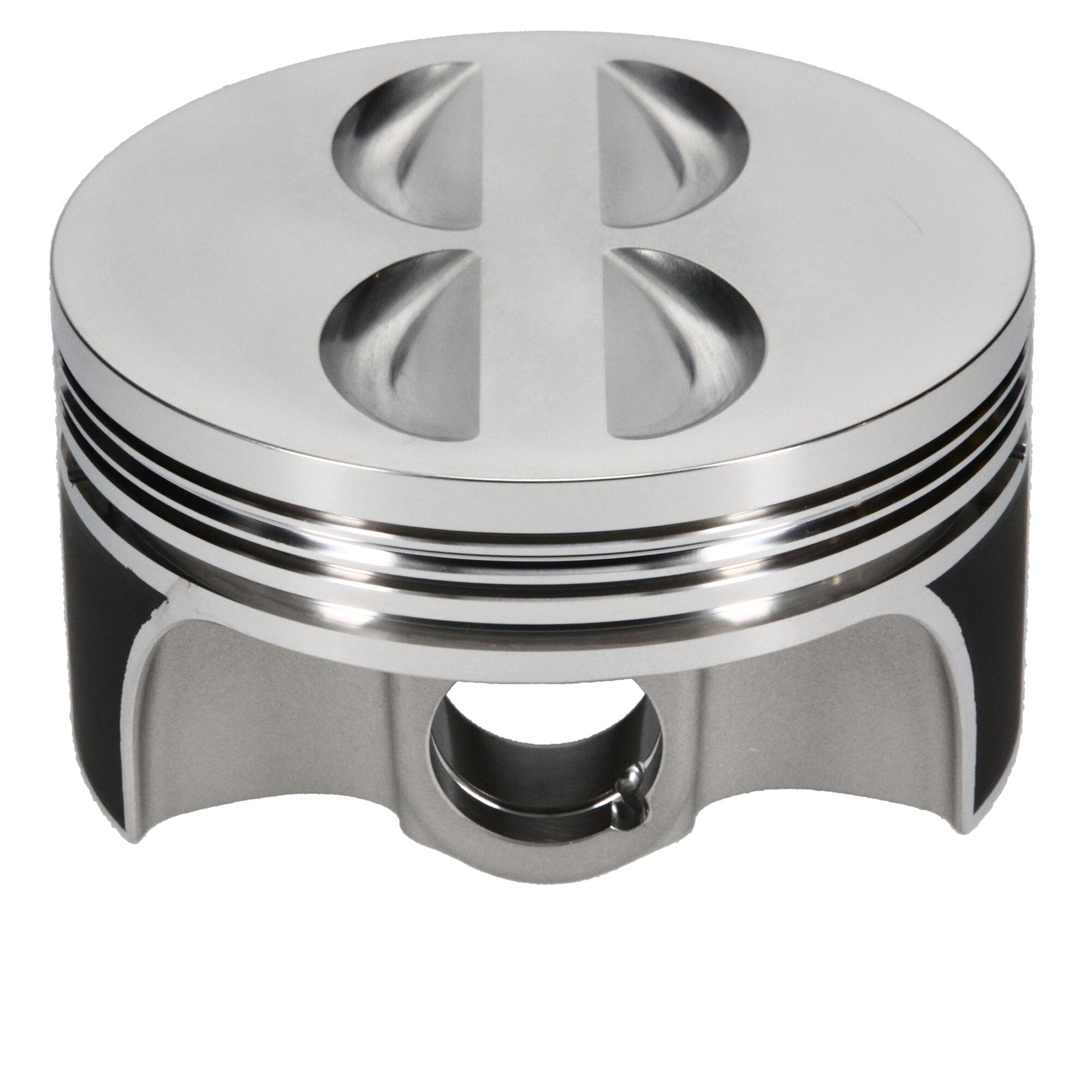

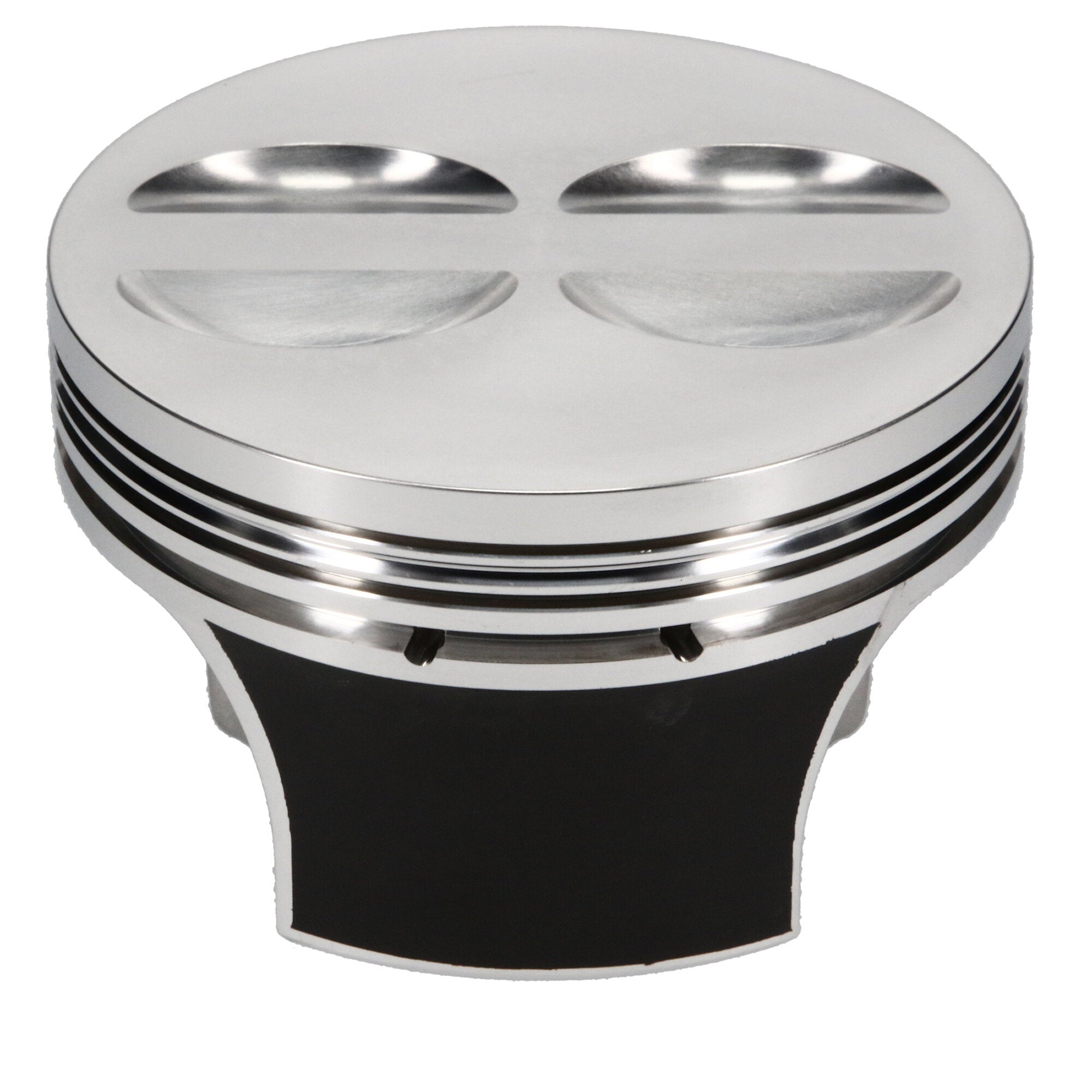

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.020 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
SRP Pro, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.125 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
SRP Pro, Piston Set |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 Yes/No |
Yes |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.020 in. Bore - 1.125 in. CH, -10.00 CC |
| Out of Stock Message |
Call for Availability |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Piston Series |
SRP Pro |
| Compression Height |
1.125 |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Piston Head Type |
Dish |
| Piston Material |
4032 |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Piston Average Weight |
427 |
| Engine - Web |
Small Block |
| Add-On |
927-073-MW |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0480 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Piston Pin Outside Diameter |
0.927 |
| Make |
CHEVROLET |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
JG3108-4020-2 |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.149 |
| Bore Diameter |
4.020 |
| Add-On |
927-2250-15-51C |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-10.00 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
