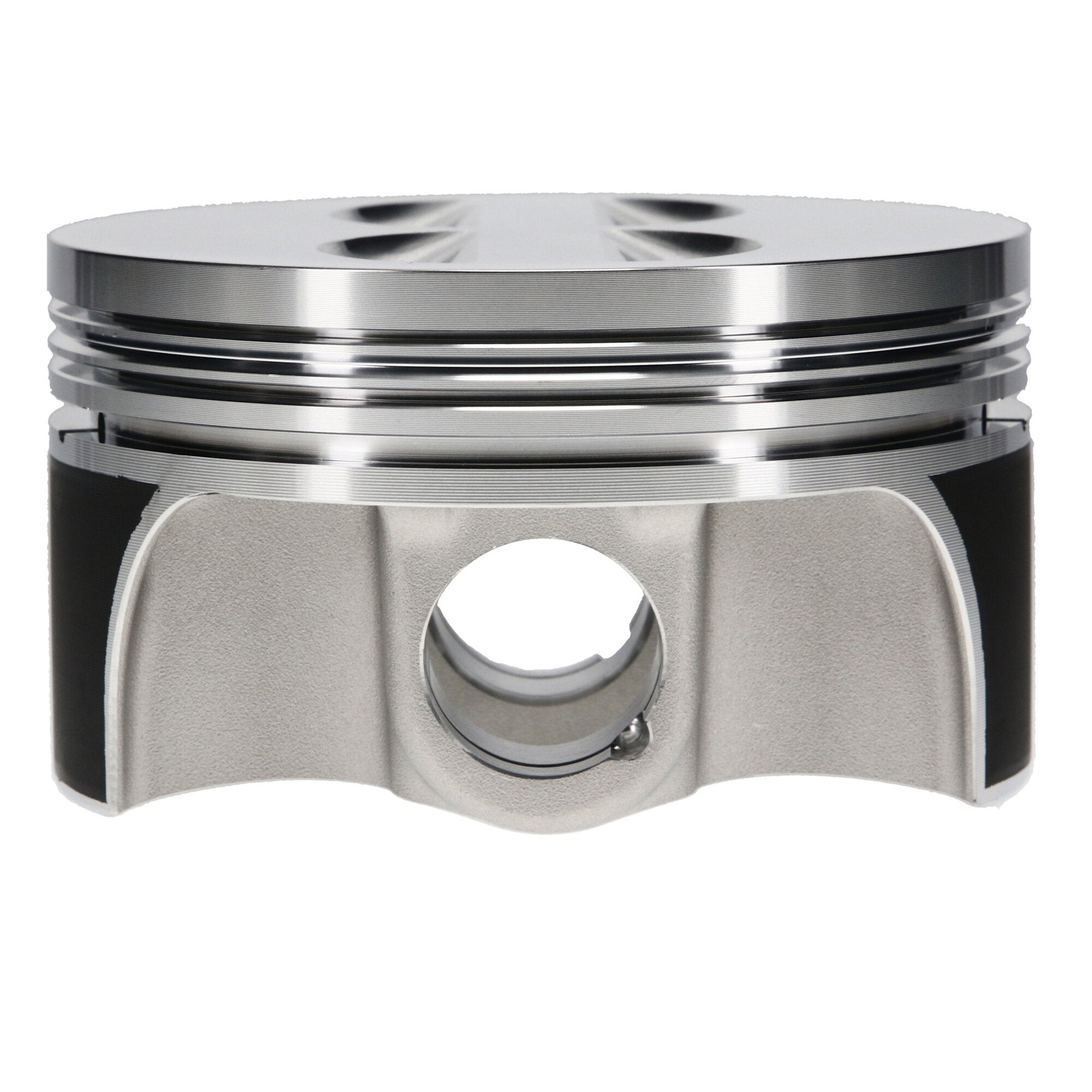

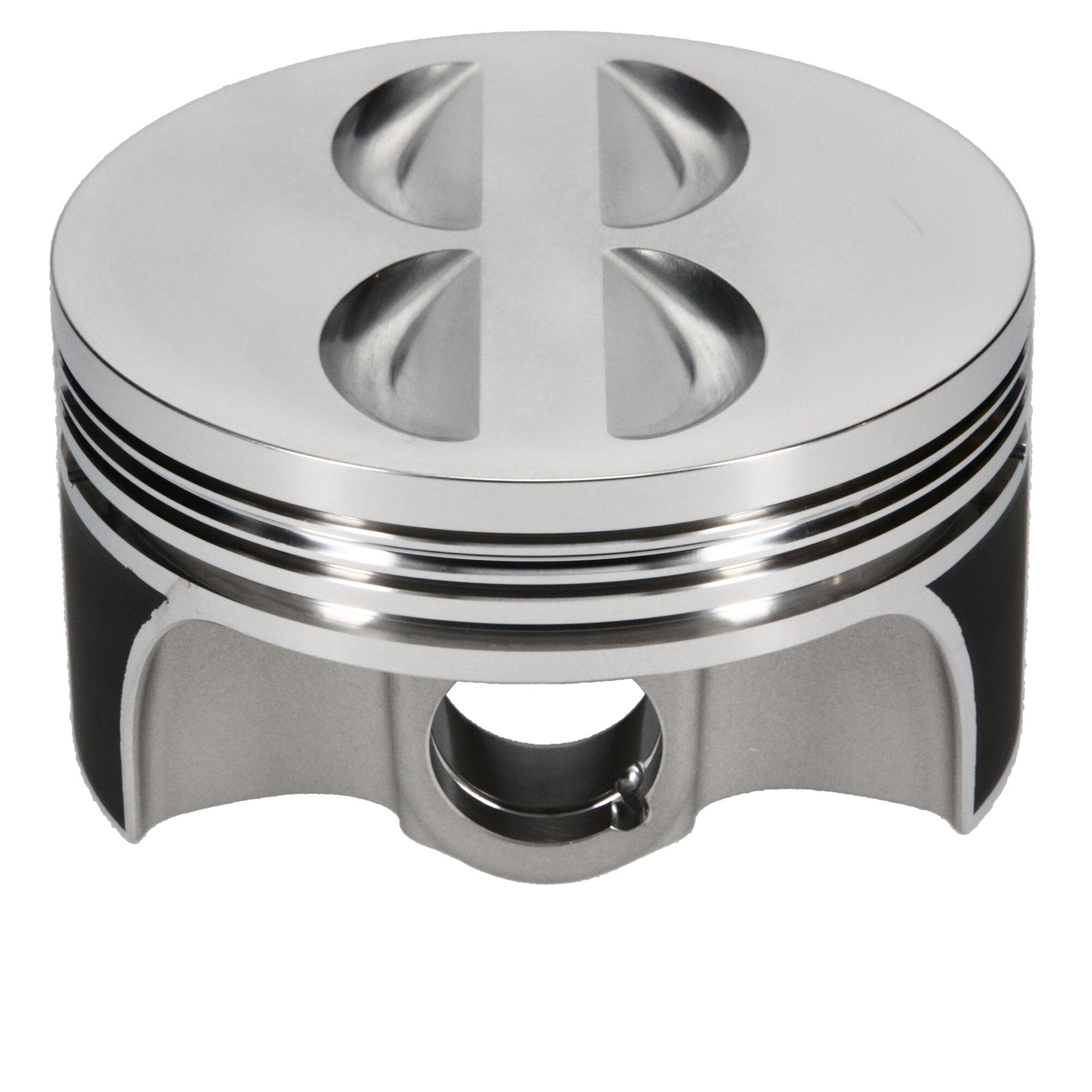

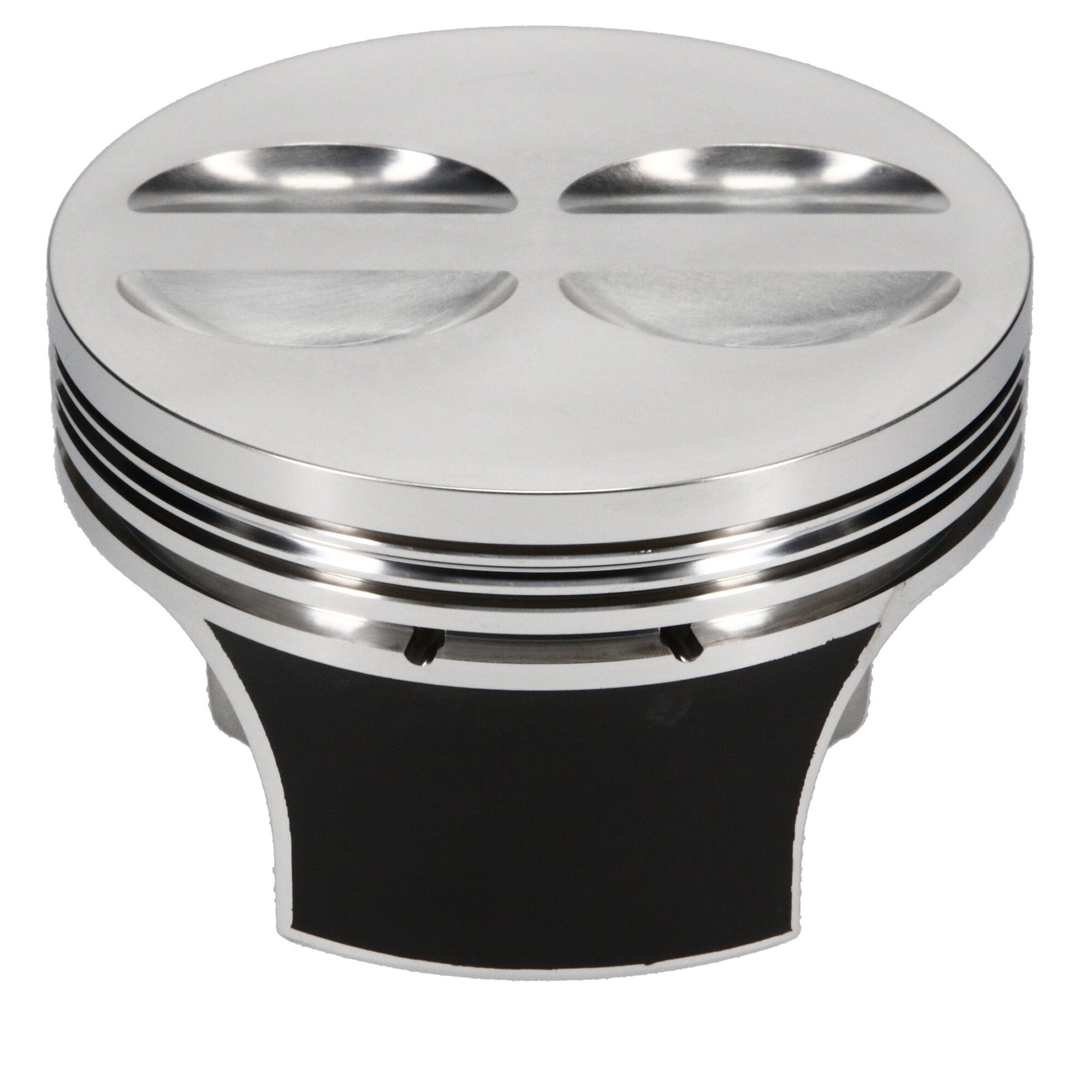

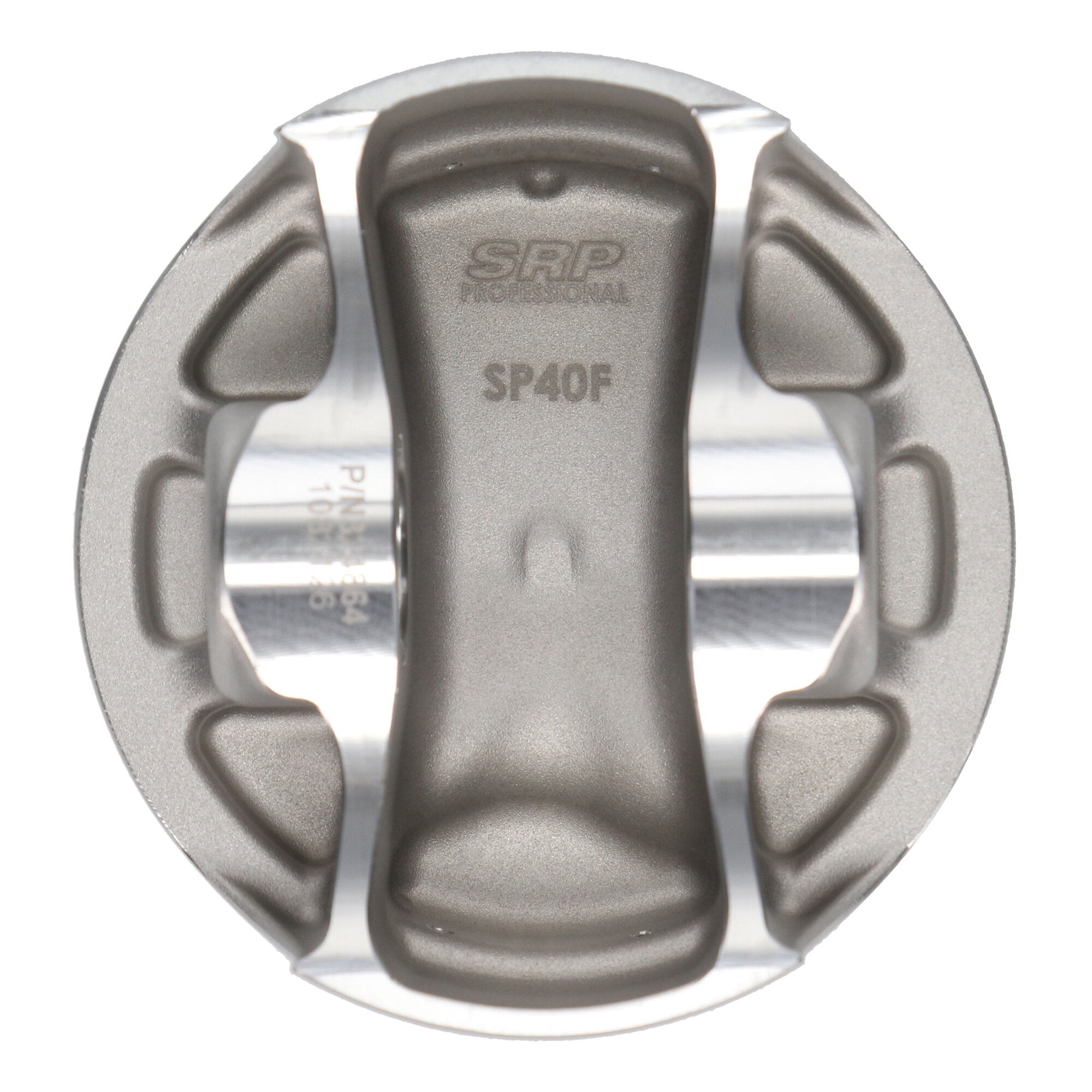

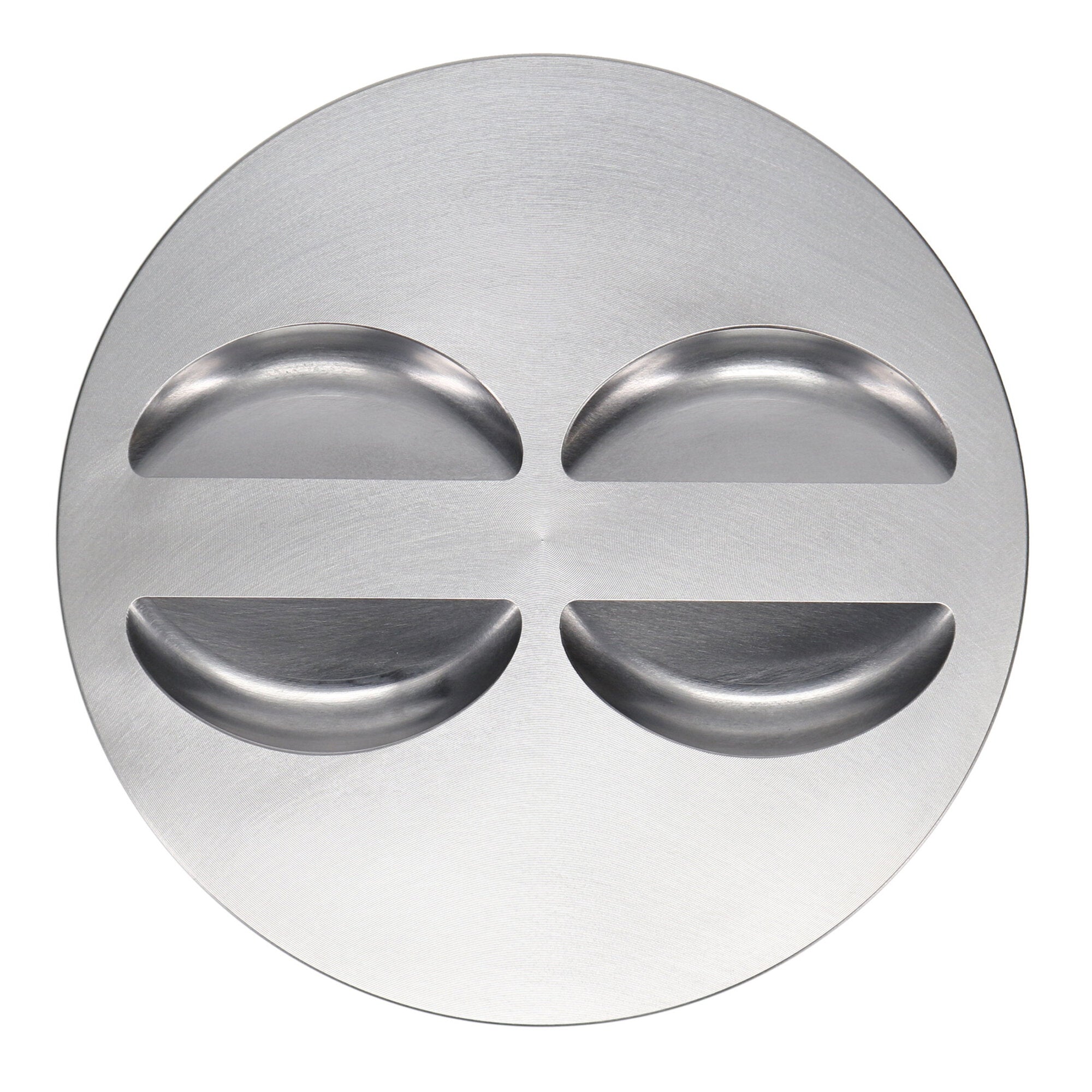

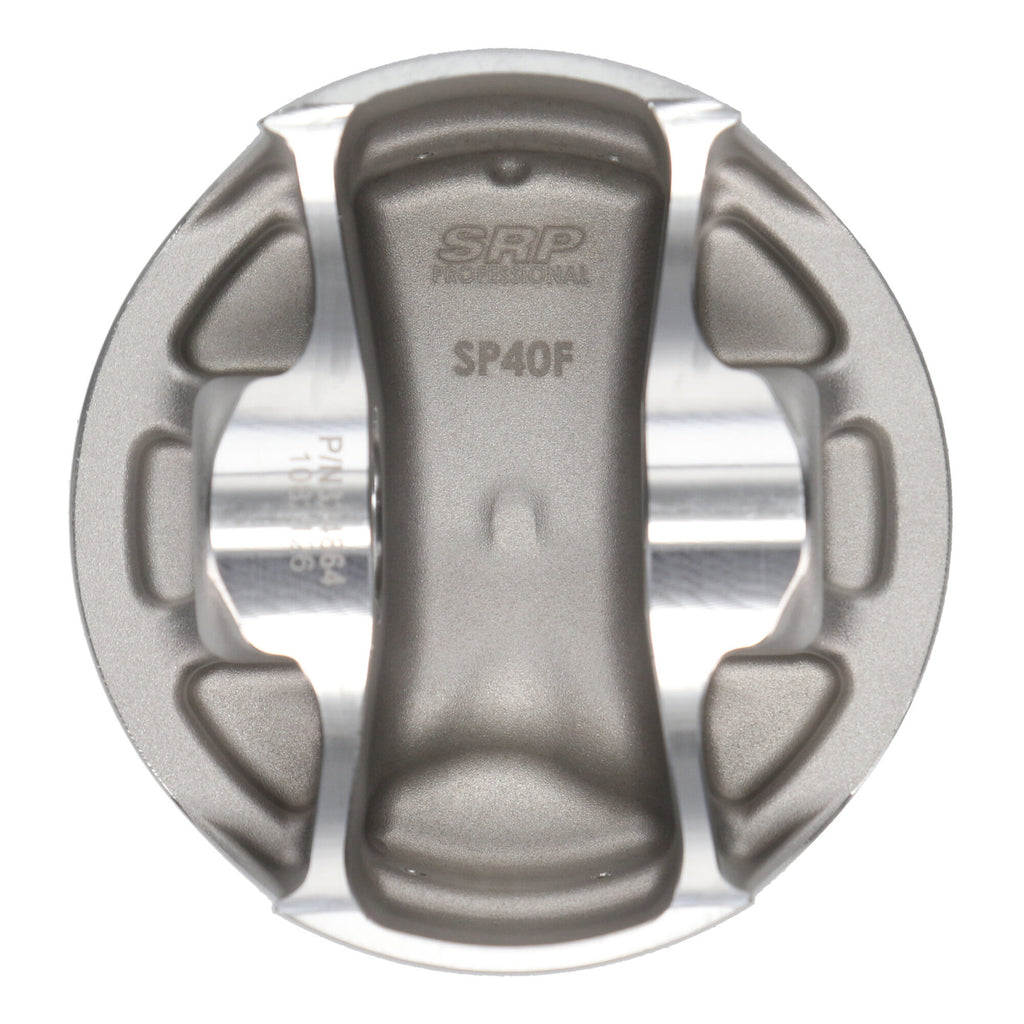

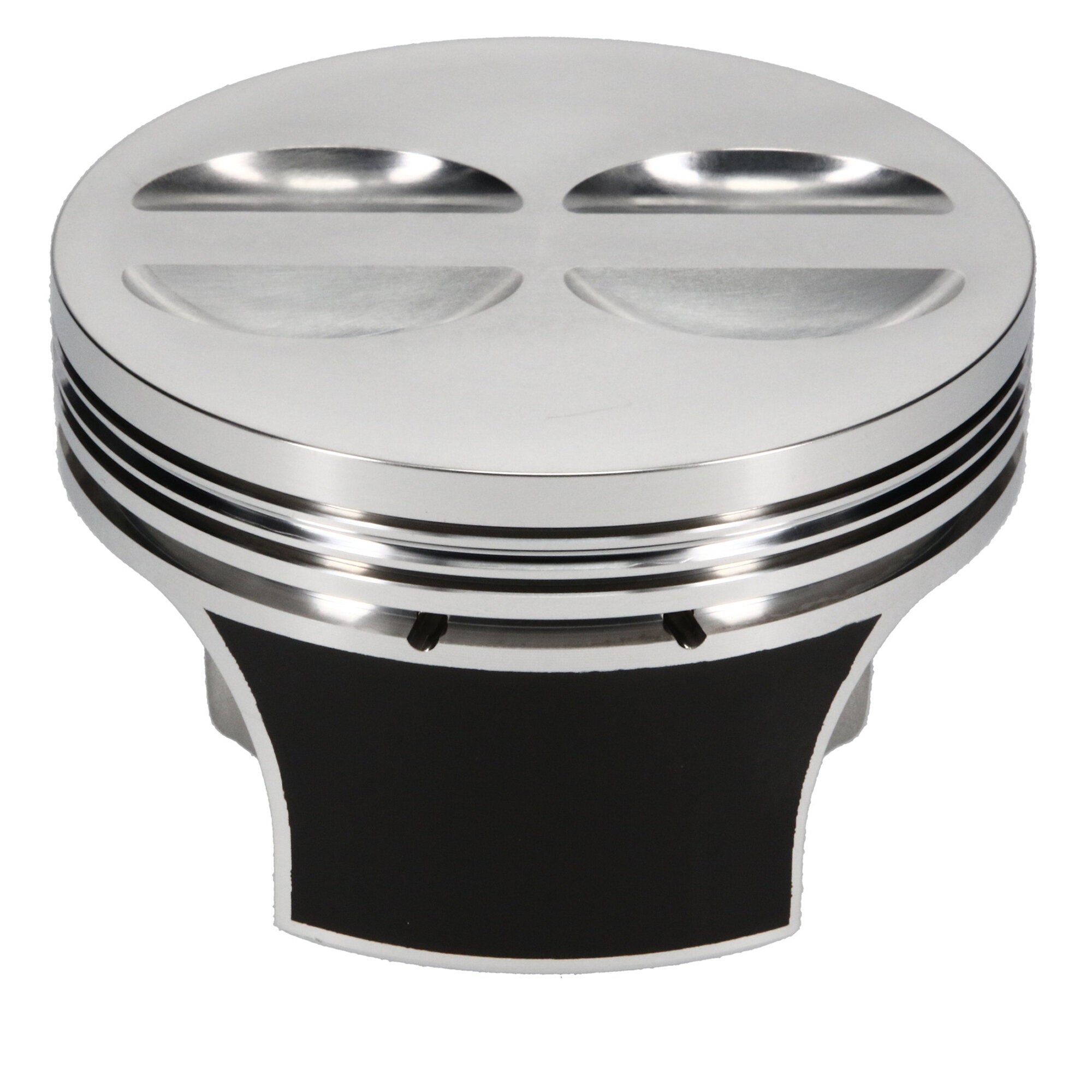

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.020 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
SRP Pro, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.560 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP Pro, Piston Set |
| Description_TLE |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.020 in. Bore - 1.560 in. CH, -10.00 CC |
| Add-On |
927-2250-15-51C |
| Add-On |
JG3108-4020-2 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Piston Volume |
-10.00 |
| Piston Material |
4032 |
| Add-On |
927-073-MW |
| Piston Pin Wall Thickness |
0.150 |
| Compression Height |
1.560 |
| Engine |
Small Block |
| Product Type |
Engine Piston Kit |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Forging Type |
FSR |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Wrist Pin Length |
2.250 |
| Piston Head Type |
Dish |
| Bore Diameter |
4.020 |
| Piston Average Weight |
479 |
| Oil Ring Thickness |
0.119 |
| Piston Pin Material |
5115 |
| Ringset Included |
Yes |
| Piston Pin Outside Diameter |
0.927 |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0480 |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.020 in. Bore, Piston Kit |
| Piston Series |
SRP Pro |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Make |
CHEVROLET |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
