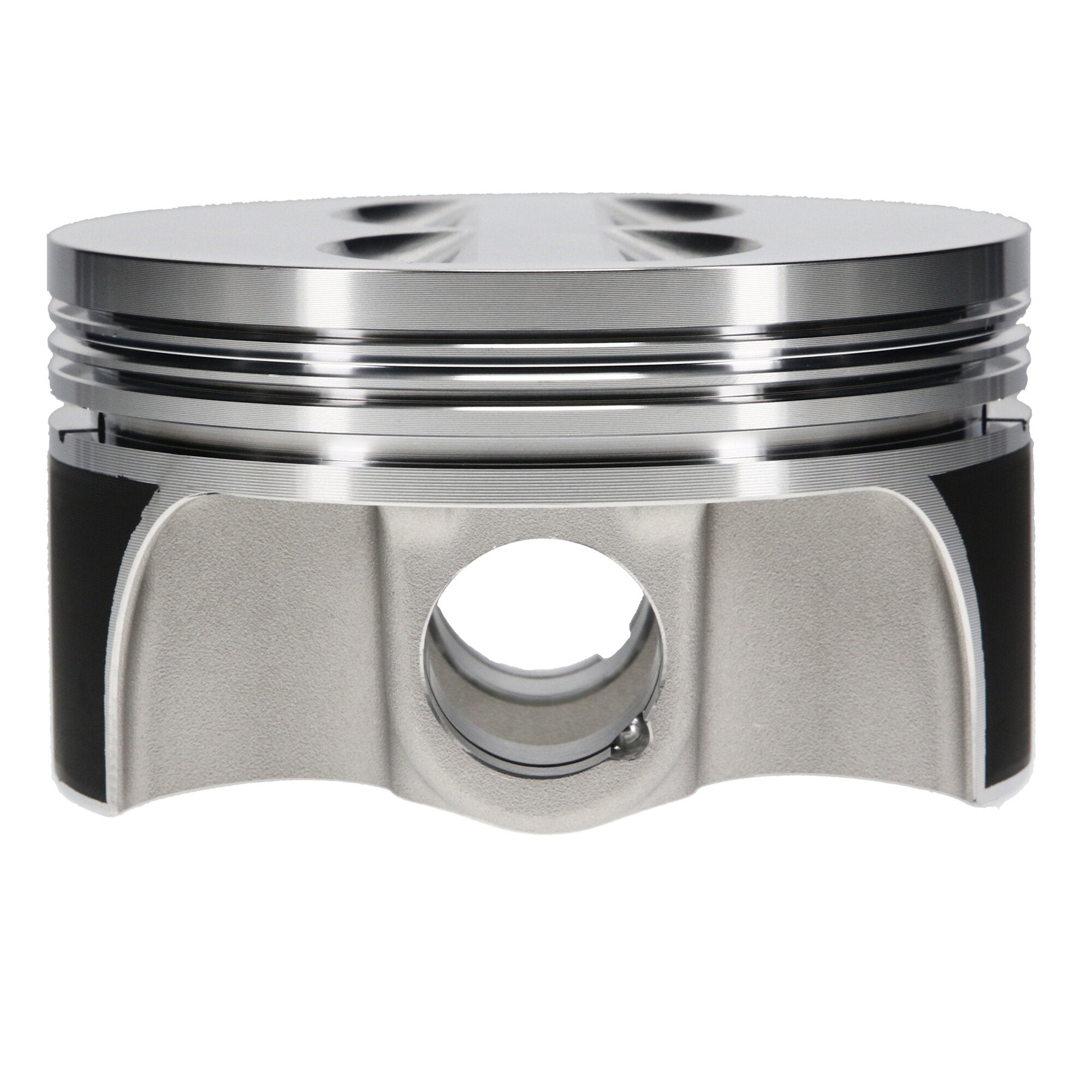

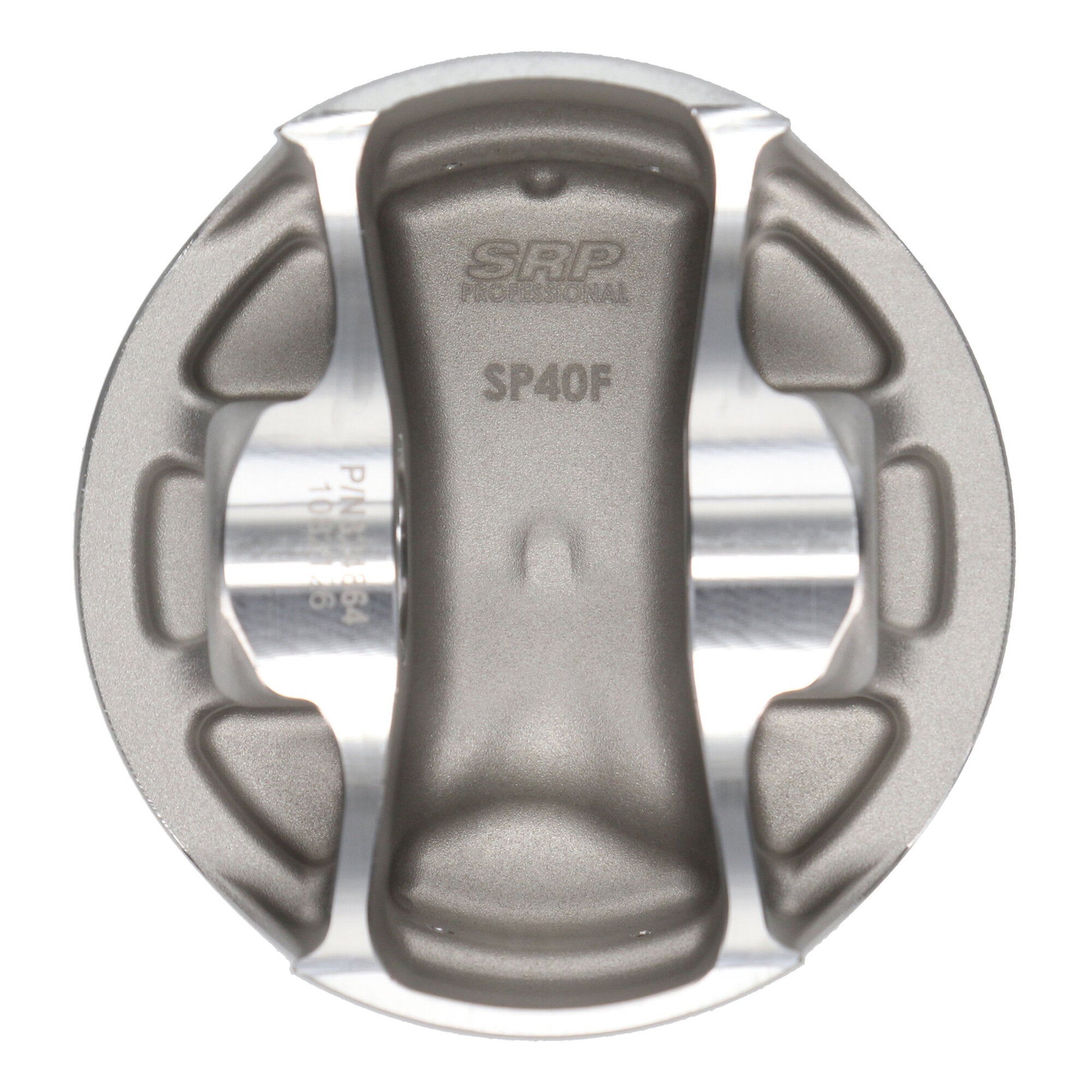

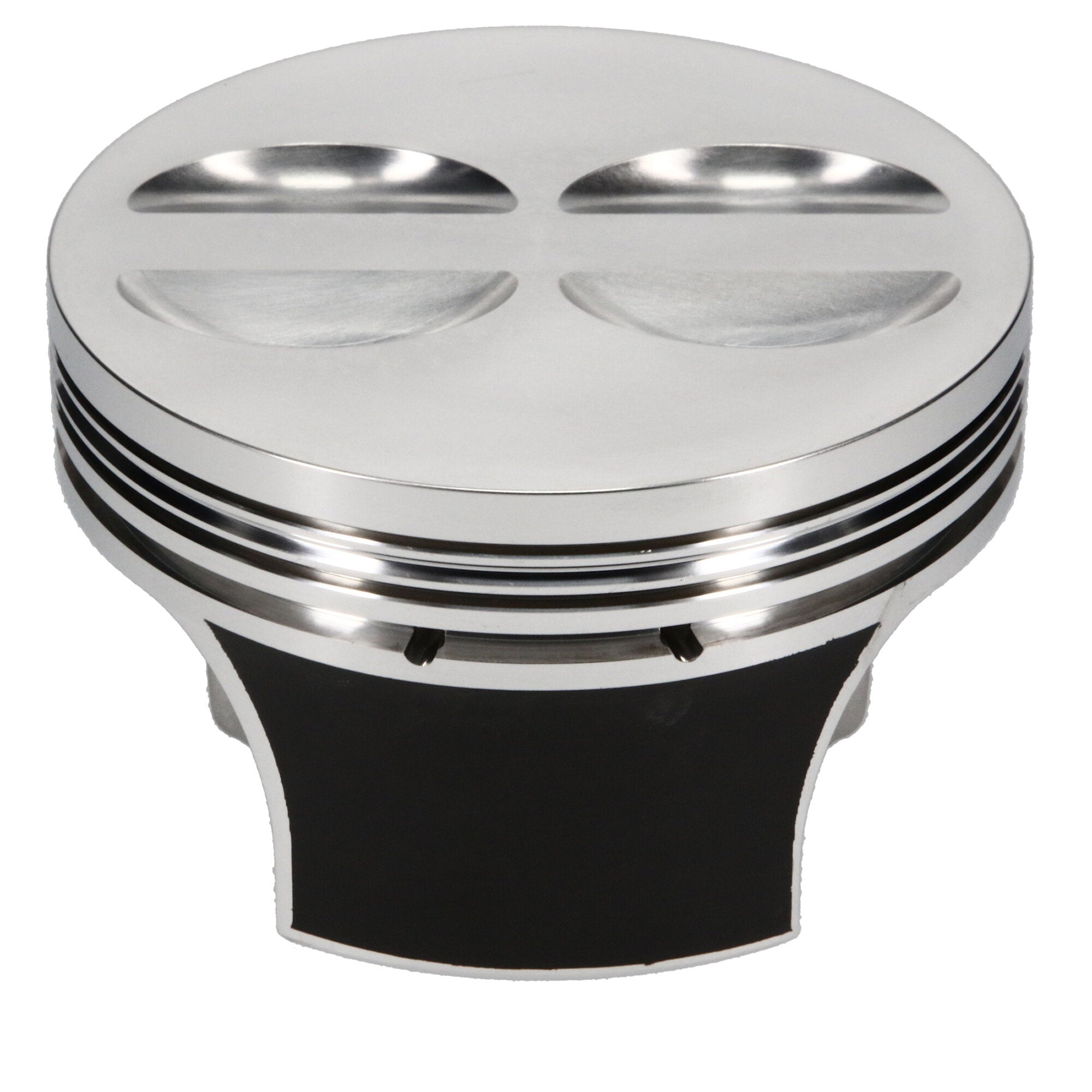

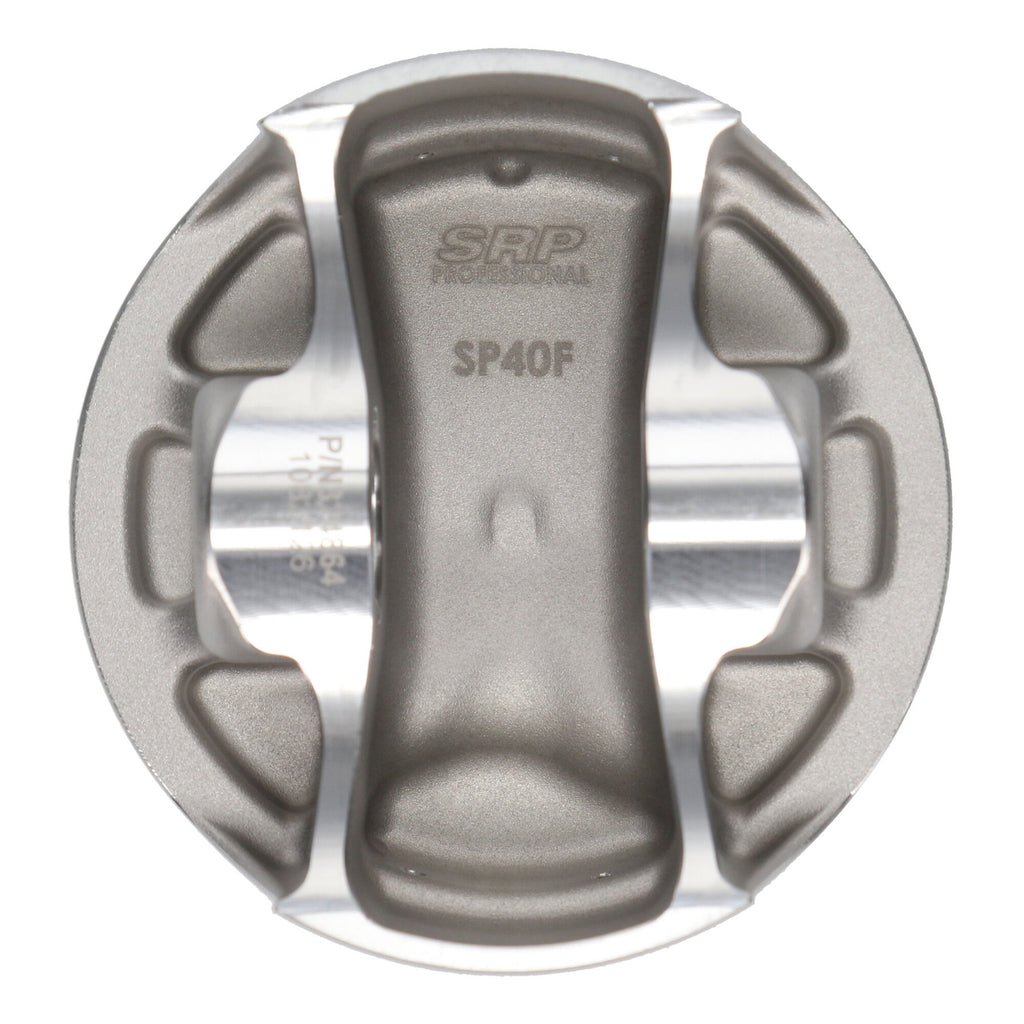

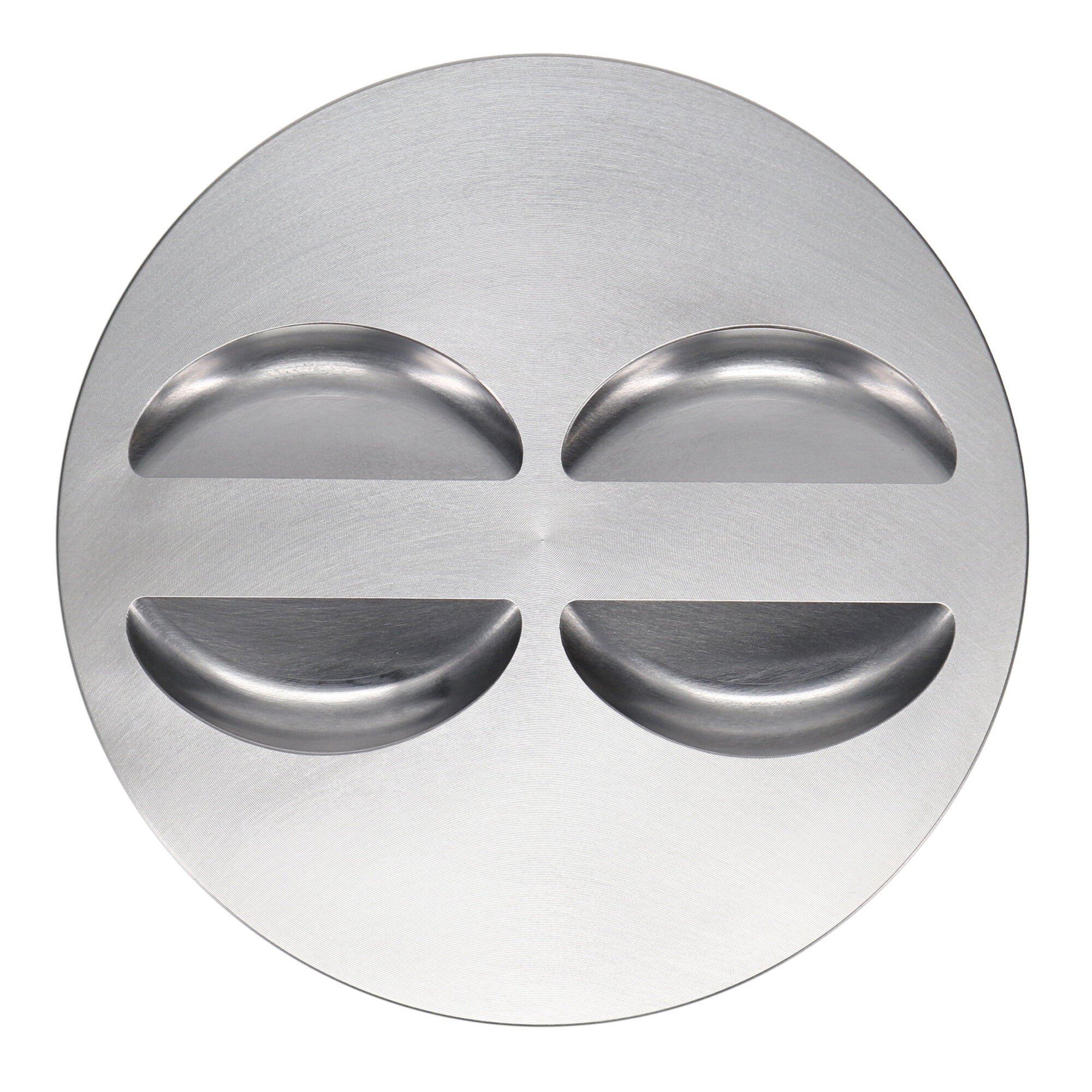

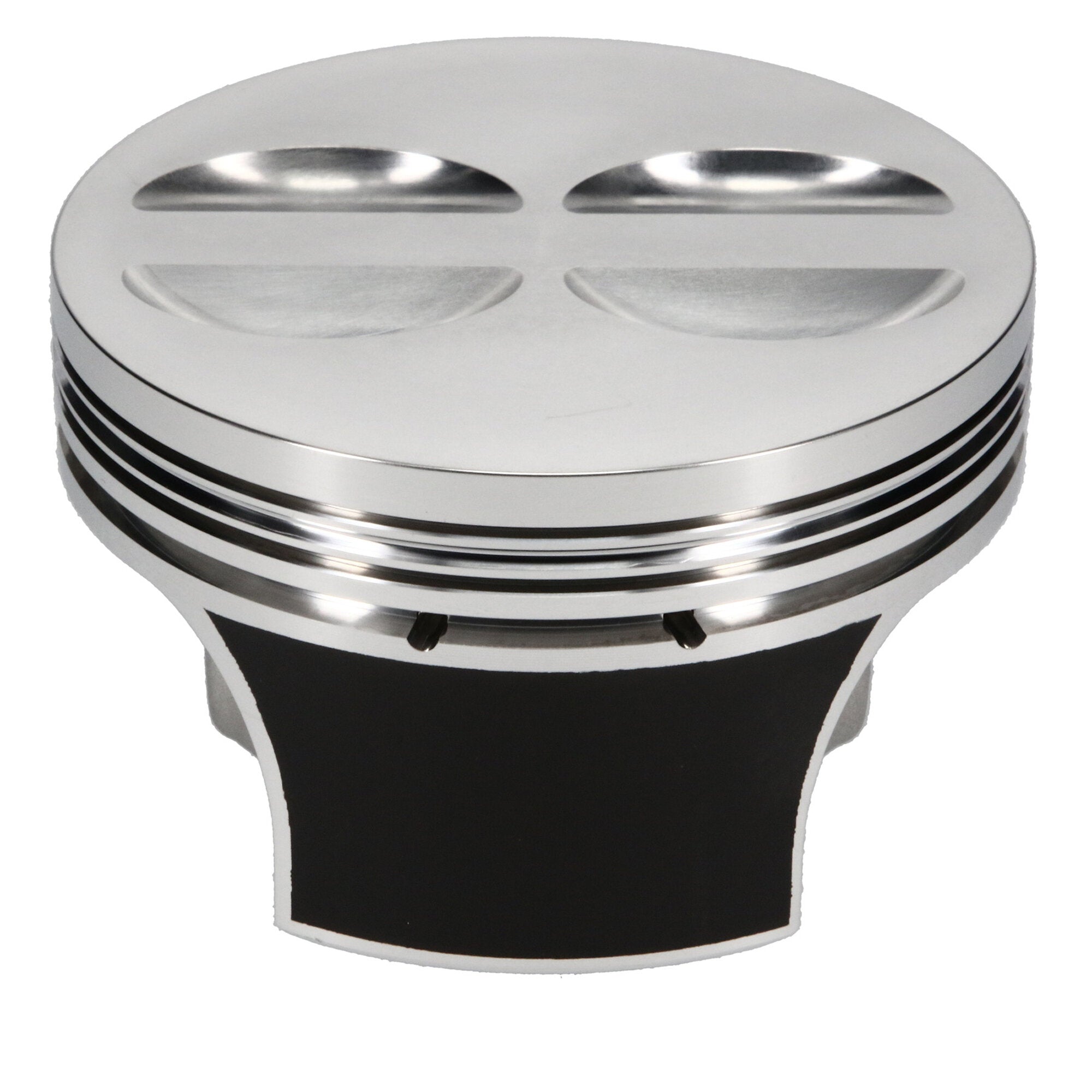

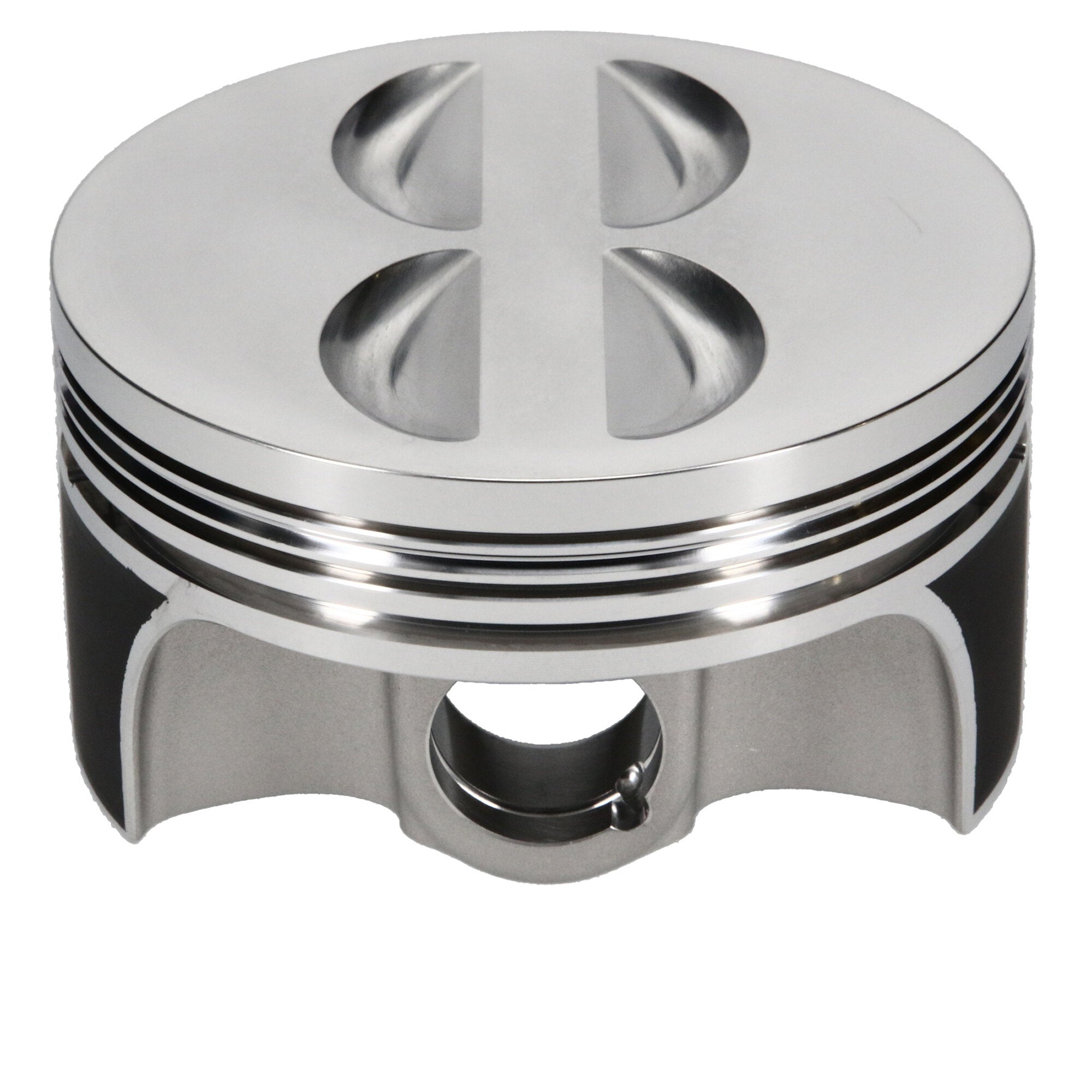

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.005 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro, Chevrolet, Small Block Chevrolet, 4.005 in. Bore, 1.560 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
SRP Pro 4032 - Chevrolet, Small Block, 4.005 in. Bore, Piston Kit |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Material |
4032 |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
JG3108-4000-7 |
| Out of Stock Message |
Call for Availability |
| Piston Series |
SRP Pro |
| Engine |
Small Block |
| Add-On |
927-2250-15-51C |
| Ringset Included |
Yes |
| Piston Pin Length |
2.250 |
| Add-On |
927-073-MW |
| Prop 65 Yes/No |
Yes |
| Make |
CHEVROLET |
| Title - Web |
SRP Pro 4032 Chevrolet Small Block Piston Kit - 4.005 in. Bore - 1.560 in. CH, -10.00 CC |
| Make - Web |
Chevrolet |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dish |
| Title |
SRP Pro 4032 - Chevrolet, Small Block, 4.005 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.119 |
| Bore Diameter |
4.005 |
| Top Compression Ring Thickness |
0.0480 |
| Product Market |
Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
469 |
| Piston Volume |
-10.00 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Engine Type |
ICE |
| Compression Height |
1.560 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
