As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

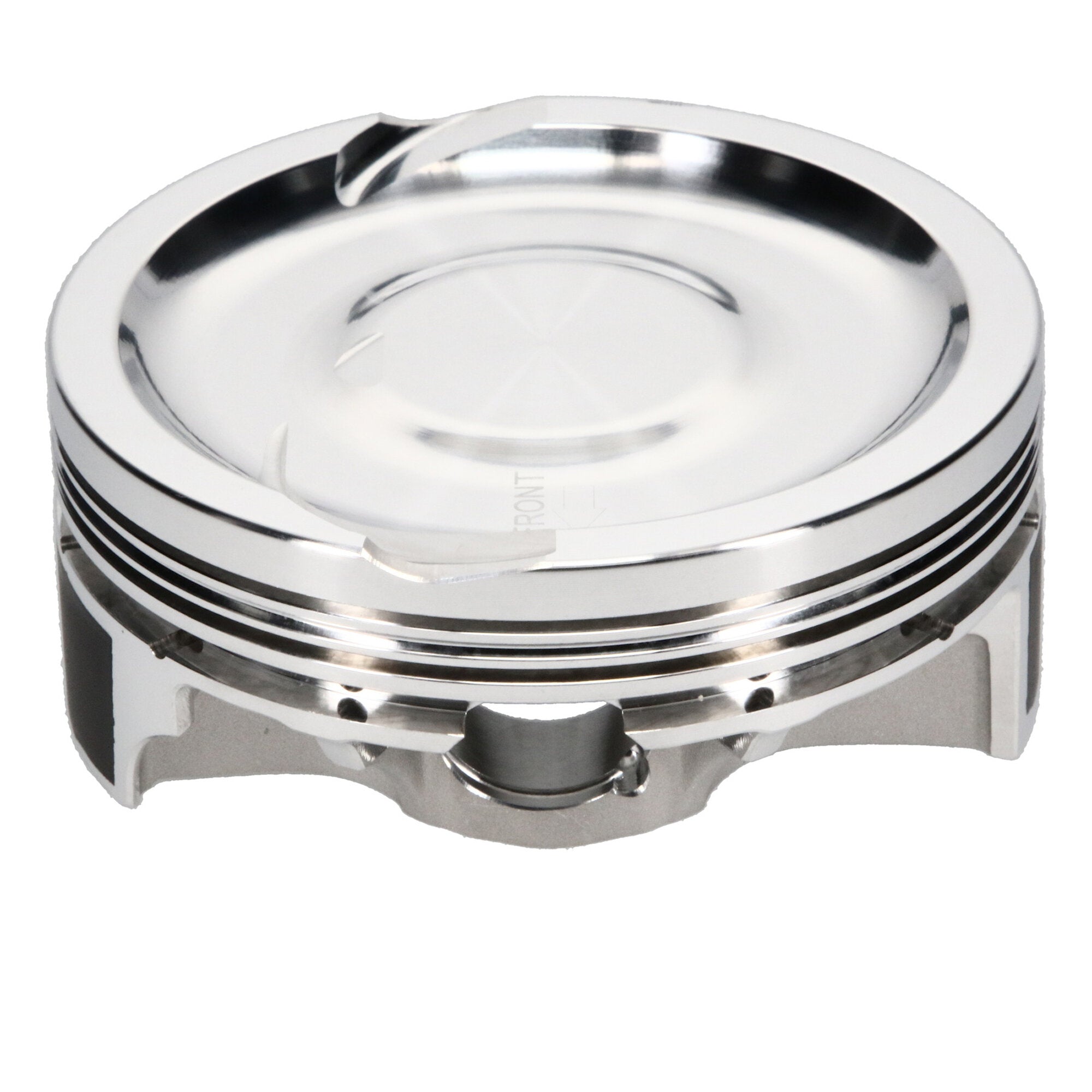

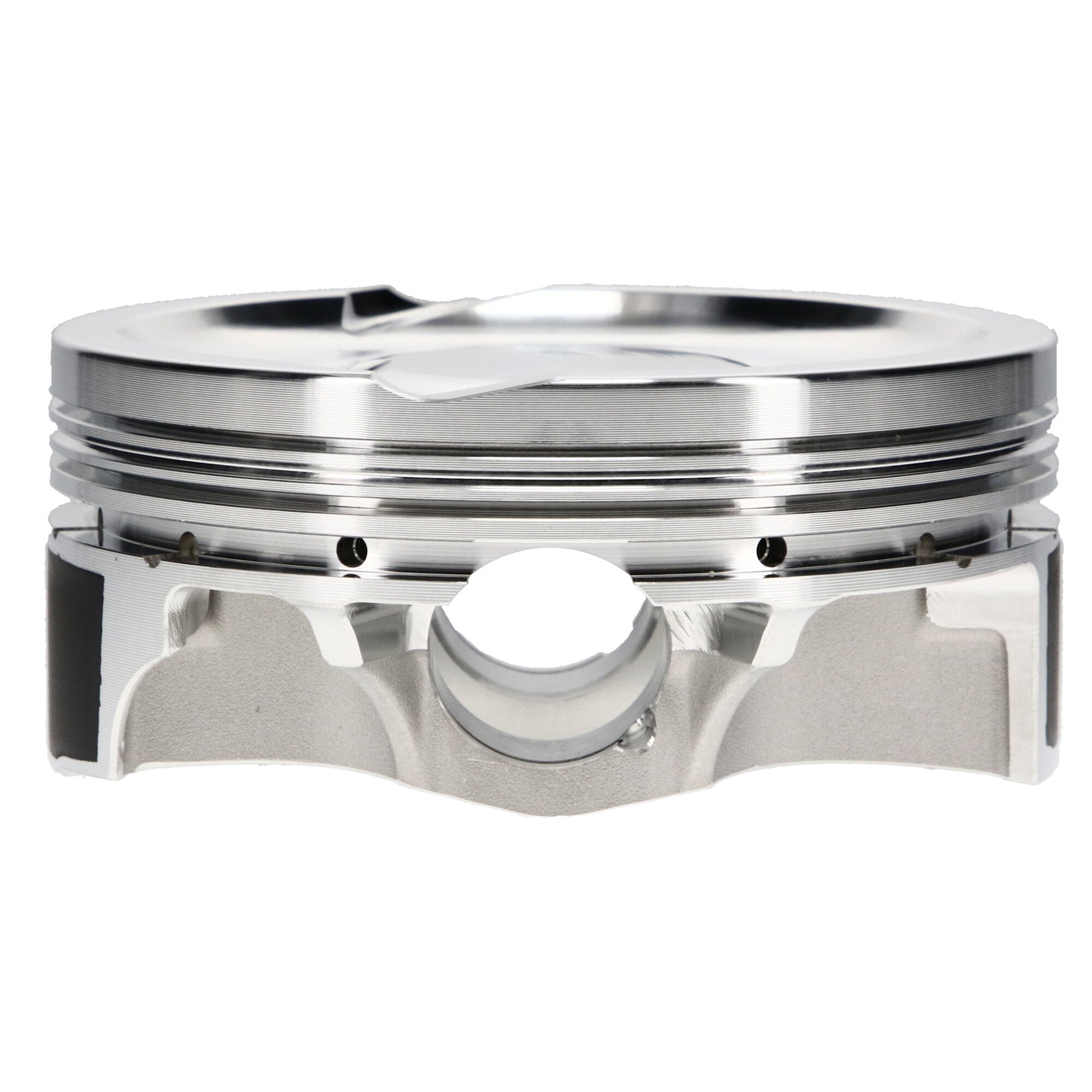

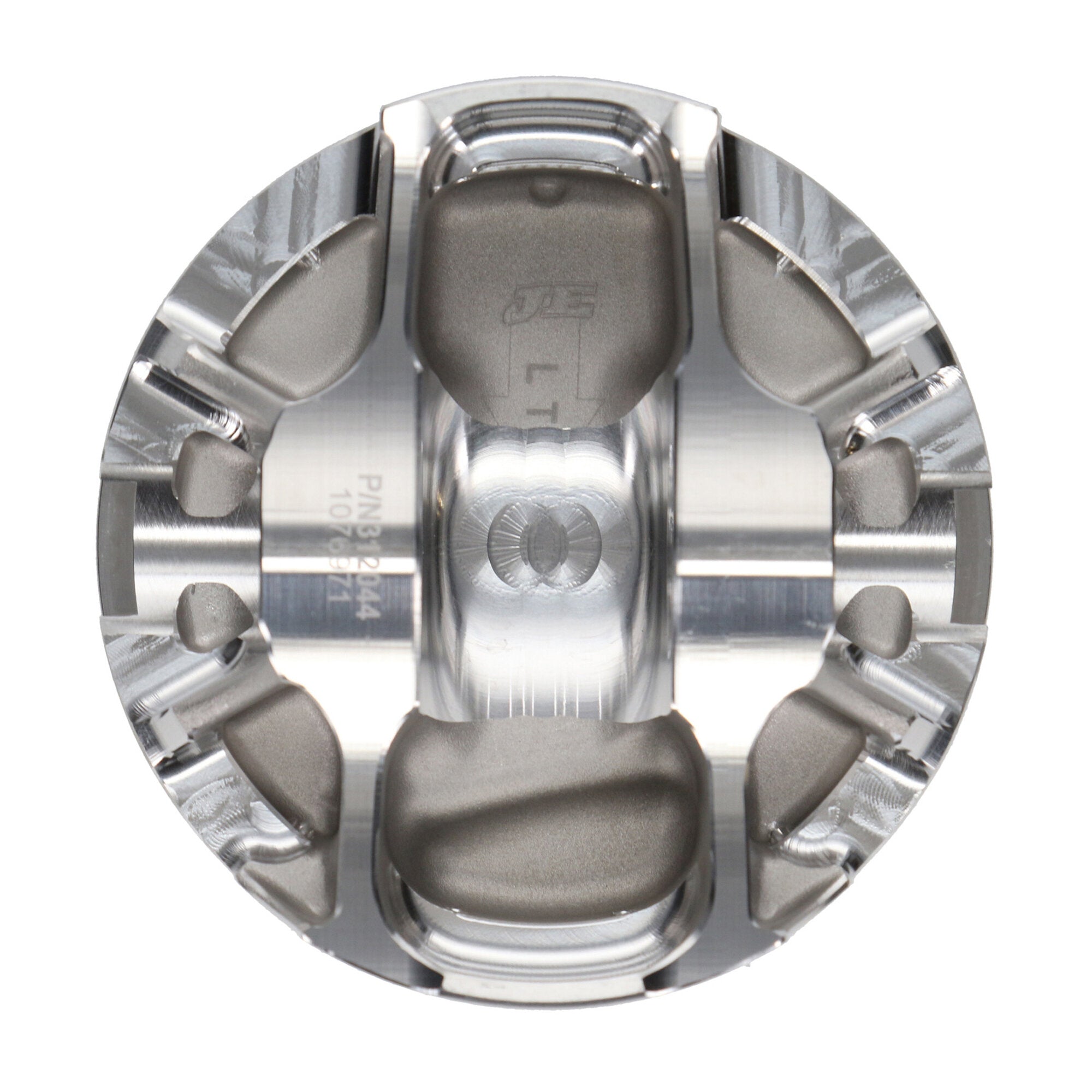

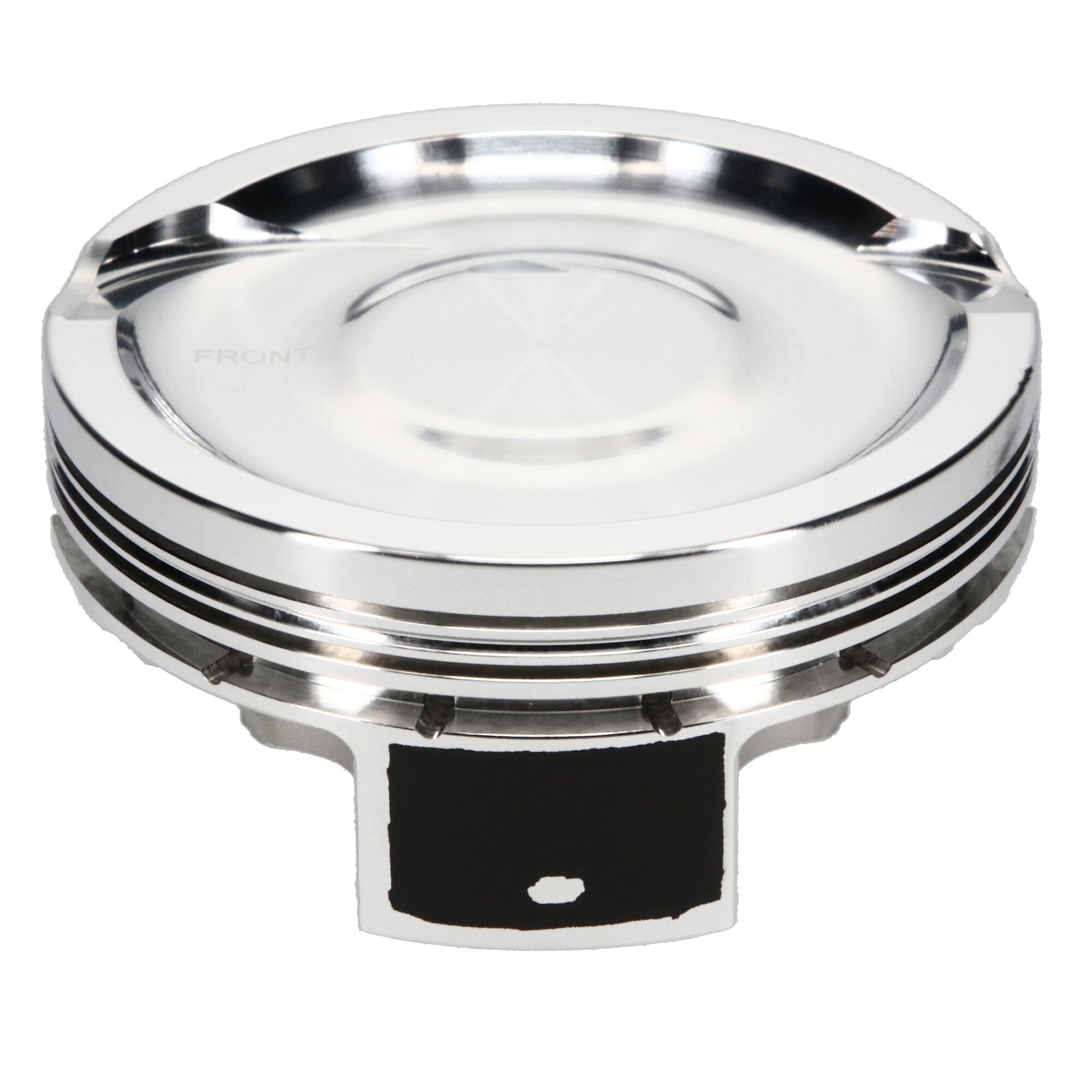

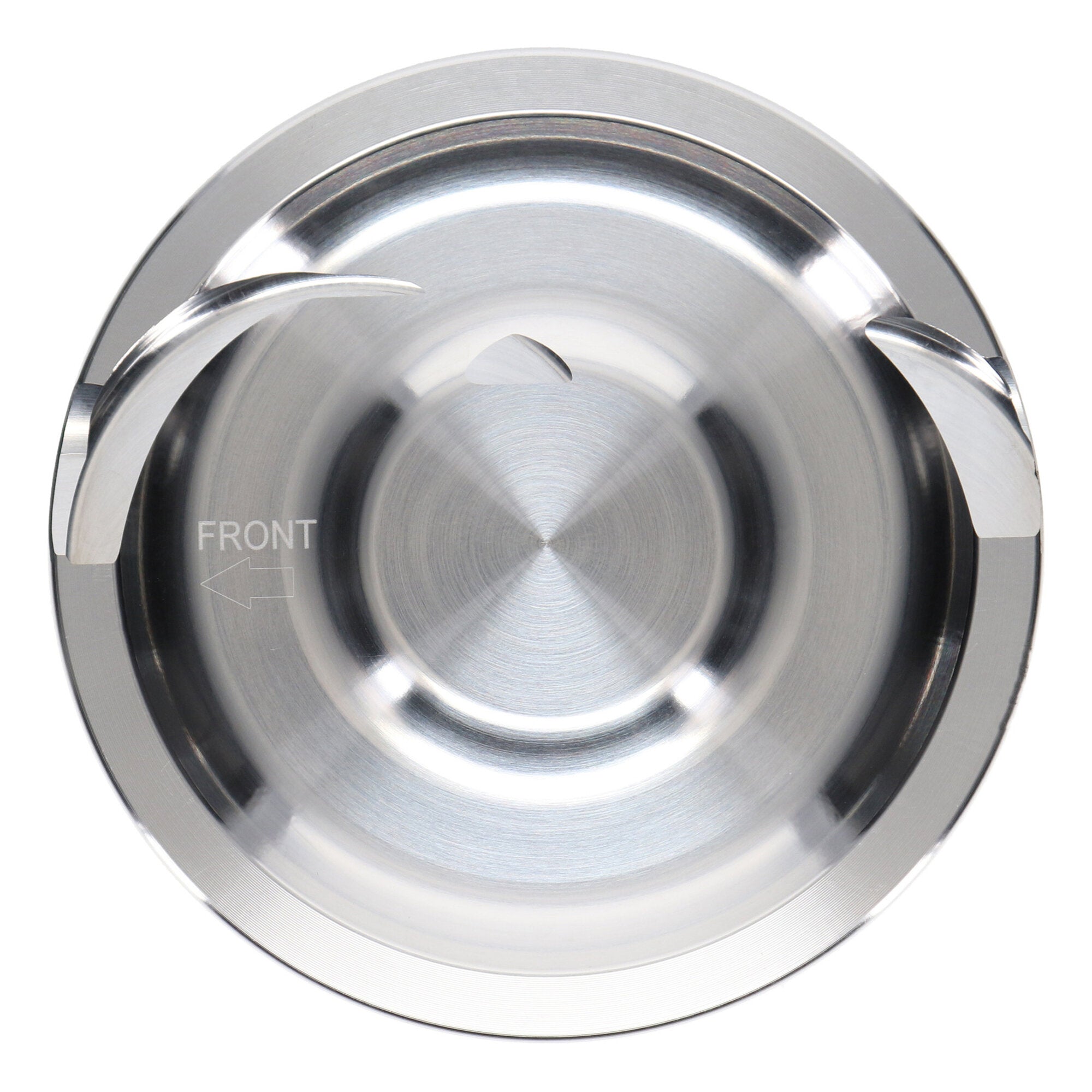

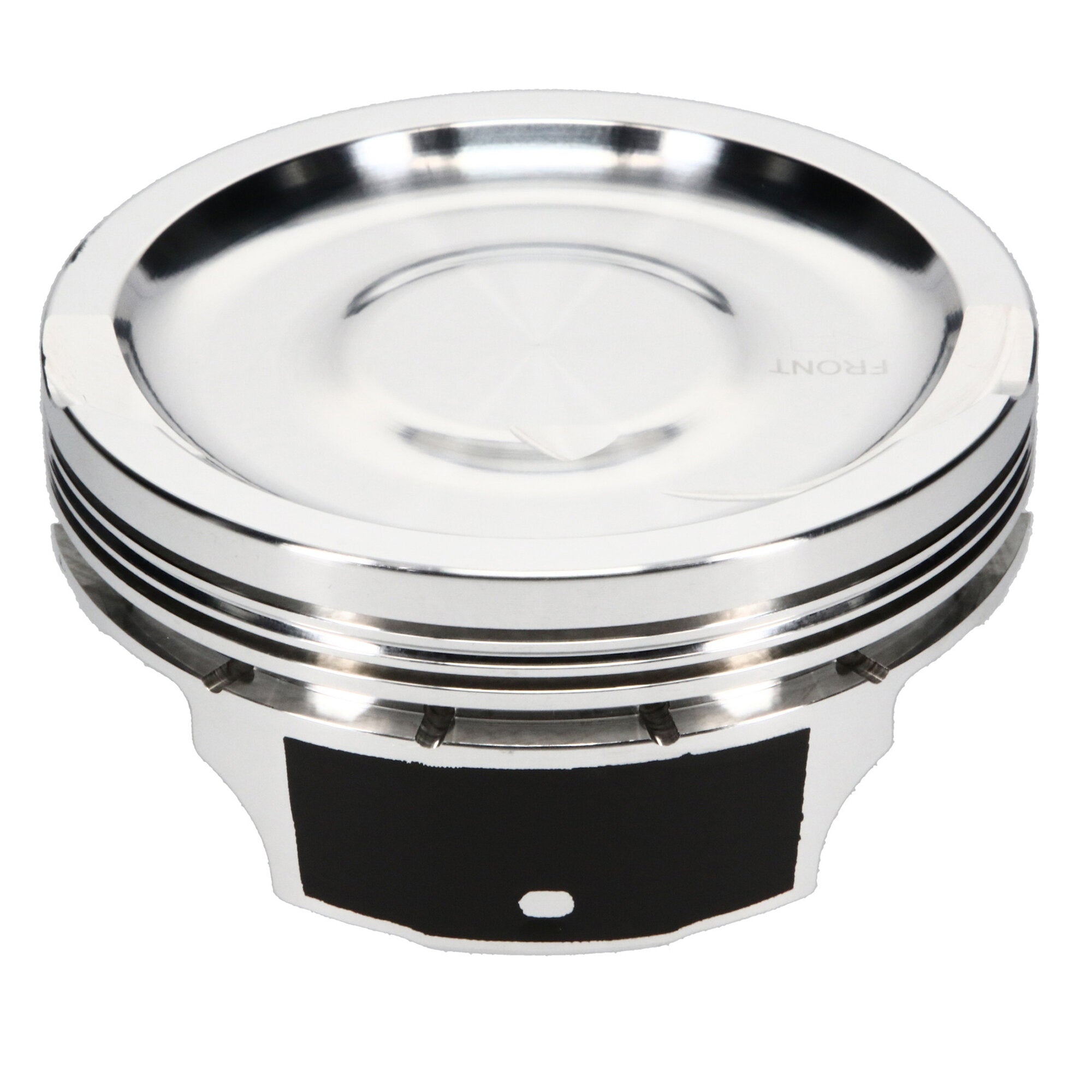

Piston Set, 2618, Inv Dome/Dish, 4.080 Bore, 1.165 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 4.080 in. Bore, 1.165 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet LS, 4.080 Bore, Dish, Set of 8 |
| Description_SHO |
Piston Kit |
| Piston Volume |
-24.70 |
| Add-On |
927-2250-17-51C |
| Add-On |
927-073-MW |
| Add-On |
JG3108-4075-5 |
| Prop 65 (C, R or CR) |
CR |
| Piston Average Weight |
409 |
| Bore Diameter |
4.080 |
| Piston Material |
2618 |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston Kit - 4.080 in. Bore - 1.165 in. CH, -24.70 CC |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0600 |
| Engine |
LS Gen III/IV |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Engine Type |
ICE |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.170 |
| Piston Series |
JE Pistons |
| Compression Height |
1.165 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Make - Web |
Chevrolet |
| Oil Ring Thickness |
0.149 |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 4.080 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Top Compression Ring Thickness |
0.0480 |
| Product Market |
Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.170 |
| Engine - Web |
LS Gen III/IV |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
