As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS Stroker |
| Description_DEF |
Engine Piston |
| Description_DES |

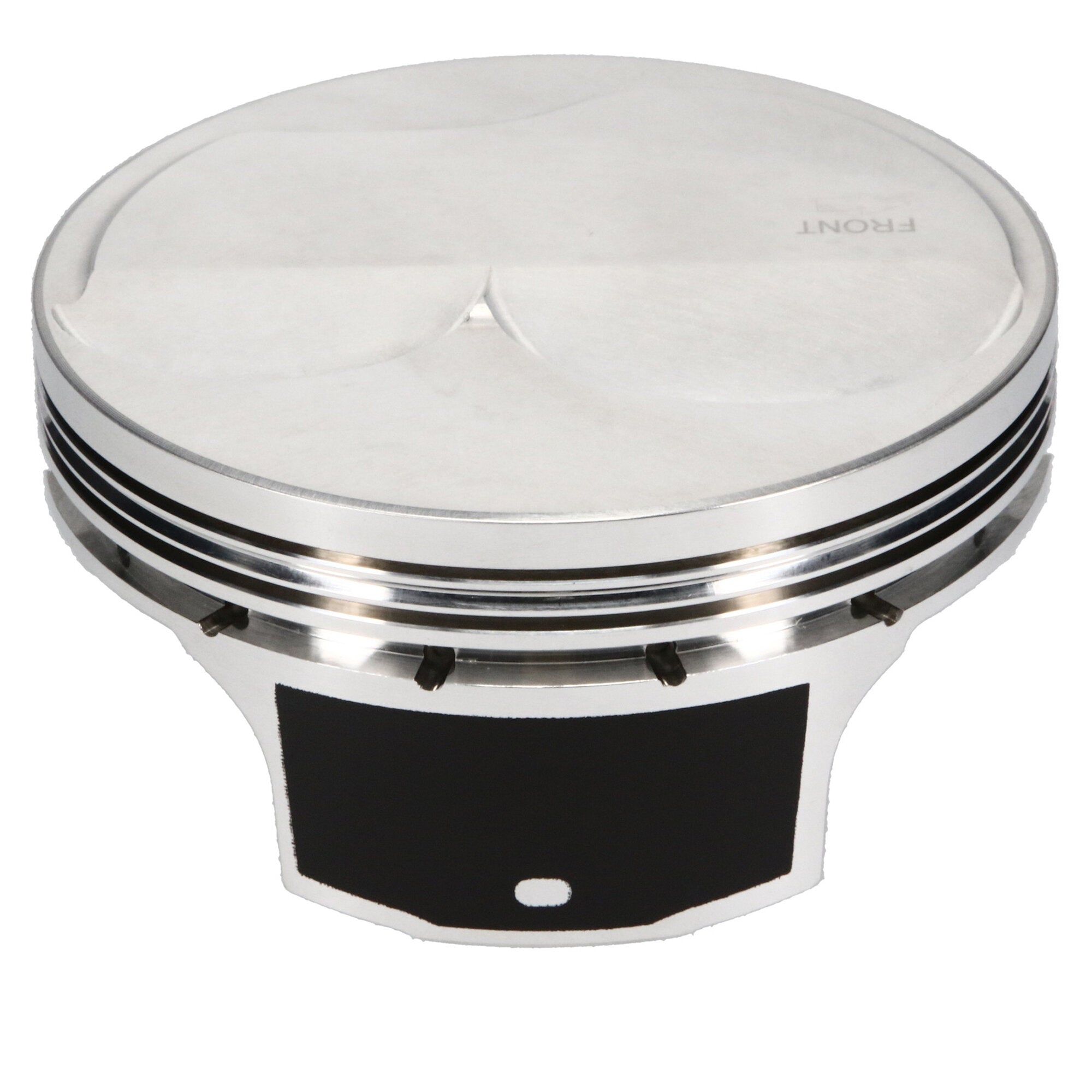

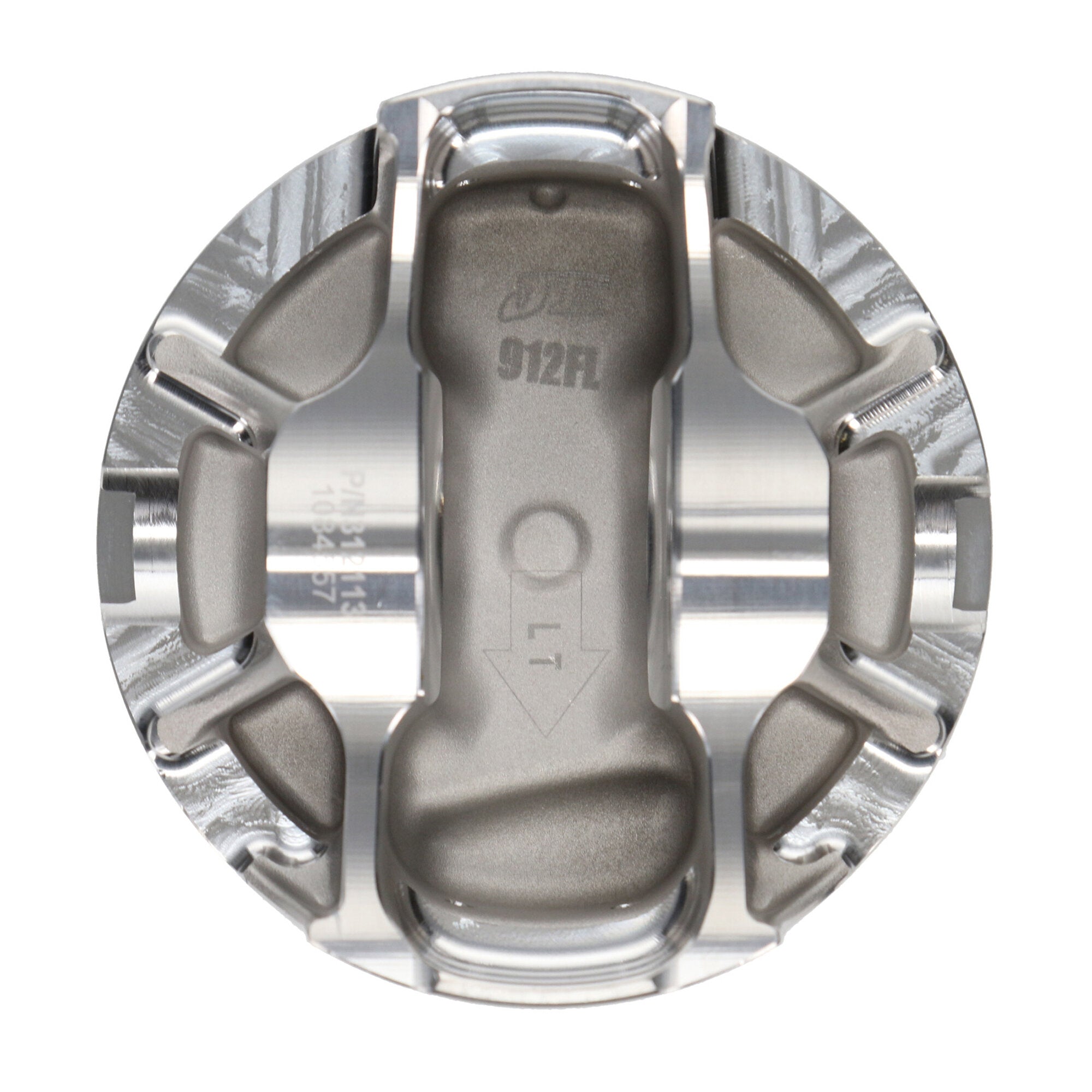

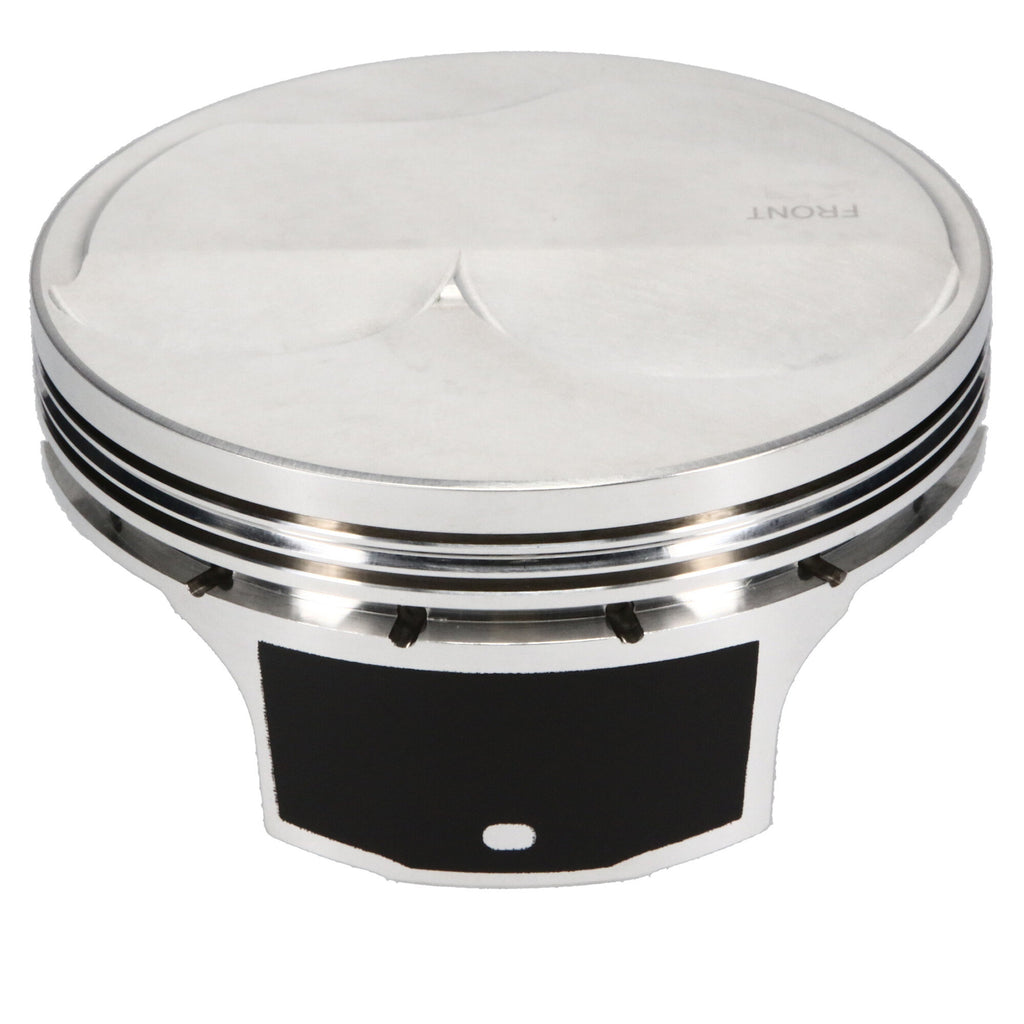

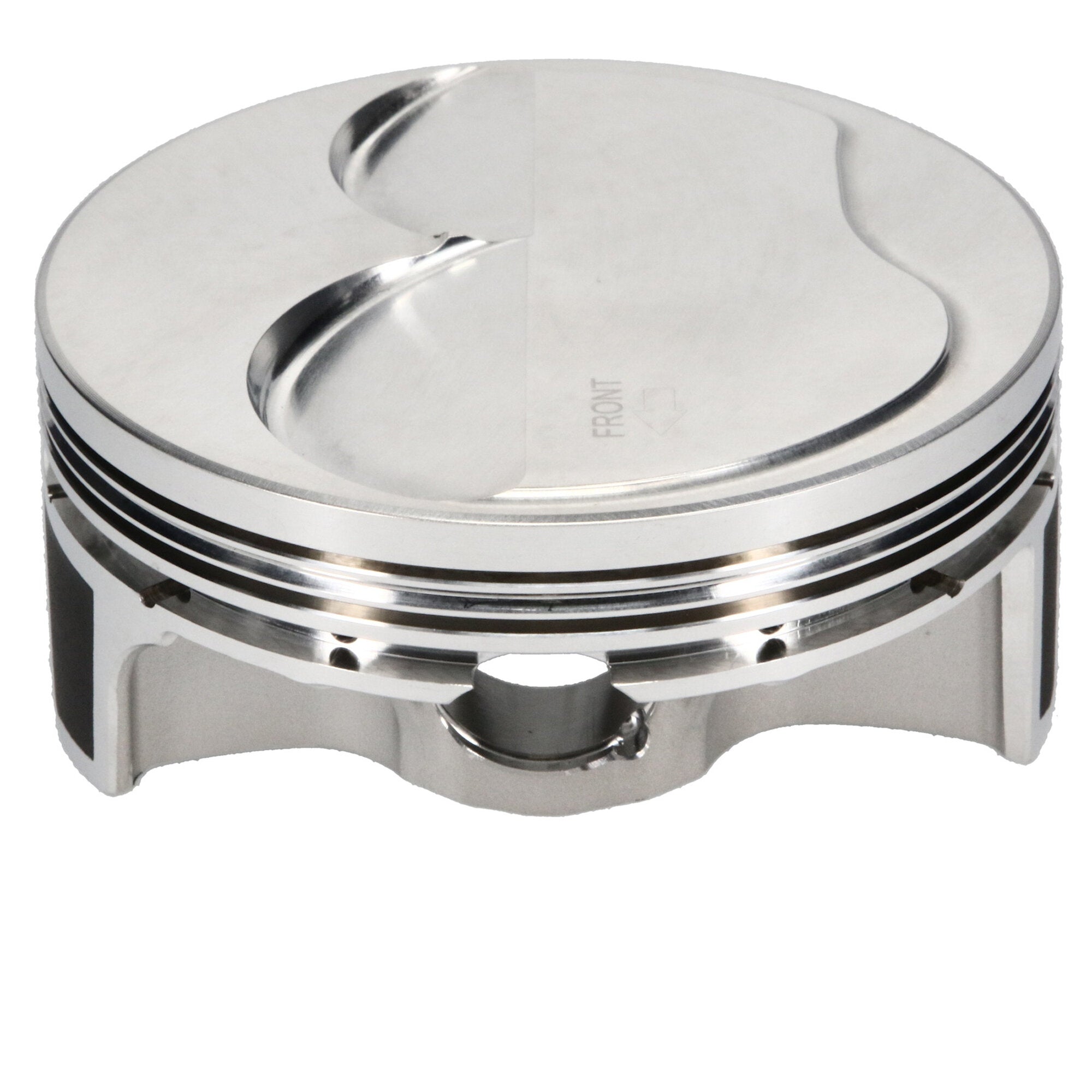

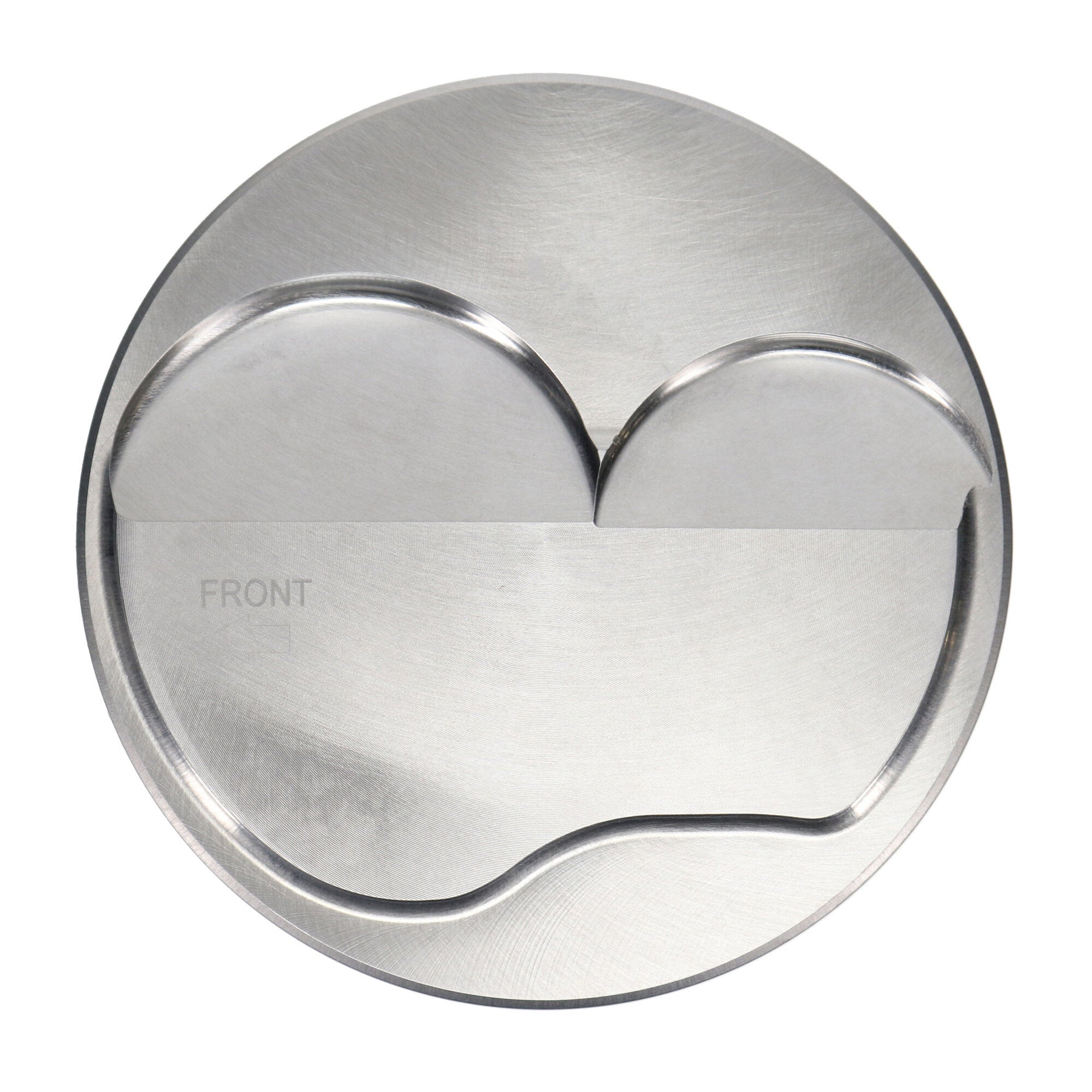

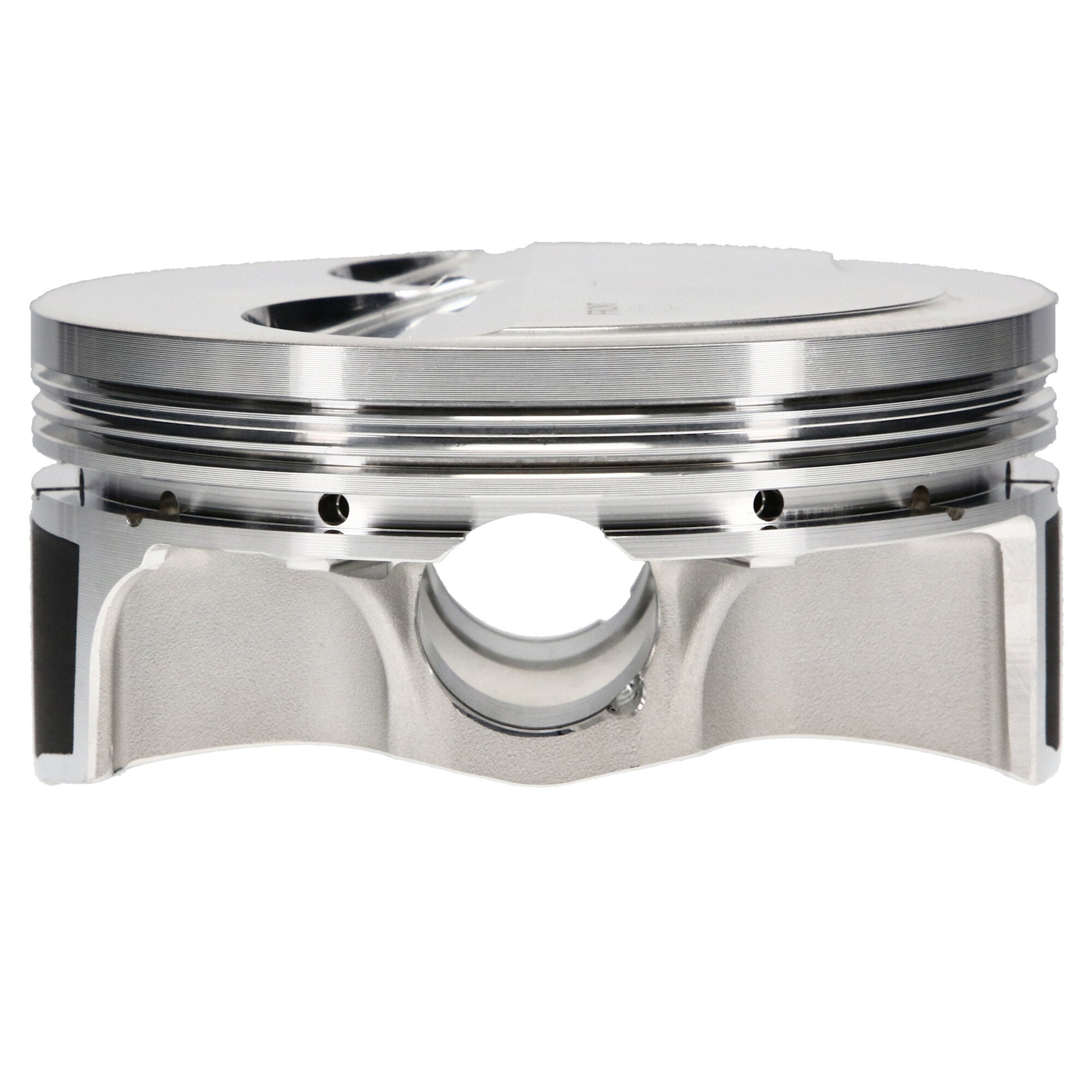

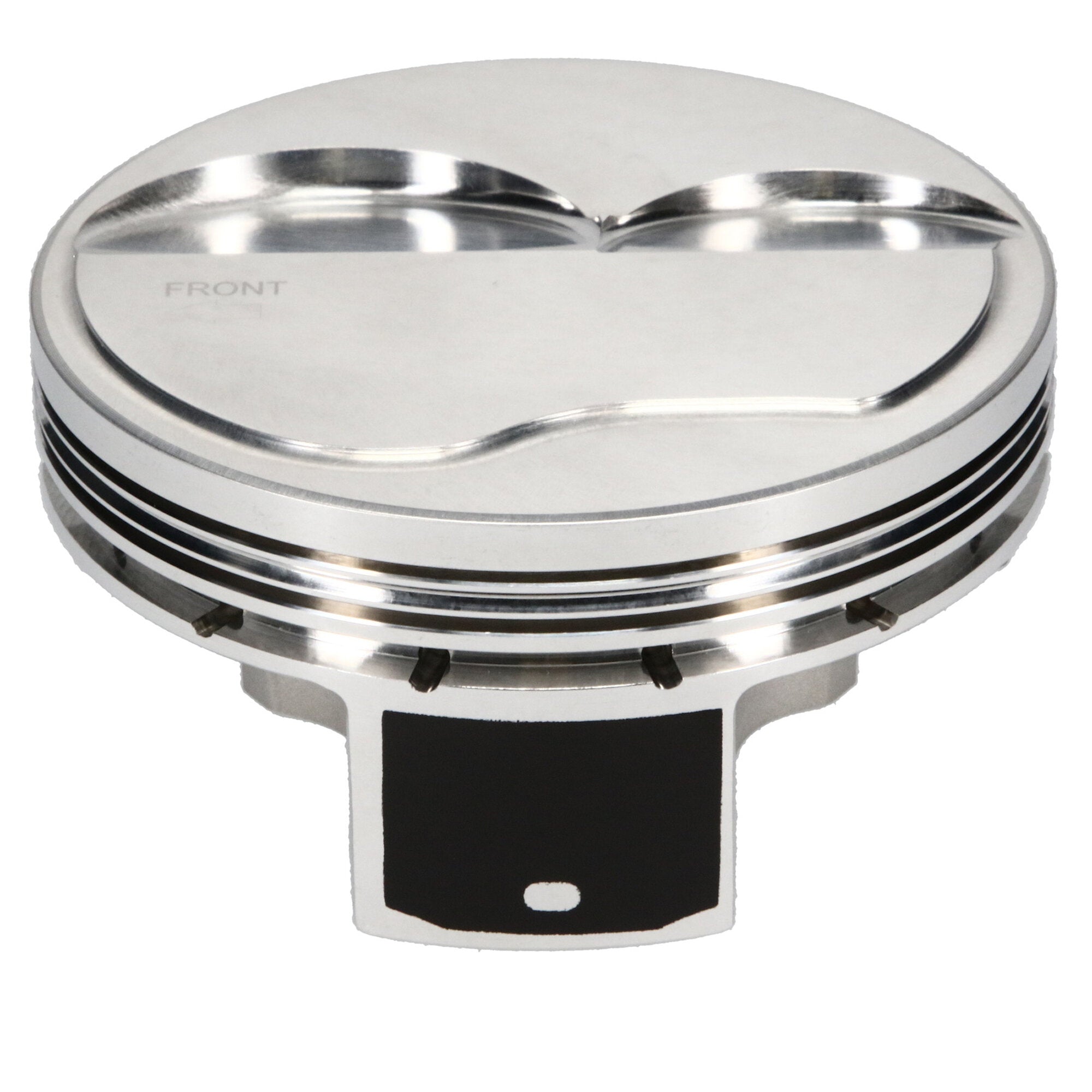

Piston Single, 2618, Dome, 4.135 Bore, 1.165 CD, 0.927 Pin, Set of 1. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 4.135 in. Bore, 1.165 CD, Dome, Right Piston |
| Description_INV |
JE Pistons, Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet LS, 4.135 Bore, Dome, Set of 1 |
| Description_SHO |
Piston |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
LS Gen III/IV |
| Engine Type |
ICE |
| Piston Orientation |
Right |
| Oil Ring Thickness |
0.1175 |
| Forging Type |
FSR |
| Piston Material |
2618 |
| Piston Pin Material |
5115 |
| Piston Volume |
5.40 |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 4.135 in. Bore, Piston |
| Product Market |
Domestic |
| Compression Height |
1.165 |
| Product Type |
Engine Piston |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Piston Average Weight |
442 |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston - 4.135 in. Bore - 1.165 in. CH, 5.40 CC |
| Second Compression Ring Thickness |
0.0600 |
| Top Compression Ring Thickness |
0.0480 |
| Make |
CHEVROLET |
| Bore Diameter |
4.135 |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.927 |
| Piston Quantity |
1 |
| Piston Series |
JE Pistons |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Wrist Pin Length |
2.250 |
| Add-On |
927-073-MW |
| Cylinder Head |
GM LS1 15 DEG |
| Piston Pin Length |
2.250 |
| Add-On |
JG31F8-4135-2 |
| Ringset Included |
No |
| Piston Head Type |
Dome |
| Add-On |
927-2250-15-51C |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Engine |
LS Gen III/IV |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
