As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 Sprint ASCS |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

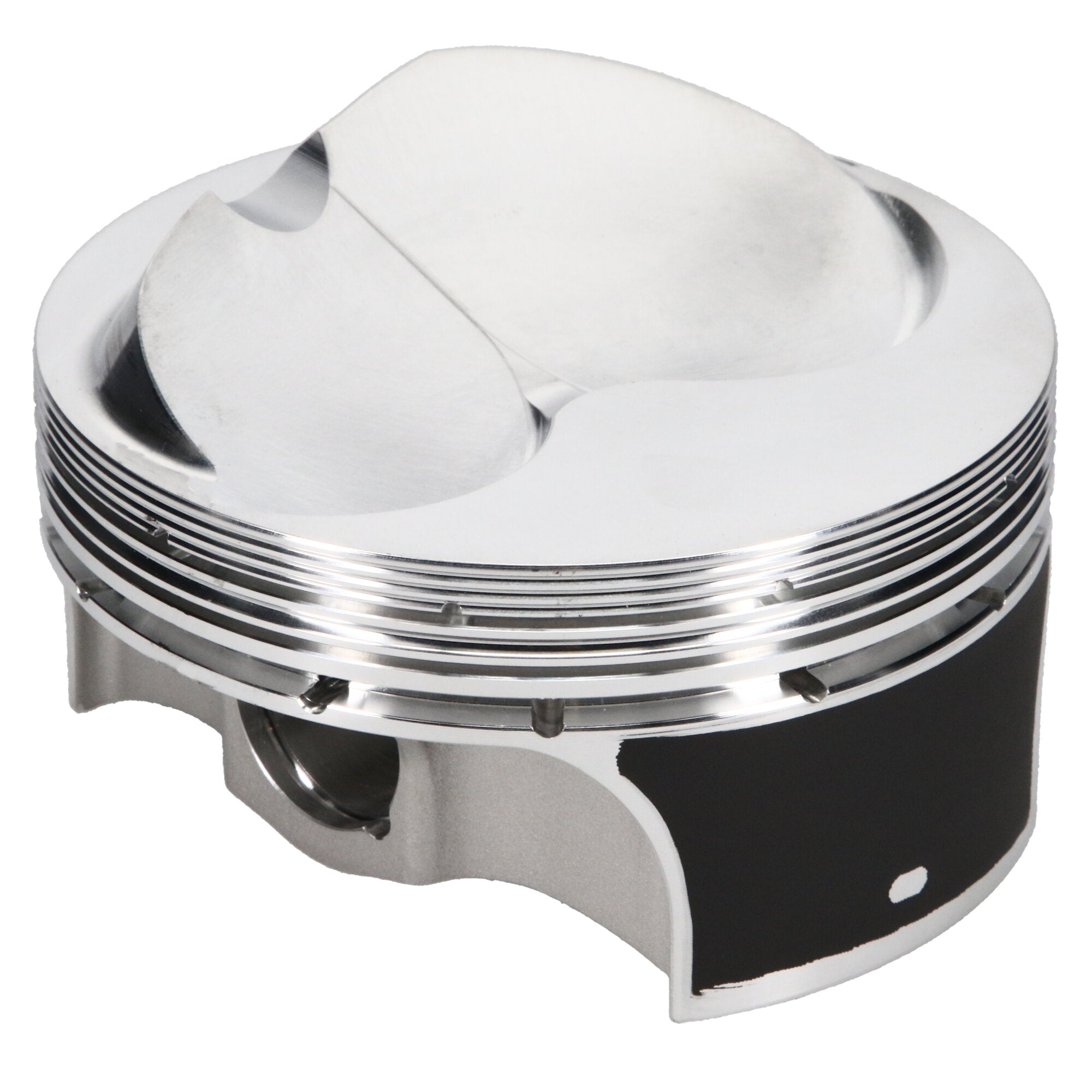

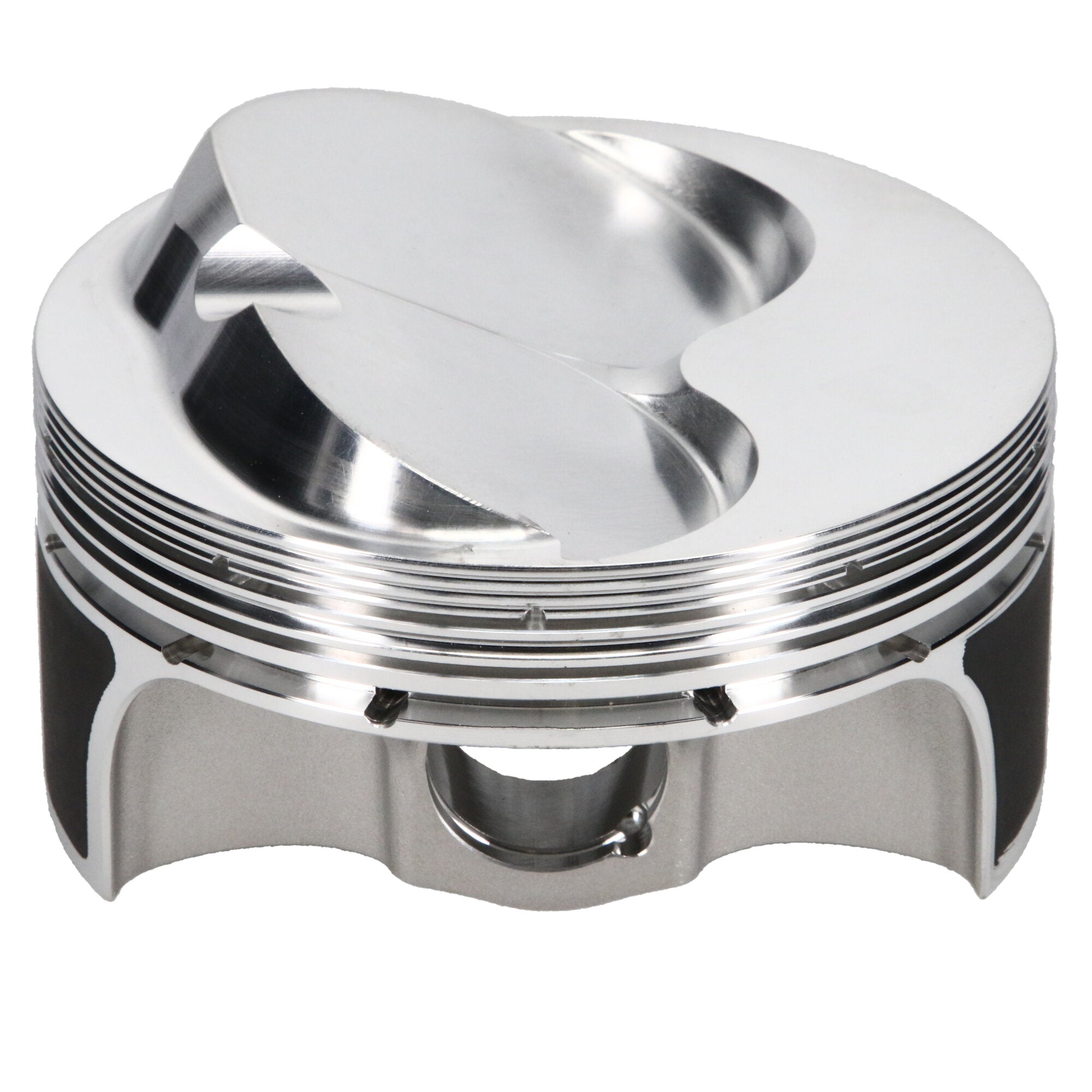

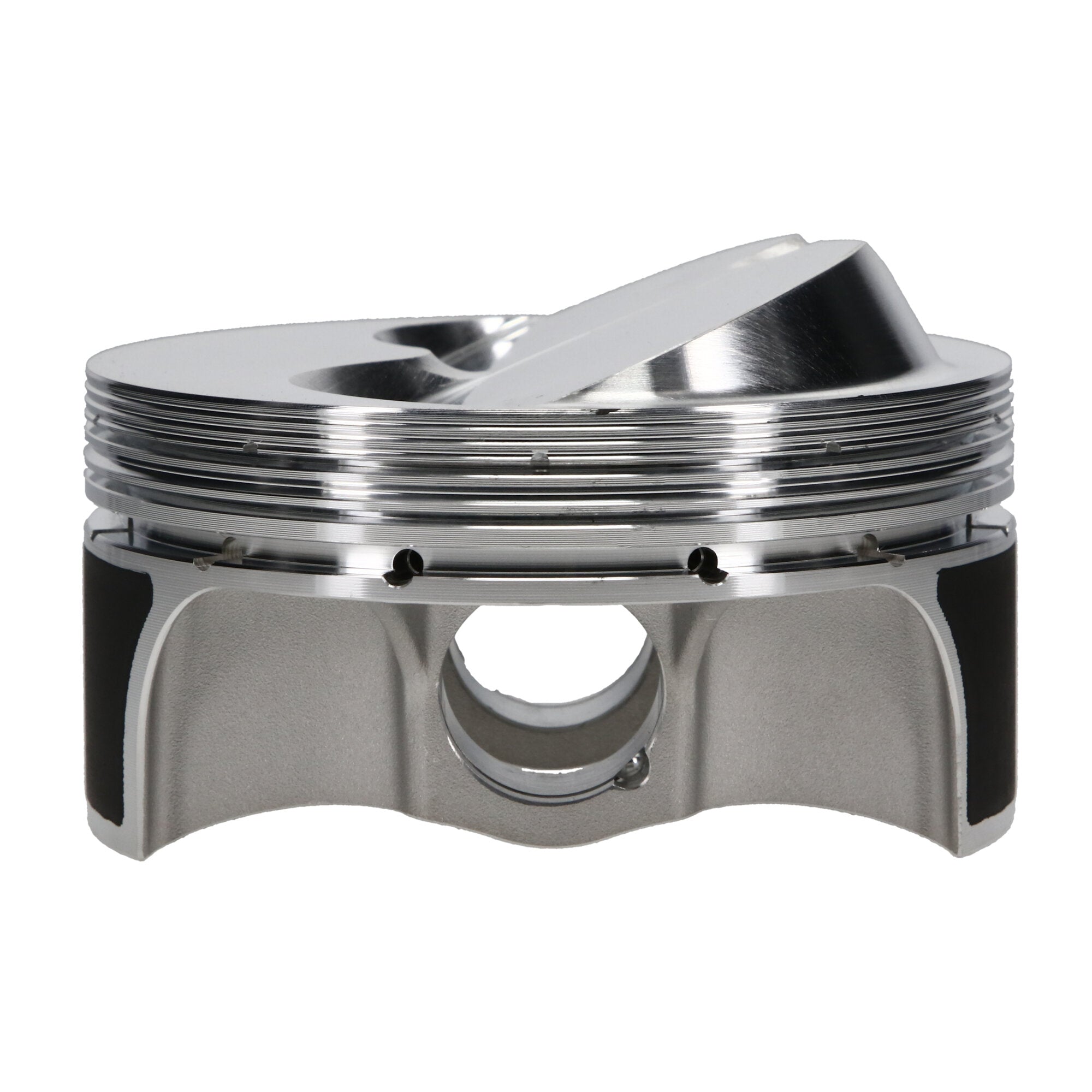

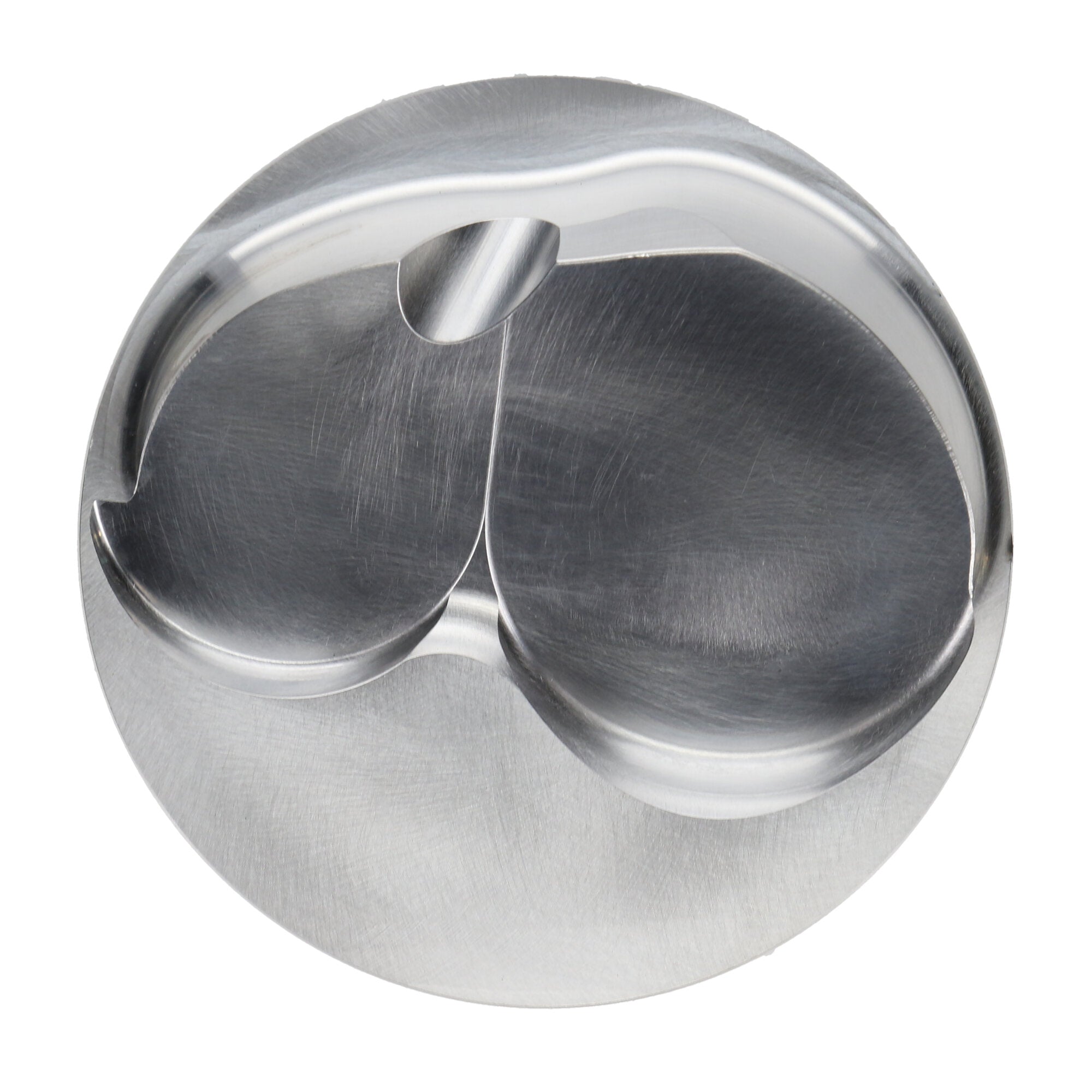

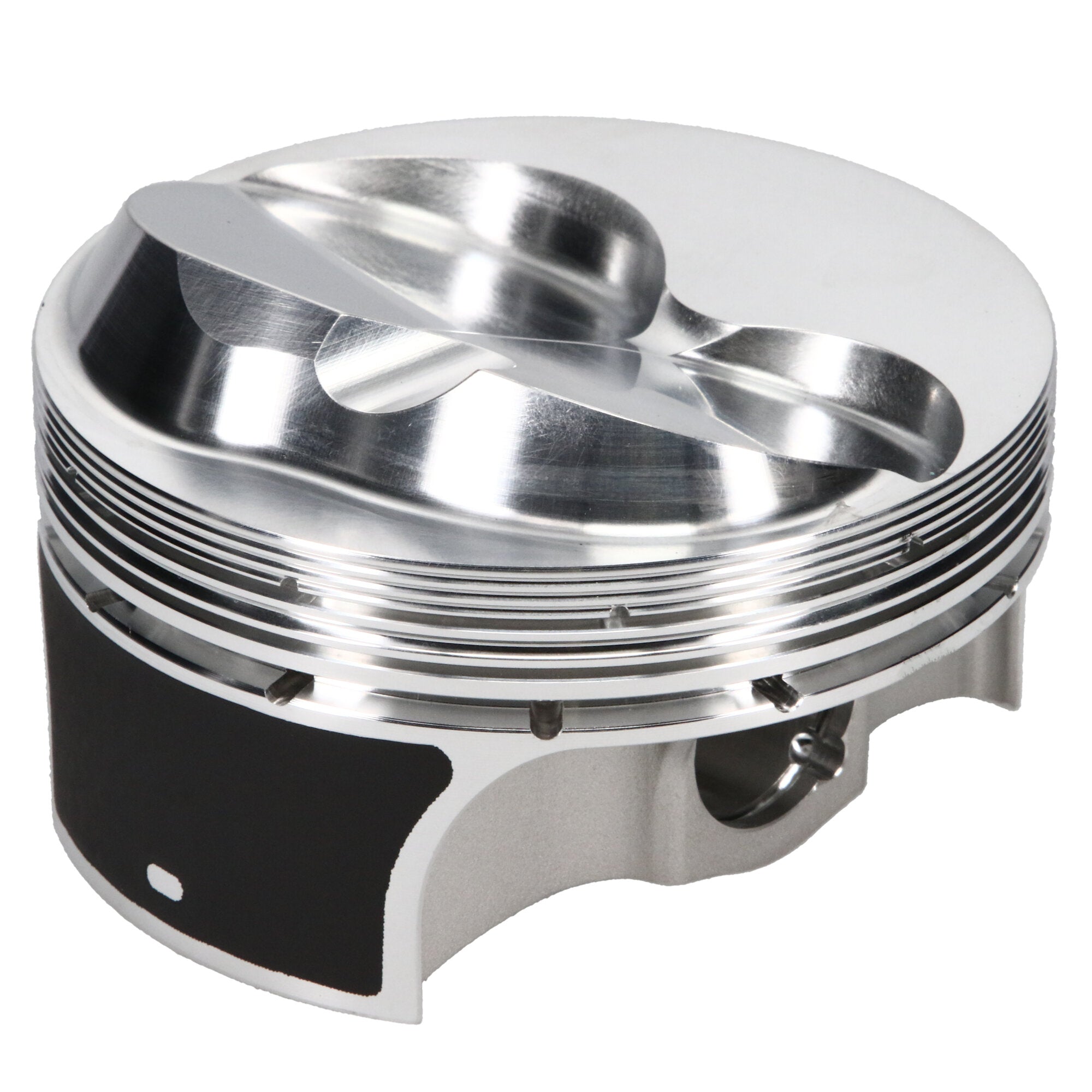

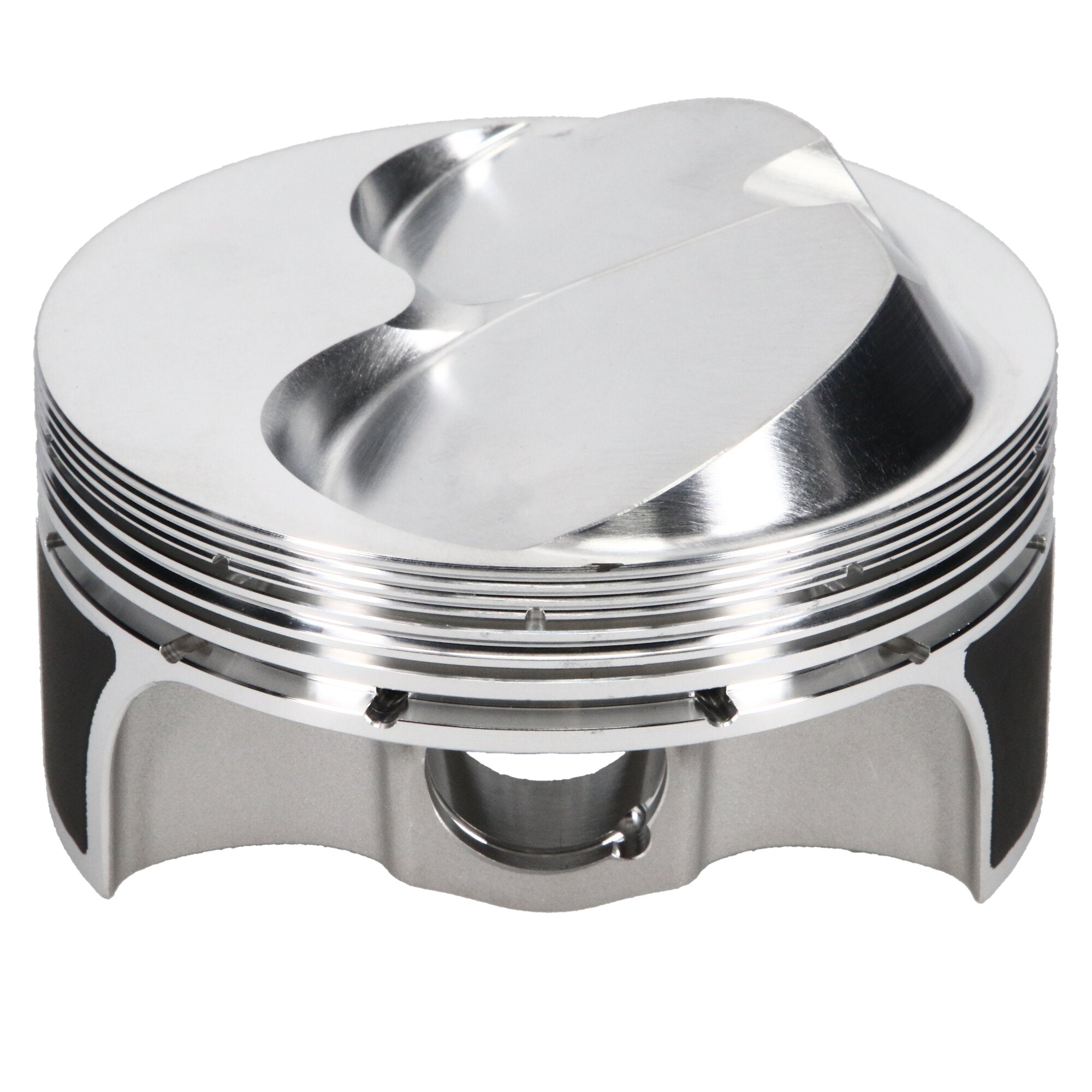

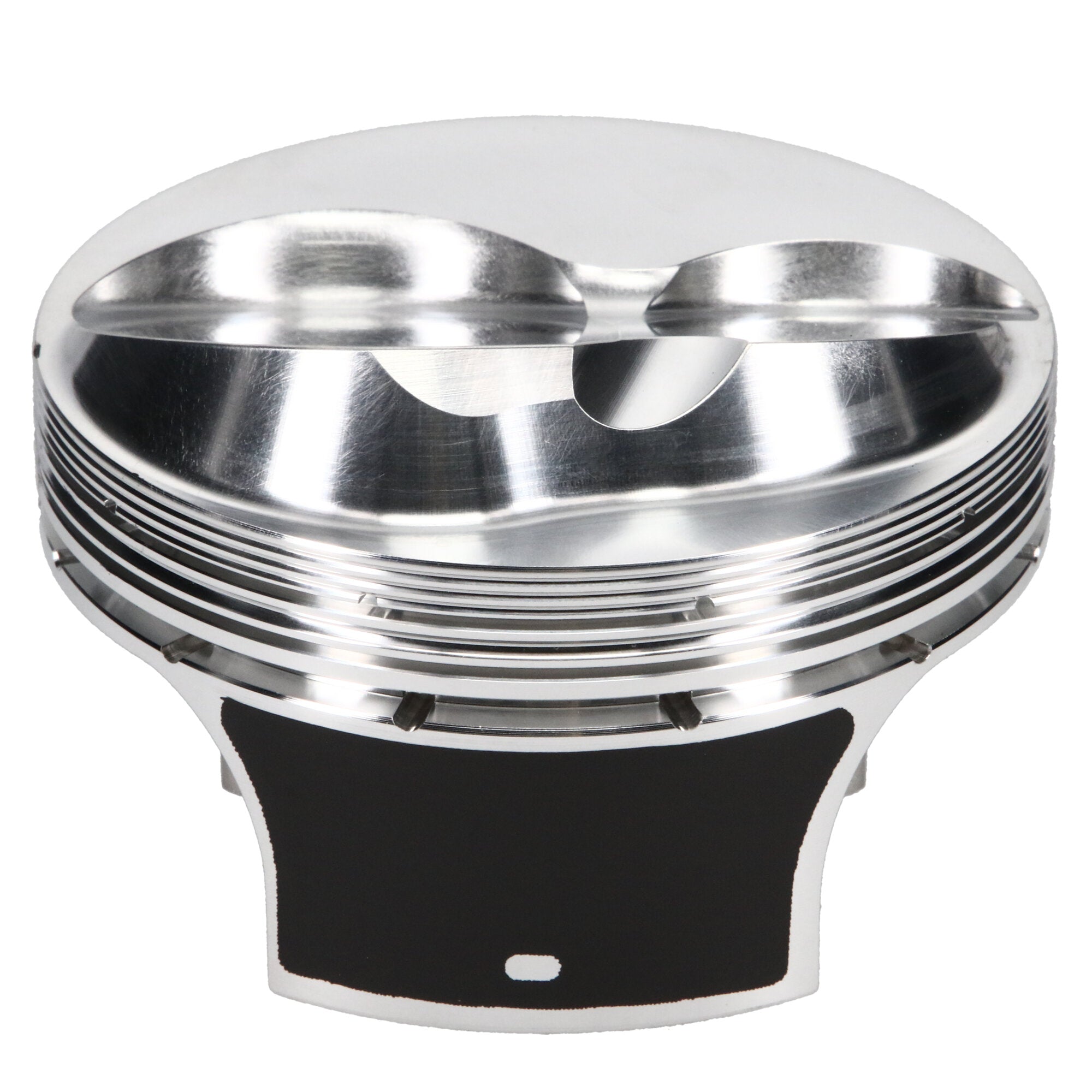

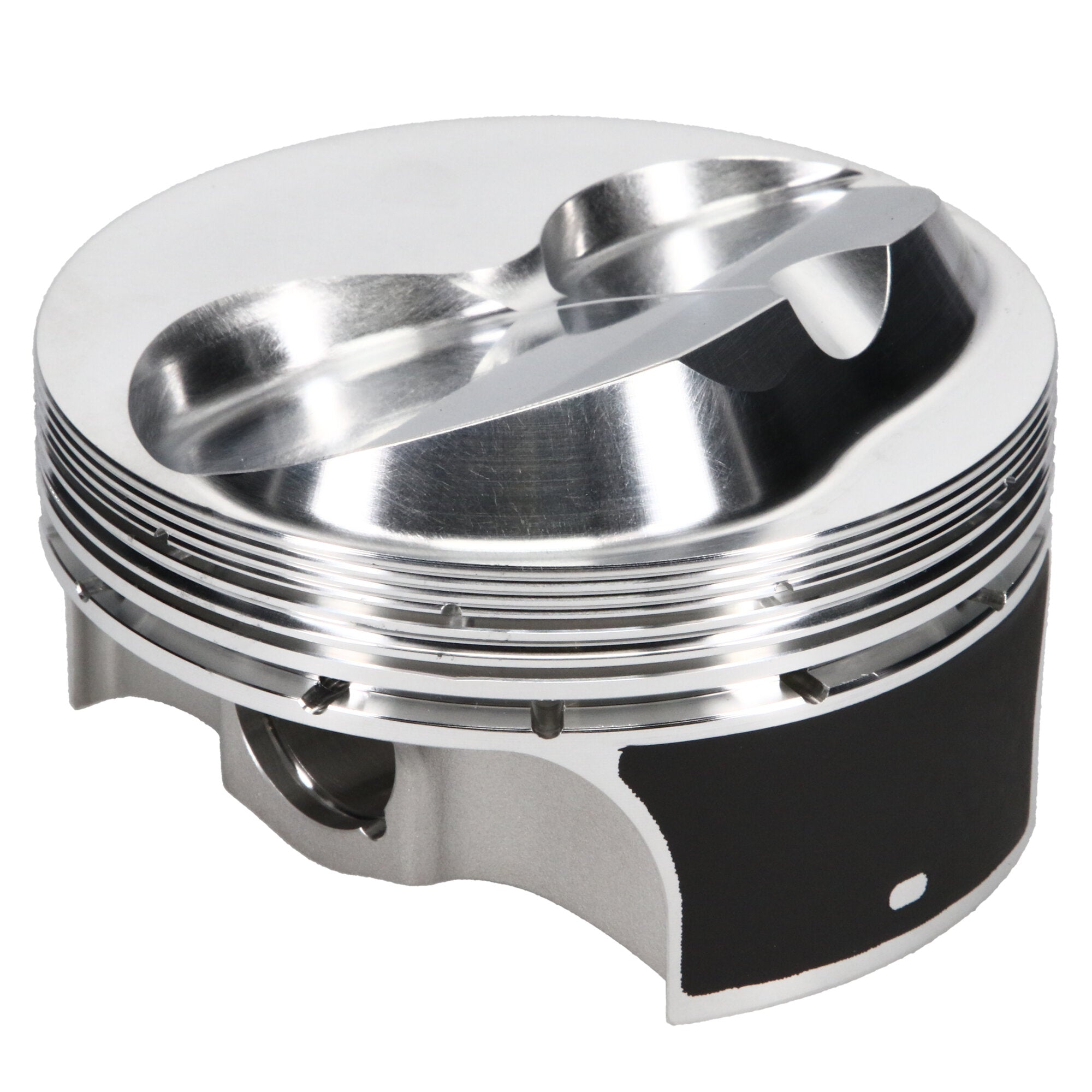

JE, Chevrolet, Small Block Chevrolet, 4.145 in. Bore, 1.335 CD, Dome, 8 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 4.145 Bore, 1.335 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 360 ASCS, 4.145 Bore, Dome, Set of 8 |
| Ringset Included |
No |
| Engine |
Small Block |
| Oil Ring Thickness |
0.1175 |
| Piston Pin Length |
2.250 |
| Piston Pin Material |
5115 |
| Make |
CHEVROLET |
| Wrist Pin Wall Thickness |
0.170 |
| Piston Head Type |
Dome |
| Piston Pin Wall Thickness |
0.170 |
| Compression Height |
1.335 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0435 |
| Piston Pin Outside Diameter |
0.927 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Title |
JE Pistons - Chevrolet, Small Block, 4.145 in. Bore, Piston Kit |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Bore Diameter |
4.145 |
| Add-On |
927-073-MW |
| Piston Volume |
14.00 |
| Piston Average Weight |
469 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 23 DEG 40/60 |
| Add-On |
JG7708-4145-5 |
| Second Compression Ring Thickness |
0.0440 |
| Piston Quantity |
8 |
| Prop 65 (C, R or CR) |
CR |
| Product Market |
Domestic |
| Add-On |
927-2250-17-51C |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.145 in. Bore - 1.335 in. CH, 14.00 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
