As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 Sprint ASCS |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

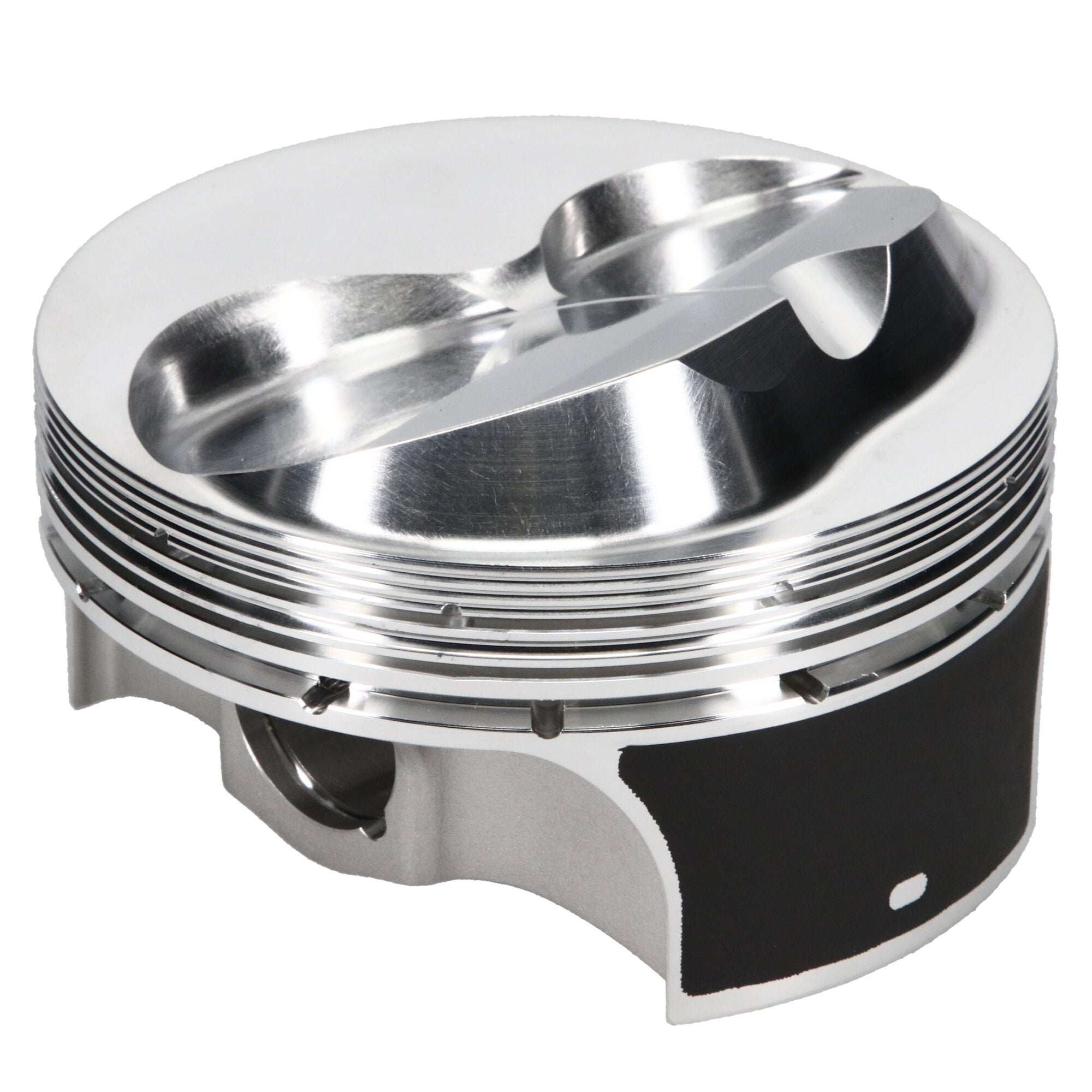

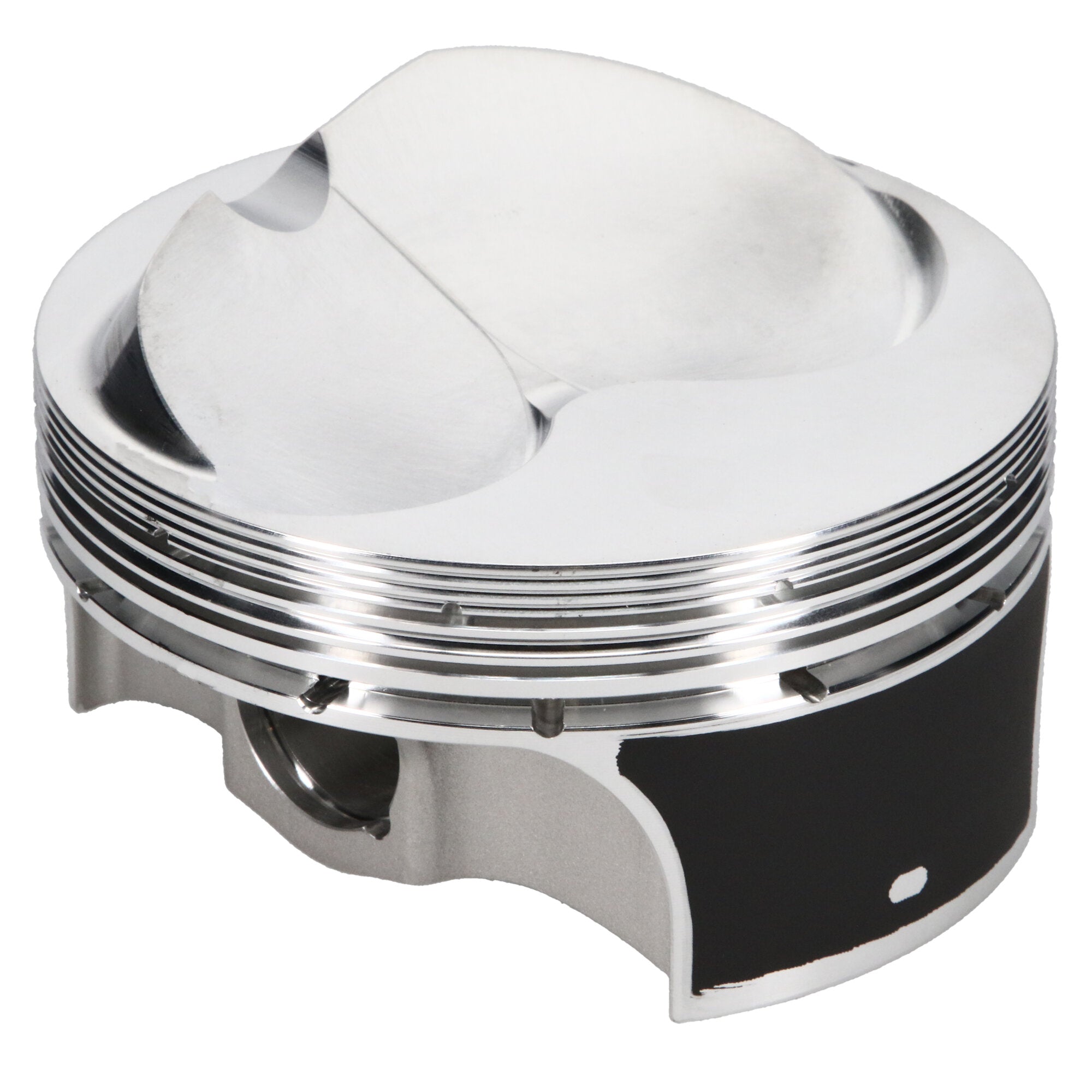

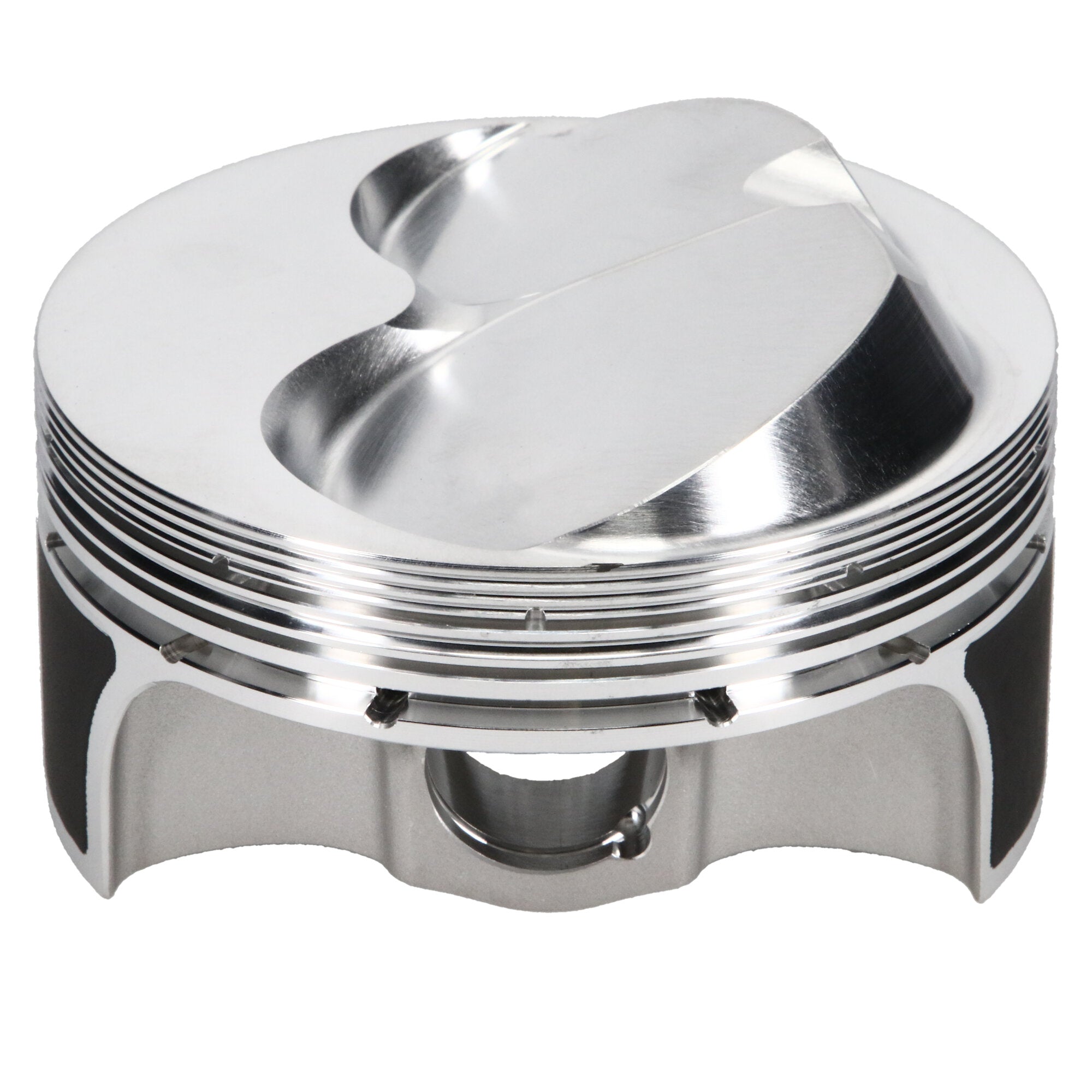

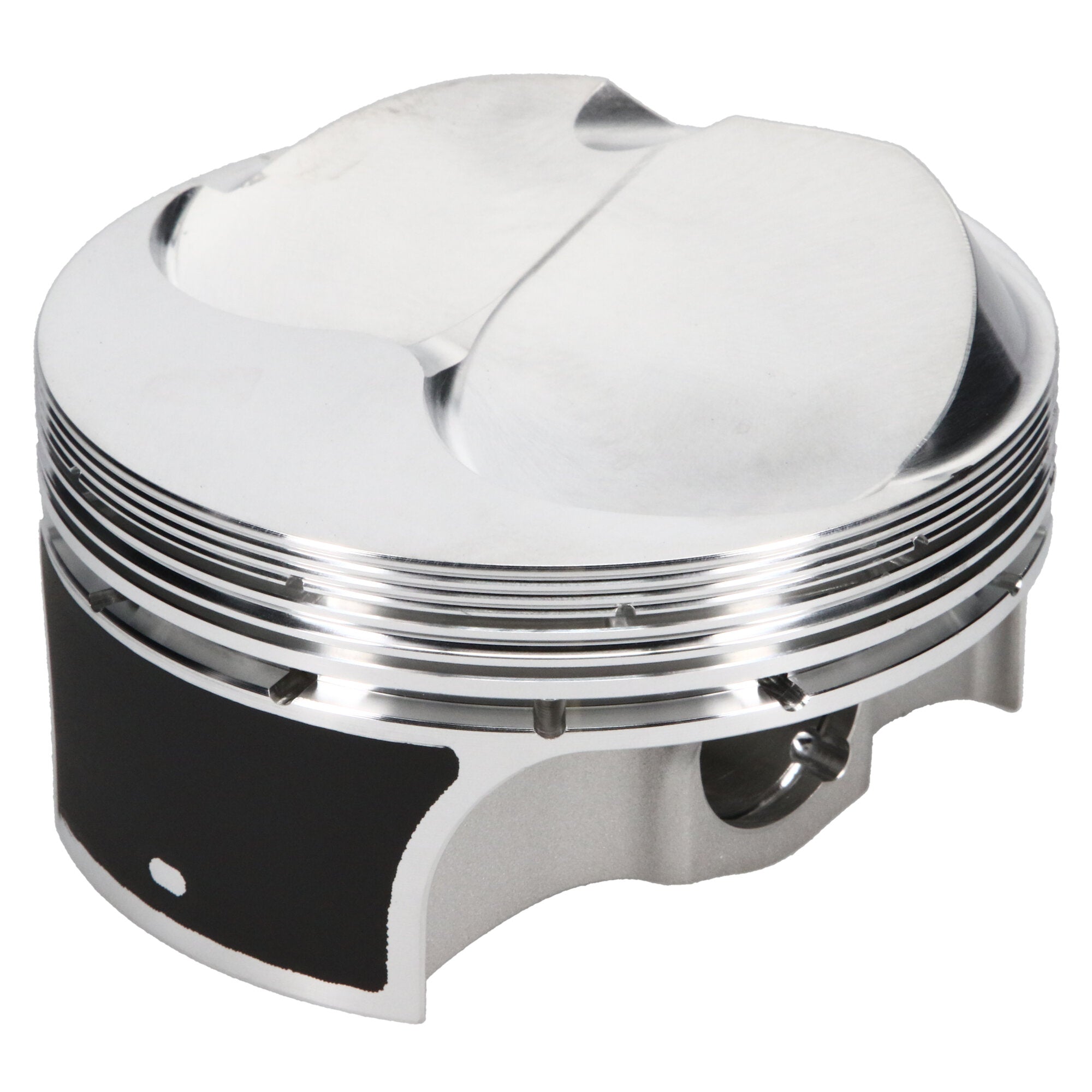

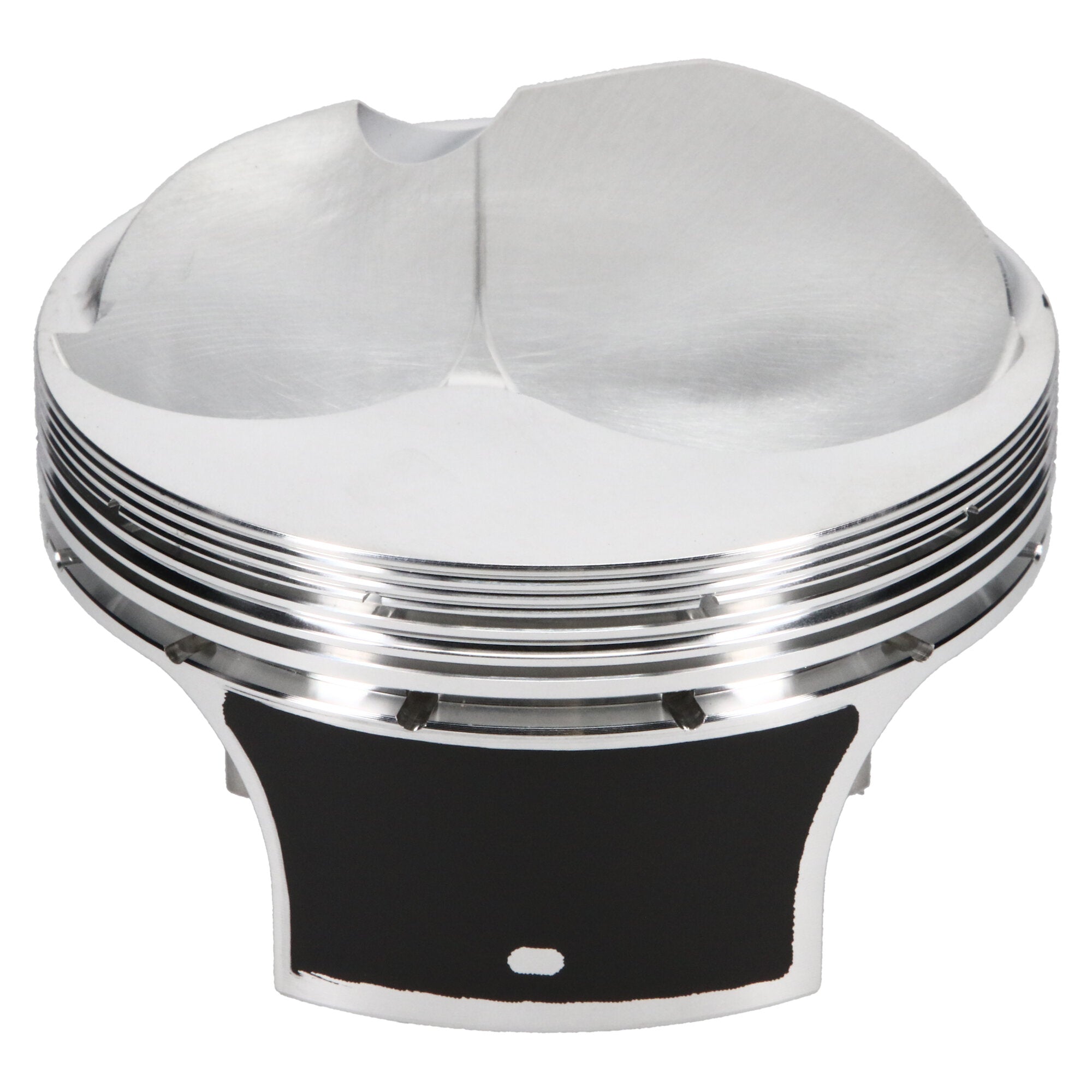

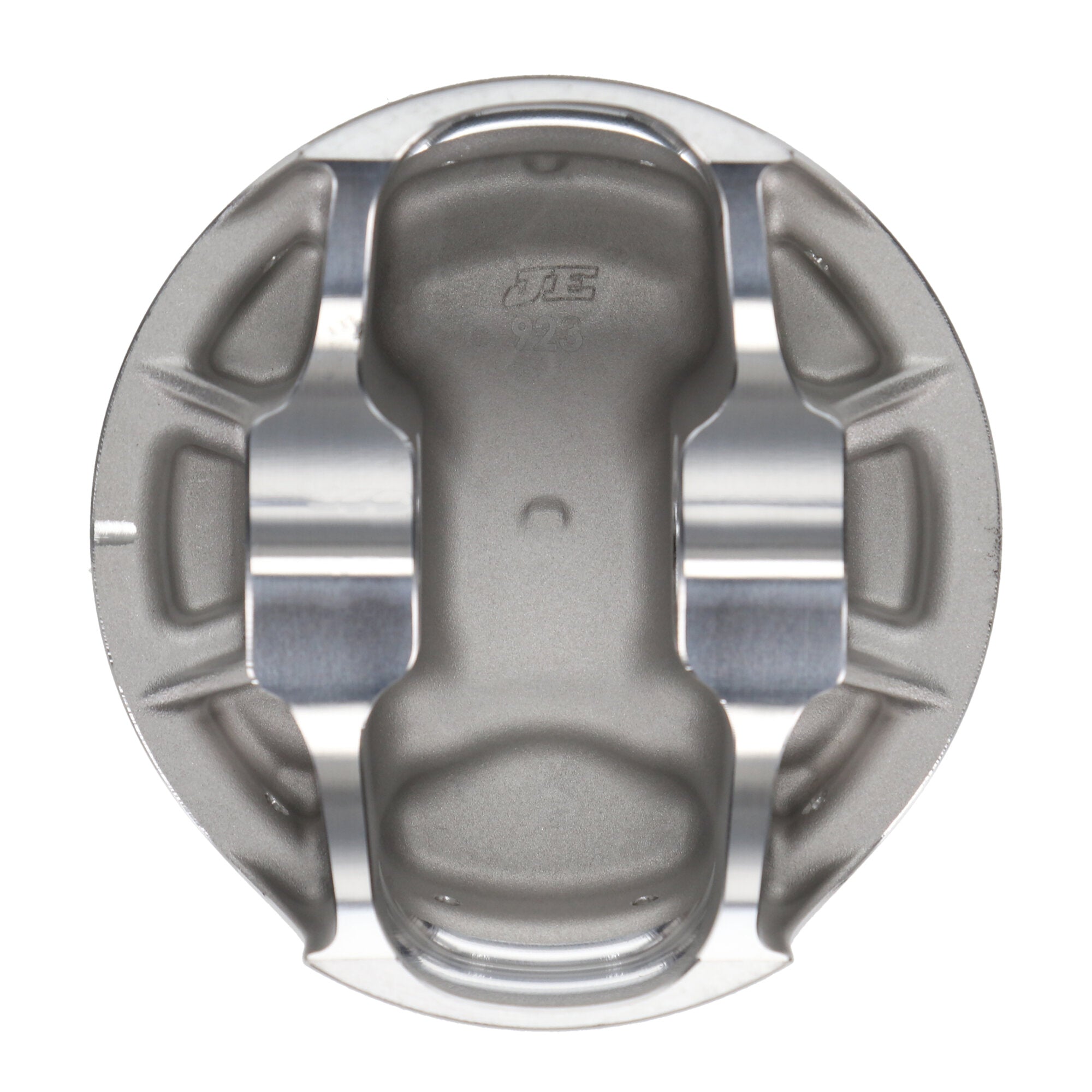

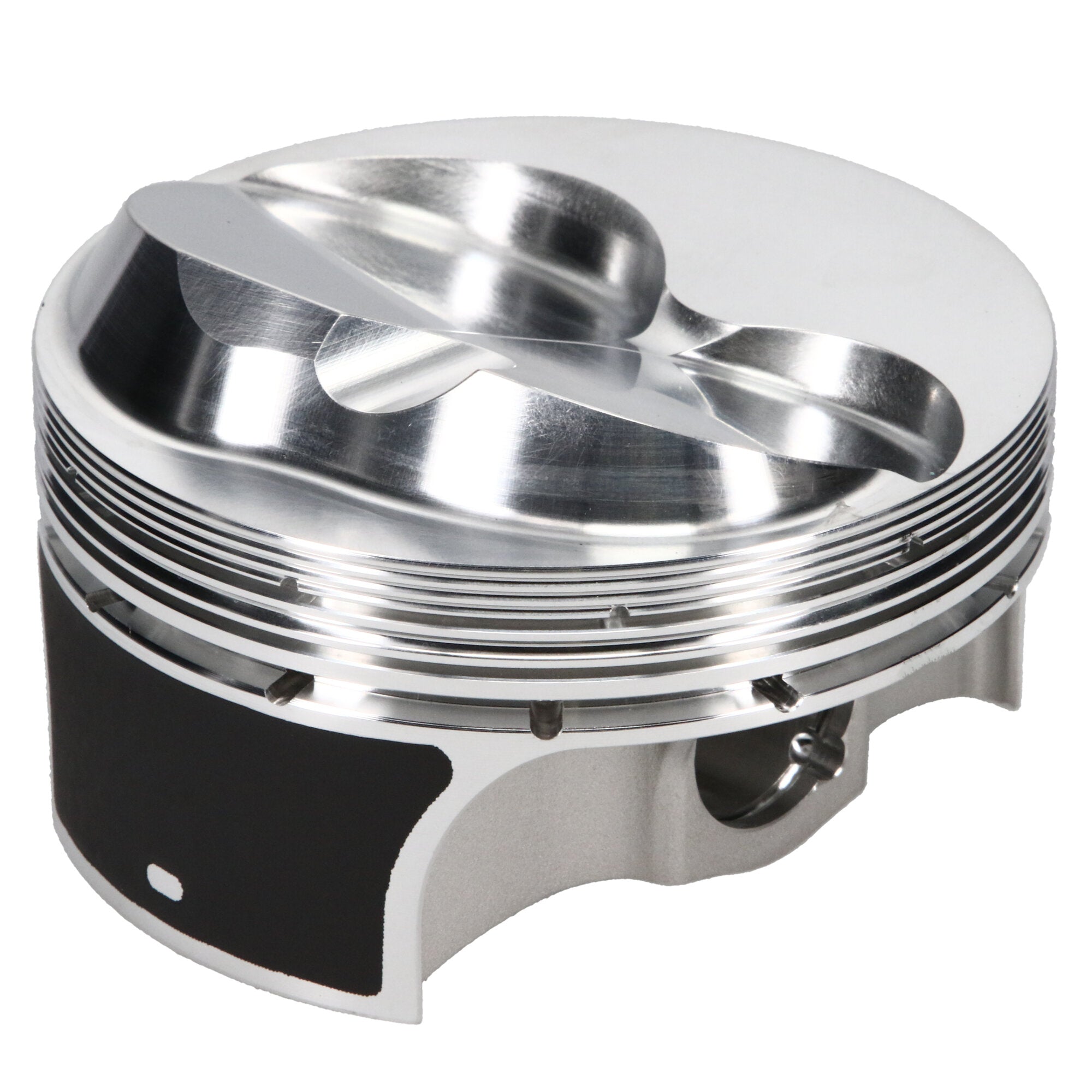

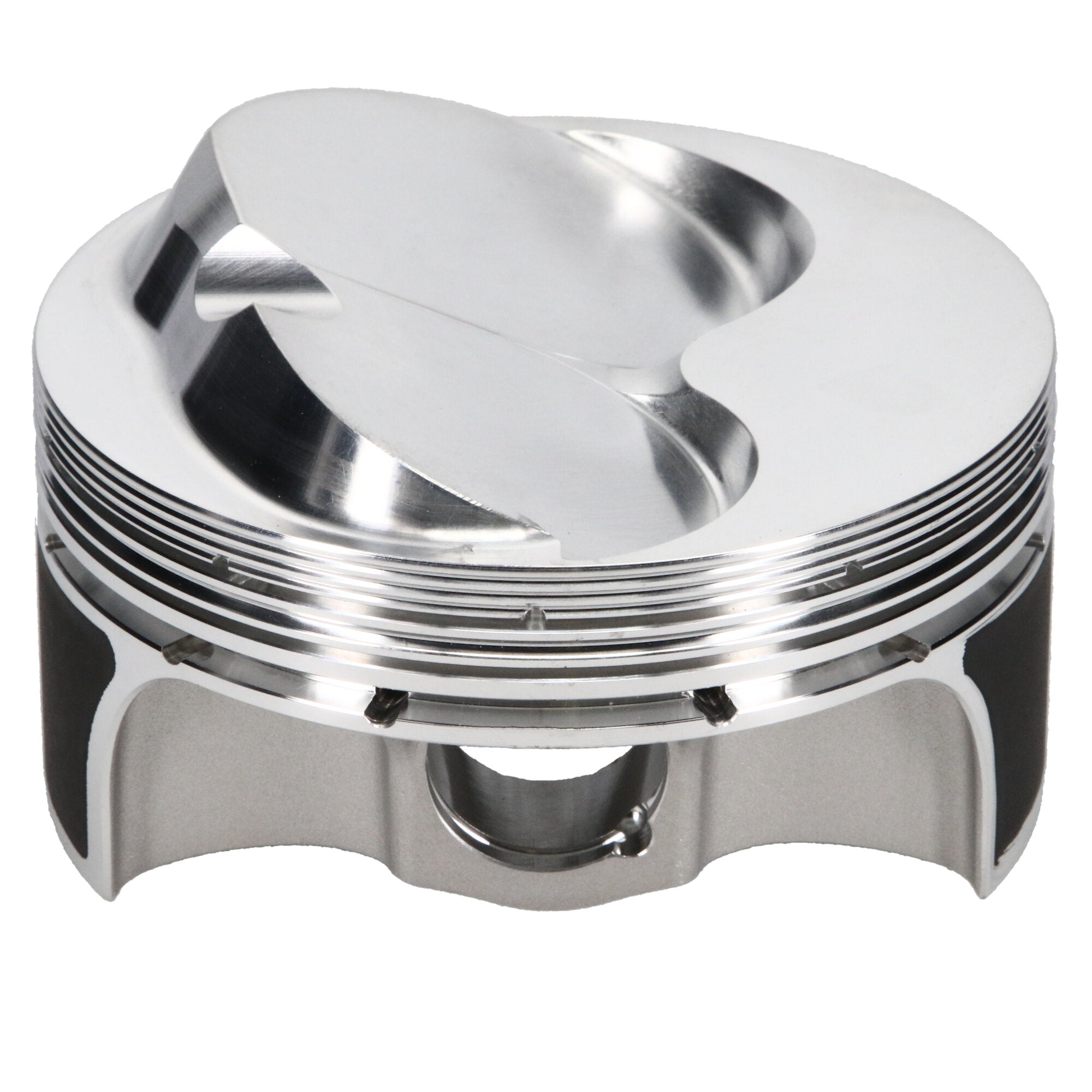

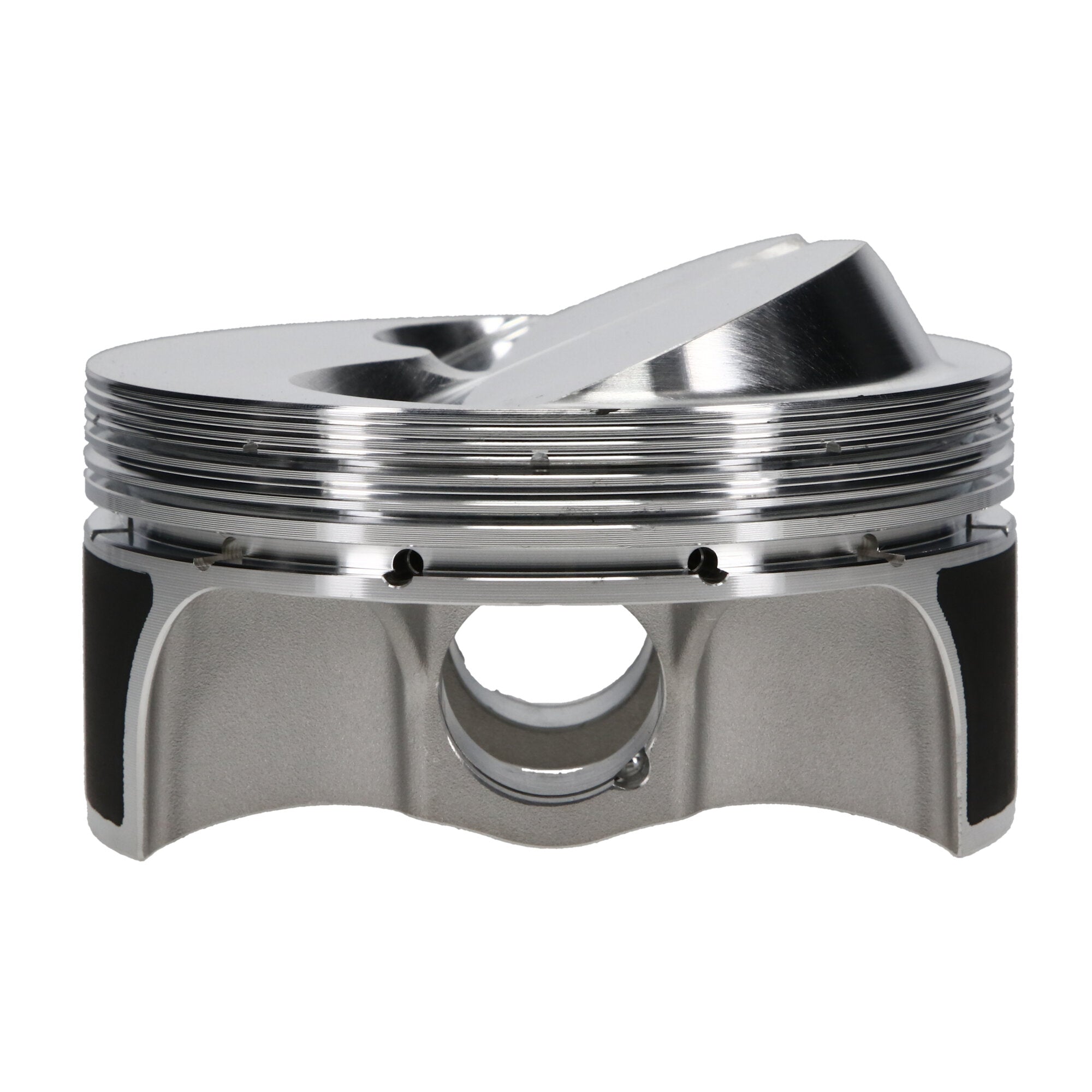

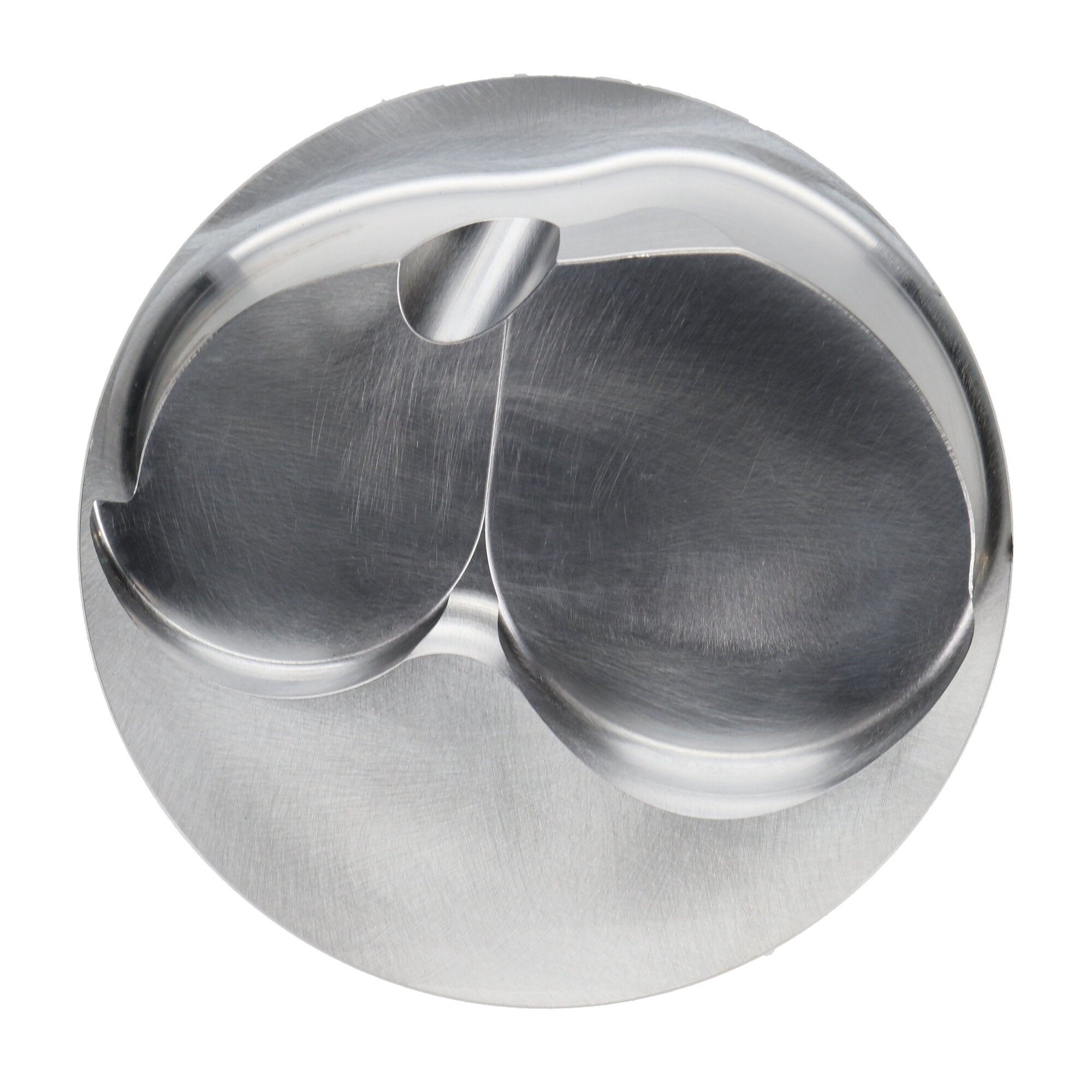

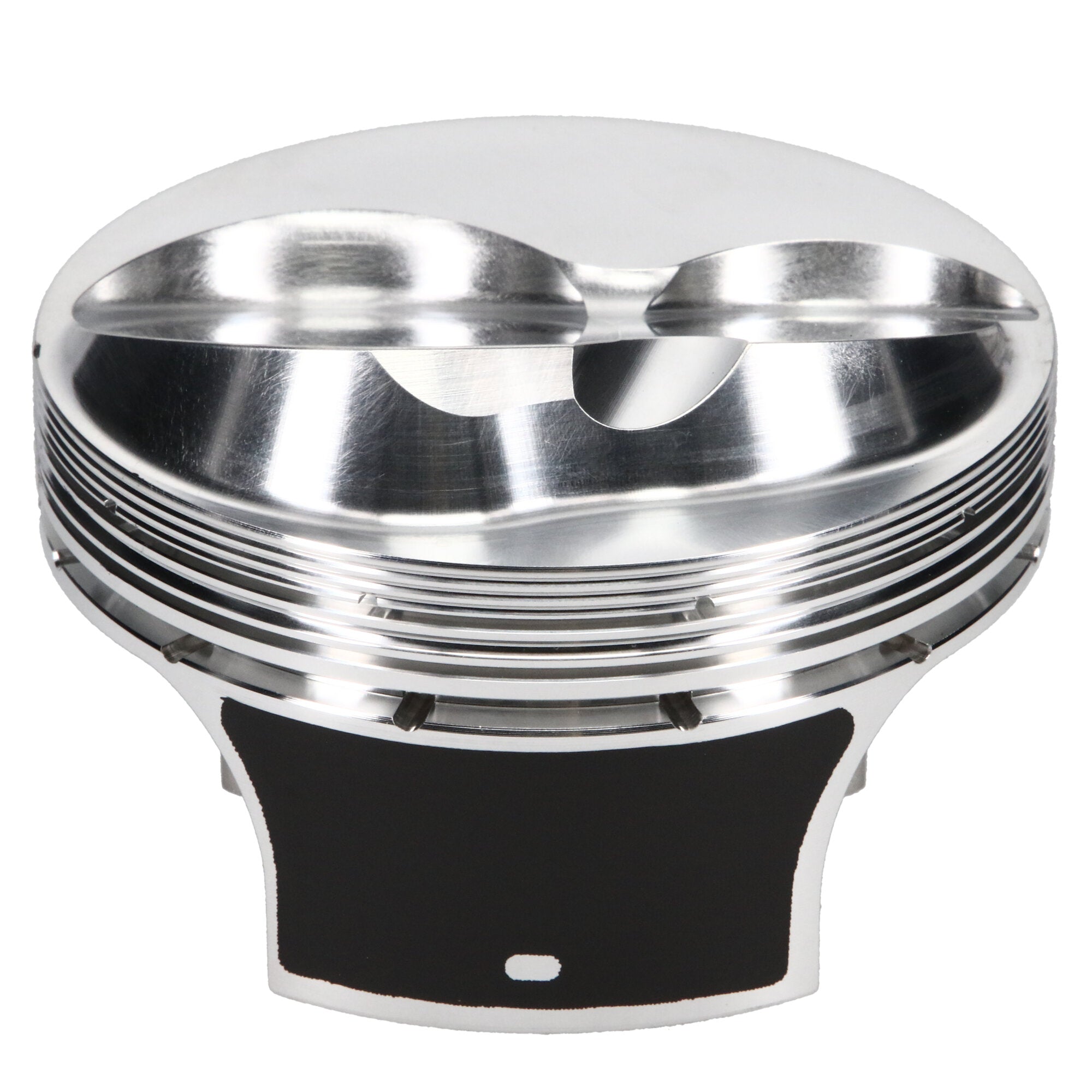

Piston Set, 2618, Dome, 4.135 Bore, 1.335 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.335 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 360 ASCS, 4.135 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Make - Web |
Chevrolet |
| Second Compression Ring Thickness |
0.0440 |
| Cylinder Head |
CHEVROLET 23 DEG 40/60 |
| Ringset Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Dome |
| Forging Type |
FSR |
| Add-On |
927-2250-17-51C |
| Top Compression Ring Thickness |
0.0435 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.170 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.1175 |
| Piston Series |
JE Pistons |
| Compression Height |
1.335 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.135 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Piston Quantity |
8 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.135 in. Bore - 1.335 in. CH, 7.00 CC |
| Add-On |
927-073-MW |
| Add-On |
JG77F8-4135-5 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Make |
CHEVROLET |
| Piston Volume |
7.00 |
| Piston Average Weight |
466 |
| Piston Pin Material |
5115 |
| Product Market |
Domestic |
| Bore Diameter |
4.135 |
| Engine |
Small Block |
| Wrist Pin Wall Thickness |
0.170 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
