As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 Brodix 11X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

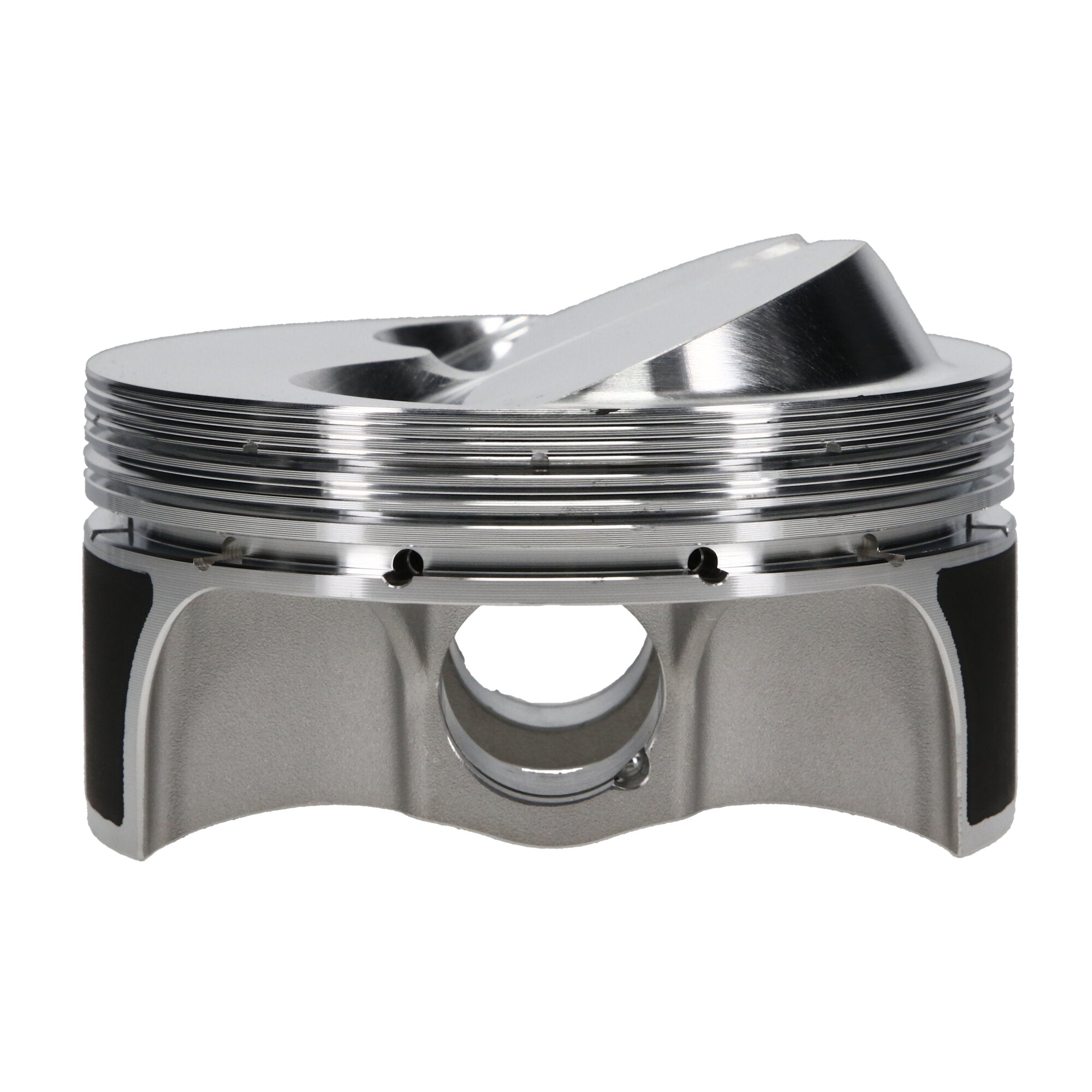

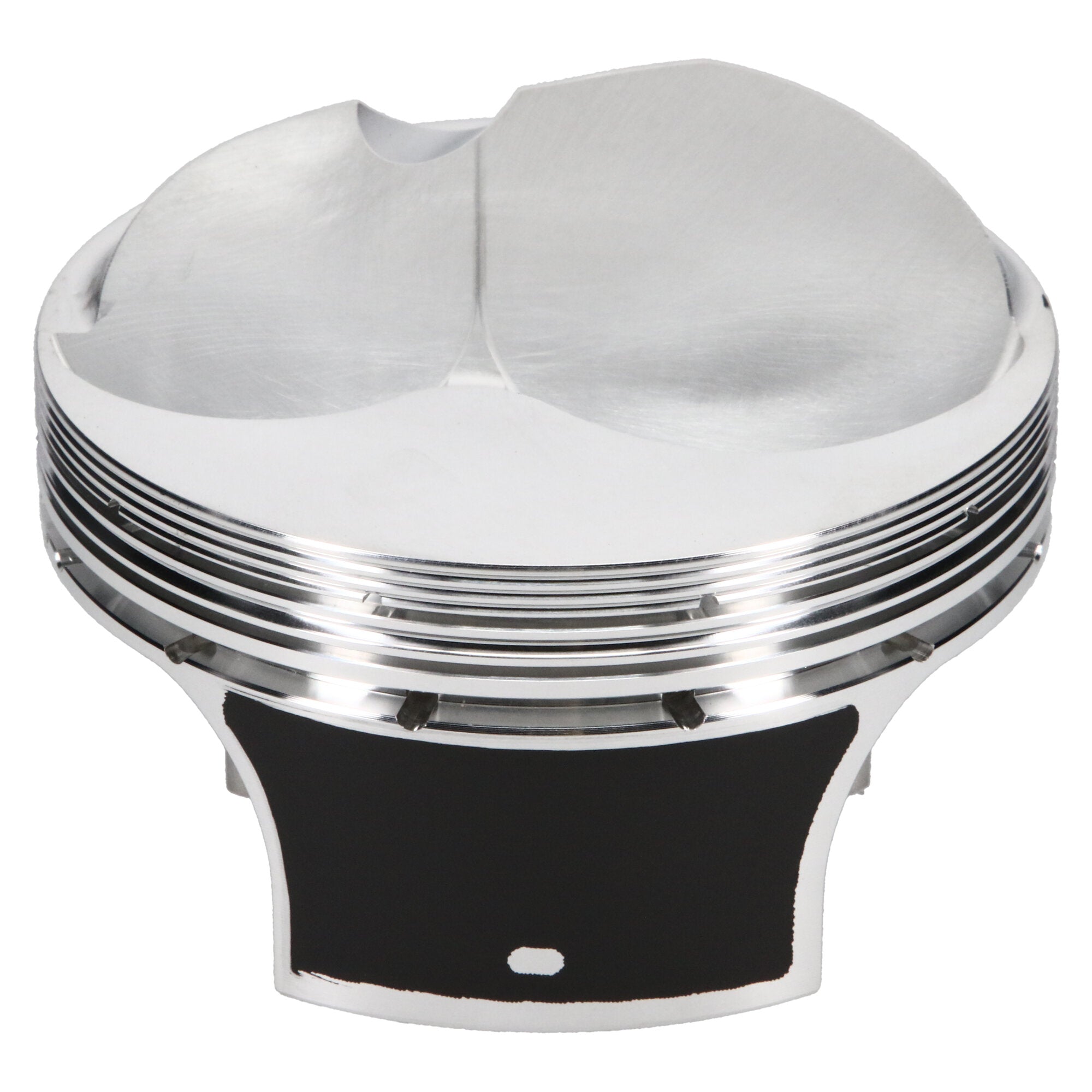

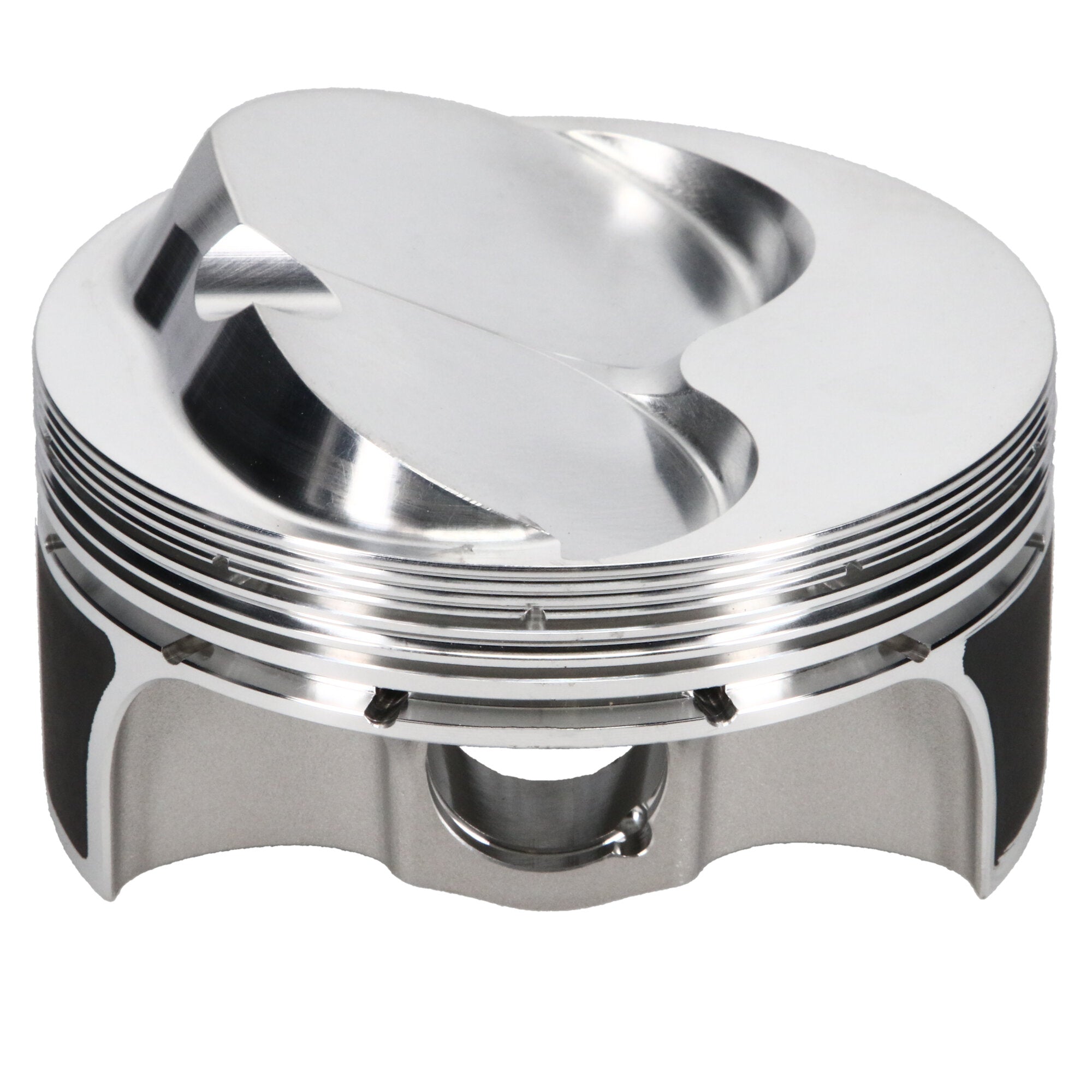

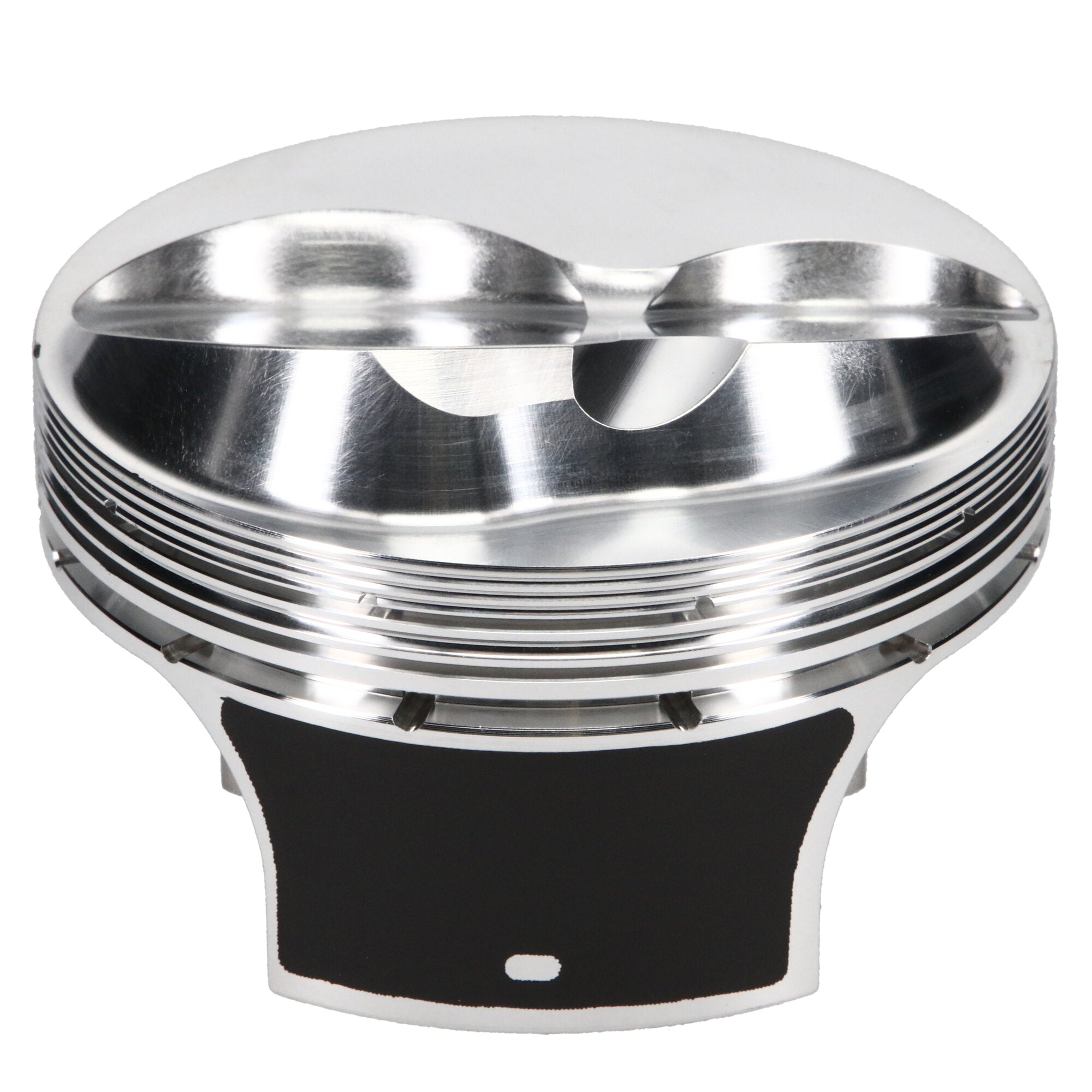

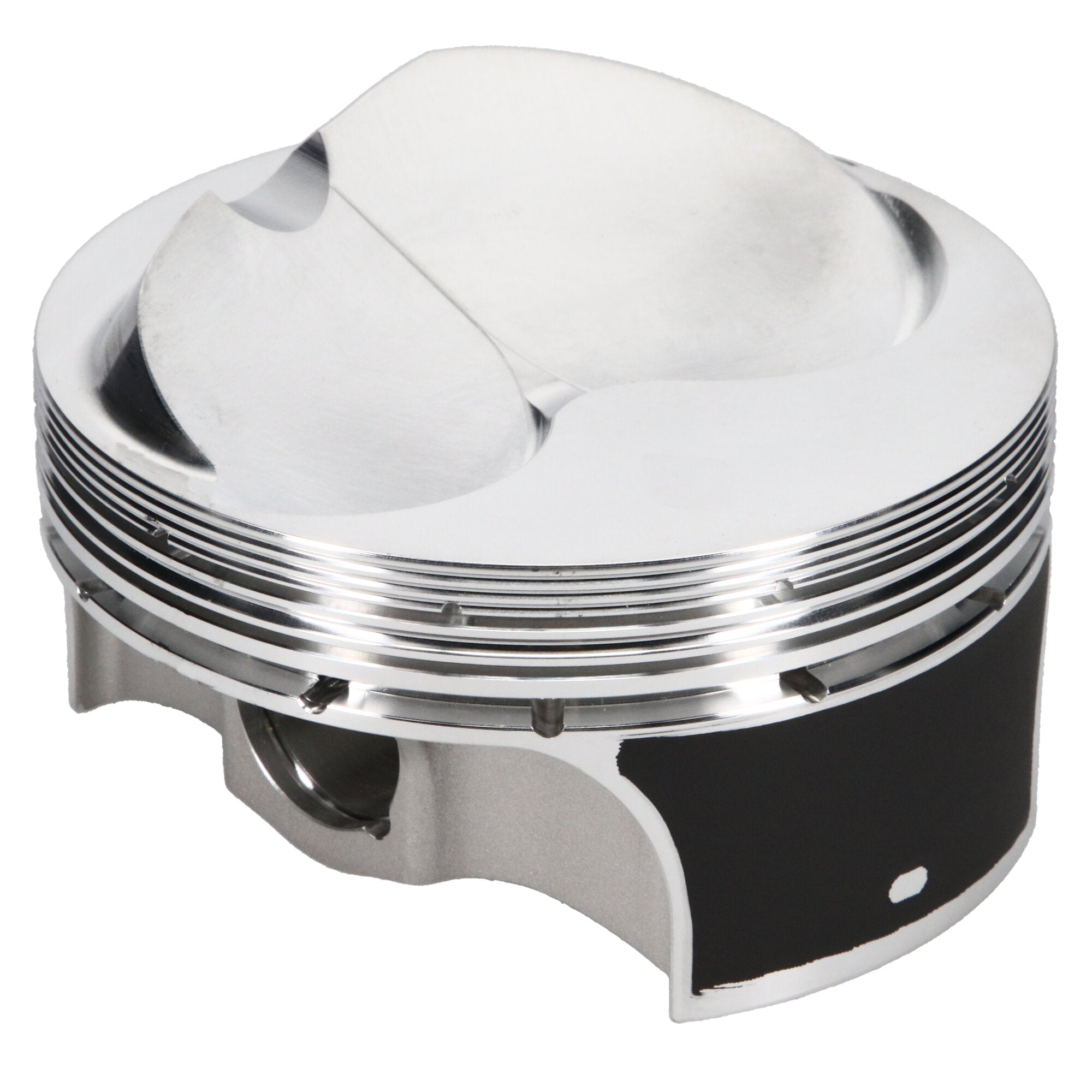

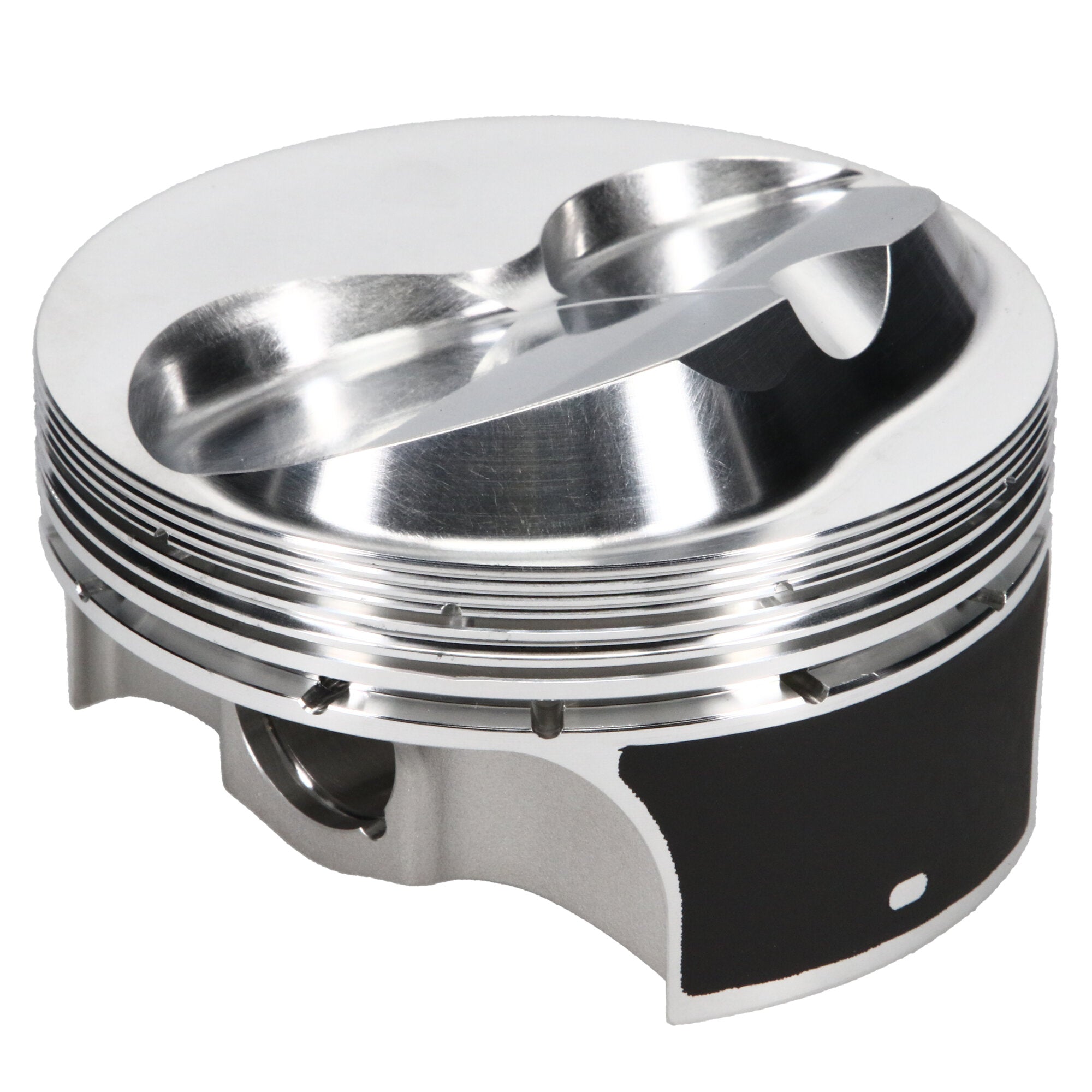

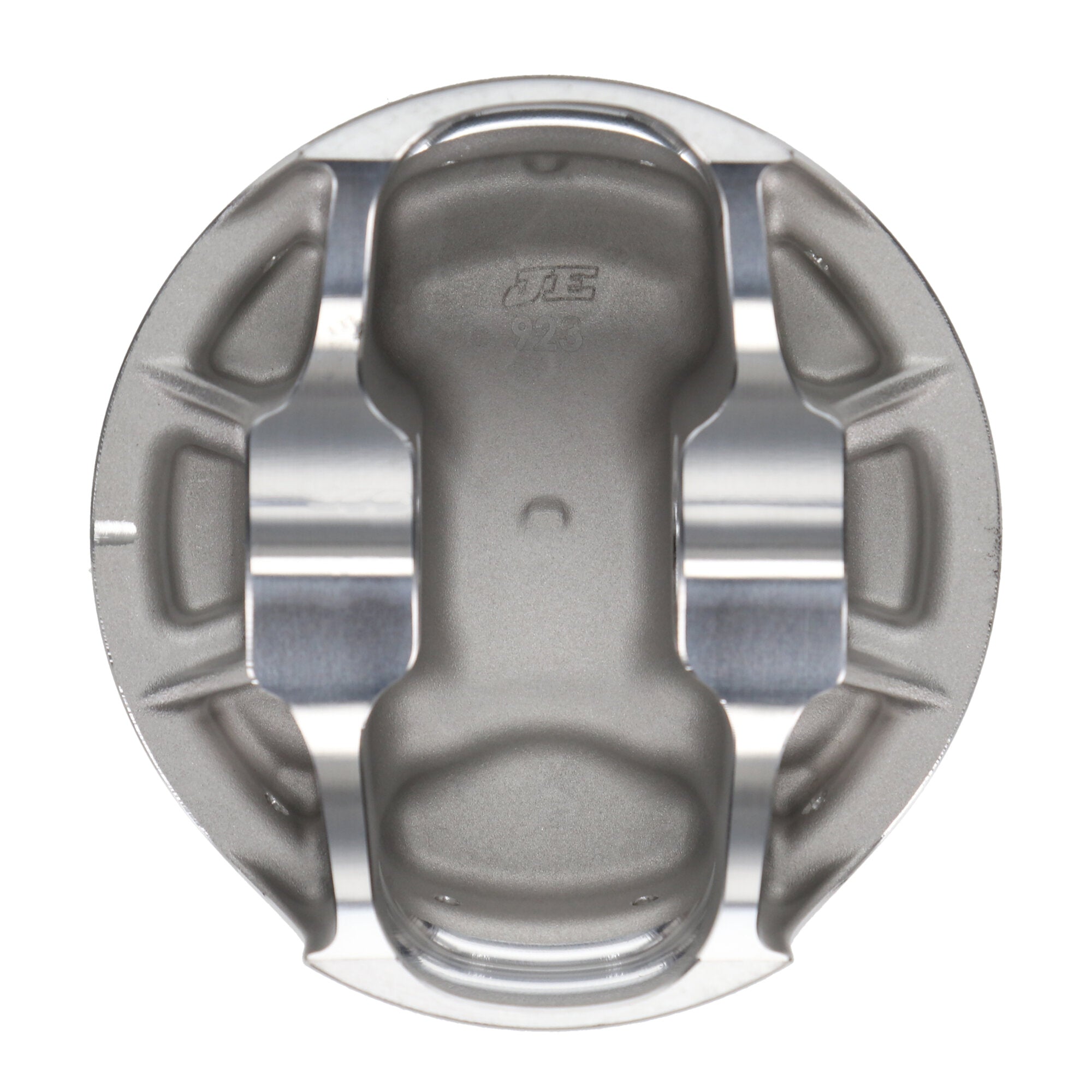

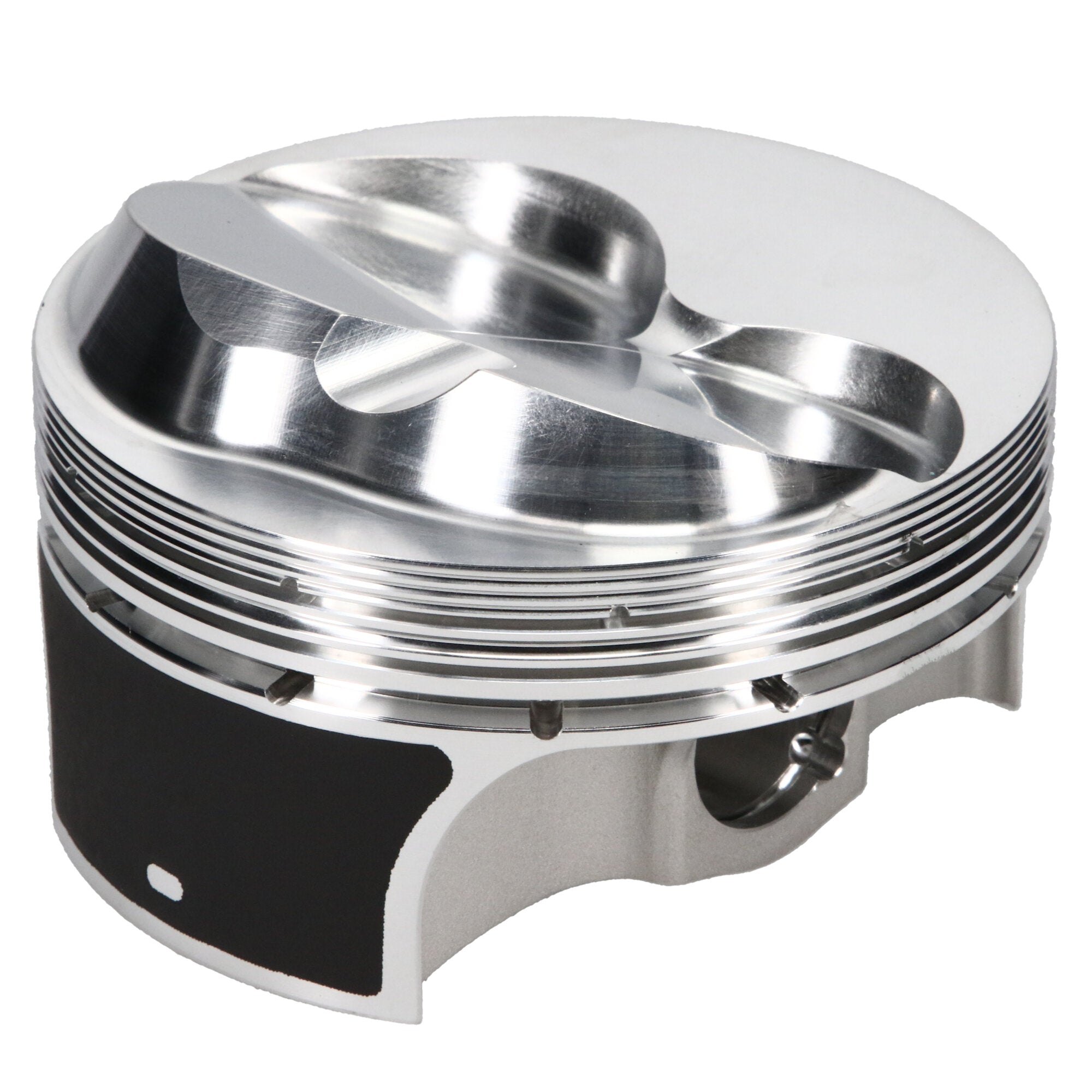

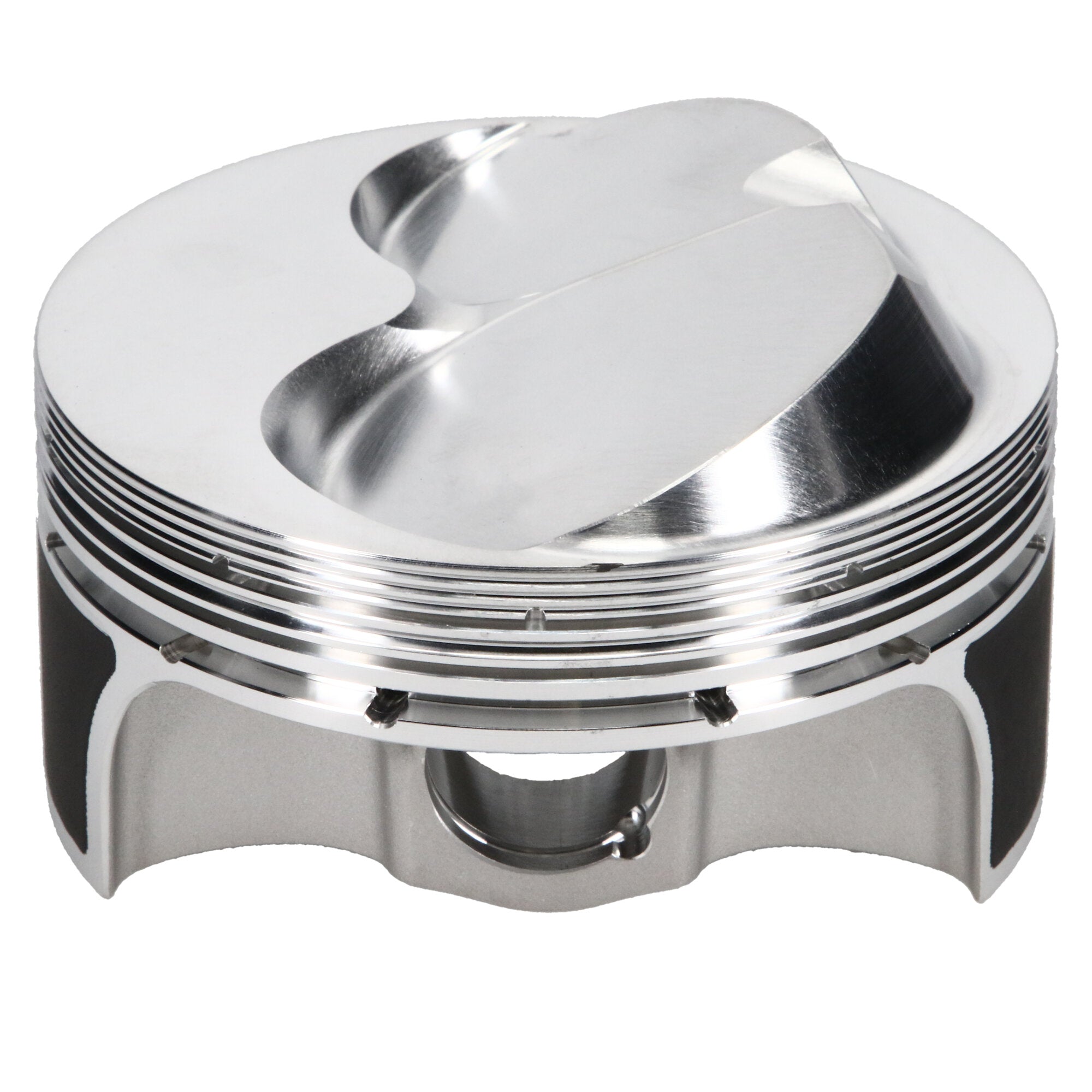

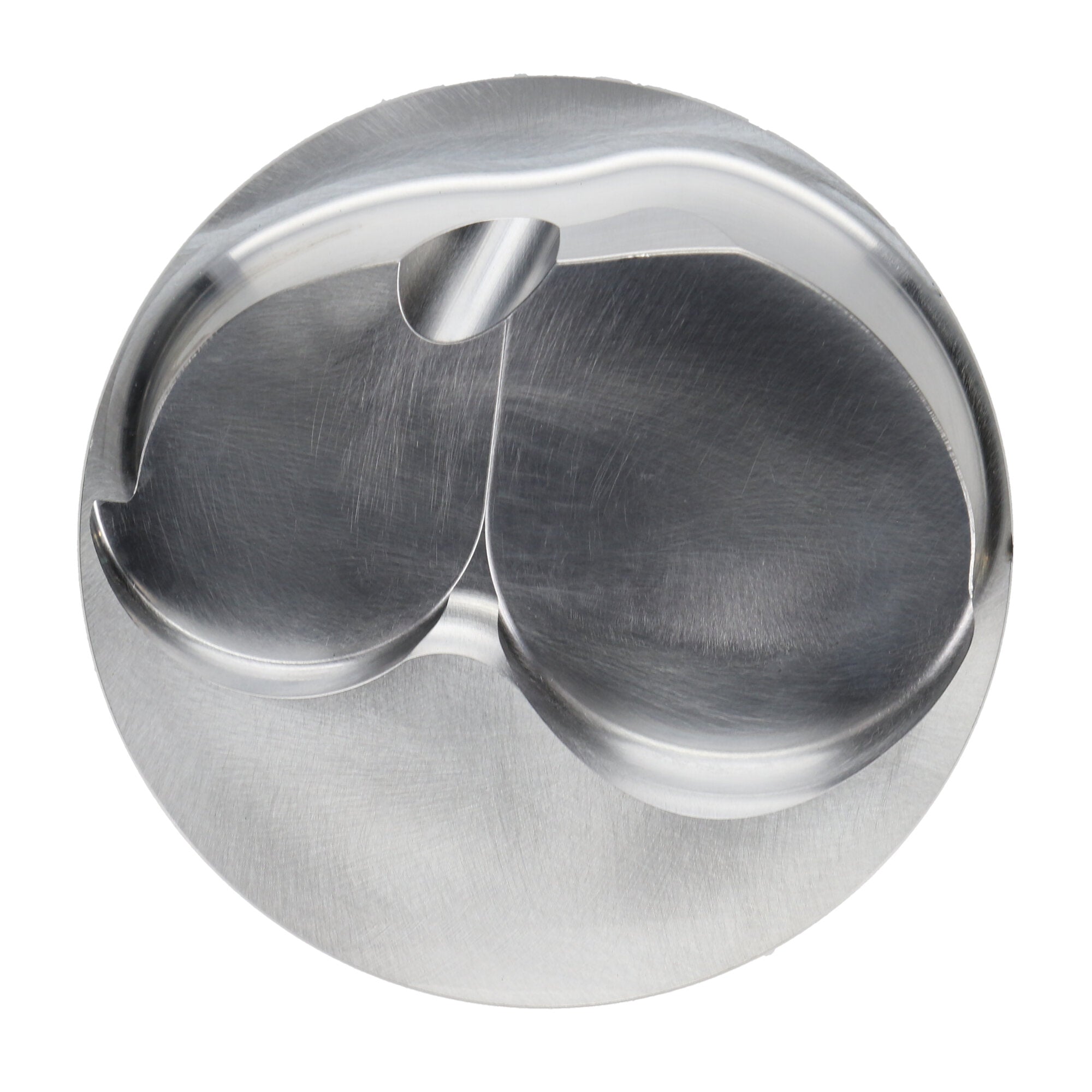

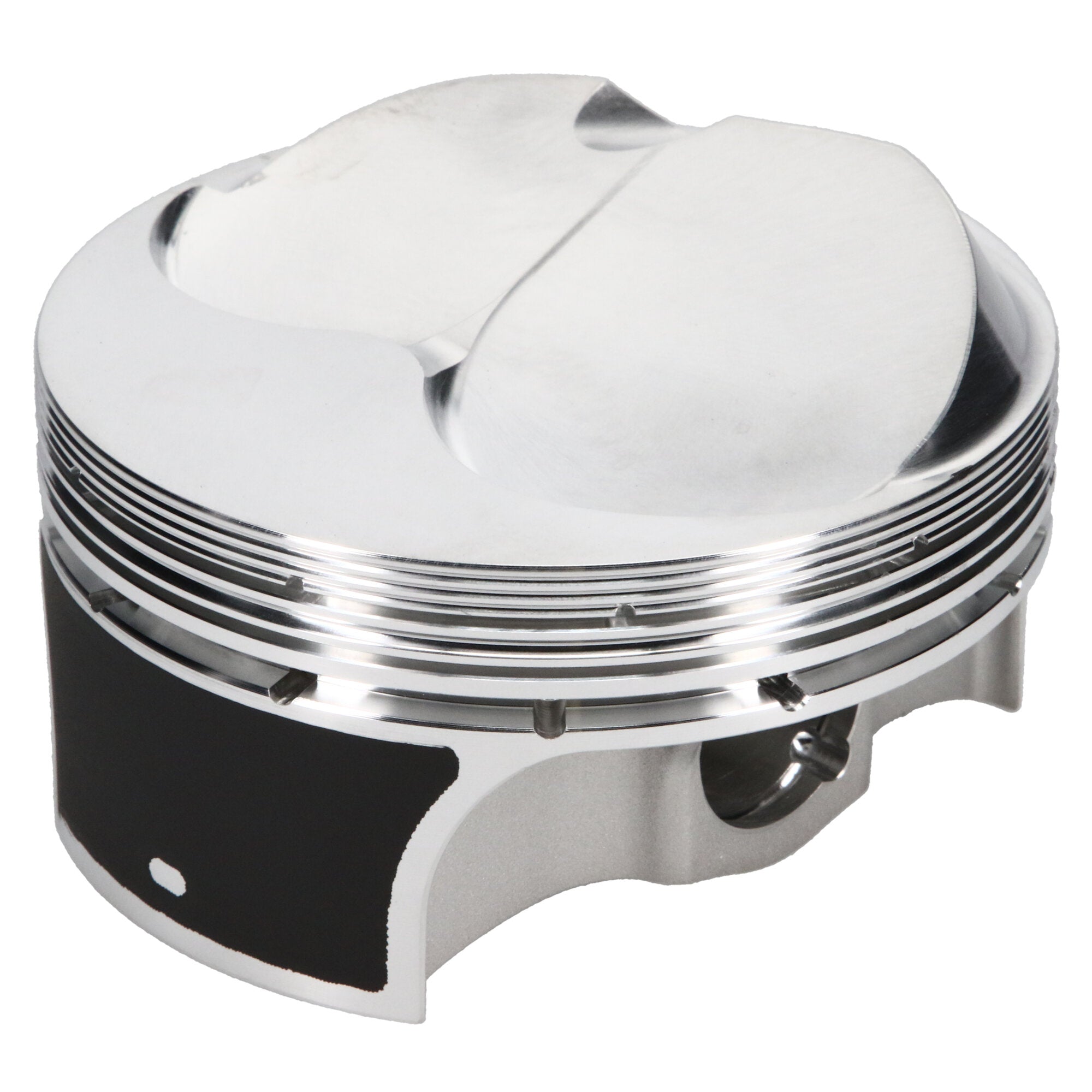

Piston Set, 2618, Dome, 4.135 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.125 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 23 DEG 40/60 |
| Add-On |
927-2250-17-51C |
| Piston Material |
2618 |
| Add-On |
JG77F8-4135-5 |
| Industry |
Automotive |
| Add-On |
927-073-MW |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Second Compression Ring Thickness |
0.0440 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.135 in. Bore - 1.125 in. CH, 7.00 CC |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Small Block |
| Forging Type |
FSR |
| Bore Diameter |
4.135 |
| Oil Ring Thickness |
0.1175 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Volume |
7.00 |
| Piston Pin Material |
5115 |
| Compression Height |
1.125 |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.170 |
| Product Market |
Domestic |
| Title |
JE Pistons - Chevrolet, Small Block, 4.135 in. Bore, Piston Kit |
| Piston Quantity |
8 |
| Piston Average Weight |
453 |
| Make |
CHEVROLET |
| Top Compression Ring Thickness |
0.0435 |
| Piston Head Type |
Dome |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.927 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.170 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
