As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 Brodix 11X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

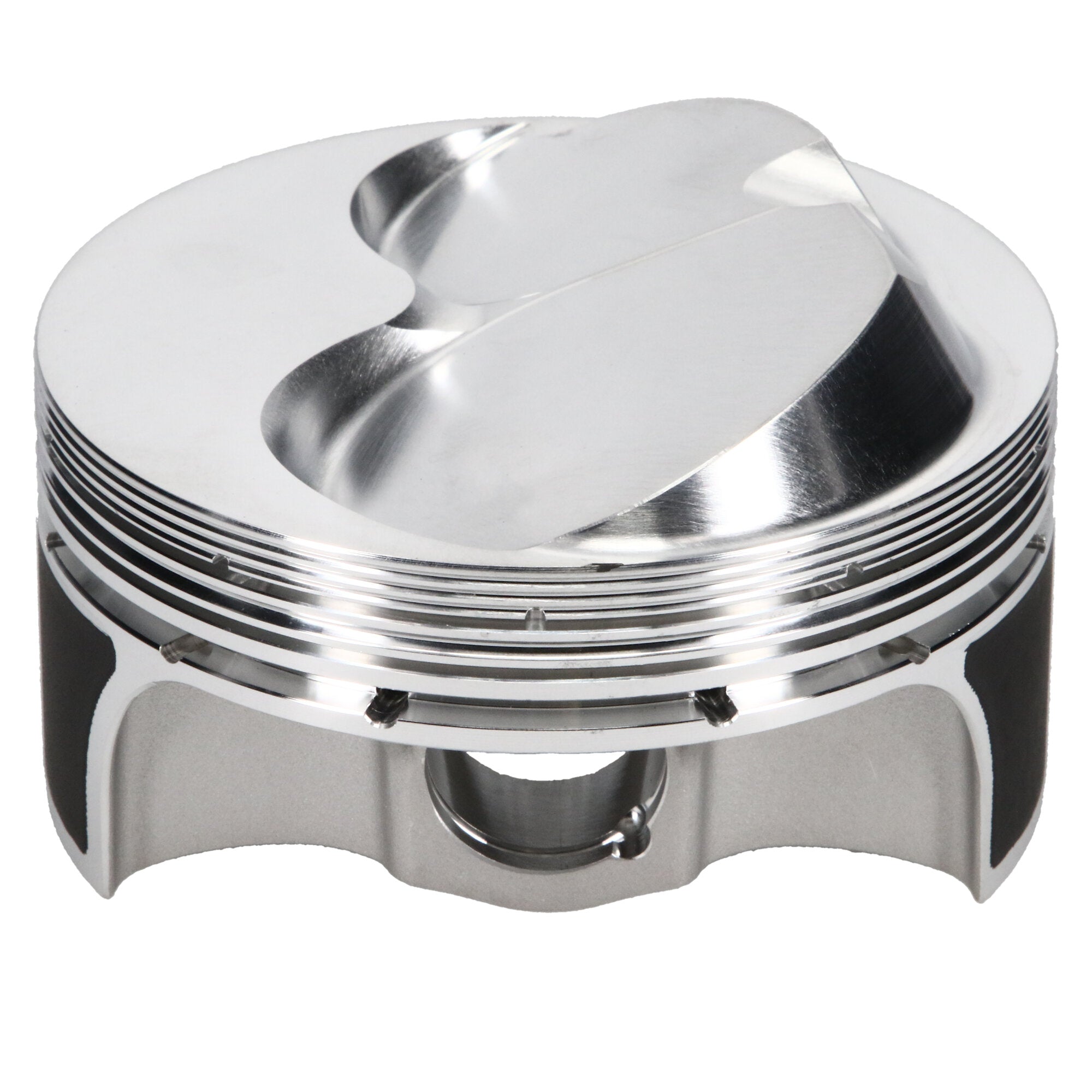

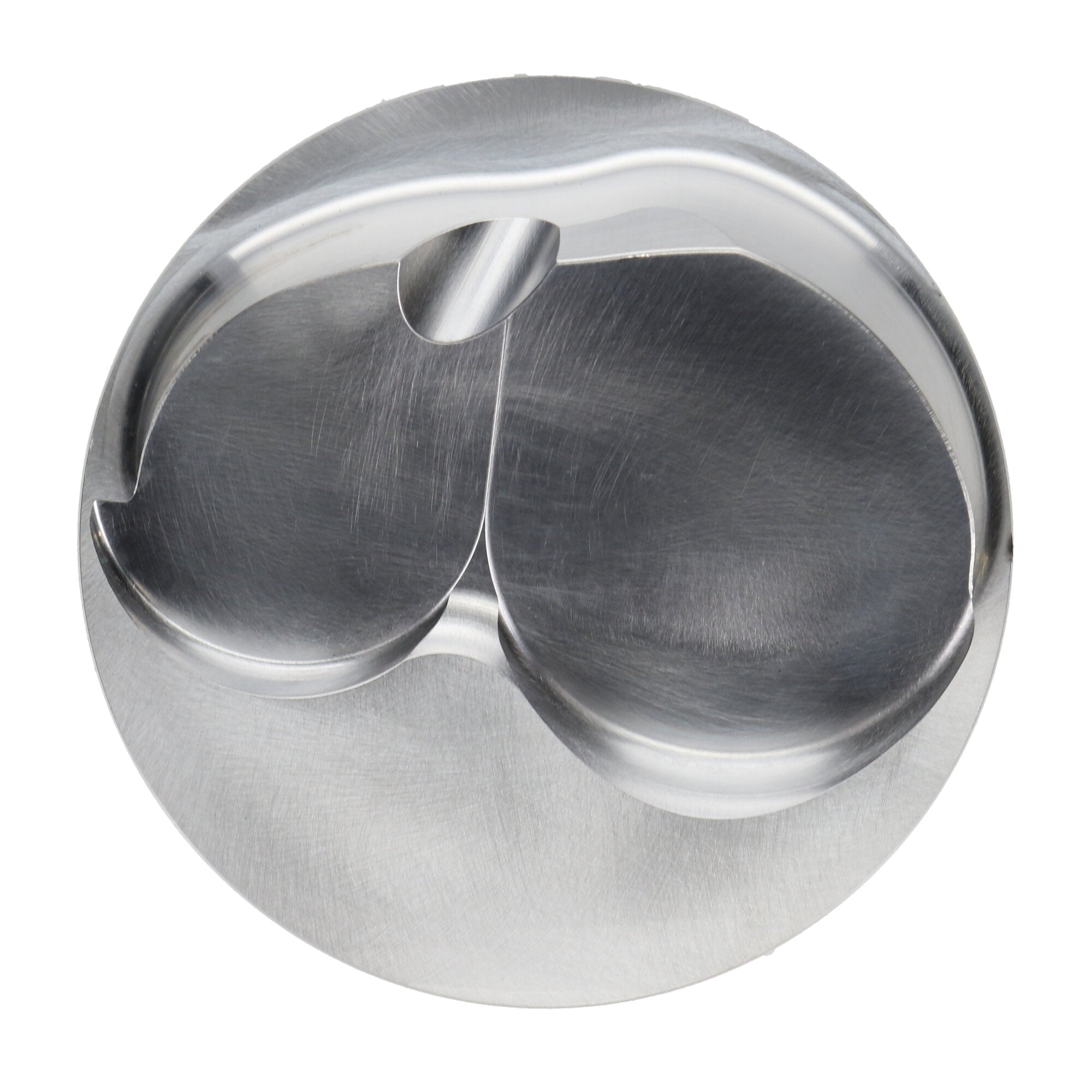

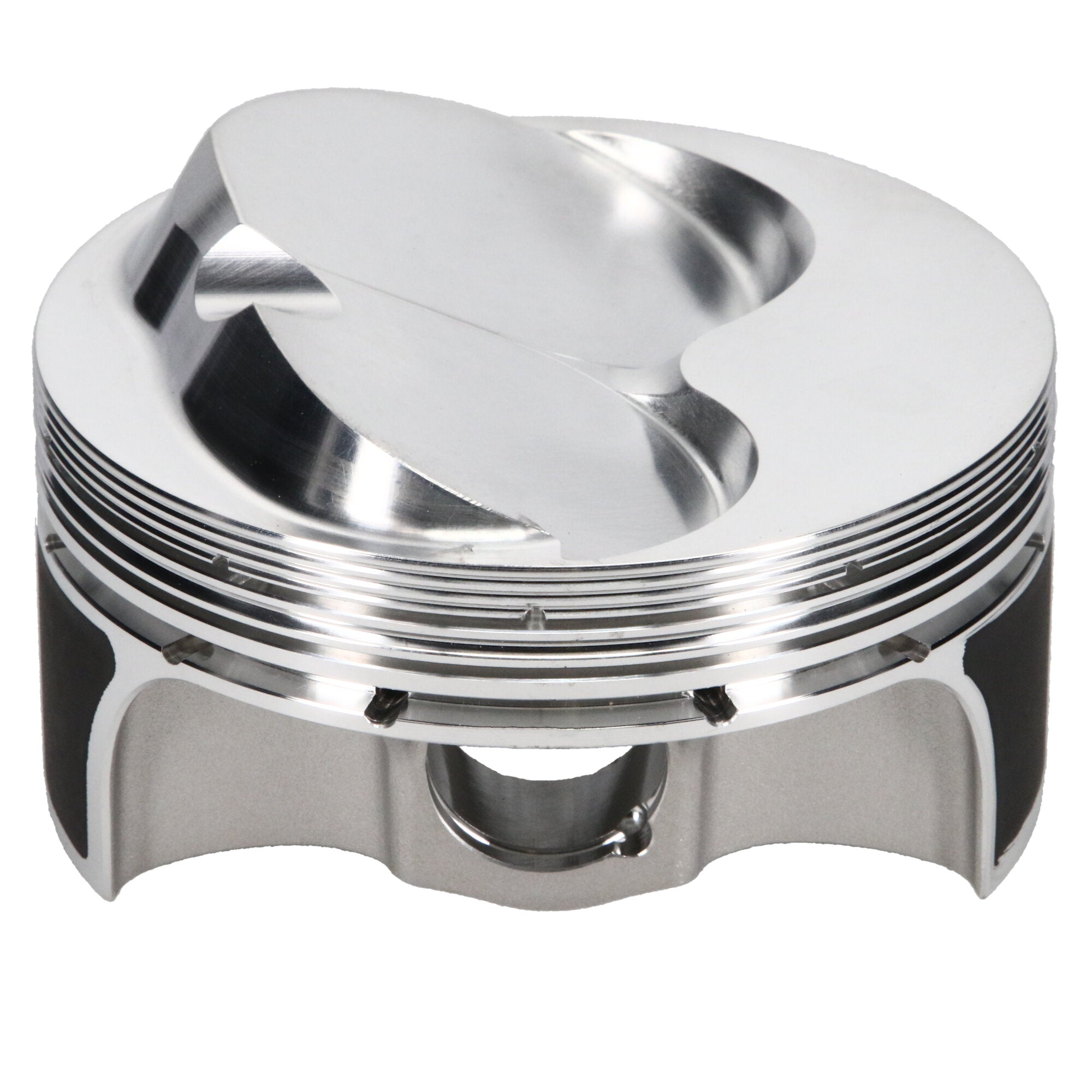

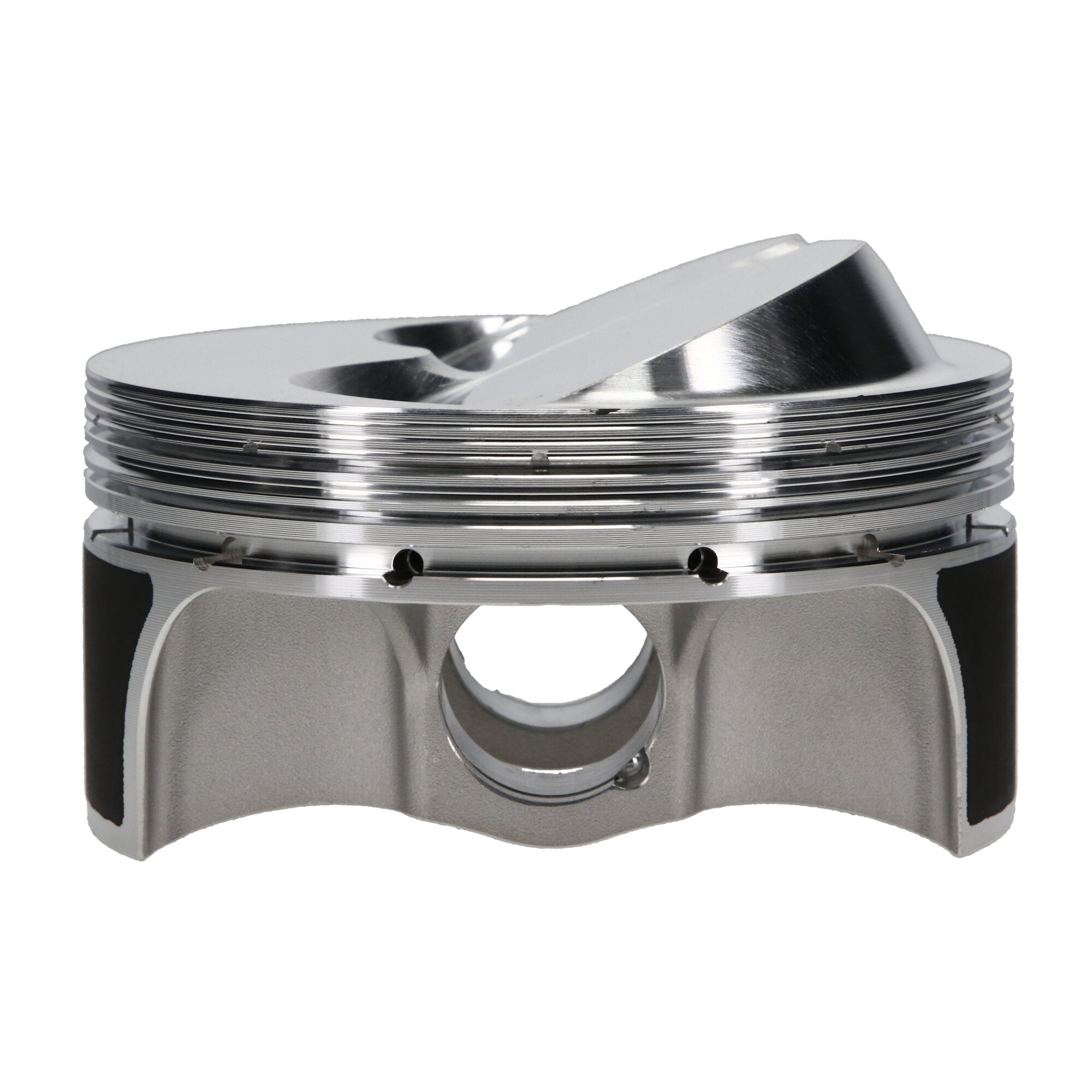

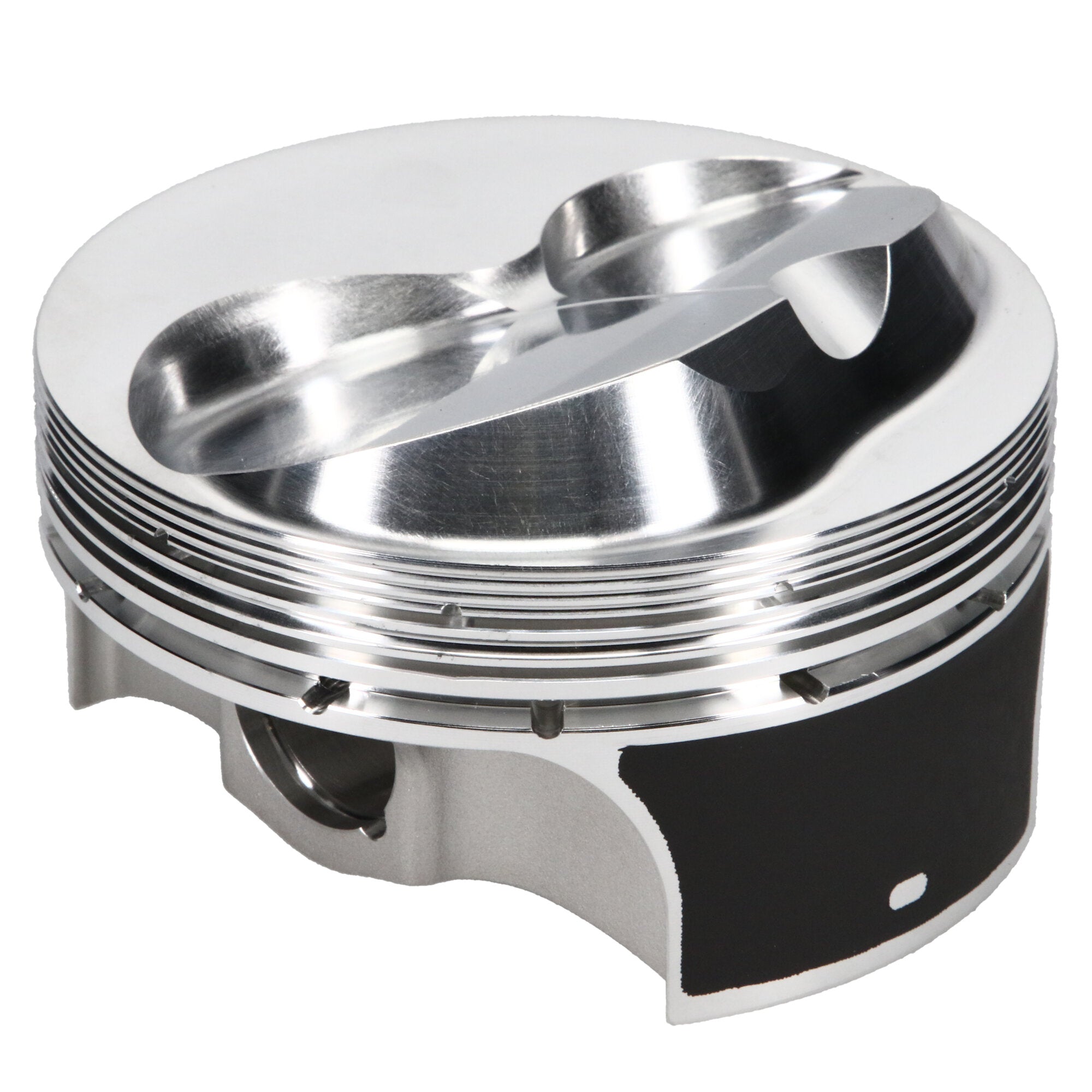

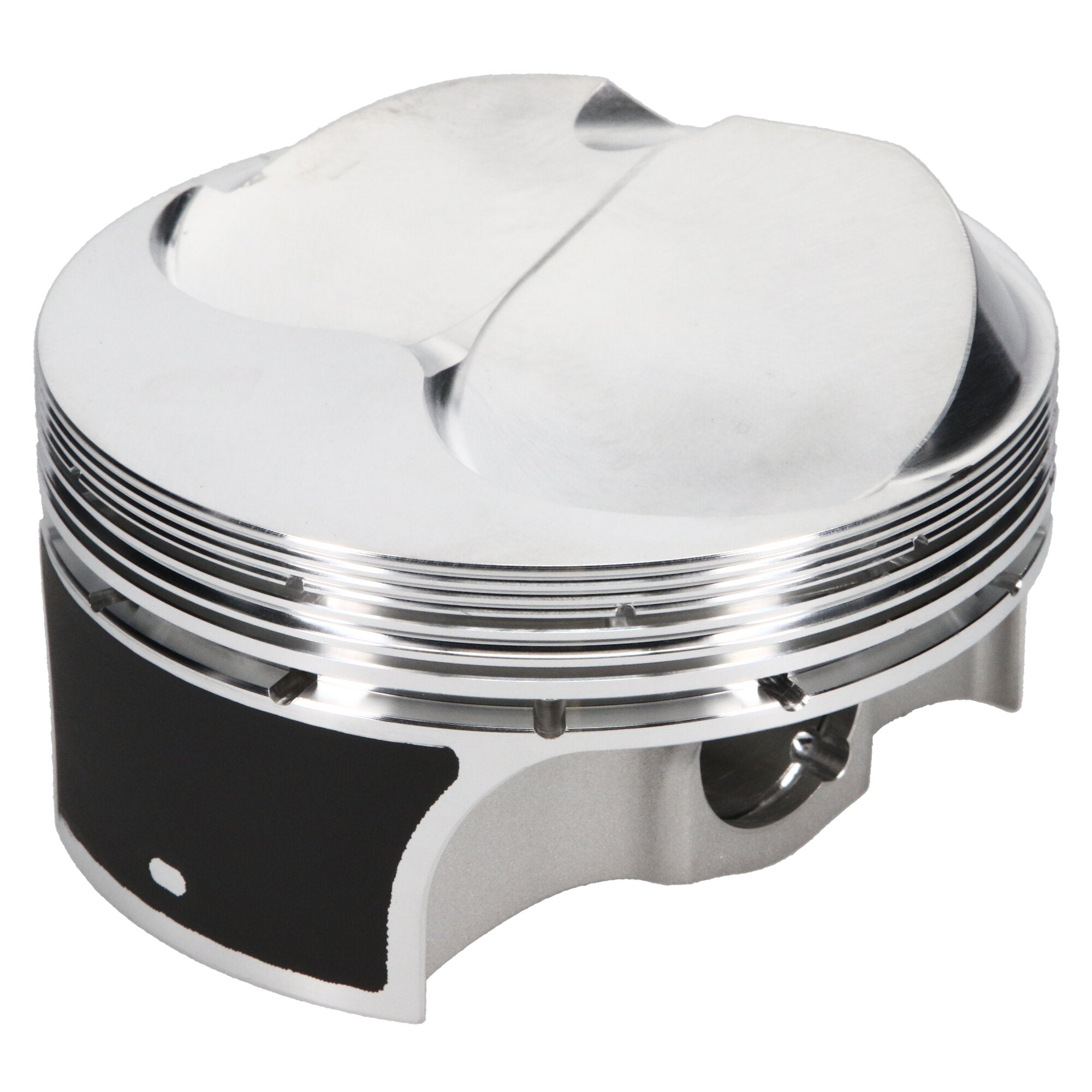

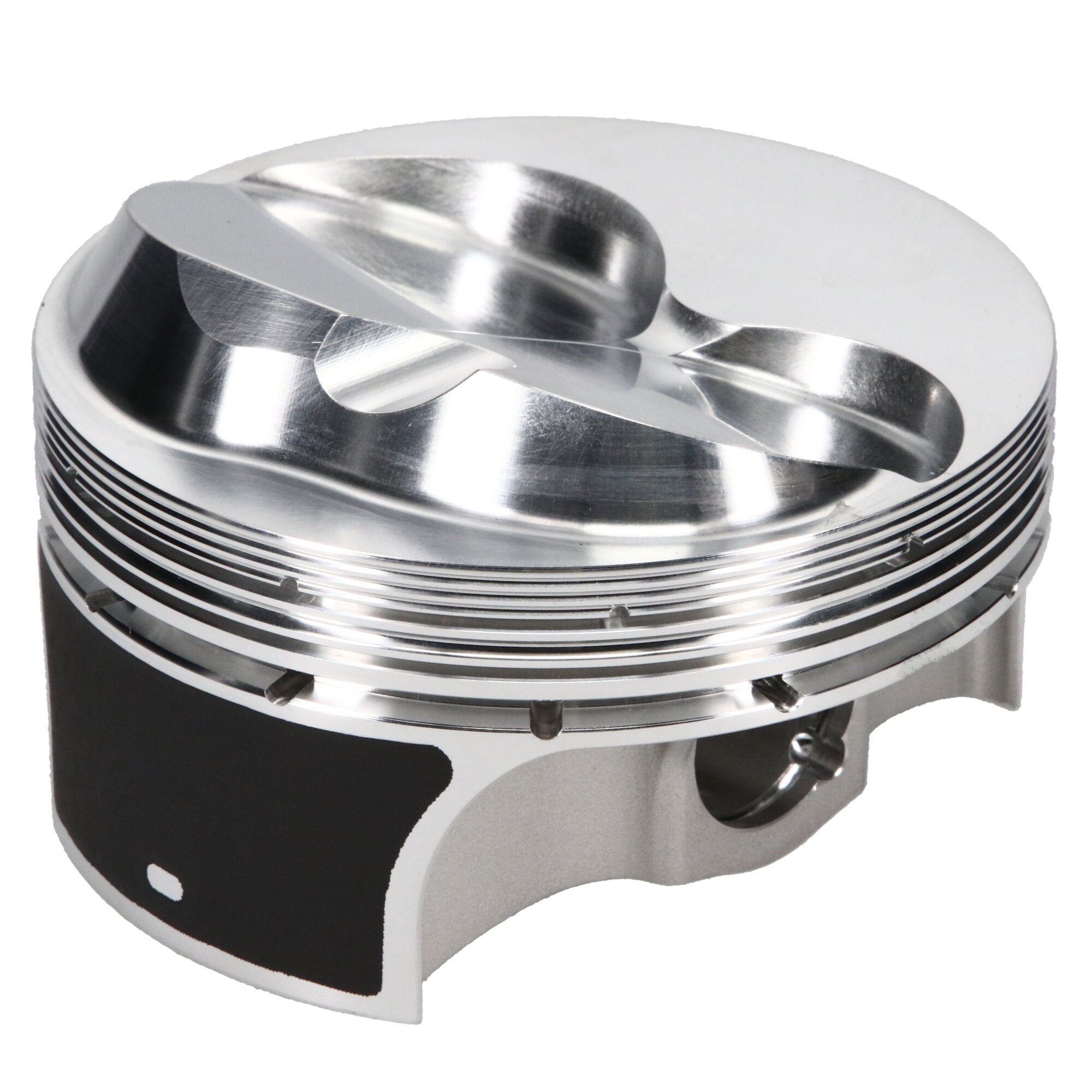

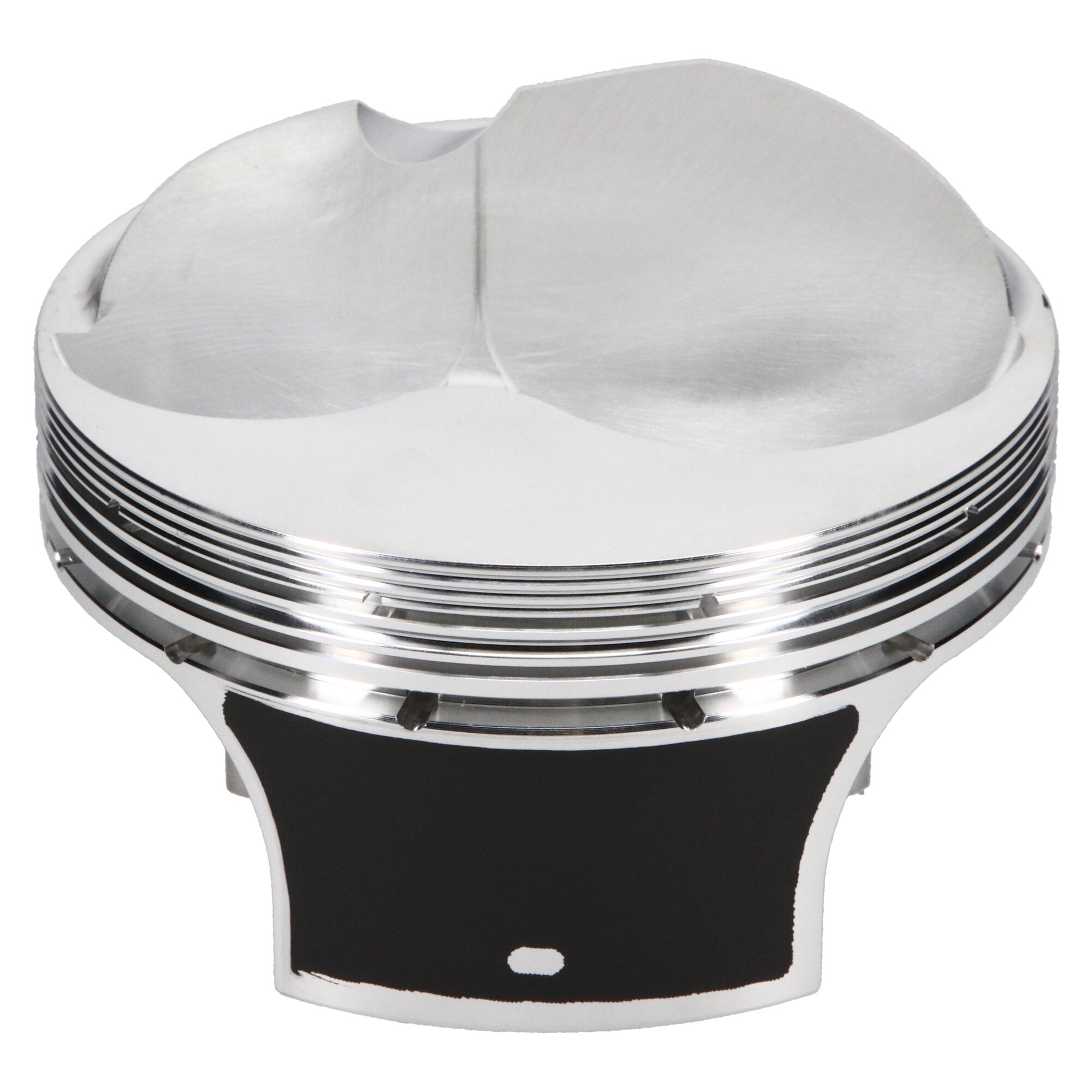

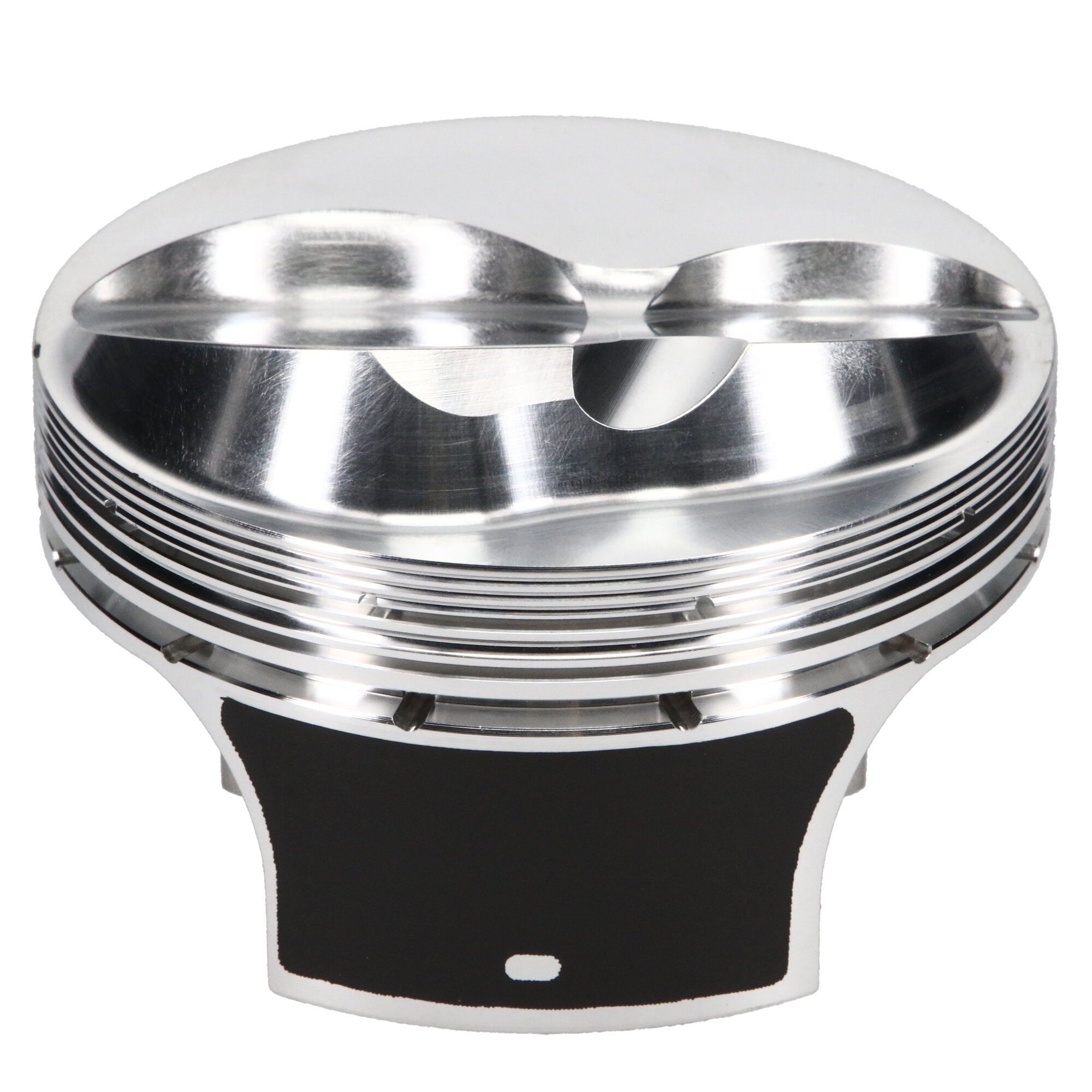

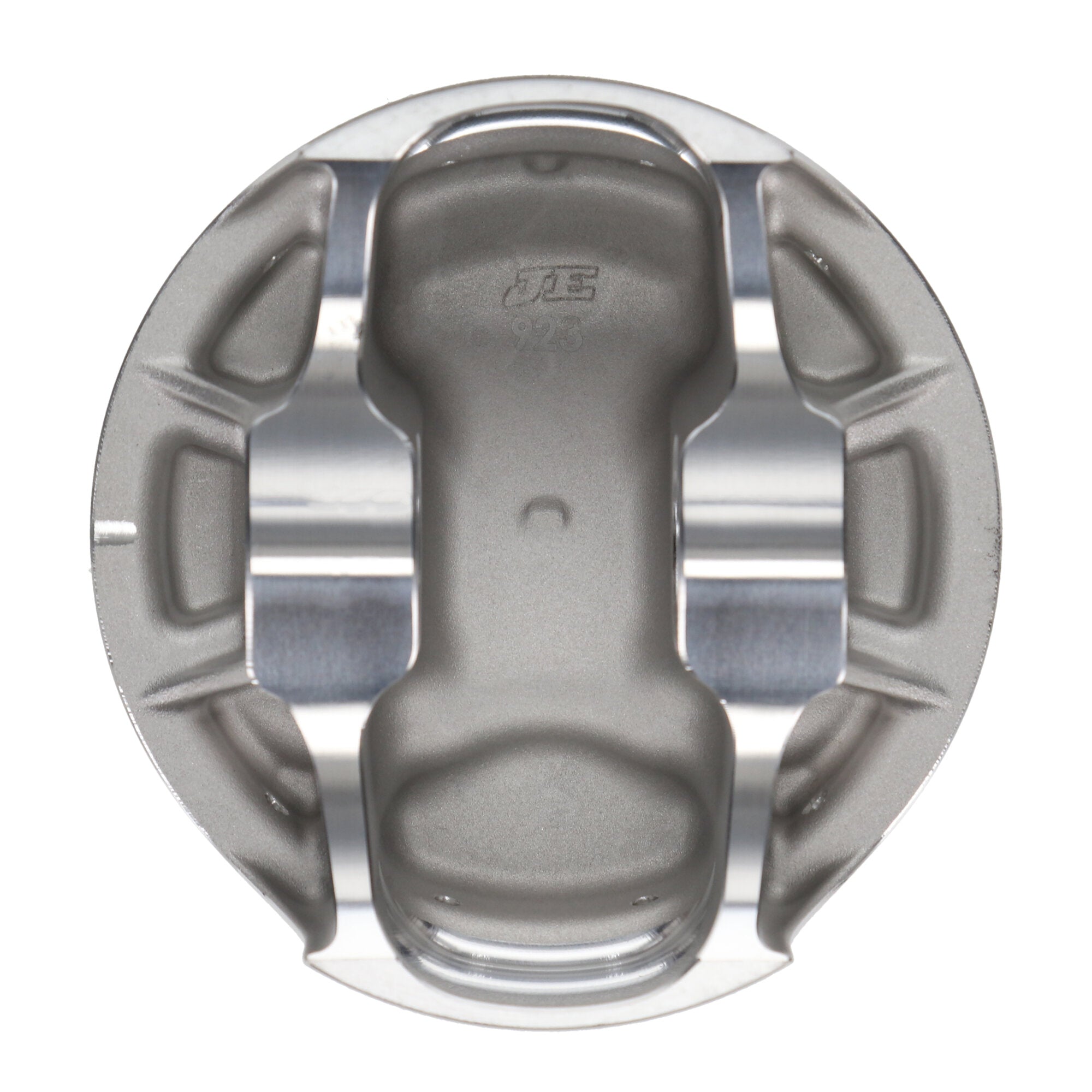

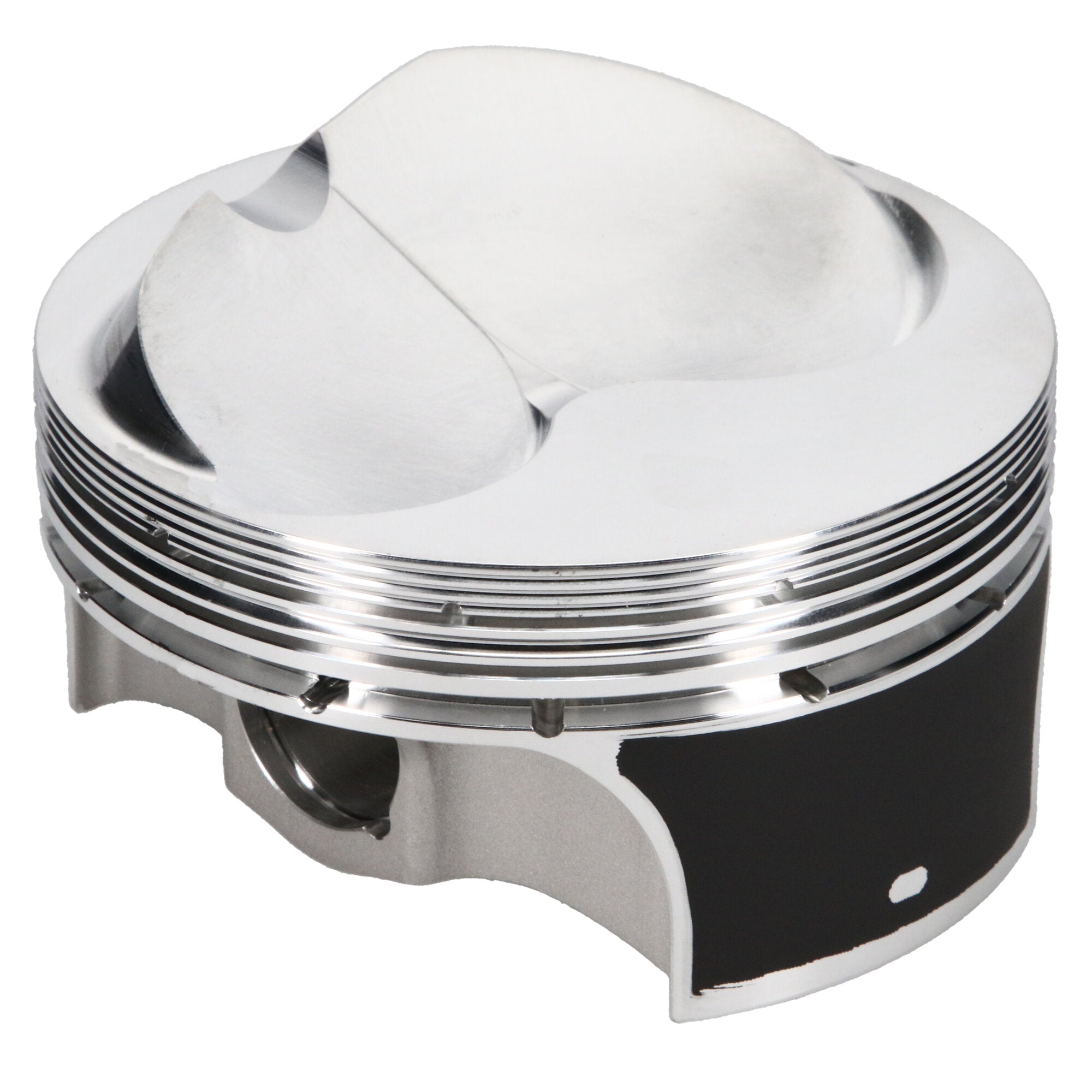

Piston Set, 2618, Dome, 4.145 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.145 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400, 4.145 Bore, Dome, Set of 8 |
| Ringset Included |
No |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-2250-17-51C |
| Engine |
Small Block |
| Add-On |
927-073-MW |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Add-On |
JG7708-4145-5 |
| Second Compression Ring Thickness |
0.0440 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Industry |
Automotive |
| Cylinder Head |
CHEVROLET 23 DEG 40/60 |
| Piston Material |
2618 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.1175 |
| Piston Volume |
7.00 |
| Piston Average Weight |
451 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.145 in. Bore - 1.100 in. CH, 7.00 CC |
| Top Compression Ring Thickness |
0.0435 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Pin Wall Thickness |
0.170 |
| Product Market |
Domestic |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Title |
JE Pistons - Chevrolet, Small Block, 4.145 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Make |
CHEVROLET |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.170 |
| Compression Height |
1.100 |
| Bore Diameter |
4.145 |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
