As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 Brodix 11X |
| Description_DES |

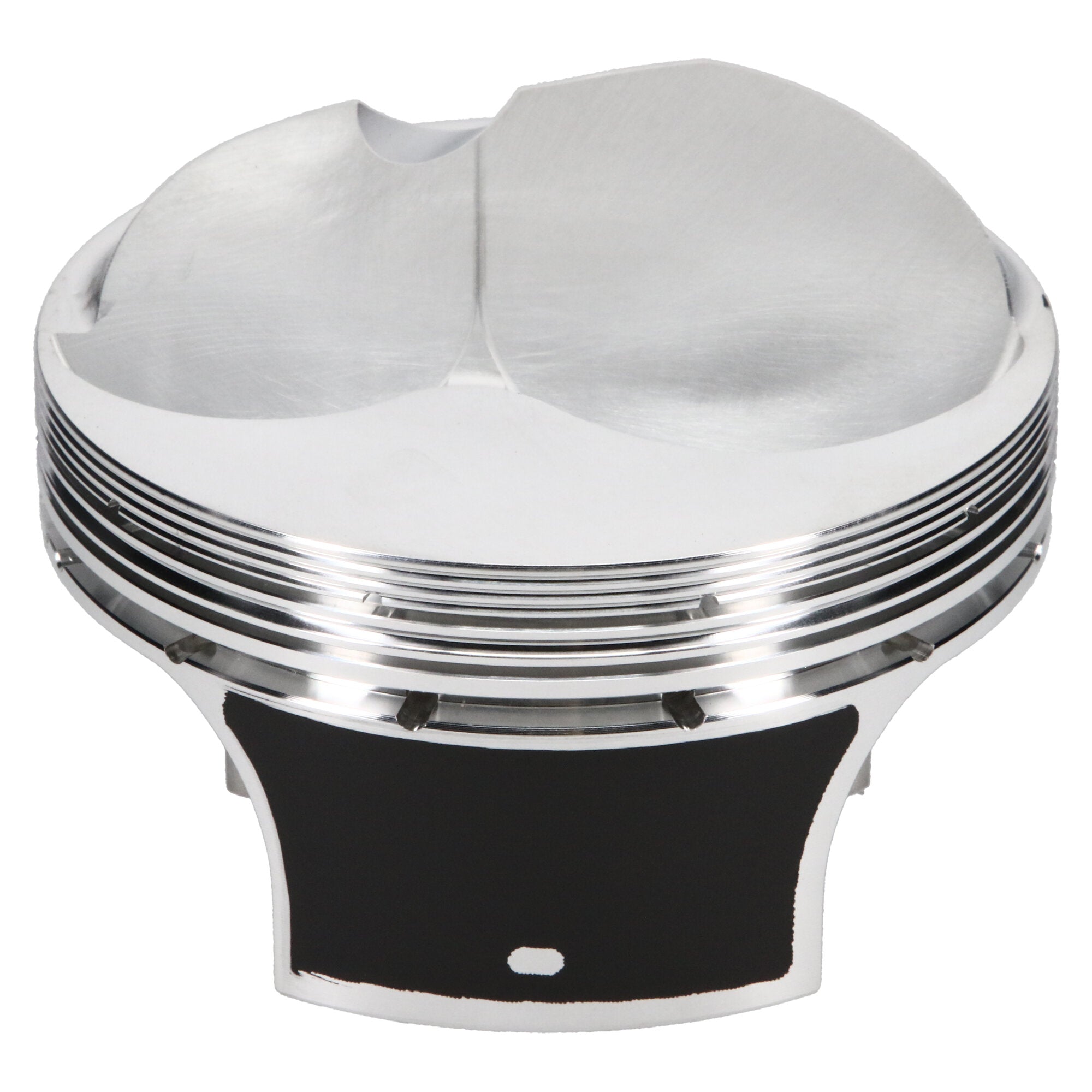

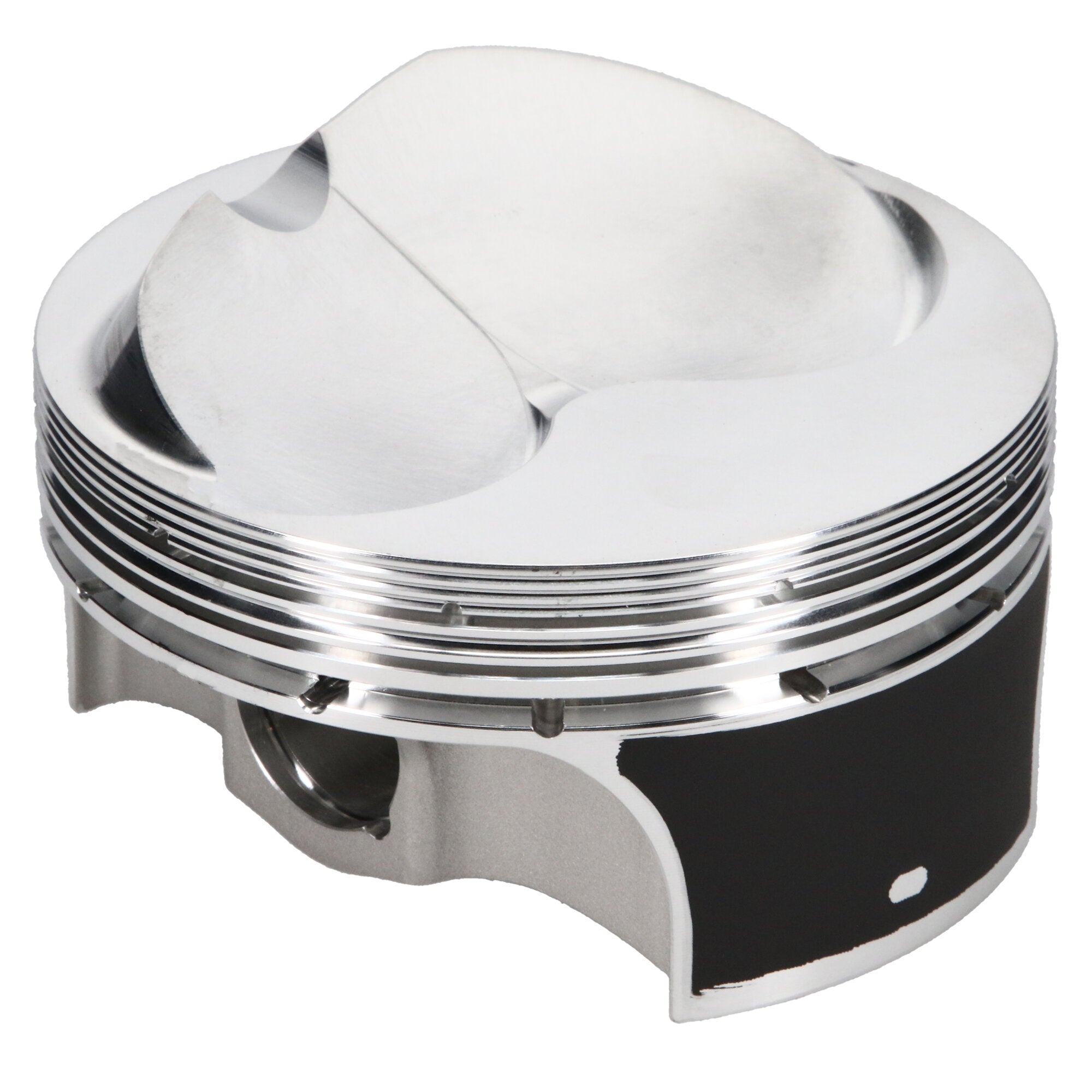

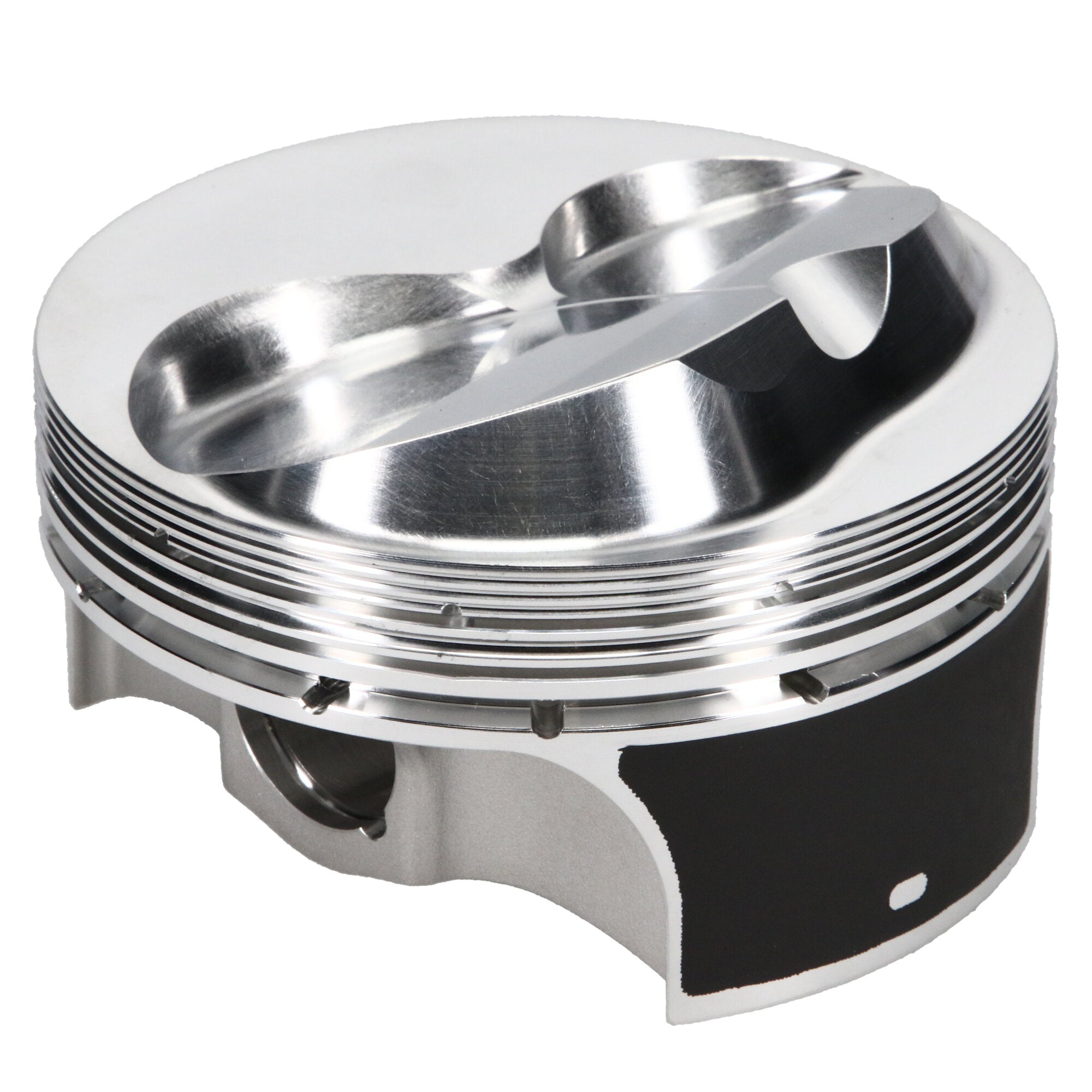

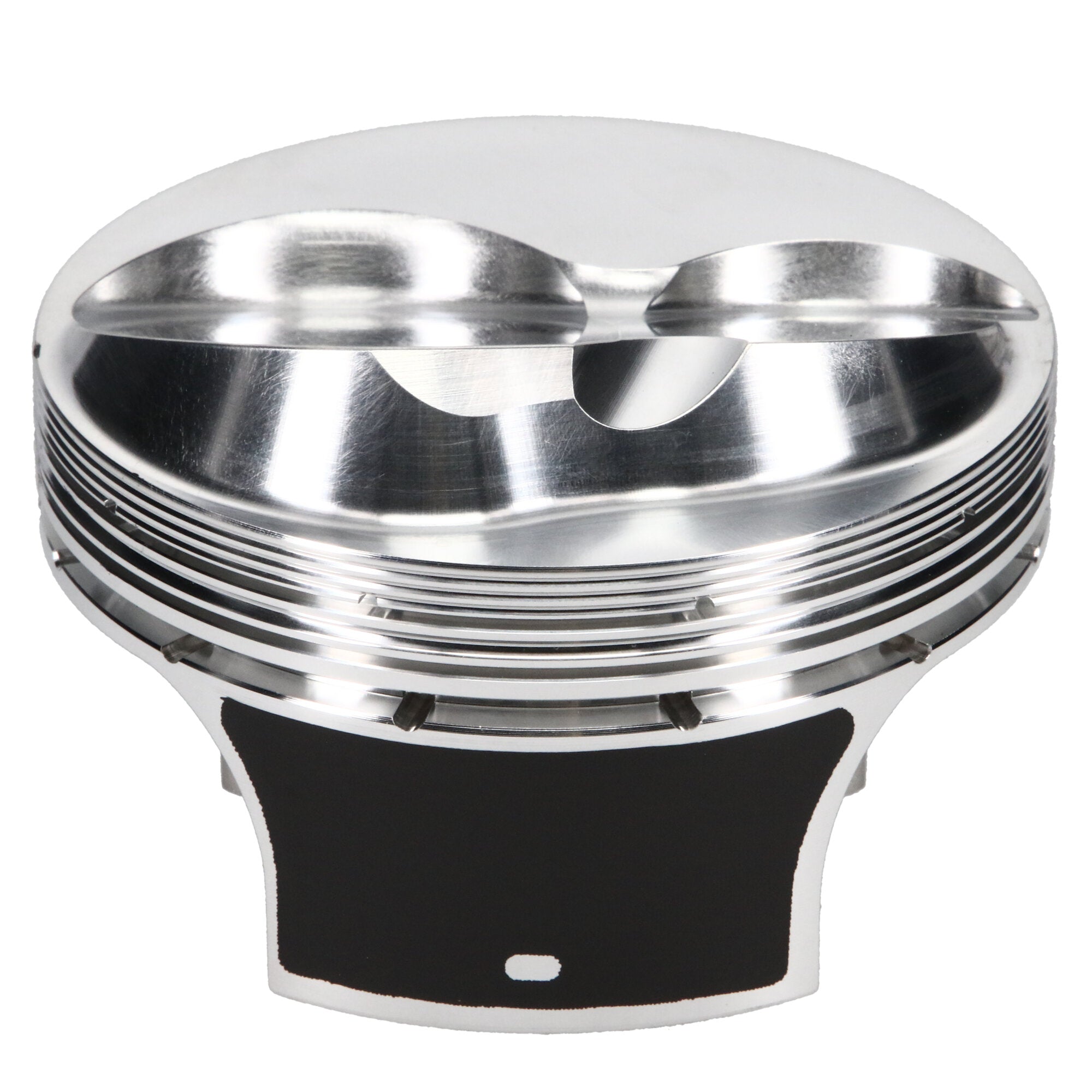

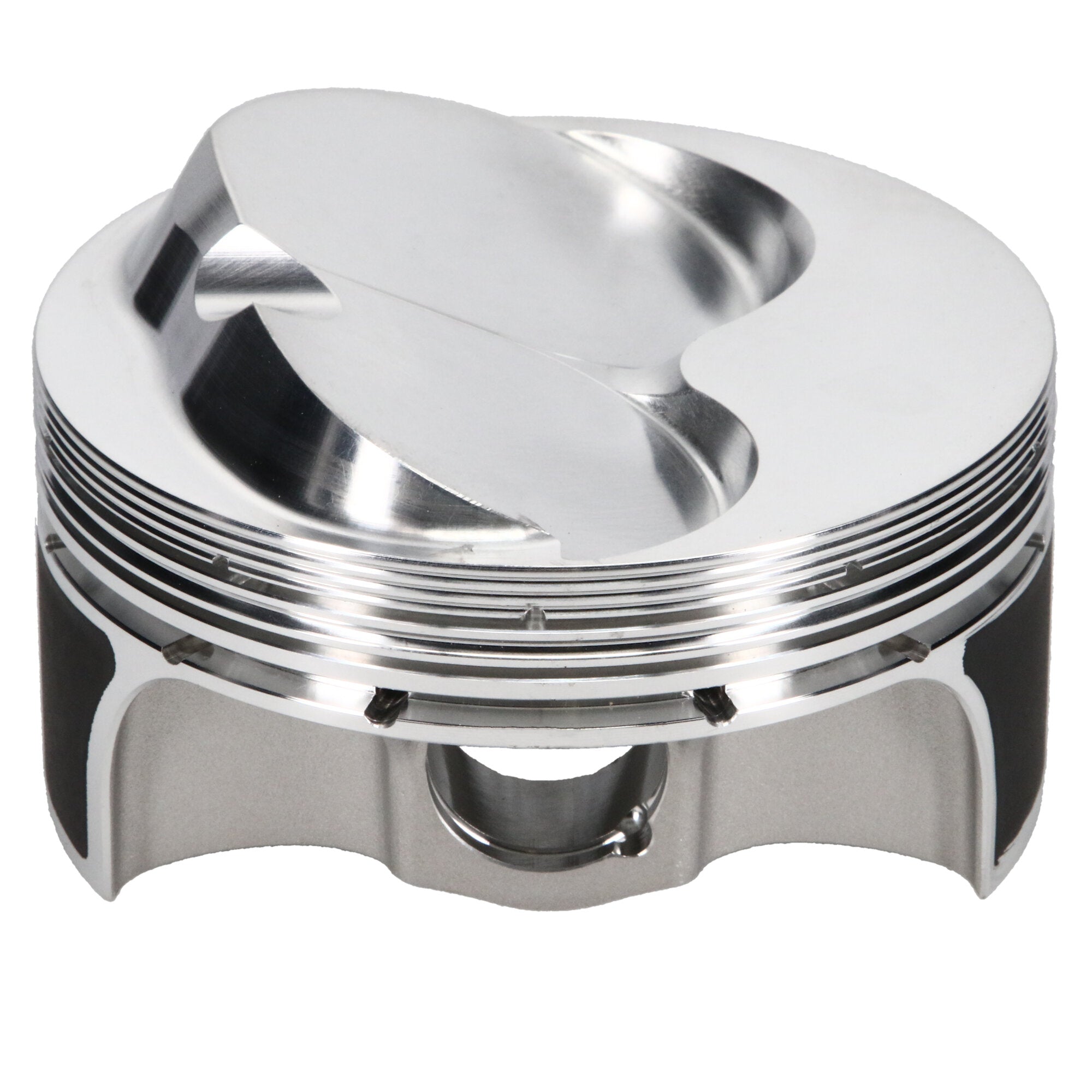

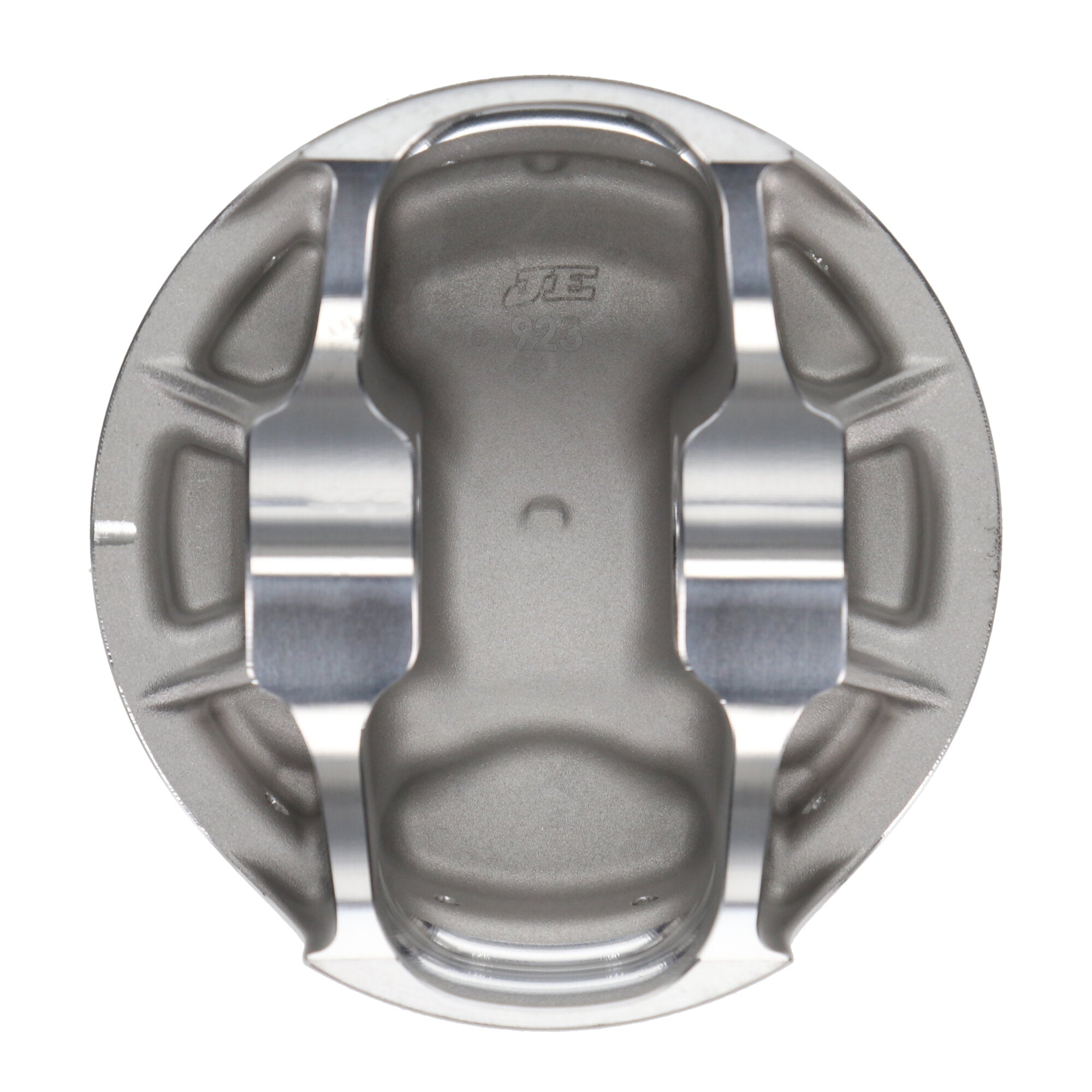

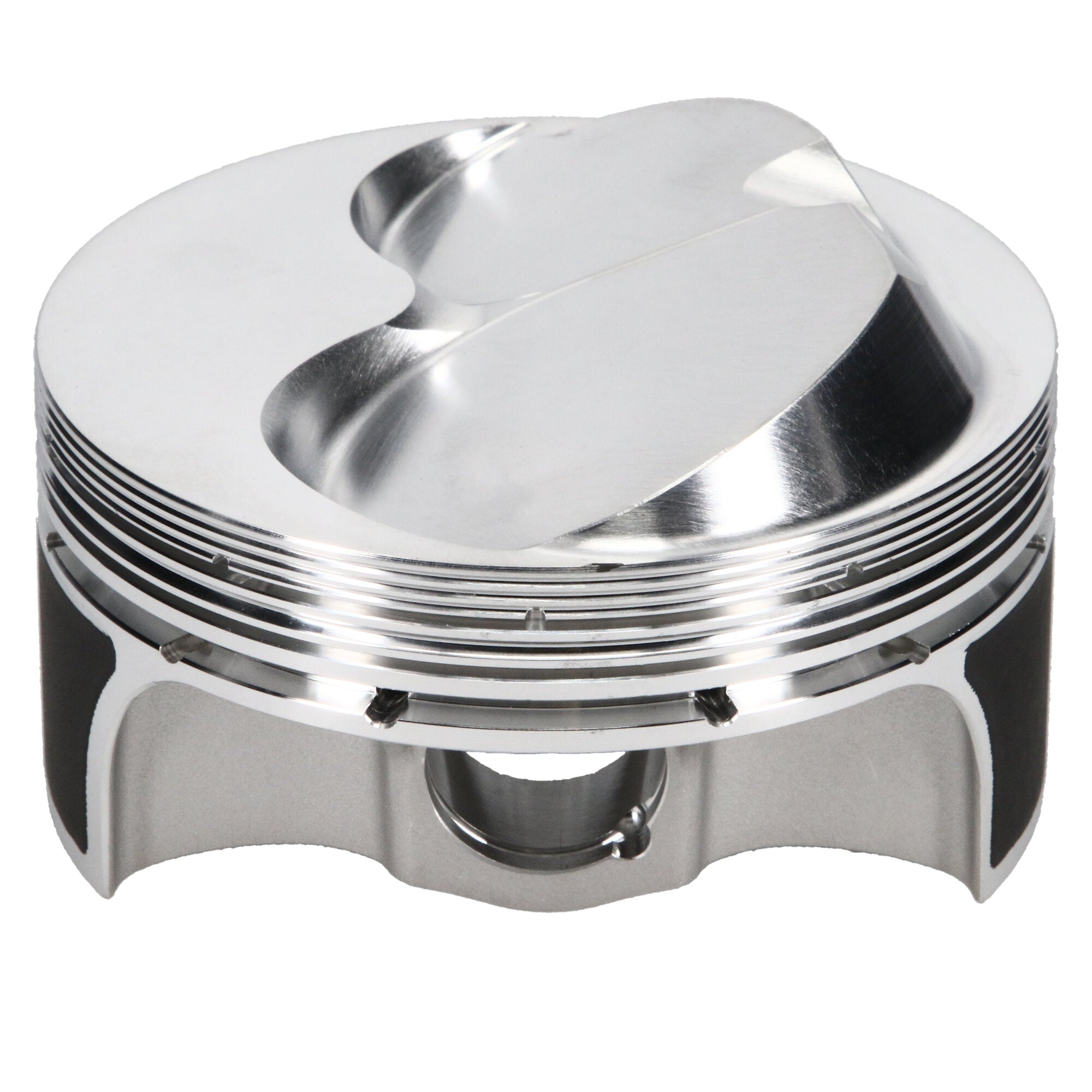

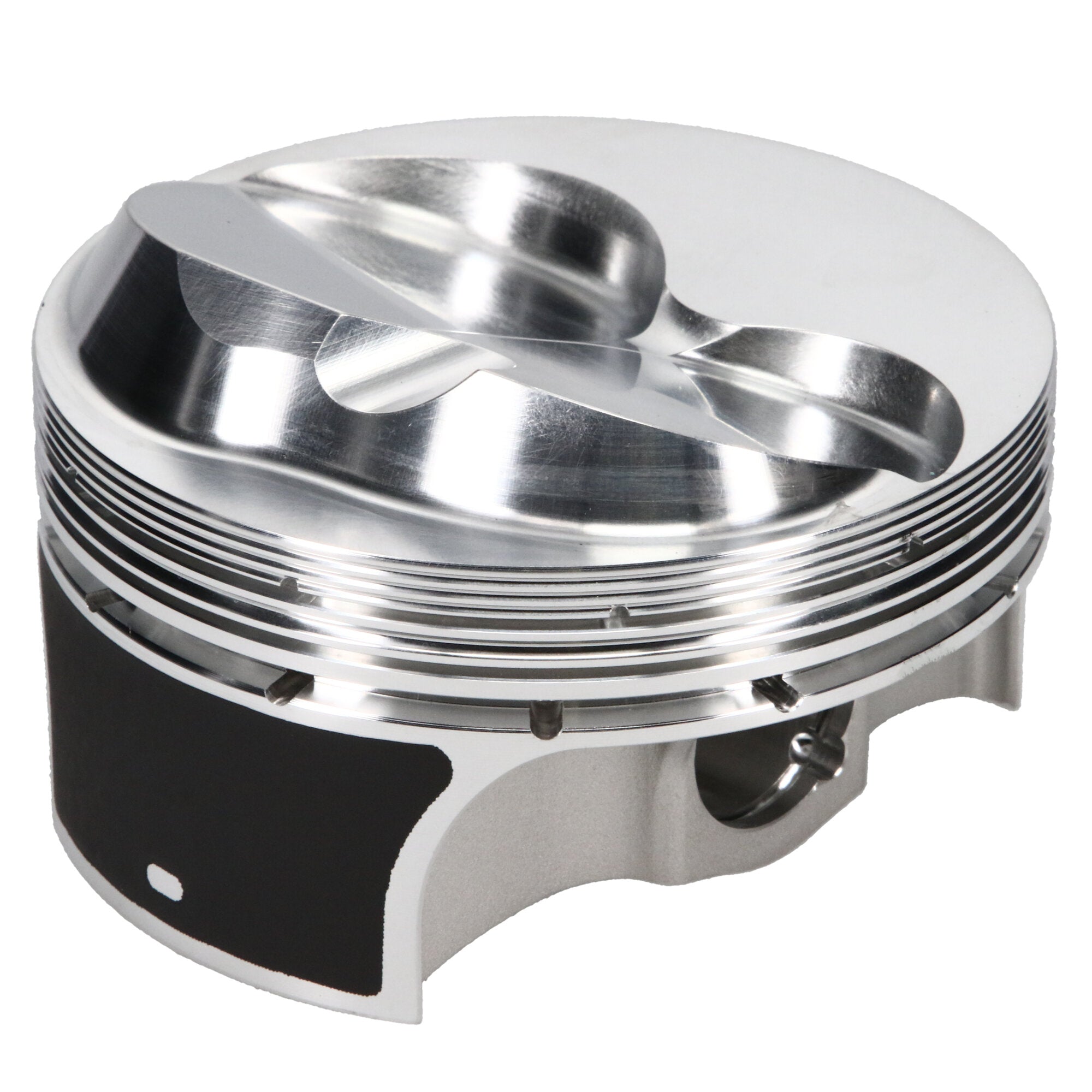

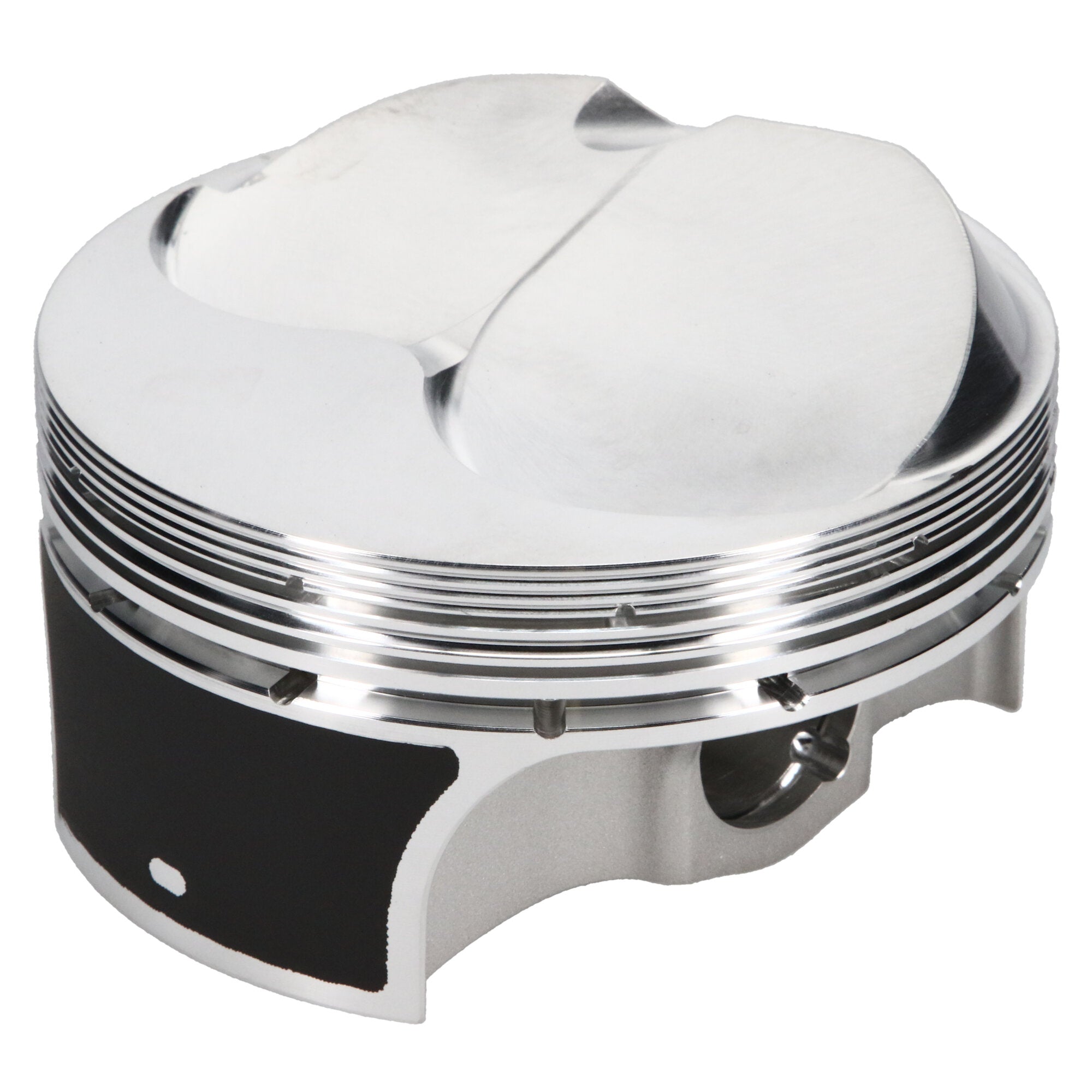

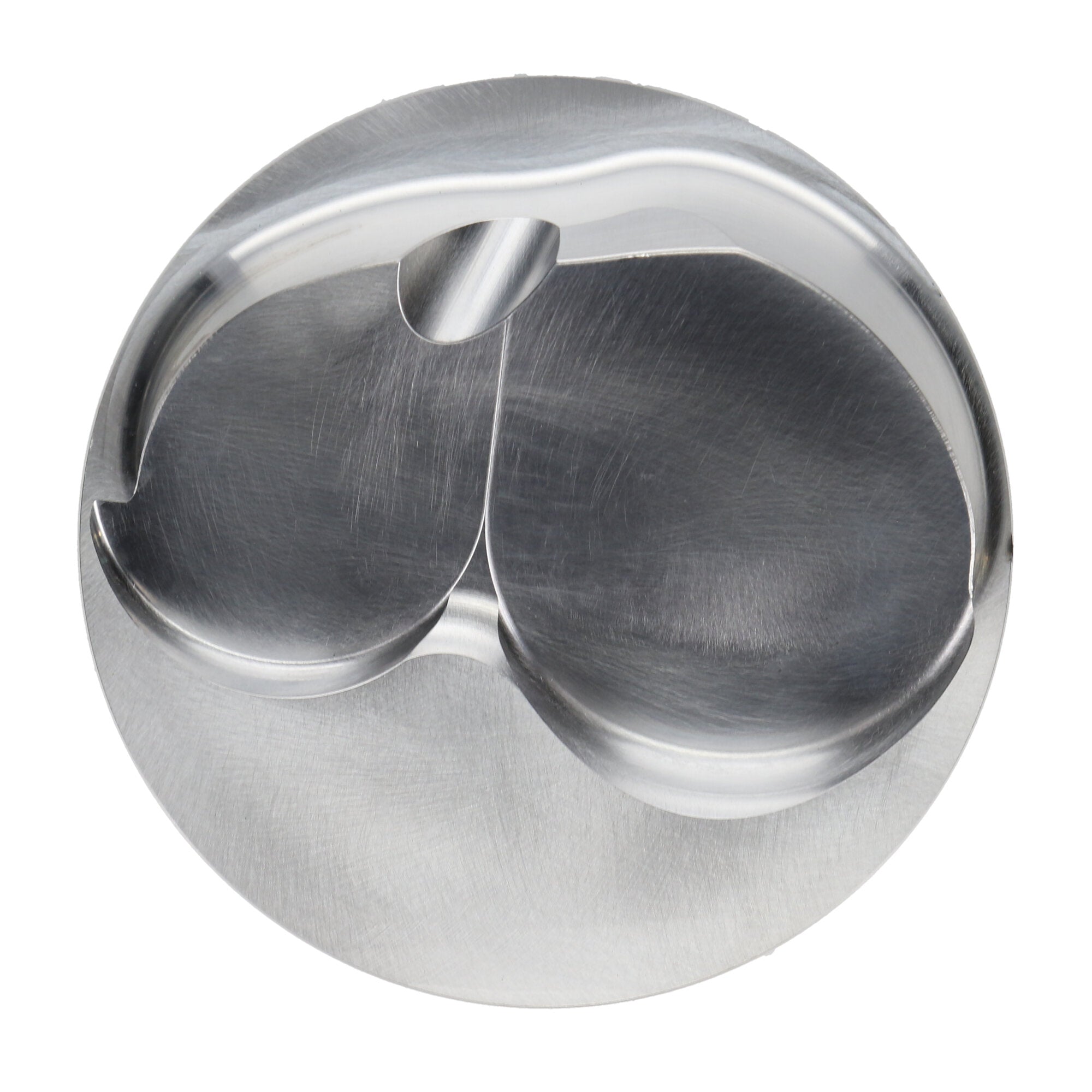

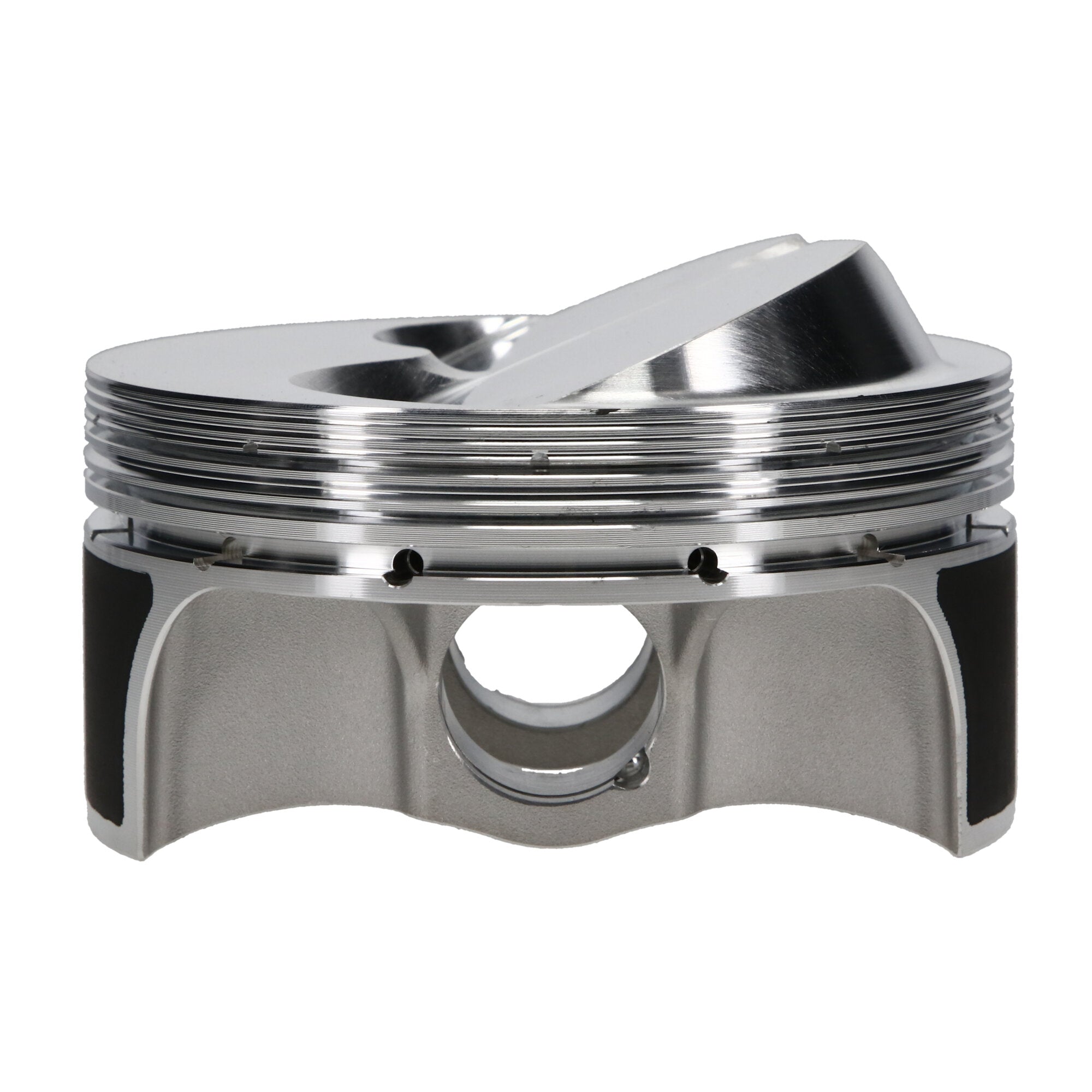

Piston Set, 2618, Dome, 4.125 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.125 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 400, 4.125 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Out of Stock Message |
Call for Availability |
| Engine |
Small Block |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
CHEVROLET 23 DEG 40/60 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0440 |
| Add-On |
927-2250-17-51C |
| Top Compression Ring Thickness |
0.0435 |
| Piston Pin Wall Thickness |
0.170 |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Piston Series |
JE Pistons |
| Make |
CHEVROLET |
| Add-On |
927-073-MW |
| Oil Ring Thickness |
0.1175 |
| Compression Height |
1.100 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Volume |
6.80 |
| Engine Type |
ICE |
| Title |
JE Pistons - Chevrolet, Small Block, 4.125 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Bore Diameter |
4.125 |
| Ringset Included |
No |
| Product Market |
Domestic |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Piston Pin Length |
2.250 |
| Add-On |
JG7708-4125-5 |
| Piston Average Weight |
447 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.125 in. Bore - 1.100 in. CH, 6.80 CC |
| Piston Head Type |
Dome |
| Wrist Pin Wall Thickness |
0.170 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
