As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

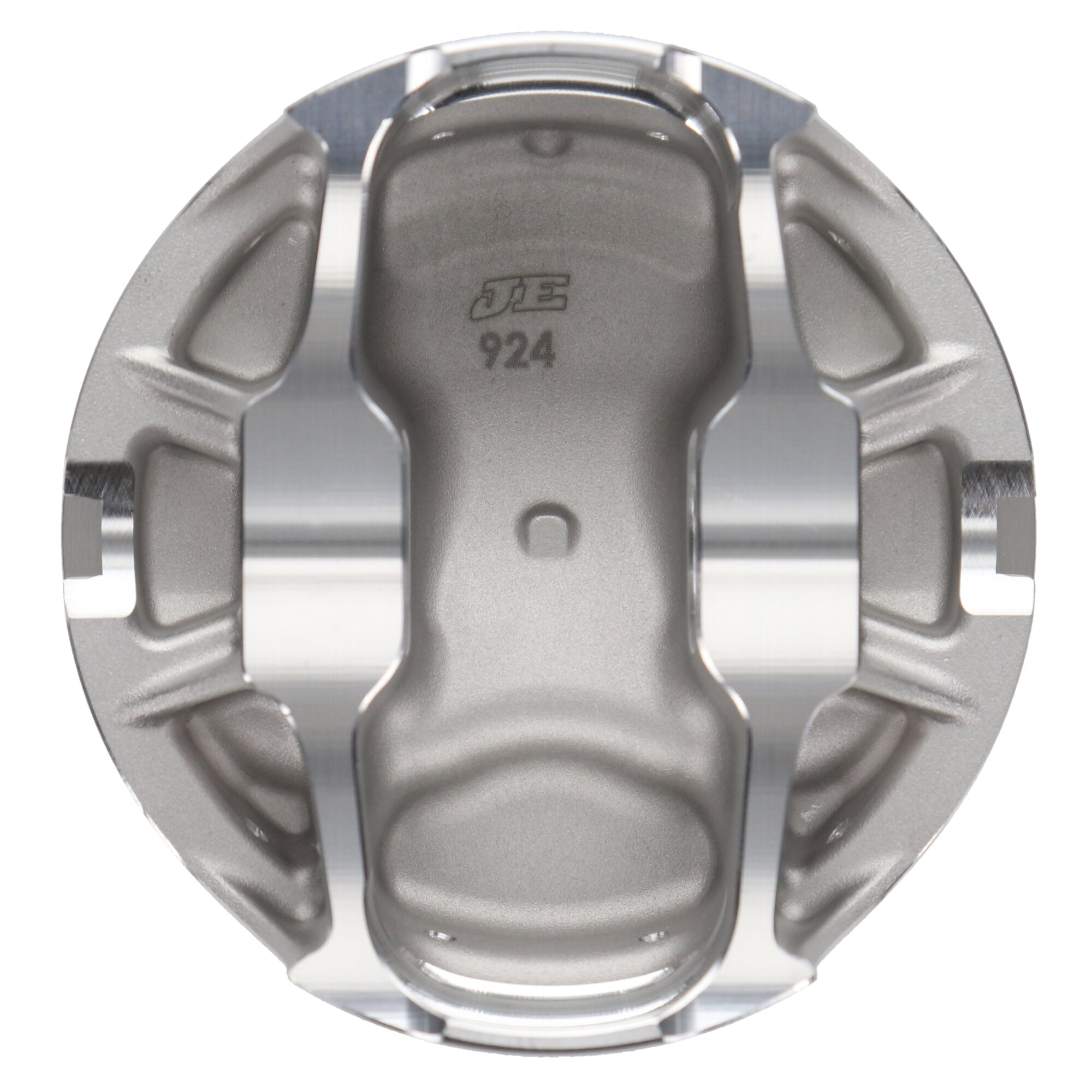

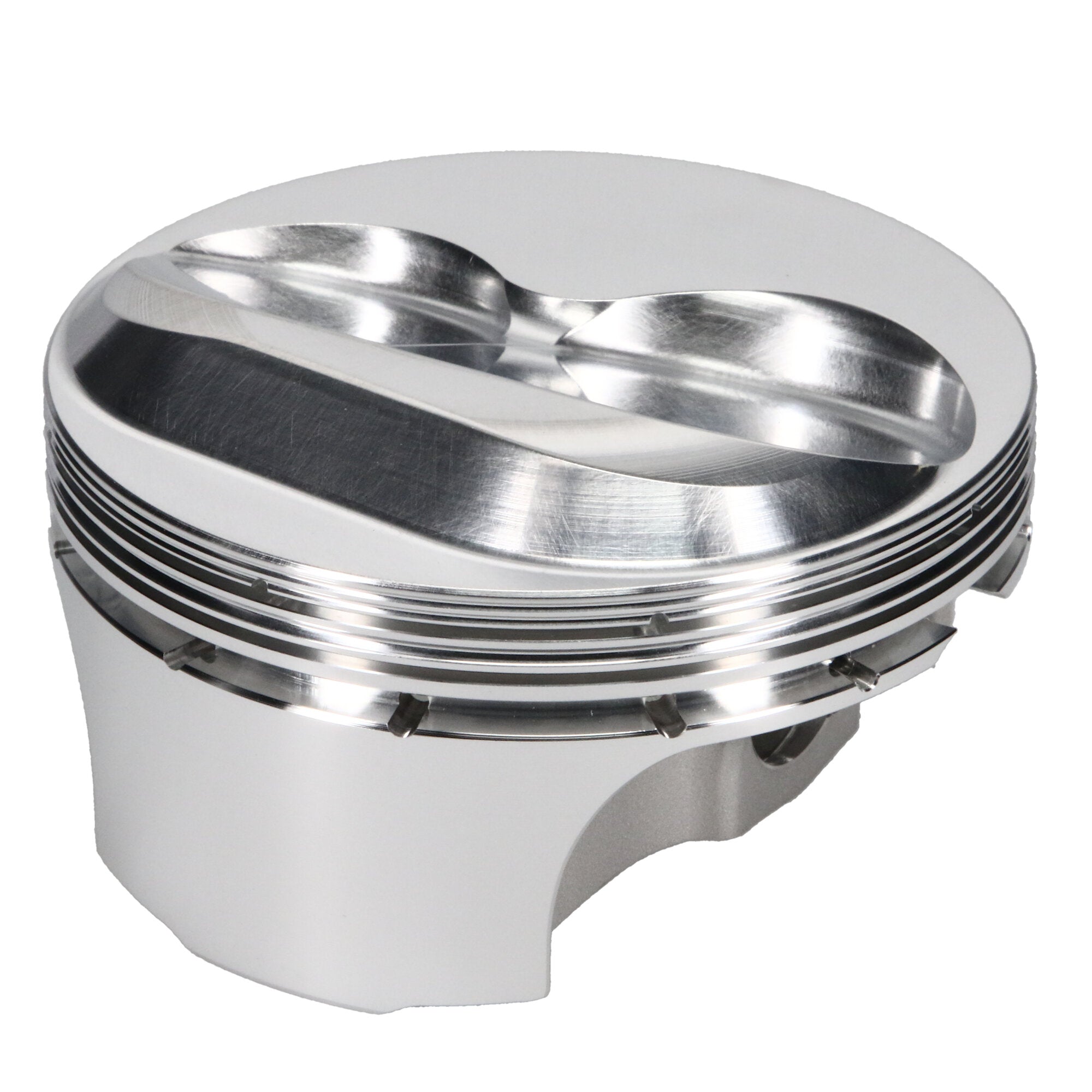

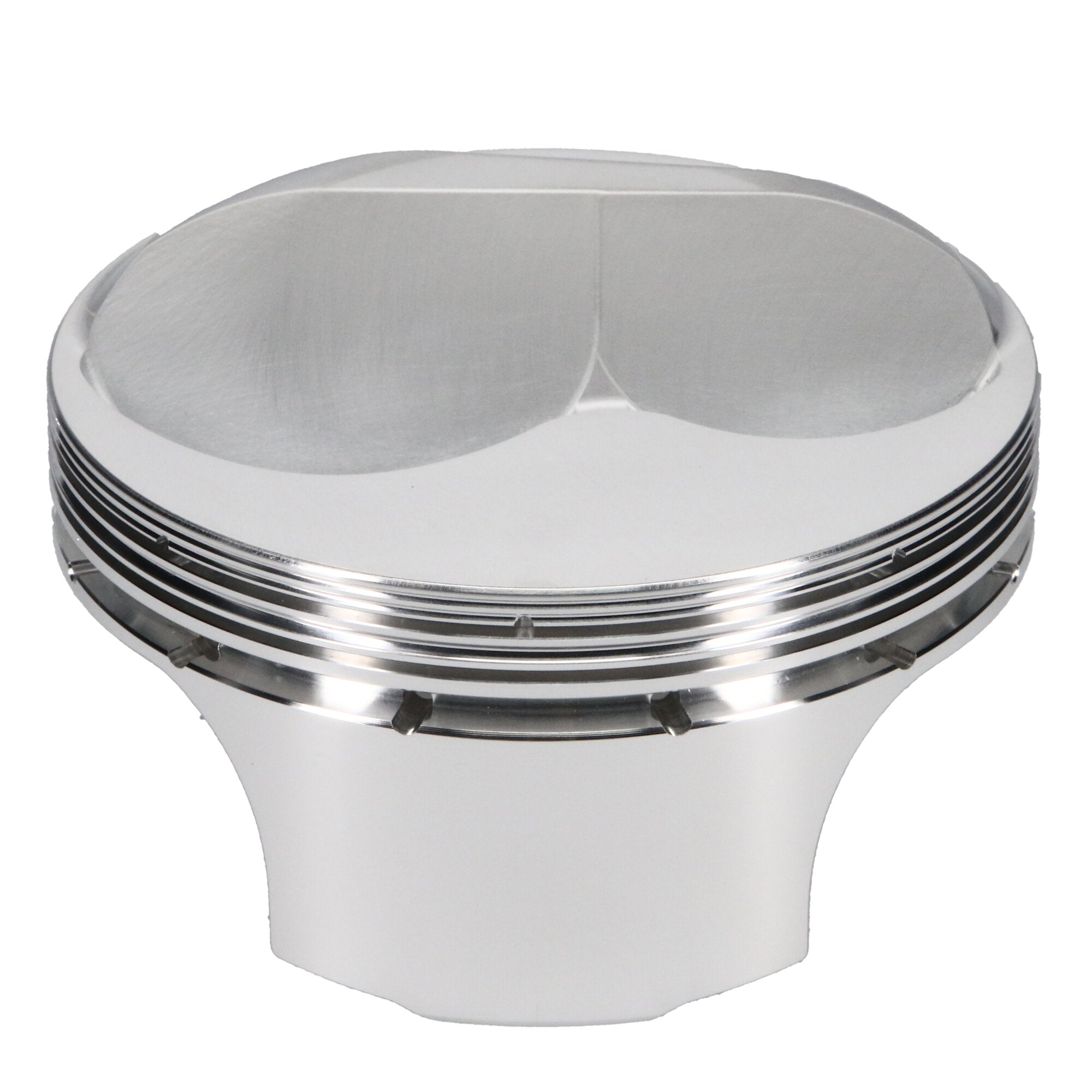

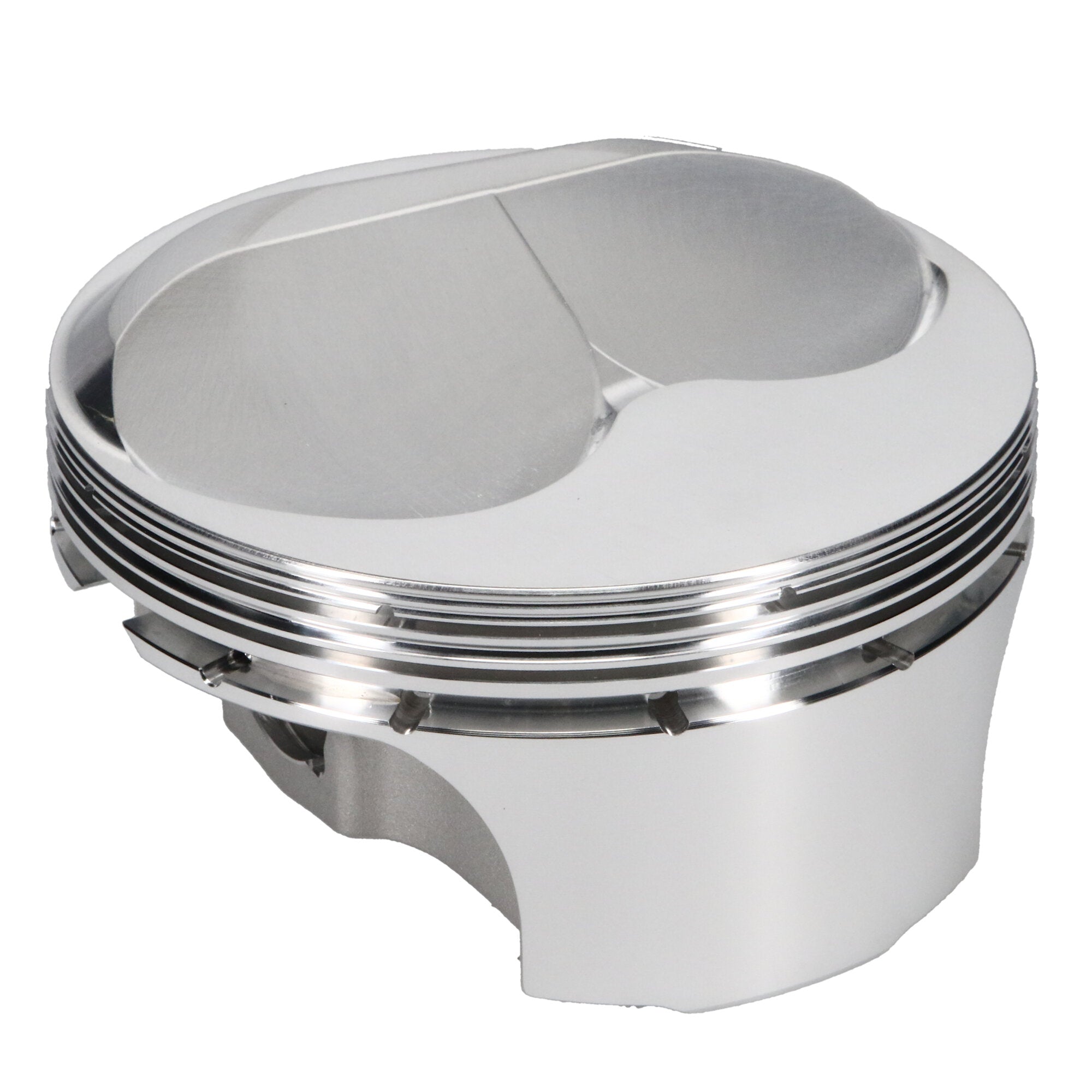

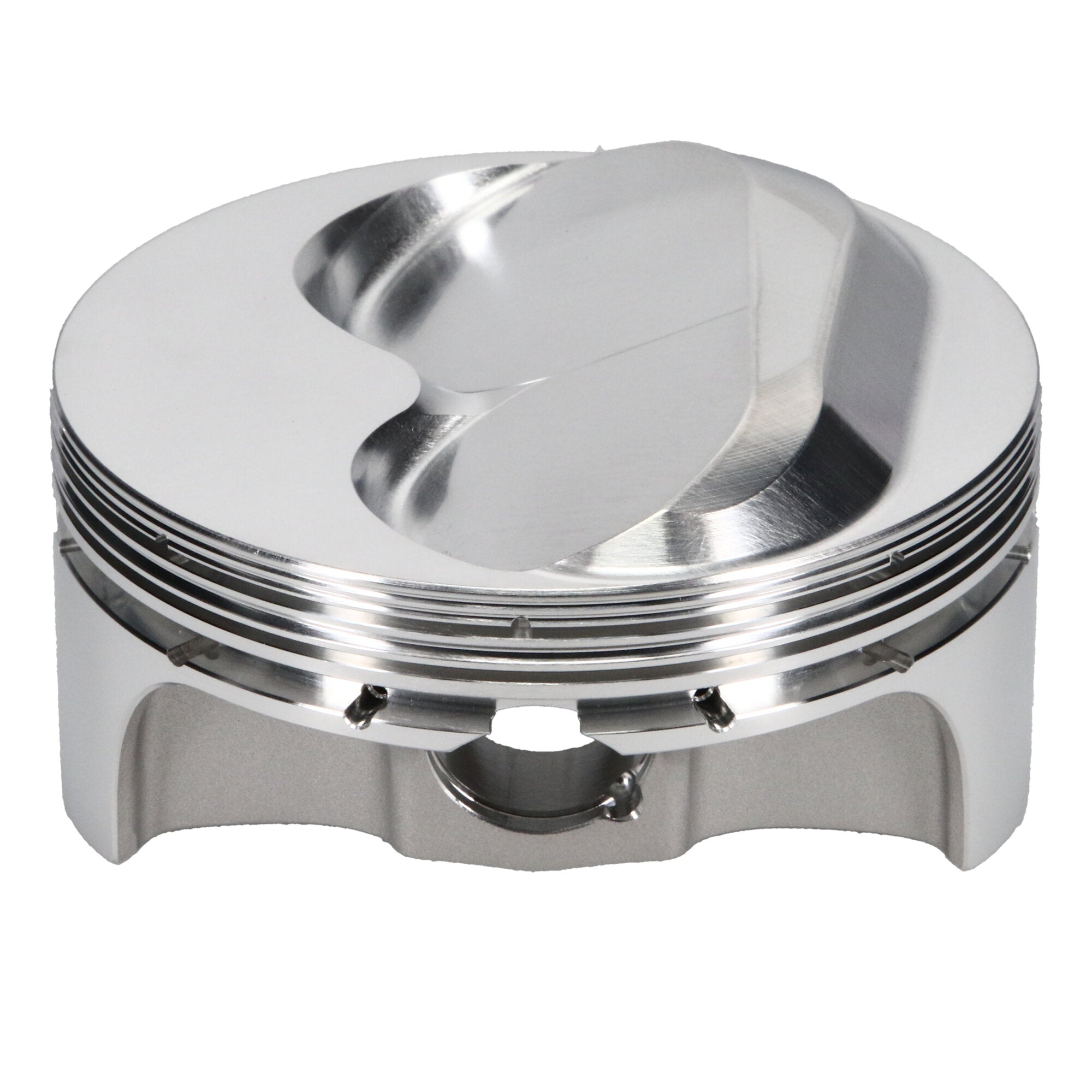

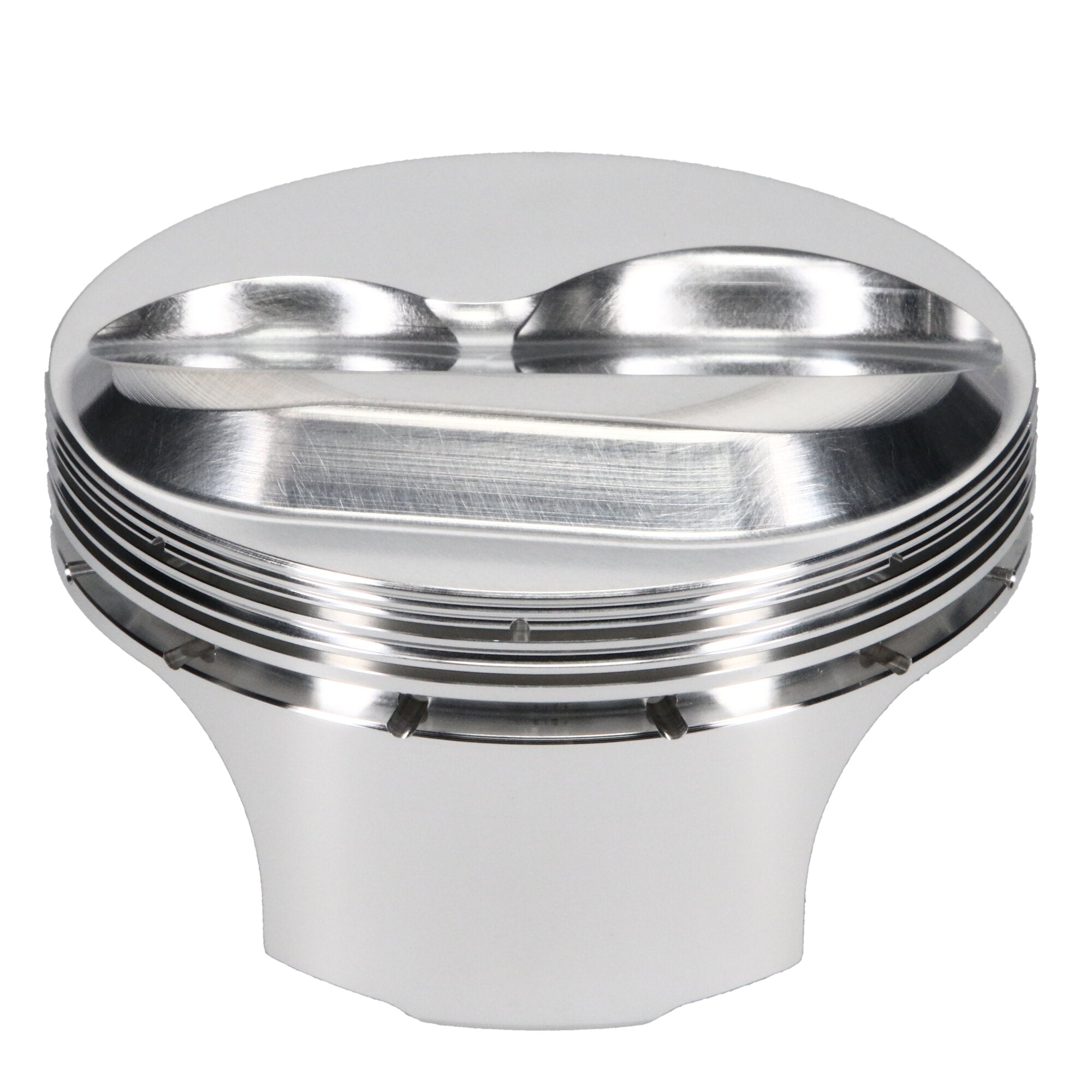

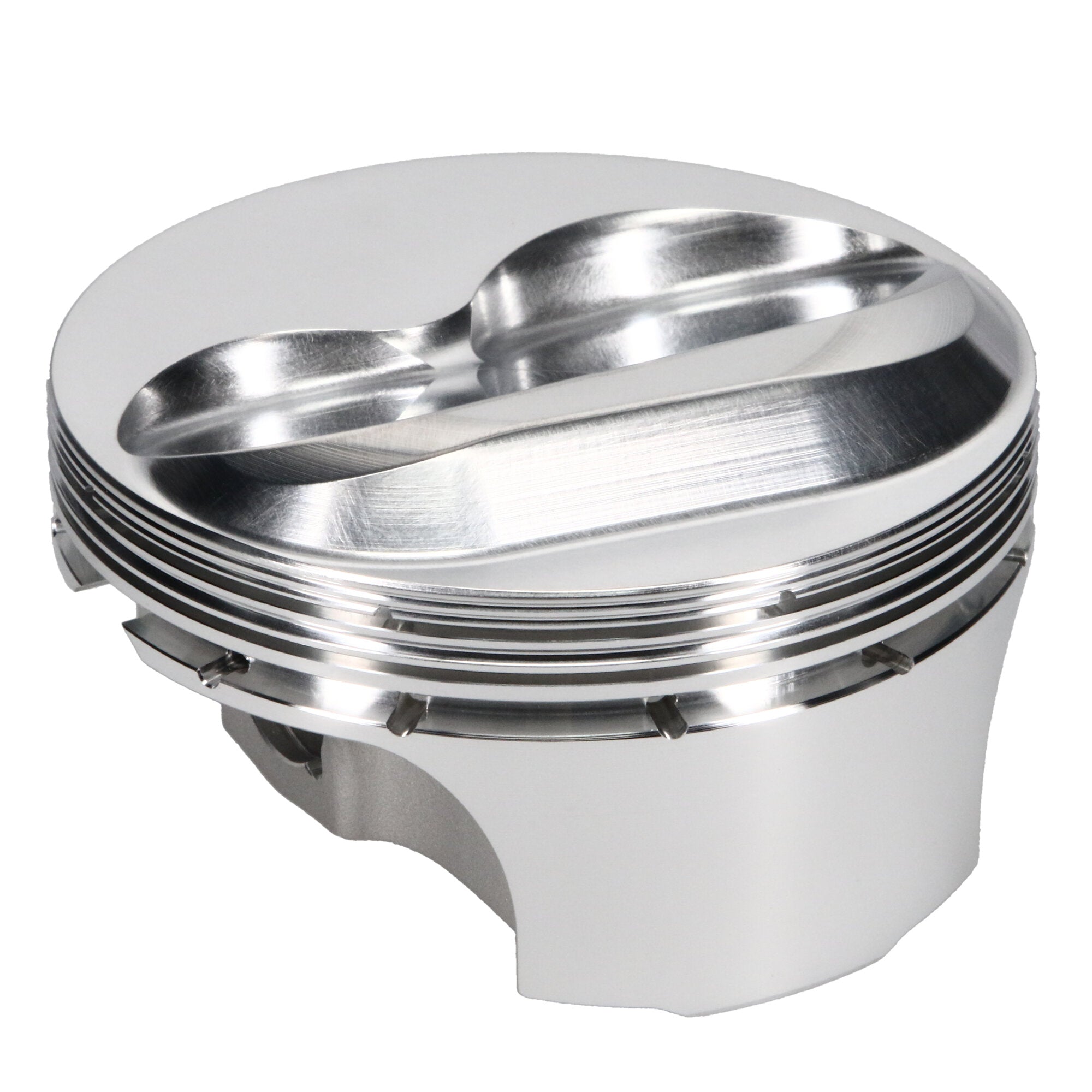

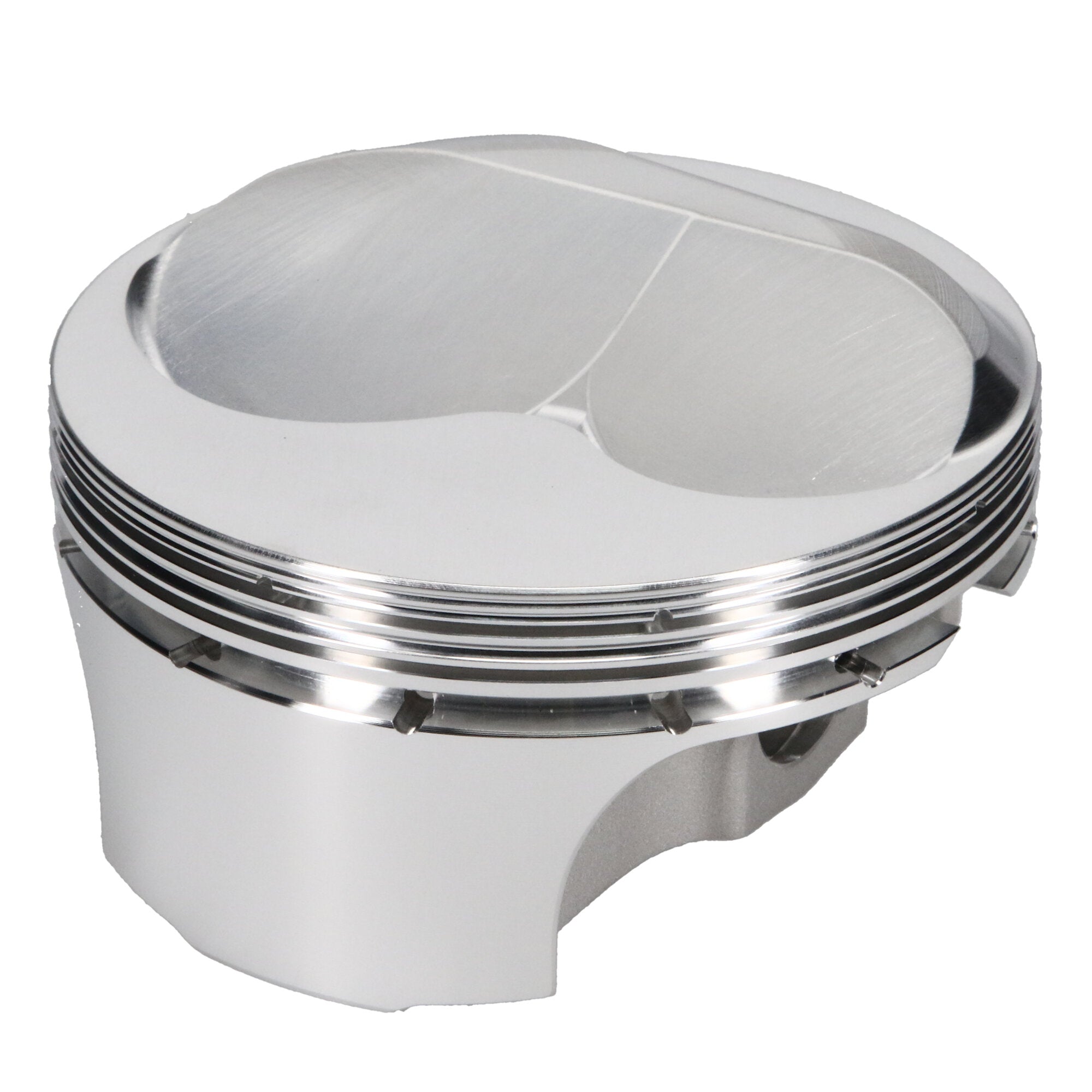

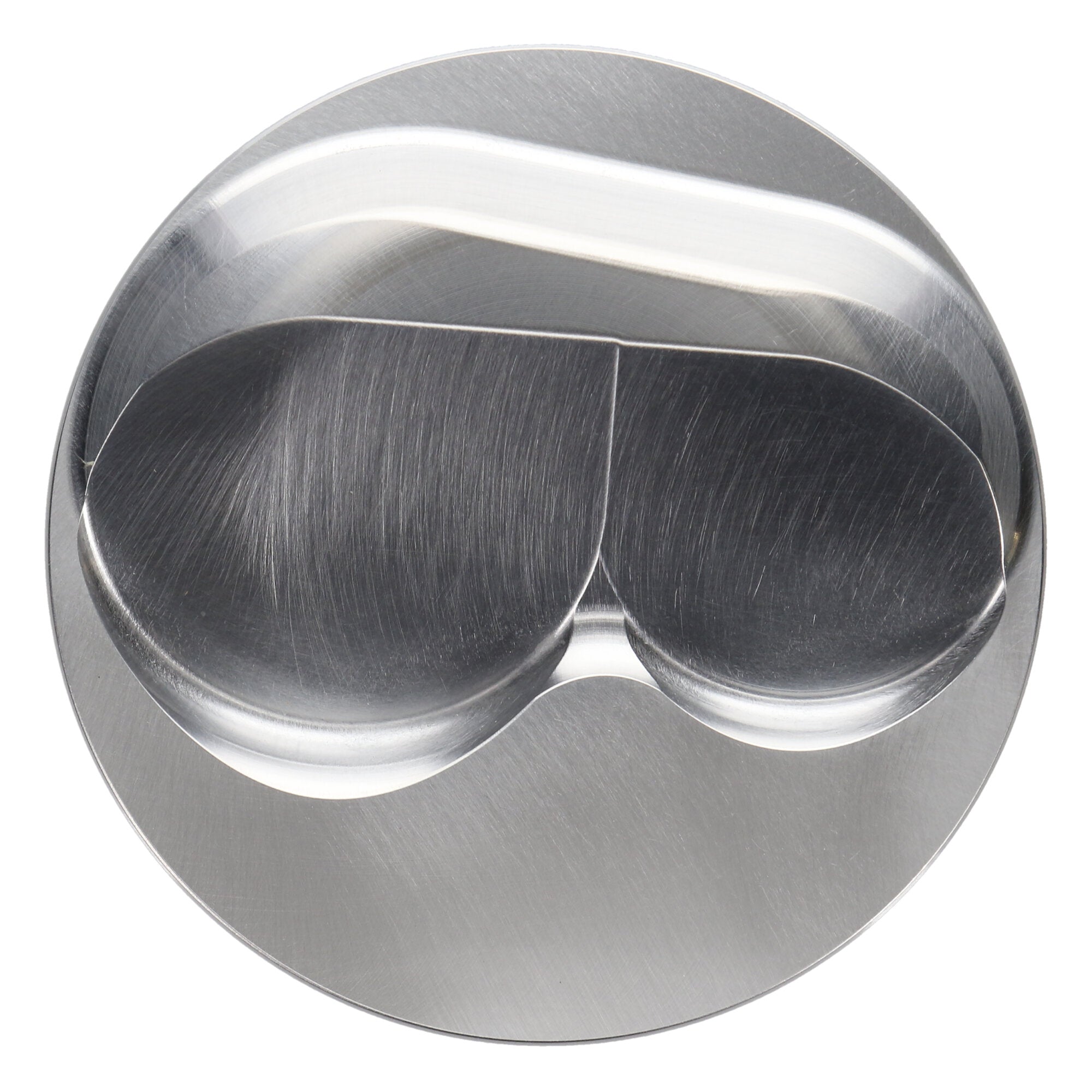

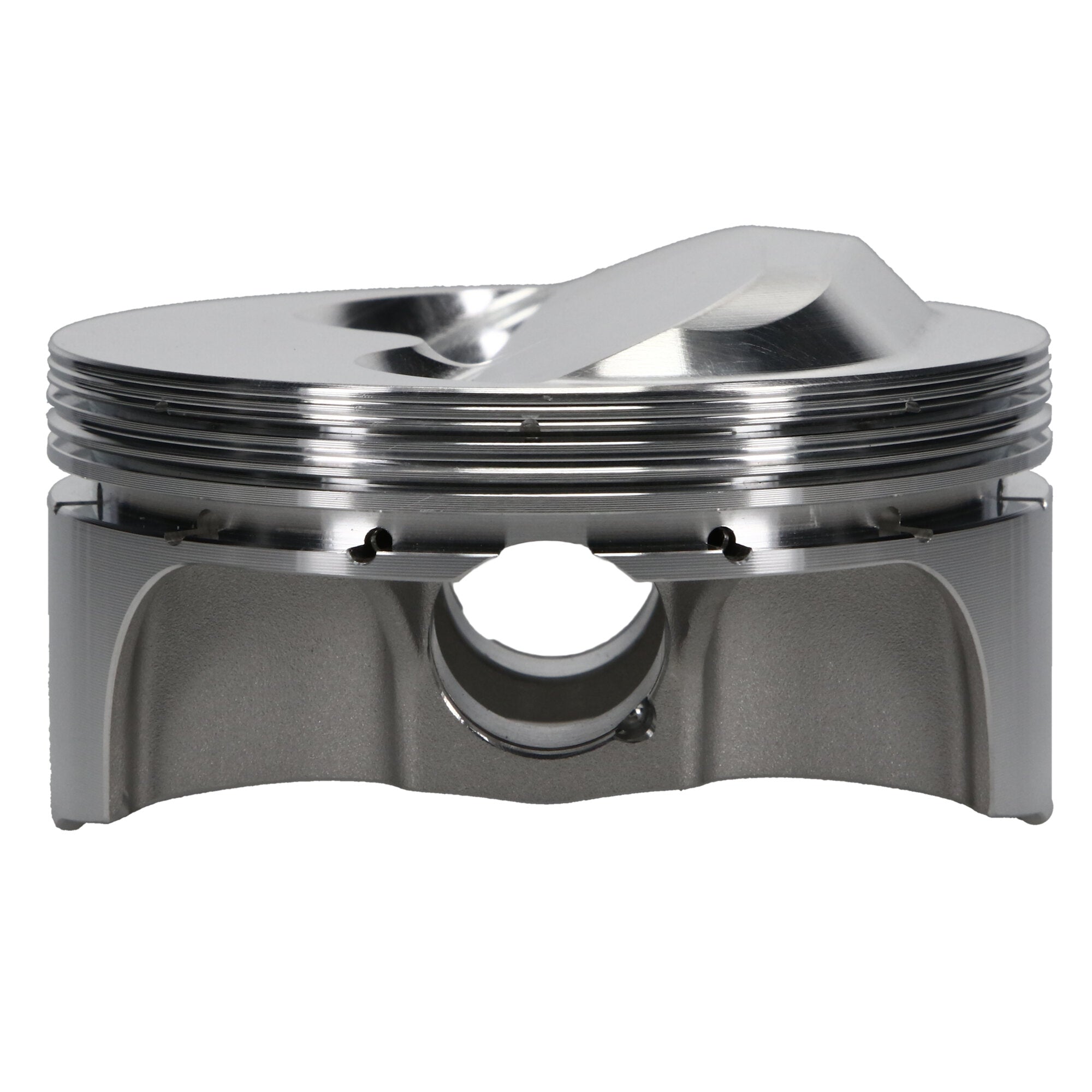

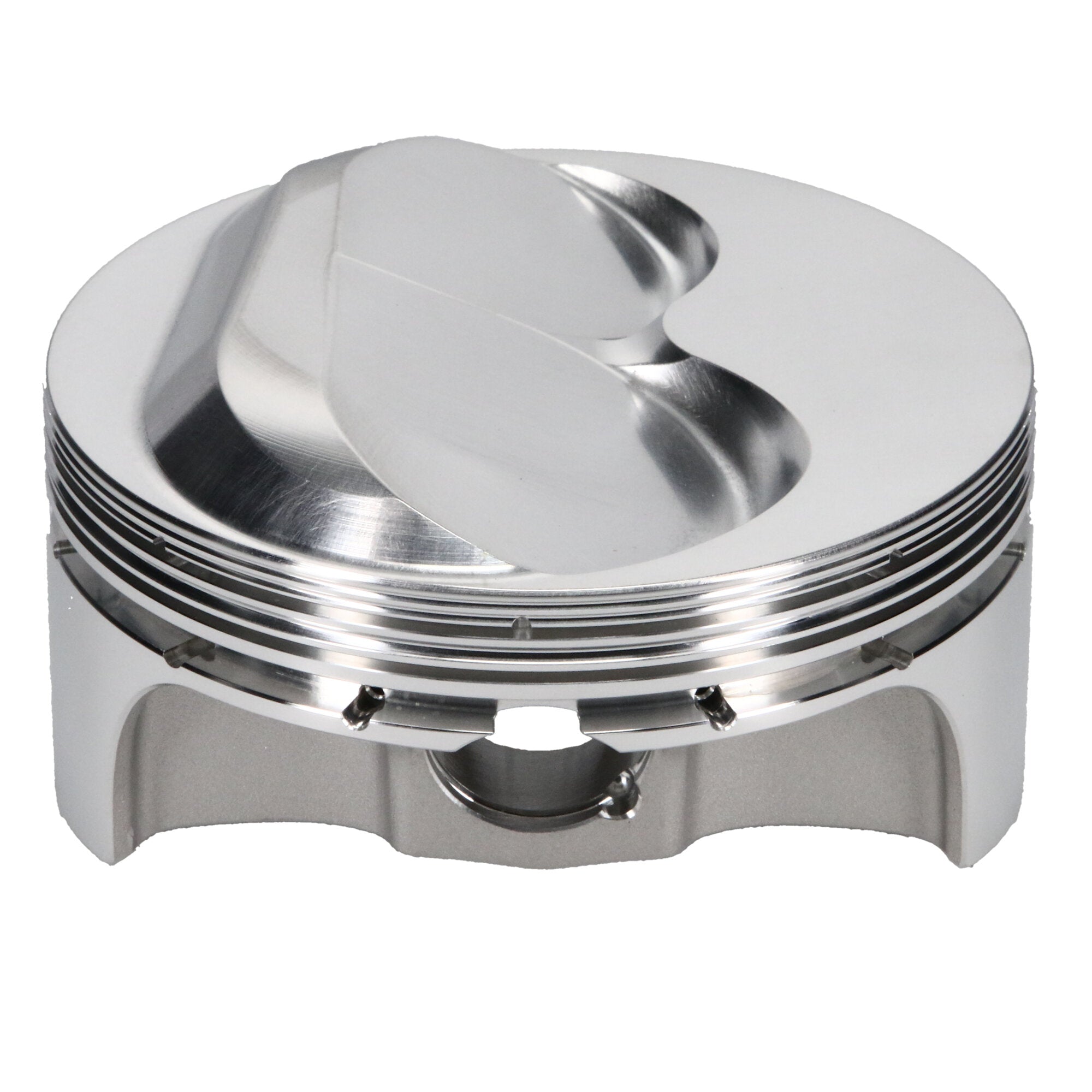

Piston Set, 2618, Dome, 4.130 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.130 in. Bore, 1.125 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 400, 4.130 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.130 in. Bore - 1.125 in. CH, 13.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Dome |
| Add-On |
JG7708-4130-5 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Add-On |
927-2250-17-51C |
| Second Compression Ring Thickness |
0.0440 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Add-On |
927-073-MW |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.250 |
| Ringset Included |
No |
| Engine |
Small Block |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Oil Ring Thickness |
0.119 |
| Engine Type |
ICE |
| Piston Volume |
13.00 |
| Piston Series |
JE Pistons |
| Compression Height |
1.125 |
| Piston Average Weight |
432 |
| Piston Pin Wall Thickness |
0.170 |
| Piston Quantity |
8 |
| Top Compression Ring Thickness |
0.0435 |
| Forging Type |
FSR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title |
JE Pistons - Chevrolet, Small Block, 4.130 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Piston Pin Material |
5115 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Make |
CHEVROLET |
| Bore Diameter |
4.130 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.170 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
