As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DES |

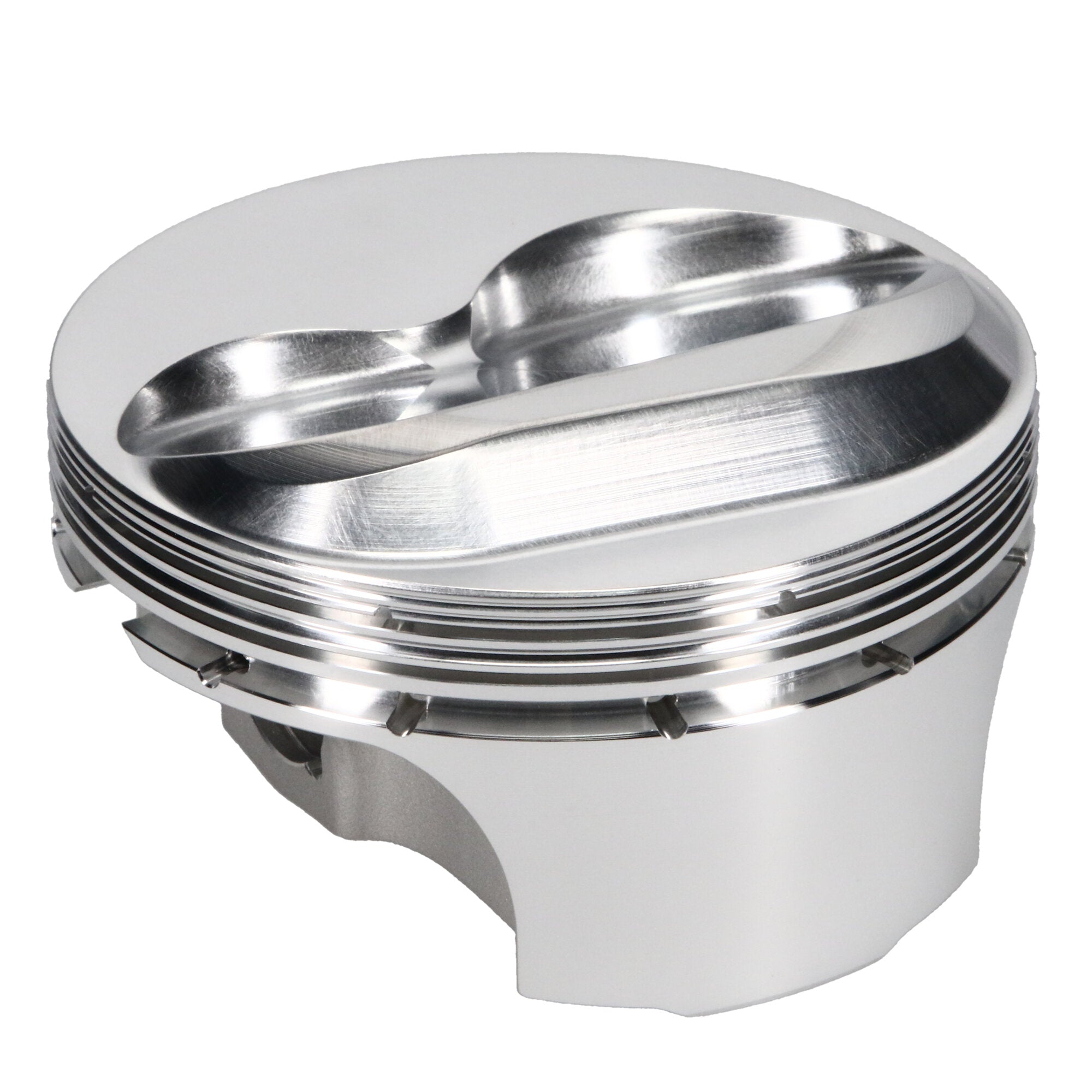

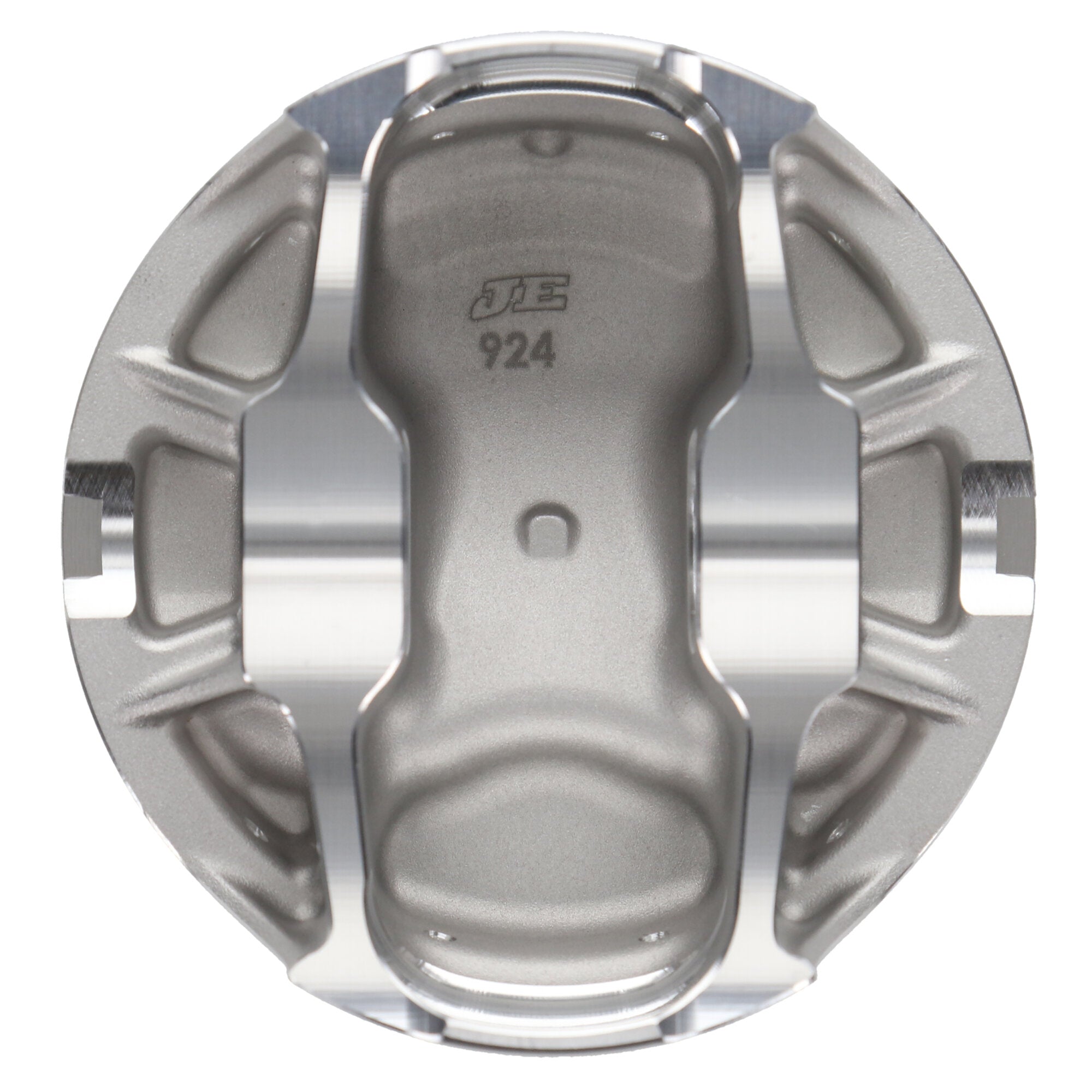

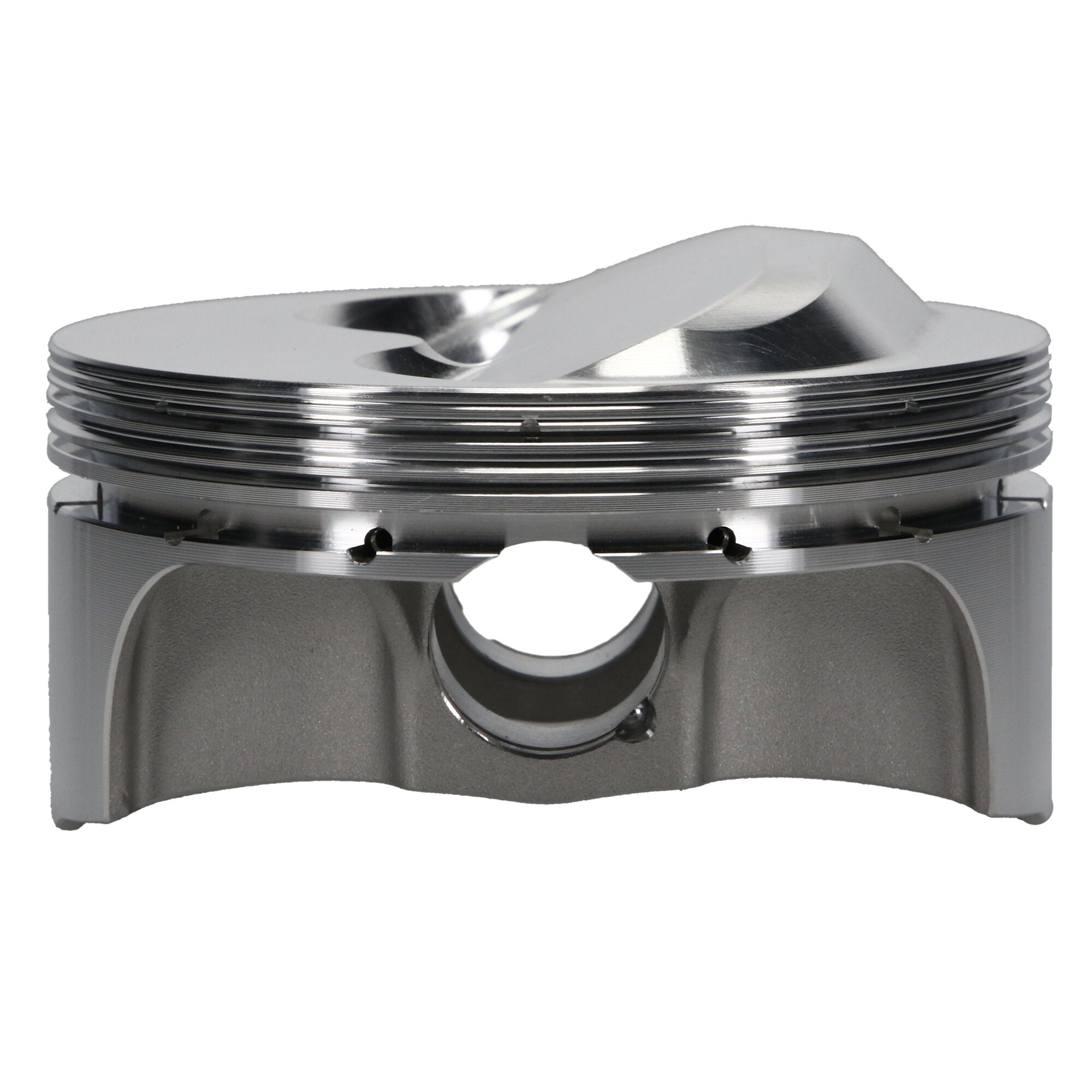

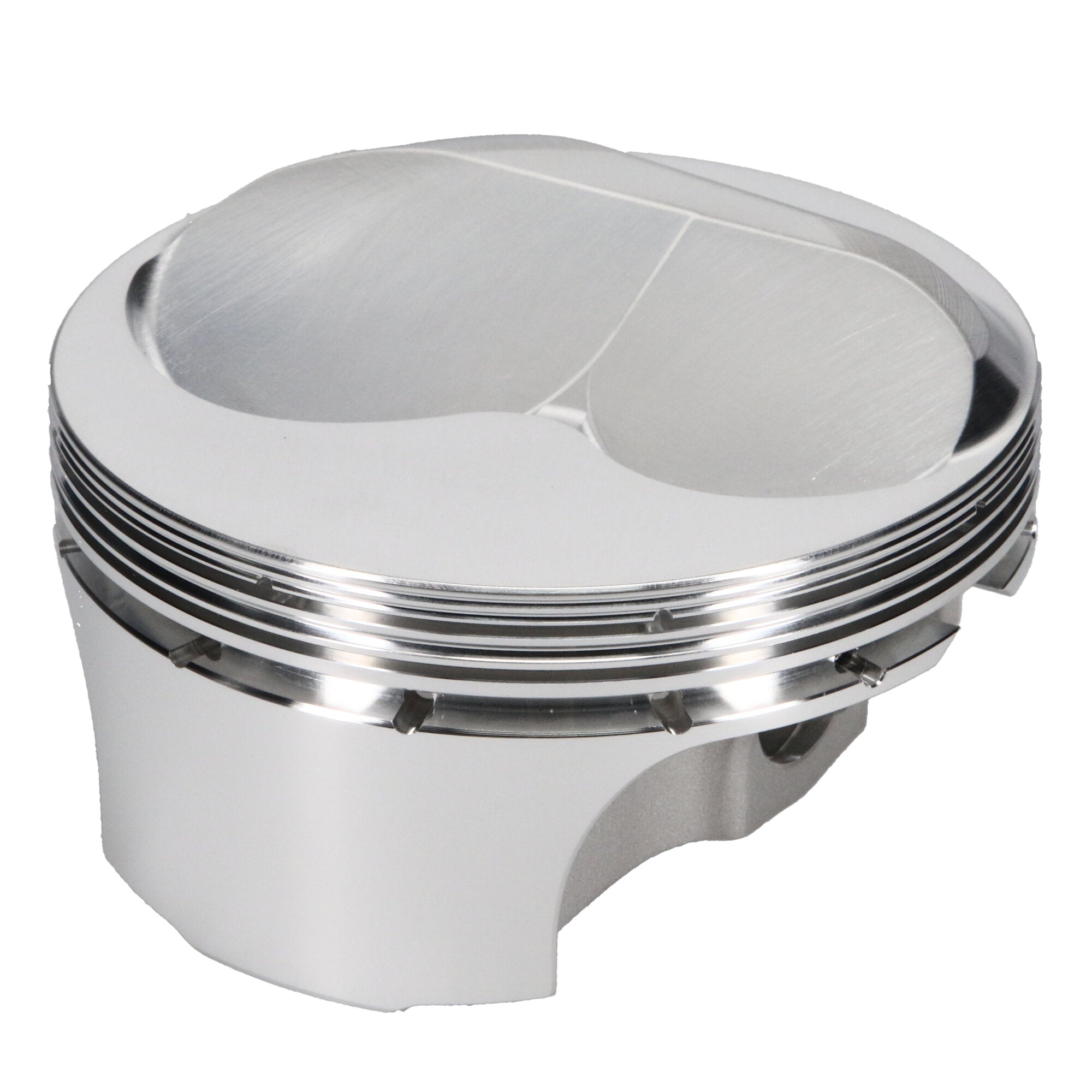

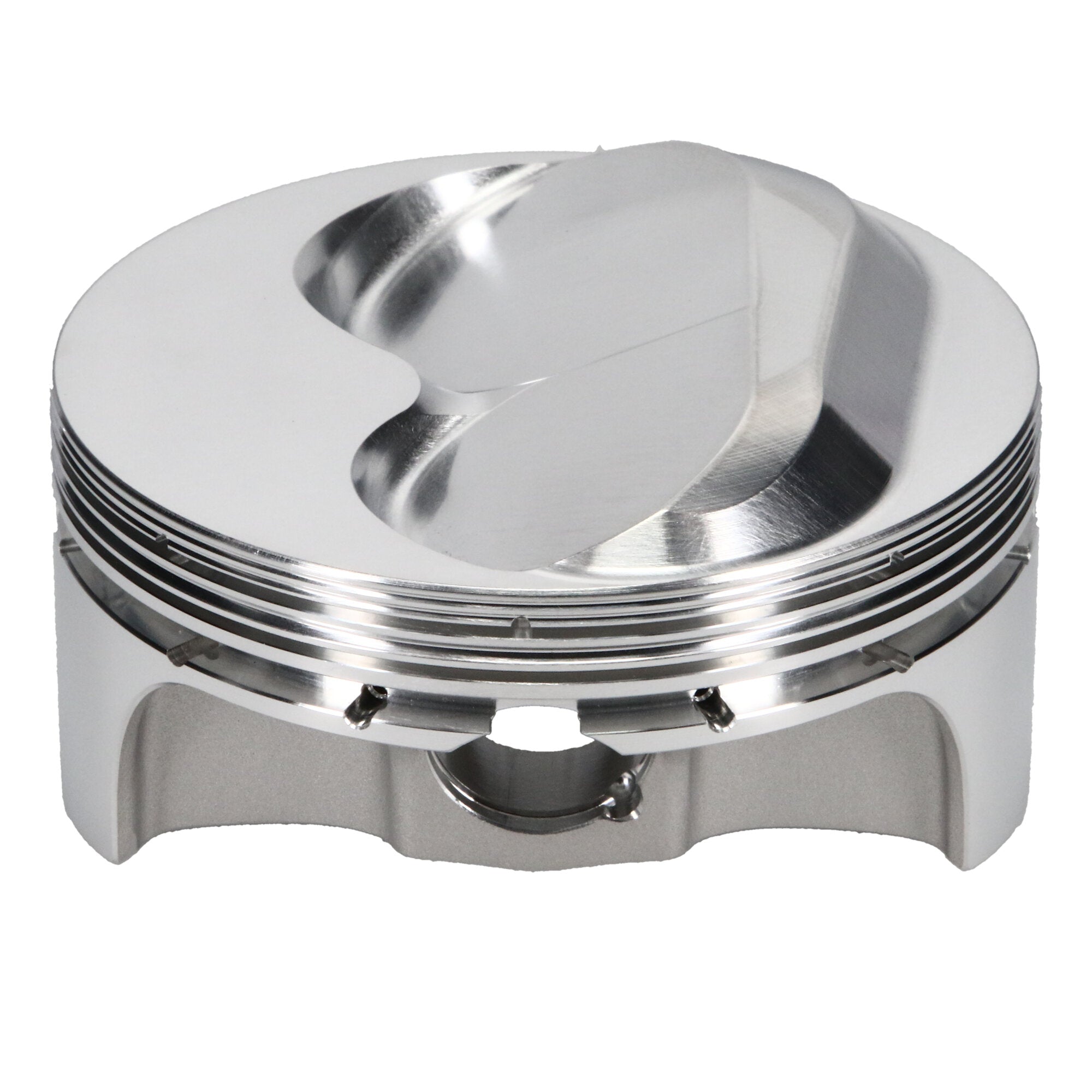

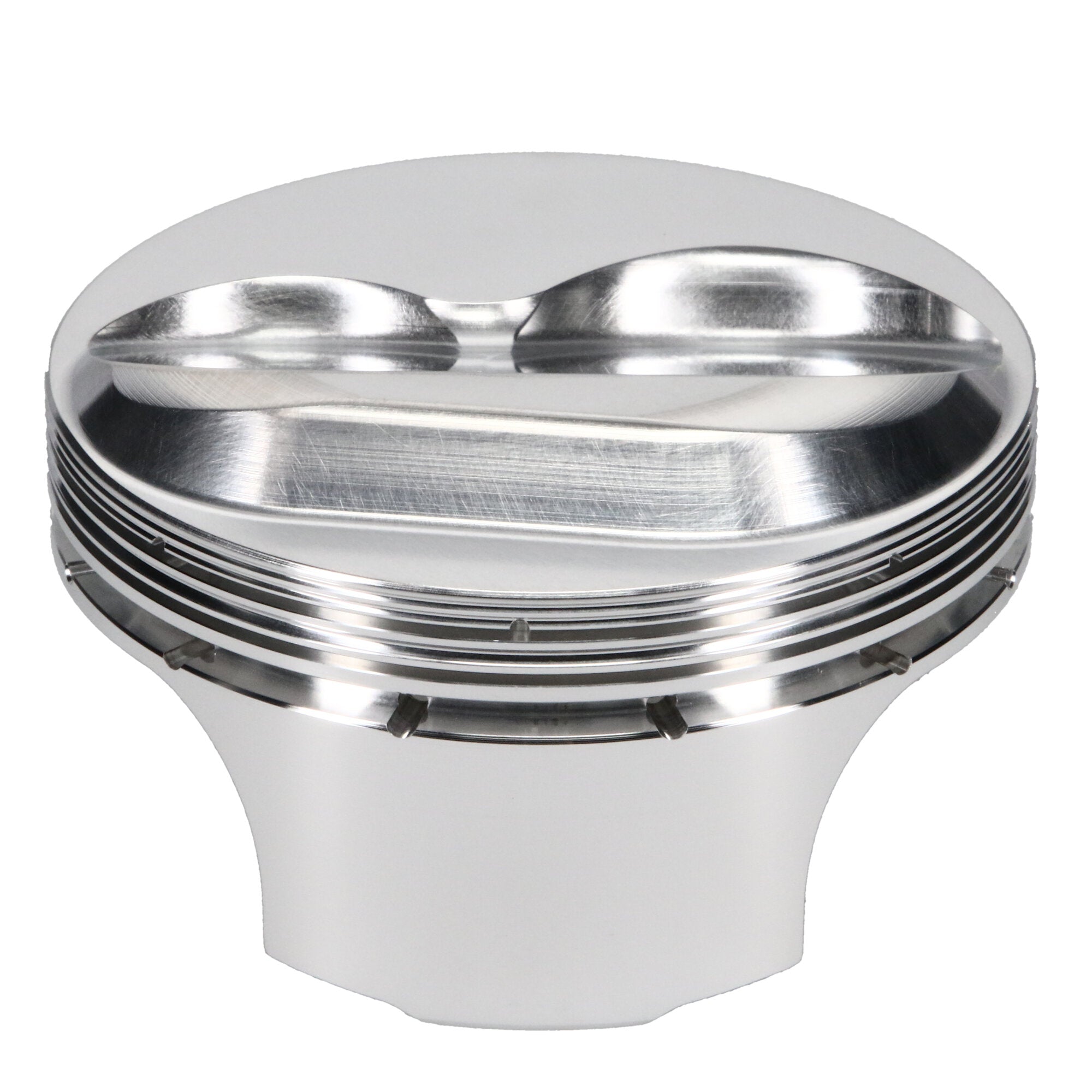

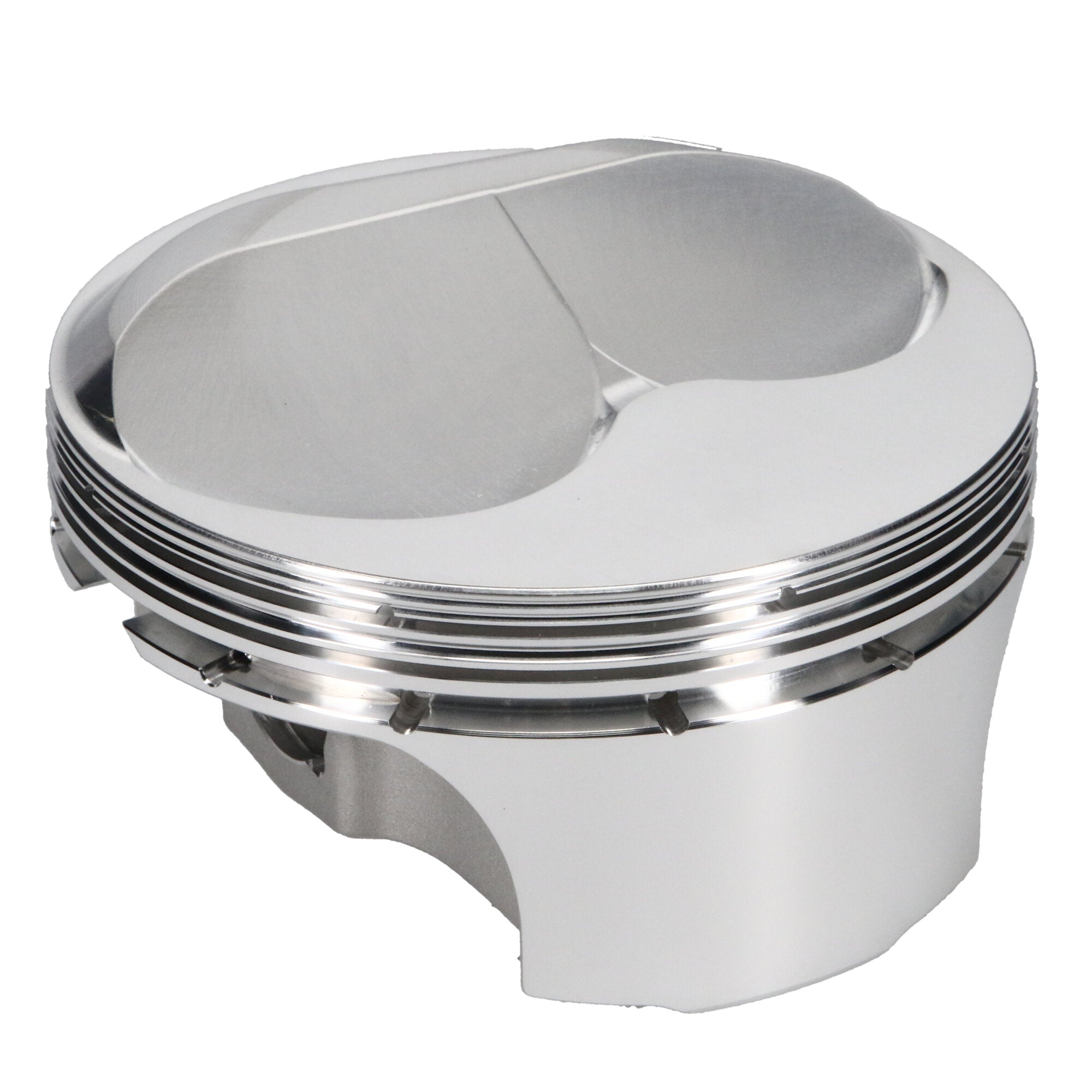

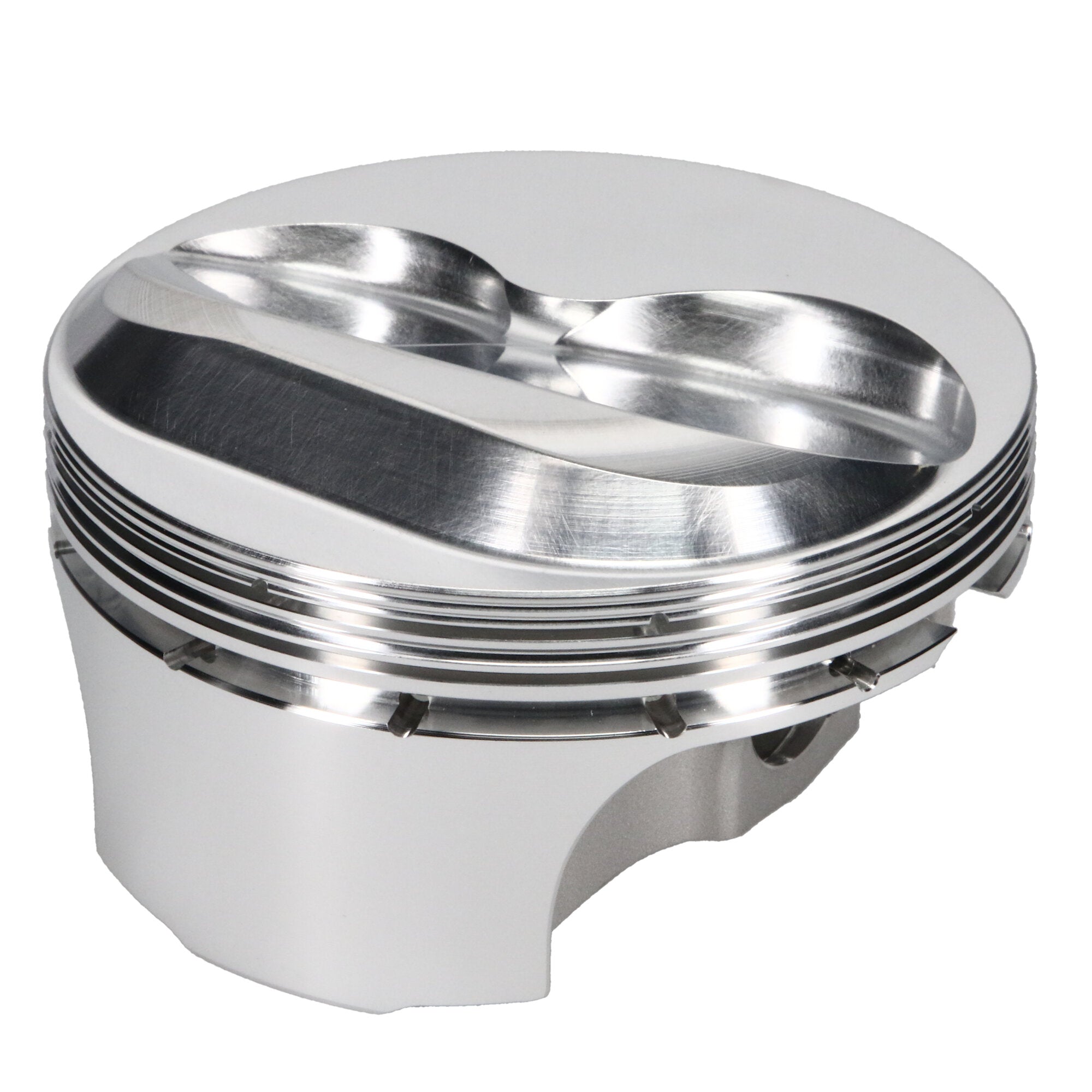

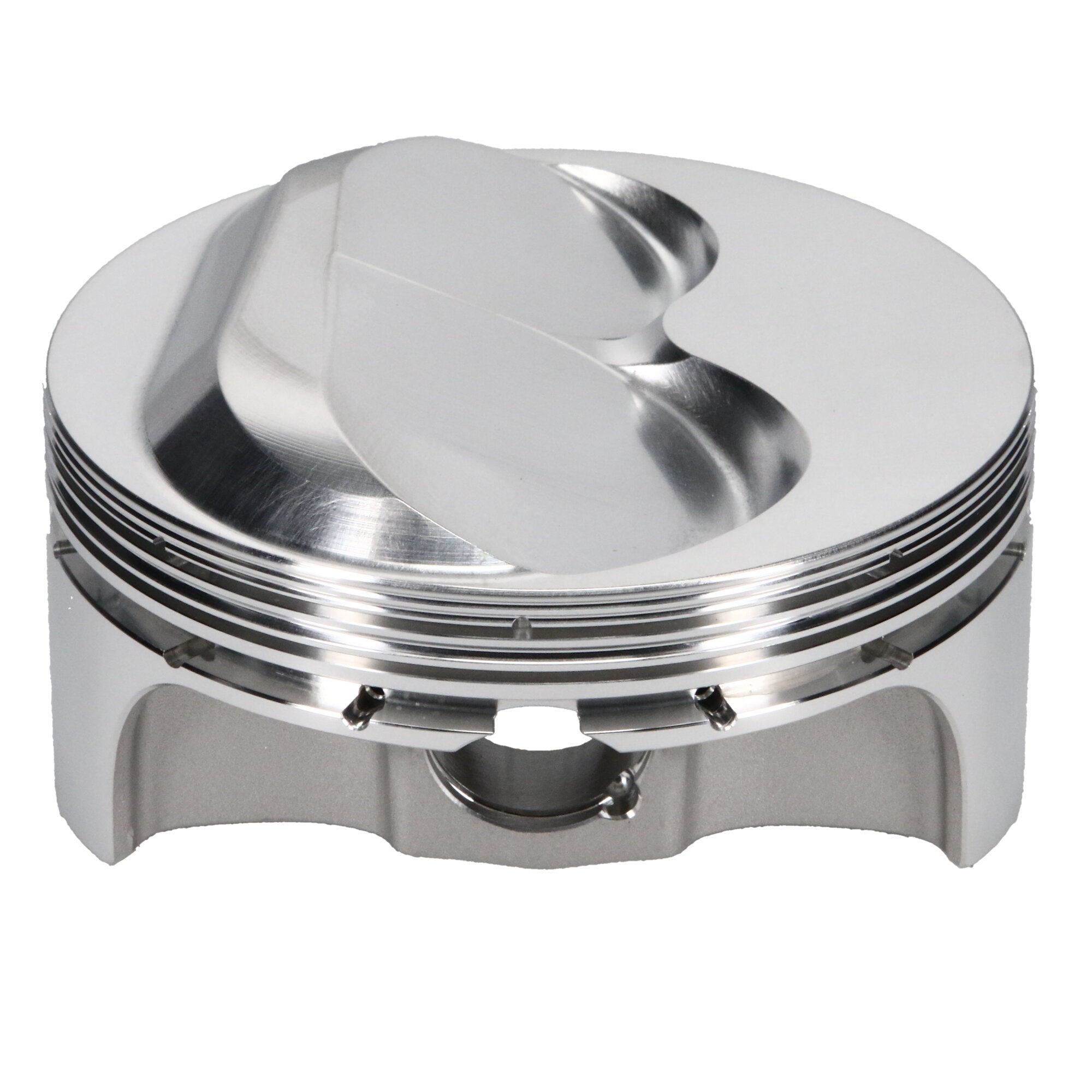

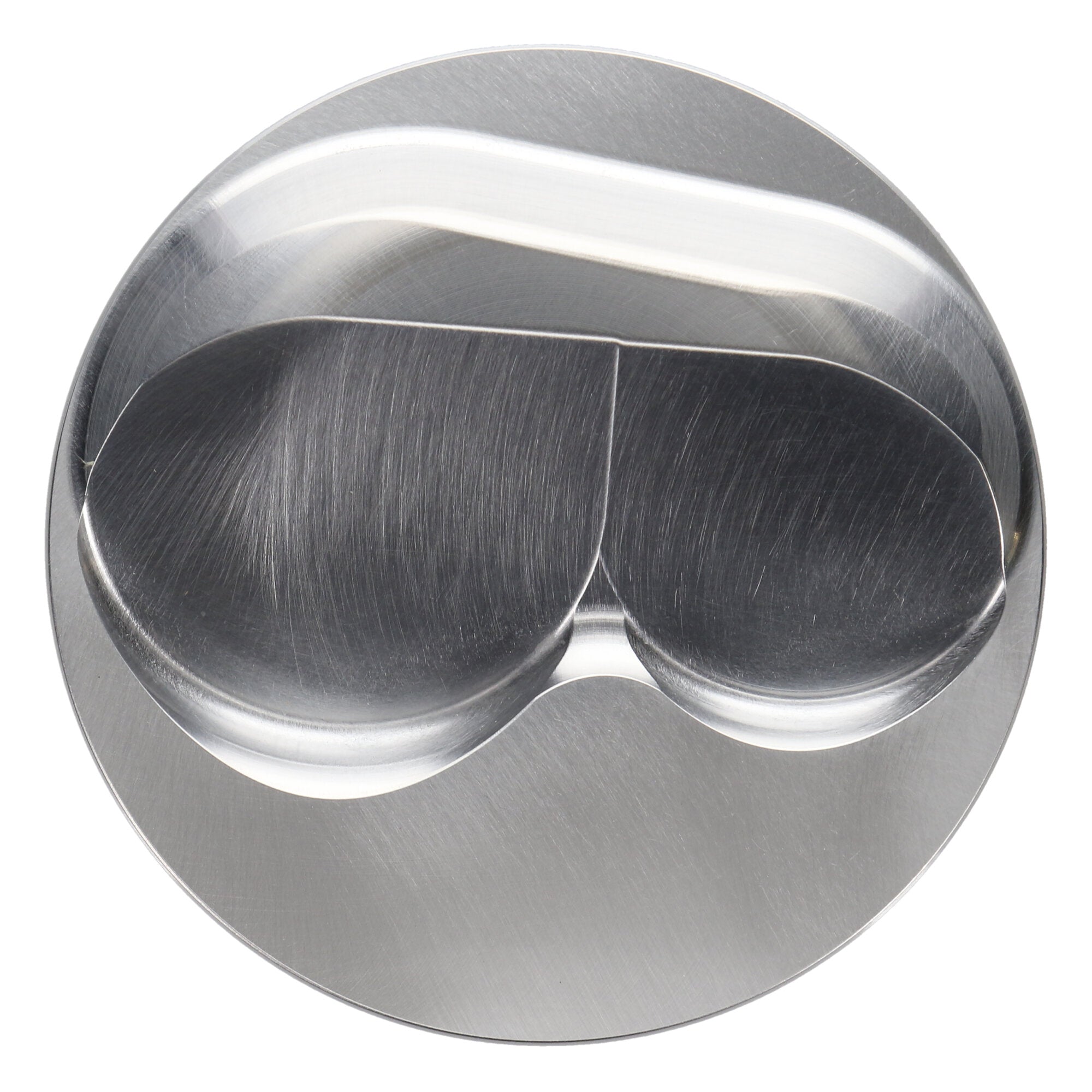

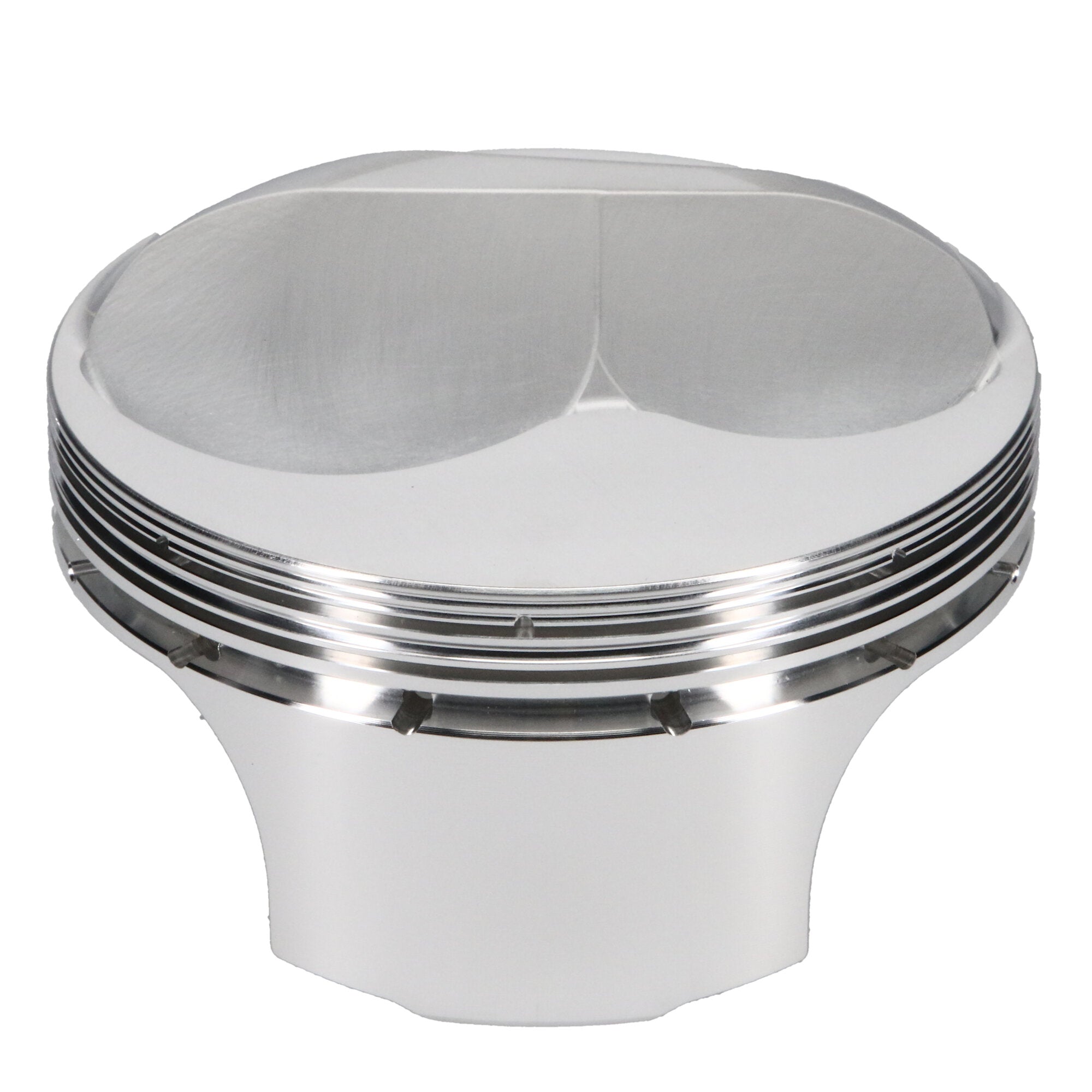

Piston Set, 2618, Dome, 4.060 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 350, 4.060 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
No |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.060 in. Bore - 1.250 in. CH, 13.50 CC |
| Piston Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0440 |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Material |
2618 |
| Engine |
Small Block |
| Compression Height |
1.250 |
| Bore Diameter |
4.060 |
| Oil Ring Thickness |
0.119 |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Forging Type |
FSR |
| Piston Series |
JE Pistons |
| Piston Quantity |
8 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.060 in. Bore, Piston Kit |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Piston Average Weight |
416 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Add-On |
J714F8-4060-5 |
| Piston Pin Wall Thickness |
0.170 |
| Add-On |
927-2250-17-51C |
| Piston Volume |
13.50 |
| Industry |
Automotive |
| Add-On |
927-073-MW |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Make |
CHEVROLET |
| Top Compression Ring Thickness |
0.0435 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.170 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
