As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mitsubishi 6G72 24V 90-01 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

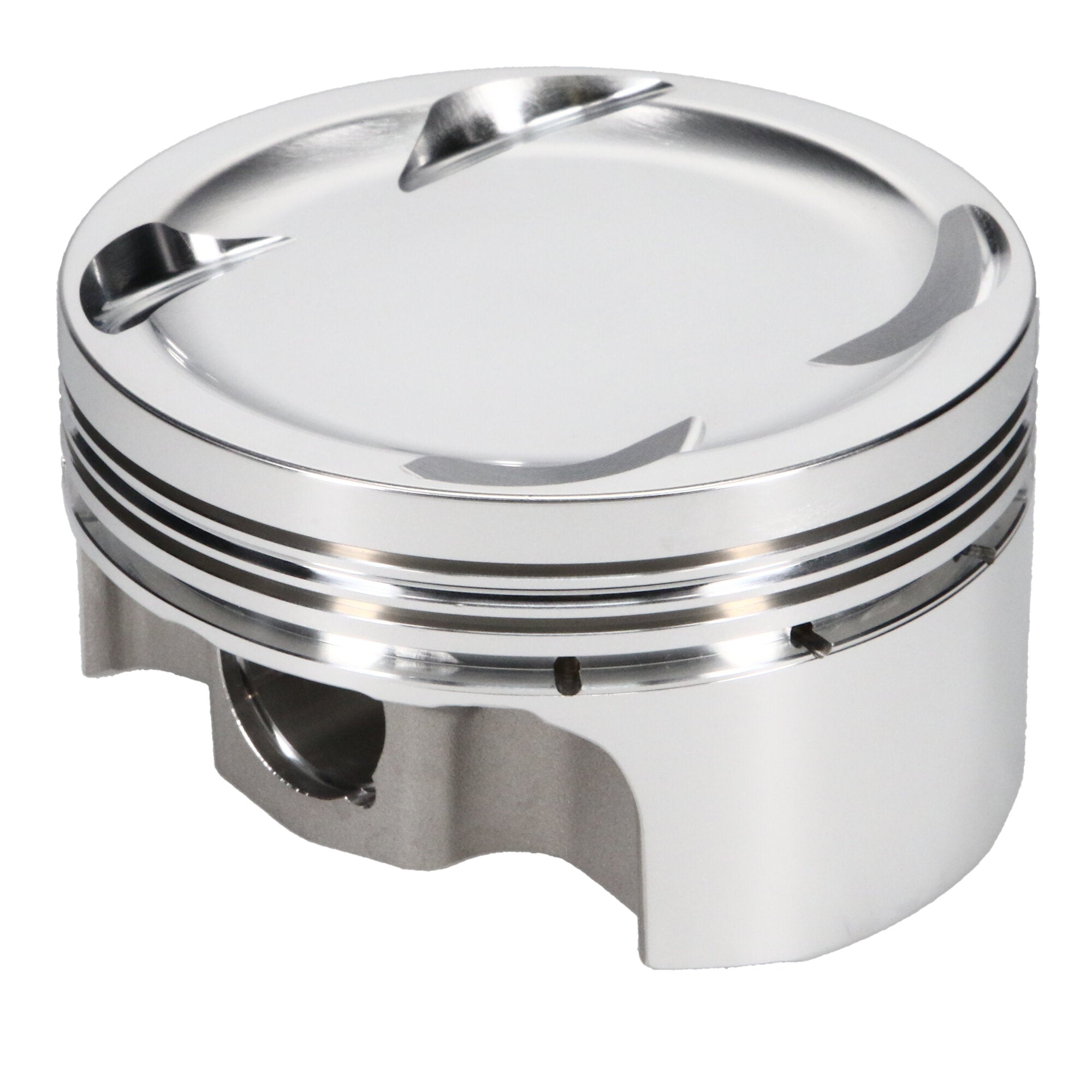

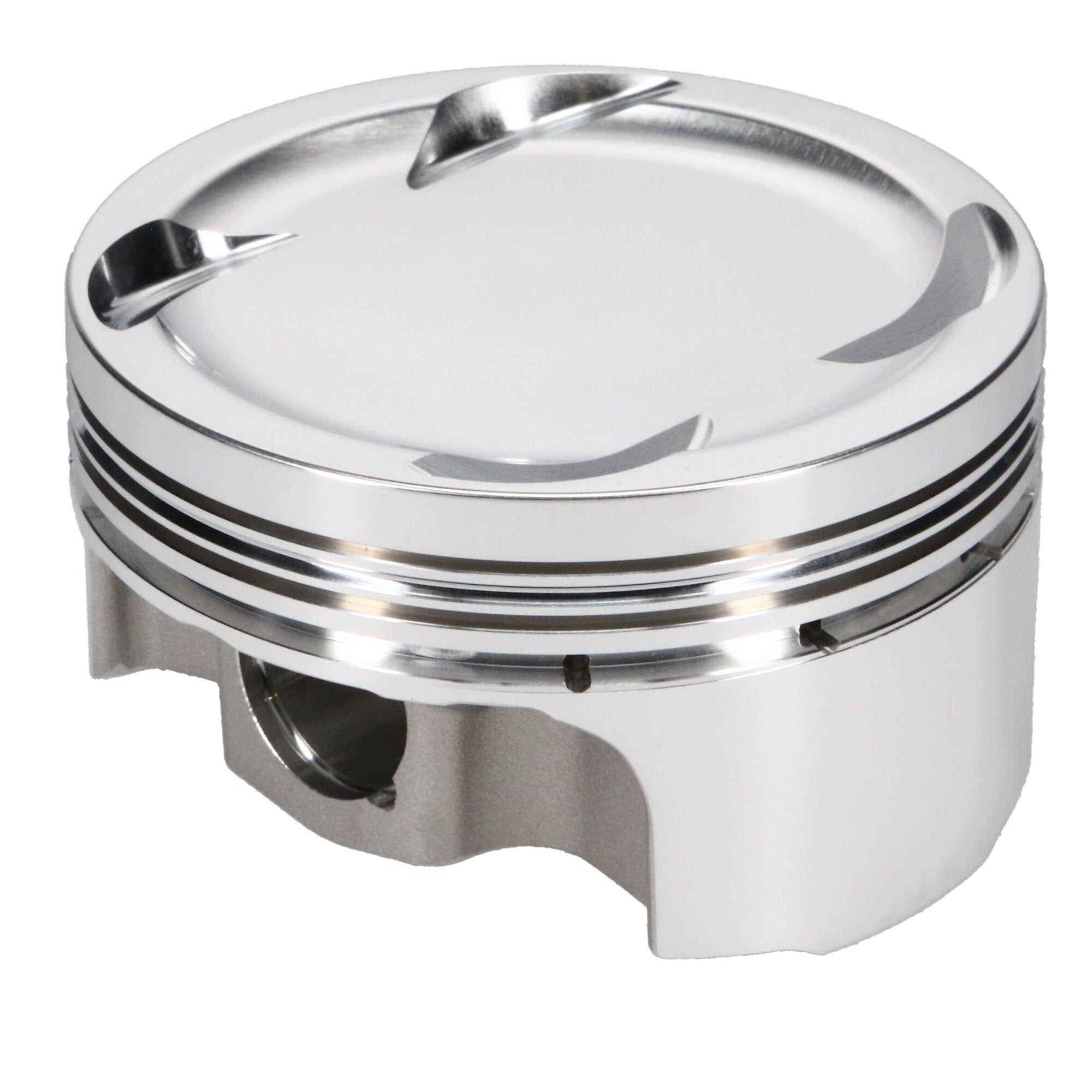

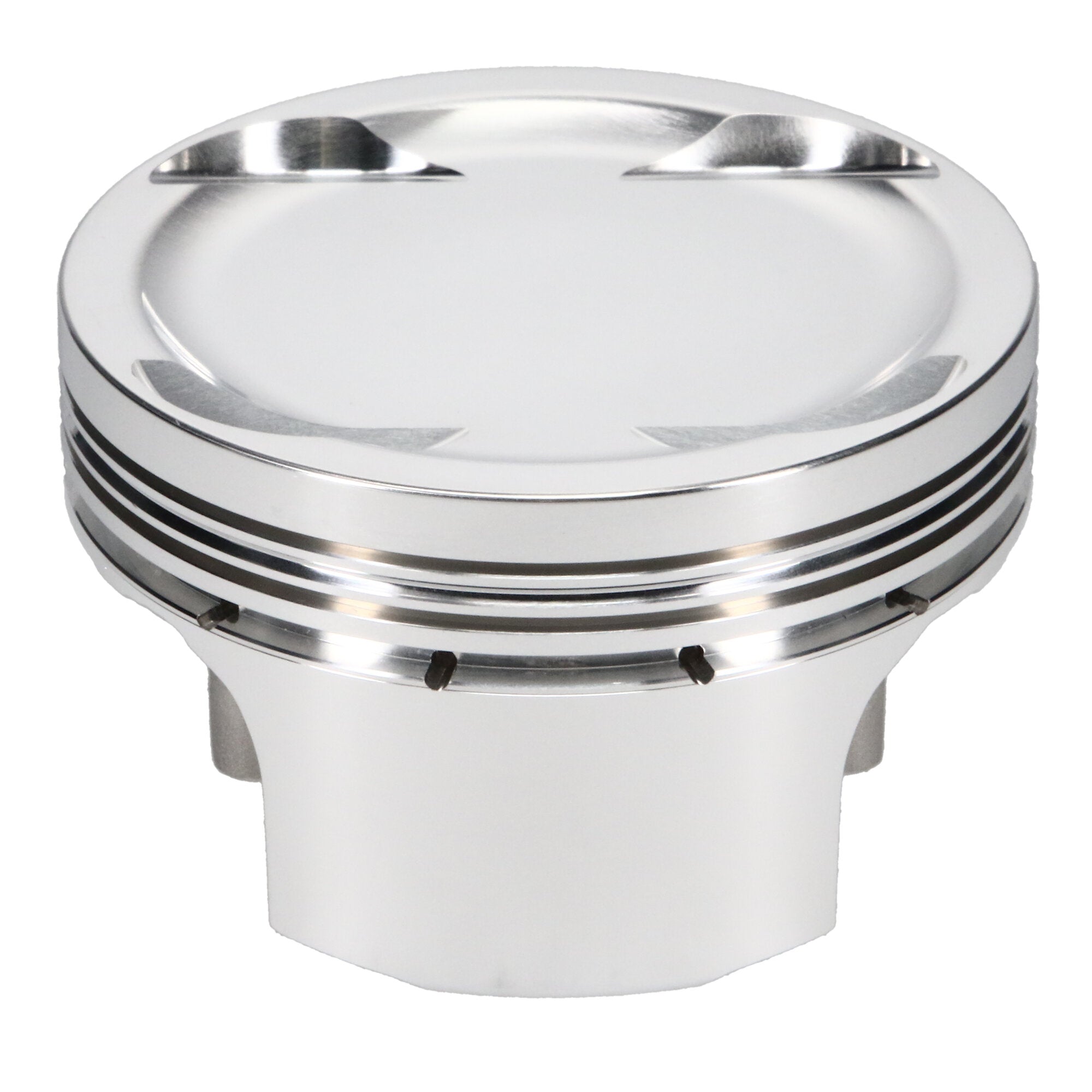

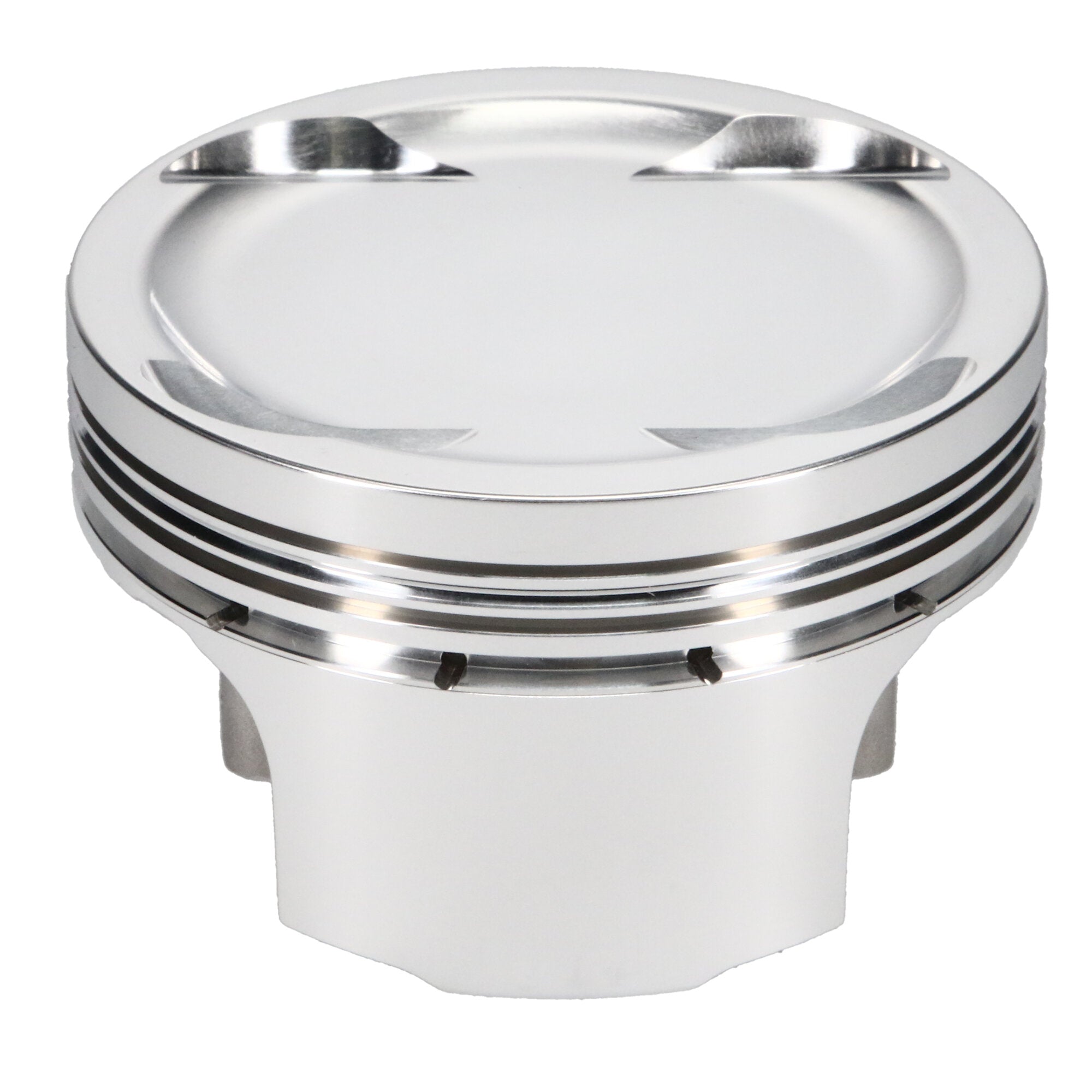

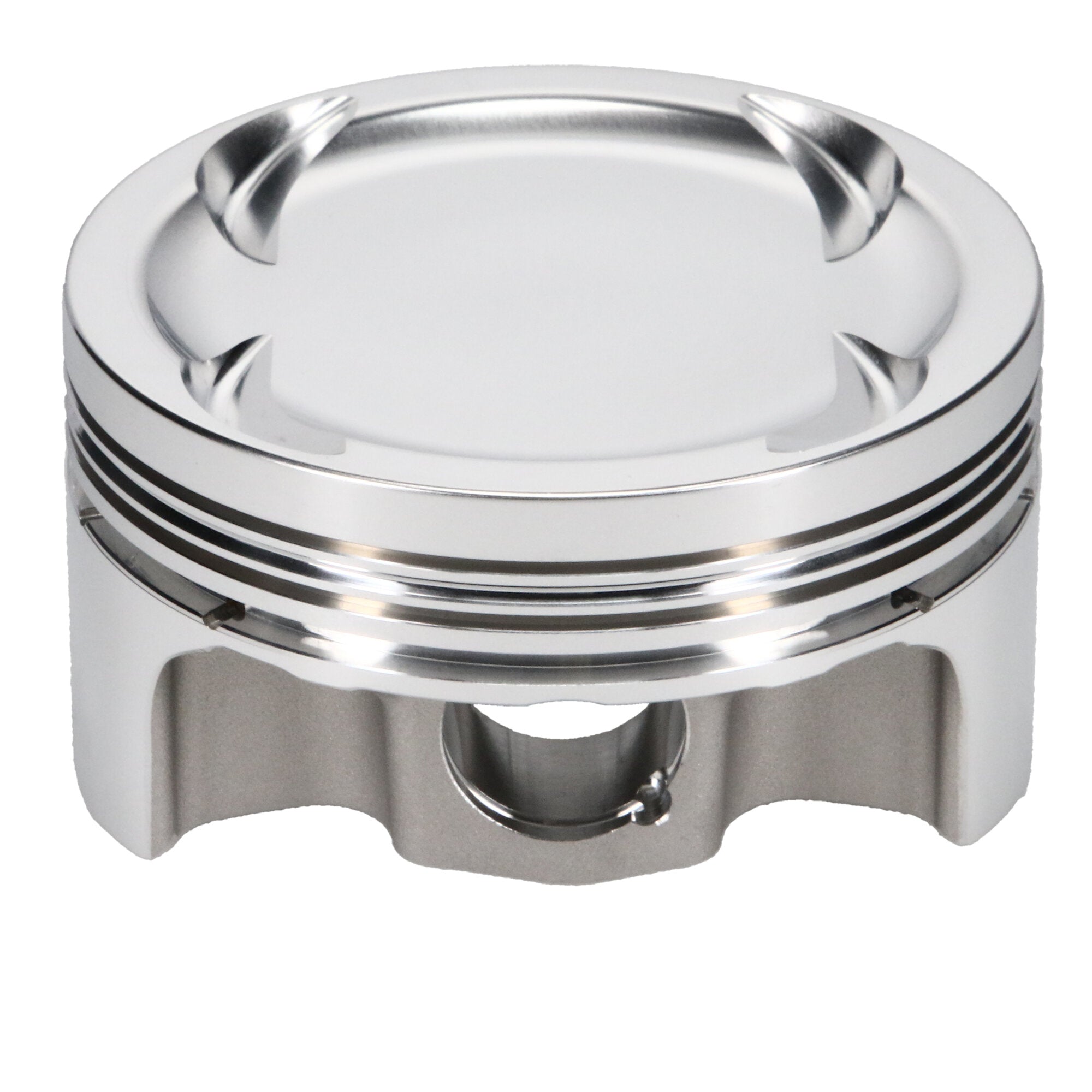

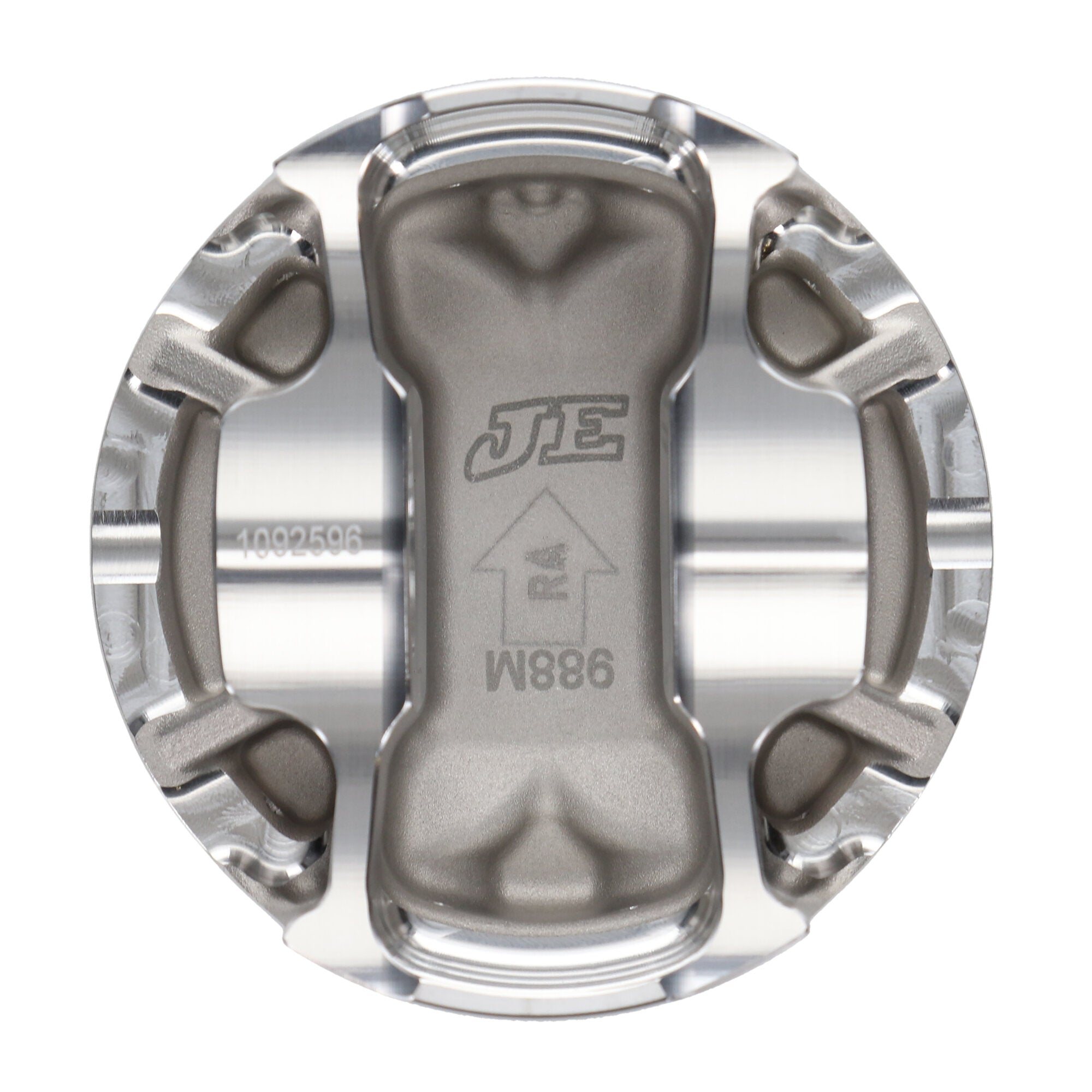

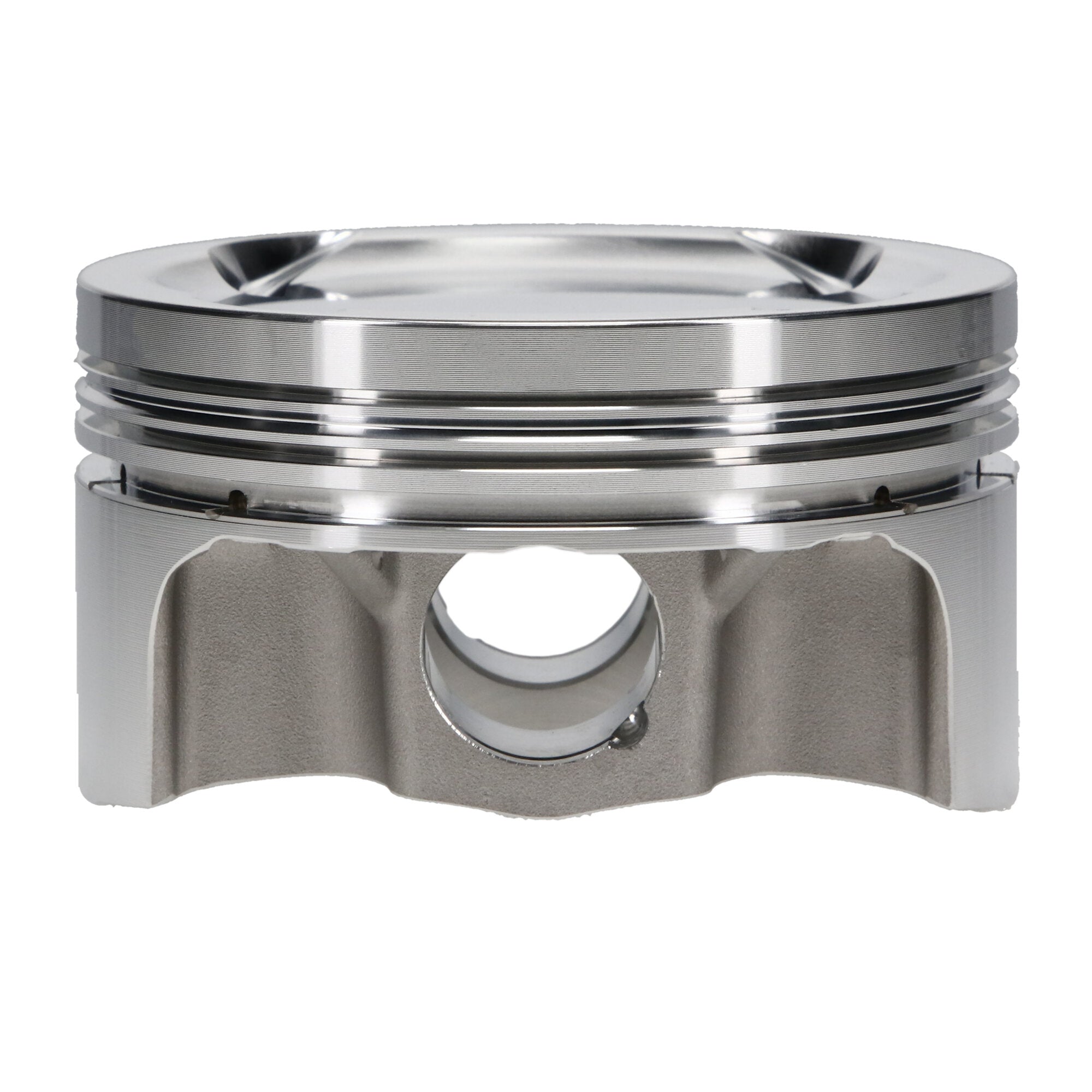

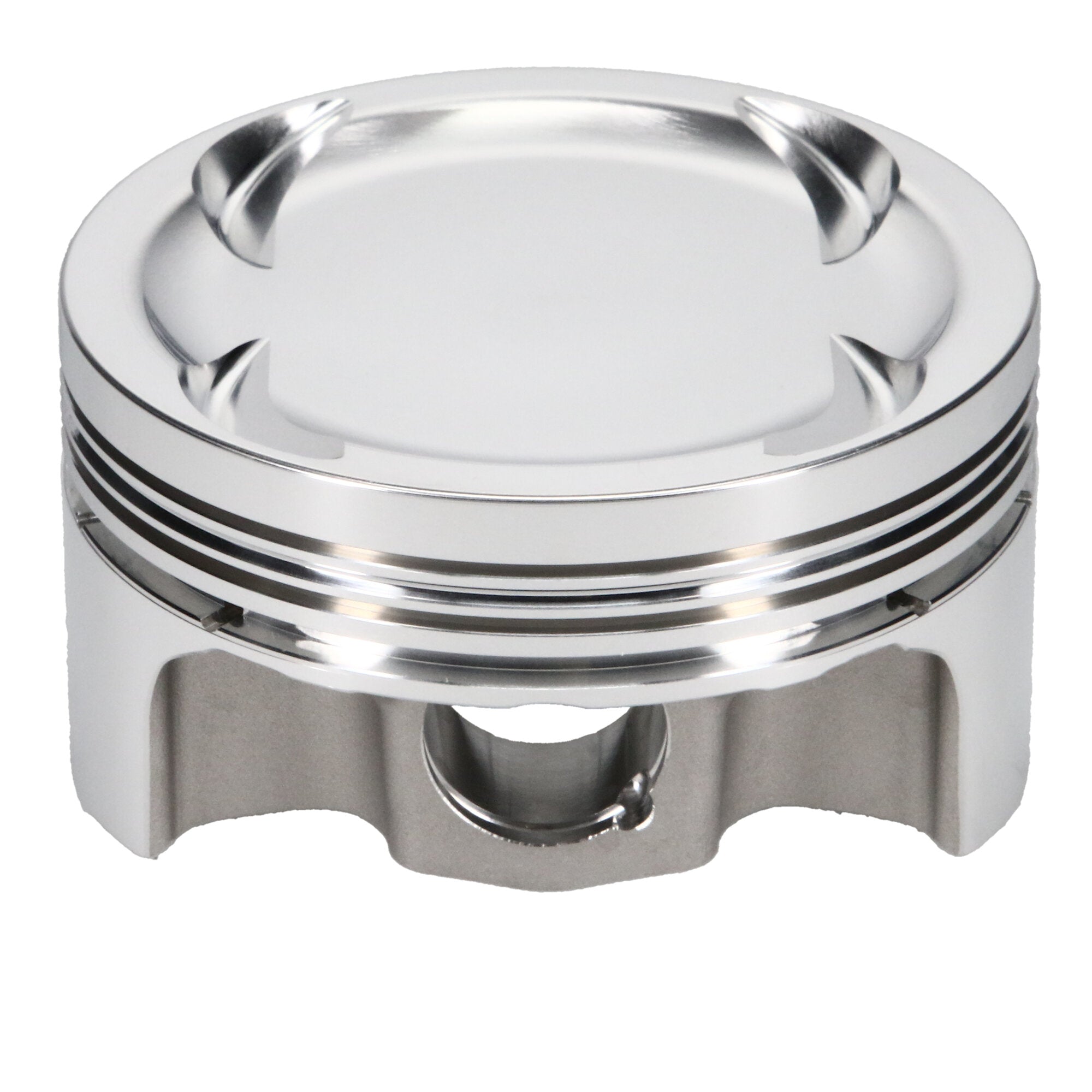

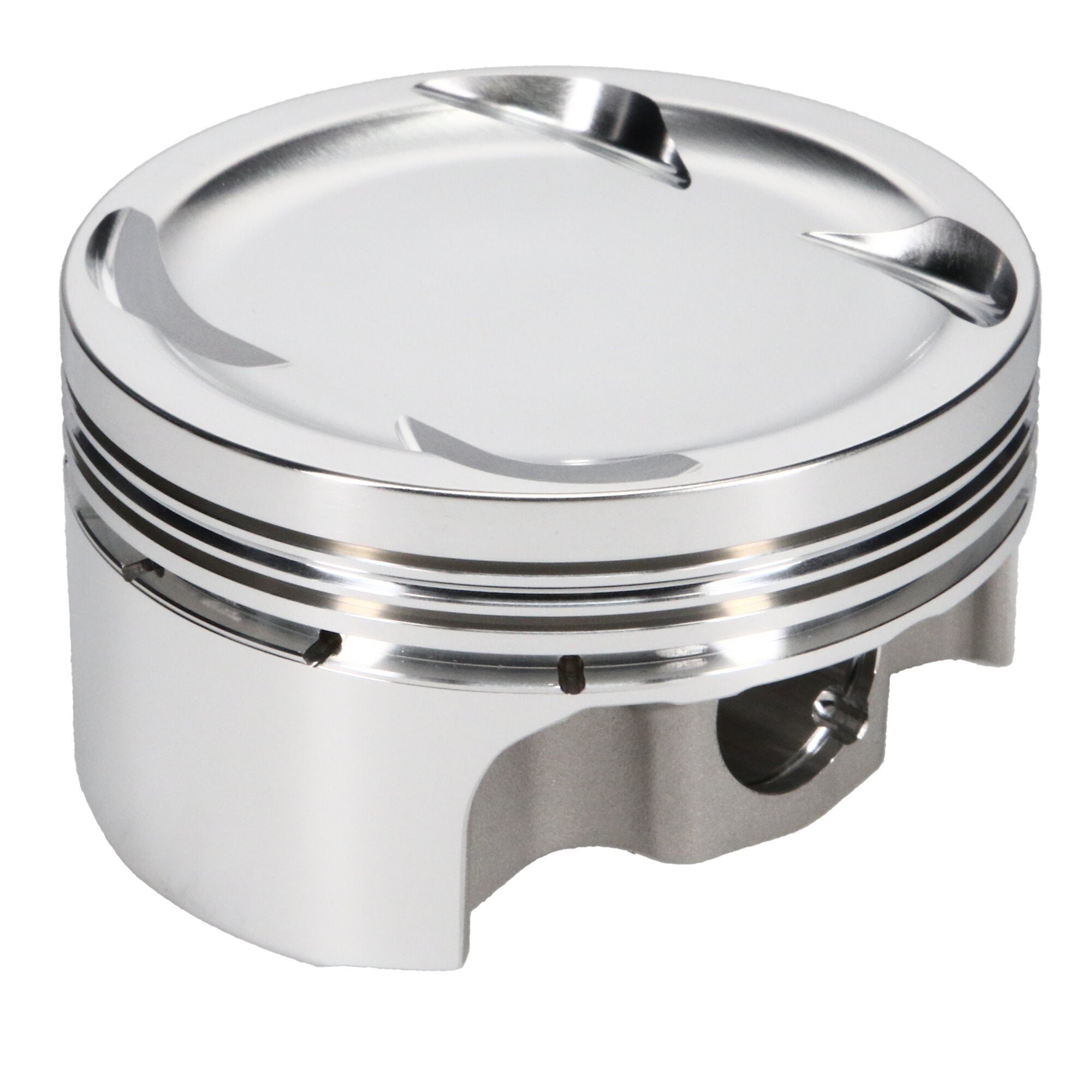

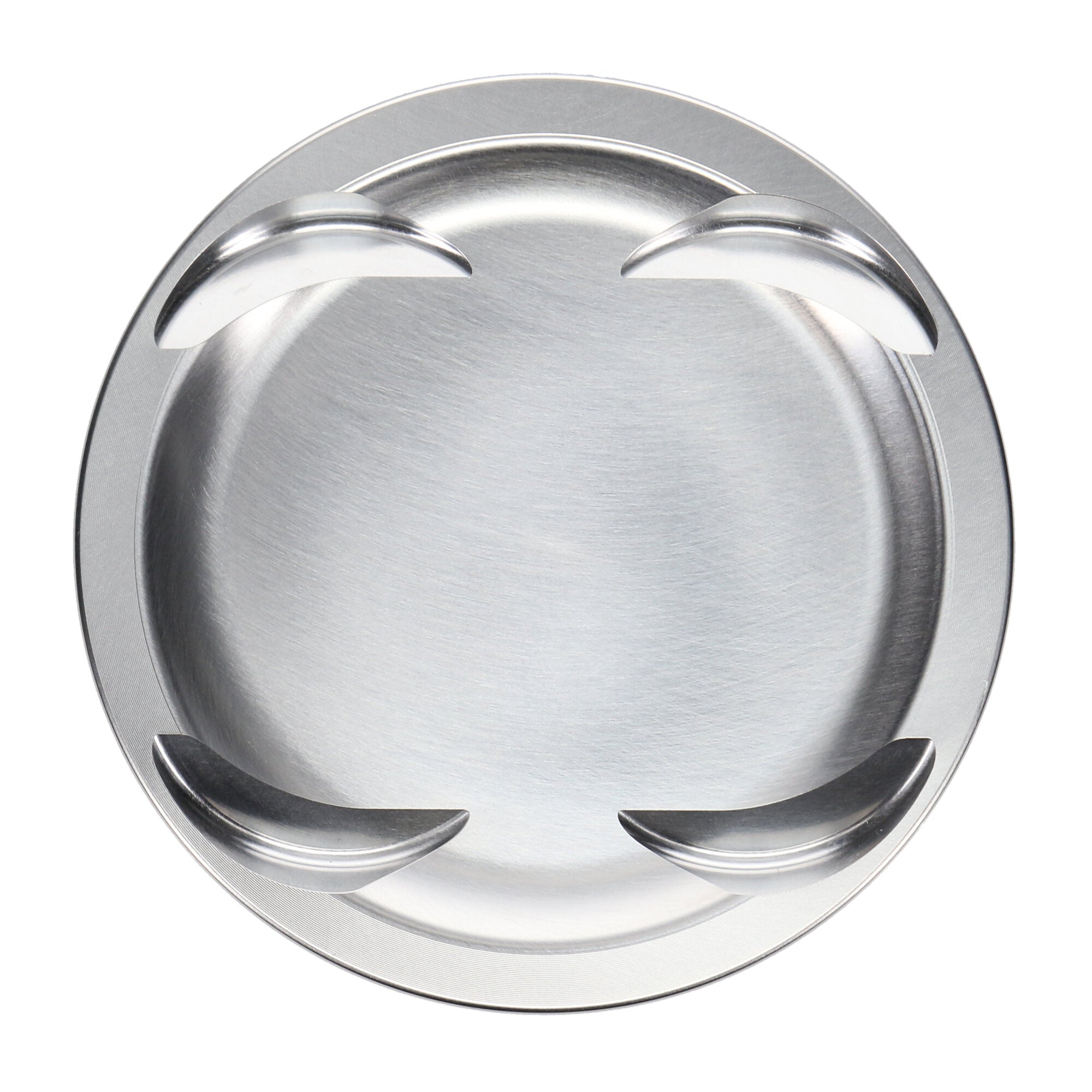

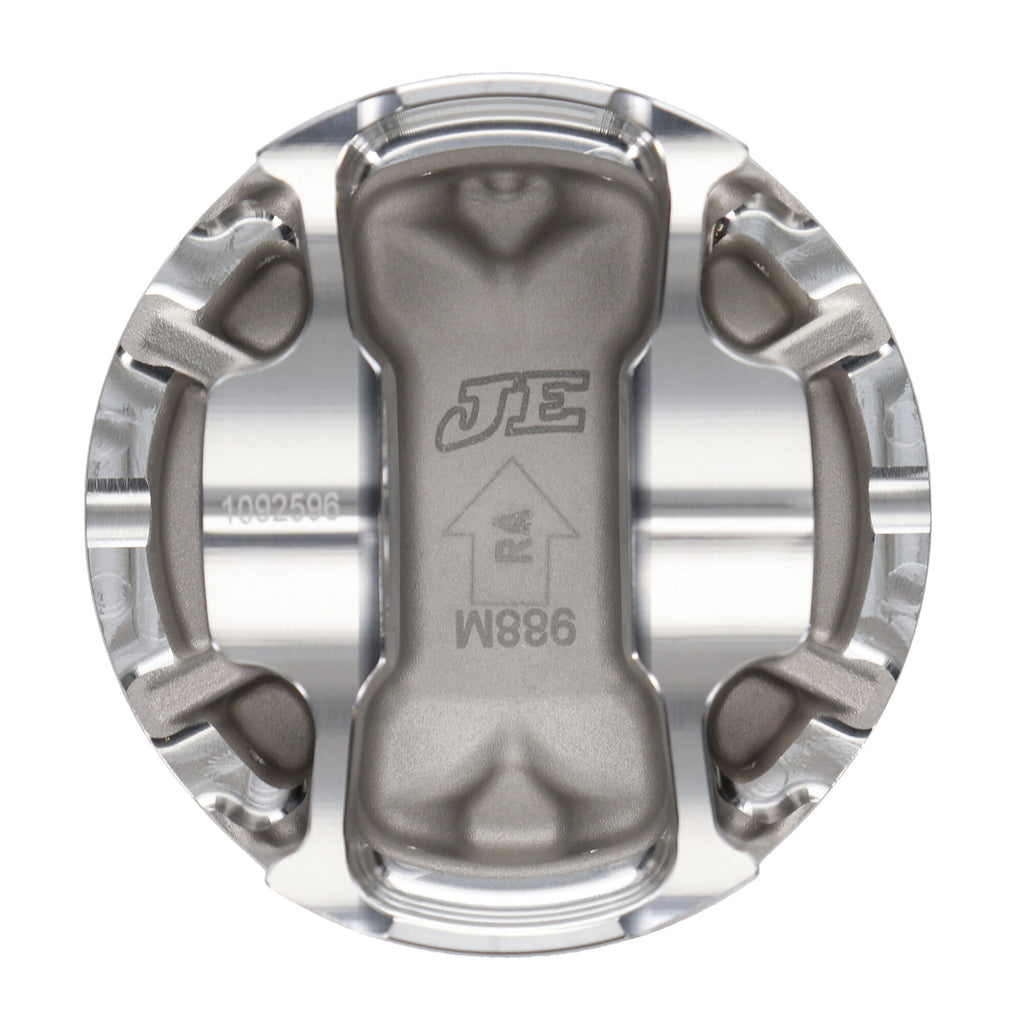

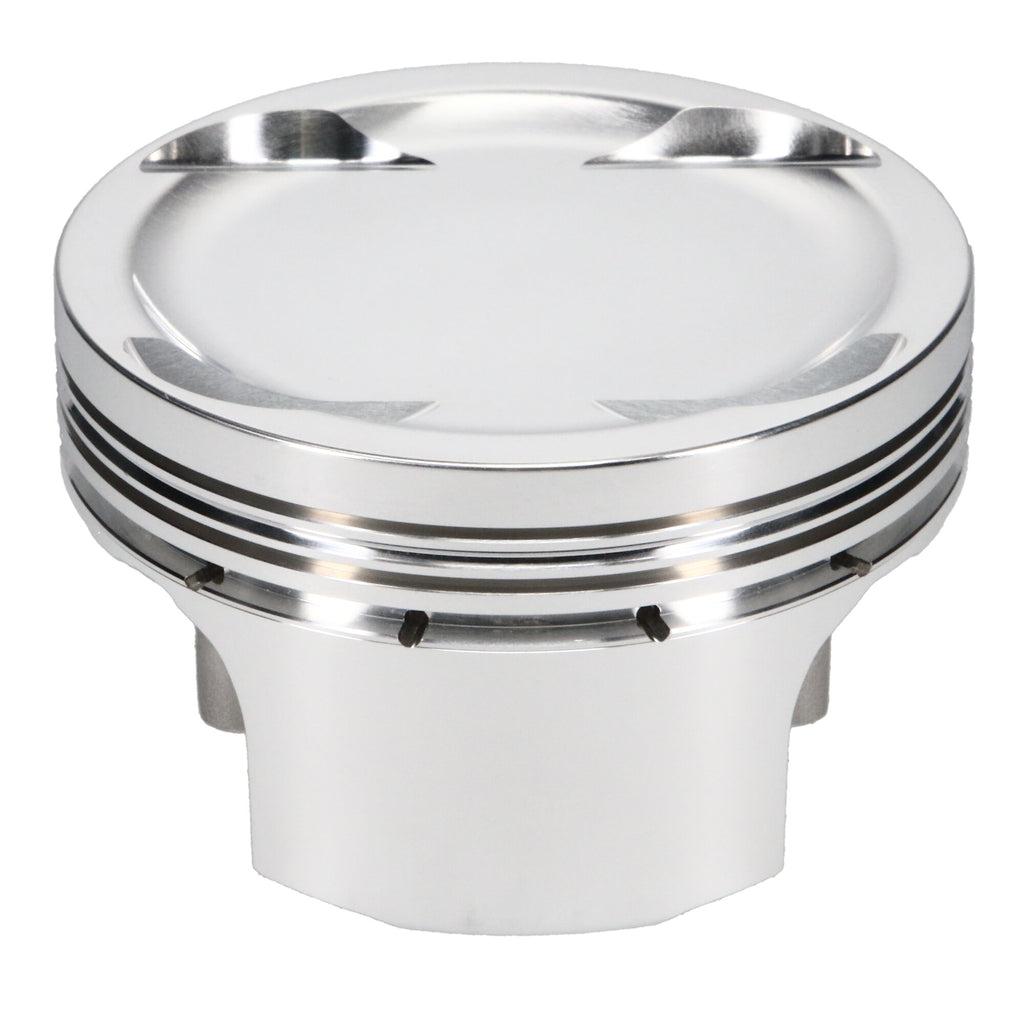

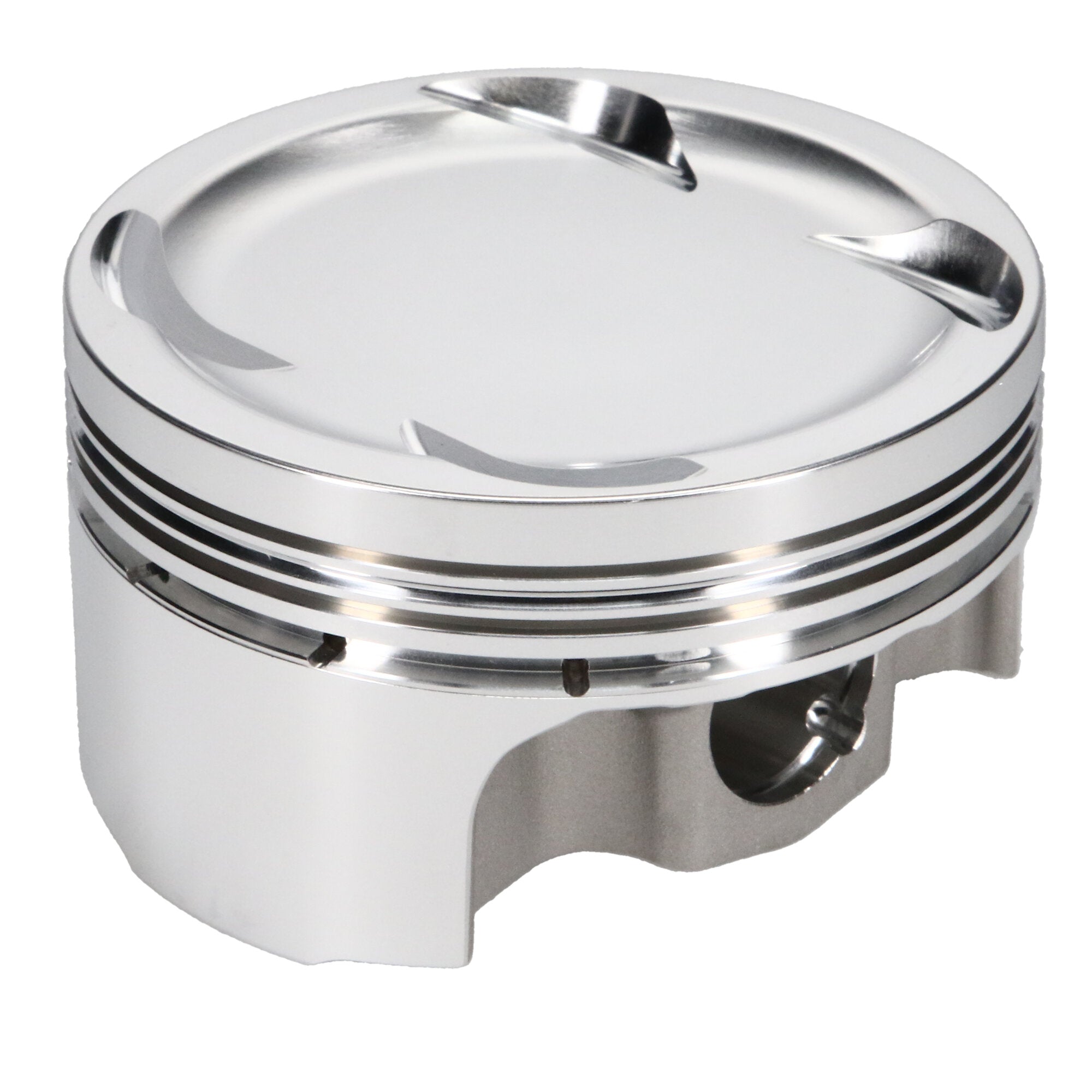

Piston Set, 2618, Inv Dome/Dish, 3.602 Bore, 1.240 CD, 0.866 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Mitsubishi, 6G72 - 90-01 - 24V, 3.602 in. Bore, 8.00:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Mitsubishi 6G72, 91.50 Bore, Dish, Set of 6 |
| Piston Material |
2618 |
| Cylinder Head |
6G72-4V |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Mitsubishi 6G72 Piston Kit - 91.50 mm Bore - 1.240 in. CH, -15.80 CC |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-15.80 |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Detail |
6G72 24V 90-01 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
866-2250-15-51C |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Piston Quantity |
6 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.240 |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
866-063-MW |
| Engine |
6G72 24V 90-01 |
| Add-On |
JG1001-3602 |
| Piston Pin Material |
5115 |
| Second Compression Ring Thickness |
0.0480 |
| Wrist Pin Length |
2.250 |
| Make - Web |
Mitsubishi |
| Ring Set Included |
Yes |
| Engine - Web |
6G72 |
| Forging Type |
FSR |
| Piston Pin Outside Diameter |
0.866 |
| Piston Head Type |
Dish |
| Ringset Included |
Yes |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Bore Diameter |
91.50 |
| Product Market |
Sport Compact |
| Piston Average Weight |
345 |
| Engine Type |
ICE |
| Make |
MITSUBISHI |
| Oil Ring Thickness |
0.111 |
| Title |
JE Pistons - Mitsubishi, 6G72, 91.50 mm Bore, Piston Kit |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
