As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan VQ35DE |
| Description_DEF |
Engine Piston |
| Description_DES |

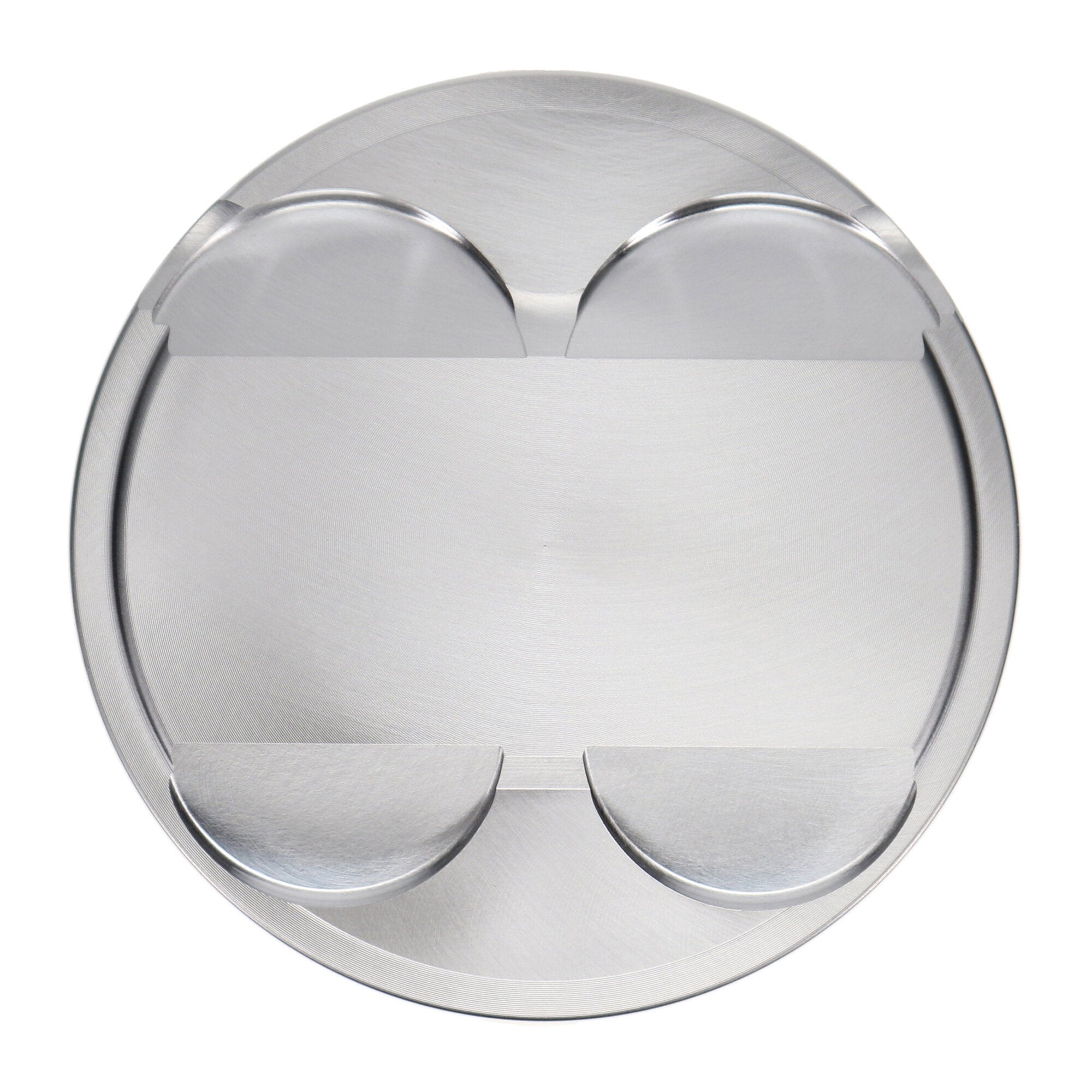

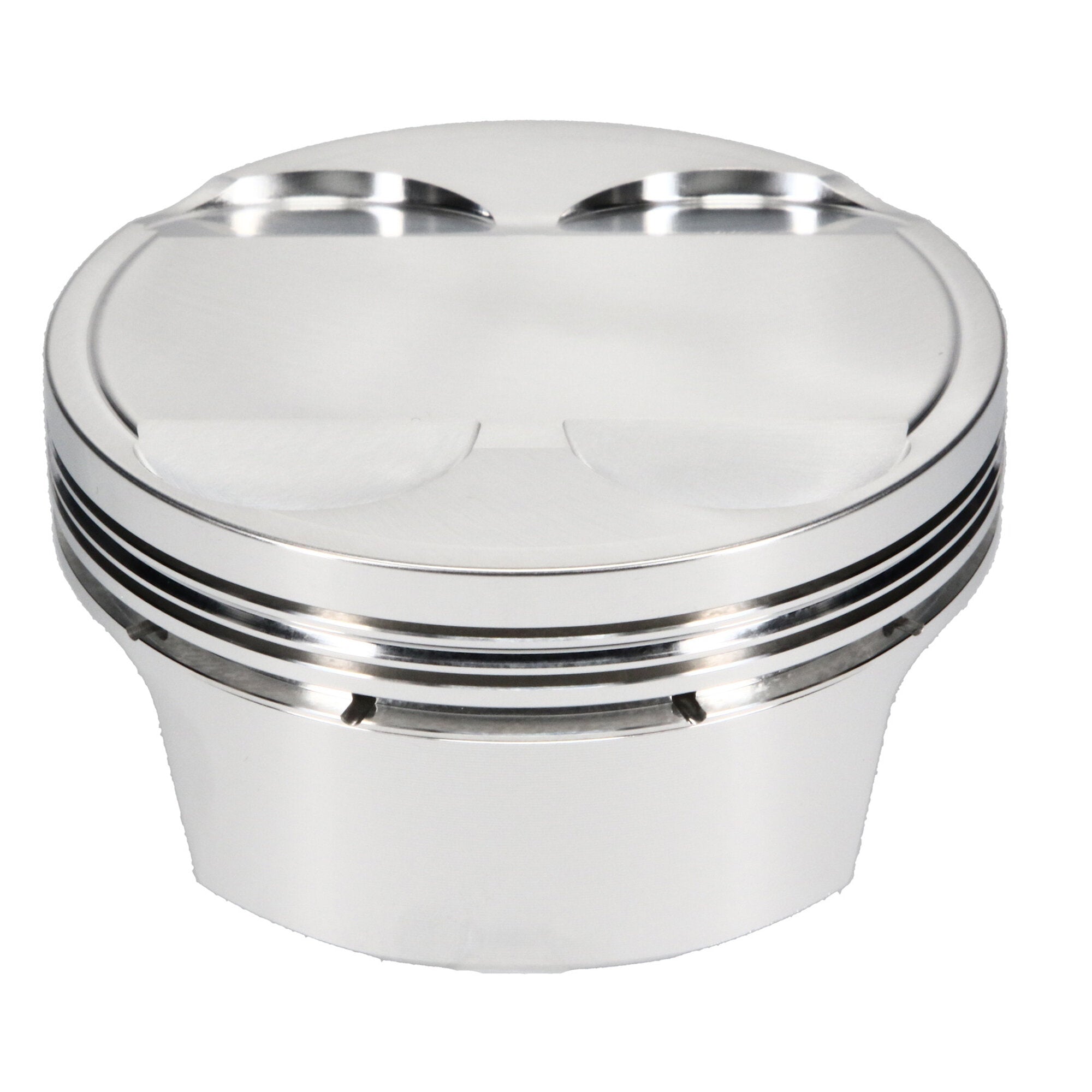

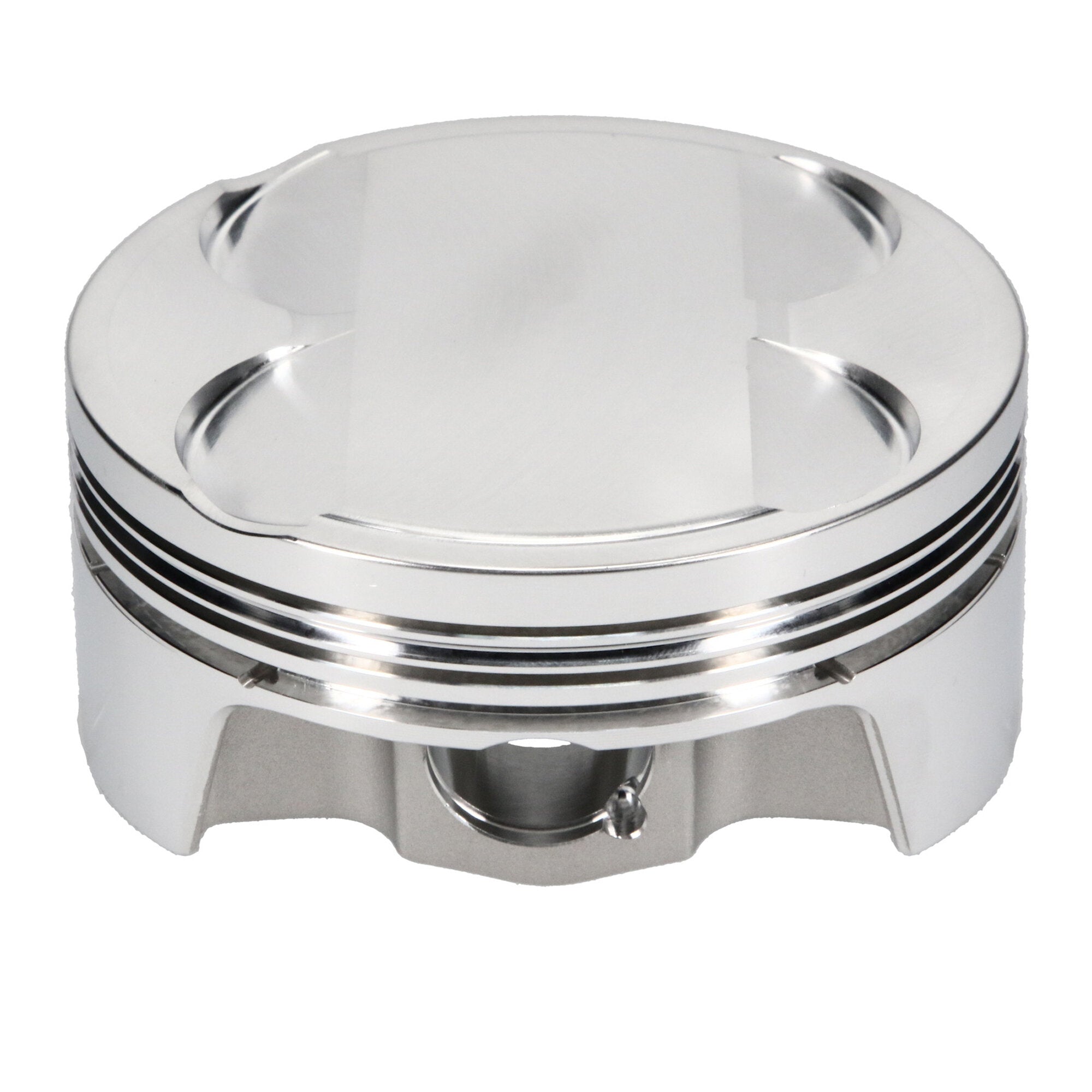

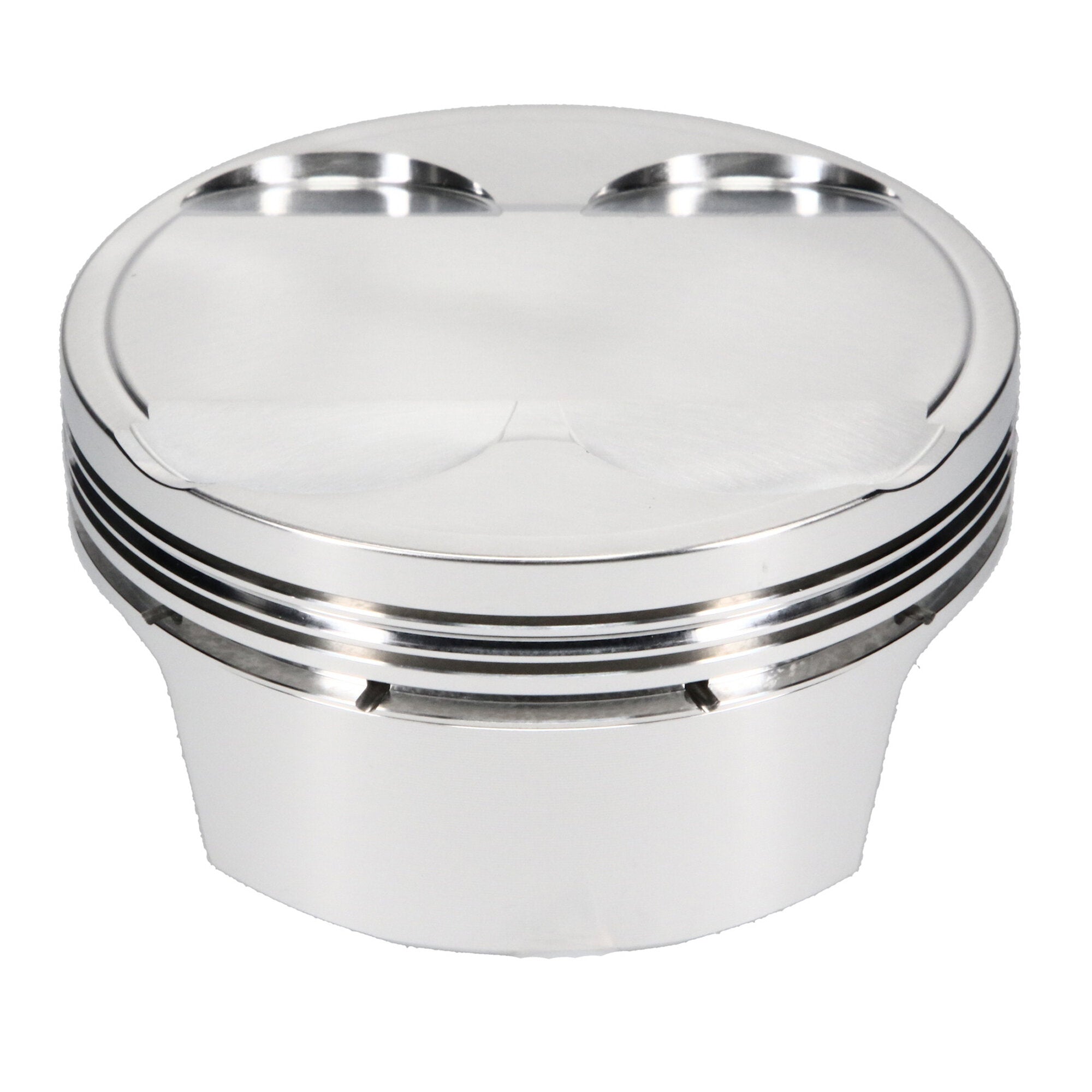

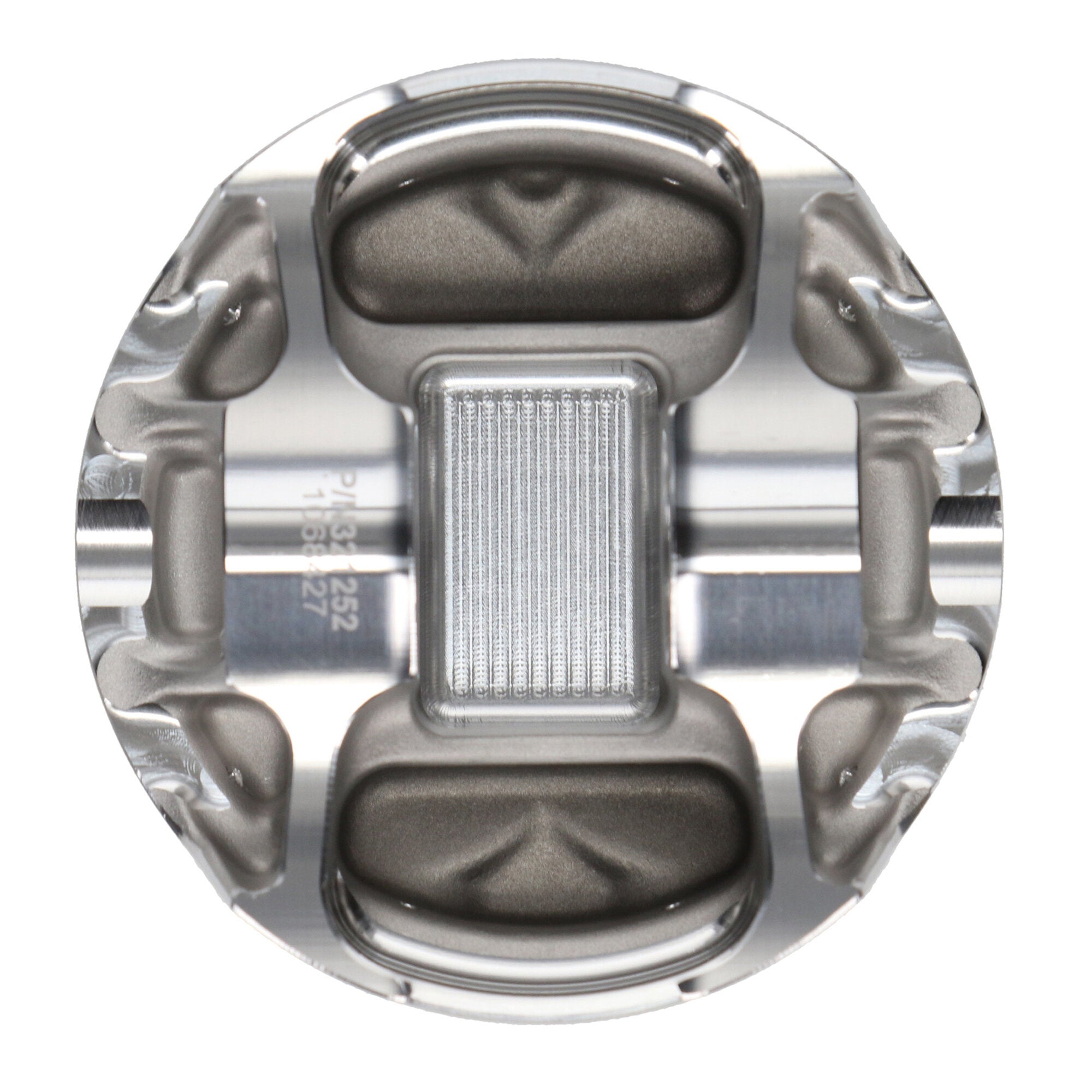

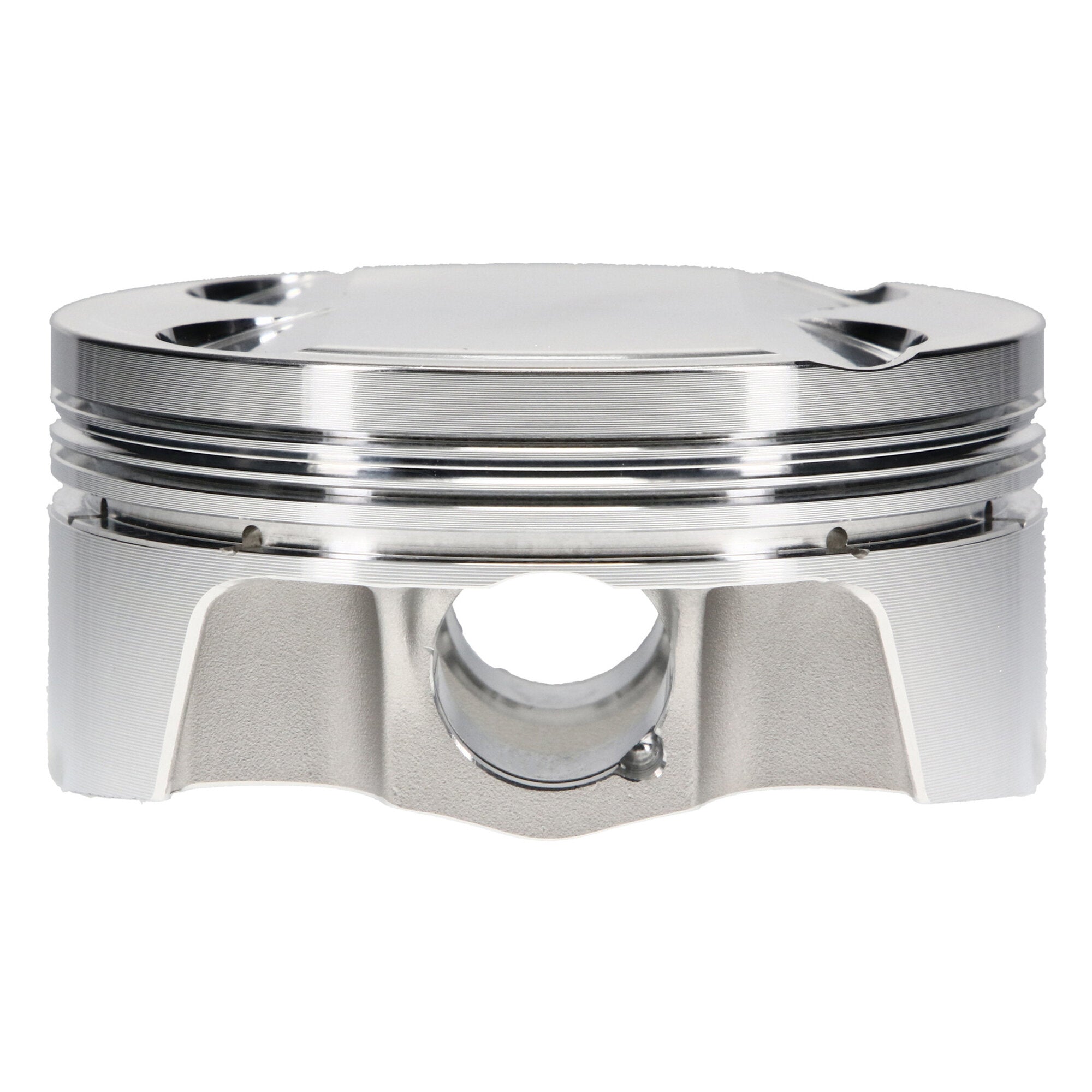

Piston Single, 2618, Dome, 3.780 Bore, 1.165 CD, 0.866 Pin, Set of 1. |
| Description_EXT |
JE, Nissan, VQ35DE, 3.779 in. Bore, 11.50:1, Dome, Left Piston |
| Description_INV |
JE Pistons, Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Description_TLE |
Nissan VQ35DE, 96.00 Bore, Dome, Set of 1 |
| Add-On |
866-2250-15-51C |
| Add-On |
JG1001-3780 |
| Add-On |
866-063-MW |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Bore Diameter |
96.00 |
| Compression Height |
1.165 |
| Cylinder Head |
VQ35DE 3.5L |
| Forging Type |
FSR |
| Industry |
Automotive |
| Make |
NISSAN |
| Engine |
VQ35DE |
| Engine Type |
ICE |
| Make - Web |
Nissan |
| Engine - Web |
VQ35DE |
| Piston Series |
JE Pistons |
| Product Market |
Sport Compact |
| Second Compression Ring Thickness |
0.0480 |
| Product Type |
Engine Piston |
| Piston Pin Outside Diameter |
0.866 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Ringset Included |
Yes |
| Piston Average Weight |
404 |
| Piston Orientation |
Left |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
9.00 |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
1 |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title - Web |
JE Pistons Nissan VQ35DE Piston - 96.00 mm Bore - 1.165 in. CH, 9.00 CC |
| Title |
JE Pistons - Nissan, VQ35DE, 96.00 mm Bore, Piston |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
