As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan VQ35DE |
| Description_DEF |
Engine Piston |
| Description_DES |

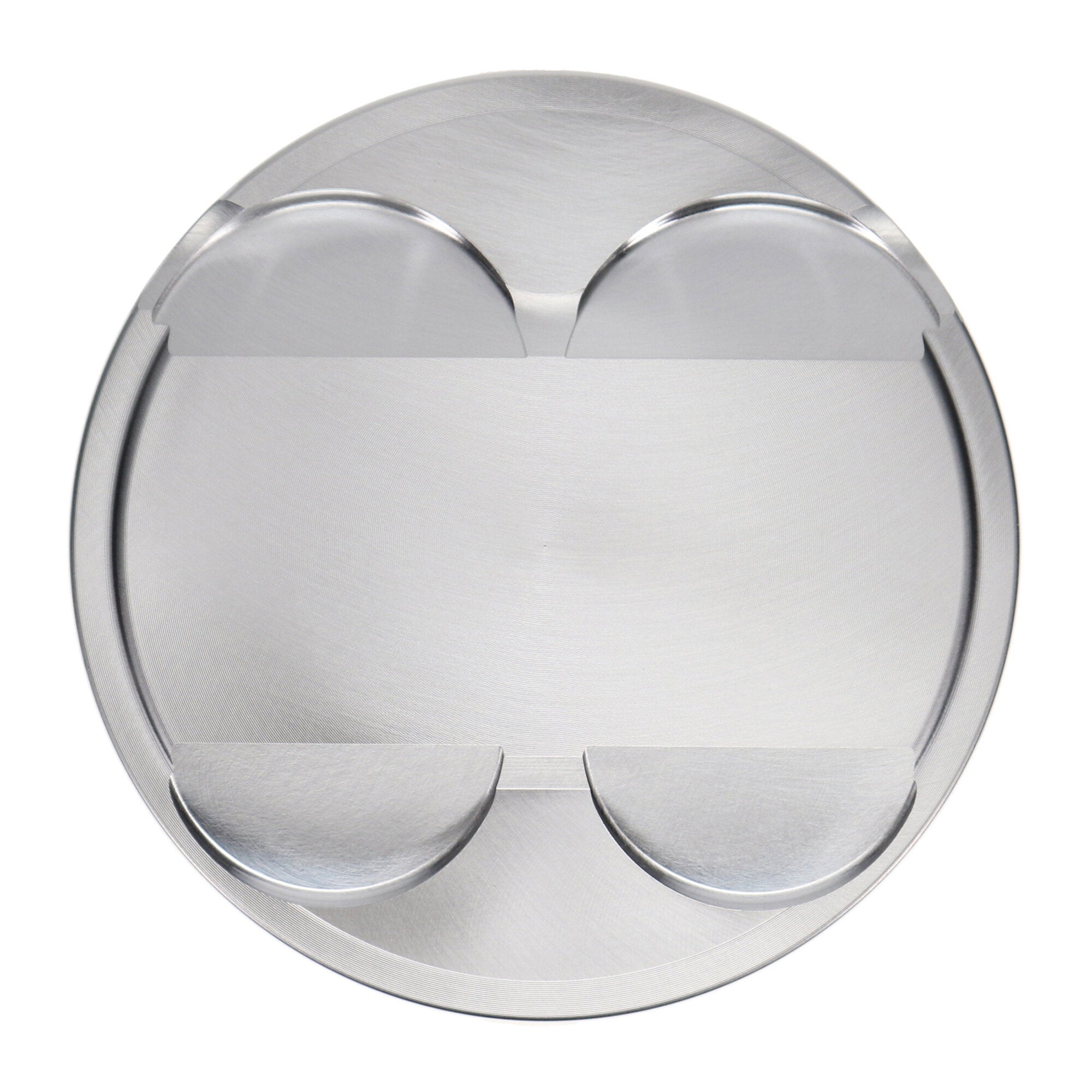

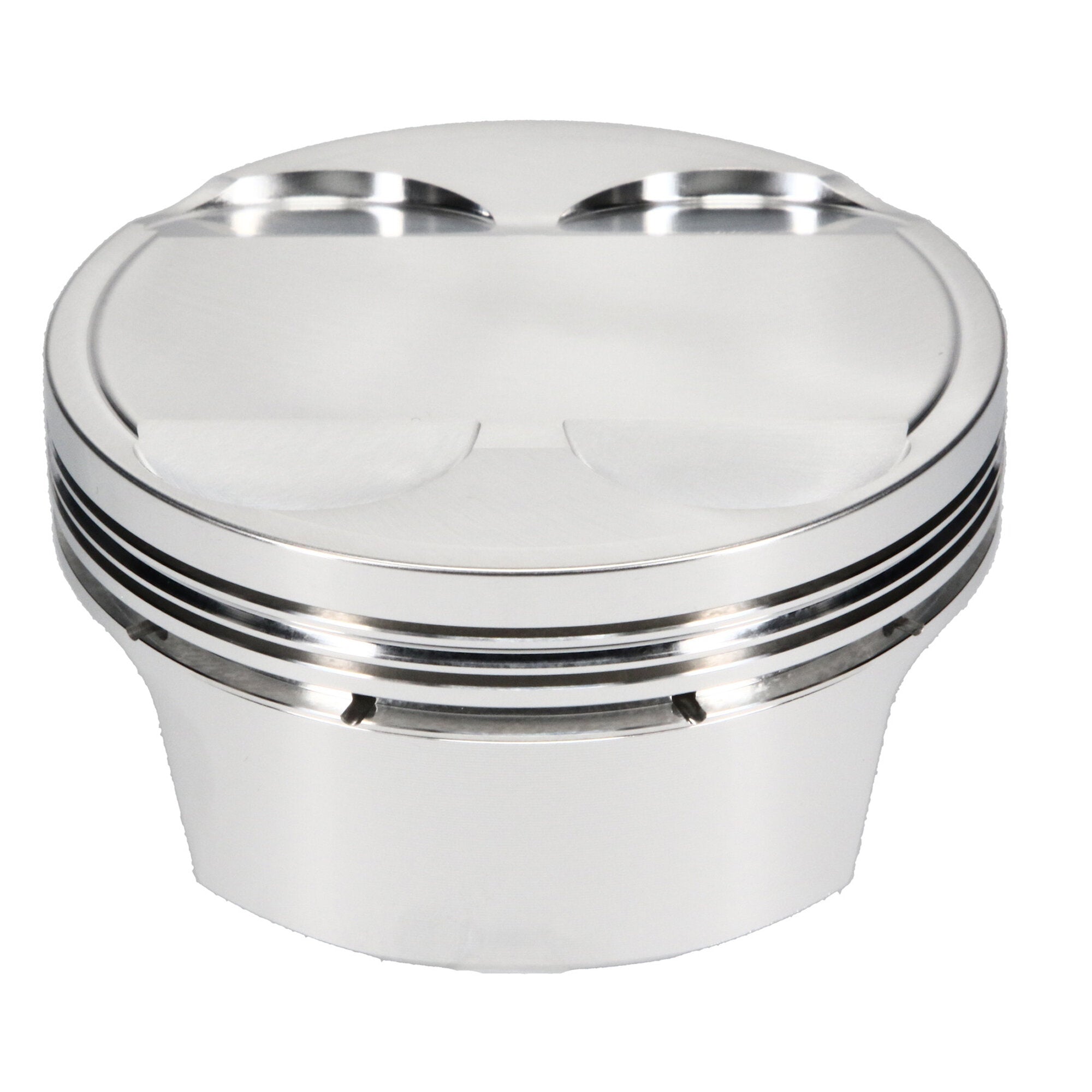

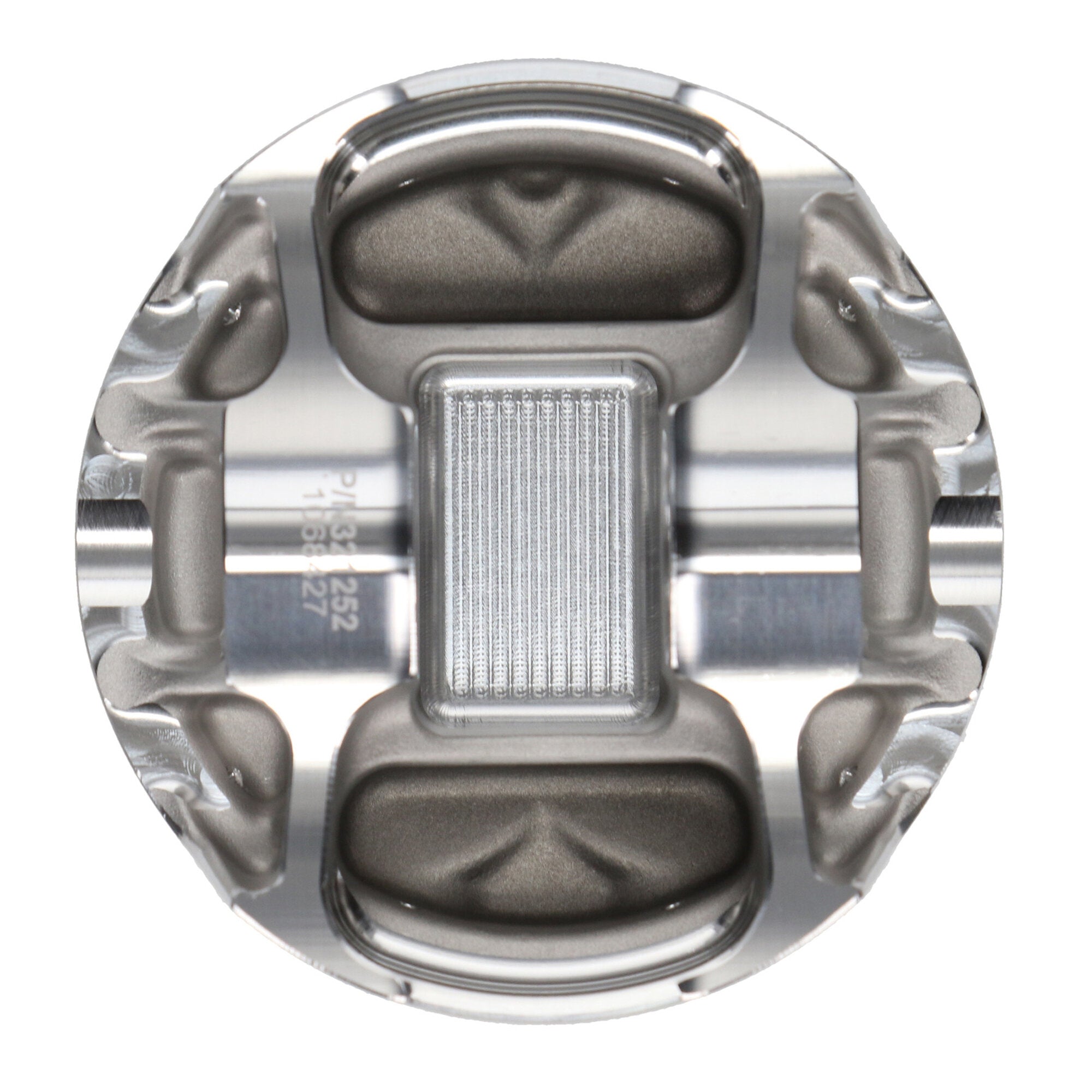

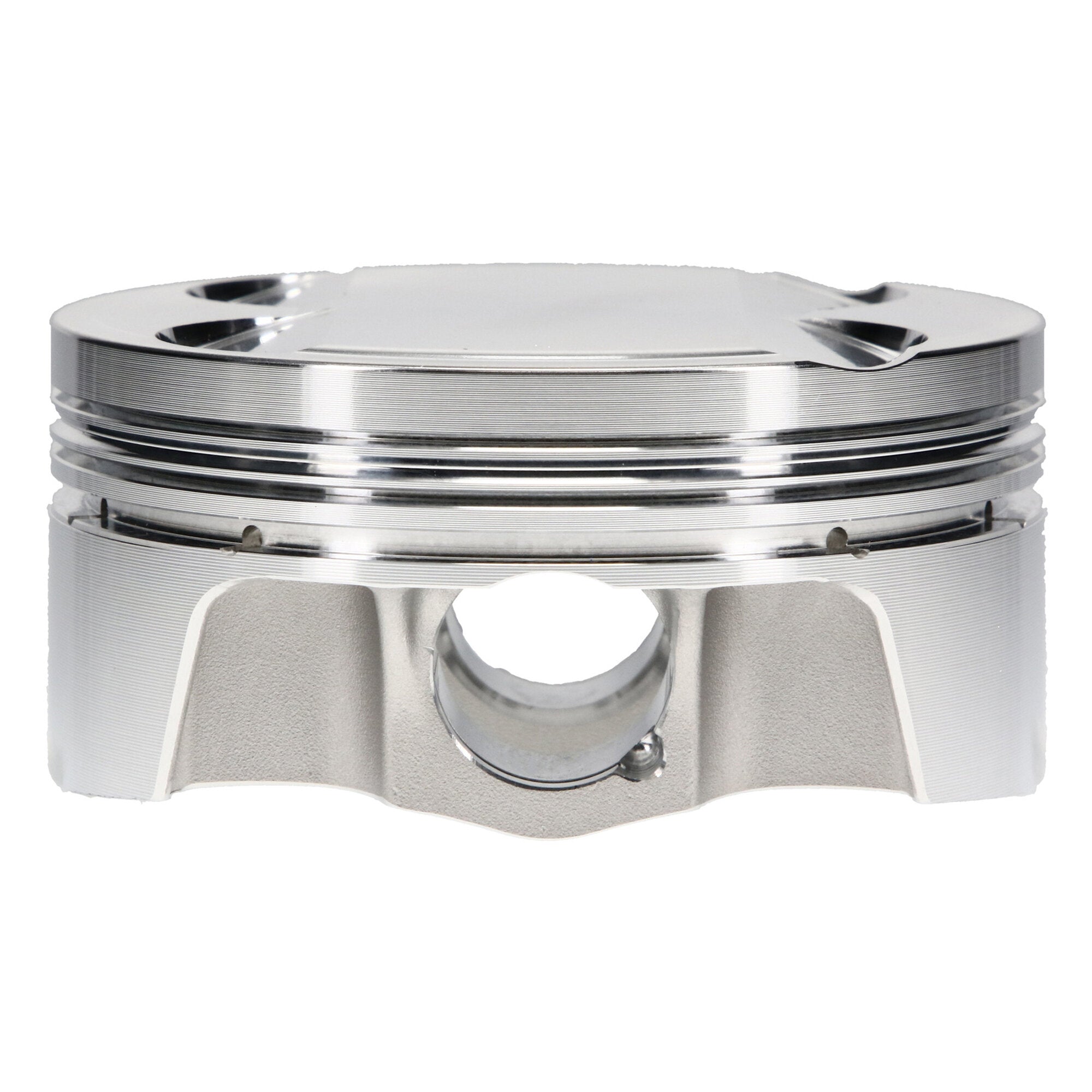

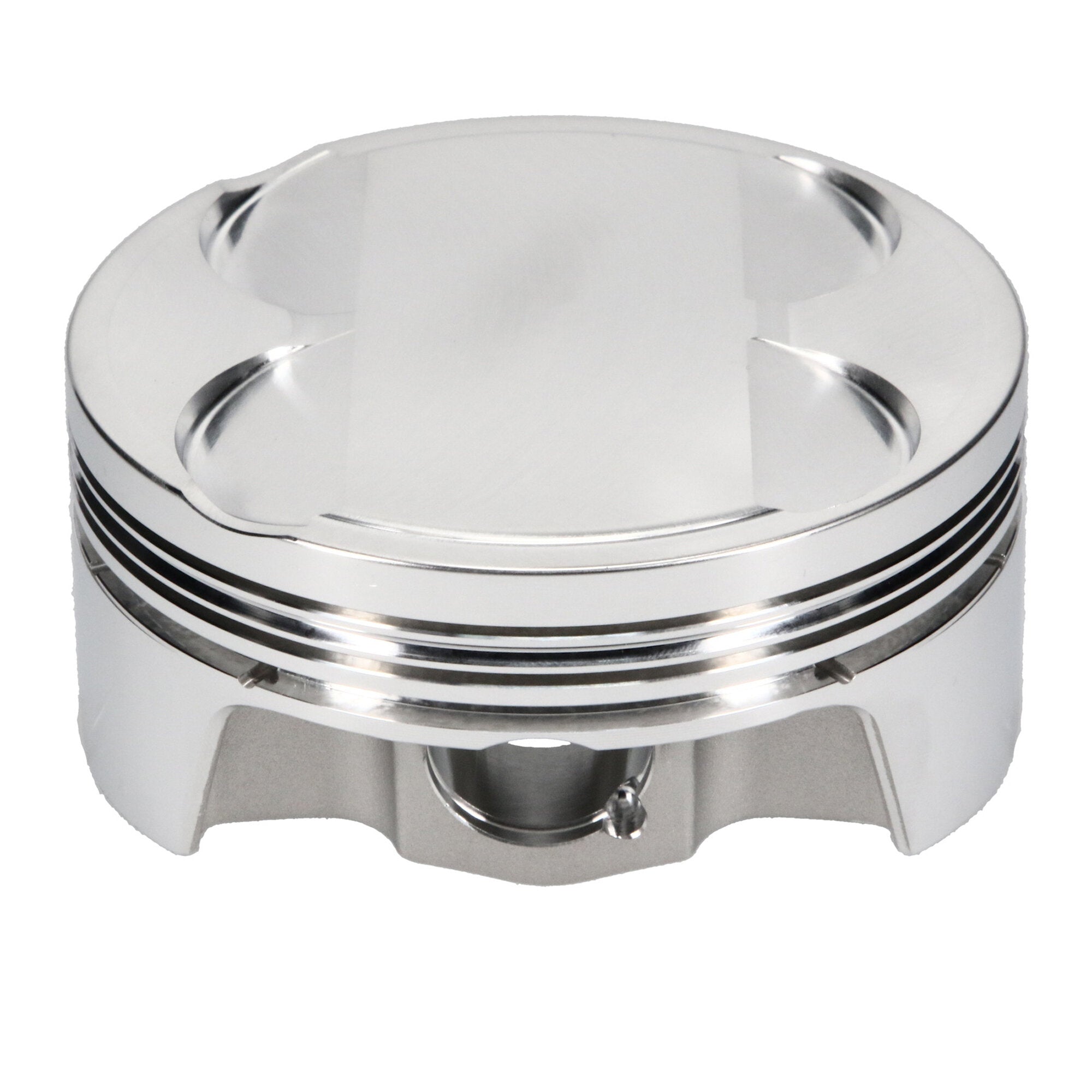

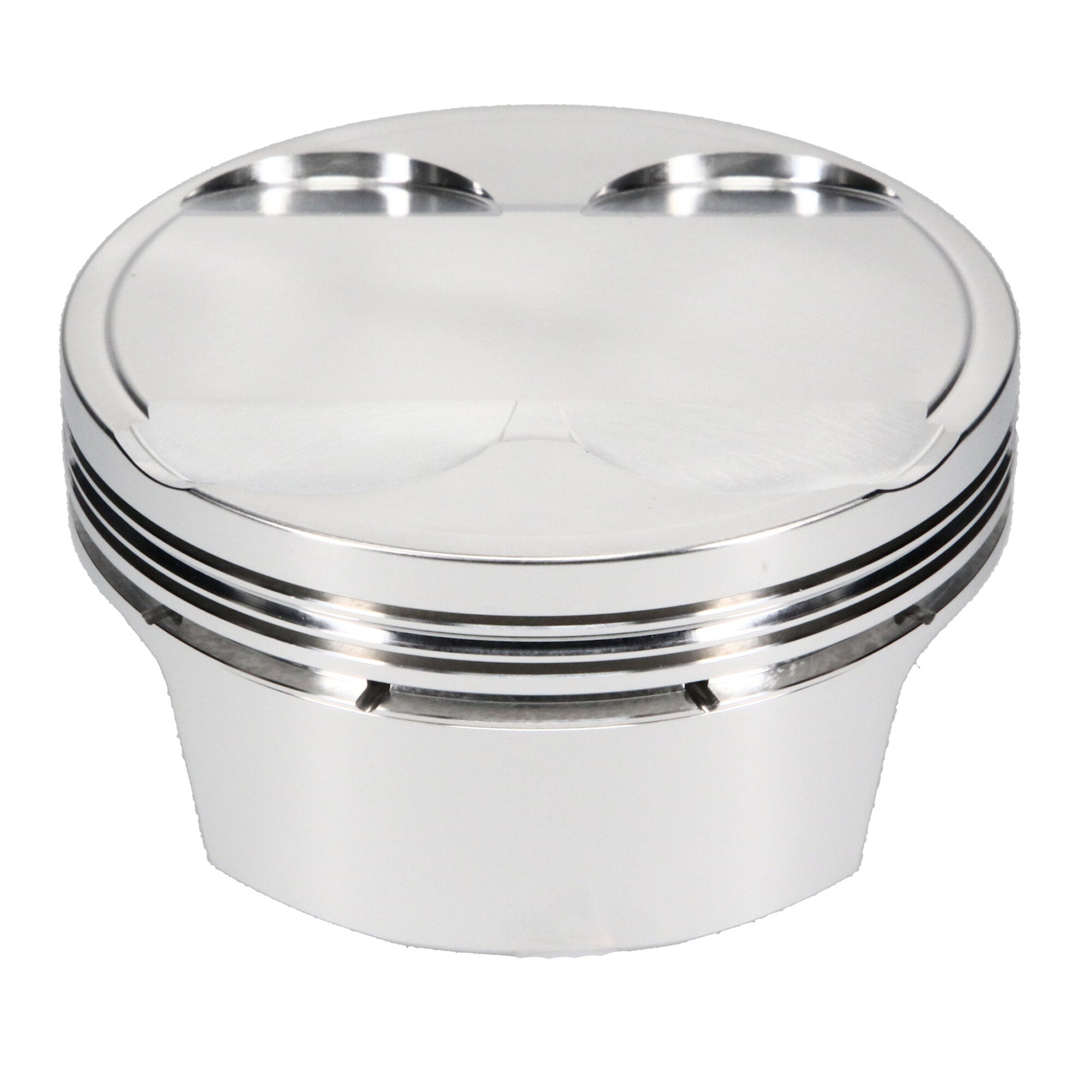

Piston Single, 2618, Dome, 3.760 Bore, 1.165 CD, 0.866 Pin, Set of 1. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Nissan, VQ35DE, 3.760 in. Bore, 10.00:1, Dome, Single Piston |
| Description_INV |
JE Pistons, Piston |
| Description_TLE |
Nissan VQ35DE, 95.50 Bore, Dome, Set of 1 |
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Add-On |
866-063-MW |
| Add-On |
JG1001-3760 |
| Add-On |
866-2250-15-51C |
| Bore Diameter |
95.50 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Cylinder Head |
VQ35DE 3.5L |
| Forging Type |
FSR |
| Compression Height |
1.165 |
| Engine |
VQ35DE |
| Industry |
Automotive |
| Engine Type |
ICE |
| Make |
NISSAN |
| Engine - Web |
VQ35DE |
| Make - Web |
Nissan |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Dome |
| Piston Pin Wall Thickness |
0.150 |
| Second Compression Ring Thickness |
0.0480 |
| Oil Ring Thickness |
0.111 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Ringset Included |
Yes |
| Piston Volume |
0.30 |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Product Market |
Sport Compact |
| Piston Pin Outside Diameter |
0.866 |
| Piston Quantity |
1 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Material |
5115 |
| Product Type |
Engine Piston |
| Piston Average Weight |
394 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Title |
JE Pistons - Nissan, VQ35DE, 95.50 mm Bore, Piston |
| Top Compression Ring Thickness |
0.0400 |
| Title - Web |
JE Pistons Nissan VQ35DE Piston - 95.50 mm Bore - 1.165 in. CH, 0.30 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
