As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan SR20VE/VET |
| Description_DEF |
Engine Piston |
| Description_DES |

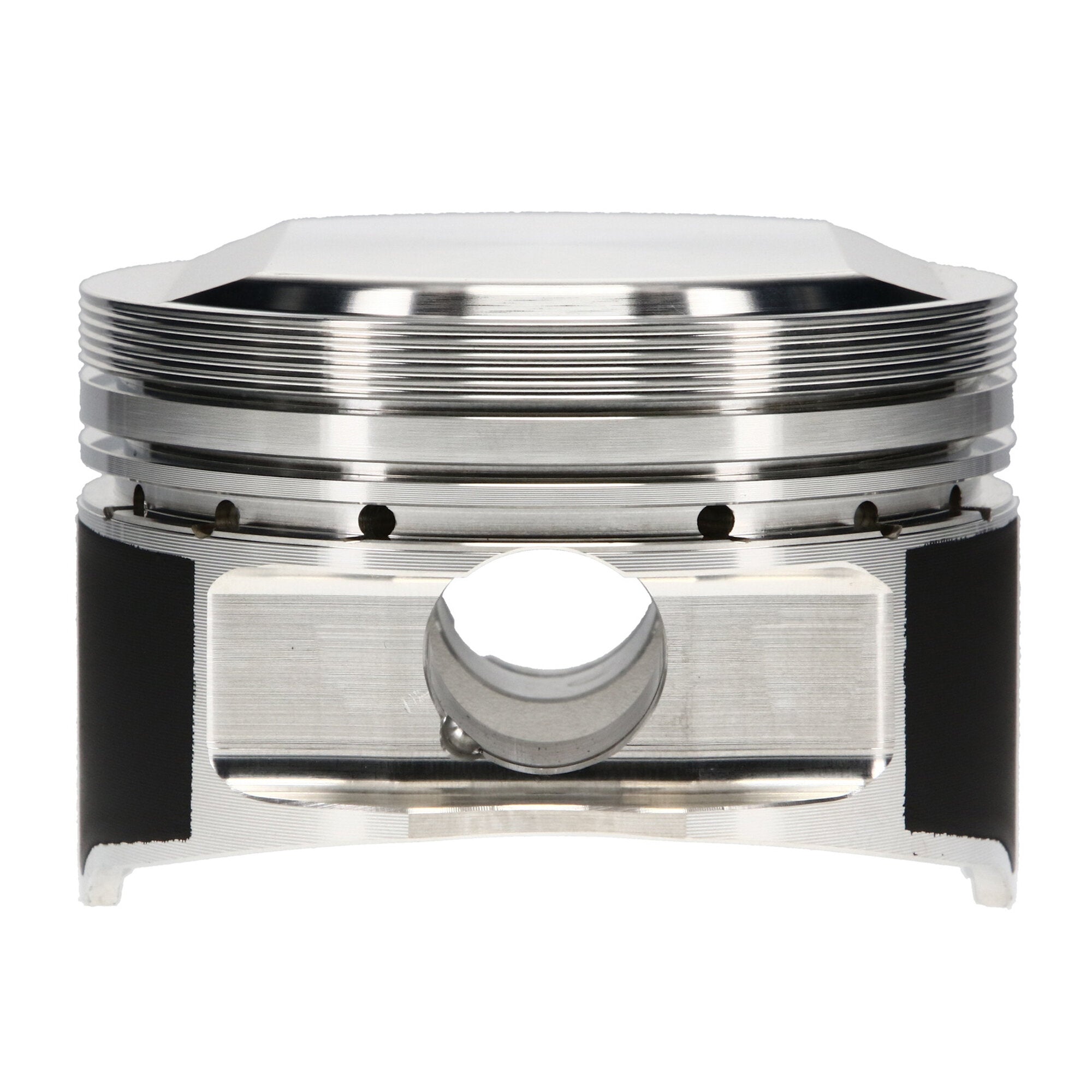

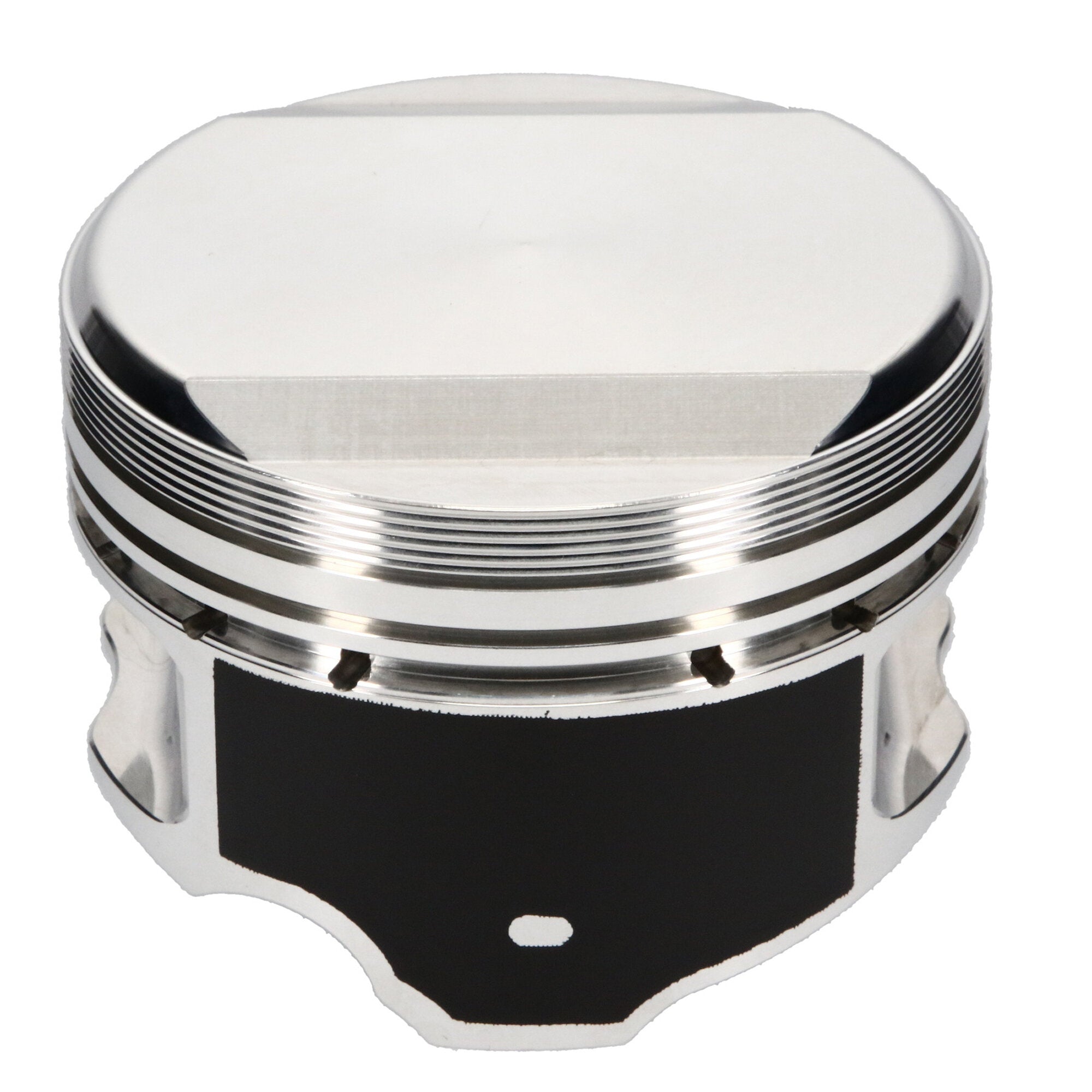

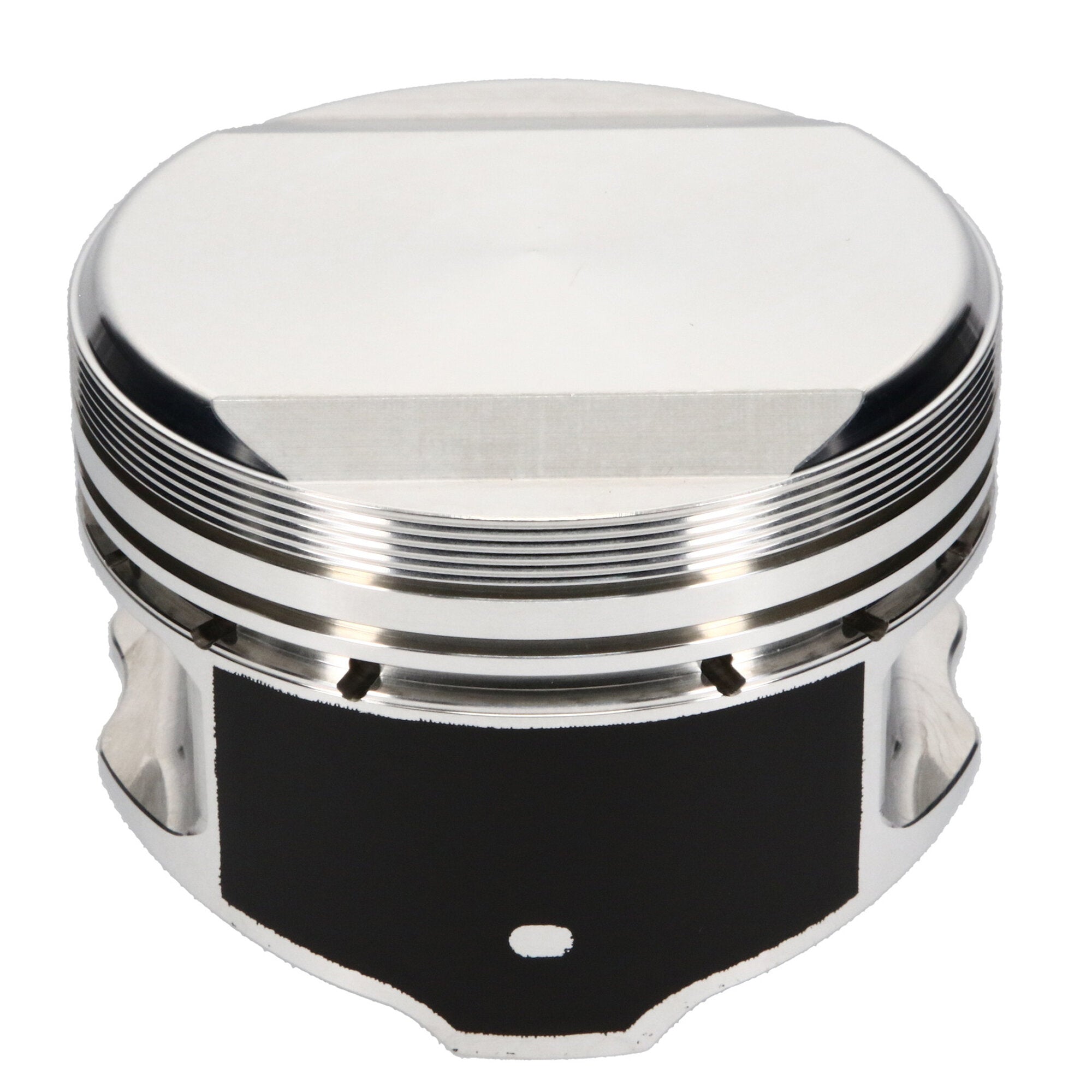

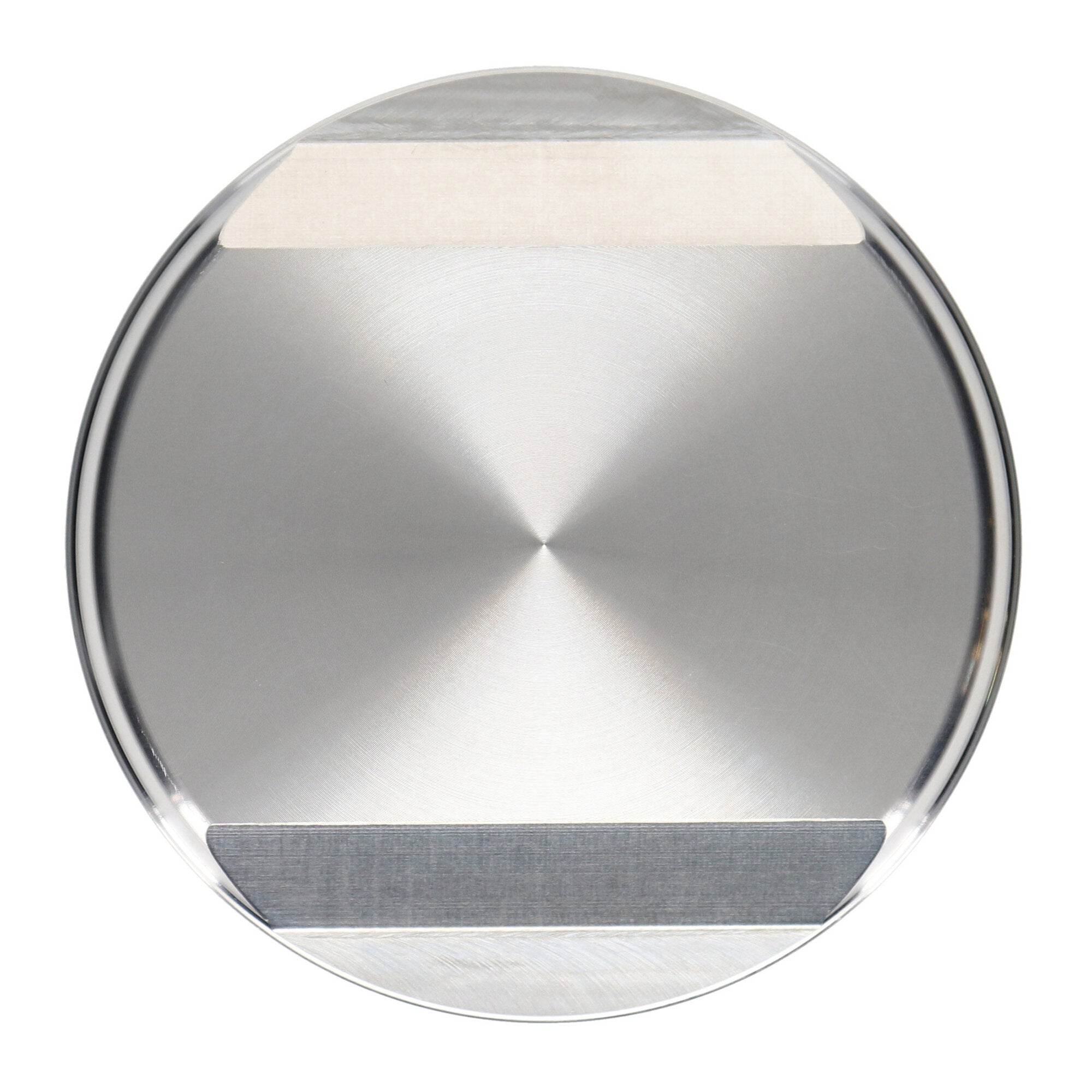

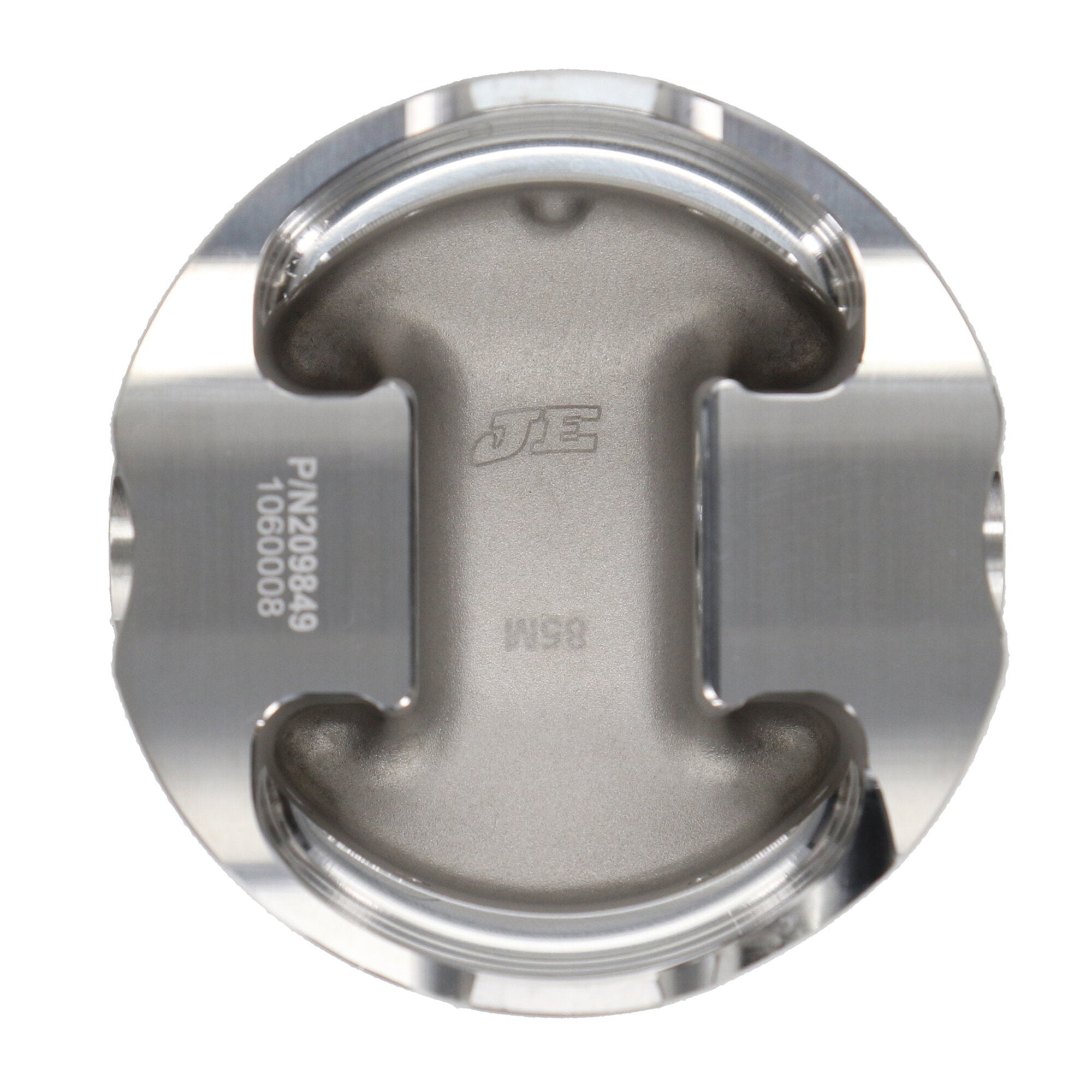

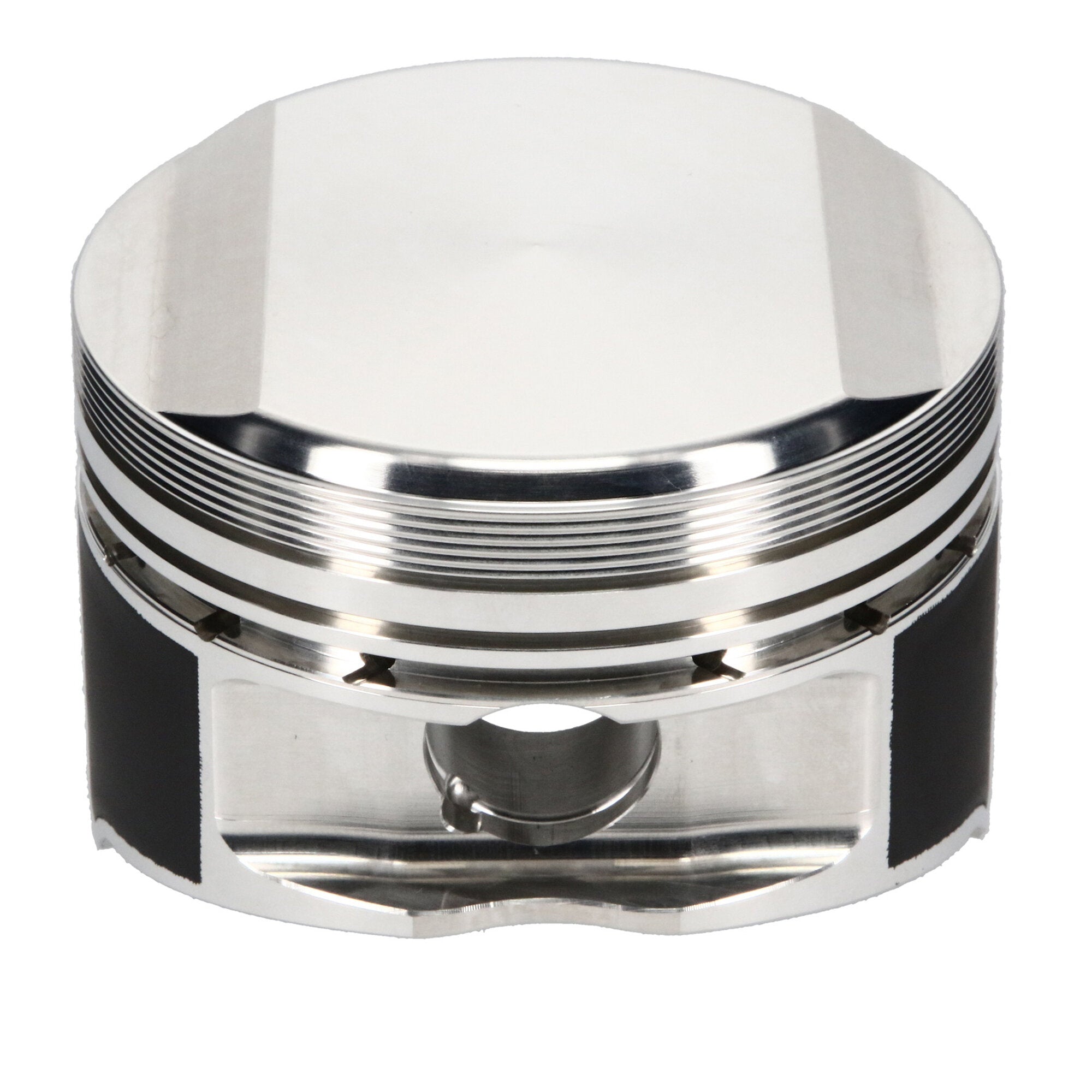

Piston Single, 2618, Inv Dome/Dish, 3.405 Bore, 1.260 CD, 0.866 Pin, Set of 1. |
| Description_EXT |
JE, Nissan, SR Series, 3.405 in. Bore, 9.00:1, Inverted Dome/Dish, Single Piston |
| Description_INV |
JE Pistons, Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan SR20VE/SR20VET, 86.50 Bore, Dish, Set of 1 |
| Add-On |
866-2250-15-51C |
| Add-On |
866-063-MW |
| Add-On |
JG1001-3405 |
| Bore Diameter |
86.50 |
| Out of Stock Message |
Call for Availability |
| Engine Type |
ICE |
| Cylinder Head |
SR20VE VVL |
| Engine |
SR SERIES |
| Industry |
Automotive |
| Piston Head Type |
Dish |
| Forging Type |
FSR |
| Make |
NISSAN |
| Piston Average Weight |
314 |
| Oil Ring Thickness |
0.111 |
| Piston Material |
2618 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Compression Height |
1.260 |
| Make - Web |
Nissan |
| Engine - Web |
SR Series |
| Product Type |
Engine Piston |
| Piston Quantity |
1 |
| Piston Pin Material |
5115 |
| Piston Volume |
-13.60 |
| Piston Pin Length |
2.250 |
| Title |
JE Pistons - Nissan, SR Series, 86.50 mm Bore, Piston |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0400 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Nissan SR Series Piston - 86.50 mm Bore - 1.260 in. CH, -13.60 CC |
| Piston Pin Outside Diameter |
0.866 |
| Product Market |
Sport Compact |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
Yes |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
