As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan KA24DE |
| Description_DES |

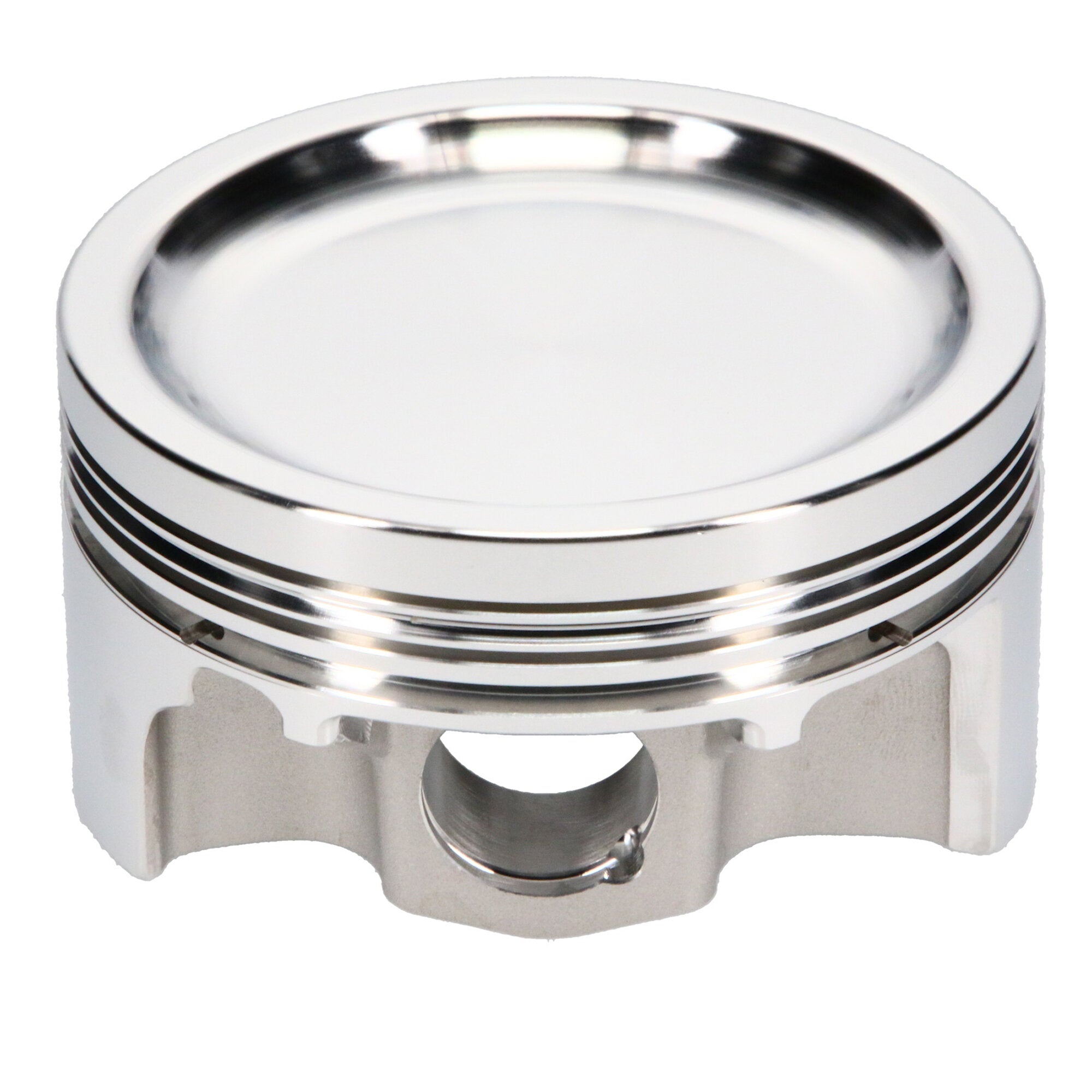

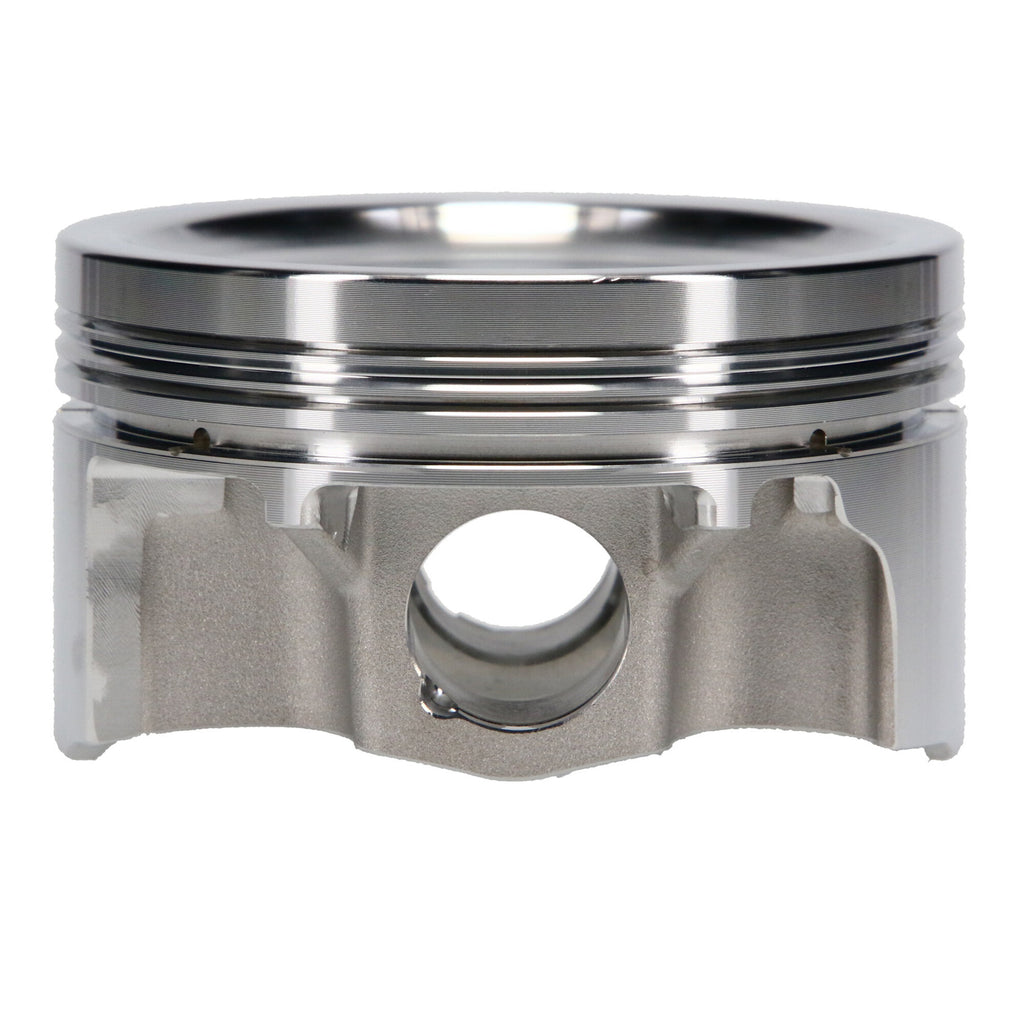

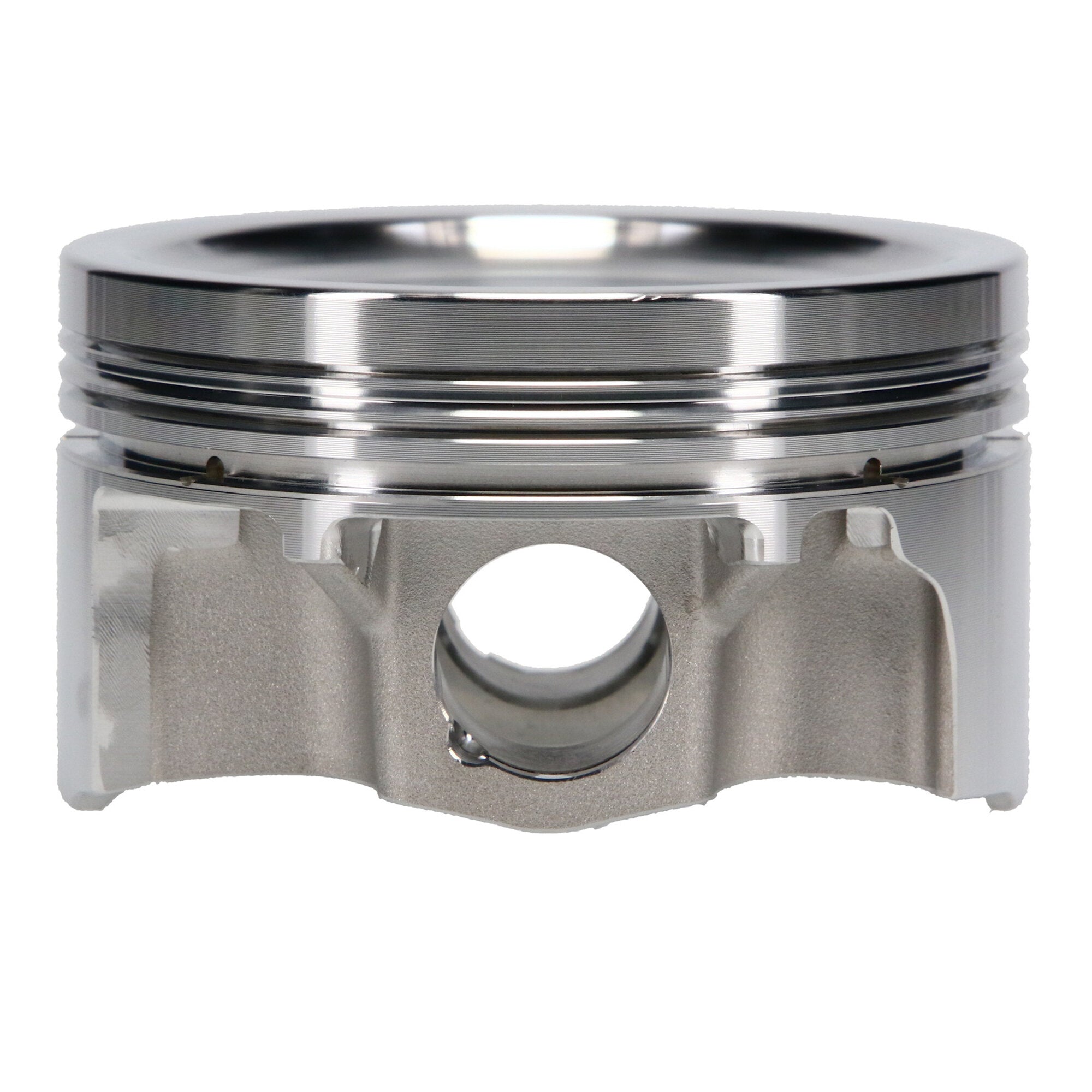

Piston Single, 2618, Inv Dome/Dish, 3.504 Bore, 1.336 CD, 0.827 Pin, Set of 1. |
| Description_DEF |
Engine Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Nissan, KA24DE, 3.504 in. Bore, 9.00:1, Inverted Dome/Dish, Single Piston |
| Description_TLE |
Nissan KA24DE, 89.00 Bore, Dish, Set of 1 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Add-On |
JG1001-3504 |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Bore Diameter |
89.00 |
| Engine Type |
ICE |
| Piston Average Weight |
329 |
| Piston Material |
2618 |
| Make |
NISSAN |
| Compression Height |
1.336 |
| Oil Ring Thickness |
0.111 |
| Add-On |
827-063-MW |
| Piston Head Type |
Dish |
| Cylinder Head |
KA24DE |
| Engine |
KA24DE |
| Forging Type |
FSR |
| Add-On |
827-2250-15-51C |
| Engine - Web |
KA24DE |
| Make - Web |
Nissan |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
1 |
| Piston Pin Outside Diameter |
0.827 |
| Title - Web |
JE Pistons Nissan KA24DE Piston - 89.00 mm Bore - 1.336 in. CH, -21.80 CC |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Product Type |
Engine Piston |
| Piston Pin Material |
5115 |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Piston Volume |
-21.80 |
| Product Market |
Sport Compact |
| Title |
JE Pistons - Nissan, KA24DE, 89.00 mm Bore, Piston |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Outer Diameter |
0.827 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
