As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan KA24DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

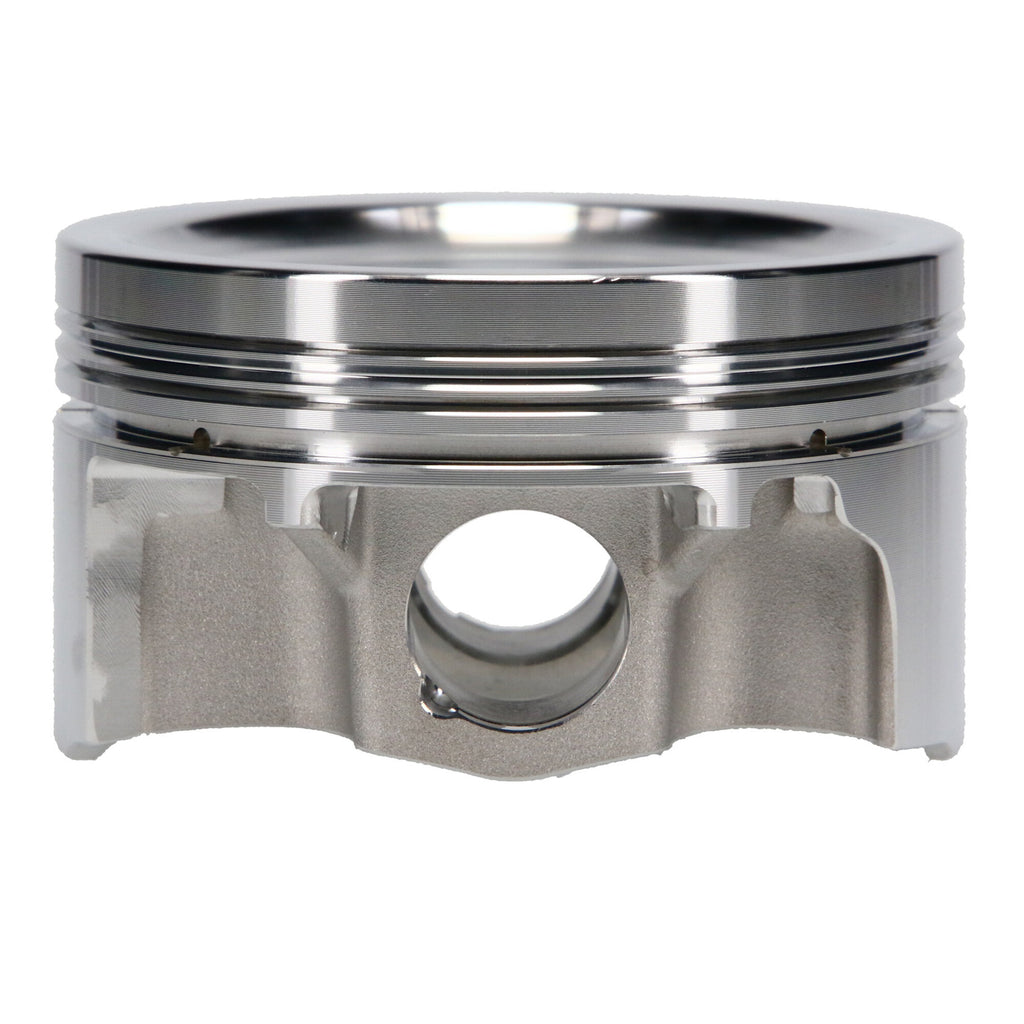

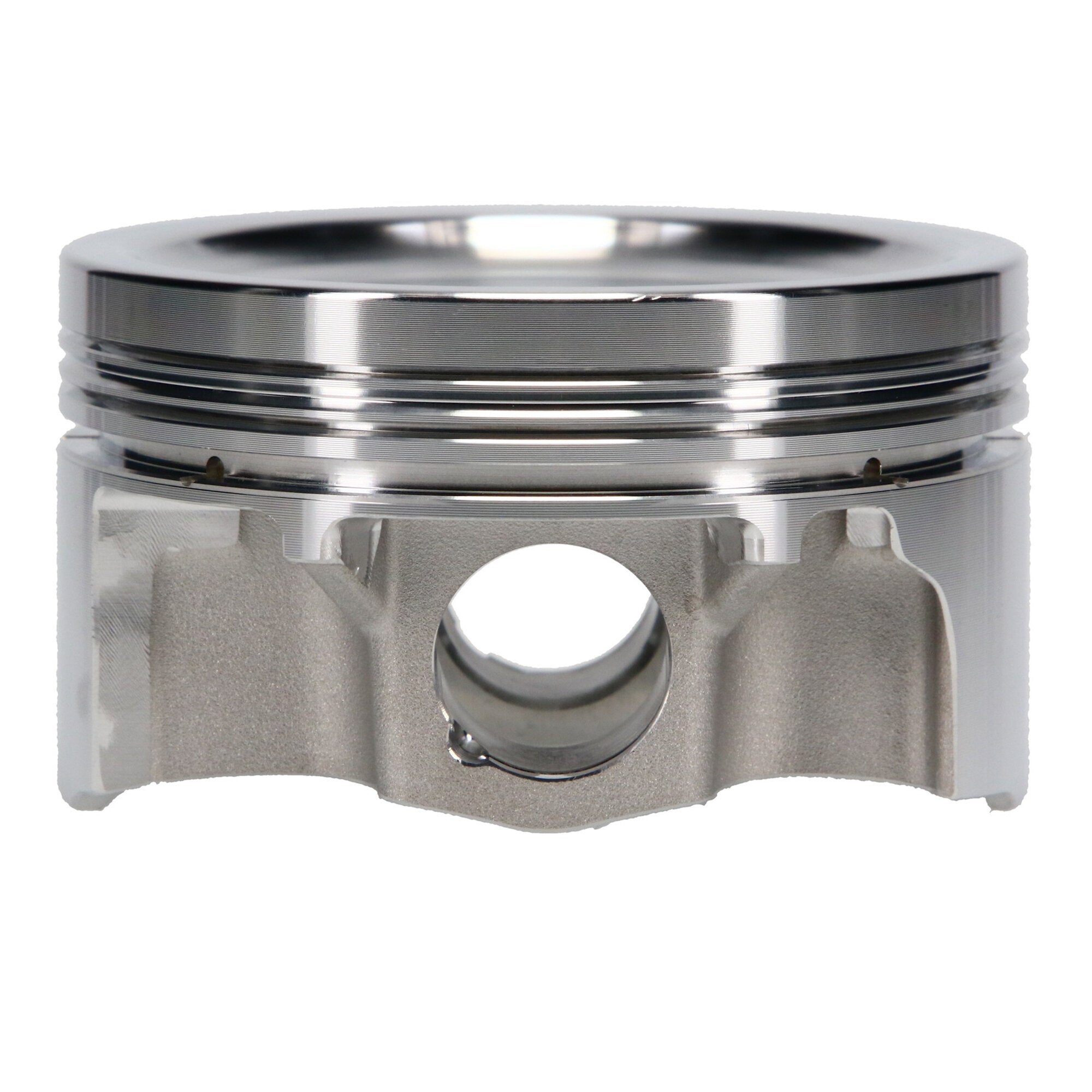

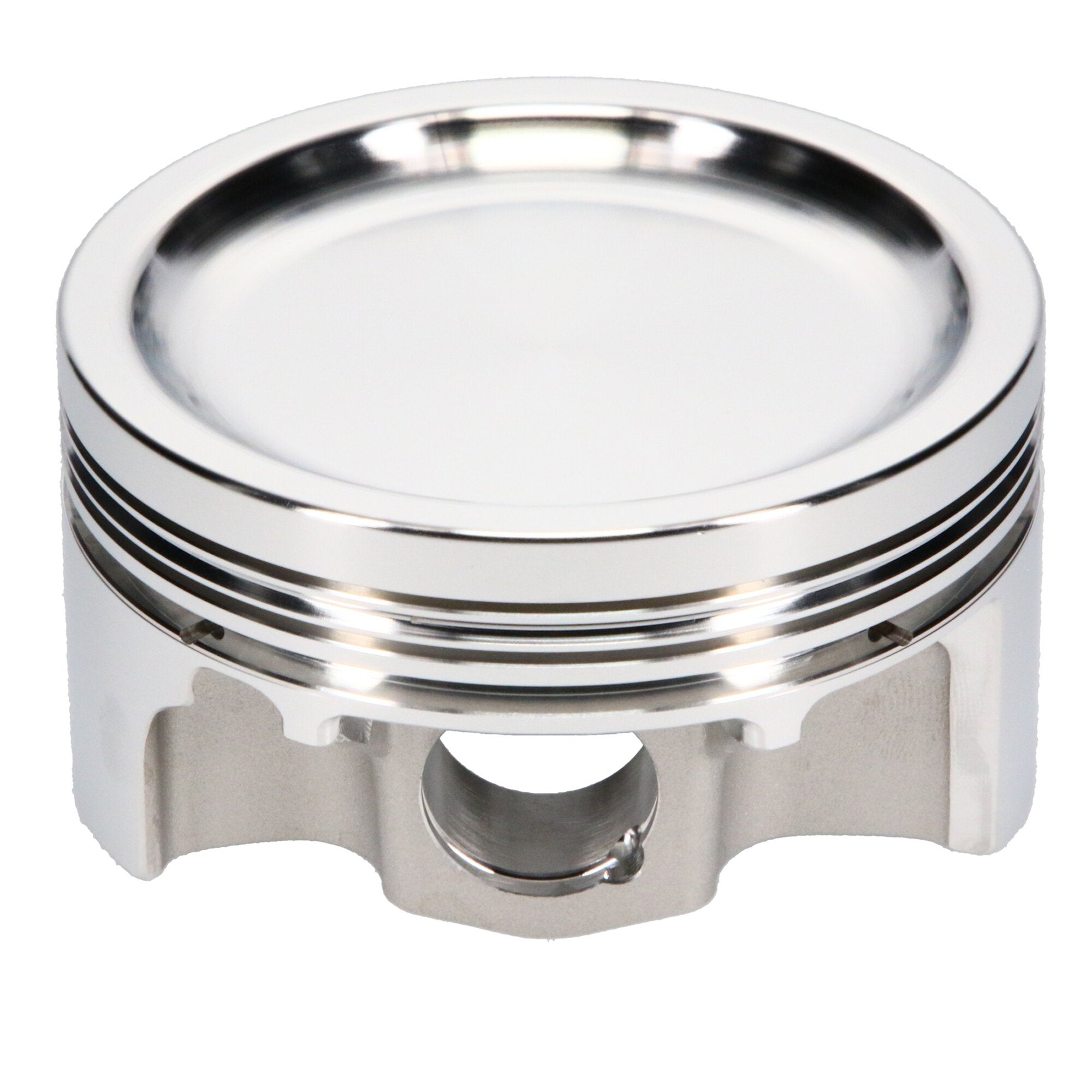

Piston Set, 2618, Inv Dome/Dish, 3.504 Bore, 1.336 CD, 0.827 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Nissan, KA24DE, 3.504 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan KA24DE, 89.00 Bore, Dish, Set of 4 |
| Engine - Web |
KA24DE |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Volume |
-21.80 |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Forging Type |
FSR |
| Piston Quantity |
4 |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Nissan, KA24DE, 89.00 mm Bore, Piston Kit |
| Oil Ring Thickness |
0.111 |
| Ring Set Included |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.336 |
| Product Market |
Sport Compact |
| Piston Series |
JE Pistons |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine |
KA24DE |
| Piston Average Weight |
329 |
| Make |
NISSAN |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Outside Diameter |
0.827 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Title - Web |
JE Pistons Nissan KA24DE Piston Kit - 89.00 mm Bore - 1.336 in. CH, -21.80 CC |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
89.00 |
| Wrist Pin Outer Diameter |
0.827 |
| Make - Web |
Nissan |
| Piston Pin Length |
2.250 |
| Add-On |
827-063-MW |
| Cylinder Head |
KA24DE |
| Piston Head Type |
Dish |
| Ringset Included |
Yes |
| Industry |
Automotive |
| Add-On |
827-2250-15-51C |
| Add-On |
JG1001-3504 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
