As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan SR2D0ET |
| Description_DES |

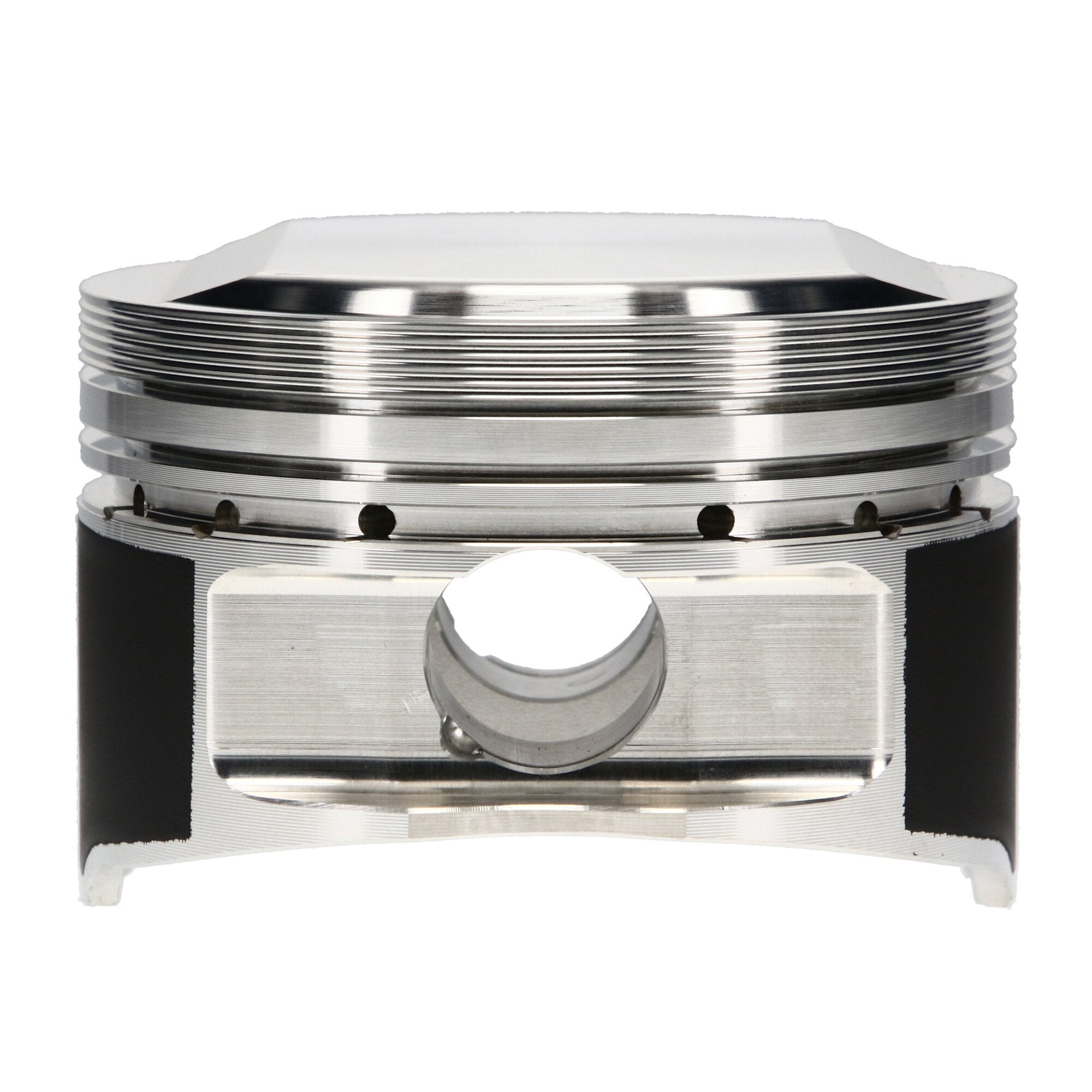

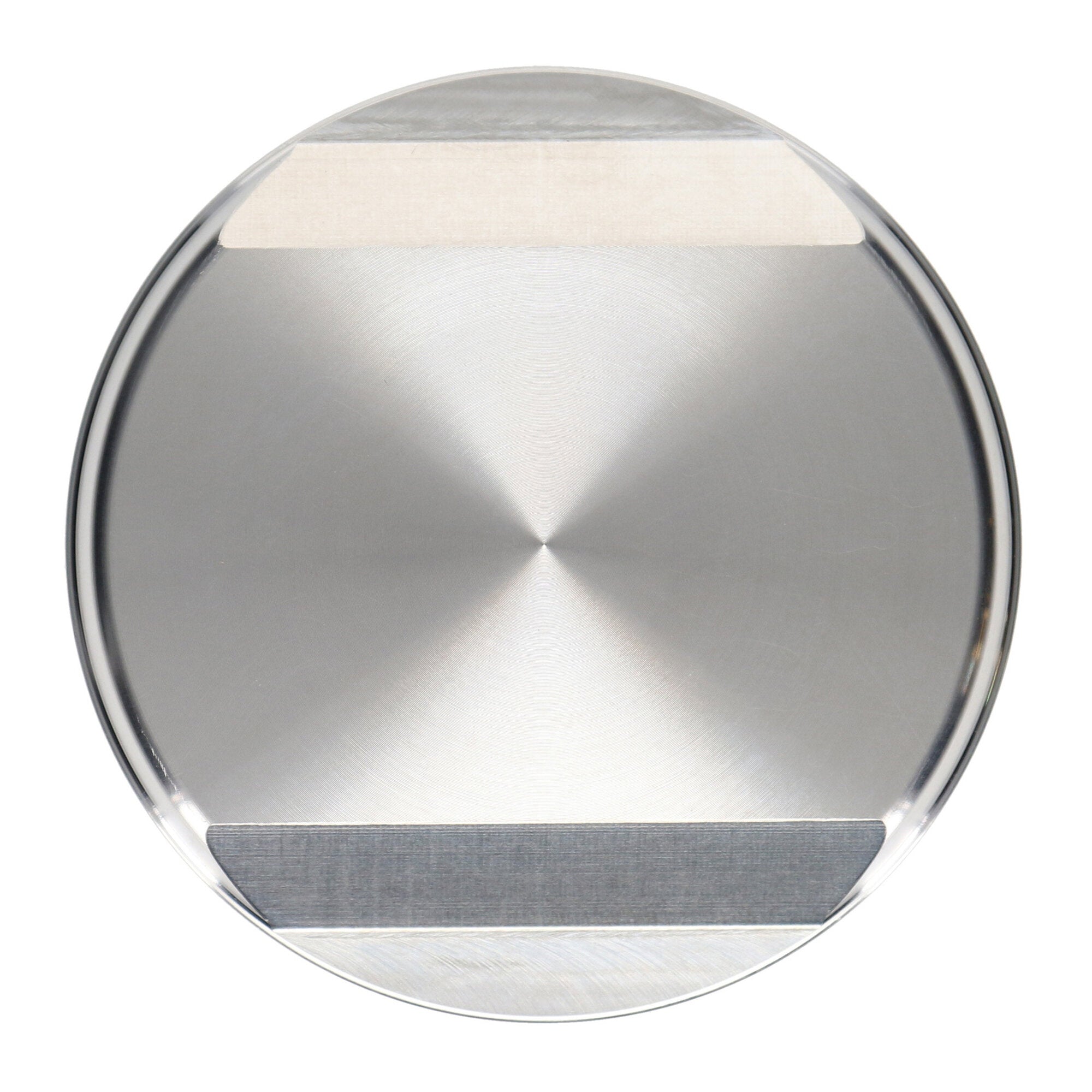

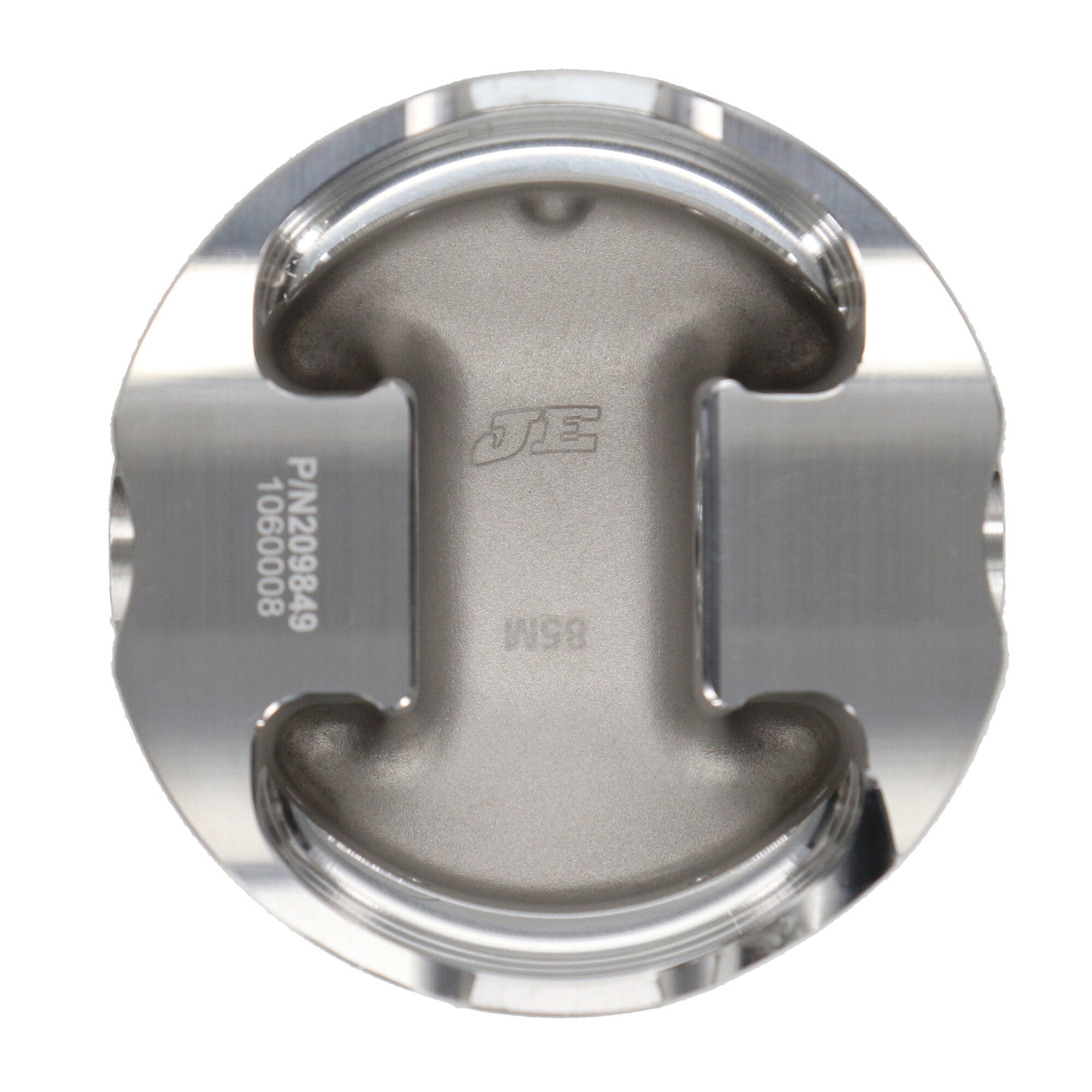

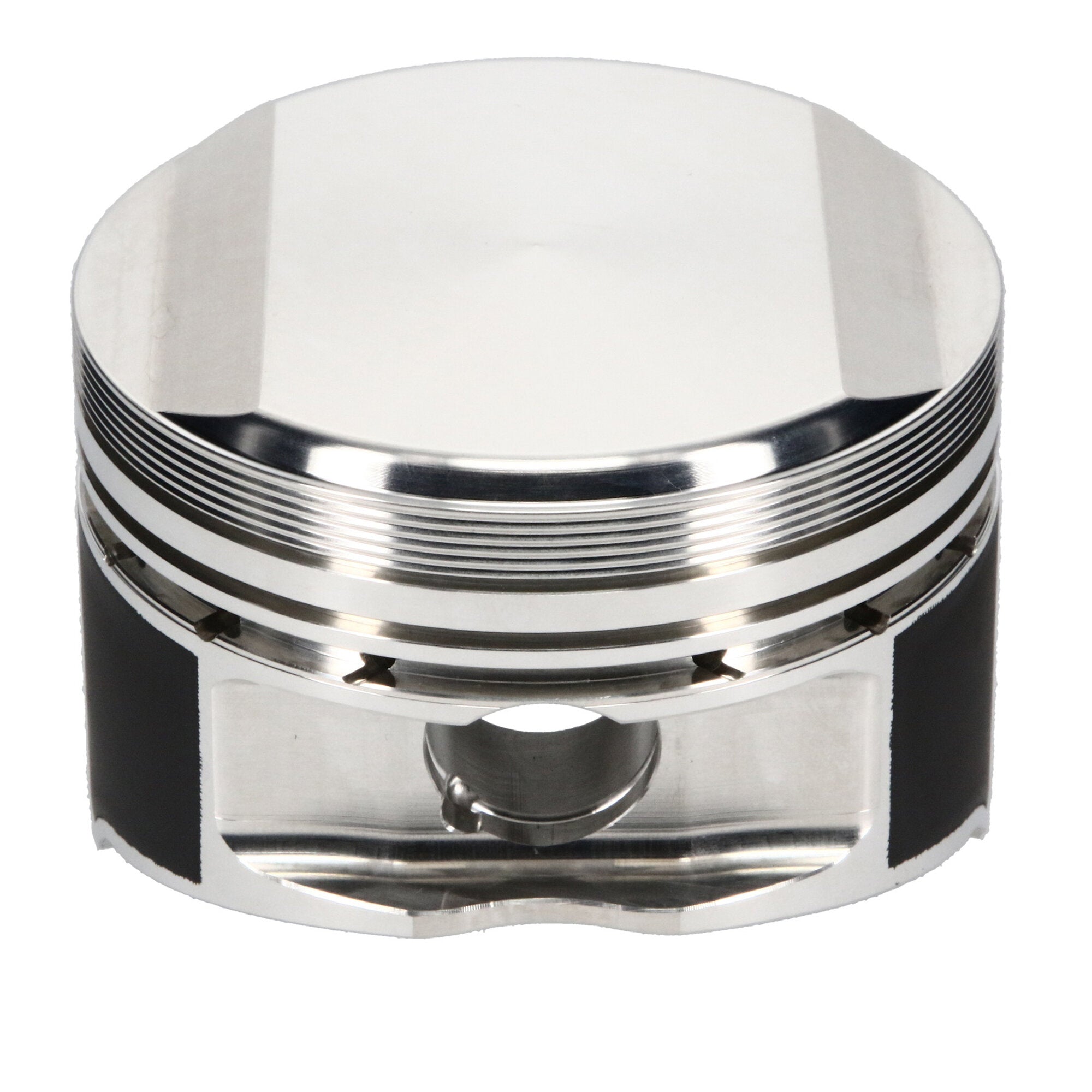

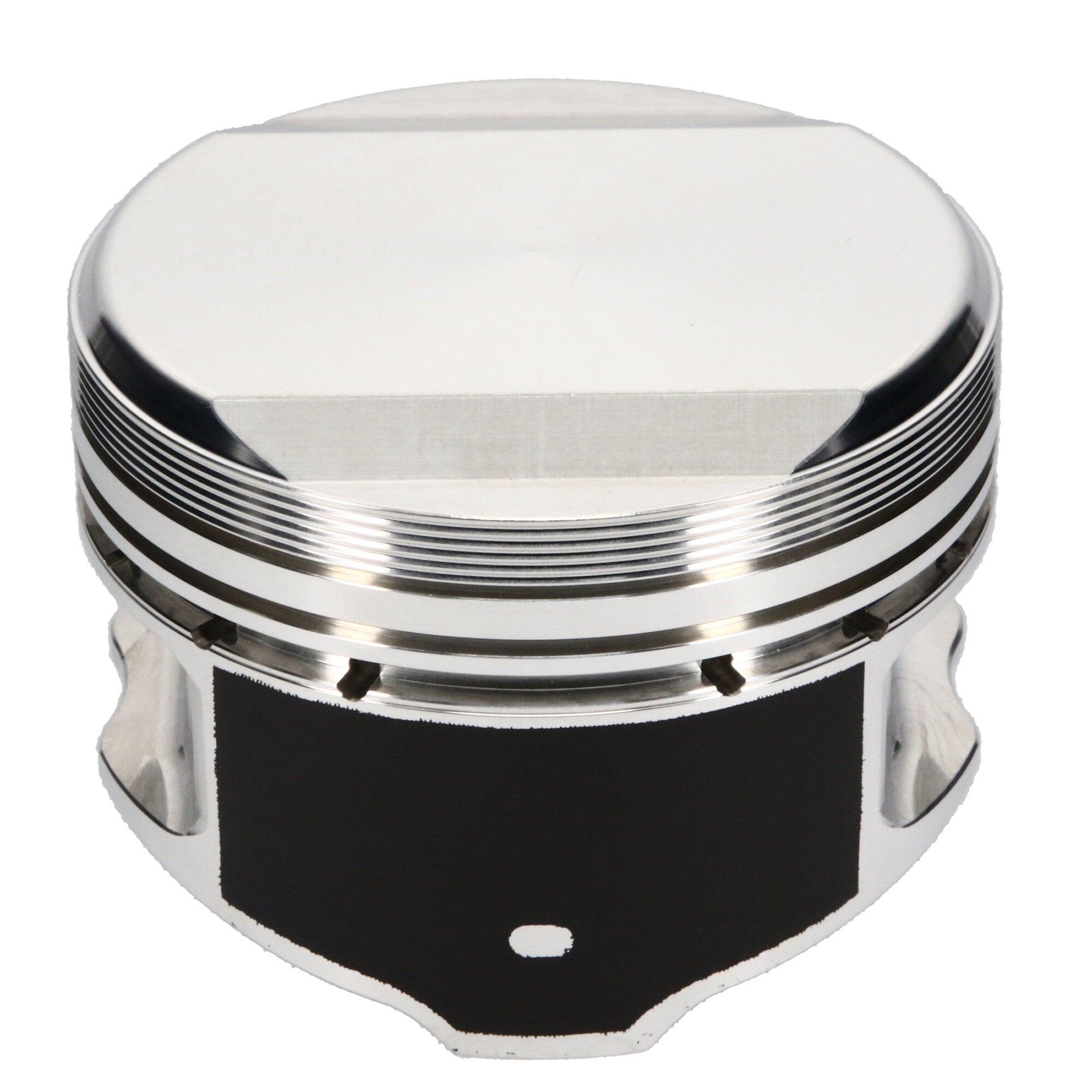

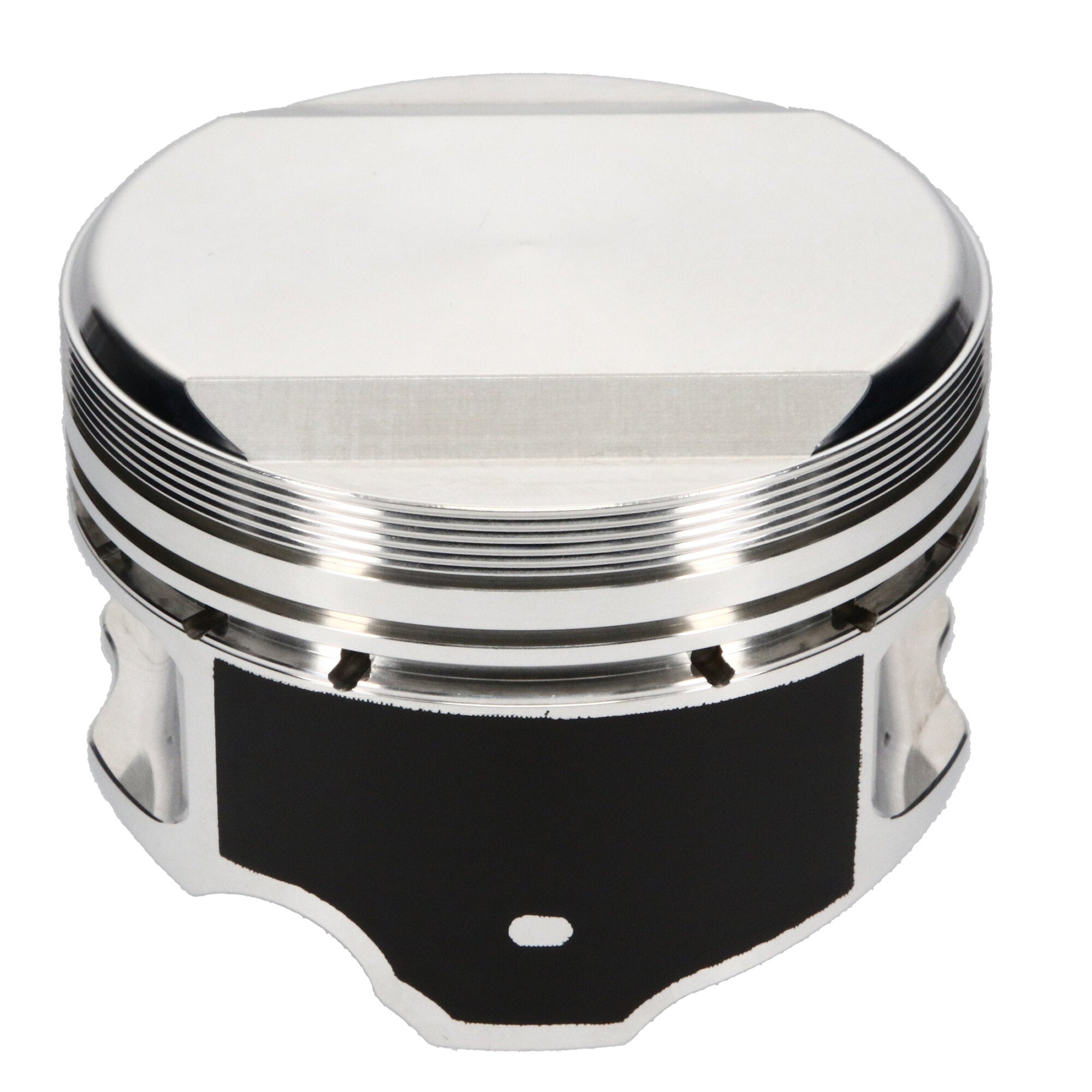

Piston Set, 2618, Inv Dome/Dish, 3.543 Bore, 1.253 CD, 0.866 Pin, Set of 4. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Nissan, SR Series, 3.543 in. Bore, 10.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Nissan SR20DET, 90.00 Bore, Dish, Set of 4 |
| Description_SHO |
Piston Kit |
| Piston Pin Outside Diameter |
0.866 |
| Piston Quantity |
4 |
| Wrist Pin Outer Diameter |
0.866 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Make |
NISSAN |
| Bore Diameter |
90.00 |
| Piston Material |
2618 |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Title |
JE Pistons - Nissan, SR Series, 90.00 mm Bore, Piston Kit |
| Add-On |
866-2250-15-51C |
| Top Compression Ring Thickness |
0.0400 |
| Cylinder Head |
SR20DE |
| Piston Average Weight |
336 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Add-On |
866-063-MW |
| Product Market |
Sport Compact |
| Add-On |
JG1001-3543 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
-5.90 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Nissan SR Series Piston Kit - 90.00 mm Bore - 1.253 in. CH, -5.90 CC |
| Compression Height |
1.253 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
SR Series |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0480 |
| Oil Ring Thickness |
0.111 |
| Engine |
SR SERIES |
| Ringset Included |
Yes |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
