As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan FJ20 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

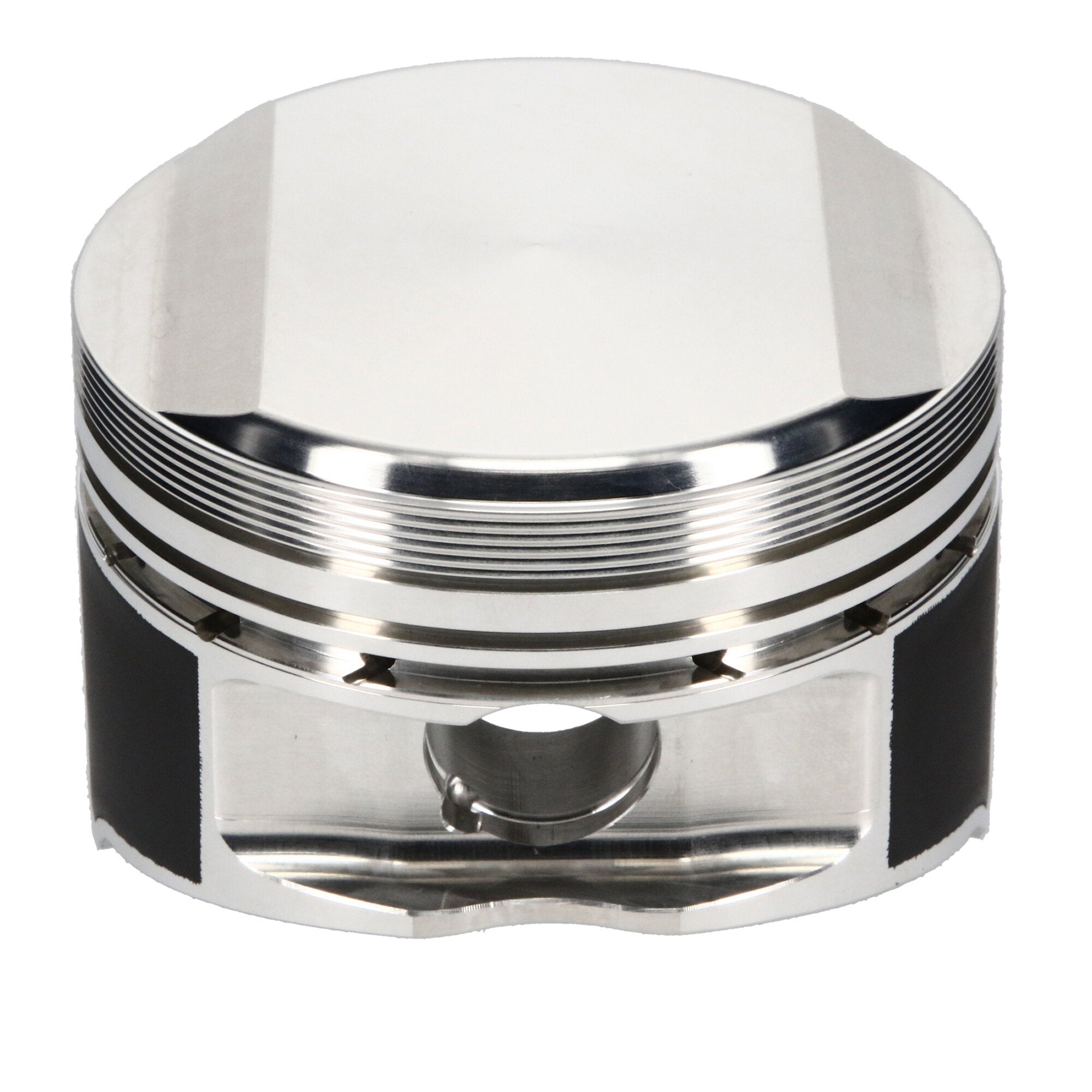

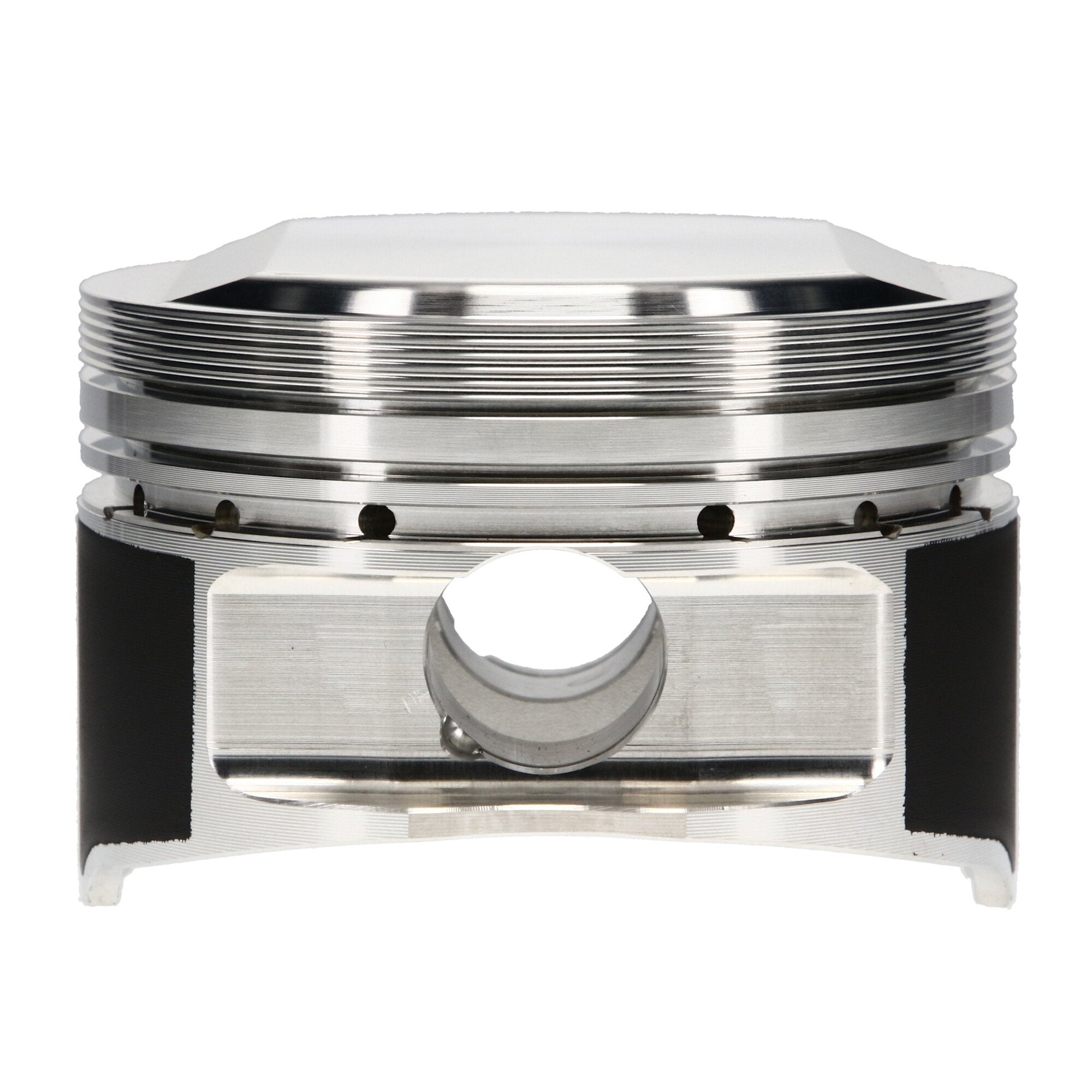

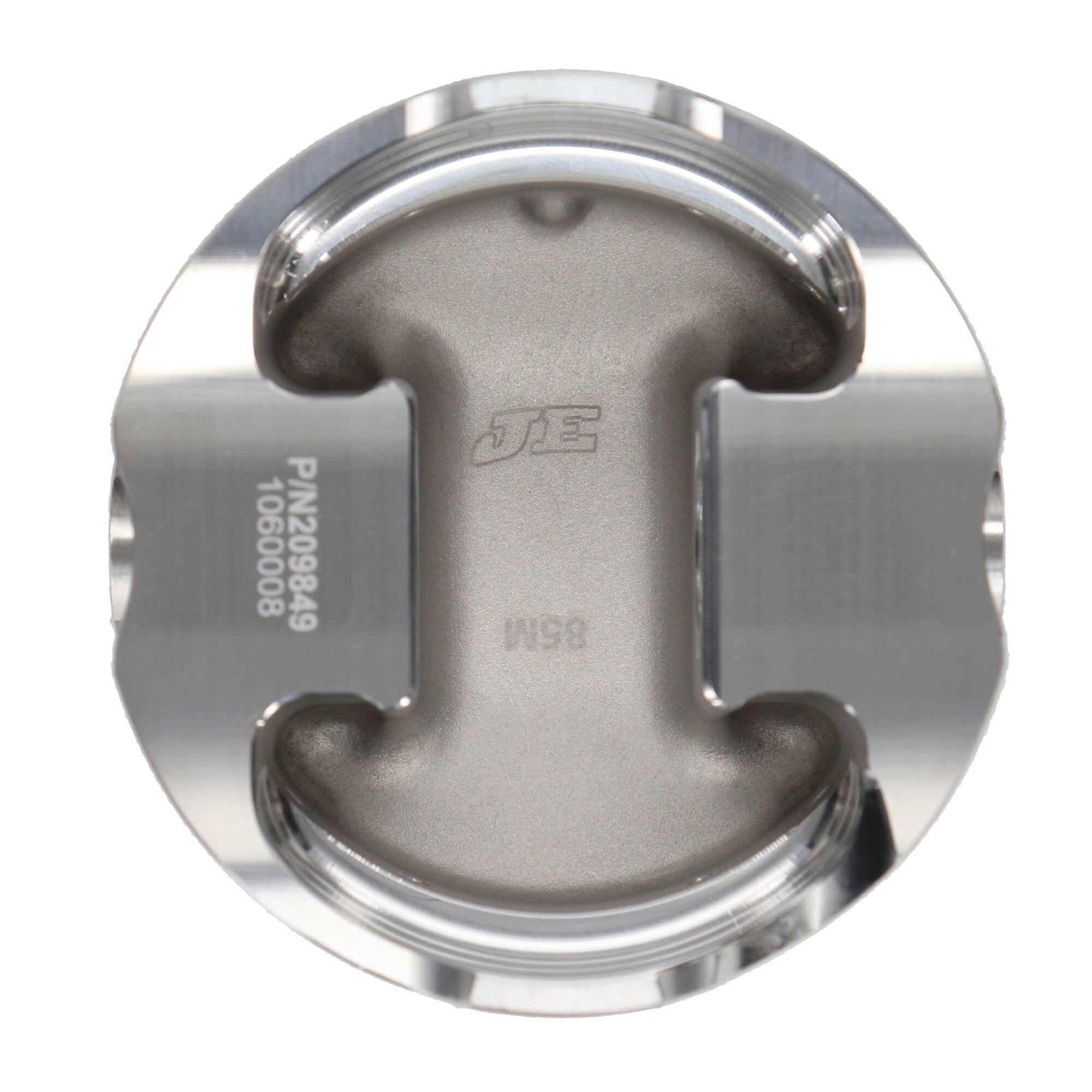

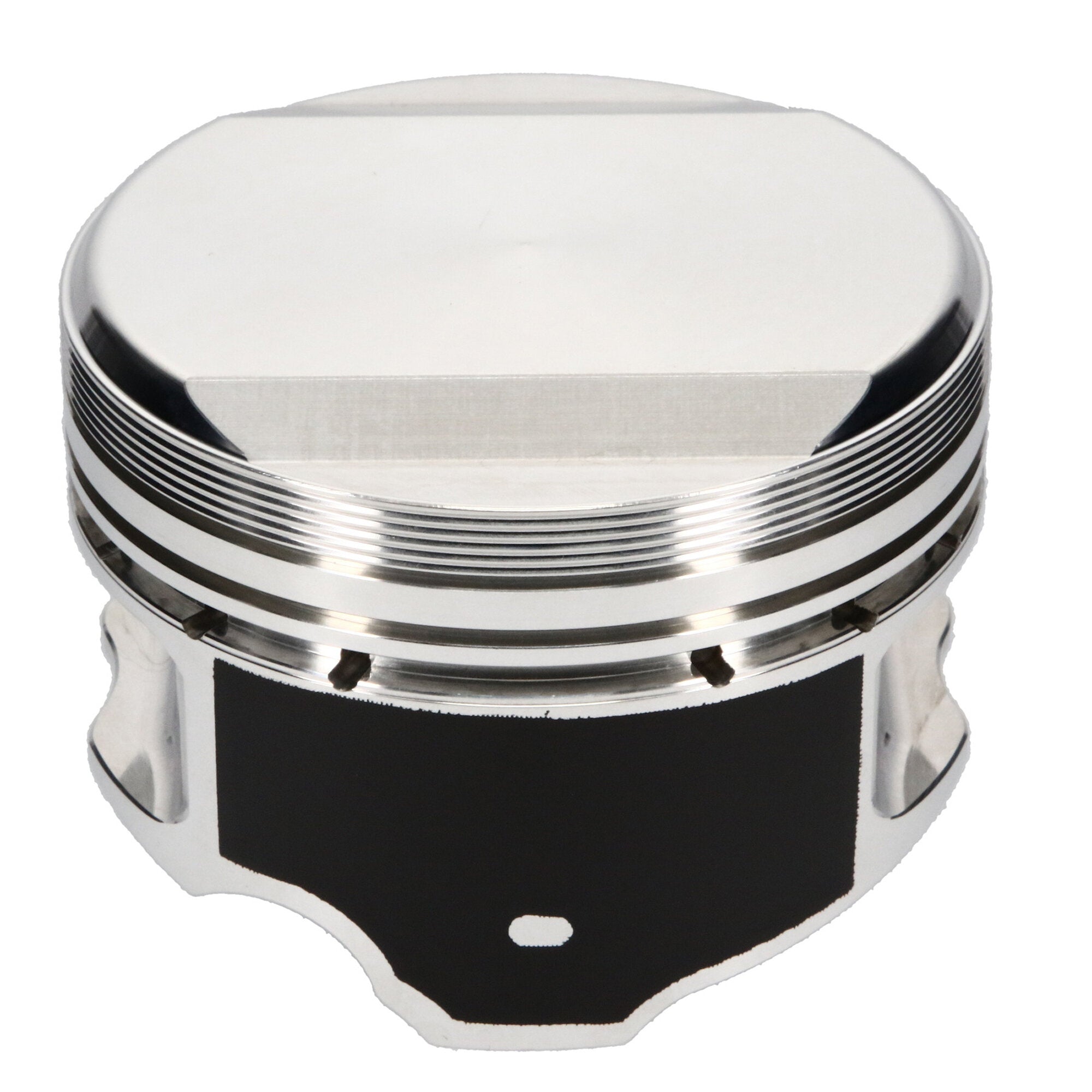

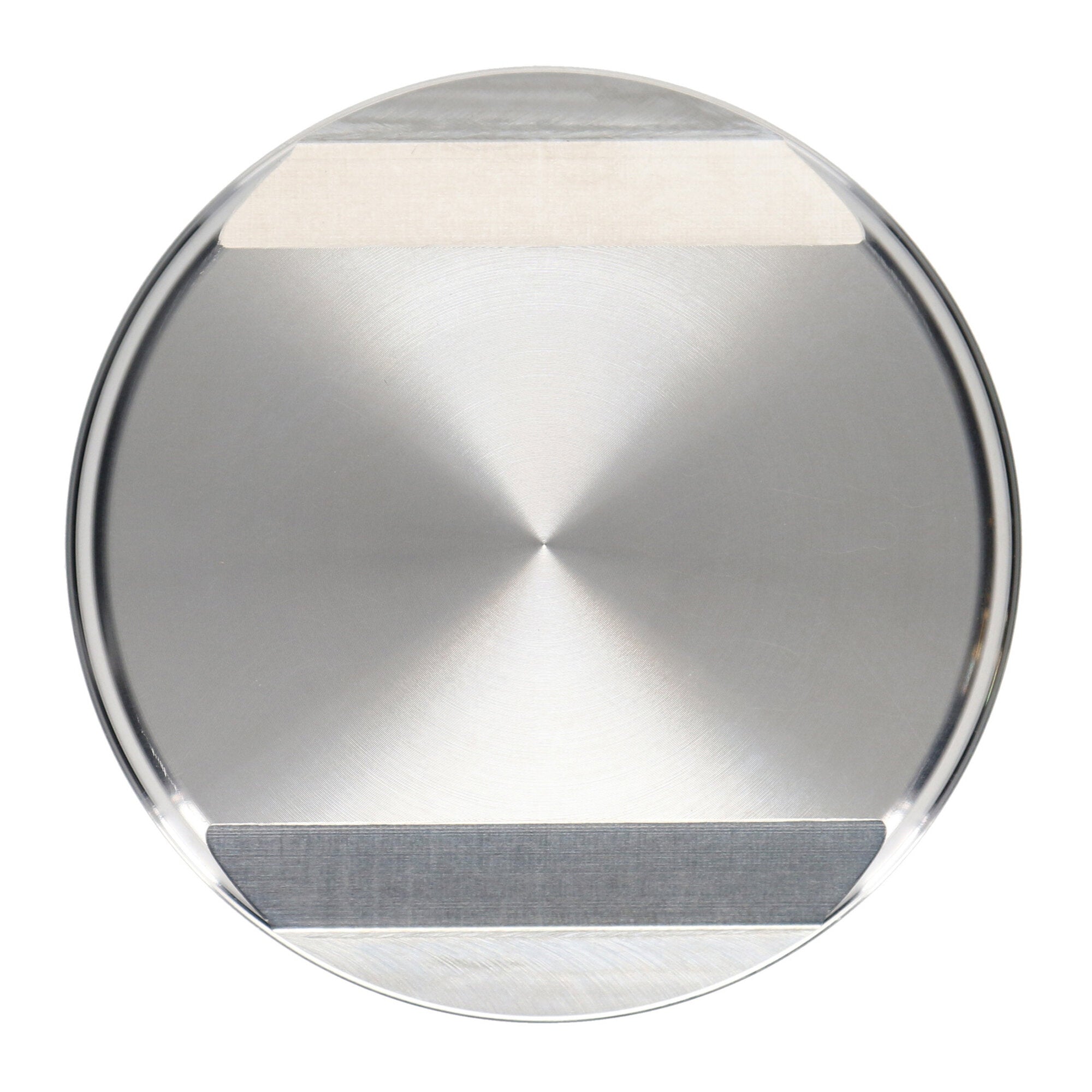

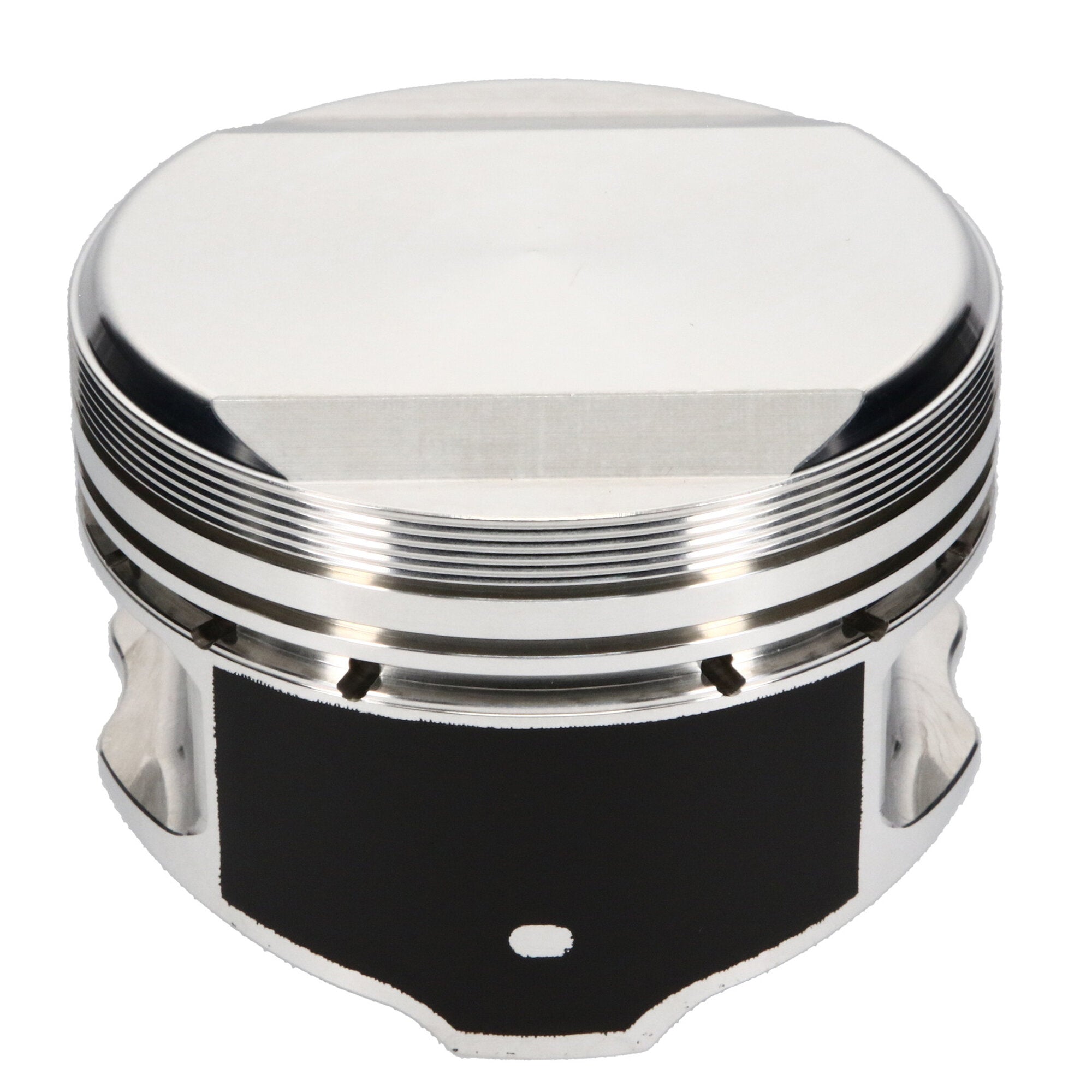

Piston Set, 2618, Inv Dome/Dish, 3.543 Bore, 1.260 CD, 0.866 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Nissan, FJ20, 3.543 in. Bore, 9.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Nissan FJ20, 90.00 Bore, Dish, Set of 4 |
| Title - Web |
JE Pistons Nissan FJ20 Piston Kit - 90.00 mm Bore - 1.260 in. CH, -3.20 CC |
| Add-On |
866-2250-15-51C |
| Add-On |
866-063-MW |
| Add-On |
JG1001-3543 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Out of Stock Message |
Call for Availability |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Nissan |
| Piston Series |
JE Pistons |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Ringset Included |
Yes |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
90.00 |
| Piston Head Type |
Dish |
| Piston Average Weight |
349 |
| Engine |
FJ20 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Wrist Pin Outer Diameter |
0.866 |
| Forging Type |
FSR |
| Title |
JE Pistons - Nissan, FJ20, 90.00 mm Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Make |
NISSAN |
| Piston Quantity |
4 |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.111 |
| Cylinder Head |
FJ20 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Volume |
-3.20 |
| Compression Height |
1.260 |
| Product Market |
Sport Compact |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
FJ20 |
| Ring Set Included |
Yes |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
