As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K20/K24 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

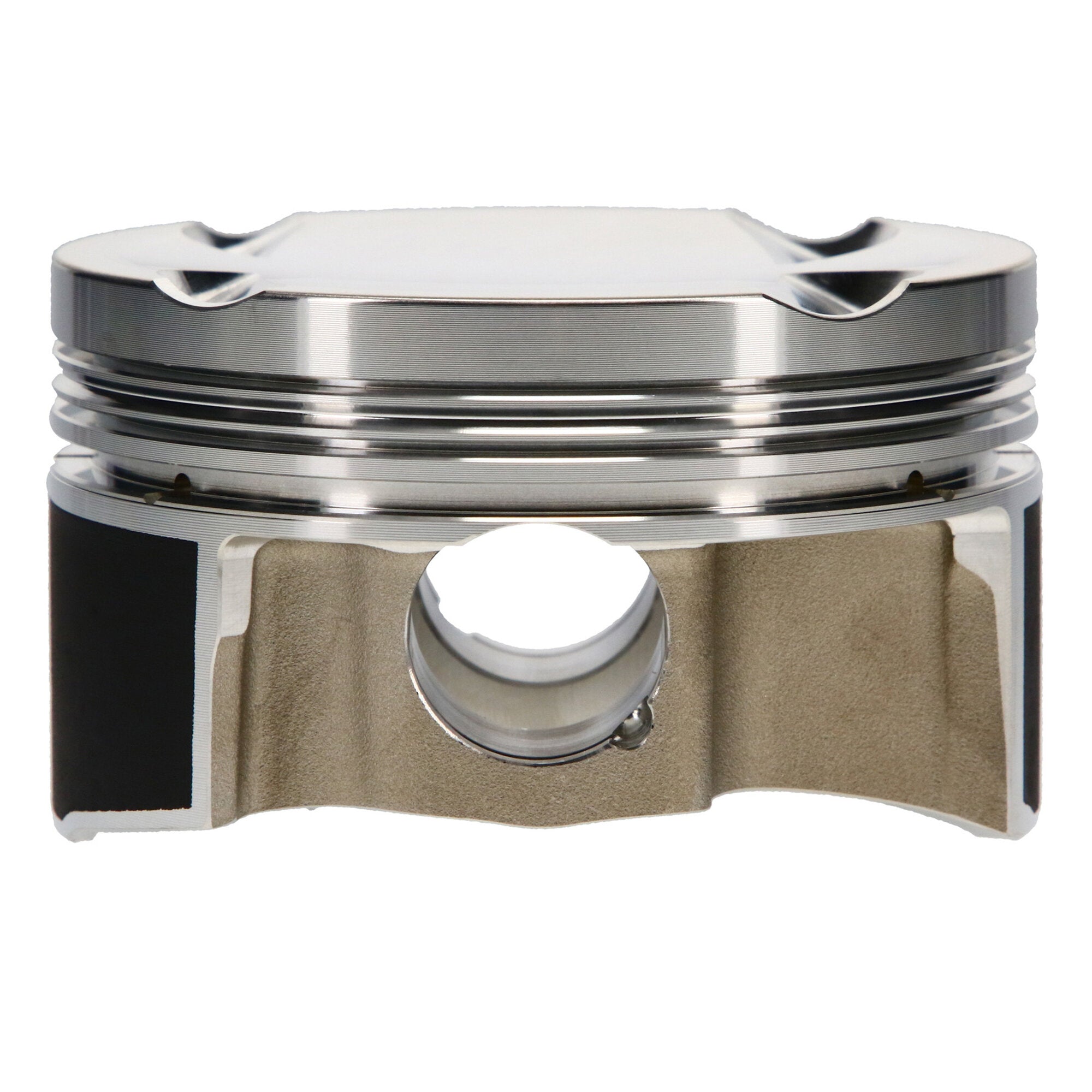

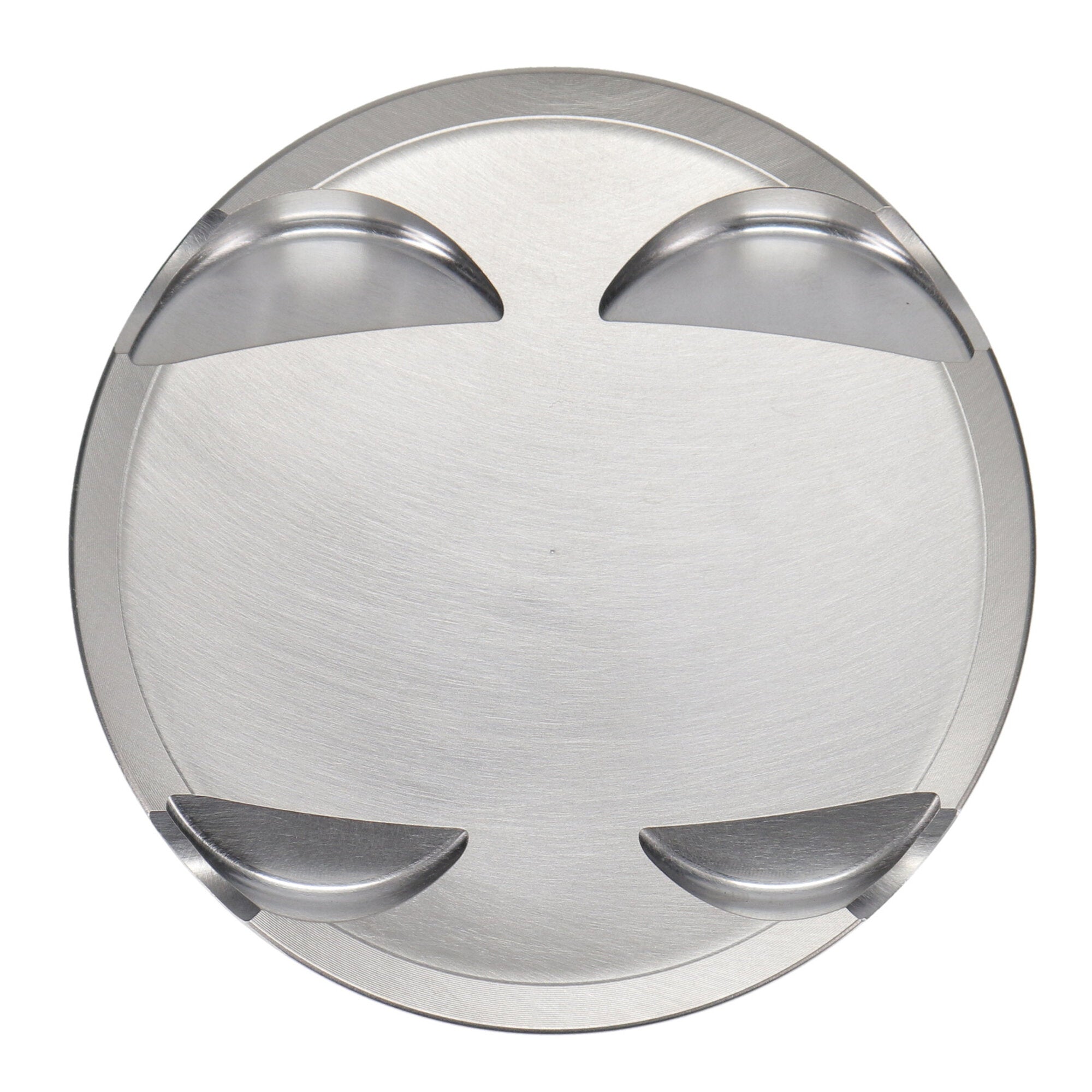

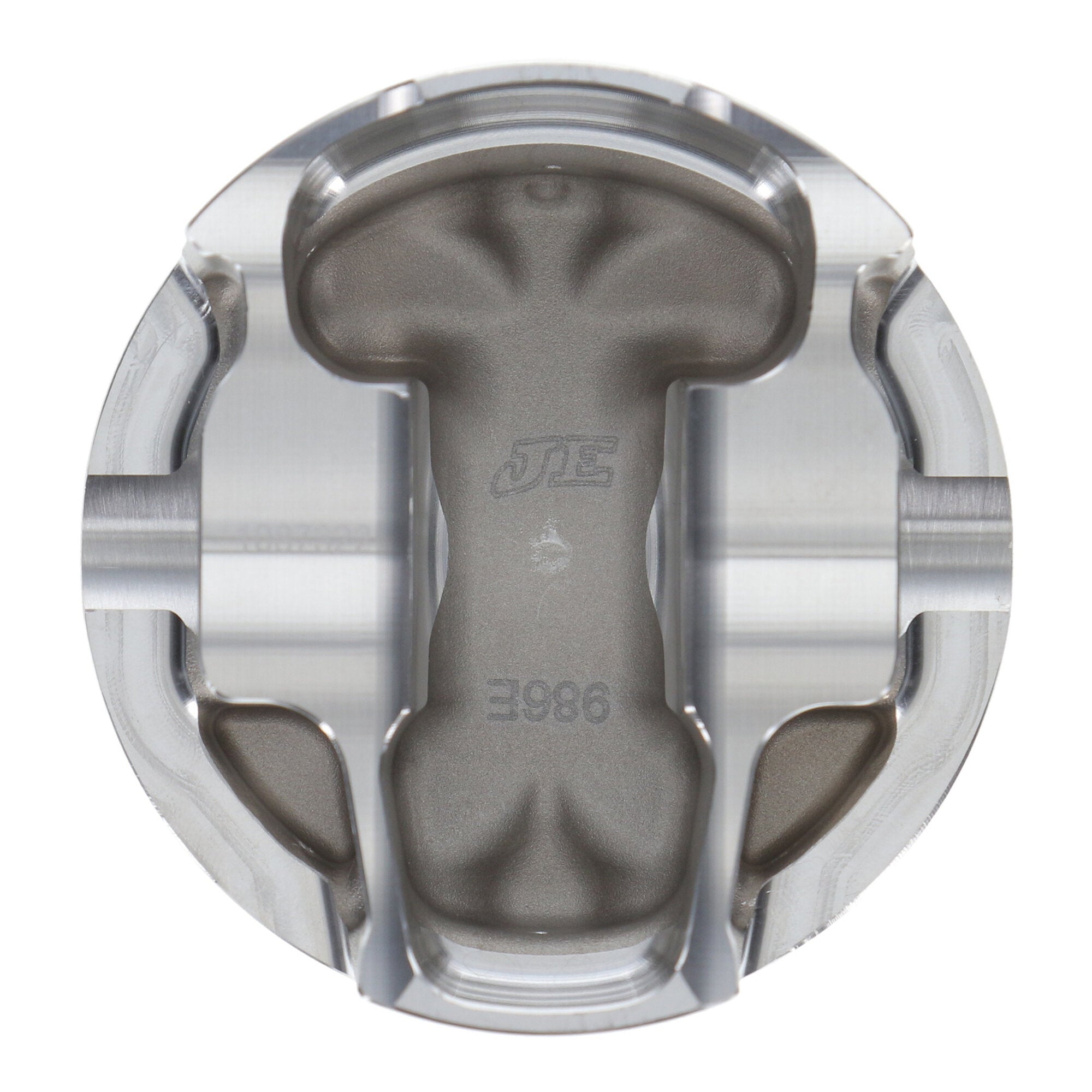

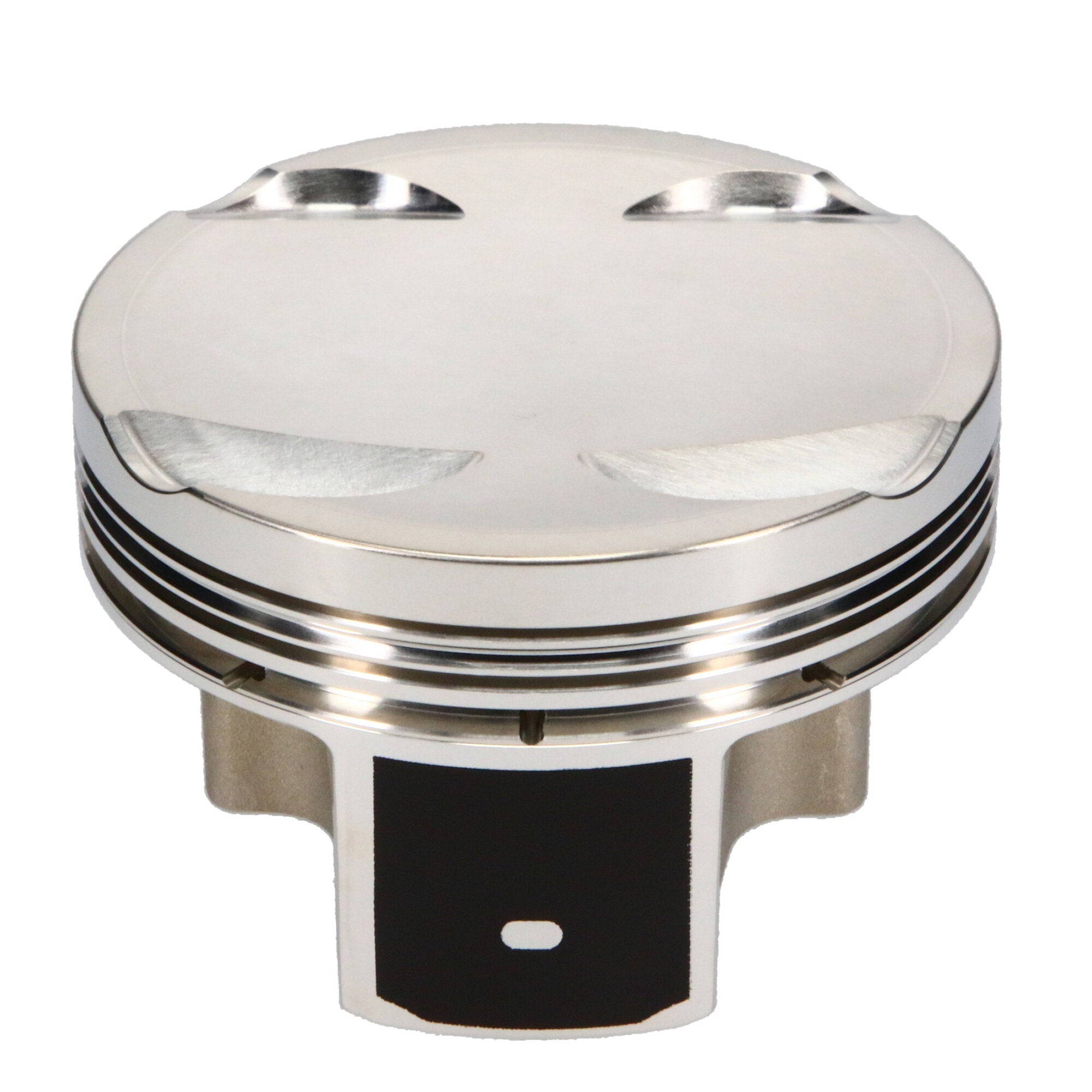

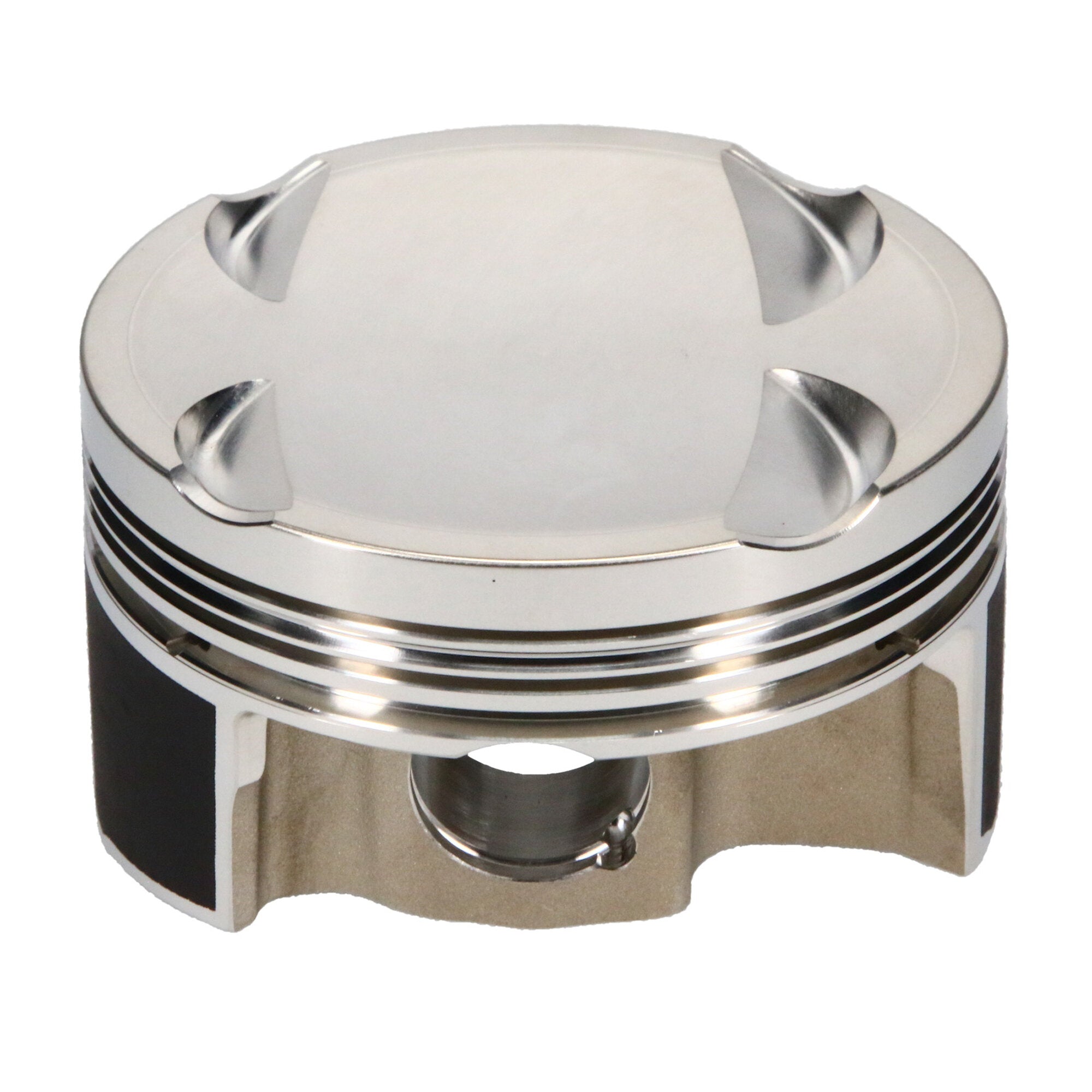

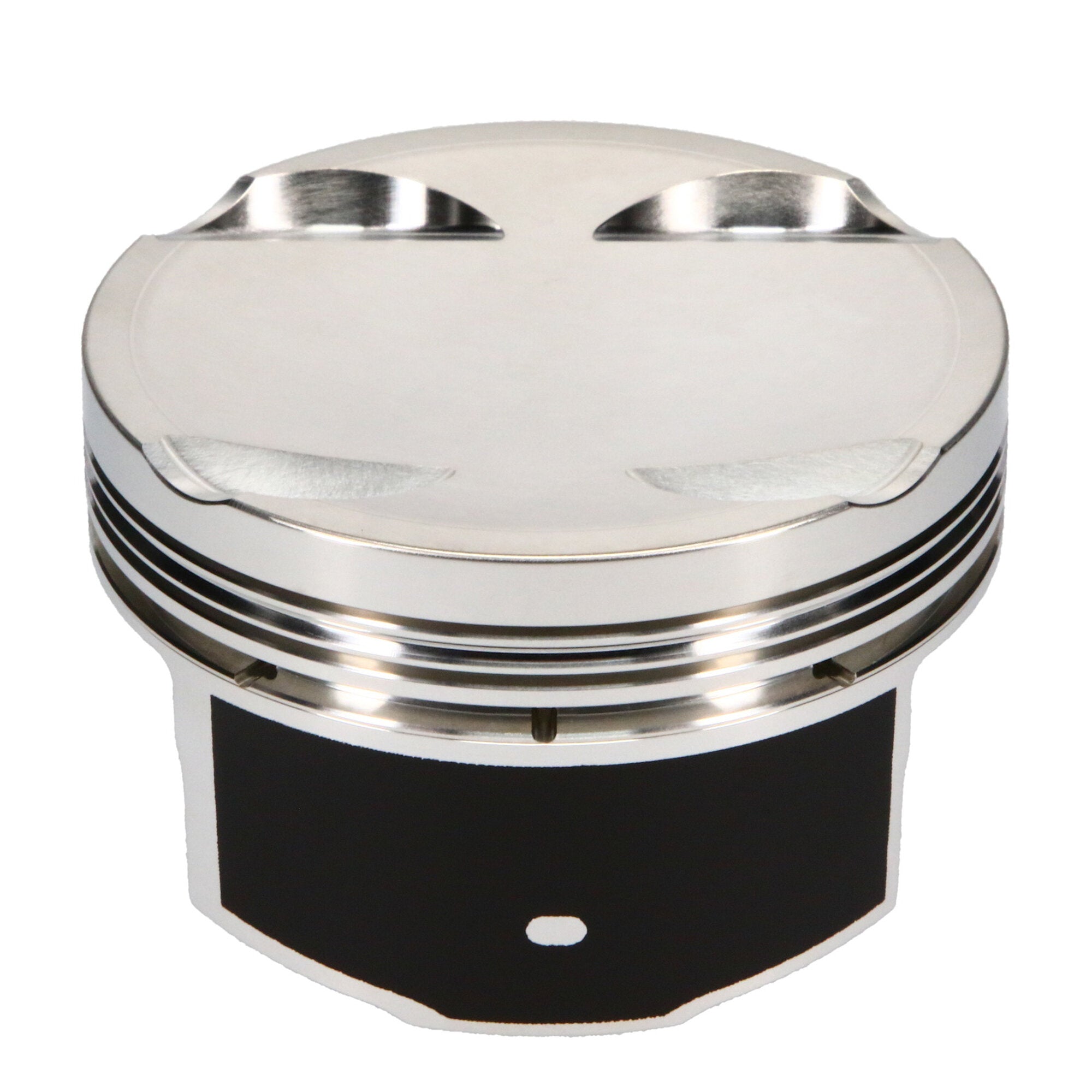

Piston Set, 2618, Inv Dome/Dish, 3.543 Bore, 1.176 CD, 0.866 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Acura, K Series, 3.543 in. Bore, 10.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda K20/K24, 90.00 Bore, Dish, Set of 4 |
| Forging Type |
FSR |
| Ringset Included |
Yes |
| Engine |
K Series |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Length |
2.250 |
| Oil Ring Thickness |
0.111 |
| Engine Type |
ICE |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make |
ACURA |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.866 |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Length |
2.250 |
| Industry |
Automotive |
| Piston Material |
2618 |
| Title |
JE Pistons - Acura, K Series, 90.00 mm Bore, Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Acura K Series Piston Kit - 90.00 mm Bore - 1.176 in. CH, -12.30 CC |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Average Weight |
328 |
| Piston Volume |
-12.30 |
| Add-On |
866-063-MW |
| Compression Height |
1.176 |
| Product Market |
Sport Compact |
| Product Type |
Engine Piston Kit |
| Add-On |
JG1001-3543 |
| Cylinder Head |
K20 |
| Add-On |
866-2250-15-51C |
| Second Compression Ring Thickness |
0.0480 |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
90.00 |
| Piston Quantity |
4 |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Acura |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Engine - Web |
K Series |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
