As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda F22C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

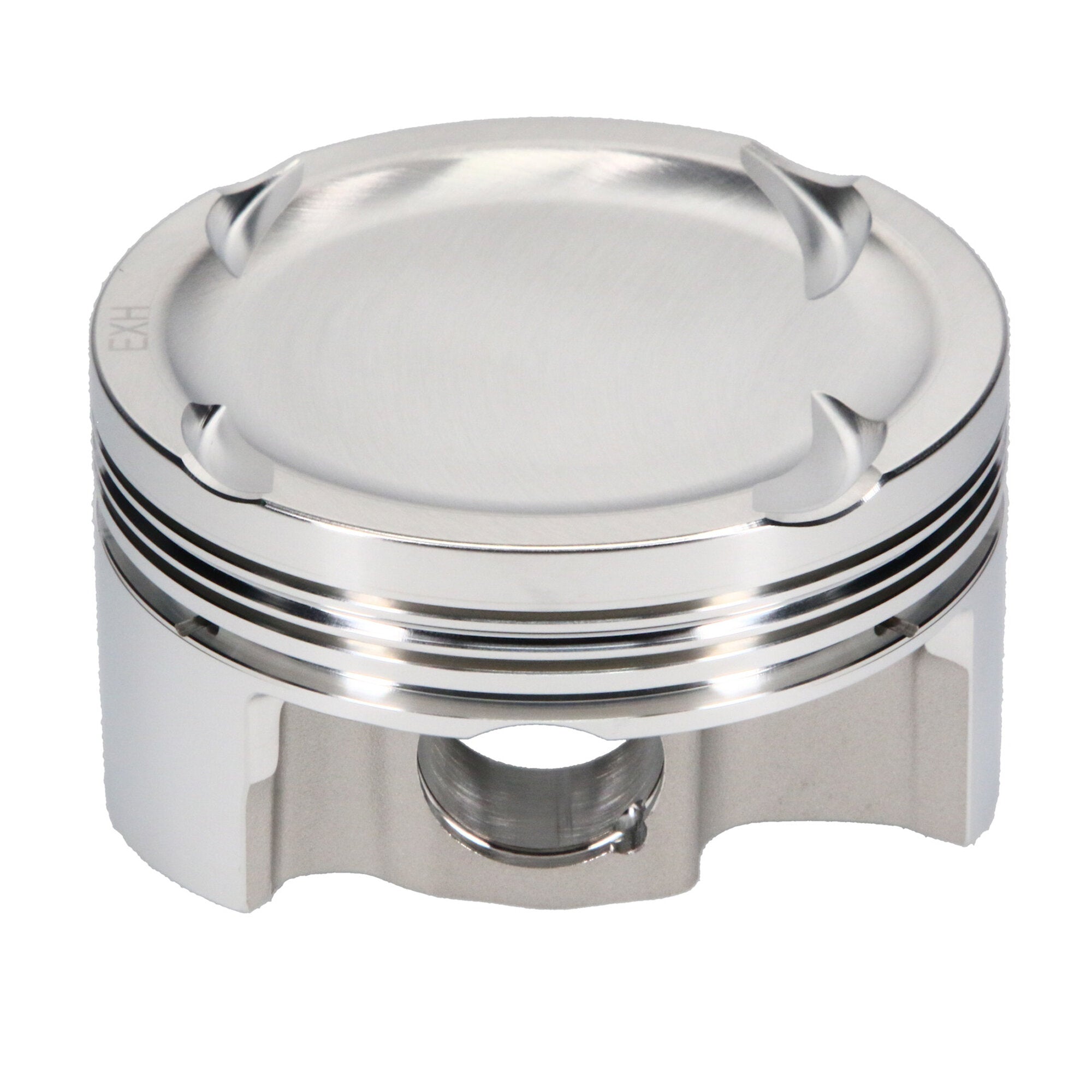

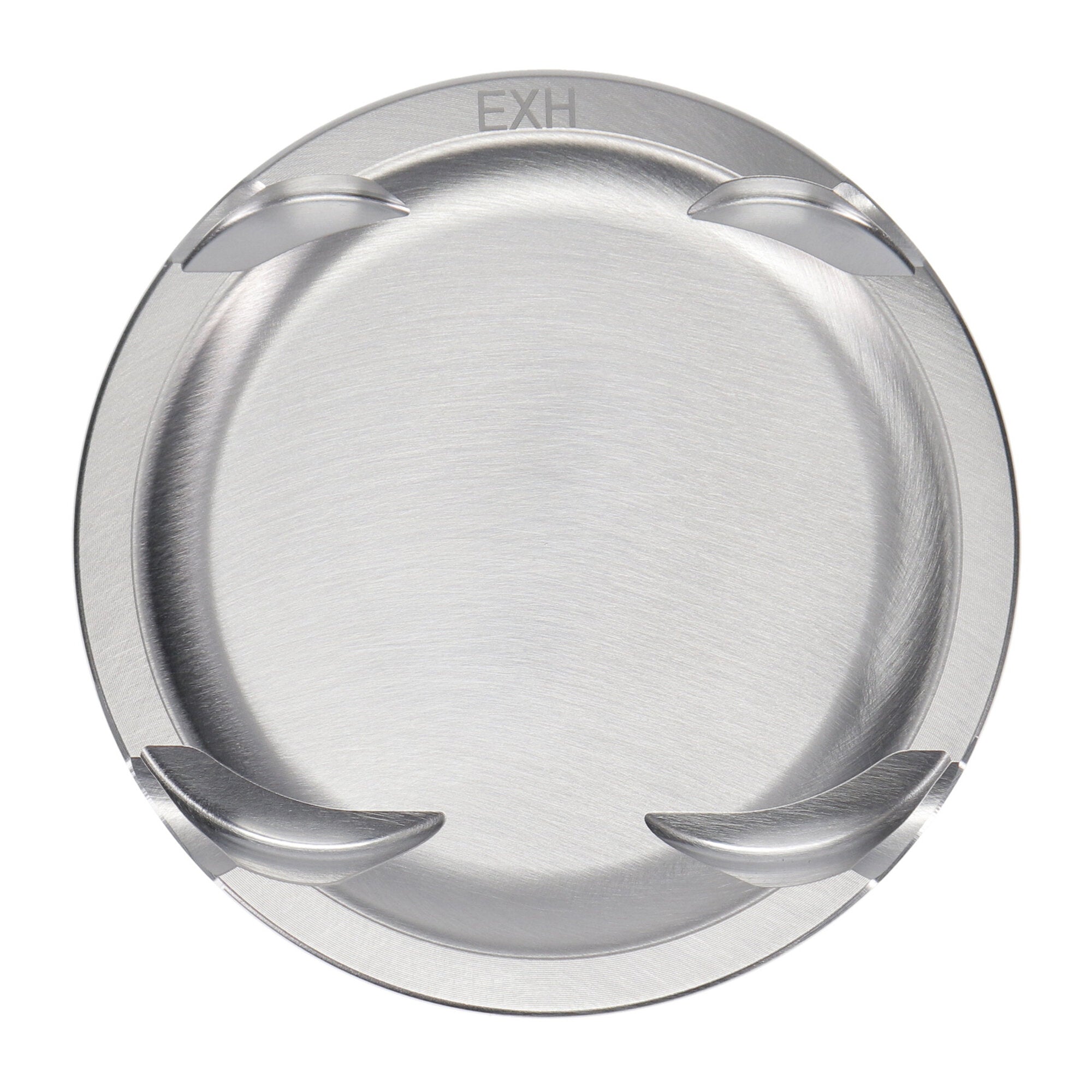

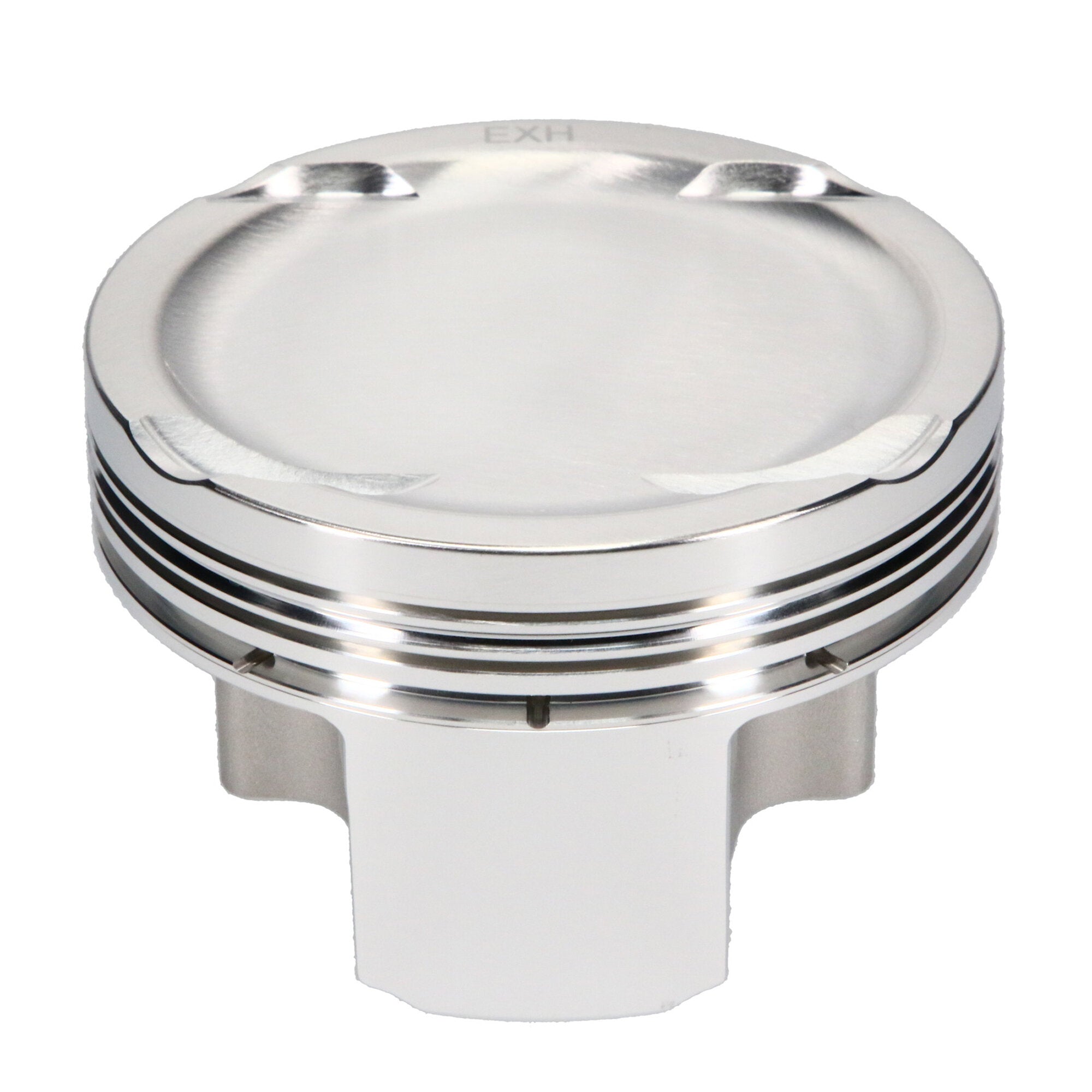

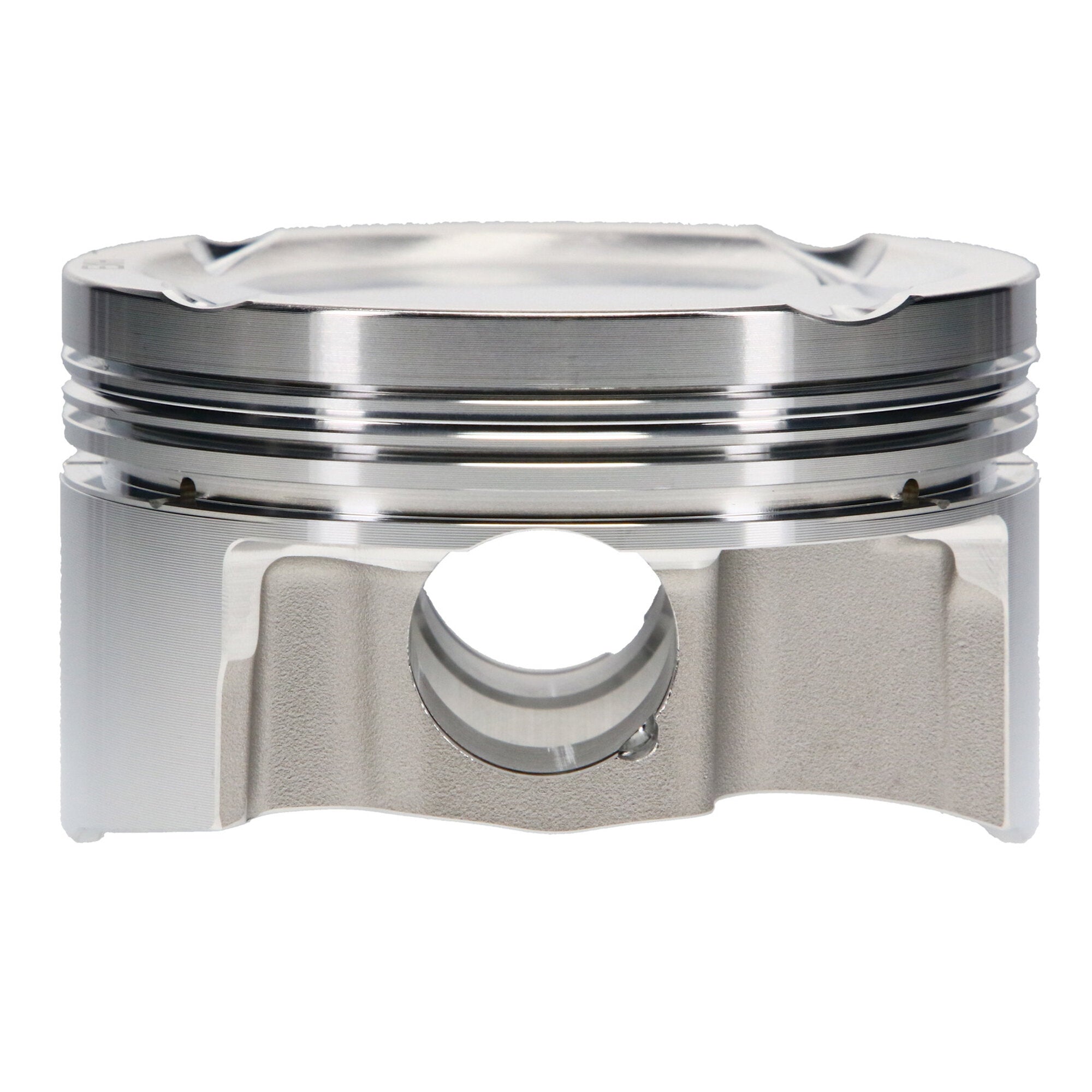

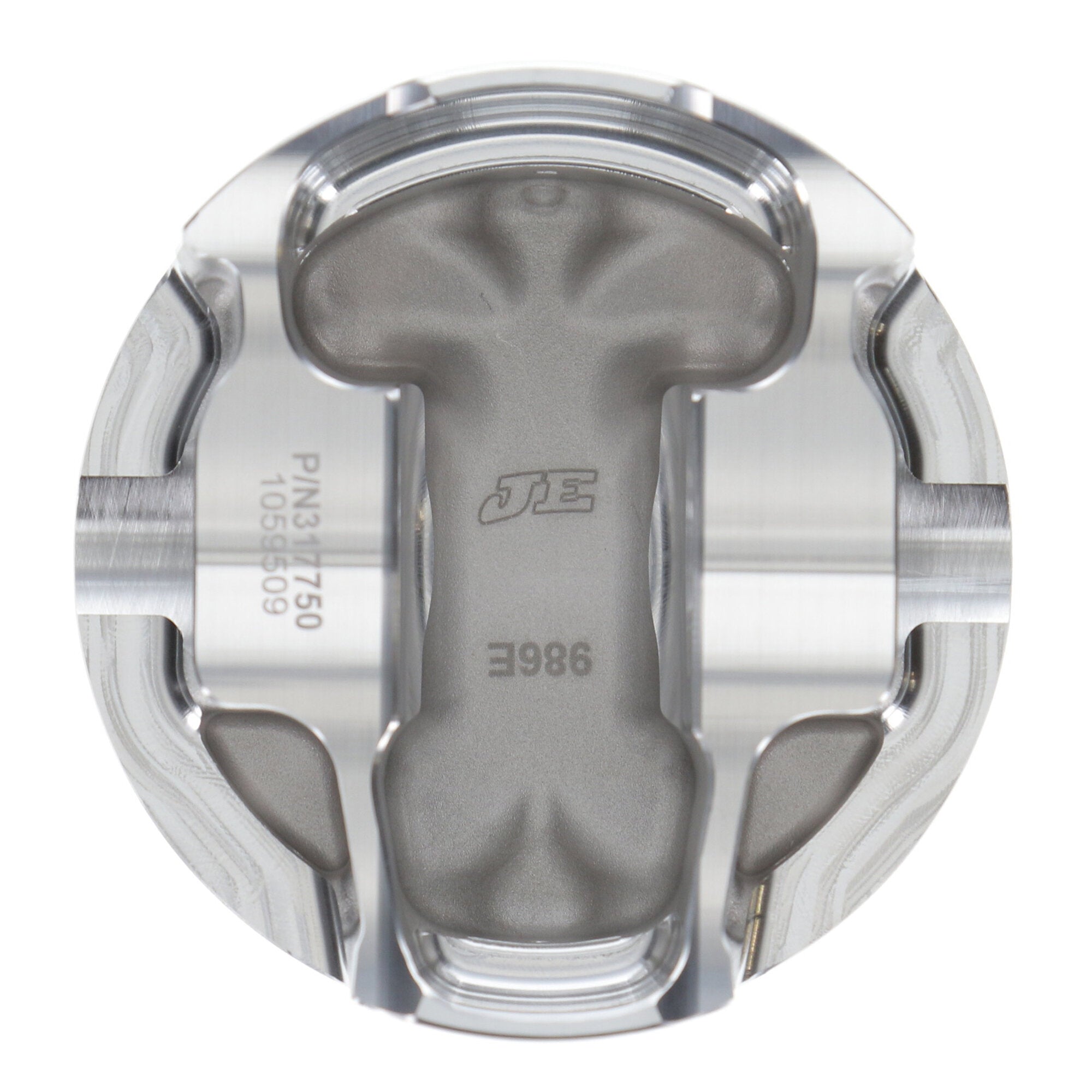

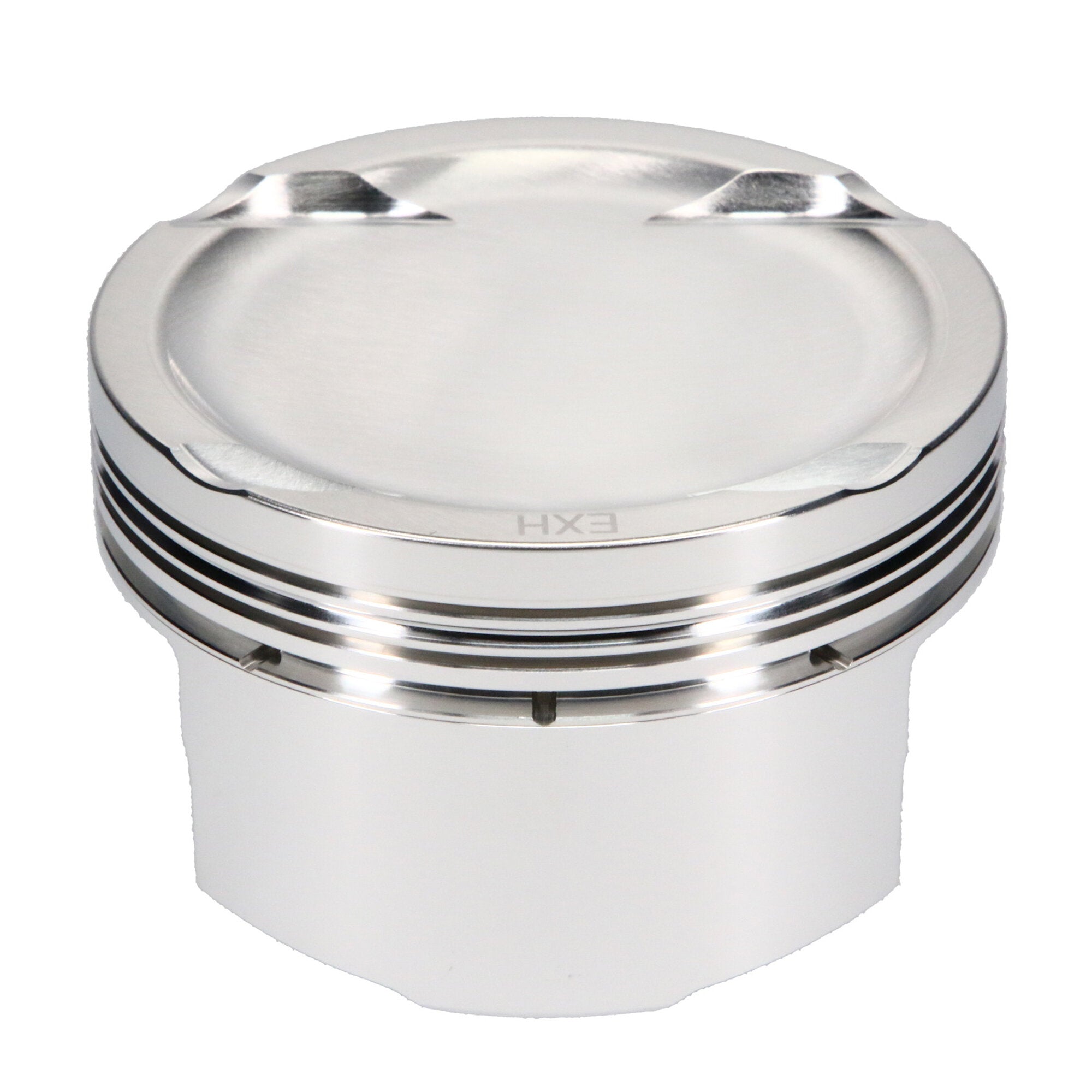

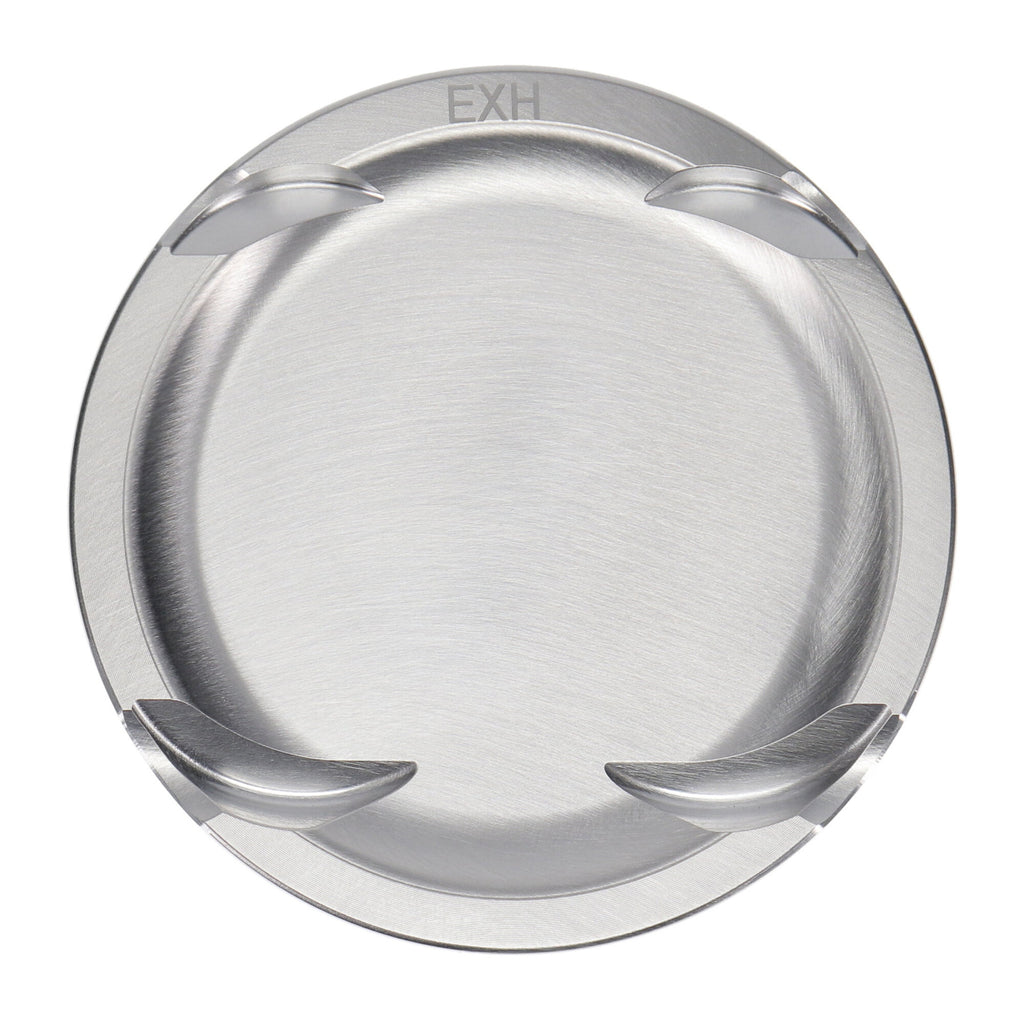

Piston Set, 2618, Inv Dome/Dish, 3.504 Bore, 1.181 CD, 0.905 Pin, Set of 4. |
| Description_EXT |
JE, Honda, F Series, 3.504 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda F22C, 89.00 Bore, Dish, Set of 4 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Length |
2.250 |
| Engine |
F SERIES |
| Make - Web |
Honda |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.905 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Add-On |
905-2250-15-51C |
| Forging Type |
FSR |
| Industry |
Automotive |
| Title - Web |
JE Pistons Honda F Series Piston Kit - 89.00 mm Bore - 1.181 in. CH, -18.40 CC |
| Piston Pin Outside Diameter |
0.905 |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
905-073-MW |
| Product Market |
Sport Compact |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Add-On |
JG1001-3504 |
| Compression Height |
1.181 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-18.40 |
| Bore Diameter |
89.00 |
| Piston Material |
2618 |
| Piston Average Weight |
314 |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Title |
JE Pistons - Honda, F Series, 89.00 mm Bore, Piston Kit |
| Make |
HONDA |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
F20C1 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Quantity |
4 |
| Engine - Web |
F Series |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
6.0000 |
