As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda F22C |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

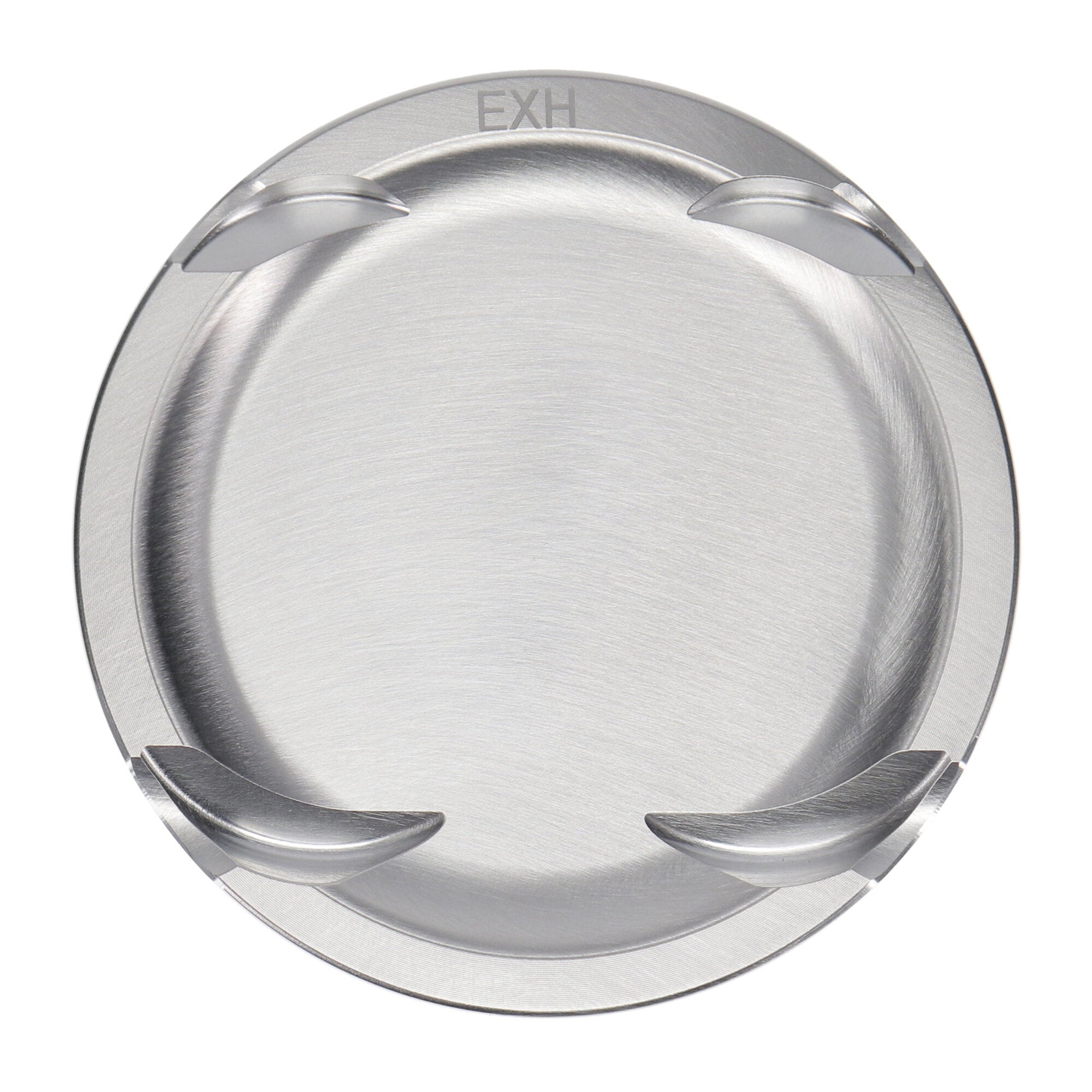

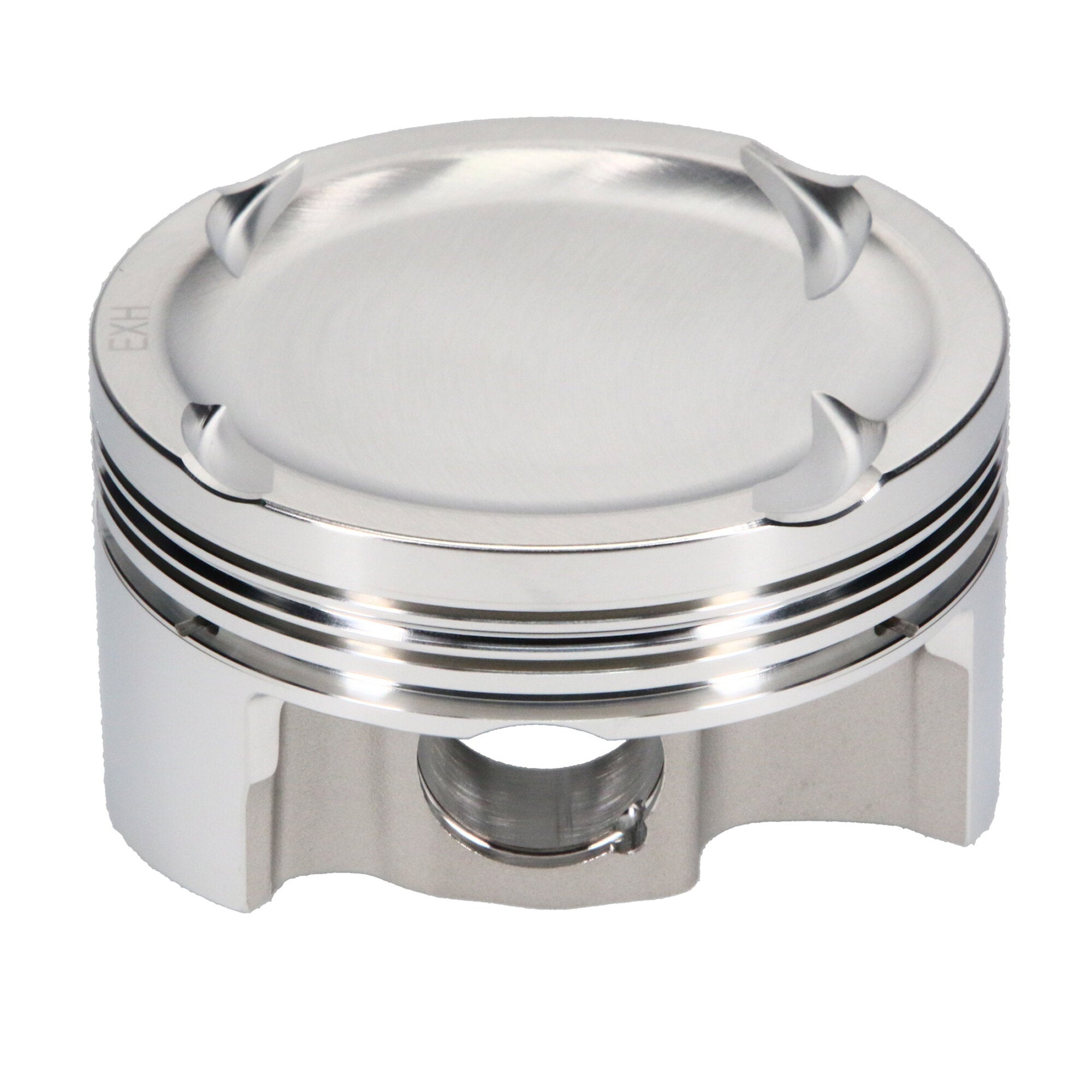

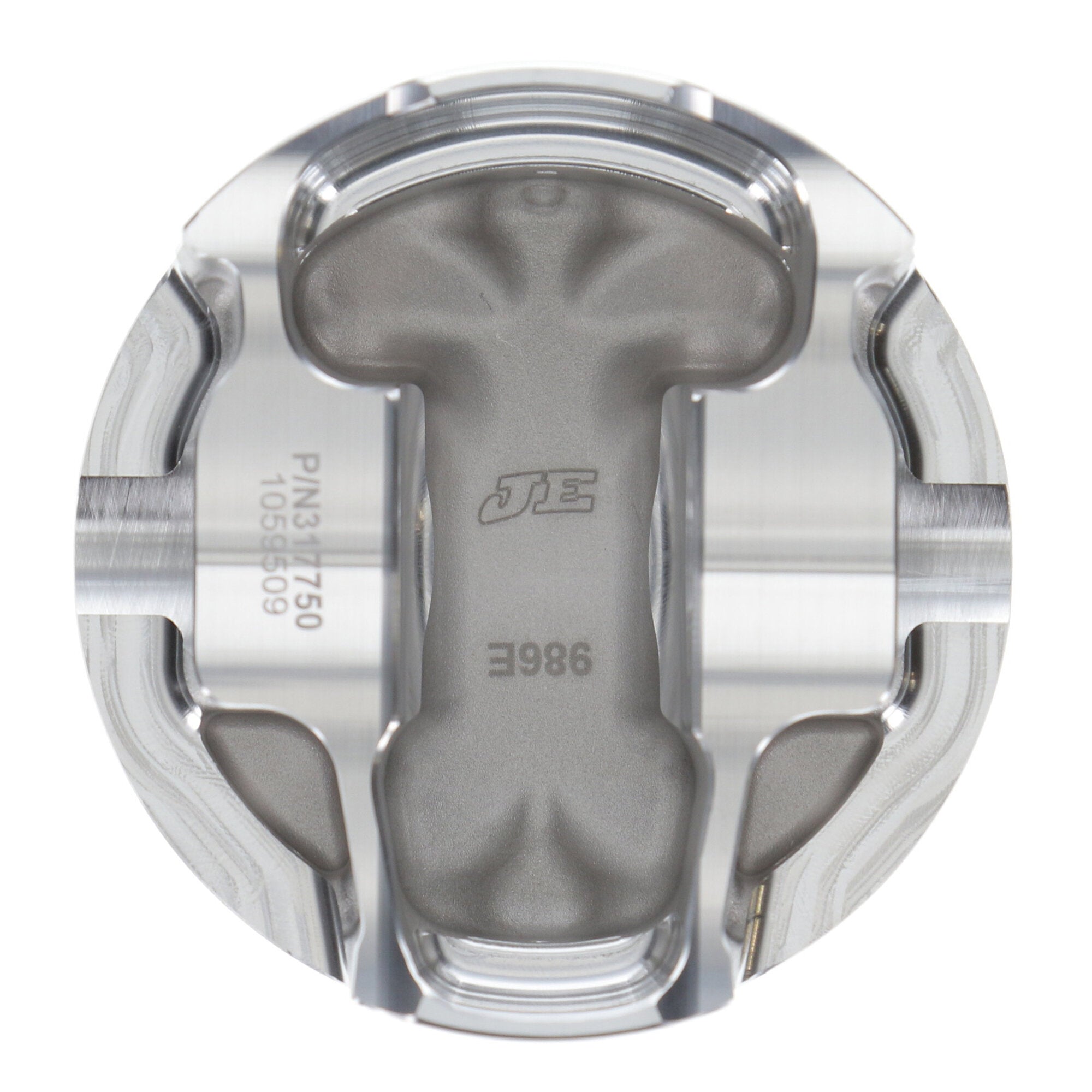

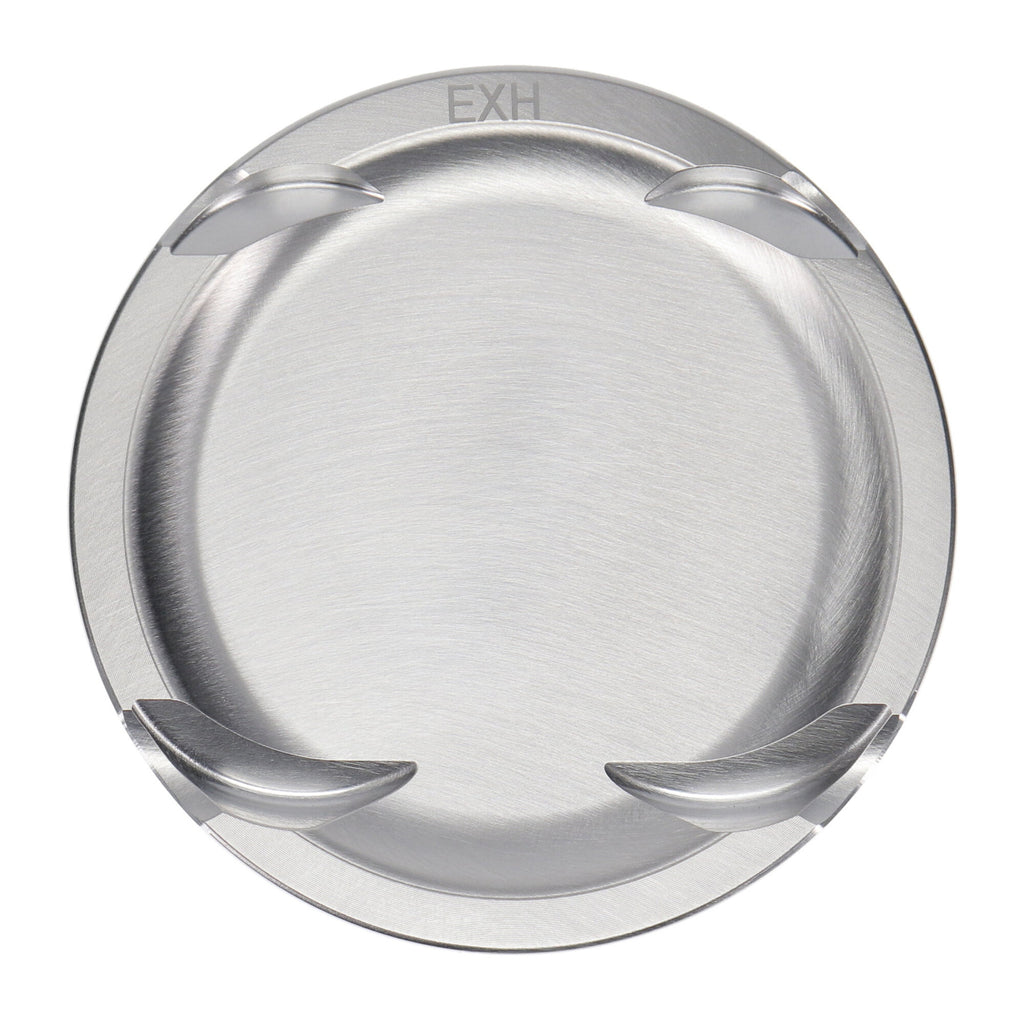

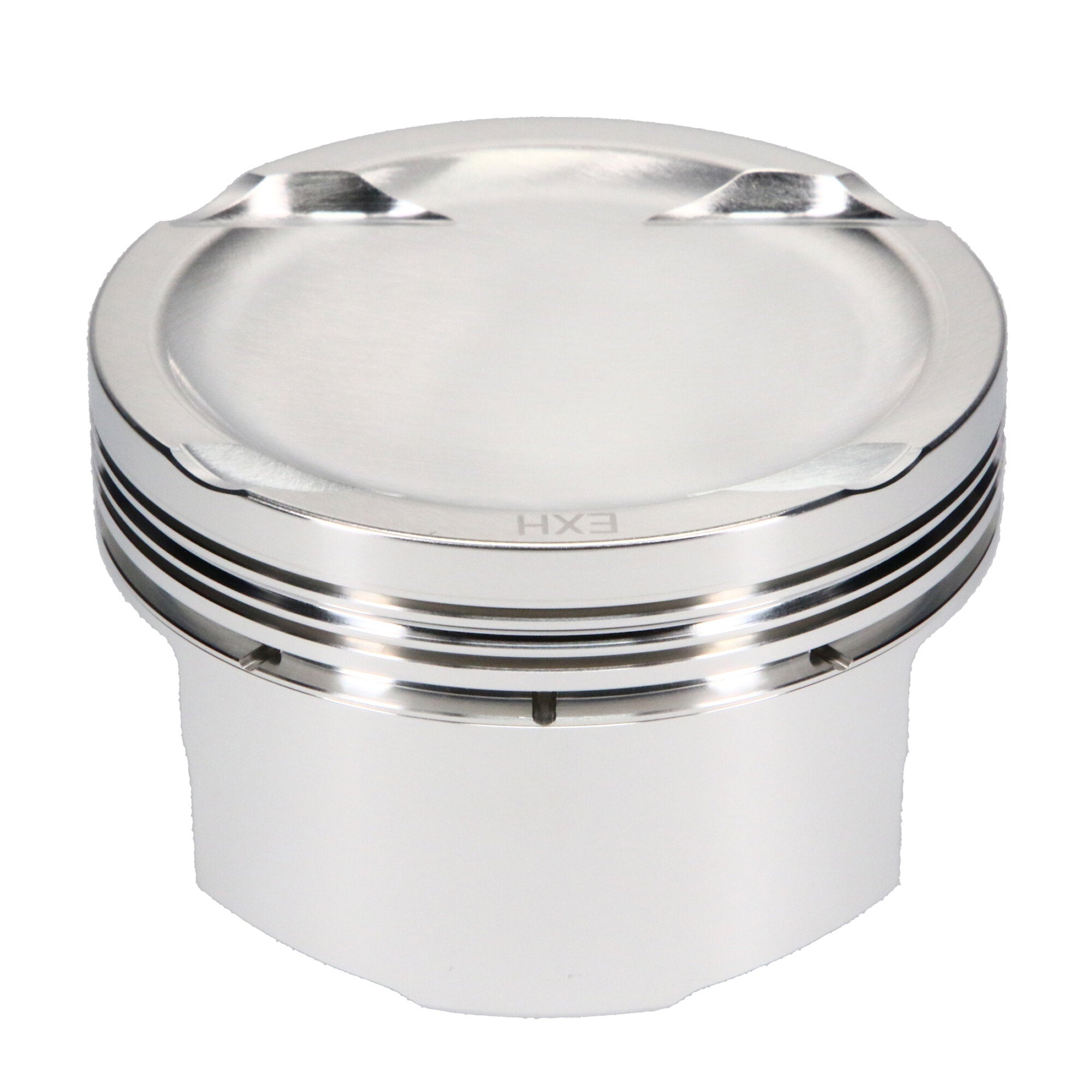

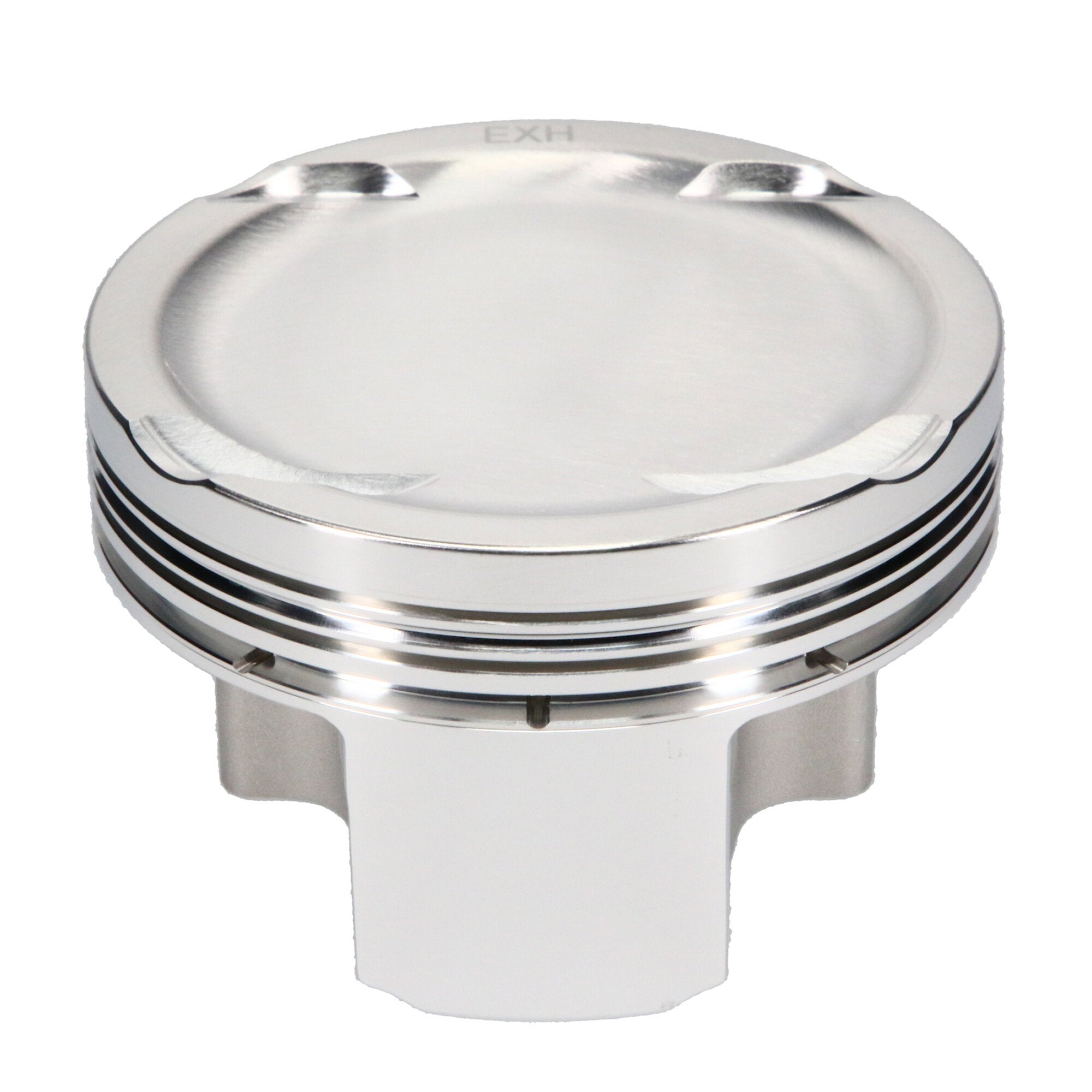

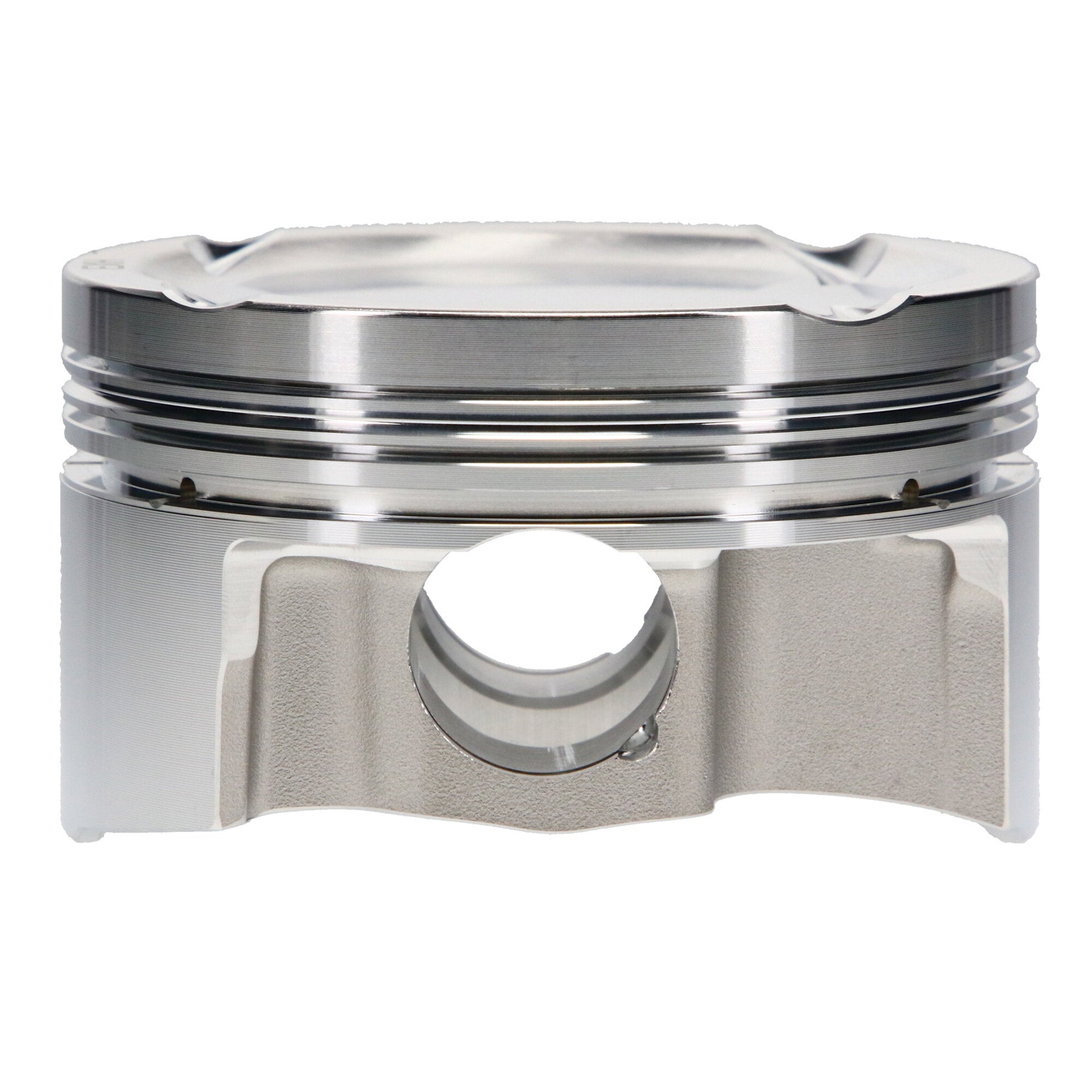

Piston Set, 2618, Inv Dome/Dish, 3.465 Bore, 1.181 CD, 0.905 Pin, Set of 4. |
| Description_EXT |
JE, Honda, F Series, 3.465 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda F22C, 88.00 Bore, Dish, Set of 4 |
| Description_SHO |
Piston Kit |
| Piston Series |
JE Pistons |
| Piston Average Weight |
311 |
| Top Compression Ring Thickness |
0.0400 |
| Ringset Included |
Yes |
| Wrist Pin Wall Thickness |
0.150 |
| Bore Diameter |
88.00 |
| Product Market |
Sport Compact |
| Compression Height |
1.181 |
| Oil Ring Thickness |
0.111 |
| Piston Pin Outside Diameter |
0.905 |
| Piston Quantity |
4 |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Honda, F Series, 88.00 mm Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
F SERIES |
| Wrist Pin Outer Diameter |
0.905 |
| Engine - Web |
F Series |
| Make |
HONDA |
| Engine Type |
ICE |
| Add-On |
905-073-MW |
| Industry |
Automotive |
| Add-On |
JG1001-3465 |
| Piston Pin Material |
5115 |
| Product Type |
Engine Piston Kit |
| Forging Type |
FSR |
| Second Compression Ring Thickness |
0.0480 |
| Piston Volume |
-16.90 |
| Cylinder Head |
F20C1 |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Add-On |
905-2250-15-51C |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Make - Web |
Honda |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Honda F Series Piston Kit - 88.00 mm Bore - 1.181 in. CH, -16.90 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
6.0000 |
