As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 3.5L Ecoboost V6 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

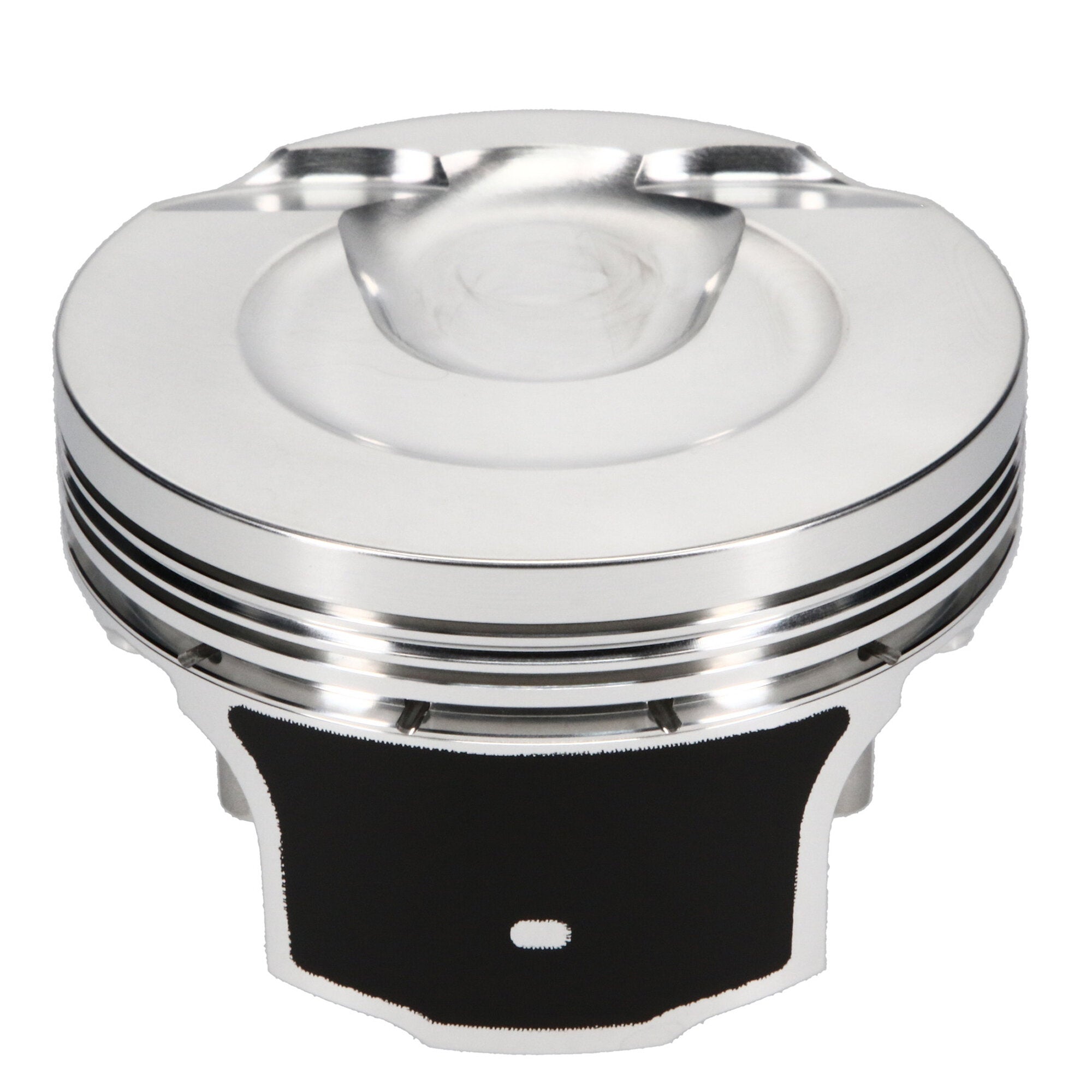

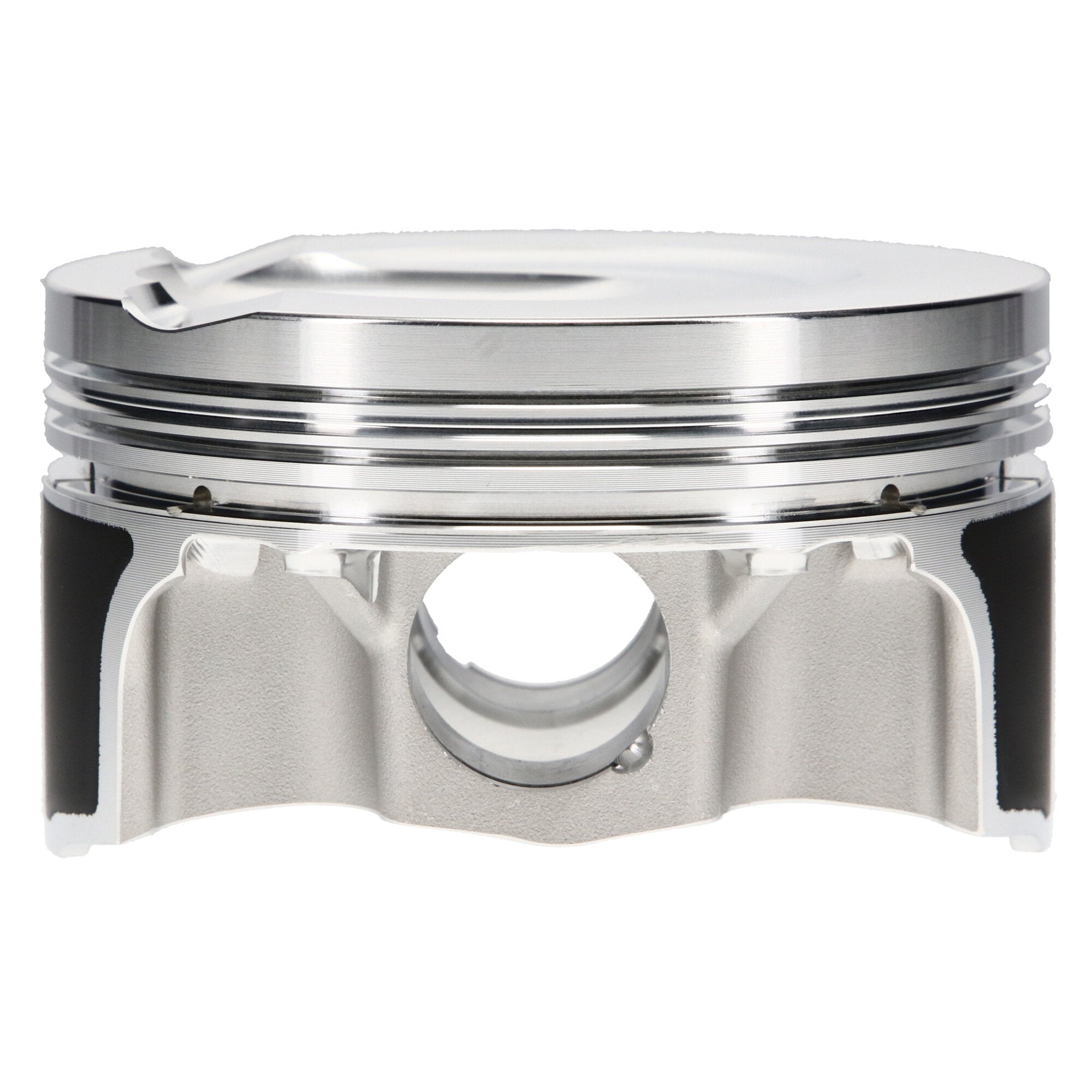

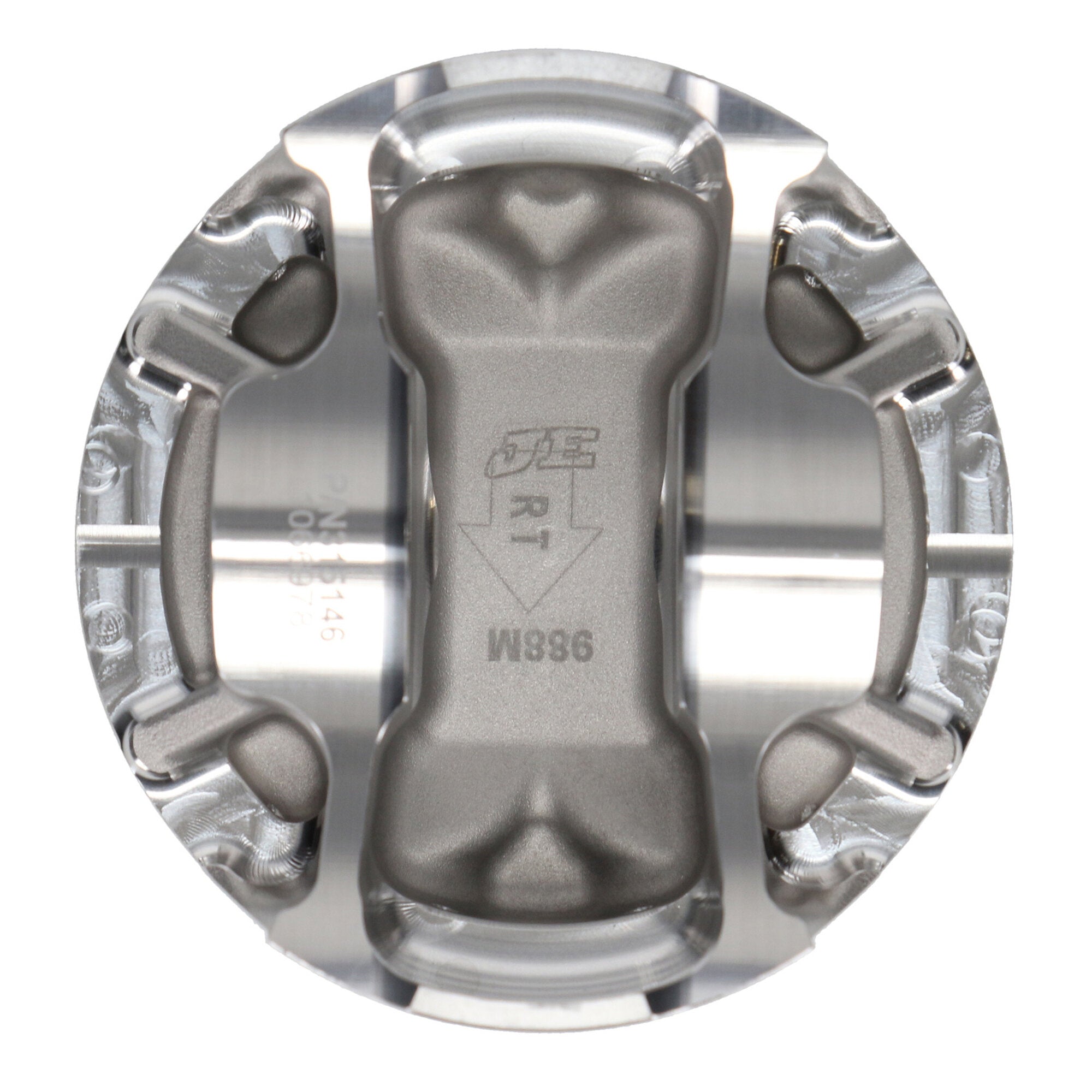

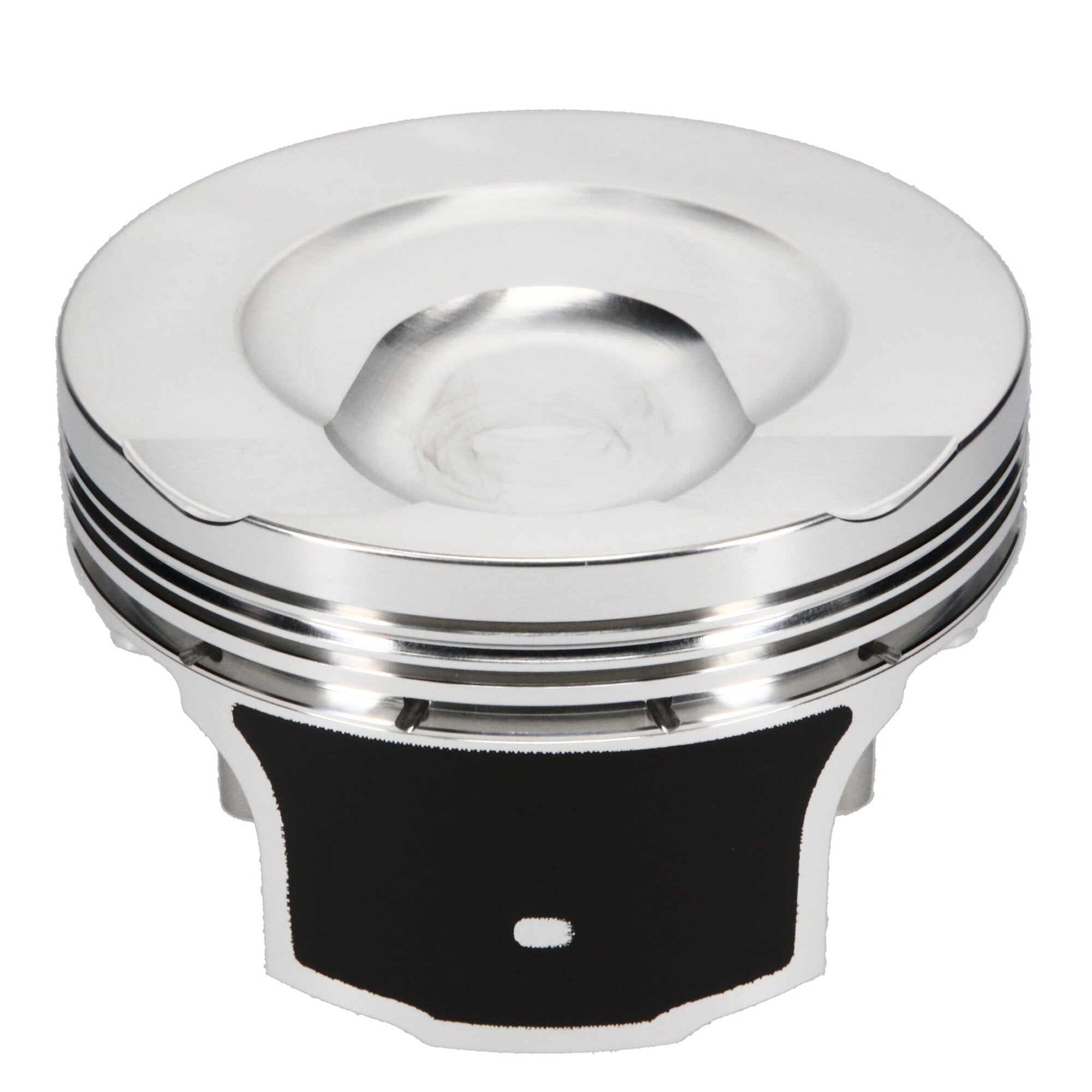

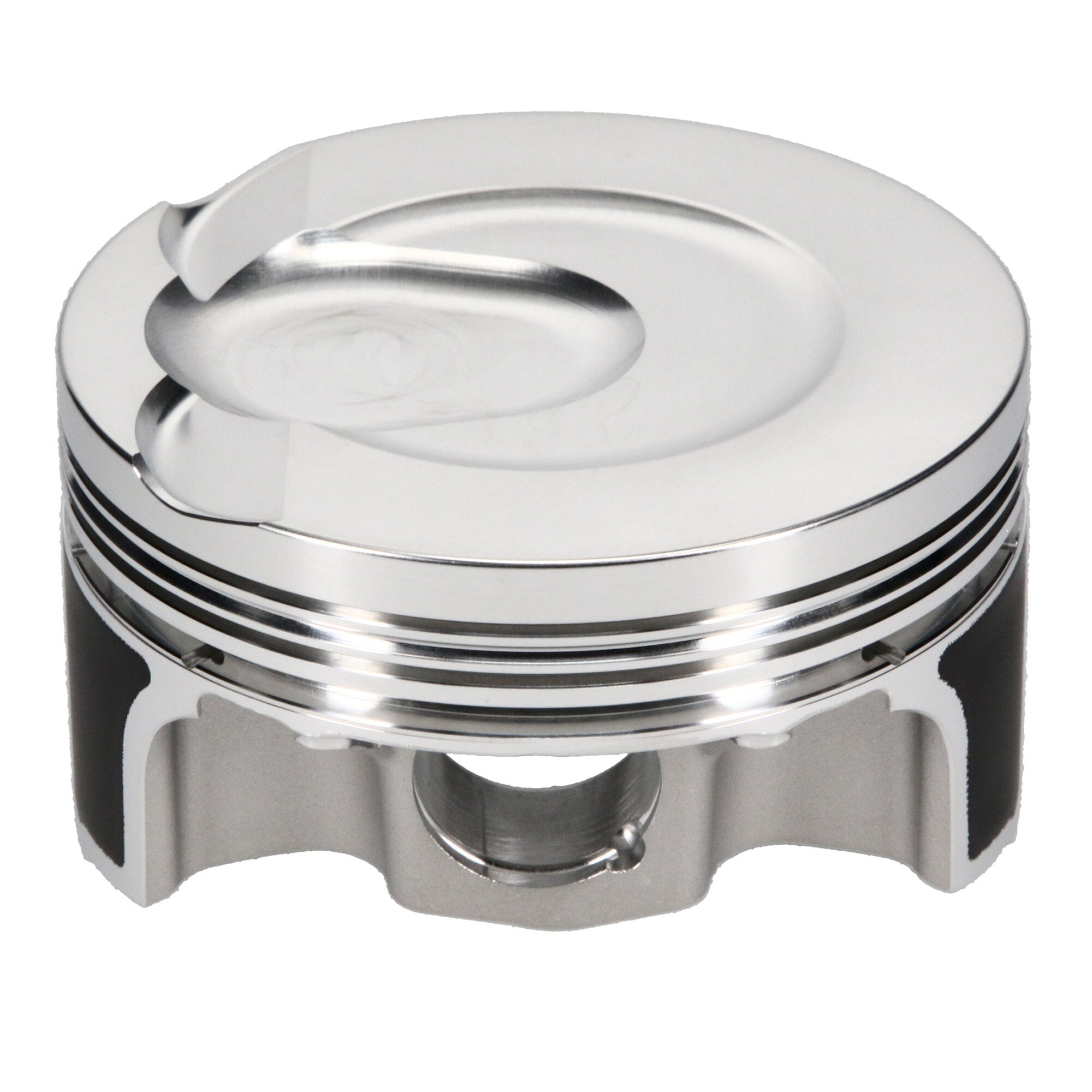

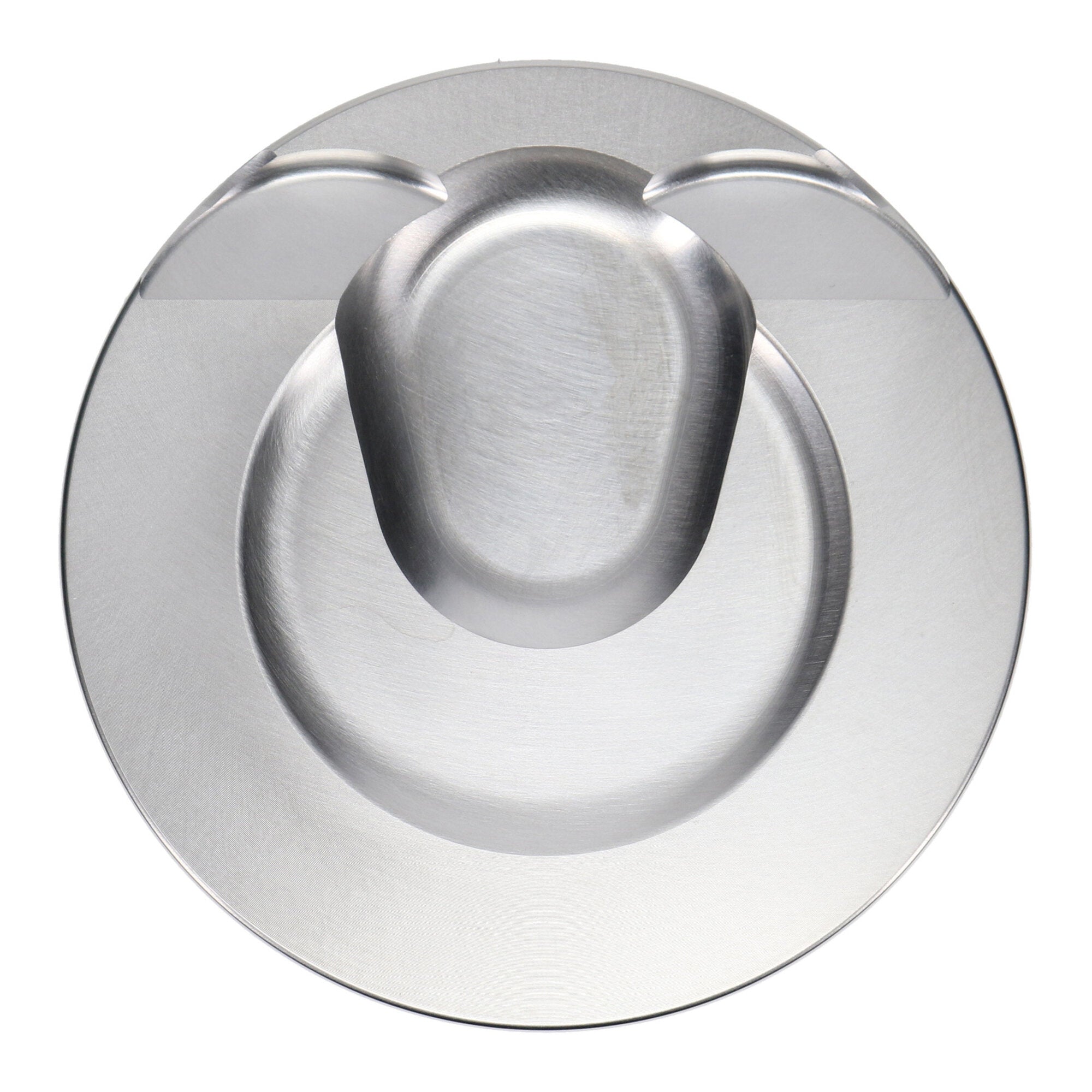

Piston Set, 2618, Dome, 3.652 Bore, 1.240 CD, 0.905 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, 3.5L EcoBoost Gen 1 V6, 3.651 in. Bore, 10.00:1, Dome, 6 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 3.5L Eco Boost V6, 92.75 Bore, Dome, Set of 6 |
| Piston Series |
JE Pistons |
| Ring Set Included |
Yes |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Length |
2.250 |
| Product Market |
Sport Compact |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Compression Height |
1.240 |
| Piston Pin Wall Thickness |
0.180 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Wall Thickness |
0.180 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Material |
2618 |
| Piston Quantity |
6 |
| Forging Type |
FSR |
| Piston Volume |
-0.35 |
| Title |
JE Pistons - Ford, 3.5L EcoBoost Gen 1 V6, 92.75 mm Bore, Piston Kit |
| Engine - Web |
3.5L EcoBoost Gen 1 V6 |
| Piston Average Weight |
402 |
| Bore Diameter |
92.75 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Prop 65 (C, R or CR) |
CR |
| Make |
FORD |
| Piston Pin Outside Diameter |
0.905 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.905 |
| Add-On |
905-073-MW |
| Title - Web |
JE Pistons Ford 3.5L EcoBoost Gen 1 V6 Piston Kit - 92.75 mm Bore - 1.240 in. CH, -0.35 CC |
| Cylinder Head |
ECOBOOST V6 |
| Ringset Included |
Yes |
| Add-On |
JG1001-3652 |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Add-On |
905-2250-18-51C |
| Second Compression Ring Thickness |
0.0480 |
| Piston Head Type |
Dome |
| Engine |
3.5L ECOBOOST GEN 1 V6 |
| Industry |
Automotive |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
9.0000 |
