As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.2L Modular 3V |
| Description_DEF |
Engine Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |

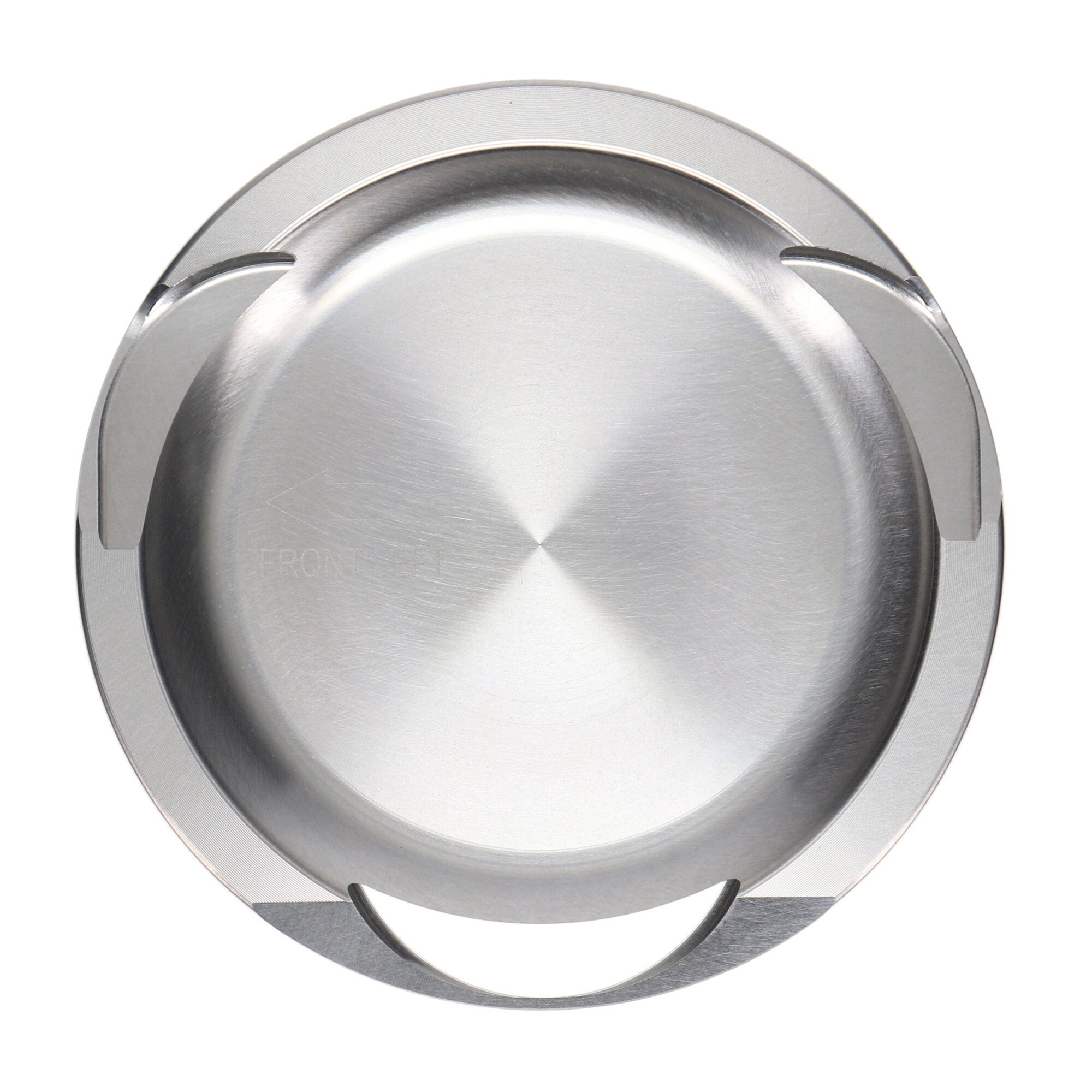

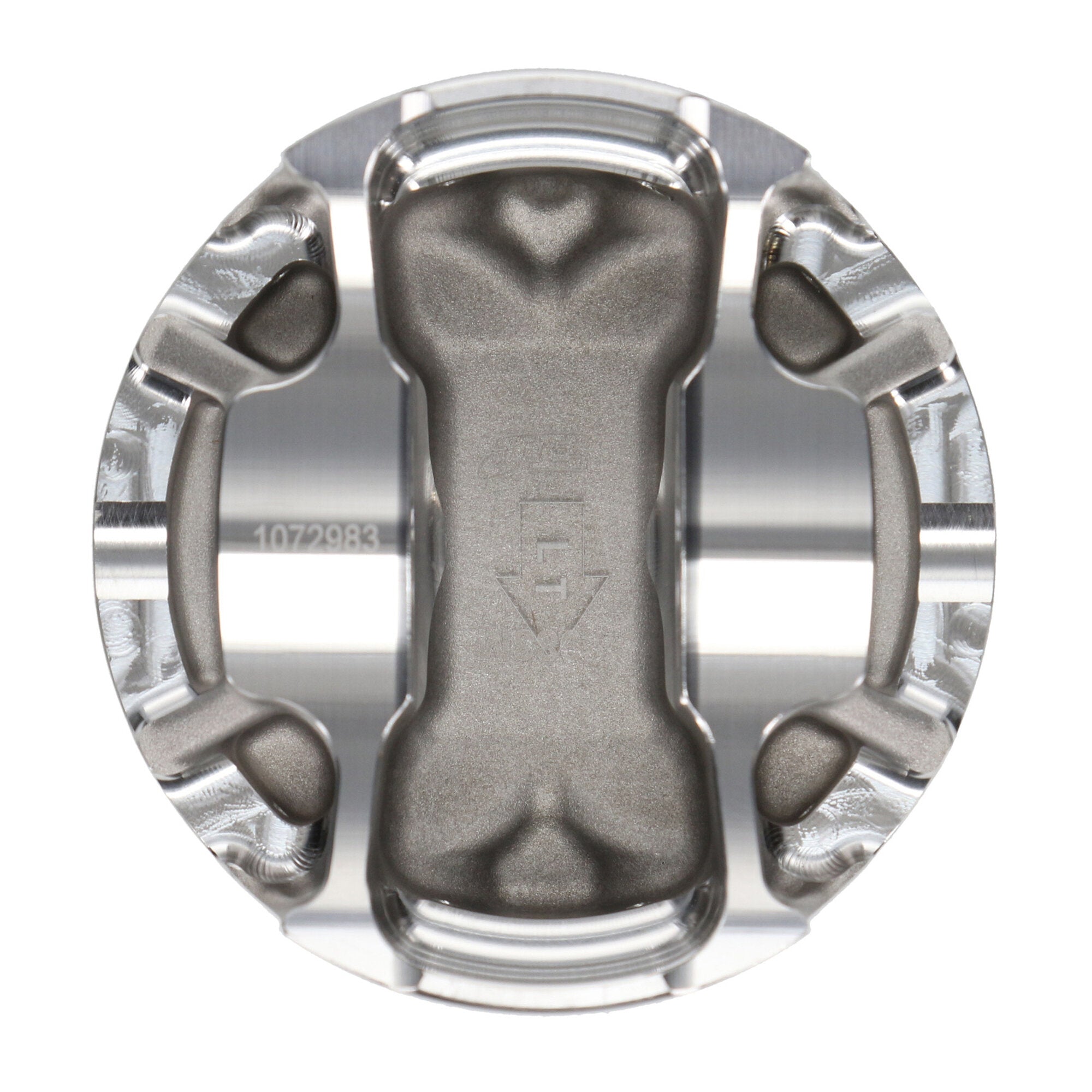

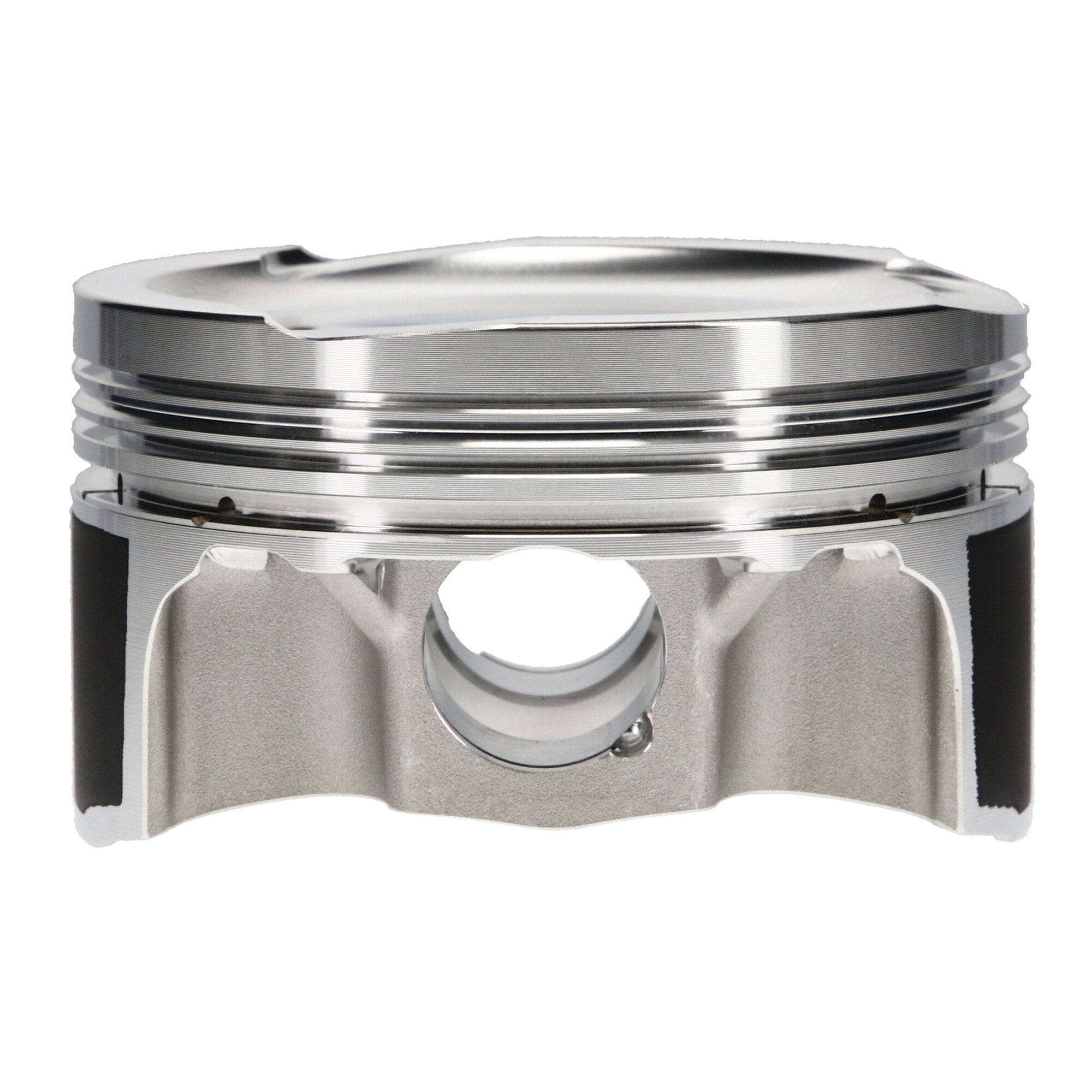

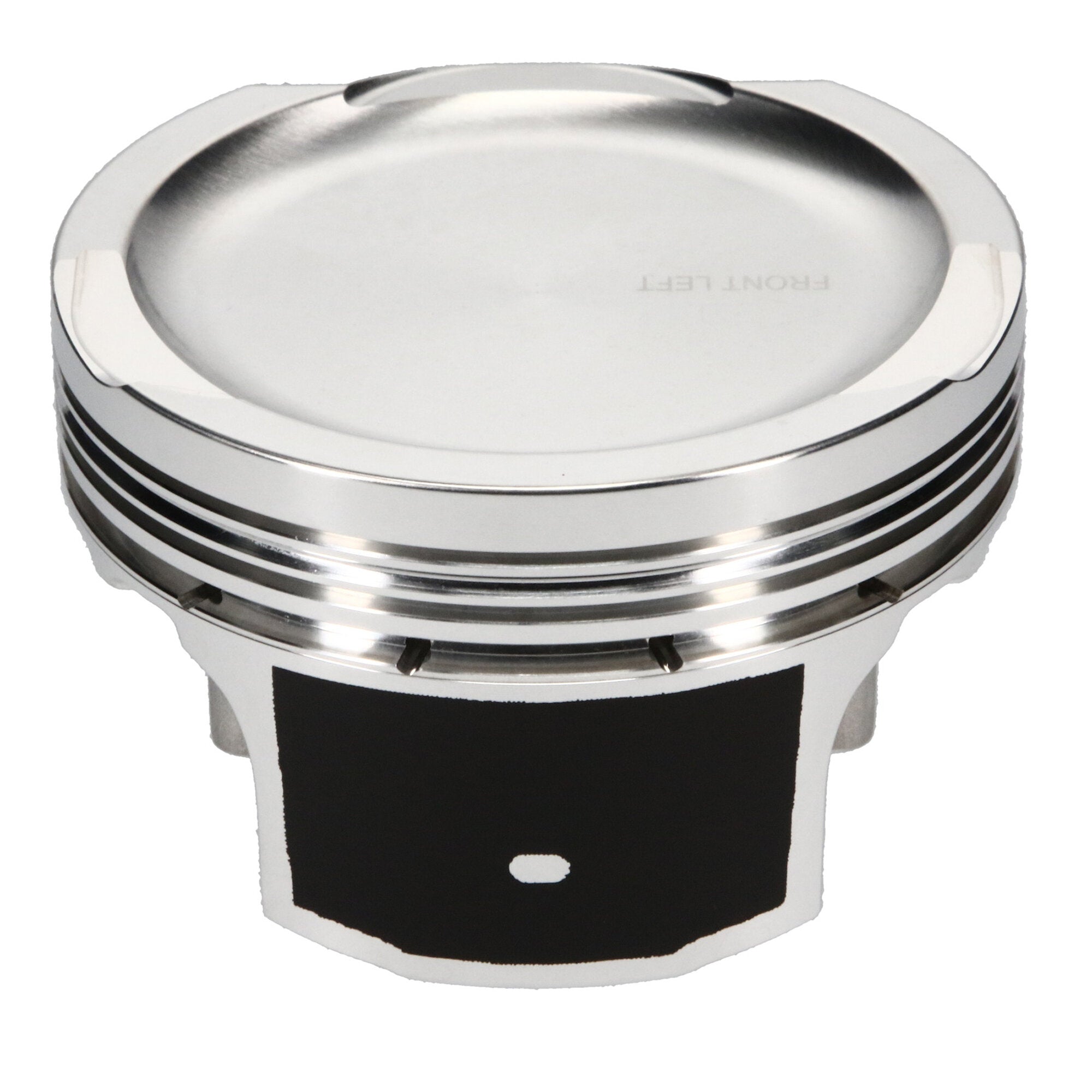

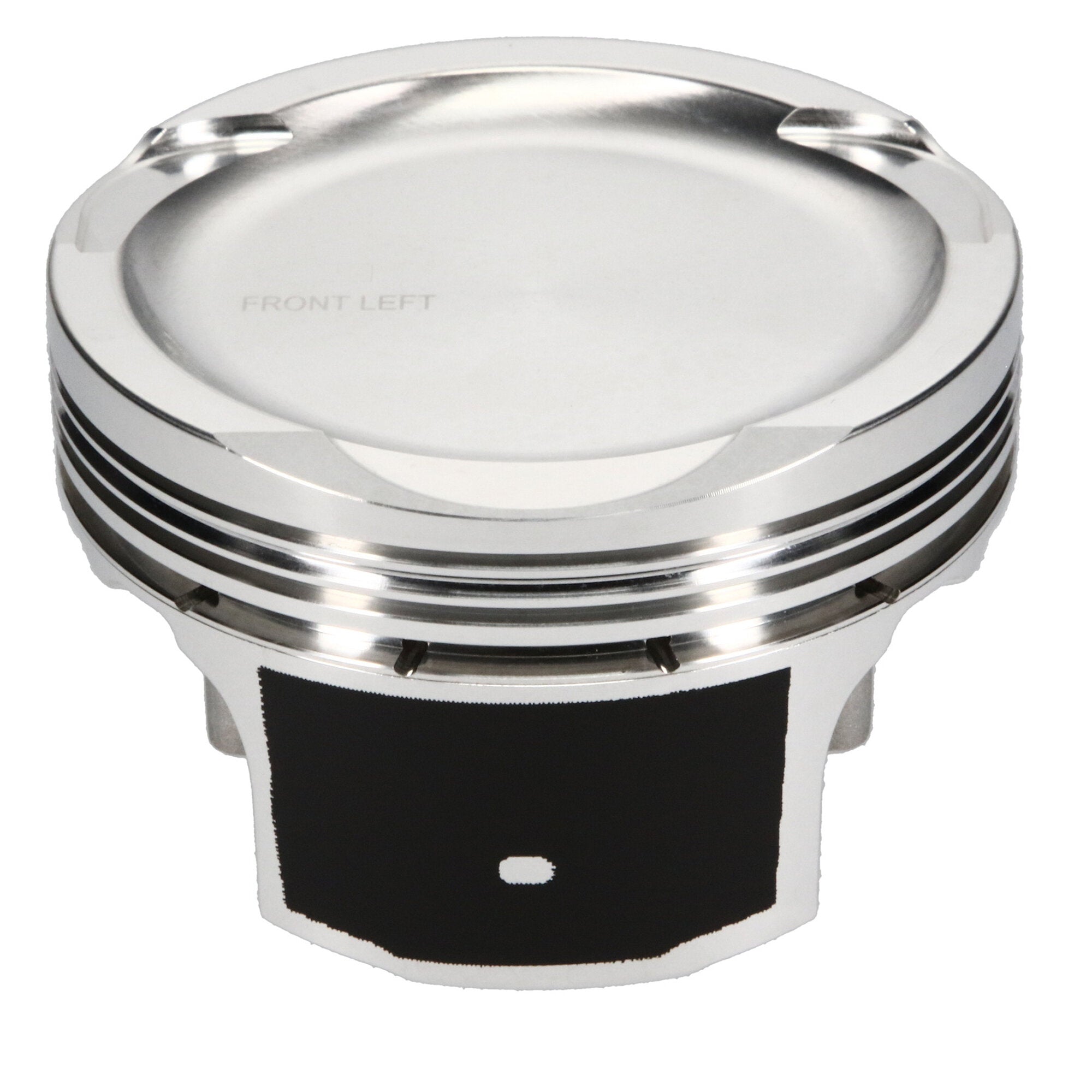

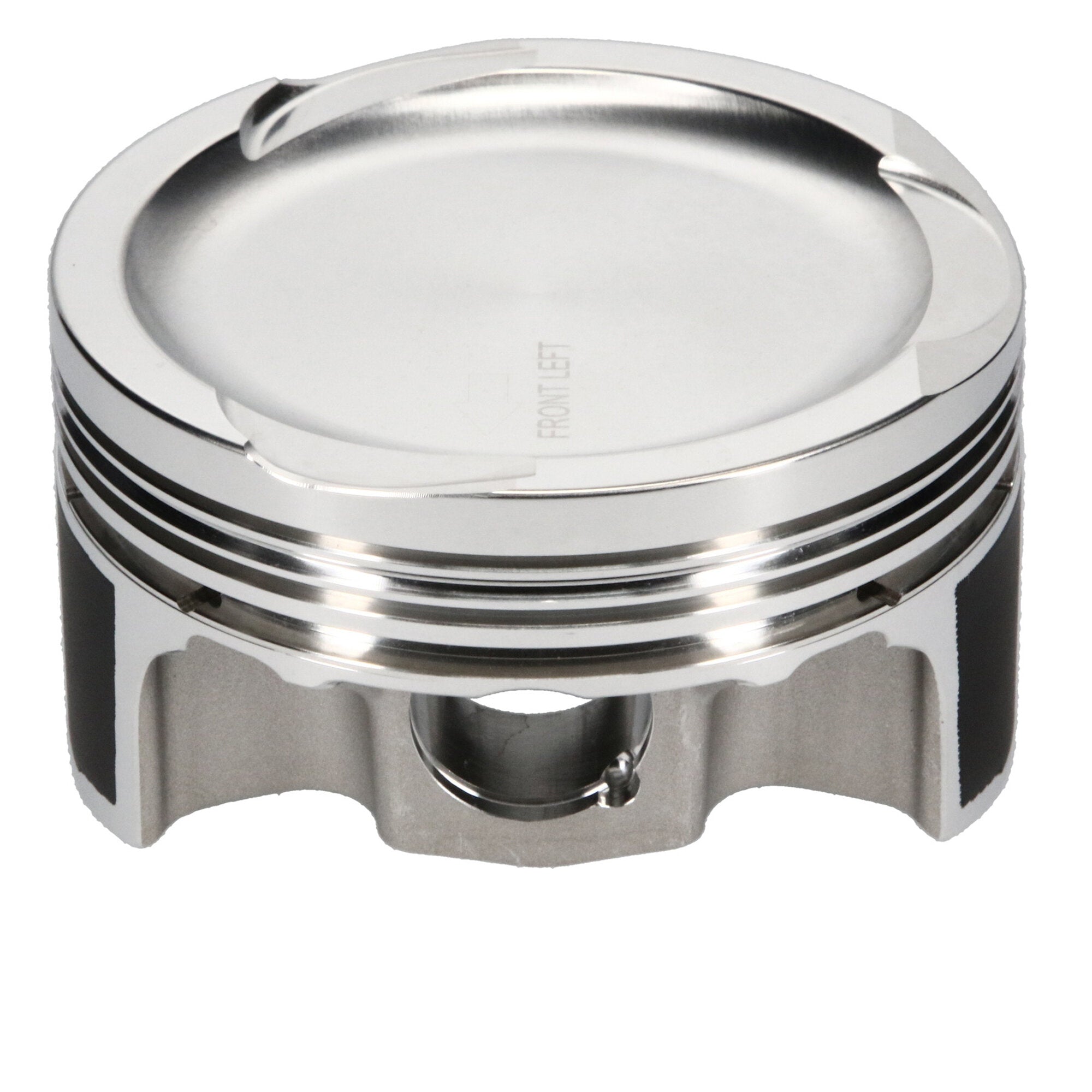

JE, Ford, Modular Ford, 3.552 in. Bore, 1.320 CD, Inverted Dome/Dish, Right Piston |
| Description_DES |
Piston Single, 2618, Inv Dome/Dish, 3.552 Bore, 1.320 CD, 0.866 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston |
| Description_TLE |
Ford 5.2L Modular 3V, 3.552 Bore, Dish, Set of 1 |
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Add-On |
866-2250-15-51C |
| Add-On |
JG3208-3551-0 |
| Bore Diameter |
3.552 |
| Add-On |
866-063-MW |
| Compression Height |
1.320 |
| Make |
FORD |
| Forging Type |
FSR |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Cylinder Head |
MODULAR 4.6L 3V |
| Engine Type |
ICE |
| Engine |
Modular |
| Industry |
Automotive |
| Engine - Web |
Modular |
| Make - Web |
Ford |
| Piston Head Type |
Dish |
| Product Type |
Engine Piston |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.866 |
| Piston Quantity |
1 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Orientation |
Right |
| Product Market |
Domestic |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.250 |
| Piston Material |
2618 |
| Piston Pin Material |
5115 |
| Piston Average Weight |
352 |
| Piston Volume |
-7.80 |
| Oil Ring Thickness |
0.119 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Ford Modular Piston - 3.552 in. Bore - 1.320 in. CH, -7.80 CC |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0600 |
| Top Compression Ring Thickness |
0.0480 |
| Title |
JE Pistons - Ford, Modular, 3.552 in. Bore, Piston |
| Ringset Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
