As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.2L Modular 3V |
| Description_DEF |
Engine Piston |
| Description_DES |

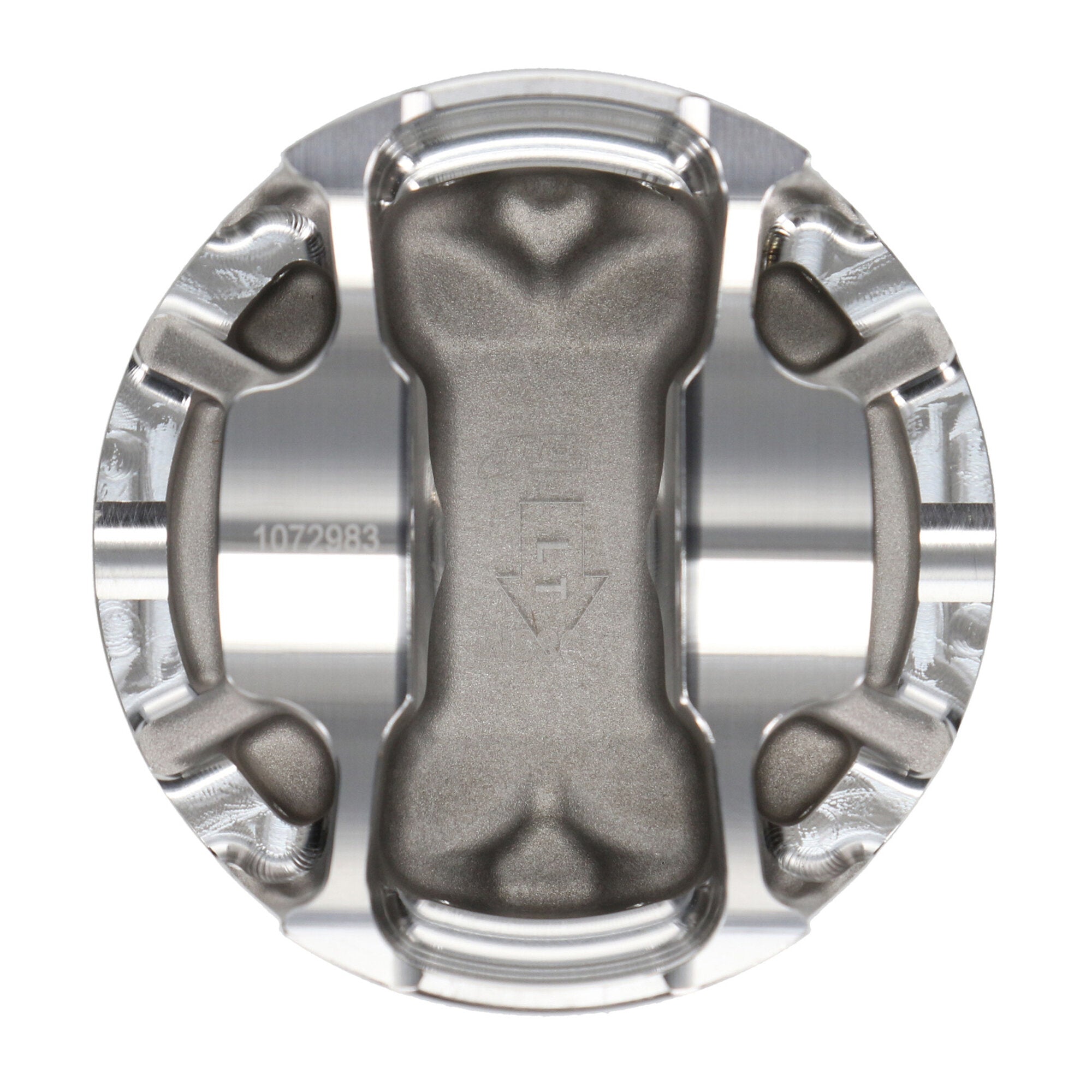

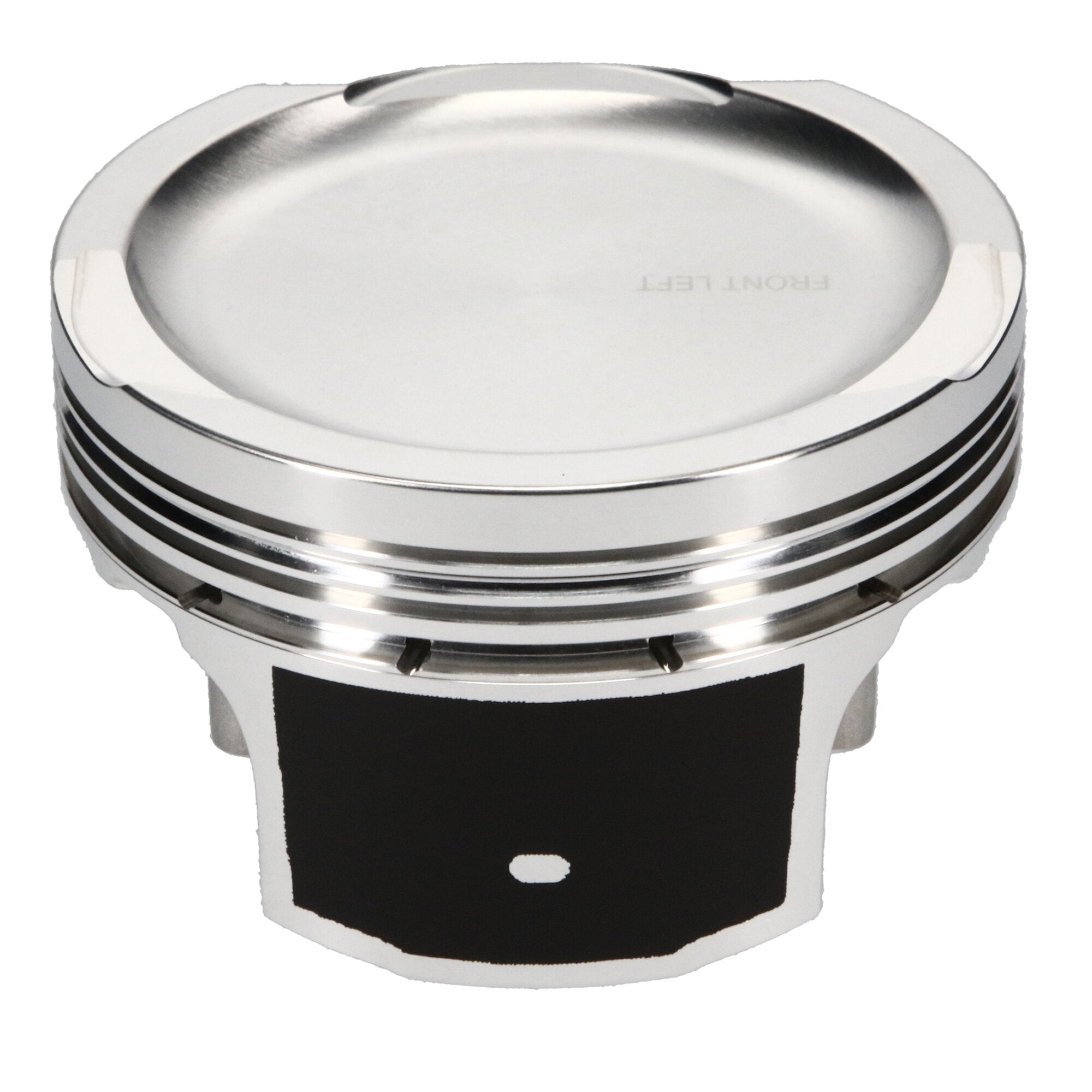

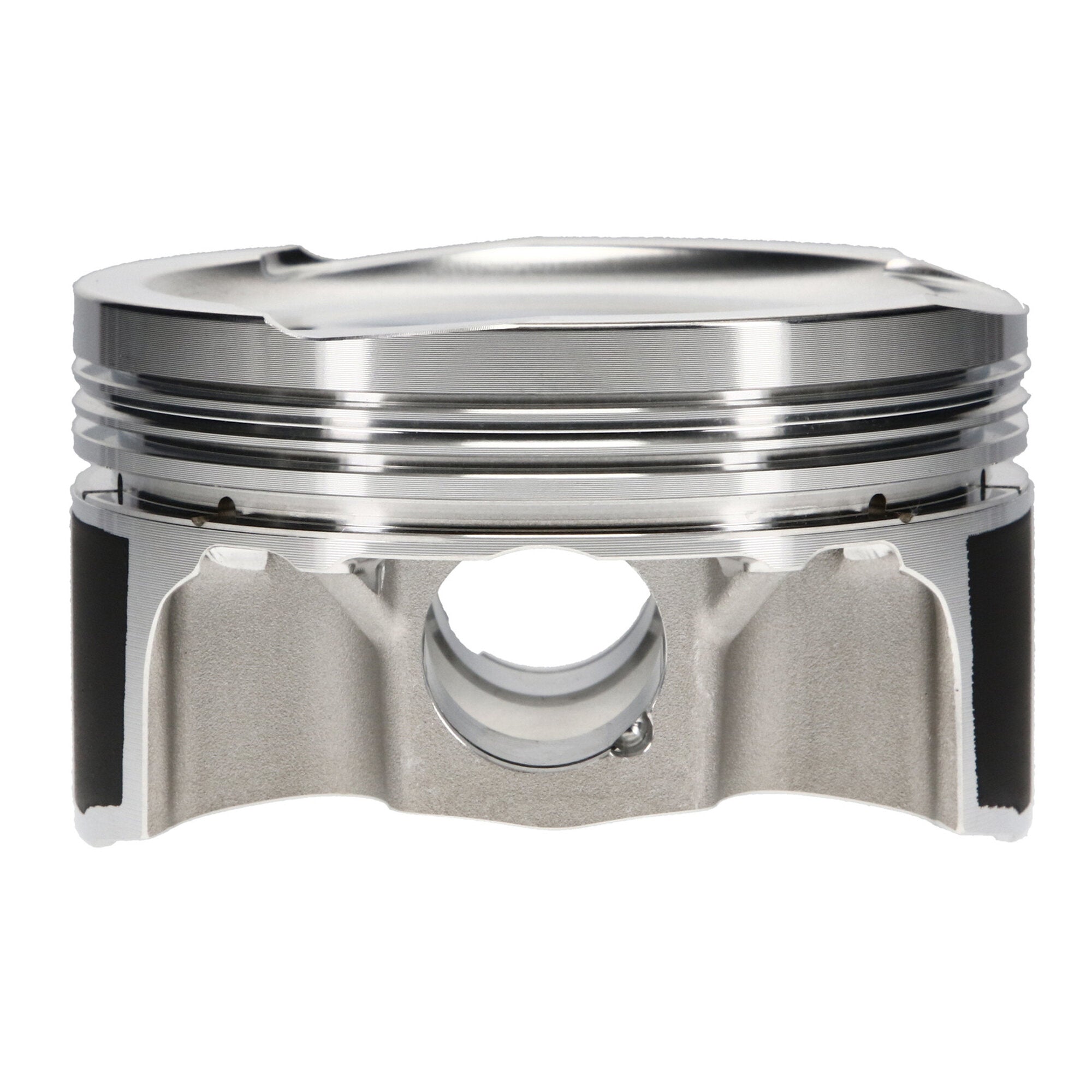

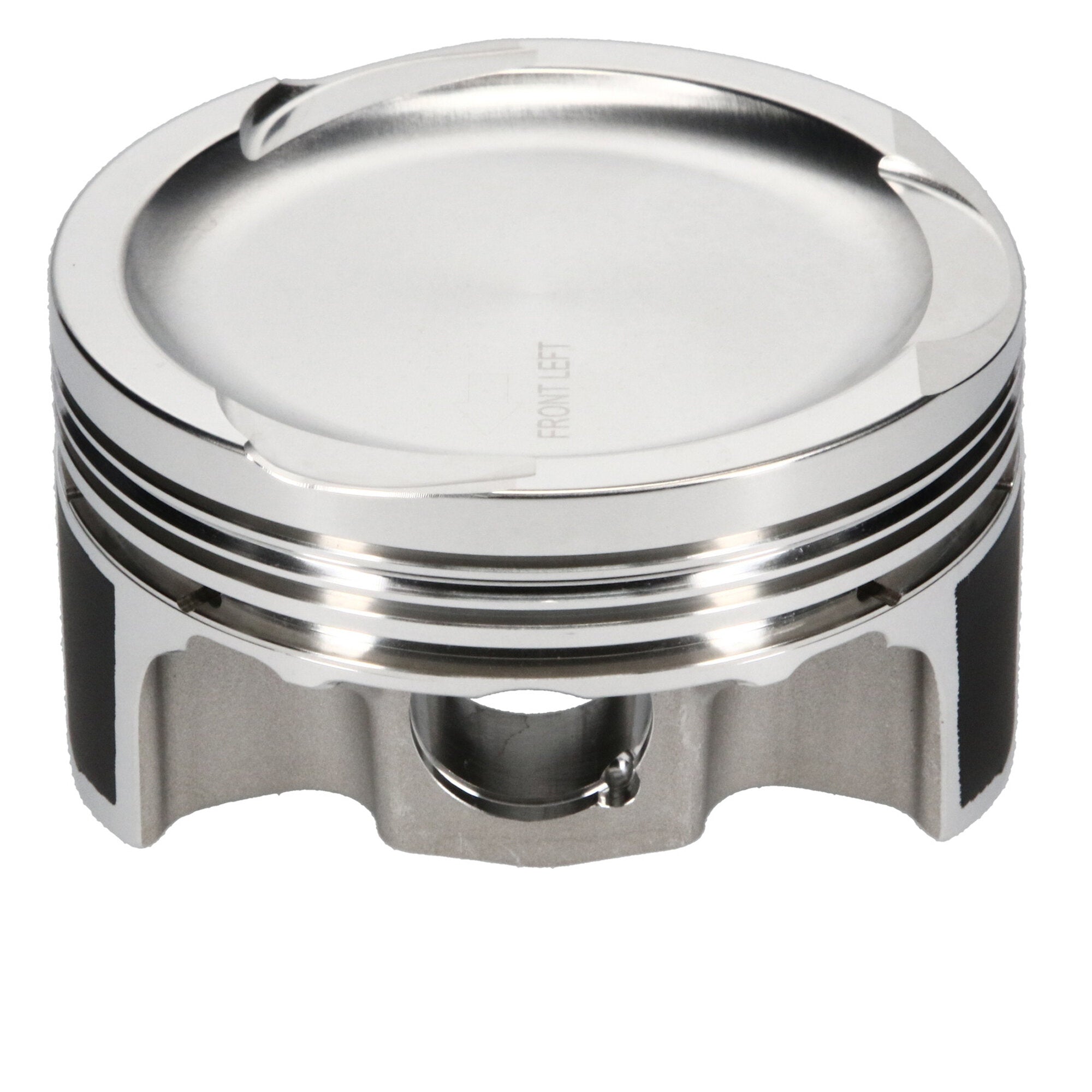

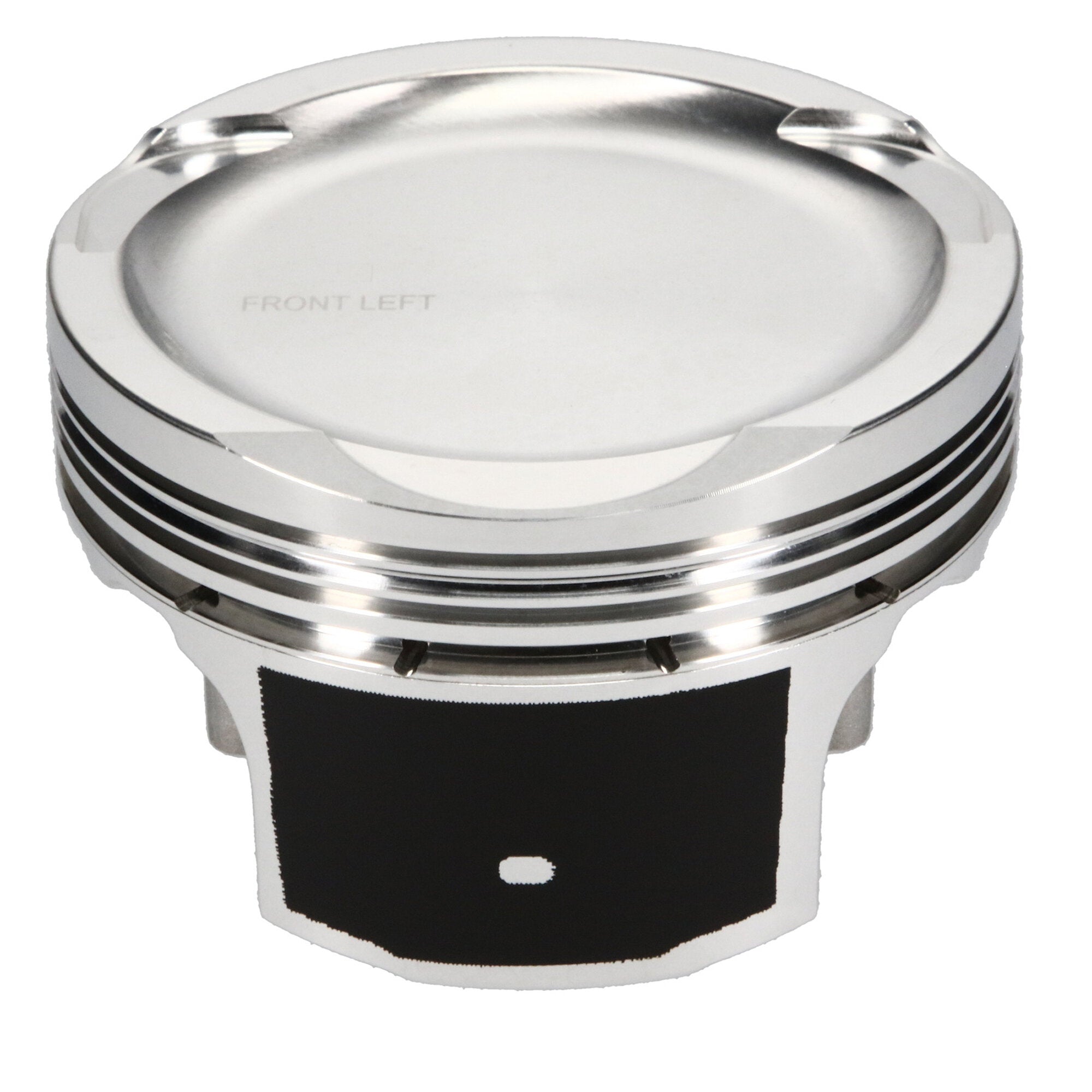

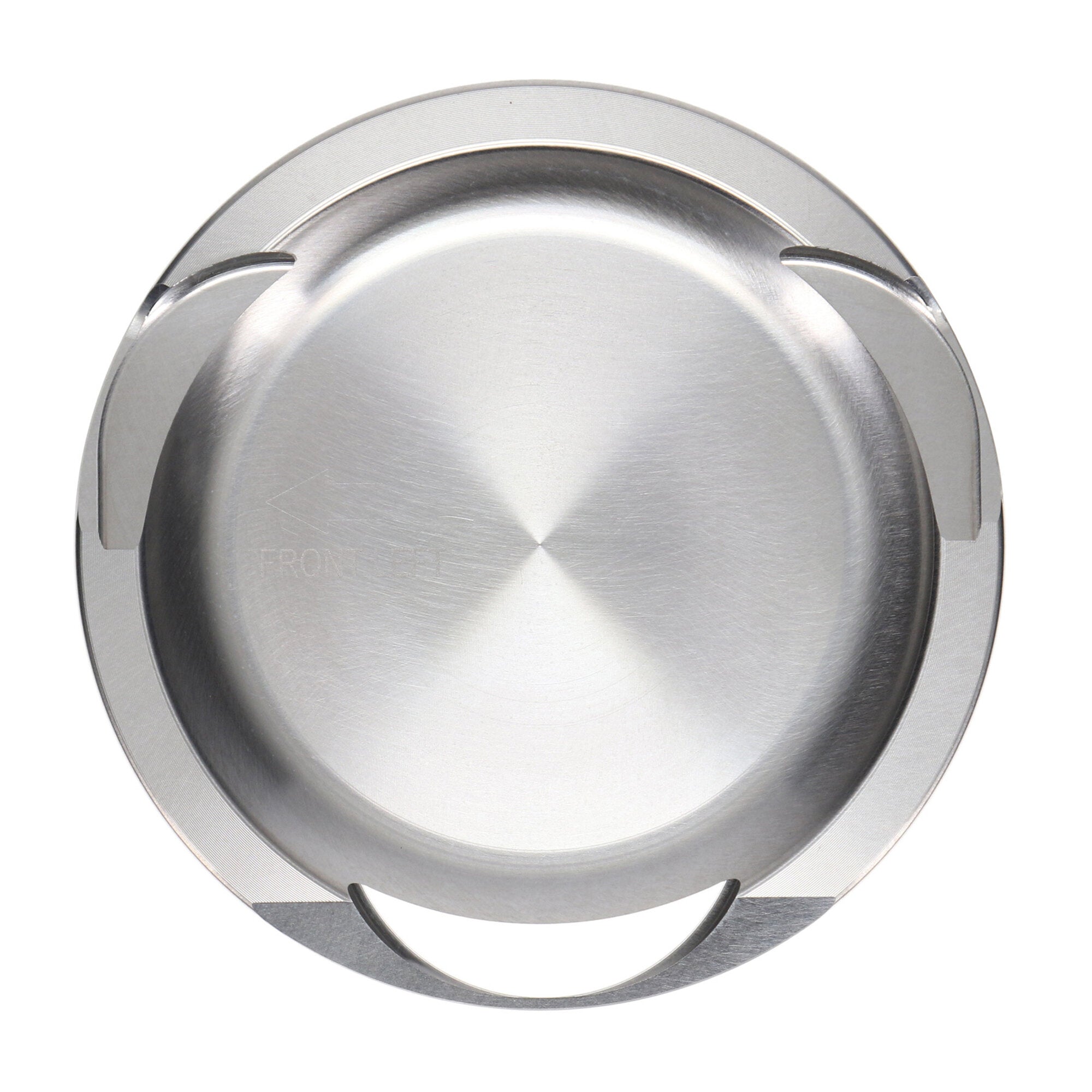

Piston Single, 2618, Inv Dome/Dish, 3.701 Bore, 1.320 CD, 0.866 Pin, Set of 1. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Modular Ford, 3.701 in. Bore, 1.320 CD, Inverted Dome/Dish, Right Piston |
| Description_TLE |
Ford 5.2L Modular 3V, 3.701 Bore, Dish, Set of 1 |
| Description_INV |
JE Pistons, Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Add-On |
JG1008-3701 |
| Add-On |
866-2250-15-51C |
| Add-On |
866-063-MW |
| Cylinder Head |
MODULAR 4.6L 3V |
| Engine |
Modular |
| Bore Diameter |
3.701 |
| Compression Height |
1.320 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Engine - Web |
Modular |
| Out of Stock Message |
Call for Availability |
| Make |
FORD |
| Industry |
Automotive |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.111 |
| Make - Web |
Ford |
| Piston Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-25.70 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Average Weight |
358 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Piston Series |
JE Pistons |
| Piston Orientation |
Right |
| Piston Pin Outside Diameter |
0.866 |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Piston Quantity |
1 |
| Product Type |
Engine Piston |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
No |
| Product Market |
Domestic |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title |
JE Pistons - Ford, Modular, 3.701 in. Bore, Piston |
| Title - Web |
JE Pistons Ford Modular Piston - 3.701 in. Bore - 1.320 in. CH, -25.70 CC |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
