As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302/351 Windsor |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

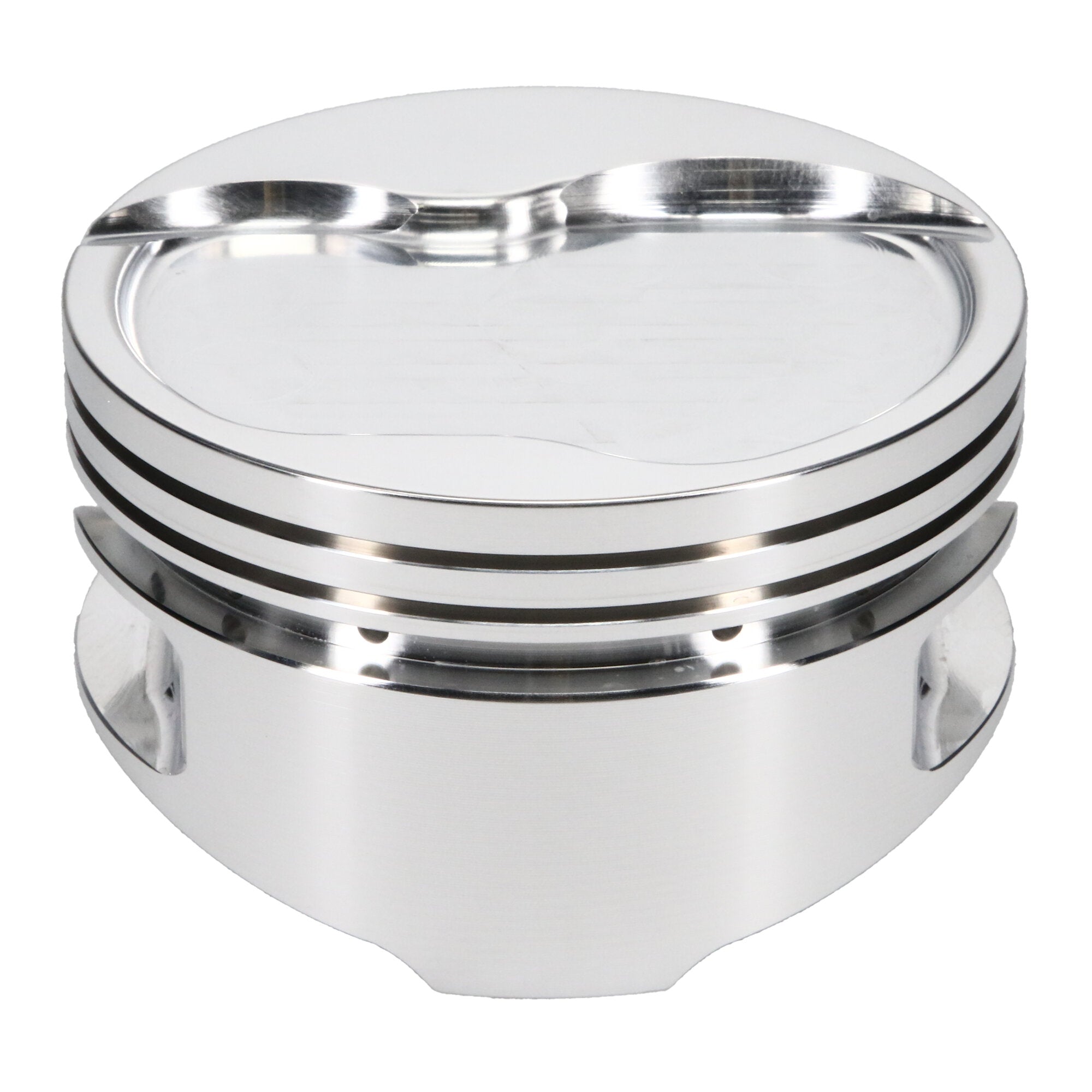

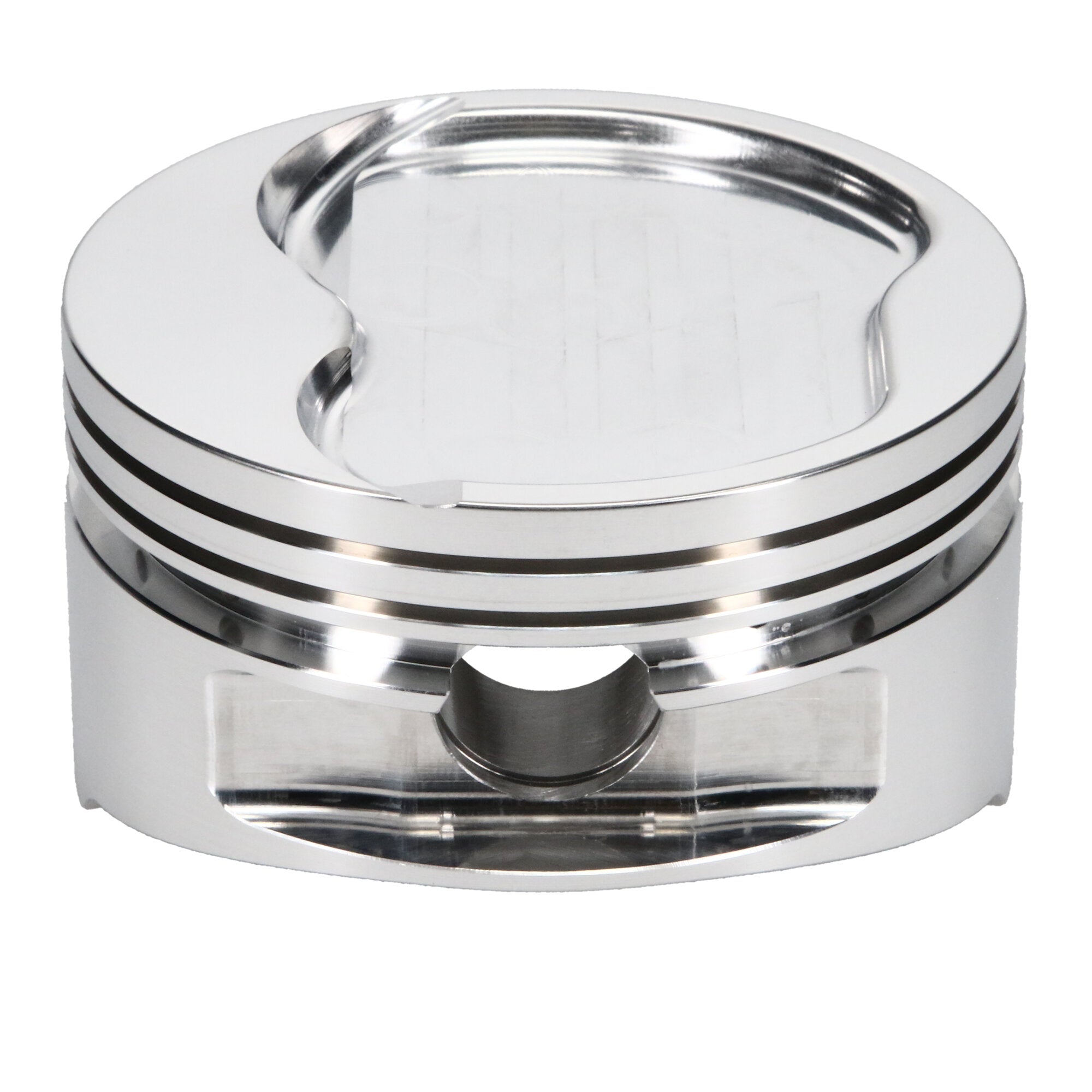

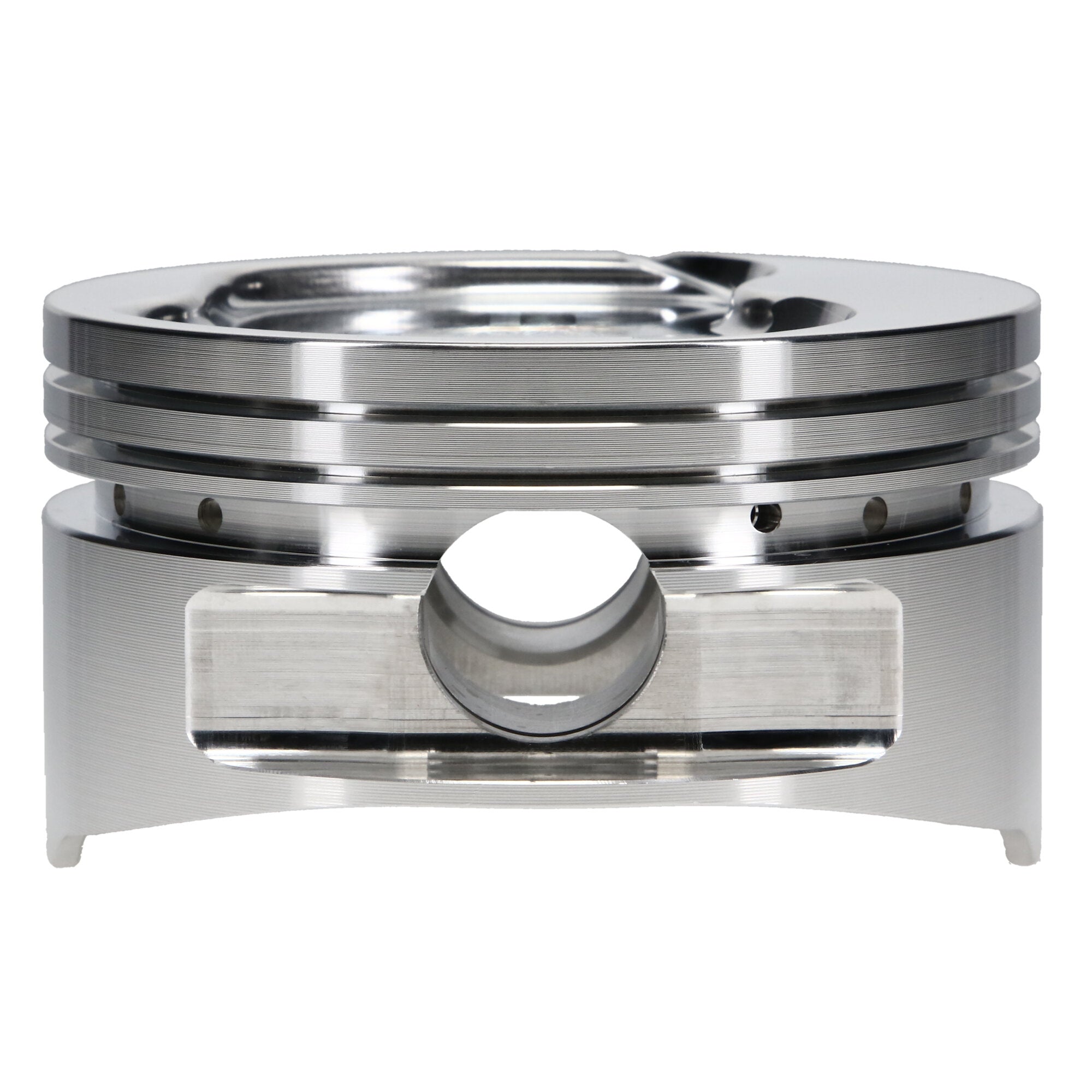

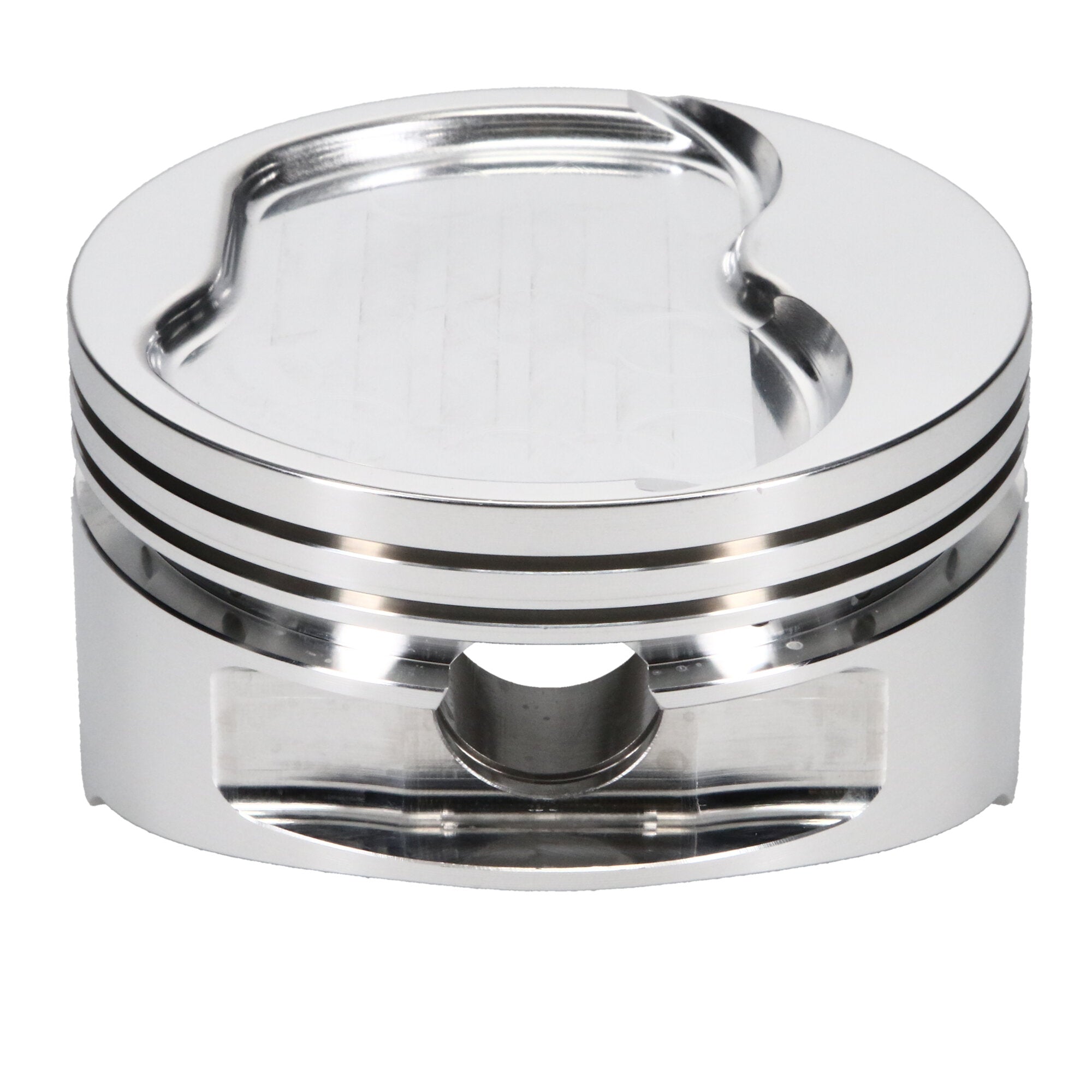

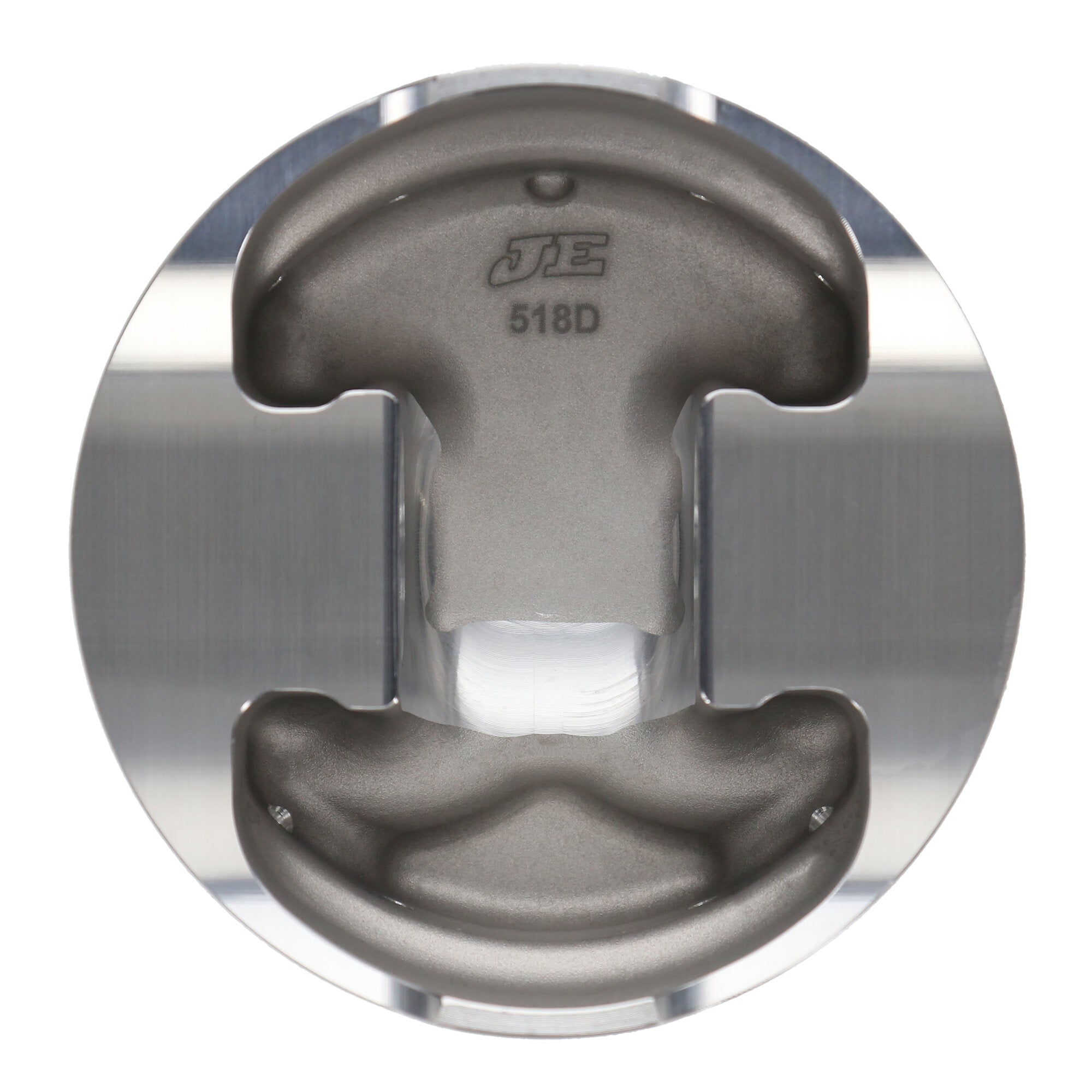

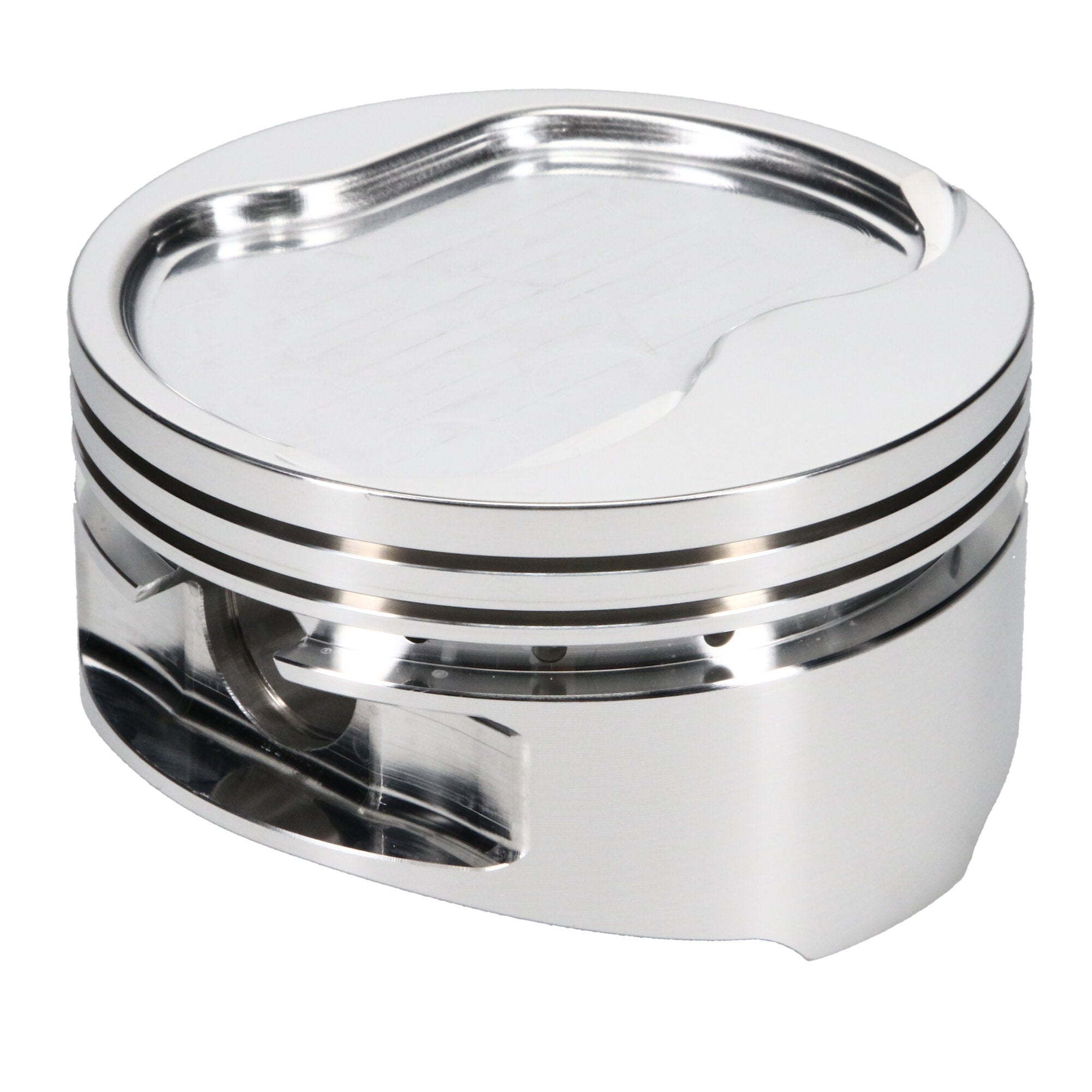

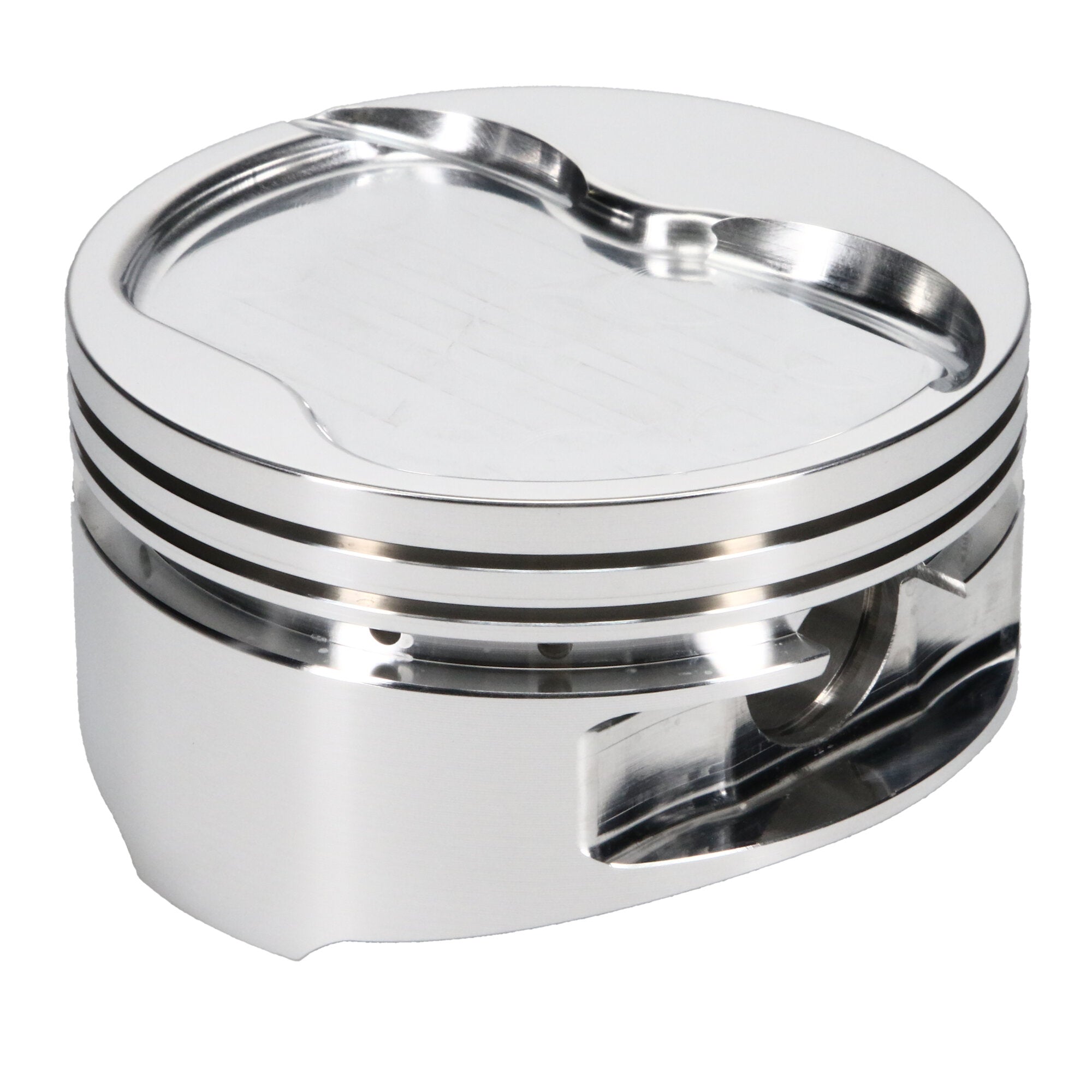

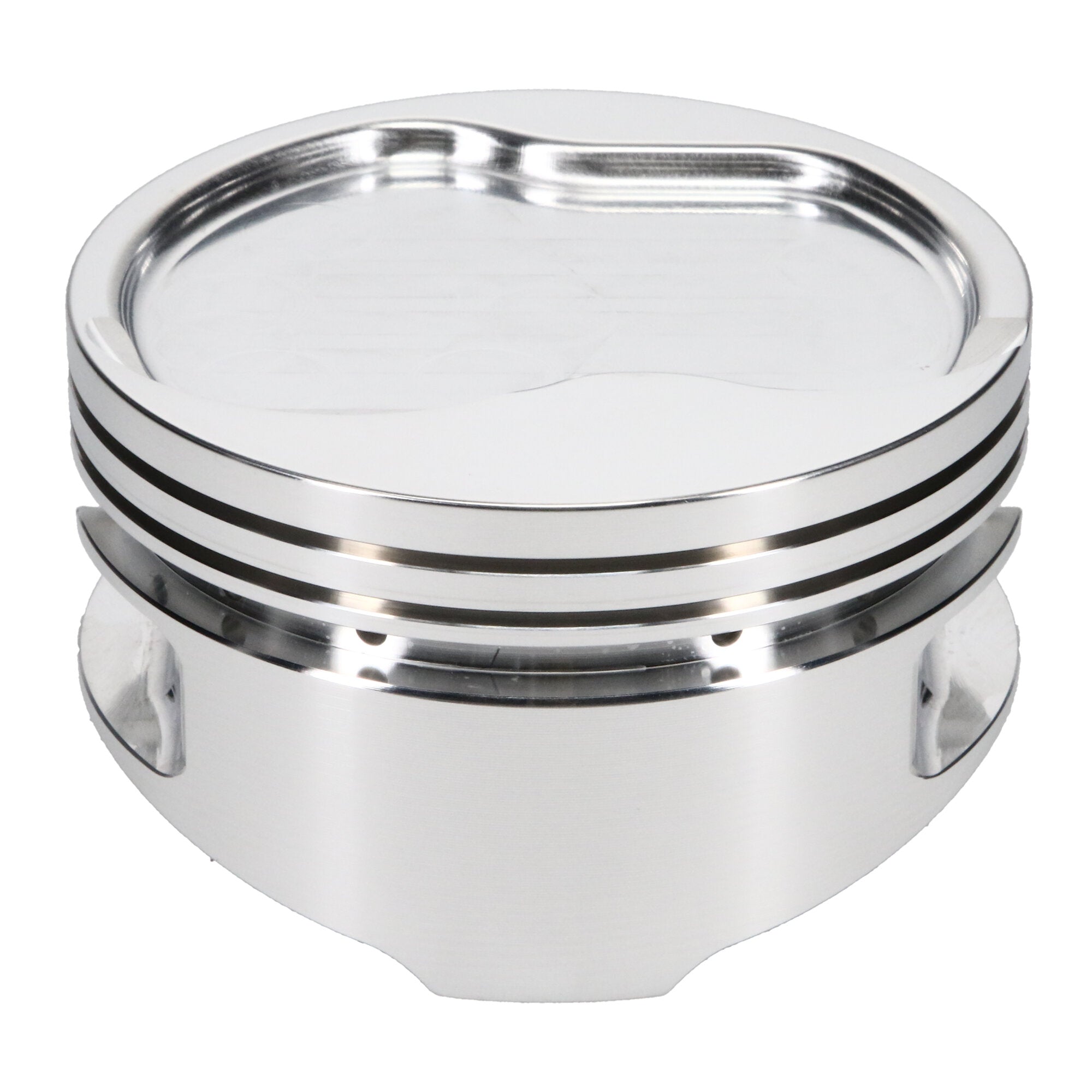

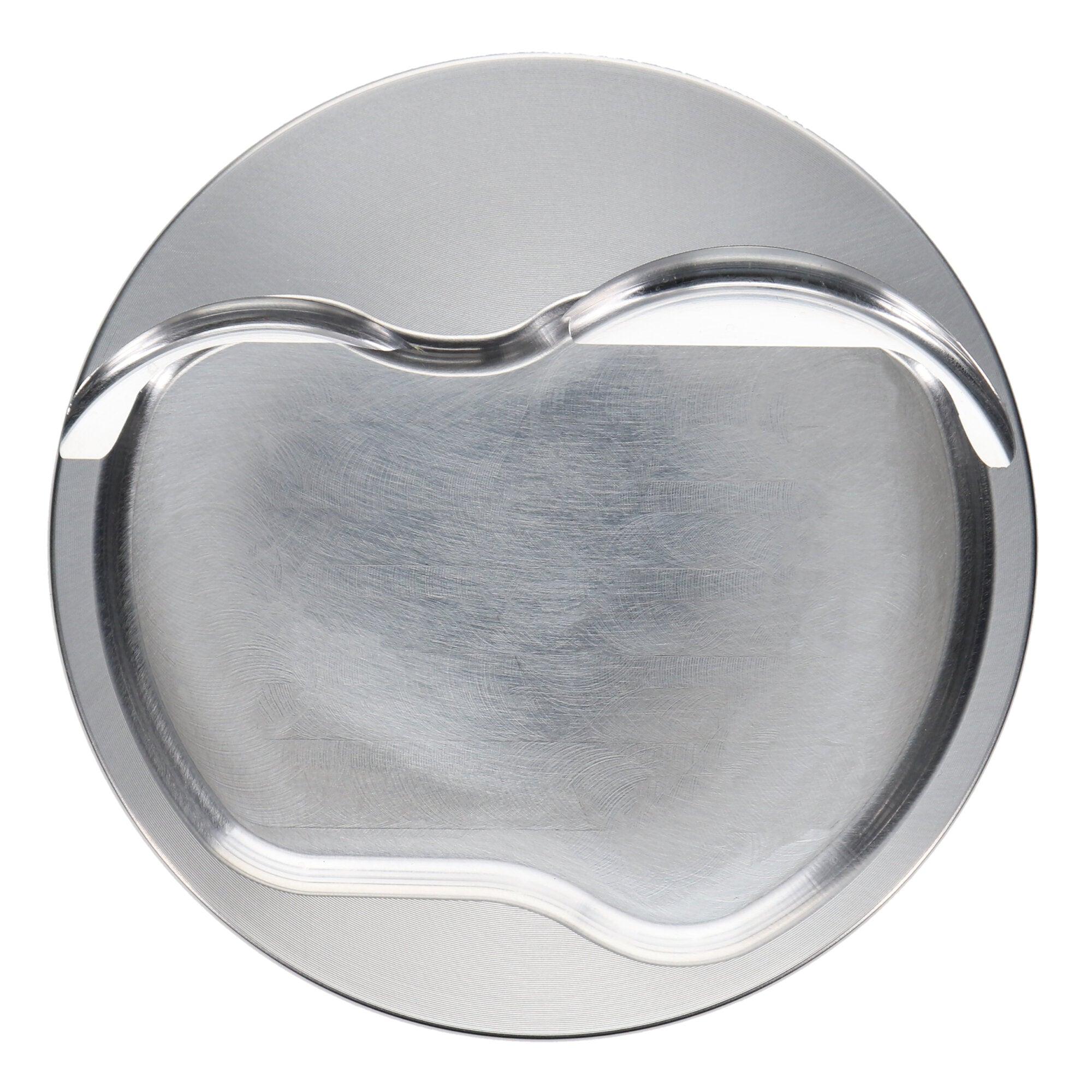

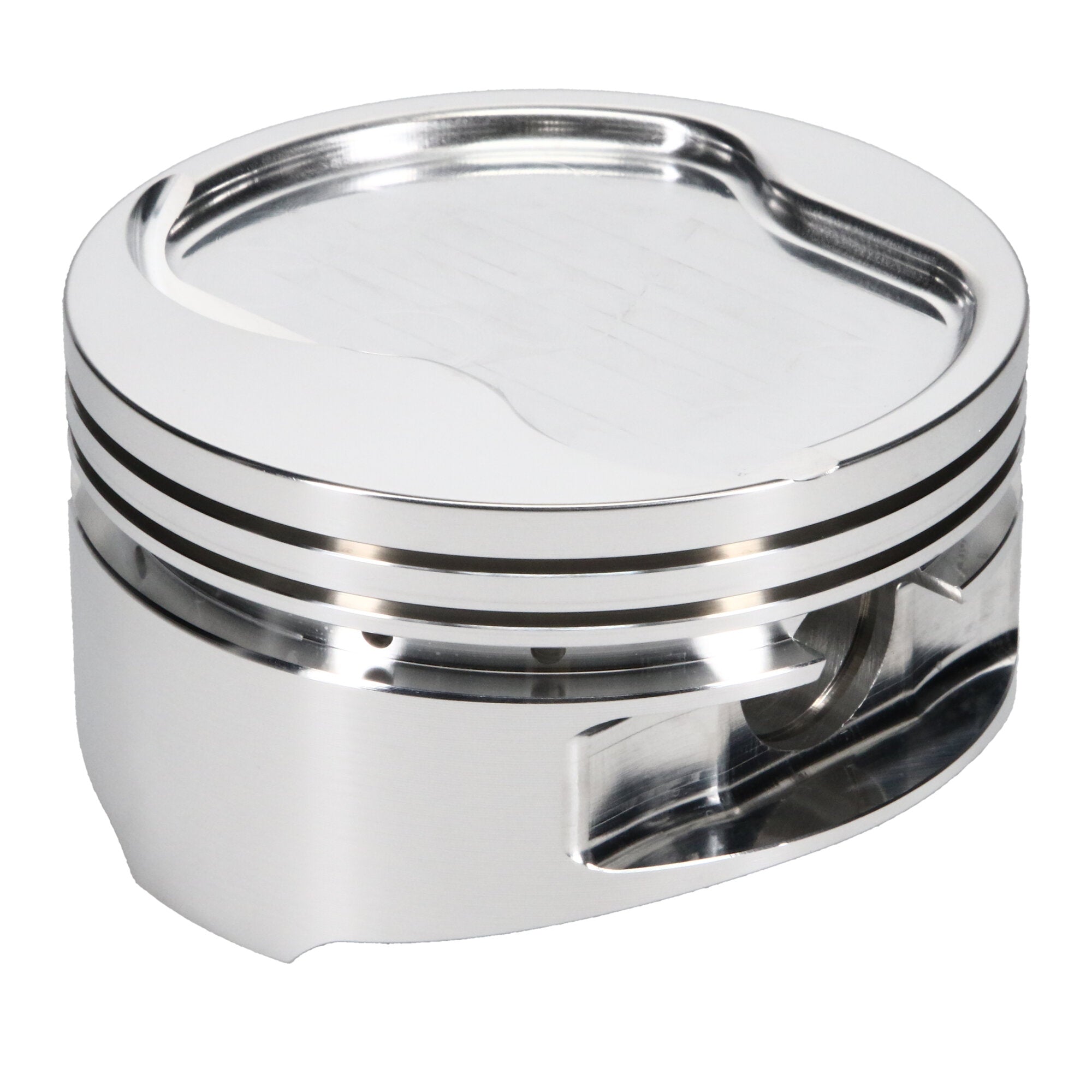

Piston Set, 2618, Inv Dome/Dish, 4.020 Bore, 1.175 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Ford, Small Block Ford, 4.020 in. Bore, 1.175 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302/351 Windsor, 4.020 Bore, Dish, Set of 8 |
| Make |
FORD |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Bore Diameter |
4.020 |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.218 |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Quantity |
8 |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Pistons - Ford, Small Block, 4.020 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-6.50 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Dish |
| Piston Average Weight |
440 |
| Compression Height |
1.175 |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.750 |
| Piston Pin Length |
2.750 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Add-On |
J10008-4020-5 |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Engine |
Small Block |
| Add-On |
927-2750-15-51S |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.020 in. Bore - 1.175 in. CH, -6.50 CC |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0640 |
| Ringset Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
