As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.0L Coyote |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

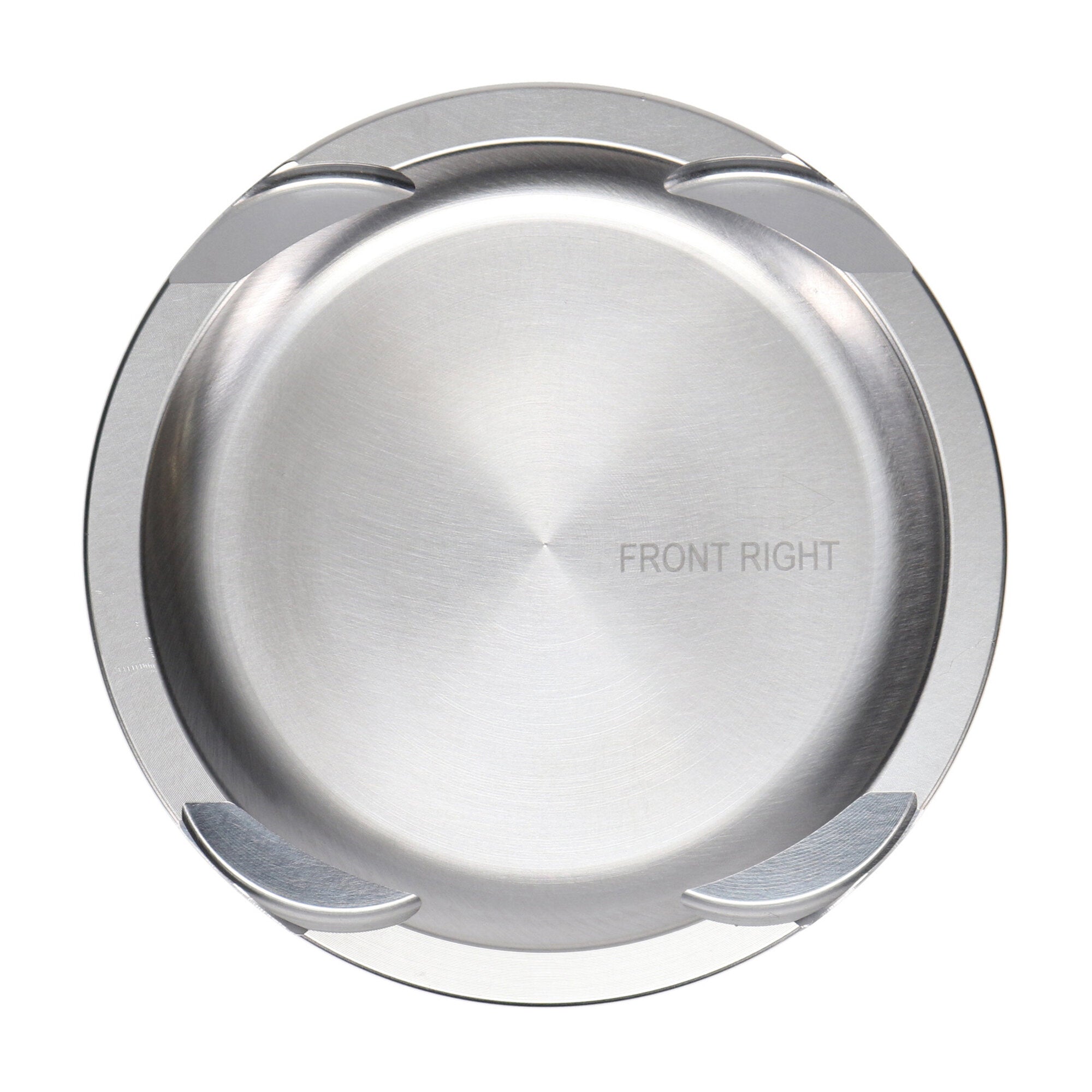

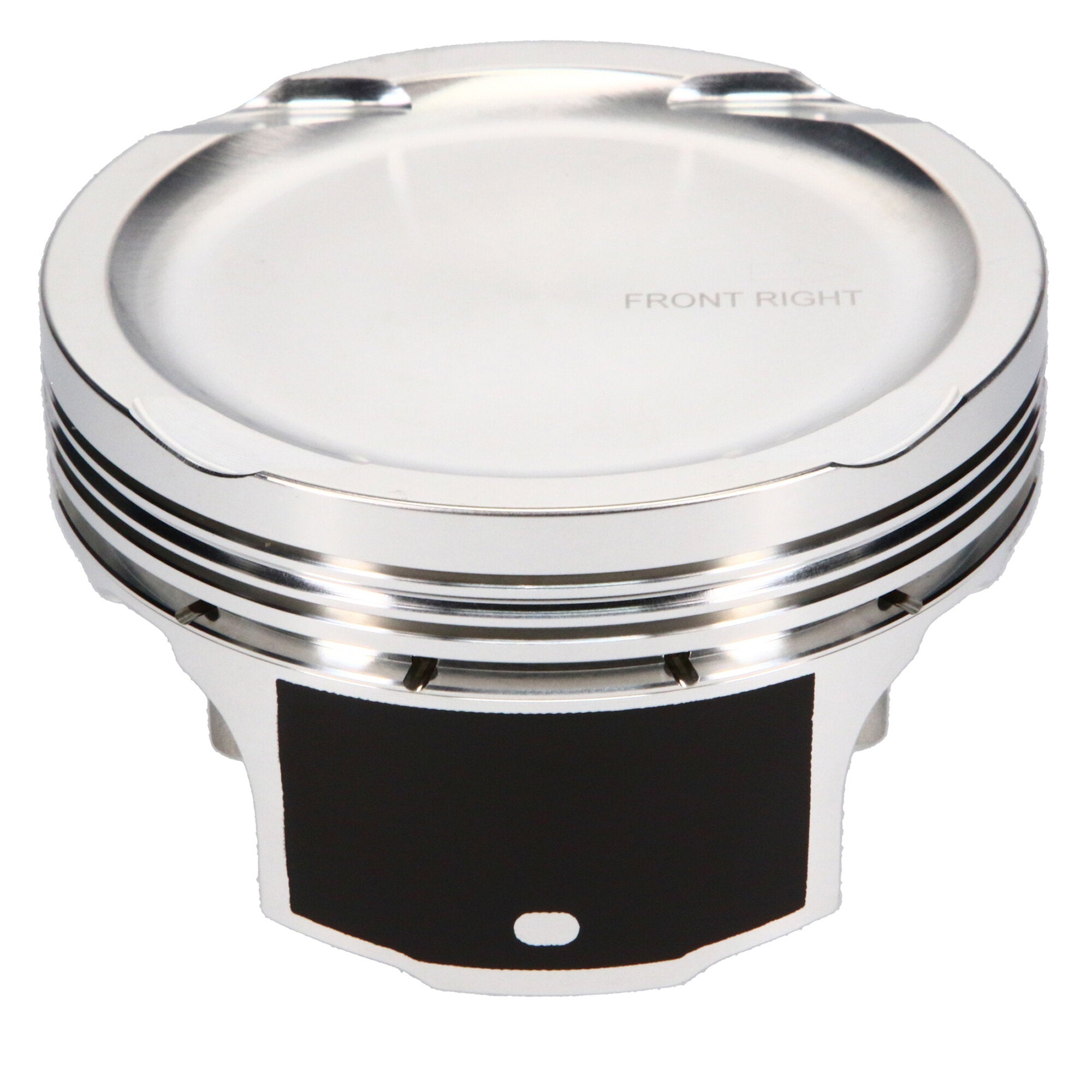

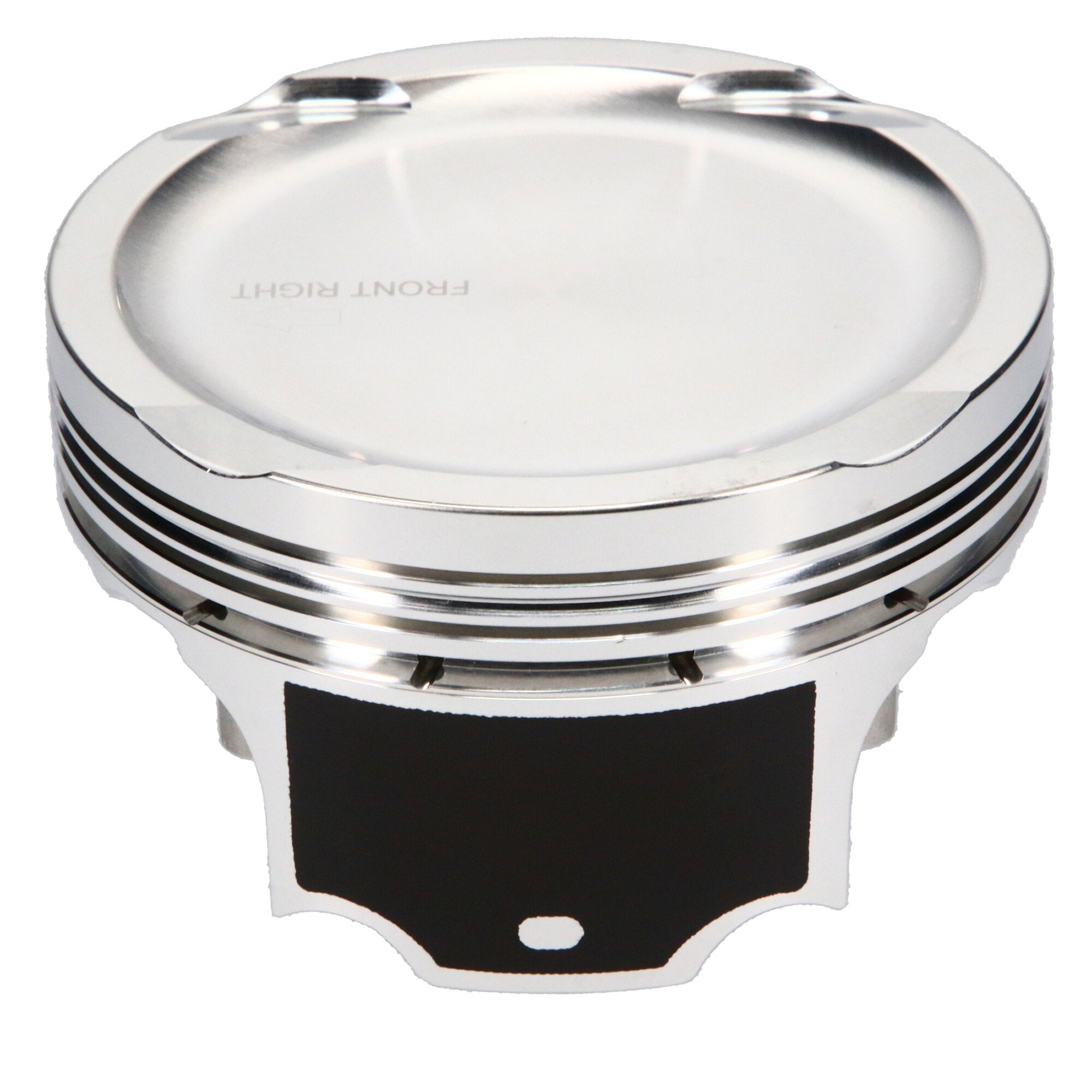

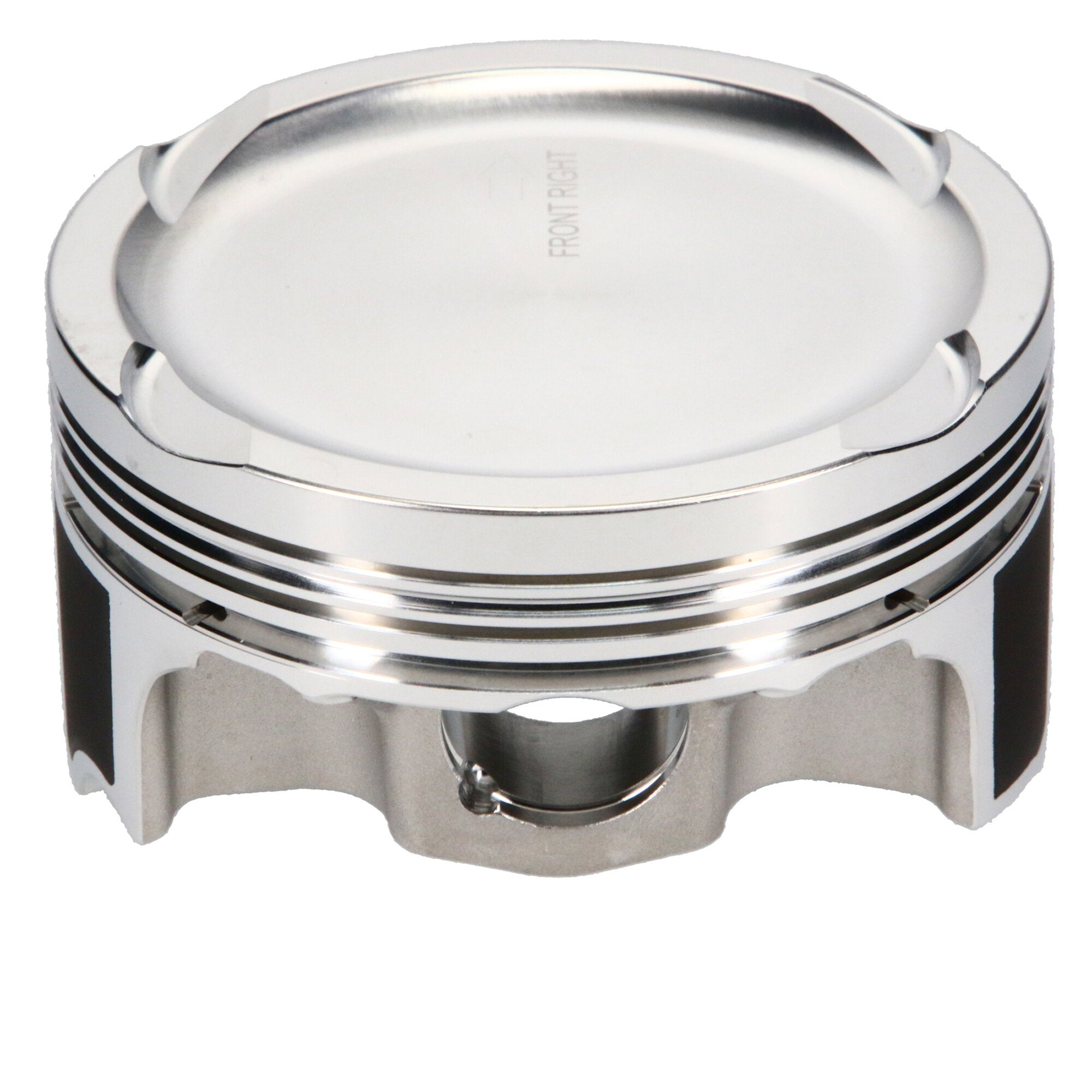

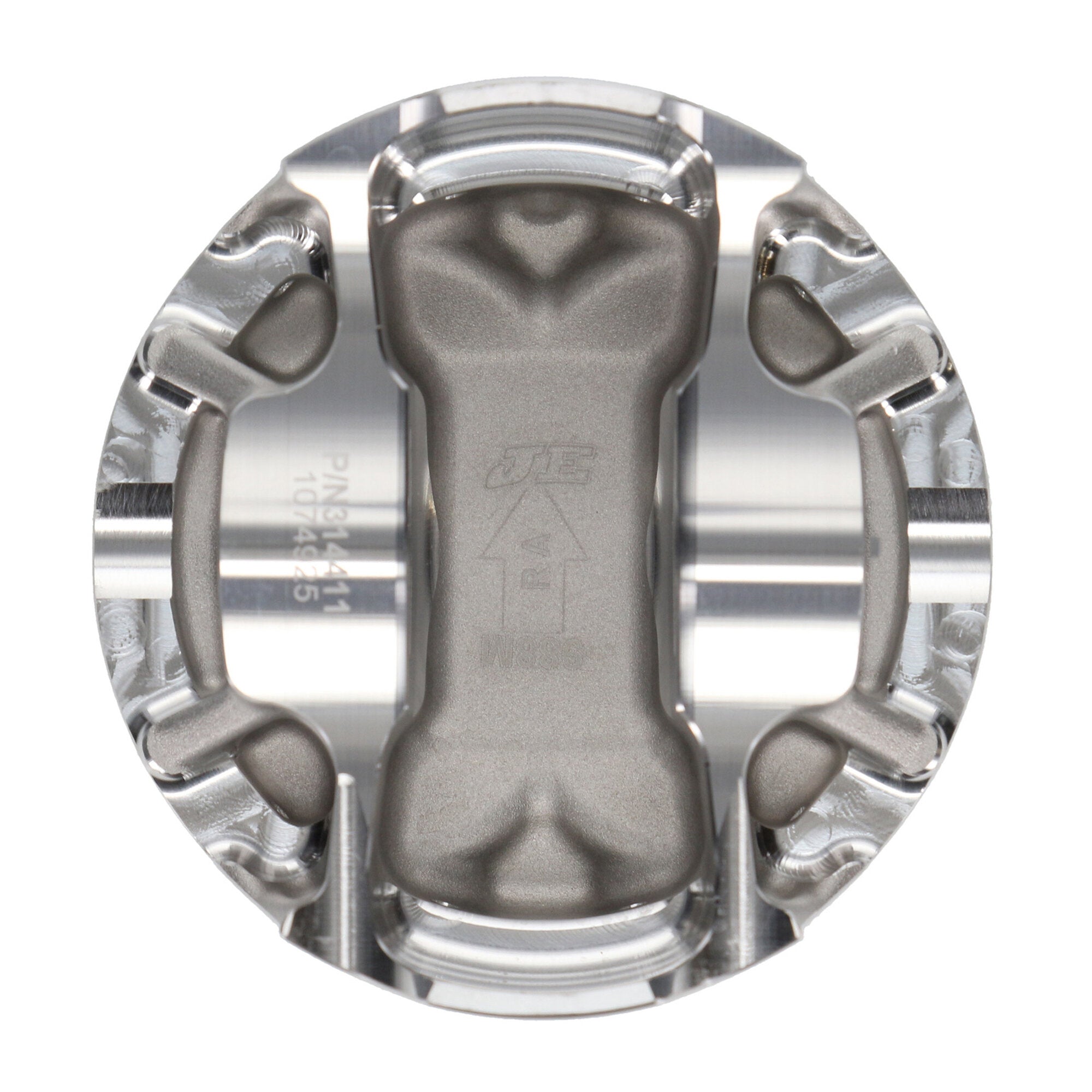

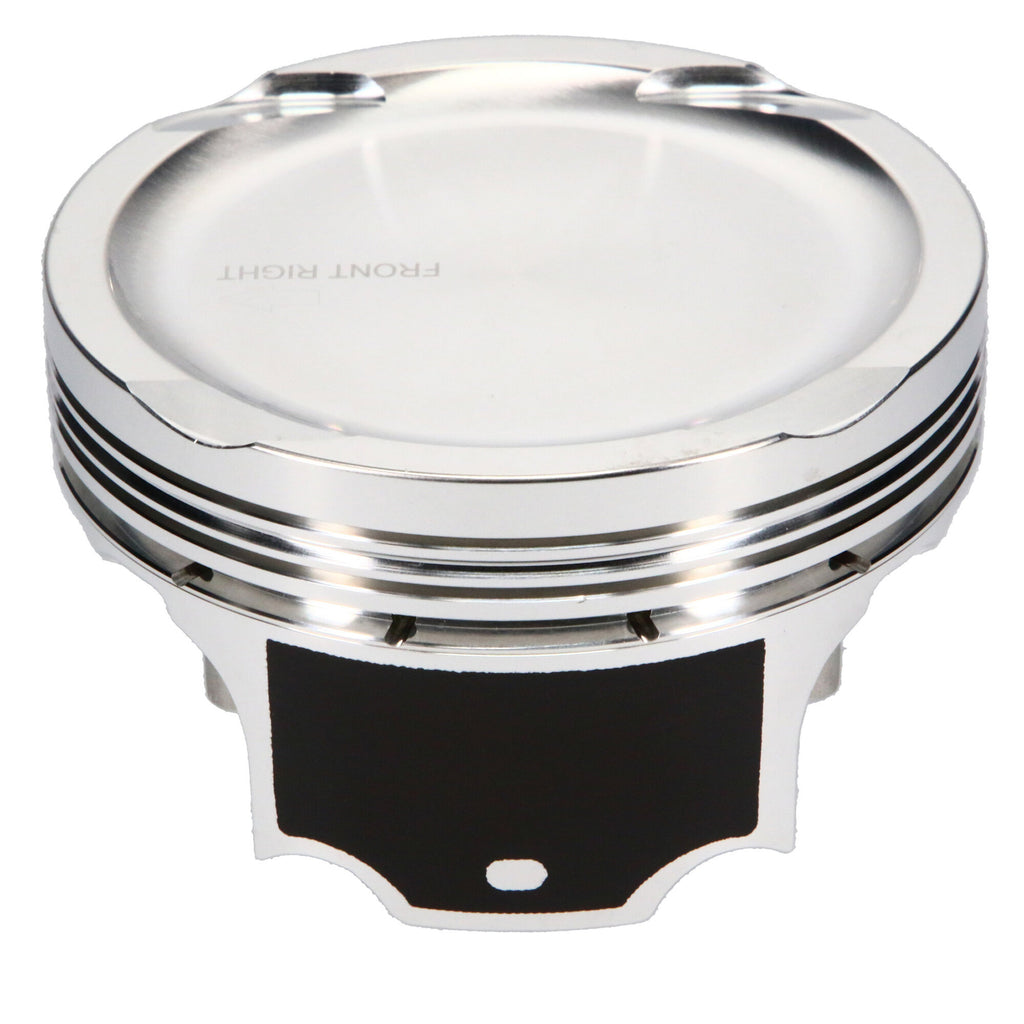

Piston Set, 2618, Inv Dome/Dish, 3.660 Bore, 1.174 CD, 0.866 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Modular Ford, 3.660 in. Bore, 1.174 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 5.0L Coyote, 3.660 Bore, Dish, Set of 8 |
| Compression Height |
1.174 |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.111 |
| Engine - Web |
Modular |
| Engine |
Modular |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Make |
FORD |
| Forging Type |
FSR |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Ford, Modular, 3.660 in. Bore, Piston Kit |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1008-3661 |
| Add-On |
866-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Material |
5115 |
| Product Market |
Domestic |
| Title - Web |
JE Pistons Ford Modular Piston Kit - 3.660 in. Bore - 1.174 in. CH, -18.60 CC |
| Top Compression Ring Thickness |
0.0400 |
| Piston Volume |
-18.60 |
| Piston Pin Outside Diameter |
0.866 |
| Piston Average Weight |
352 |
| Add-On |
866-063-MW |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
3.660 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 1/2 |
| Make - Web |
Ford |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
11.0000 |
