As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford 5.0L Coyote |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

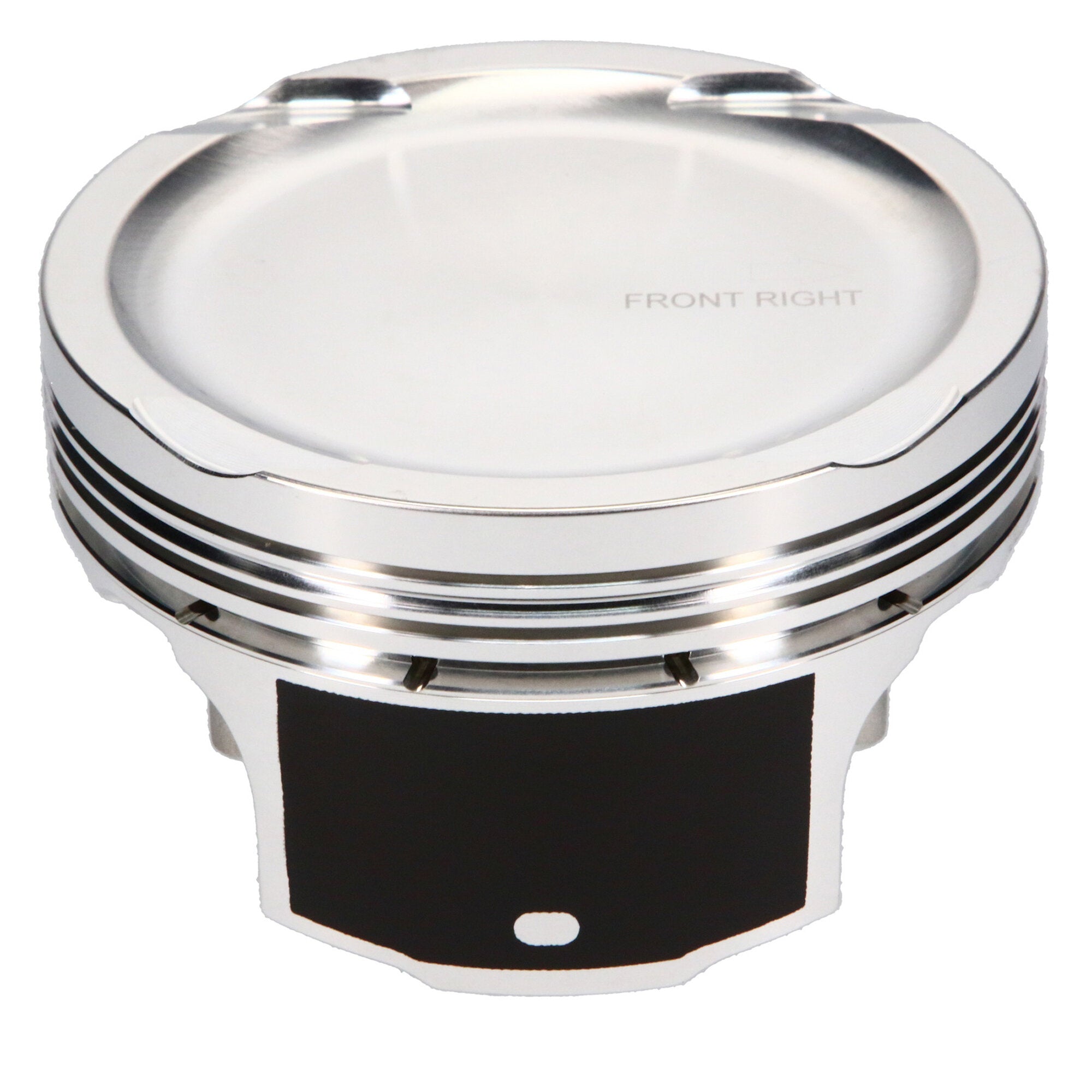

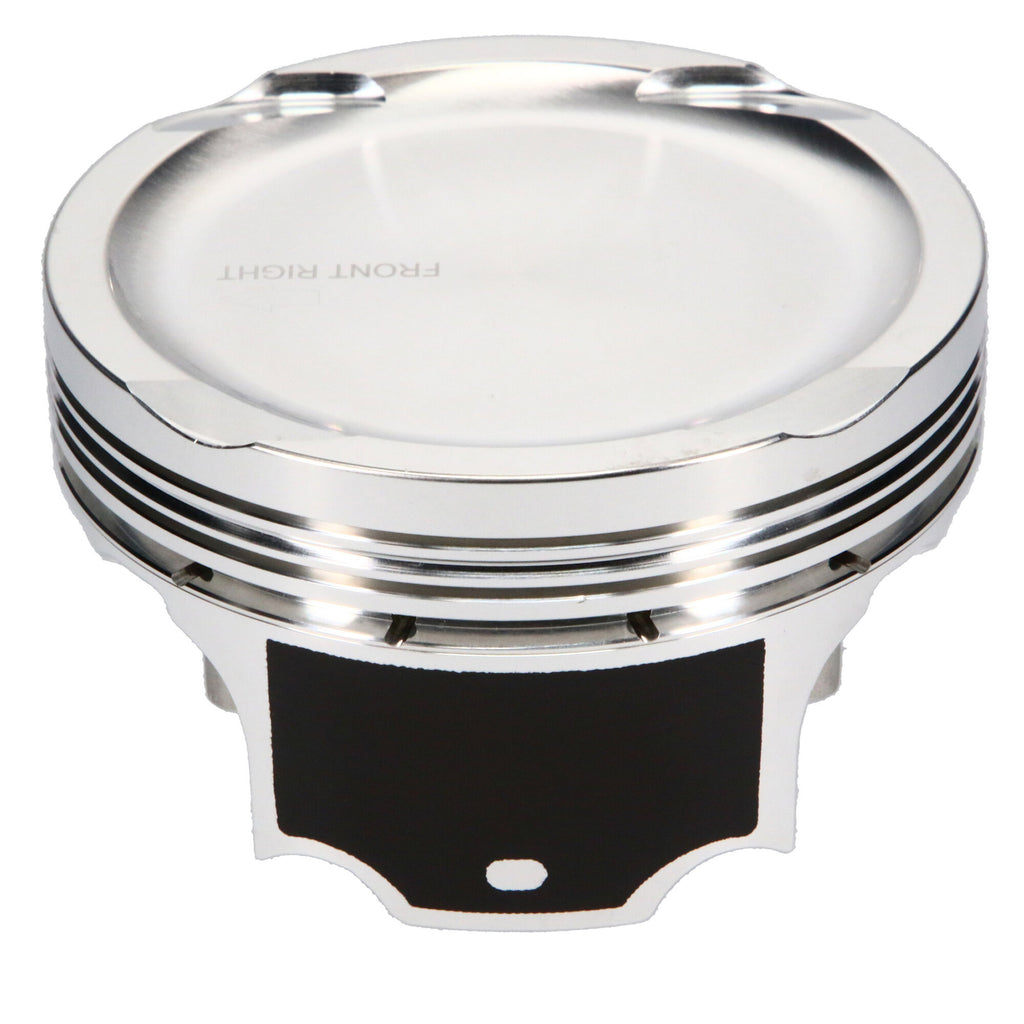

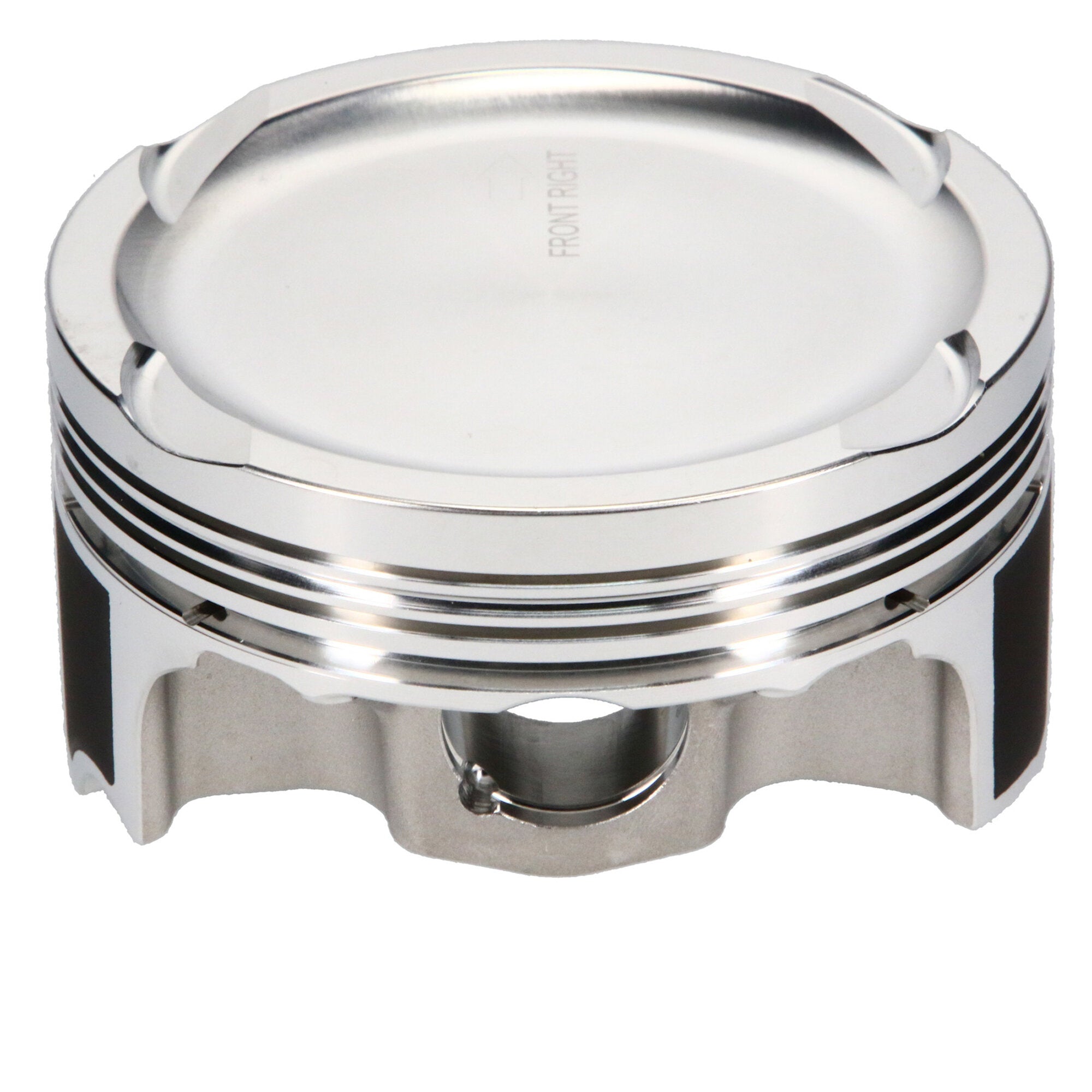

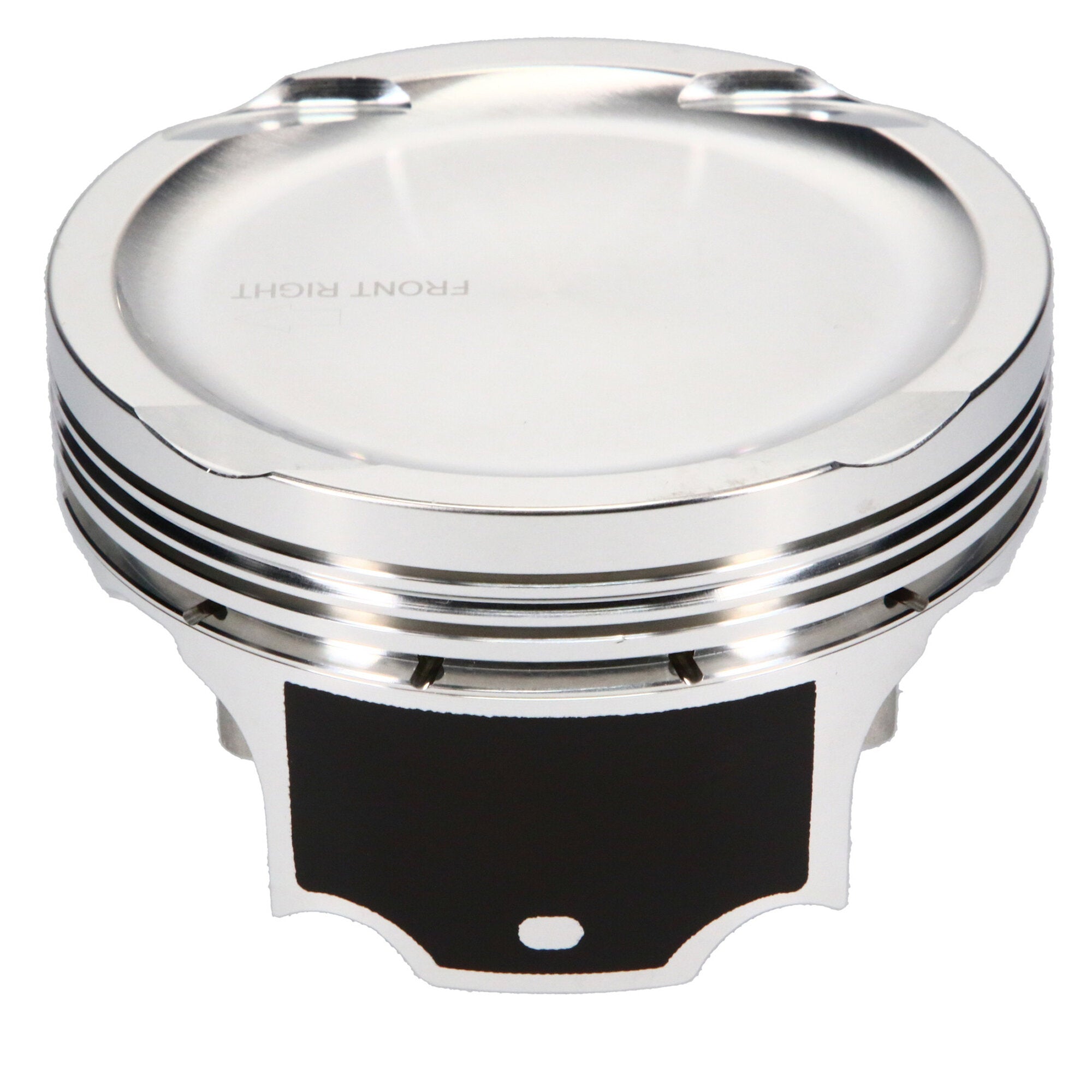

Piston Set, 2618, Inv Dome/Dish, 3.650 Bore, 1.174 CD, 0.866 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

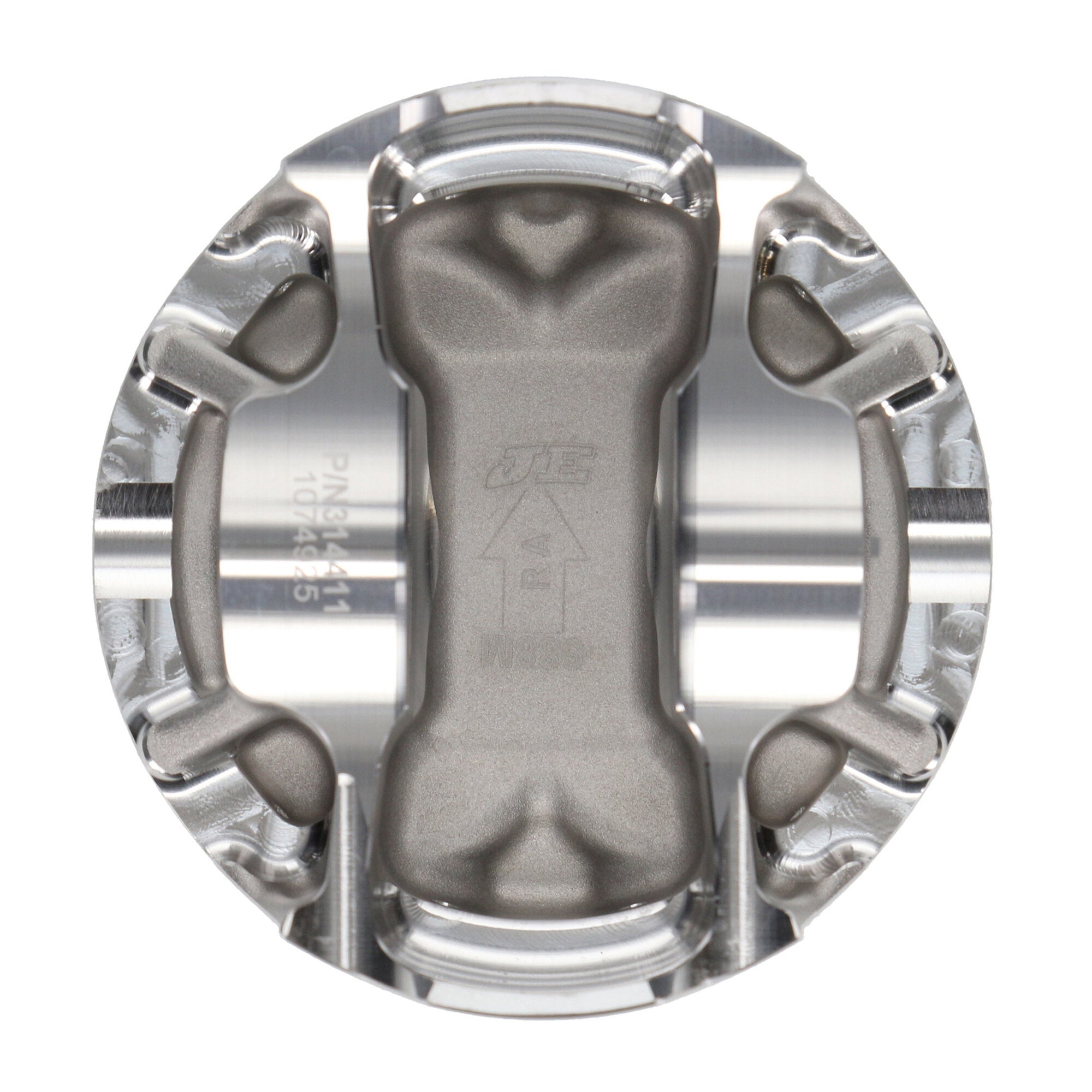

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Modular Ford, 3.650 in. Bore, 1.174 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 5.0L Coyote, 3.650 Bore, Dish, Set of 8 |
| Piston Average Weight |
350 |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.111 |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
3.650 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Outer Diameter |
0.866 |
| Top Compression Ring Thickness |
0.0400 |
| Make |
FORD |
| Piston Pin Outside Diameter |
0.866 |
| Engine - Web |
Modular |
| Wrist Pin Length |
2.250 |
| Compression Height |
1.174 |
| Add-On |
866-2250-15-51C |
| Piston Material |
2618 |
| Product Market |
Domestic |
| Add-On |
866-063-MW |
| Piston Quantity |
8 |
| Piston Volume |
-18.20 |
| Title |
JE Pistons - Ford, Modular, 3.650 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Add-On |
JG1008-3652 |
| Product Type |
Engine Piston Kit |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Industry |
Automotive |
| Engine |
Modular |
| Ringset Included |
No |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |

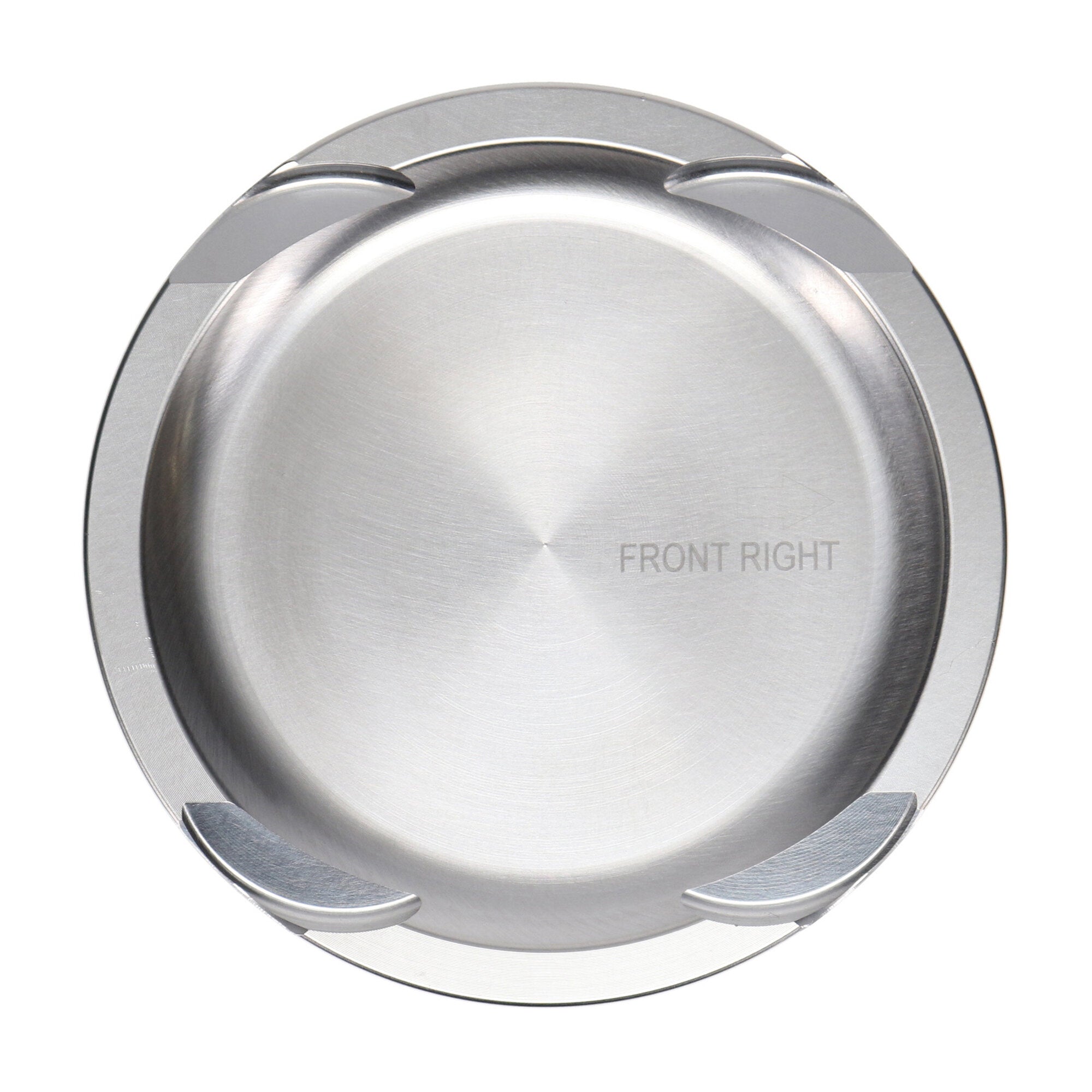

Dish |
| Title - Web |
JE Pistons Ford Modular Piston Kit - 3.650 in. Bore - 1.174 in. CH, -18.20 CC |
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 1/2 |
| Second Compression Ring Thickness |
0.0480 |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
11.0000 |
