As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Audi 2.7L S4 TT |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

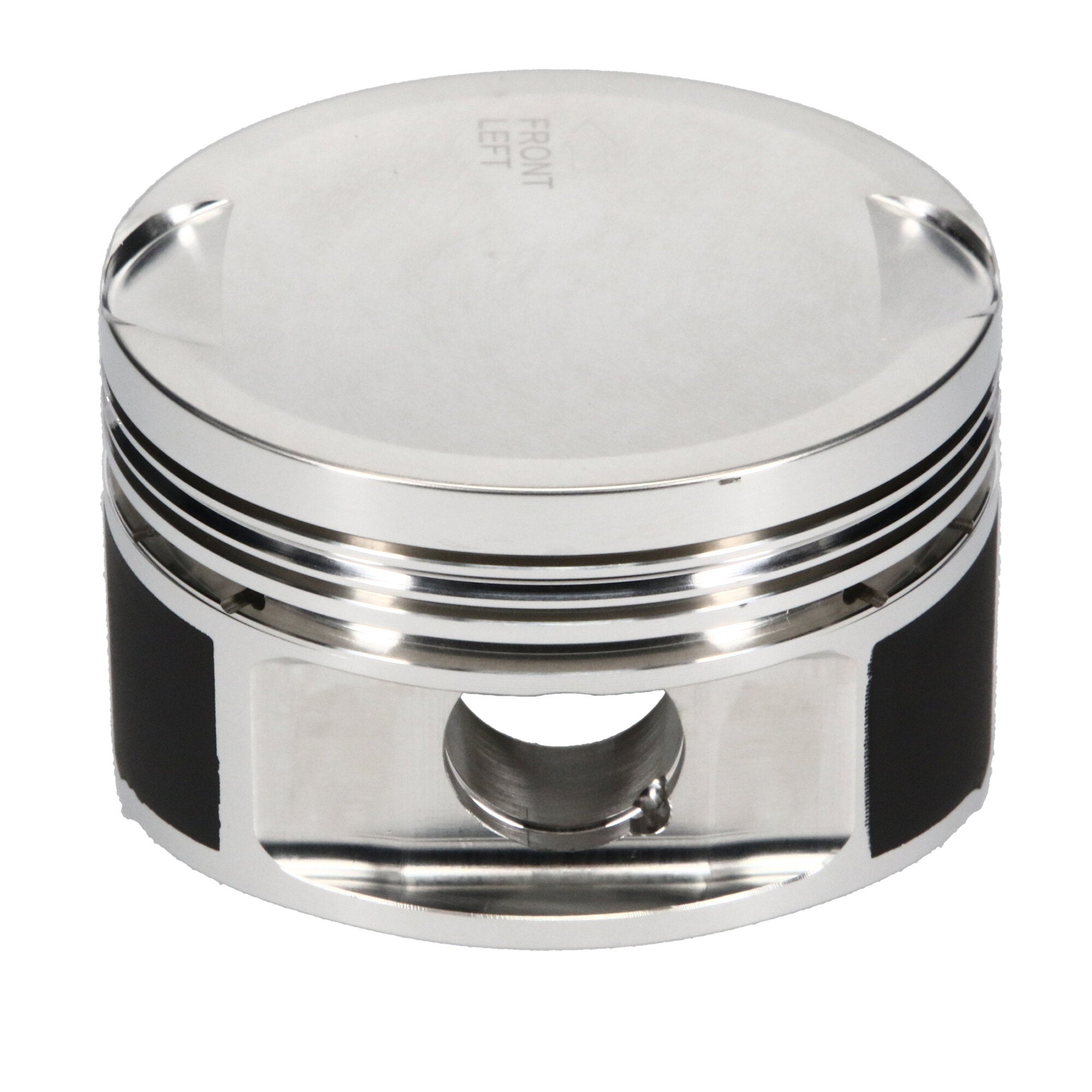

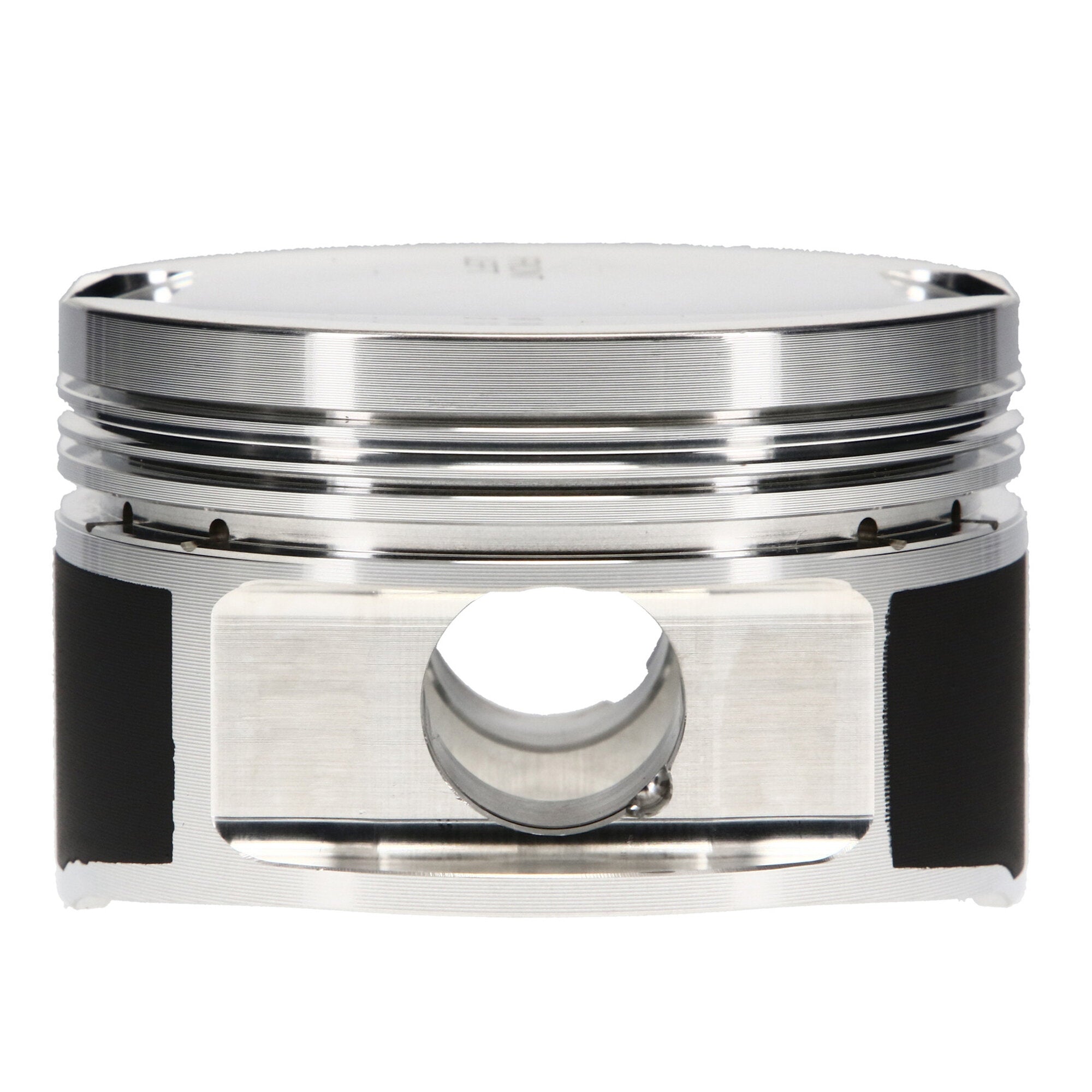

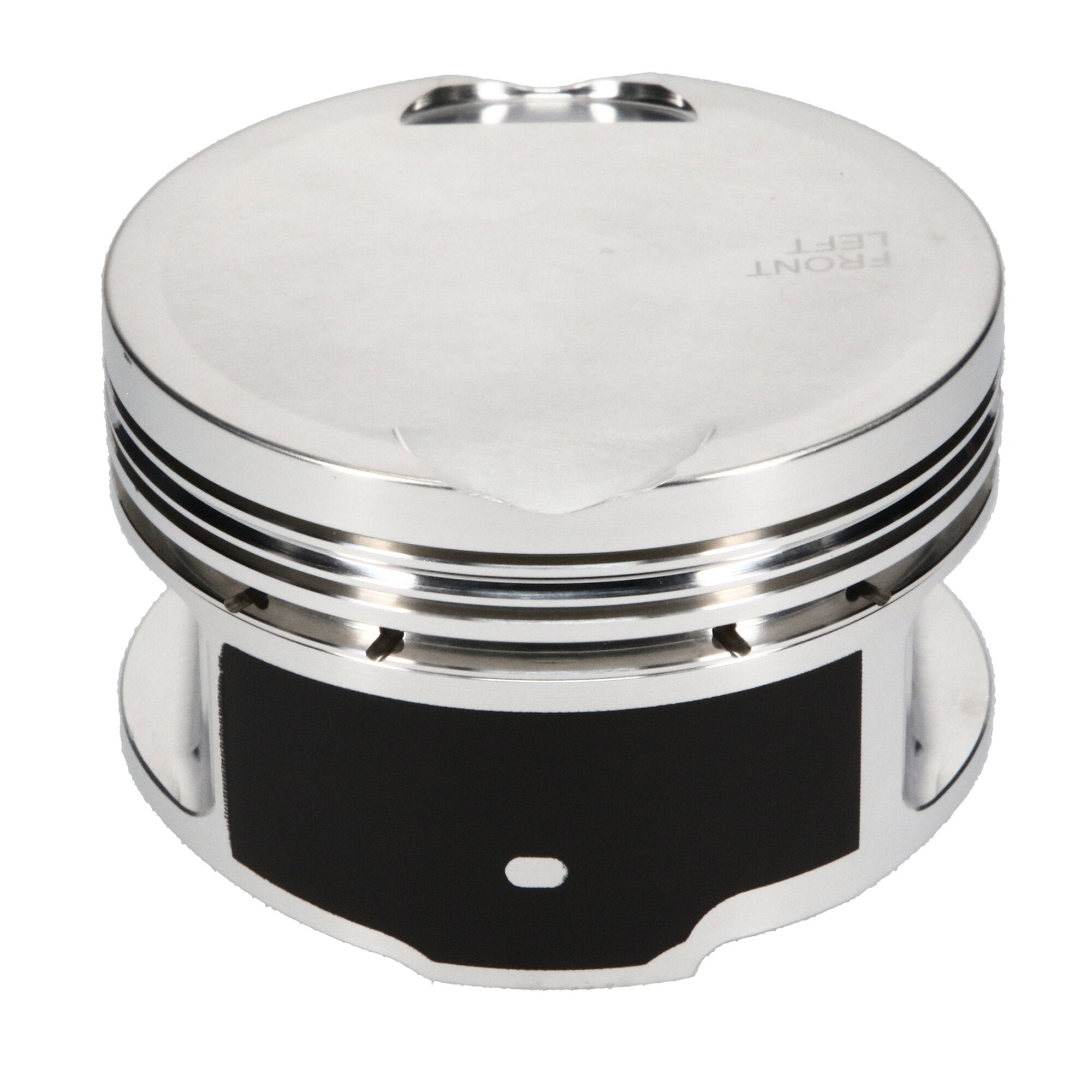

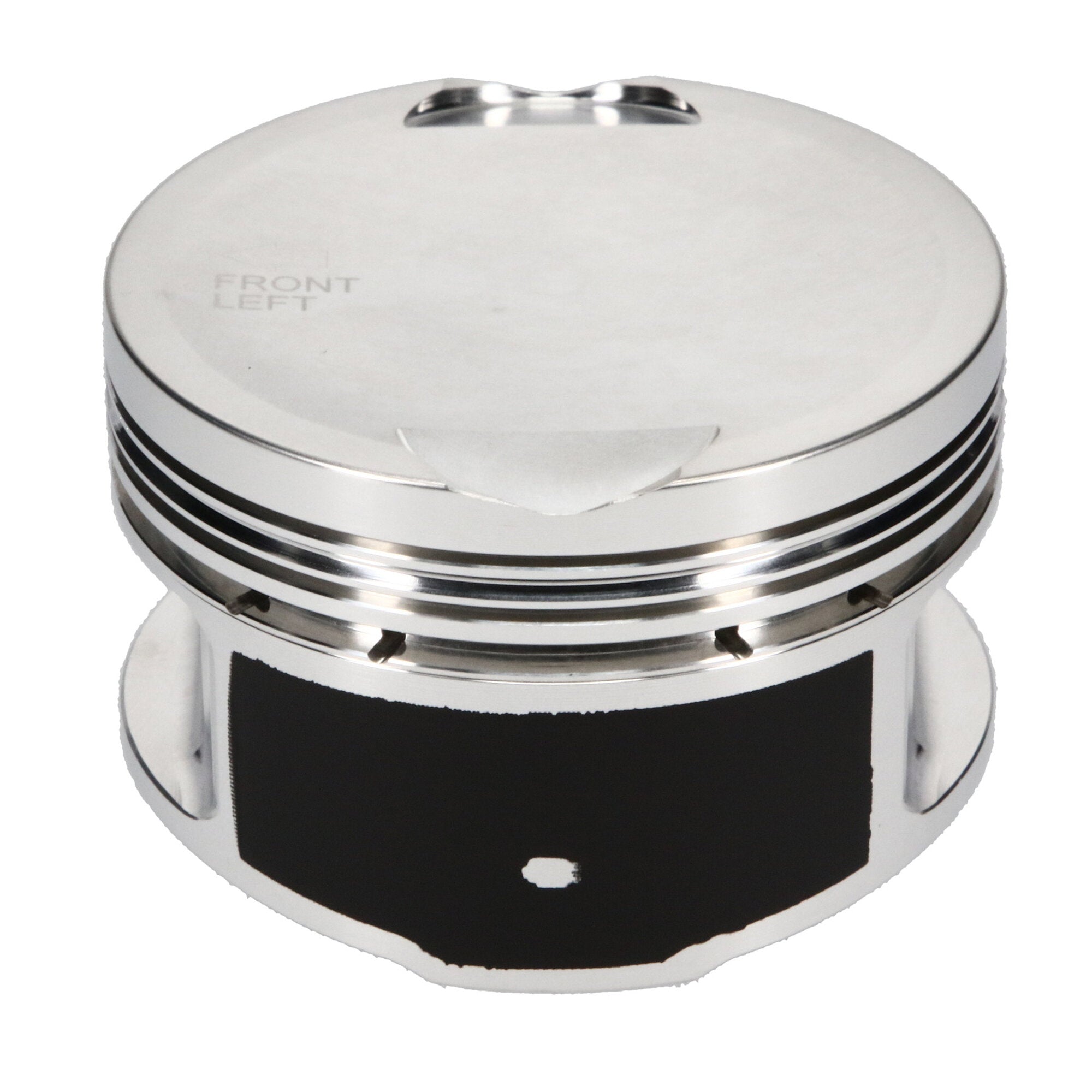

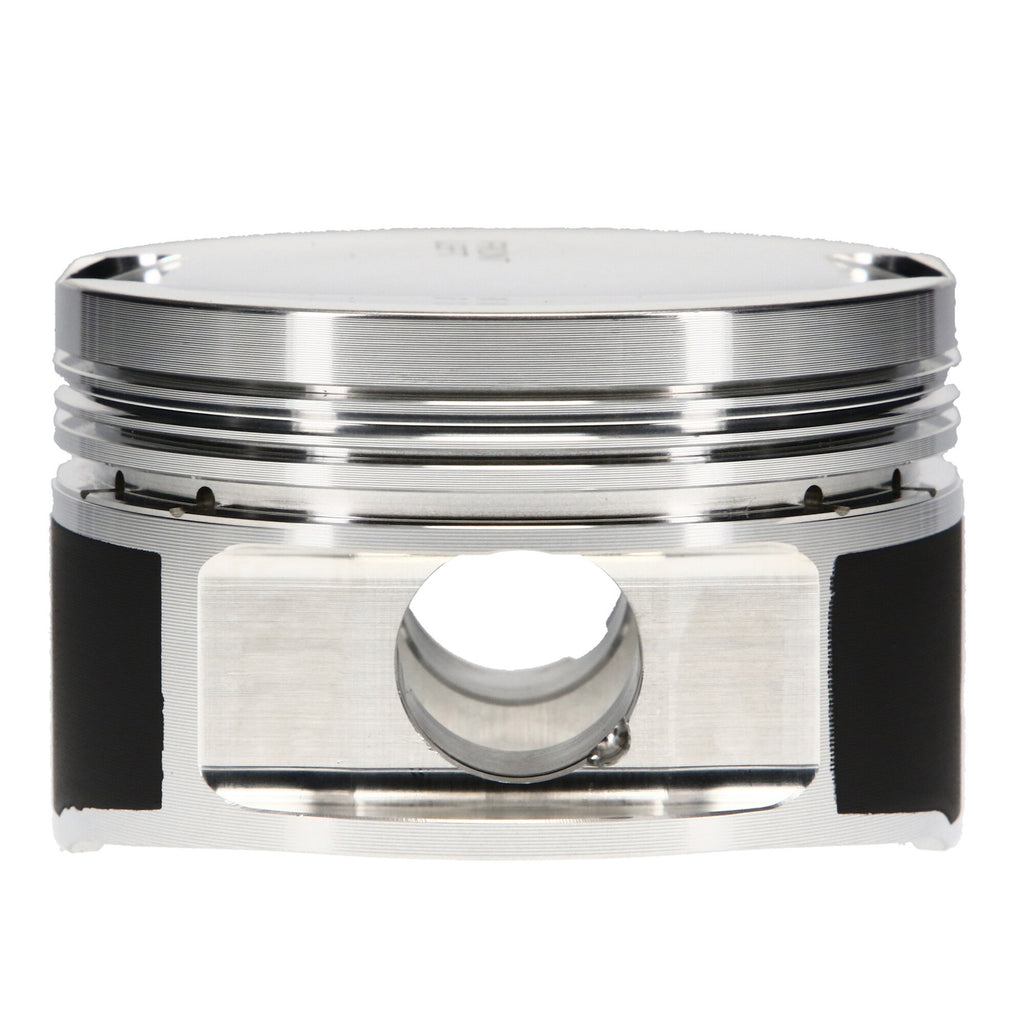

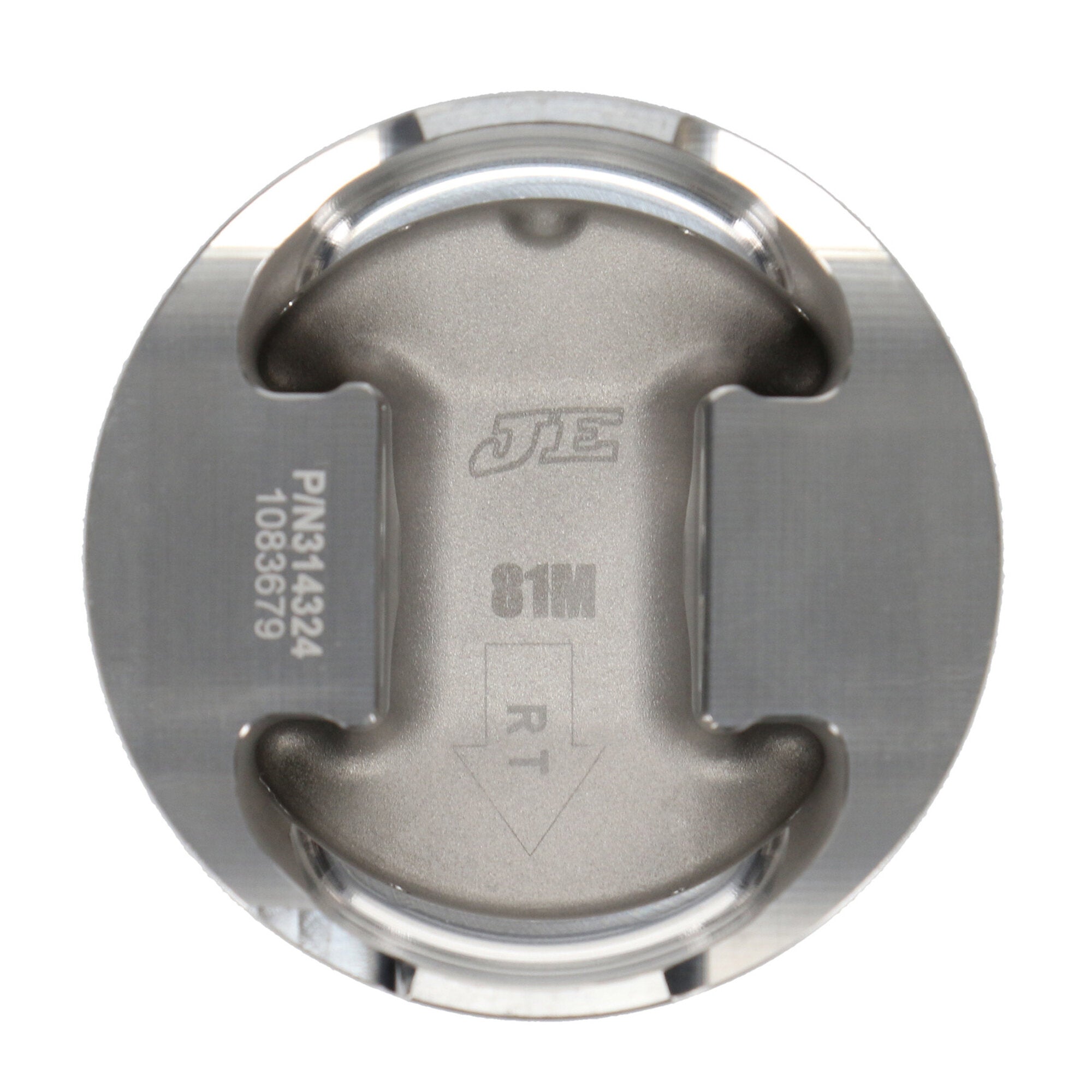

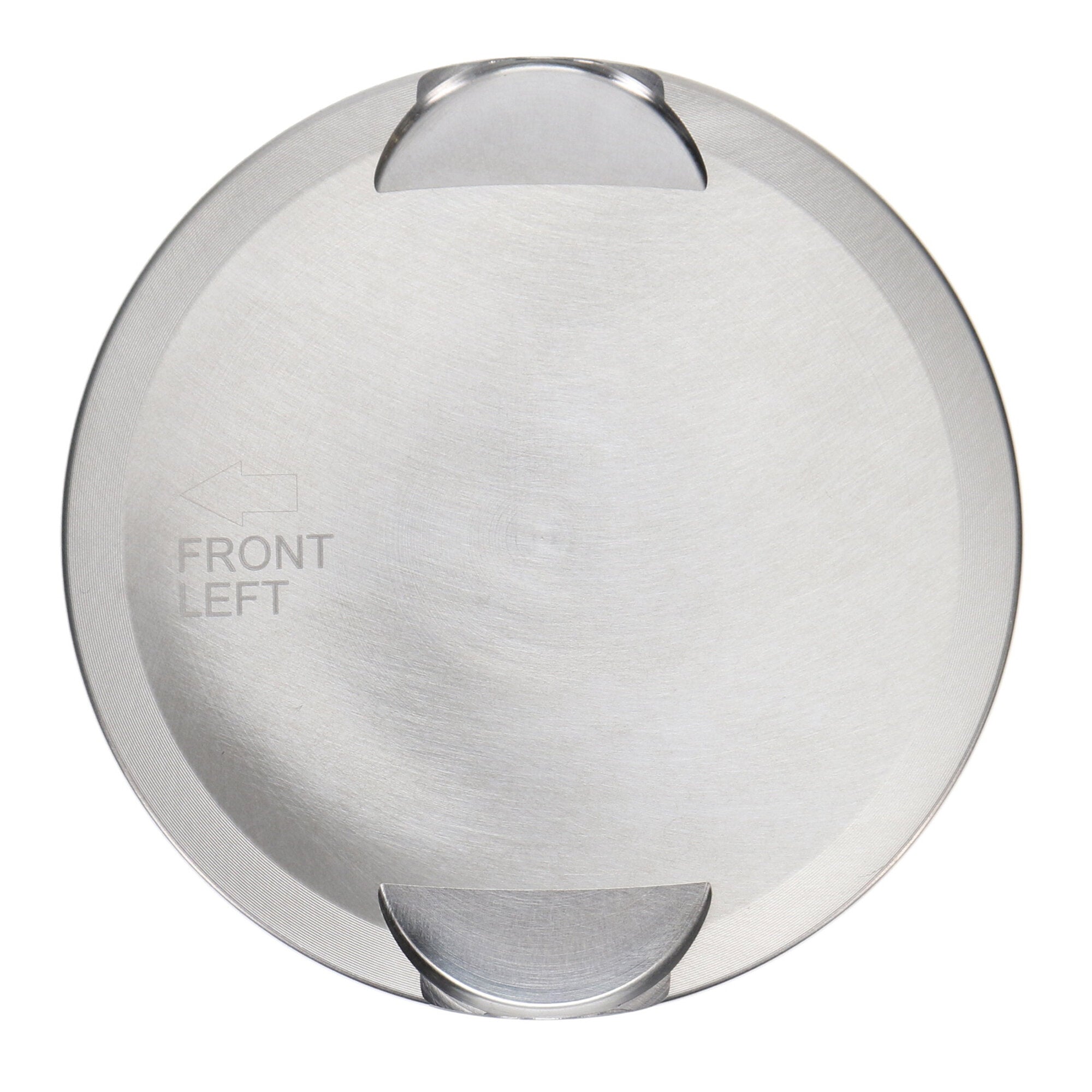

Piston Set, 2618, Inv Dome/Dish, 3.189 Bore, 1.210 CD, 0.827 Pin, Set of 6. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Audi, 2.7L S4 TT, 3.189 in. Bore, 9.00:1, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Audi 2.7L, 81.00 Bore, Dish, Set of 6 |
| Engine Type |
ICE |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.827 |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.827 |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.111 |
| Piston Head Type |
Dish |
| Make |
AUDI |
| Piston Quantity |
6 |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
2.7L S4 TT |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
827-063-MW |
| Compression Height |
1.210 |
| Product Market |
European |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
827-2250-15-51C |
| Title |
JE Pistons - Audi, 2.7L S4 TT, 81.00 mm Bore, Piston Kit |
| Piston Pin Length |
2.250 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Engine |
2.7L S4 TT |
| Bore Diameter |
81.00 |
| Piston Average Weight |
302 |
| Ringset Included |
Yes |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3189 |
| Wrist Pin Wall Thickness |
0.150 |
| Industry |
Automotive |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Cylinder Head |
2.7L TT 5V |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Audi 2.7L S4 TT Piston Kit - 81.00 mm Bore - 1.210 in. CH, -3.30 CC |
| Second Compression Ring Thickness |
0.0480 |
| Piston Volume |
-3.30 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Make - Web |
Audi |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
