As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T TSI 08-14 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

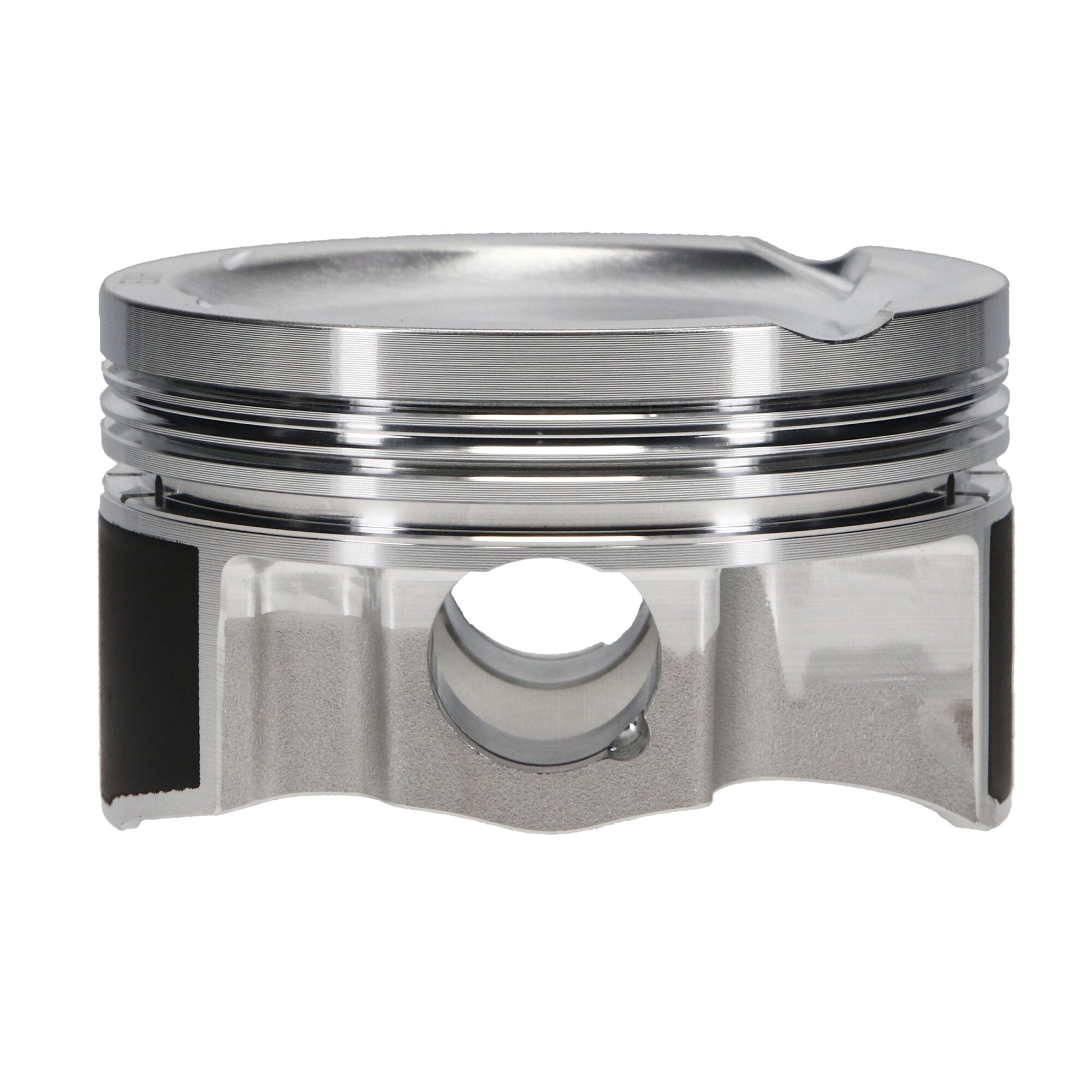

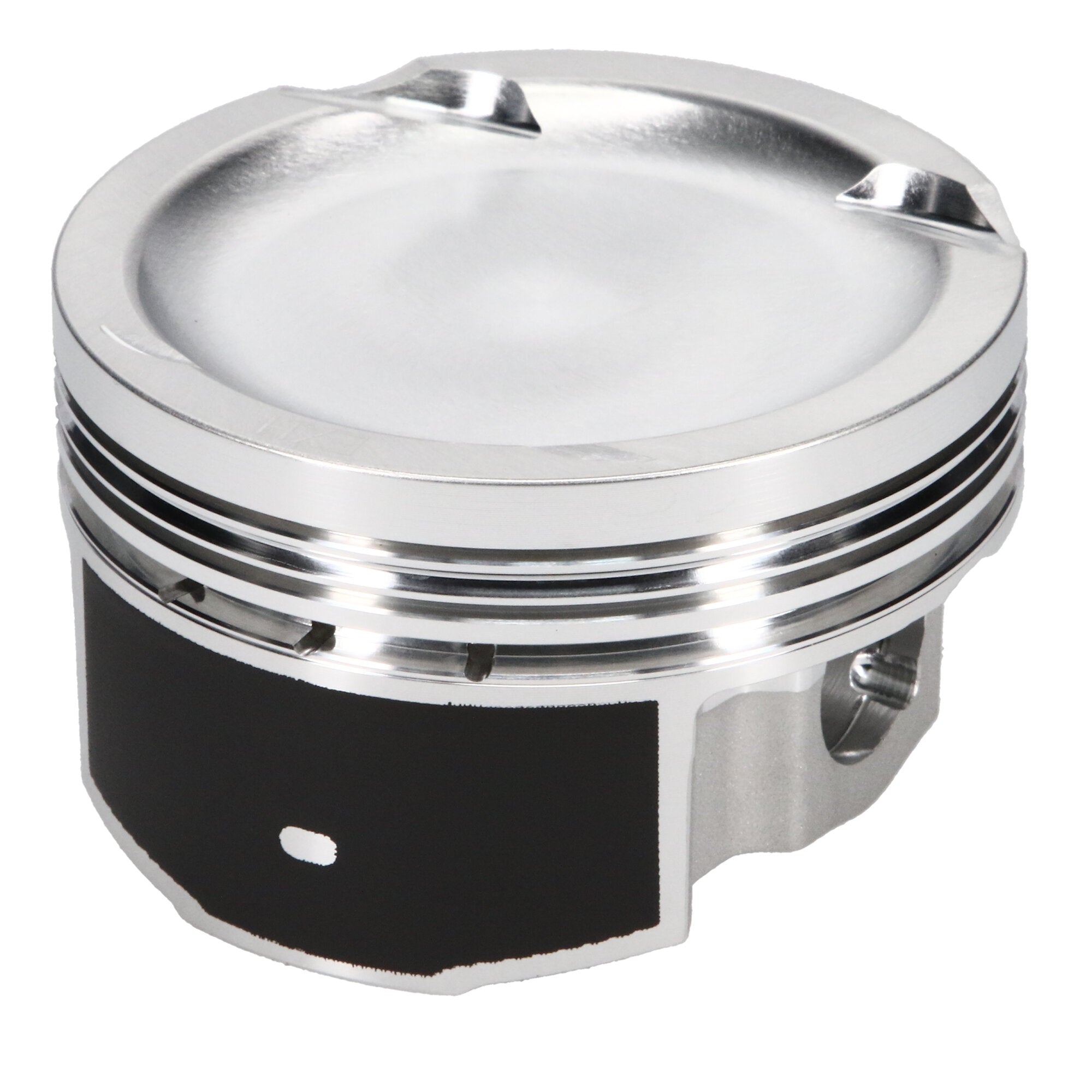

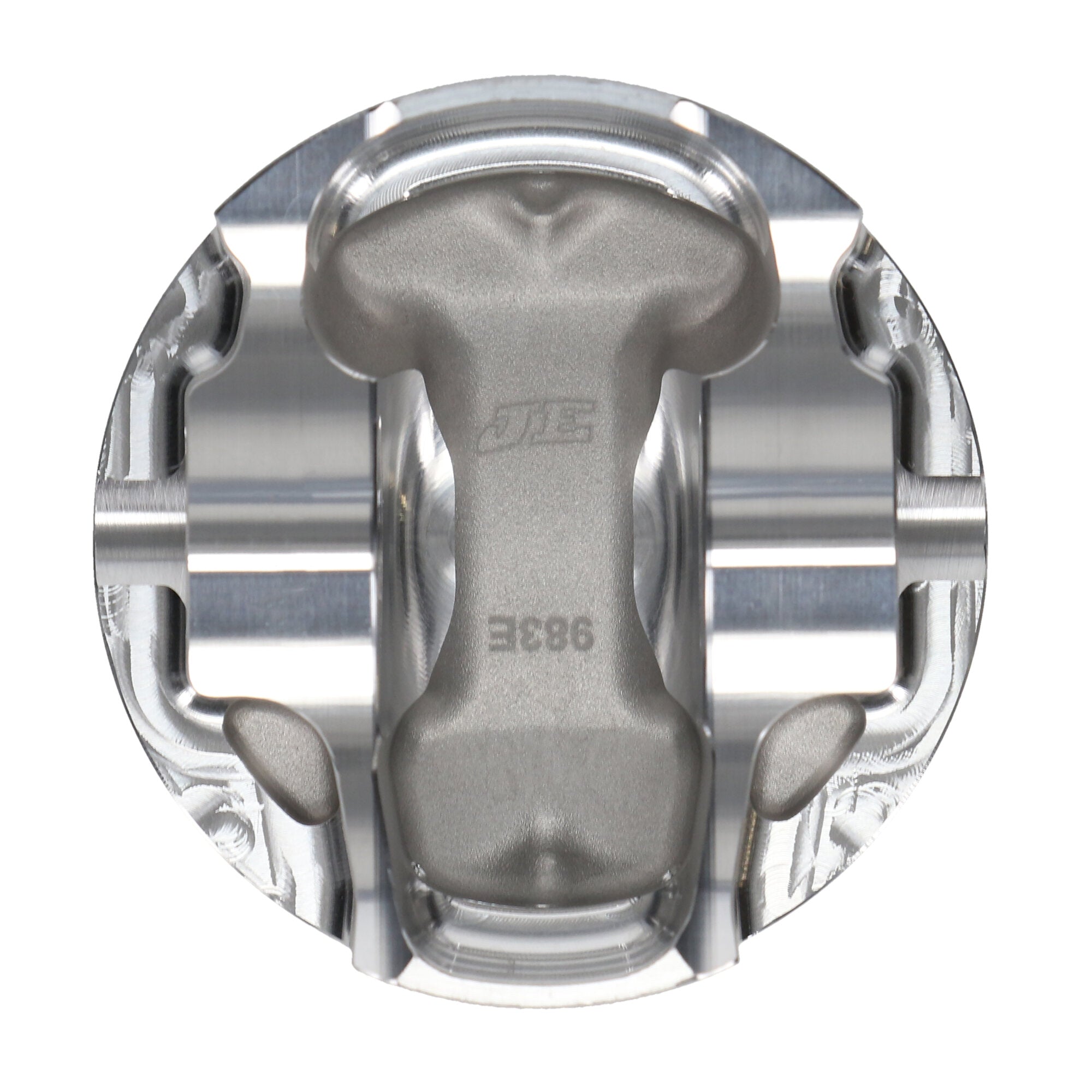

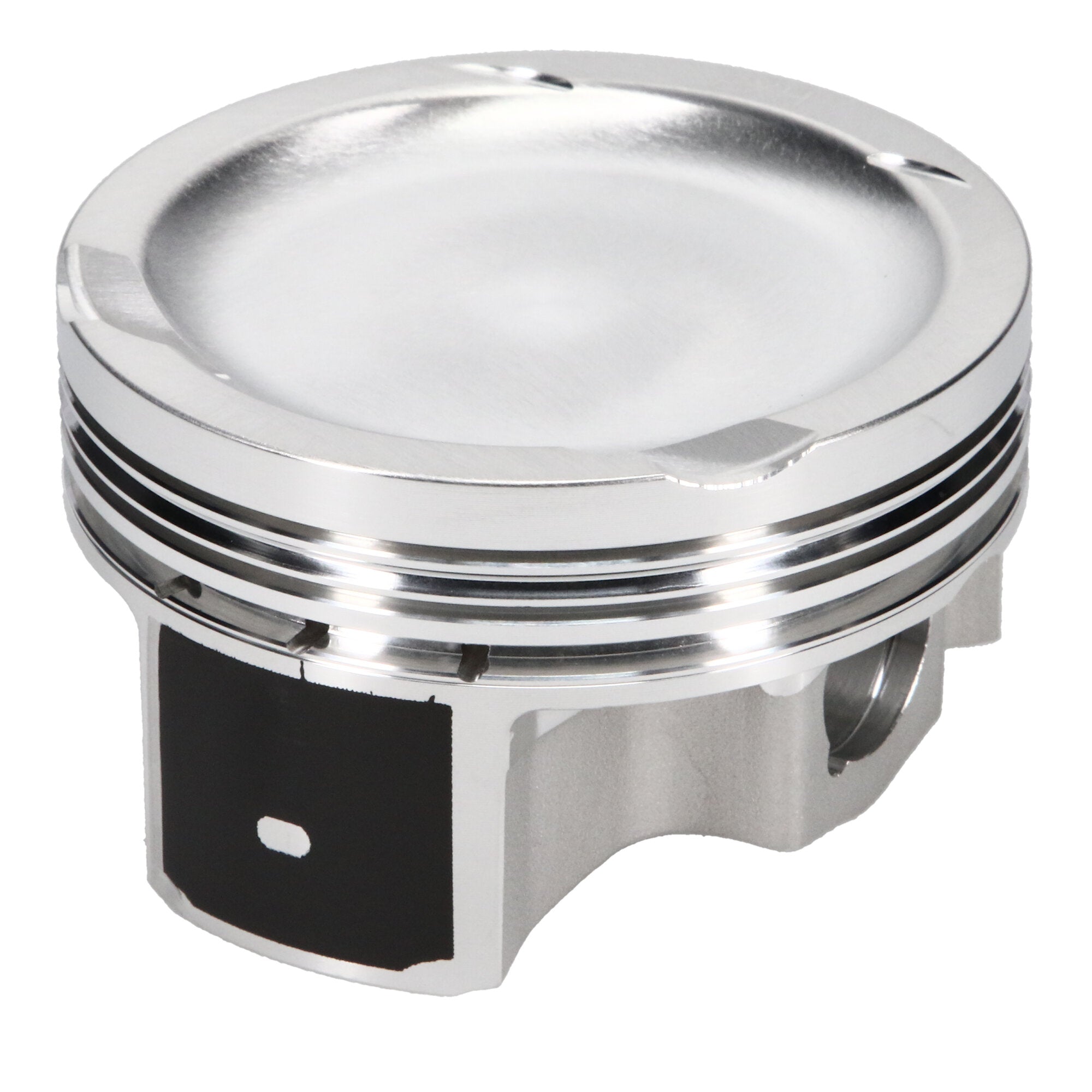

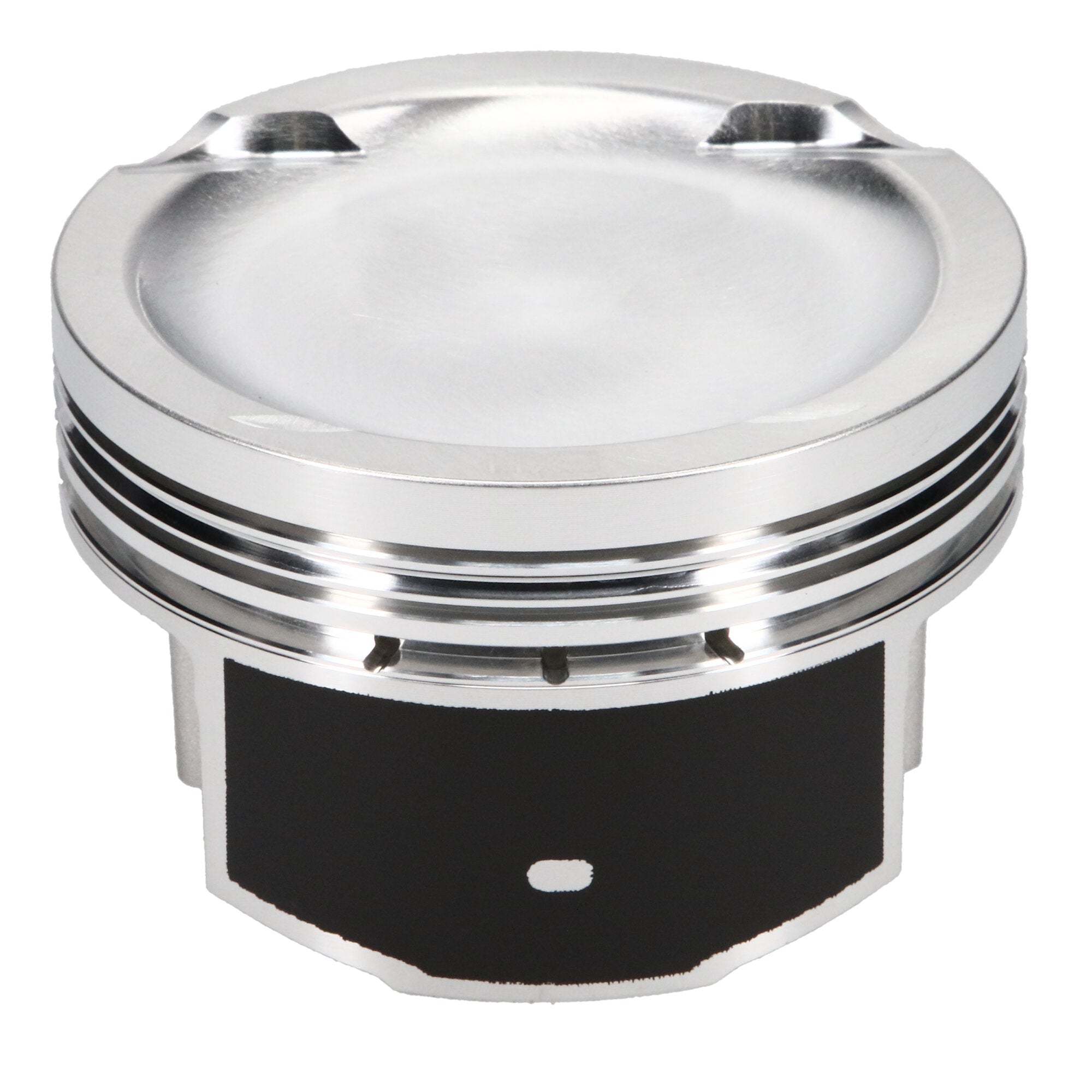

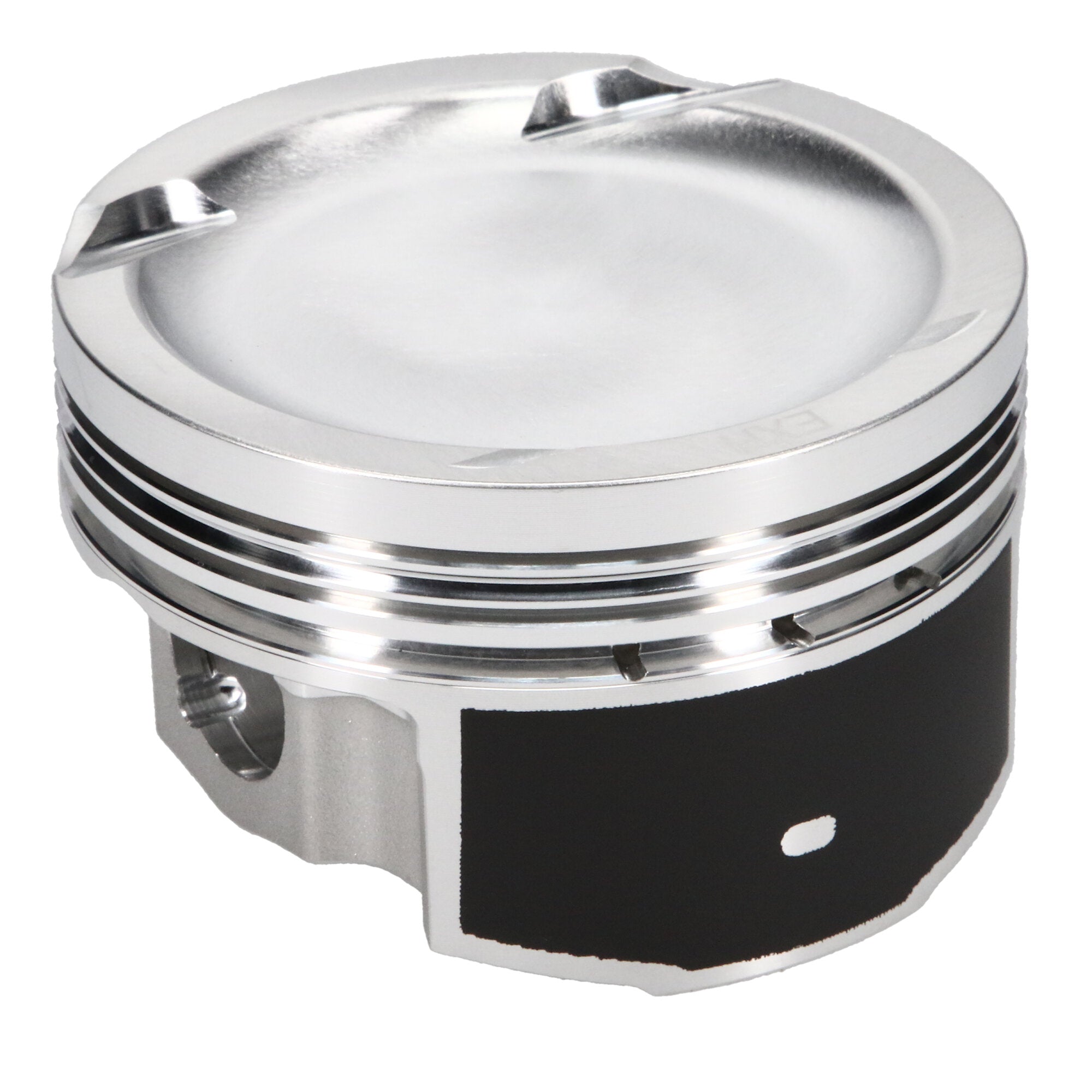

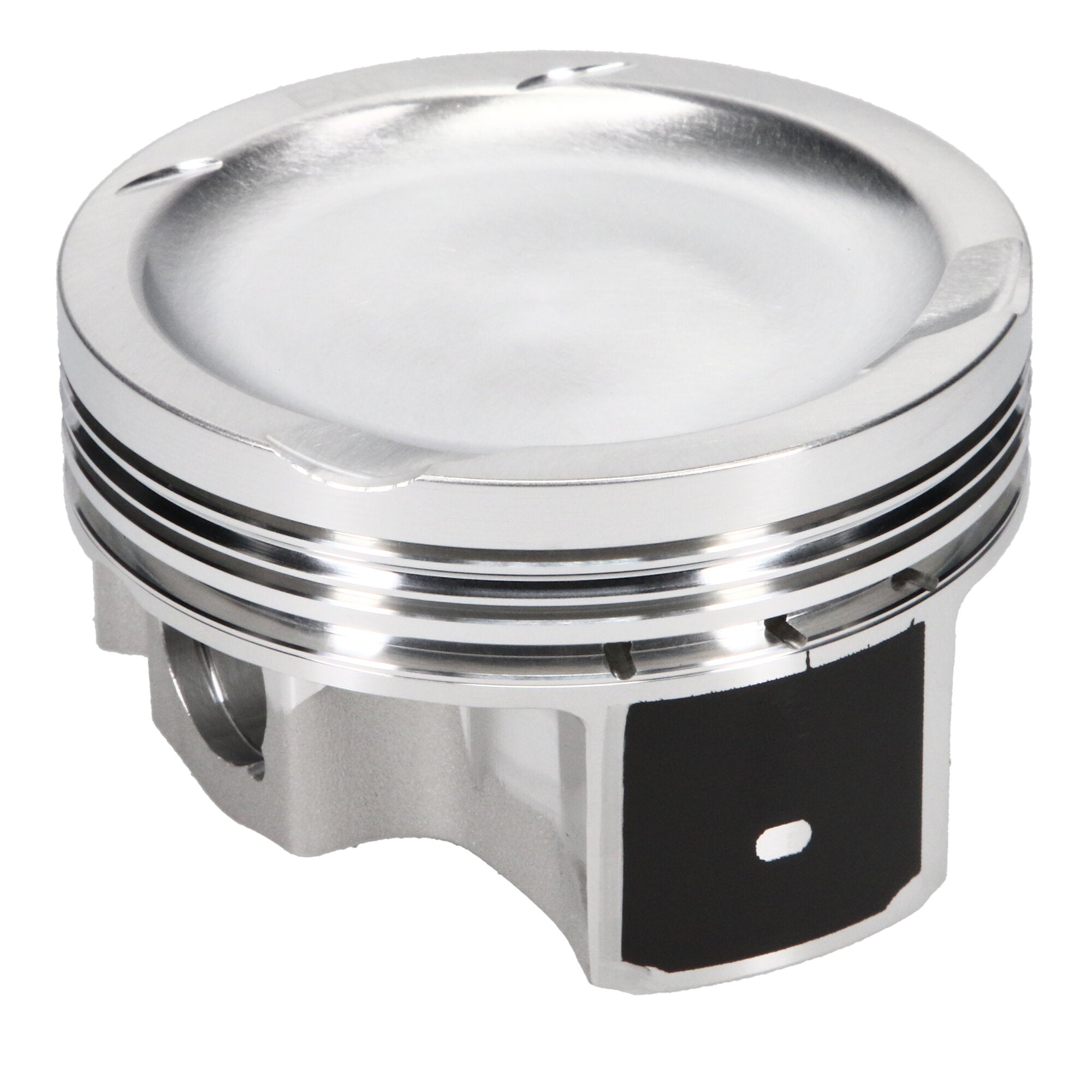

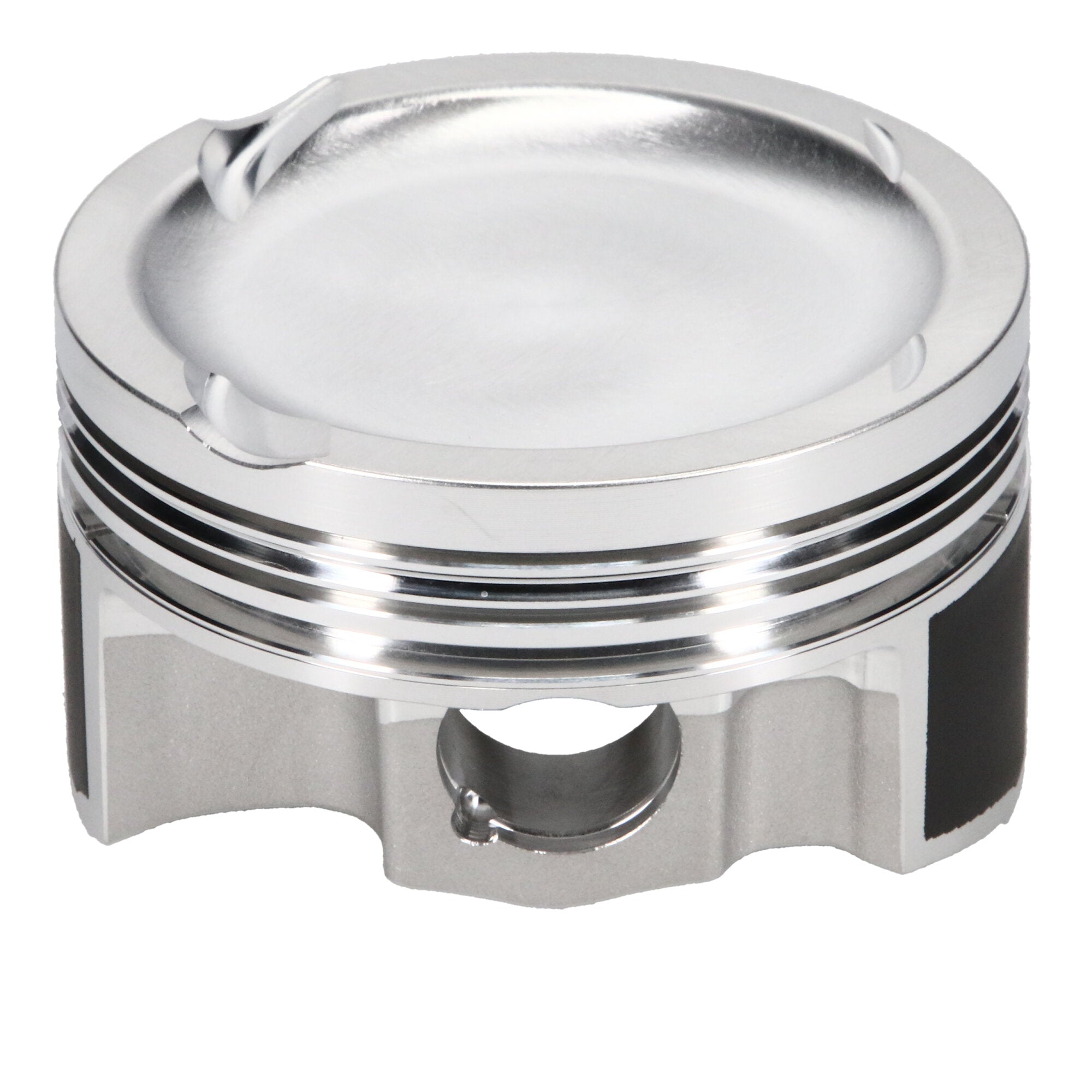

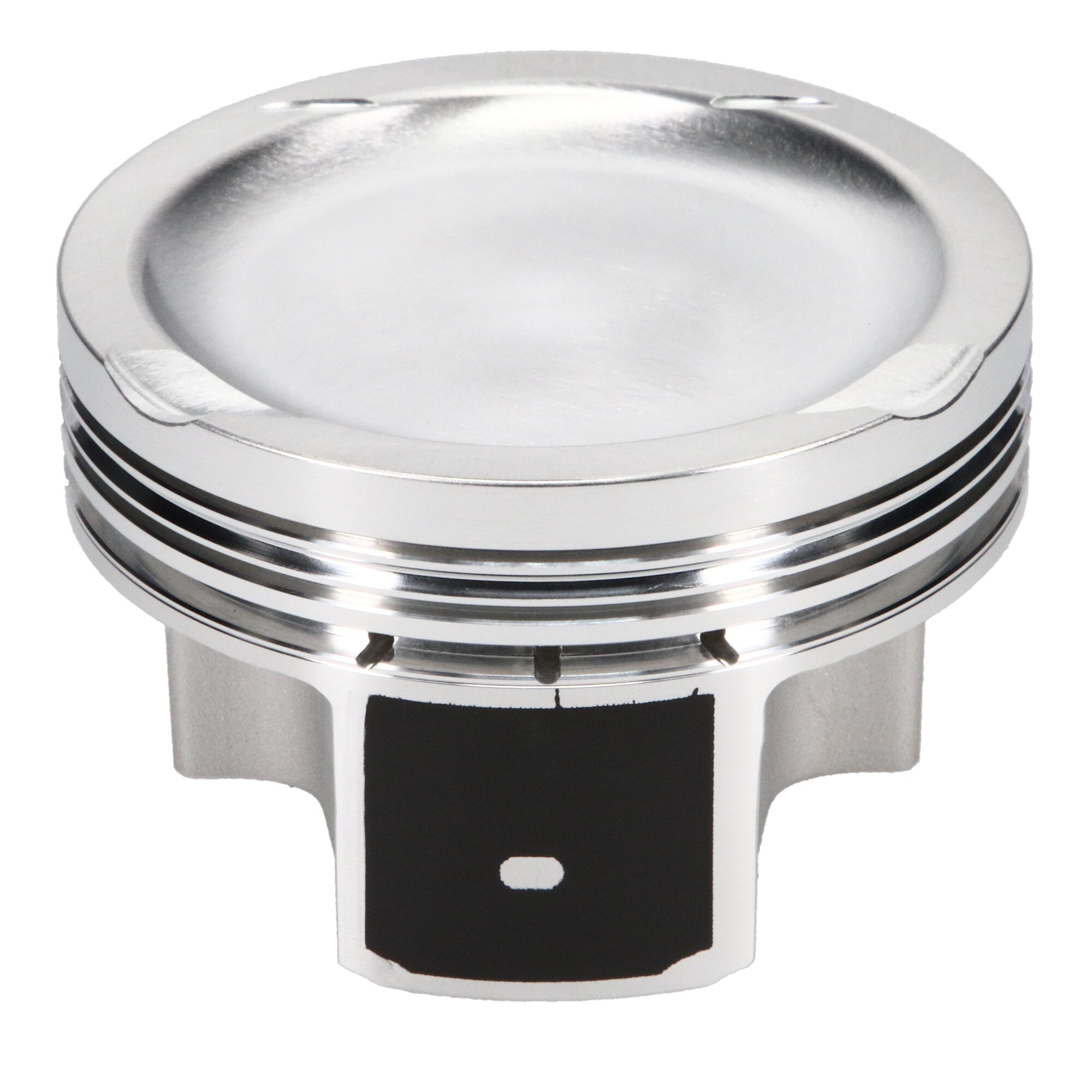

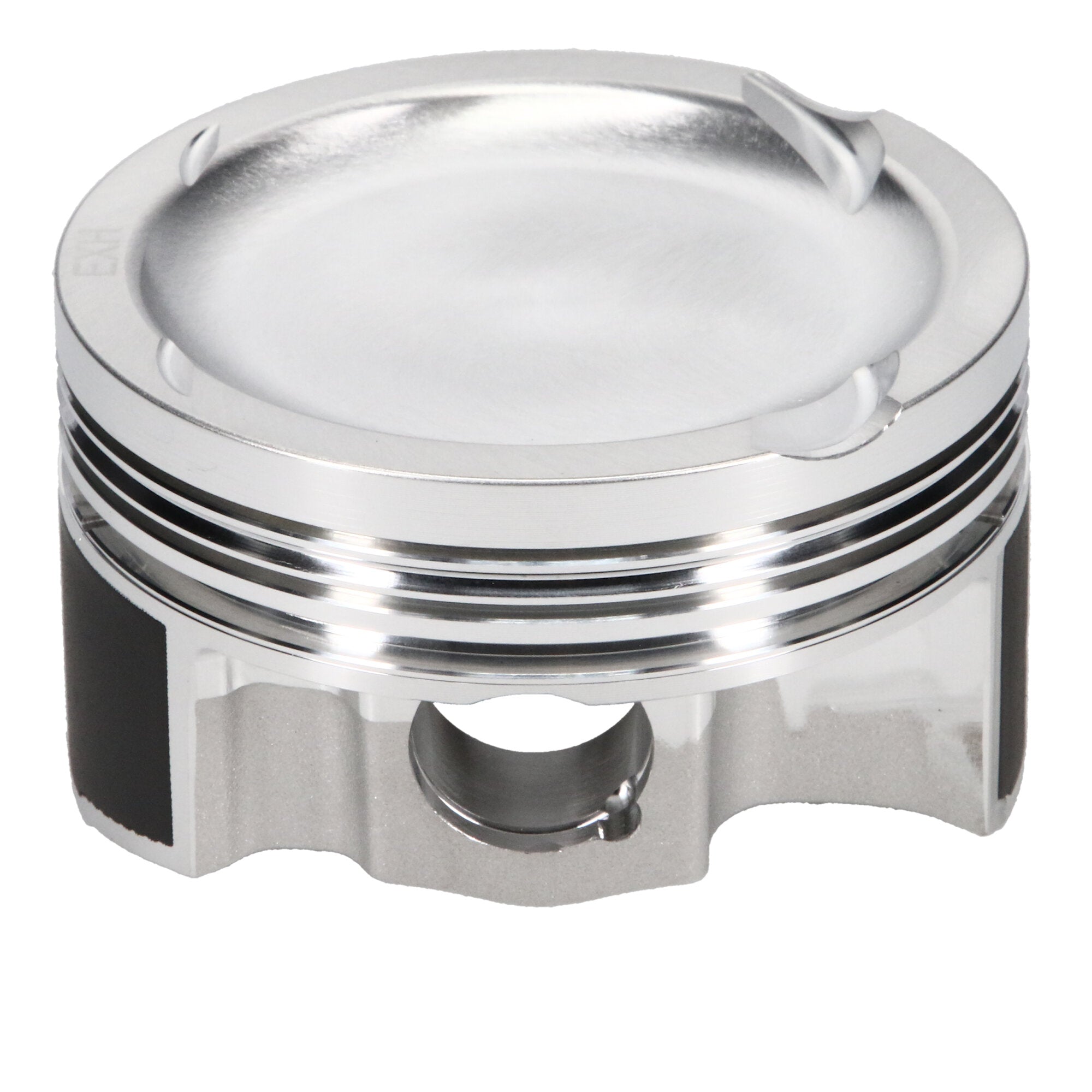

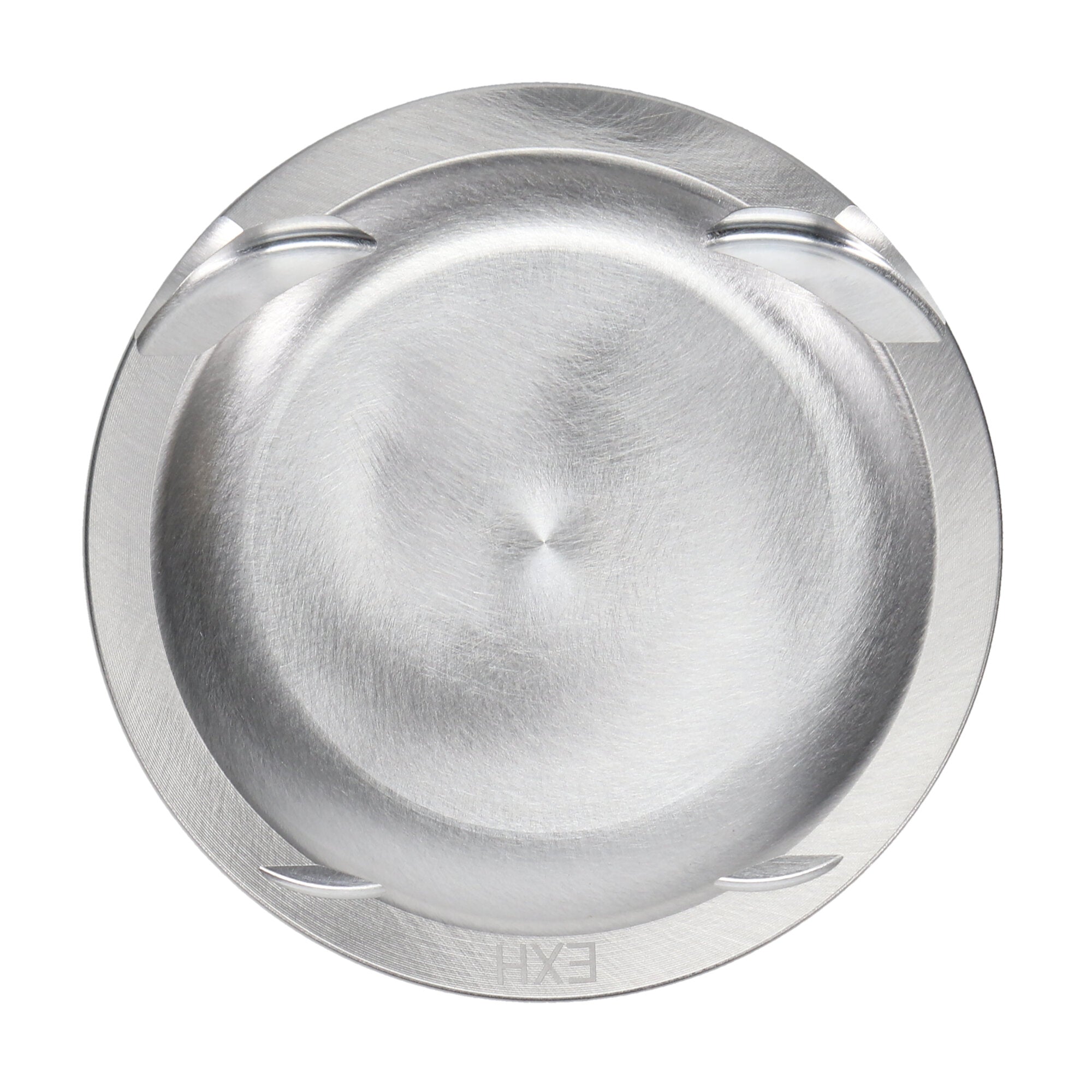

Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.165 CD, 0.827 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, VW, 2.0T TSI - 08-14 - 21mm Pin, 3.287 in. Bore, 10.30:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 83.50 Bore, Dish, Set of 4 |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Engine |
2.0T TSI 04-08 21 mm Pin |
| Make |
VOLKSWAGEN |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Wrist Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Piston Average Weight |
303 |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.165 |
| Product Market |
European |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
83.50 |
| Forging Type |
FSR |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Volkswagen, 2.0T TSI, 83.50 mm Bore, Piston Kit |
| Piston Quantity |
4 |
| Piston Pin Wall Thickness |
0.150 |
| Ring Set Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Detail |
2.0T TSI 04-08 21 mm Pin |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
2.0T TSI |
| Add-On |
JG1001-3287 |
| Cylinder Head |
2.0 TSI |
| Piston Volume |
-4.30 |
| Add-On |
827-2250-15-51C |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 Yes/No |
Yes |
| Add-On |
827-063-MW |
| Piston Pin Outside Diameter |
0.827 |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Volkswagen 2.0T TSI Piston Kit - 83.50 mm Bore - 1.165 in. CH, -4.30 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Volkswagen |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
